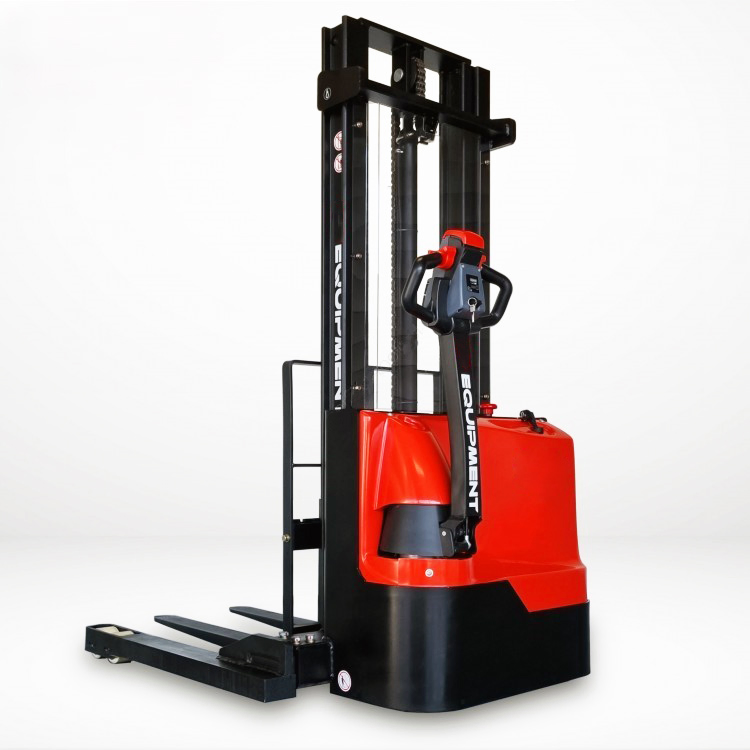

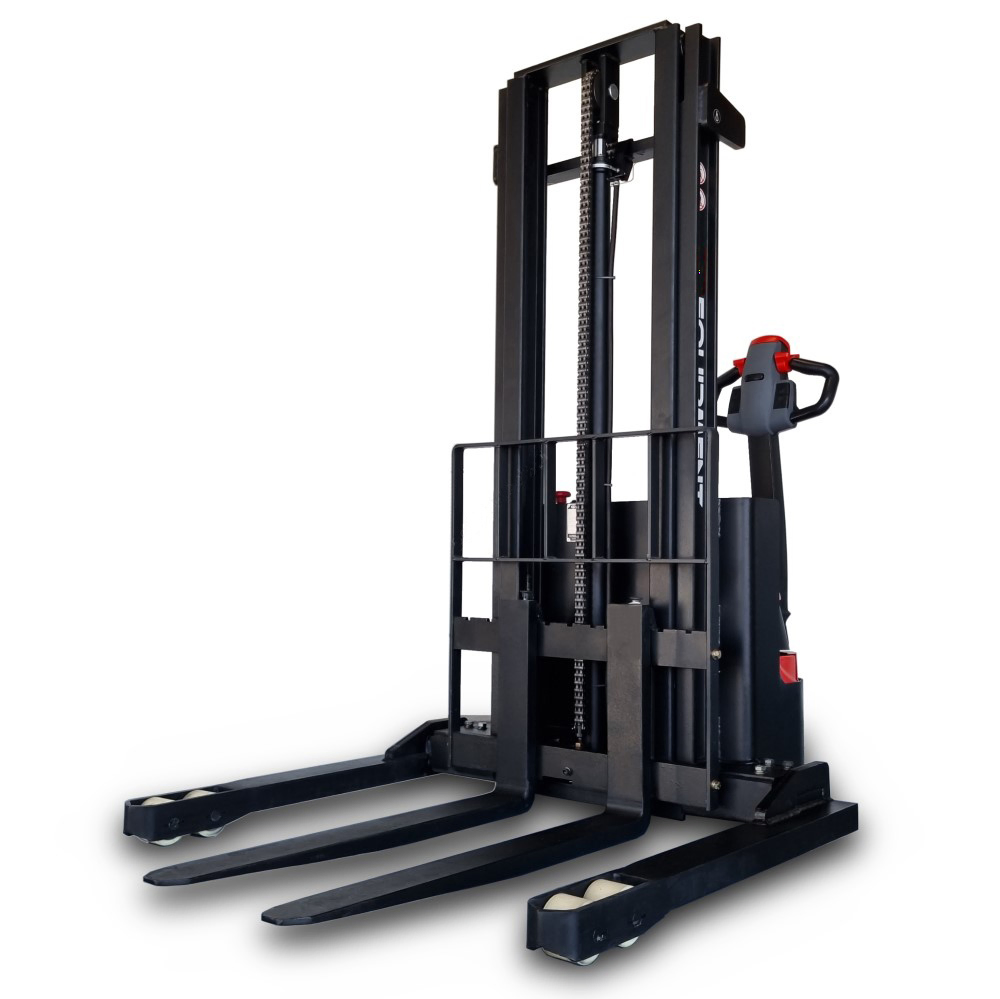

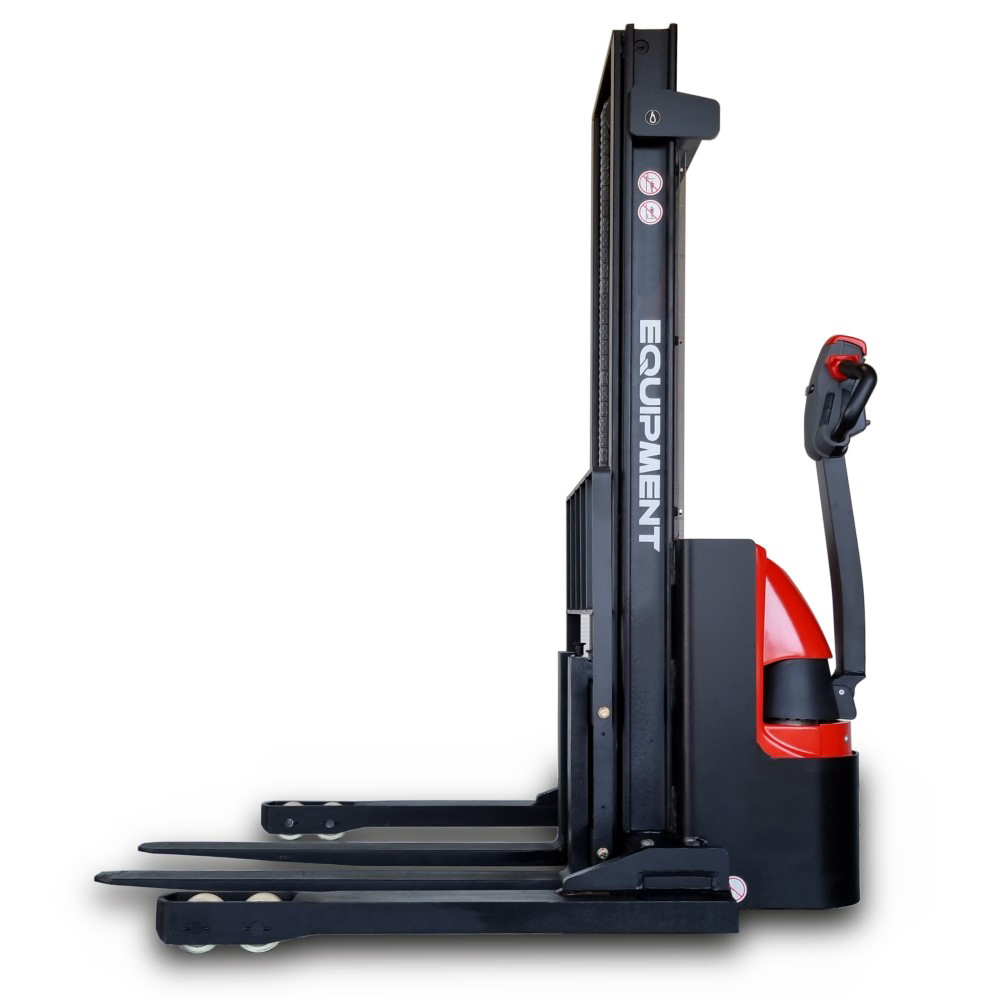

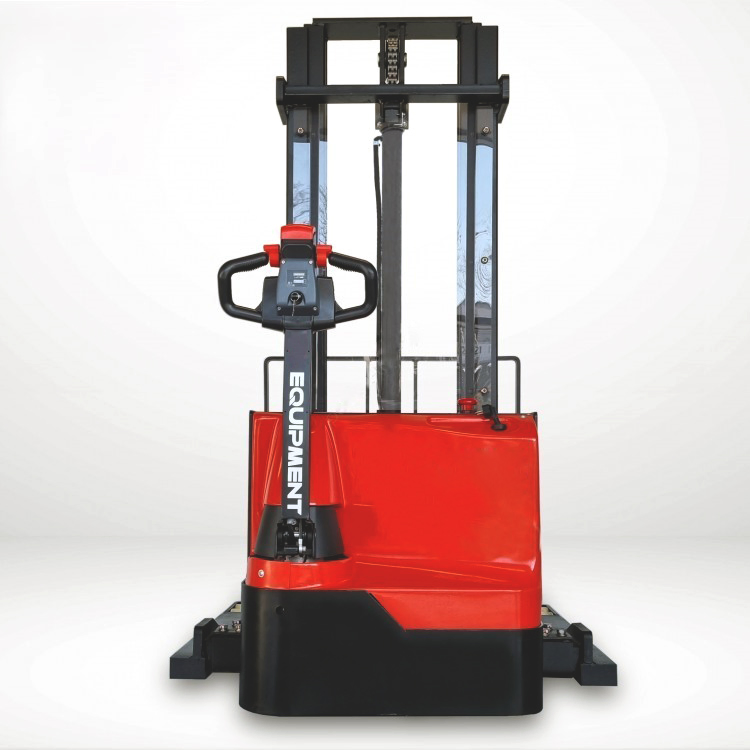

Versatile 1.5 Ton Double Mast Manual Electric Pallet Stacker for Easy Handling
The ES15-33DM electric stacker is a professional-grade double mast construction machine with a 1.5-ton capacity. It is specifically designed for efficient material handling and stacking operations in warehouse and production environments.

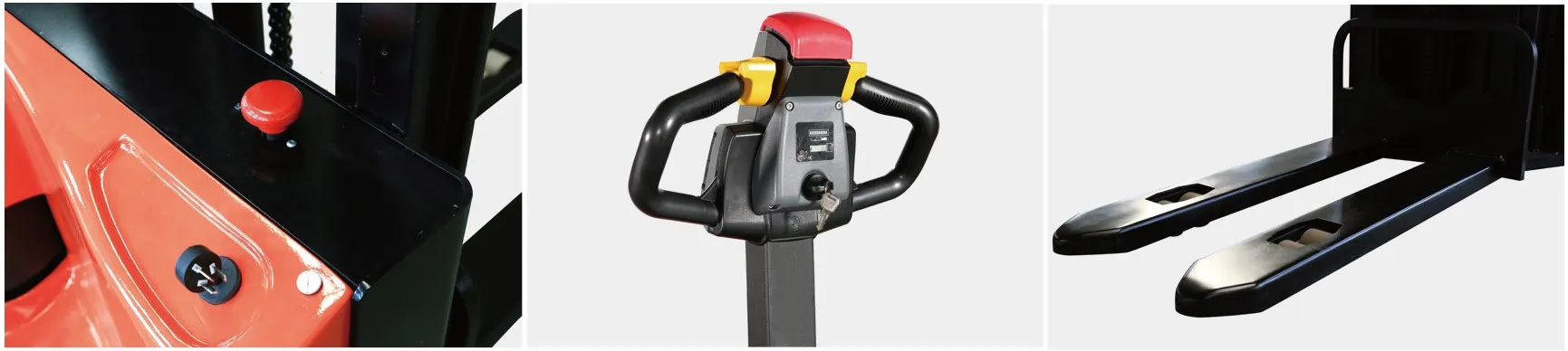

Safe hydraulic system prevents mast falls. Emergency reverse belly button and power disconnector protect operators. Automatic speed reduction at height limits ensures stability on ramps.
Ergonomic tiller with key switch and troubleshooting indicator. Compact chassis for small turning radius and excellent visibility during side operation.
Maintenance-free battery with on-board charger. Vertical motor design and detachable rear panel allow for easy inspection and service access.

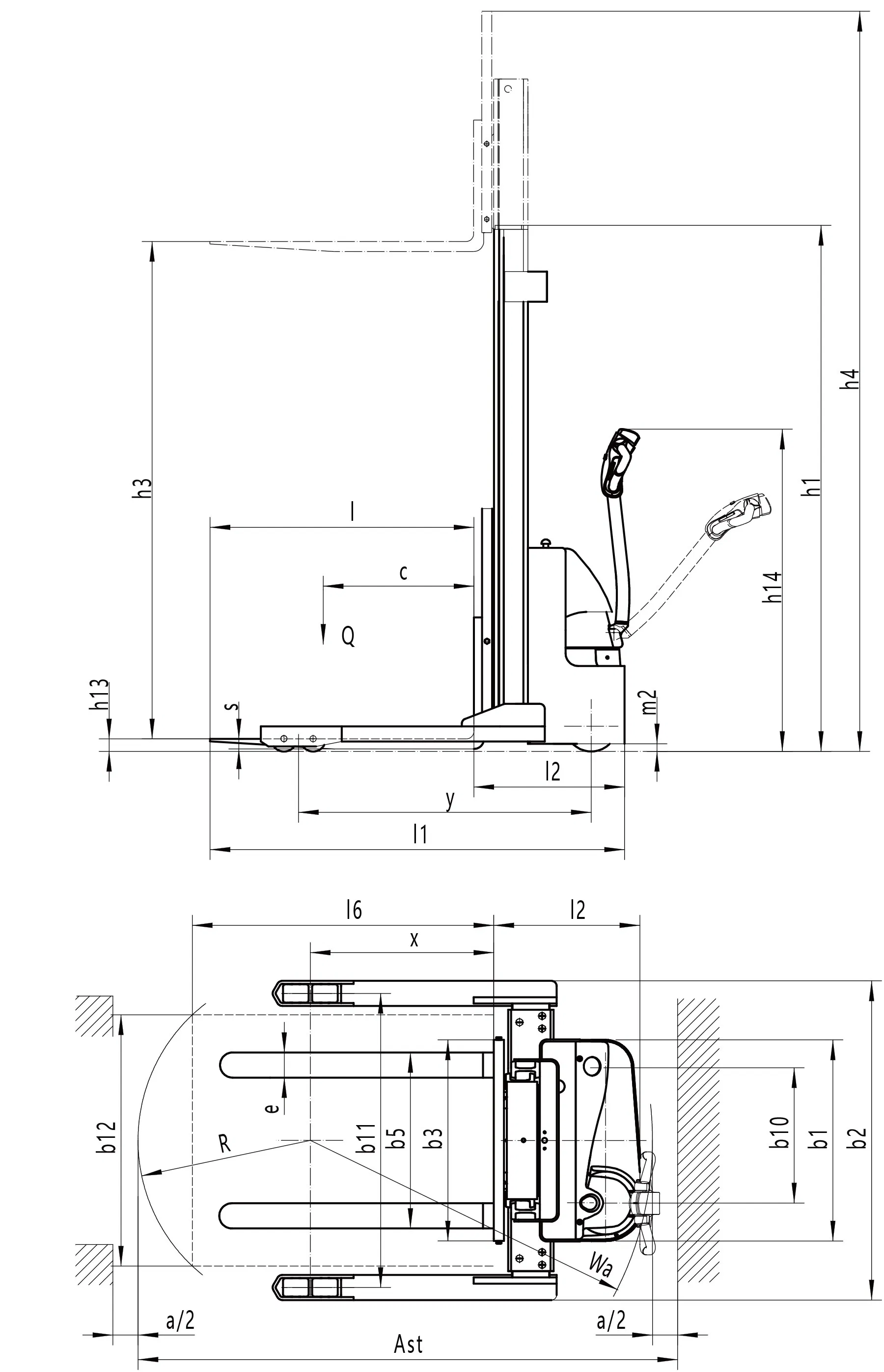

| Code | Description | Unit | Parameter |
|---|---|---|---|
| 1.2 | Model | - | ES15-33DM |
| 1.3 | Drive | - | Electric |
| 1.5 | Load capacity | kg | 1500 |
| 1.6 | Load center distance | mm | 600 |
| 2.1 | Service weight | kg | 915 |
| 4.4 | Lift height | mm | 3227 |
| 4.21 | Overall width | mm | 1270 |
| 4.35 | Turning radius | mm | 1400 |
| 6.4 | Battery voltage/capacity | V/Ah | 24/125 |

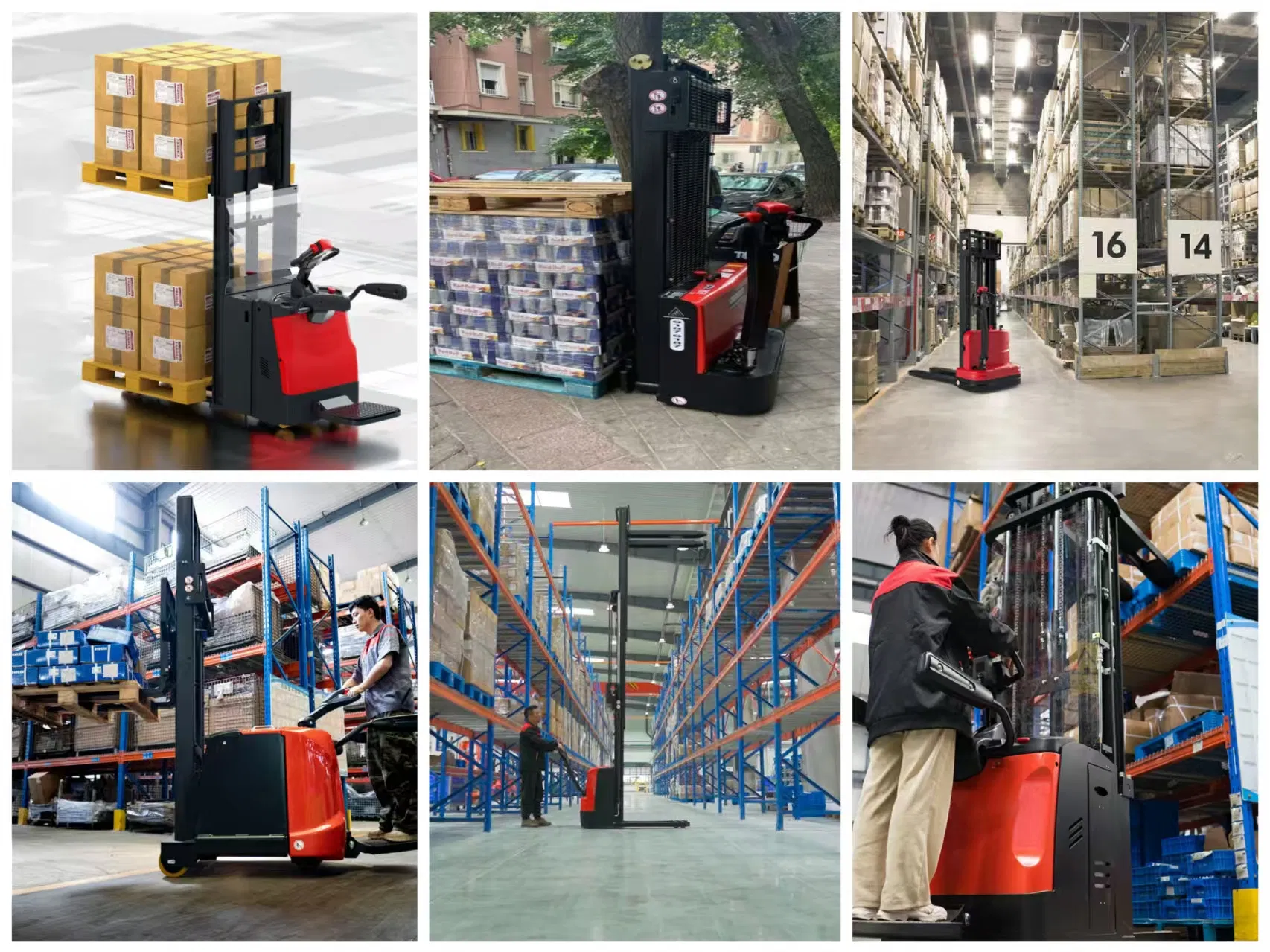

Warehouse and Production Areas: High efficiency for material handling in confined spaces.
Narrow Corridors: Compact design with a 1408 mm turning radius for maximum flexibility.
Medium-High Racks: Safe stacking up to 3.3 meters.

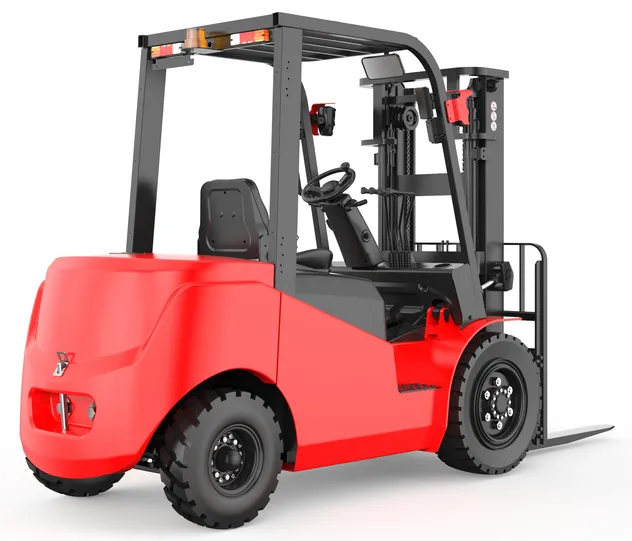

Forklift

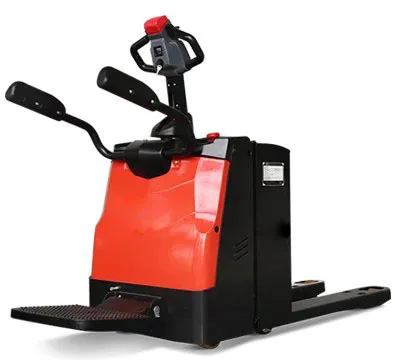

Pallet Truck

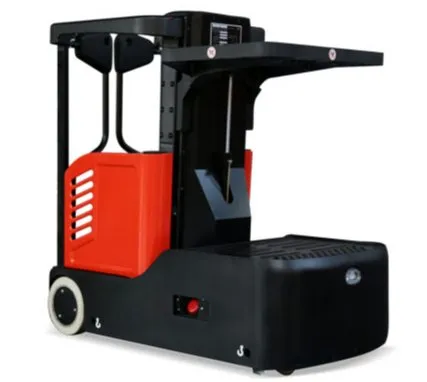

Order Picker

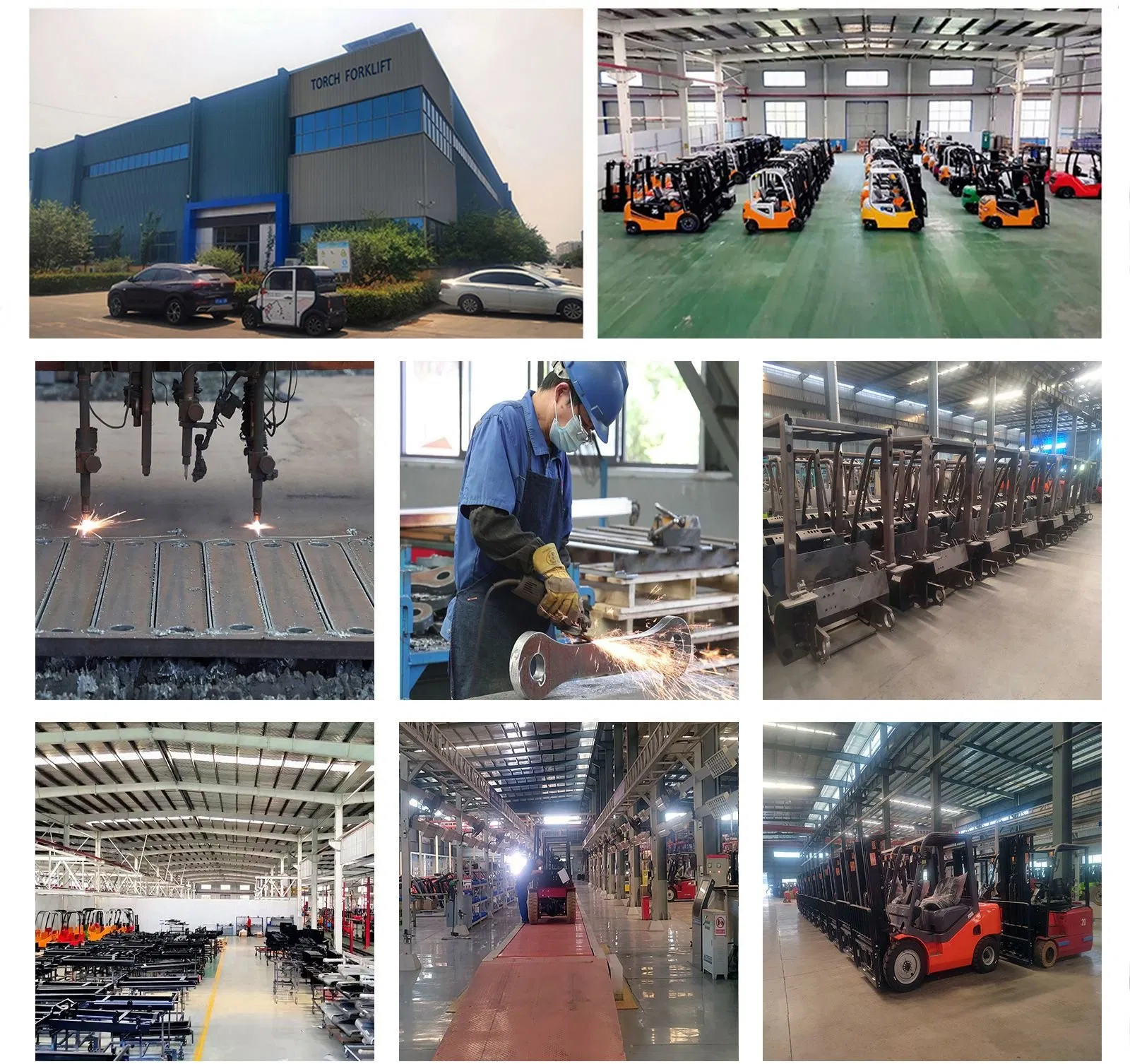

Established as a leading machinery manufacturer, we specialize in high-performance material handling equipment. Our products range from electric forklifts to industrial AGVs and material handling robots.
