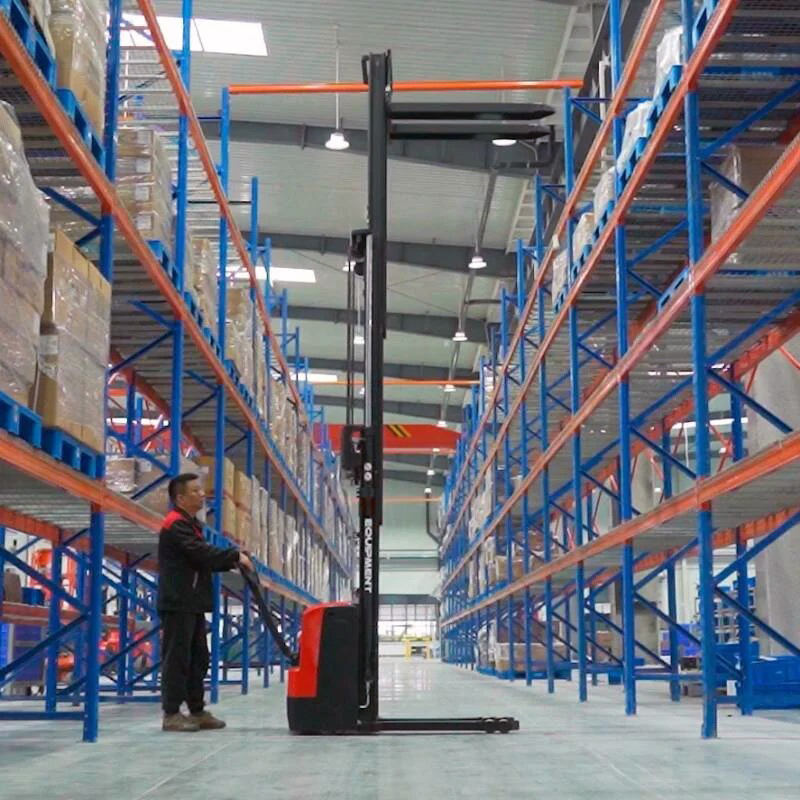

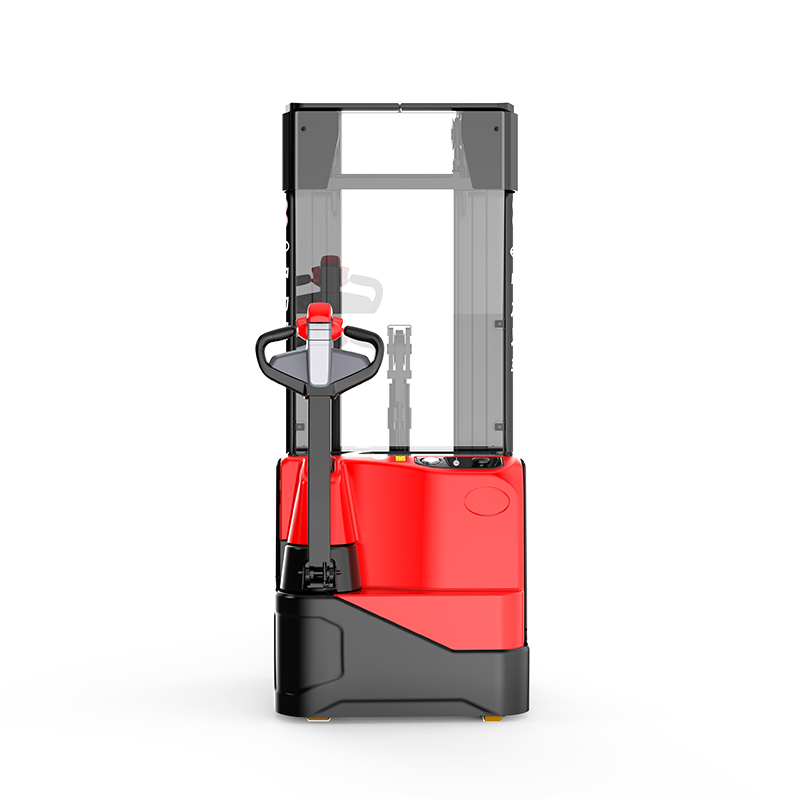

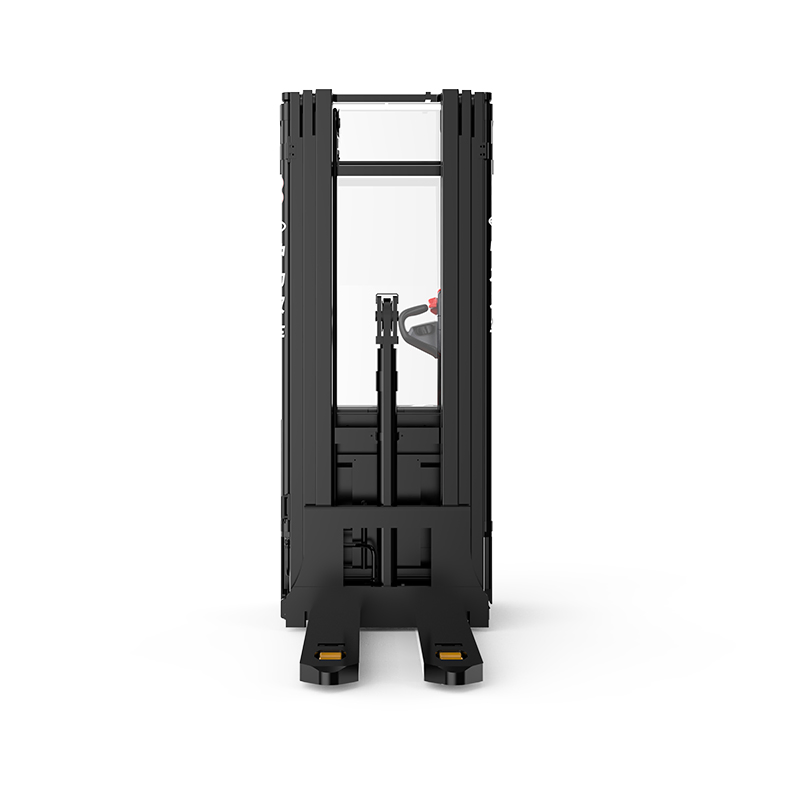

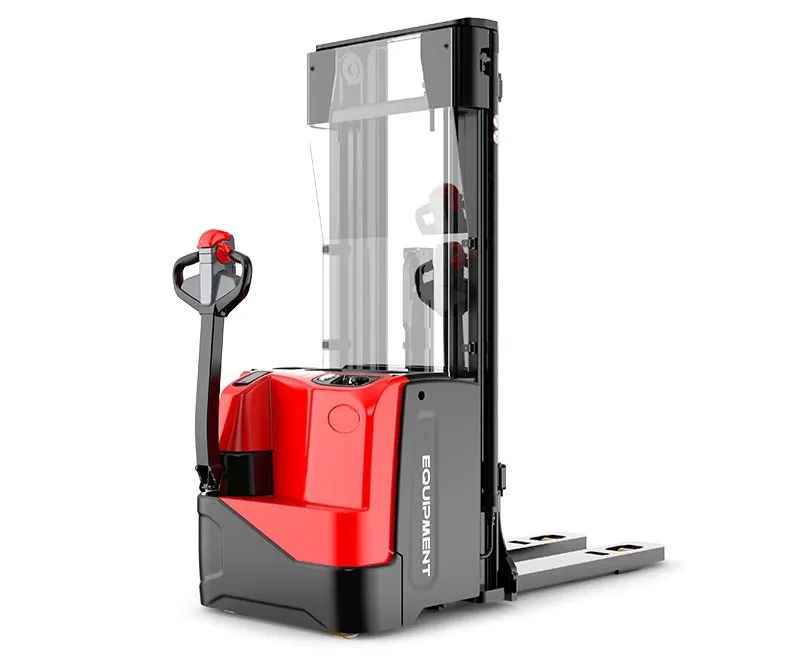

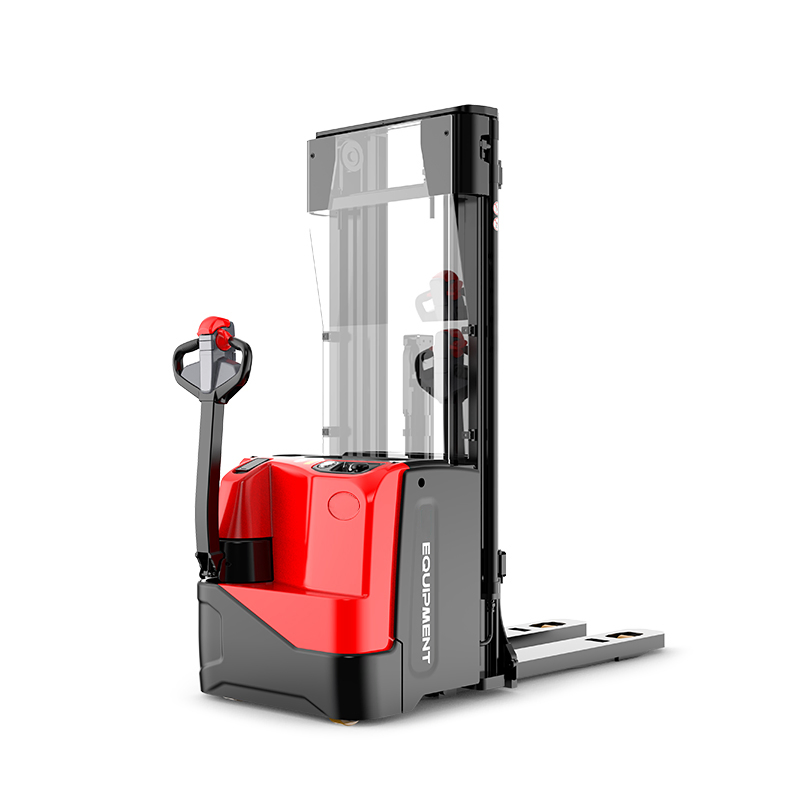

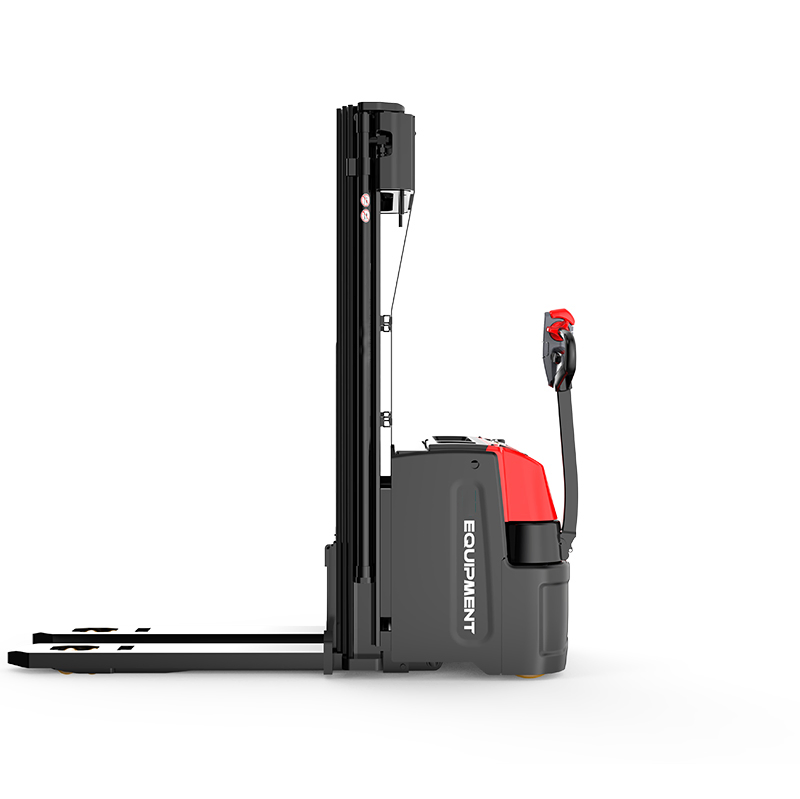

The WSA161i is a lithium-powered pedestrian stacker with an initial lift, capable of handling loads up to 1.6 tons and reaching heights of up to 5.5 meters. Thanks to the proper sized support arms, it can handle two pallets at a time to increasing transport efficiency.
This stacker is fitted with 24V/100Ah Li-ion battery and 24V/30A integrated charger, offering opportunity charging and zero maintenance.

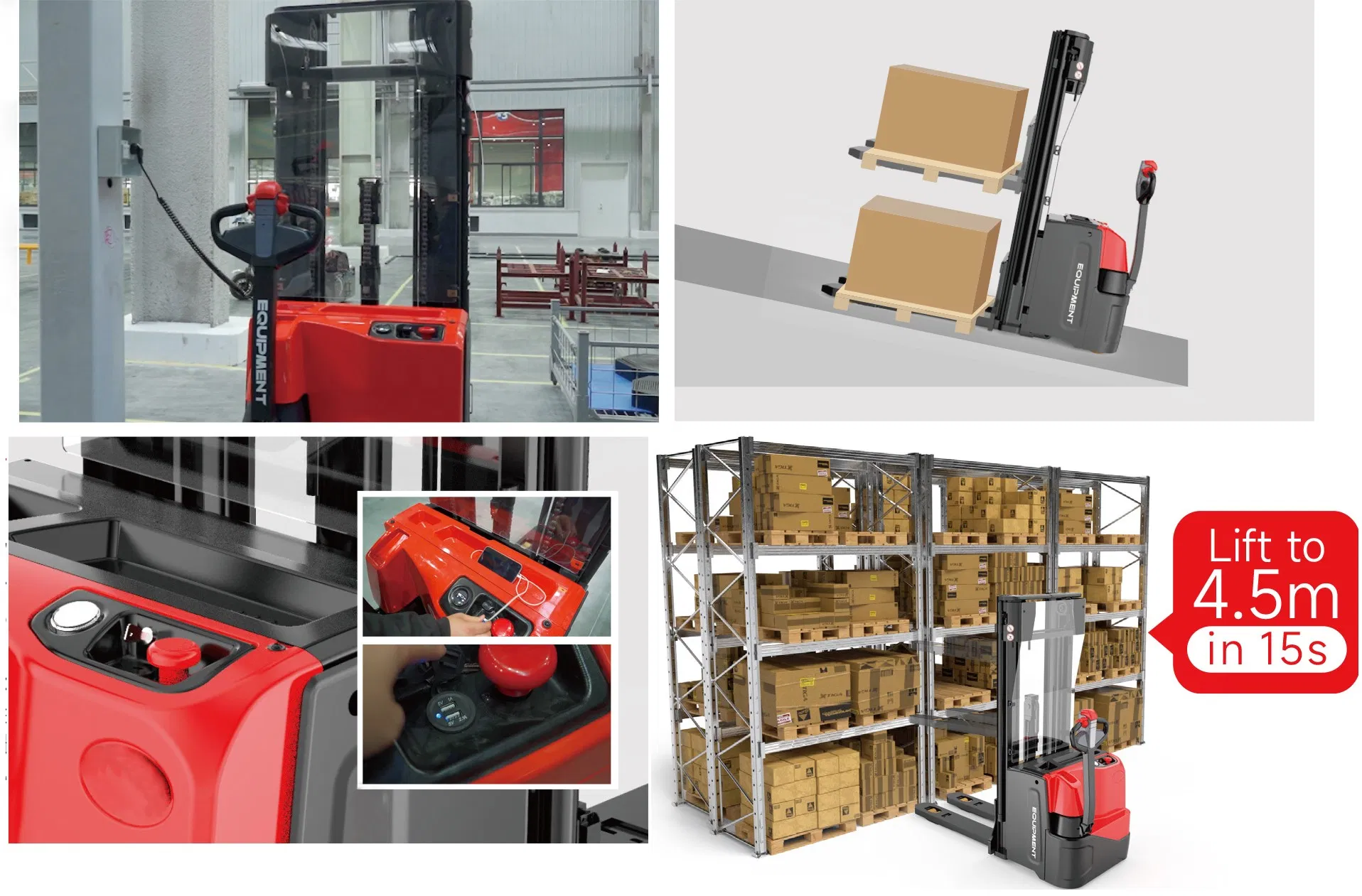

The initial lift and carved frame grant high ground clearance for uneven surfaces and loading ramps. Supports two pallets at a time.
Delivers outstanding performance in its class with significantly improved speeds up to 5.5m heights.
24V/100Ah Li-ion battery with integrated charger allows for fast opportunity charging and zero emissions.

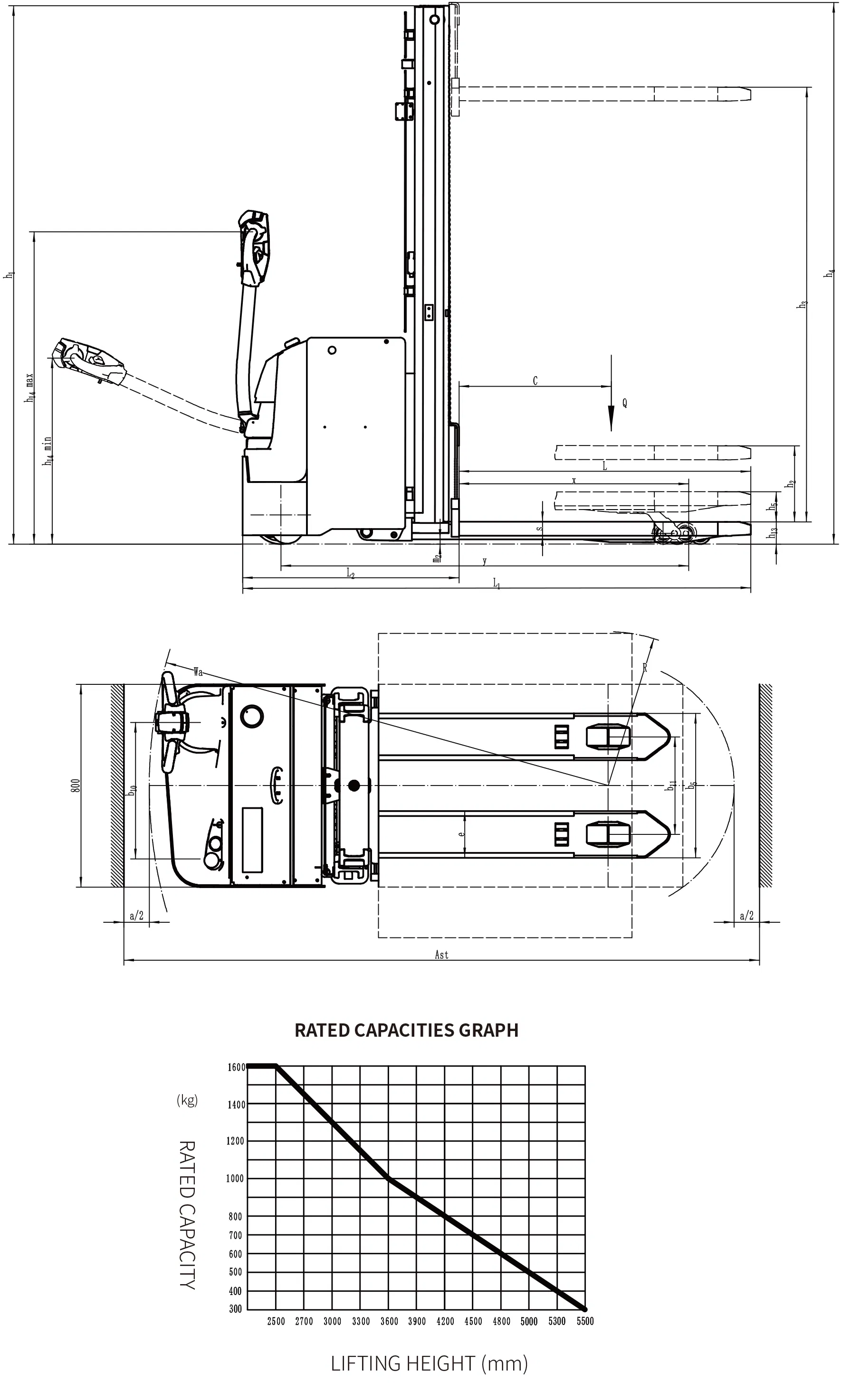

| Model | WSA161i | Drive | Electric (Pedestrian) |
| Load Capacity | 1600 kg | Load Center | 600 mm |
| Service Weight | 1120 kg | Mast Height (Retracted) | 2028 mm |
| Lift Height | 2015-5500 mm | Overall Length | 2028 mm |
| Overall Width | 810 mm | Turning Radius | 1826 mm |
| Travel Speed (L/U) | 5 / 5 km/h | Lifting Speed (L/U) | 0.23 / 0.30 m/s |
| Motor Rating | 1.6 KW | Battery Voltage | 24V / 100Ah |

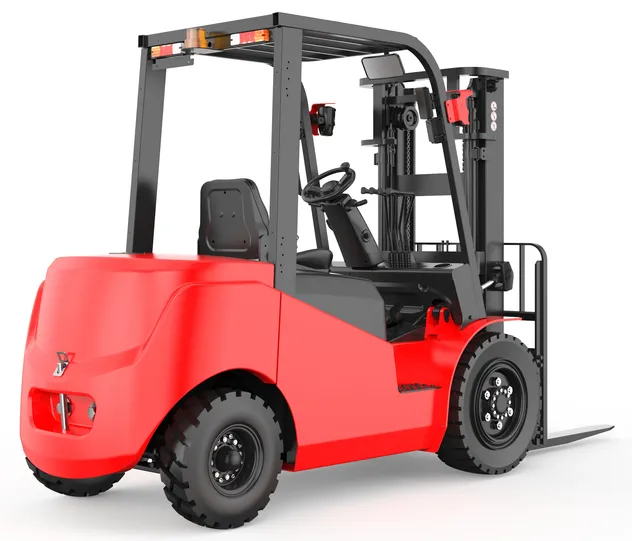

Forklift

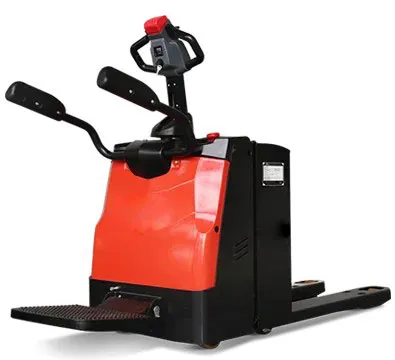

Pallet Truck

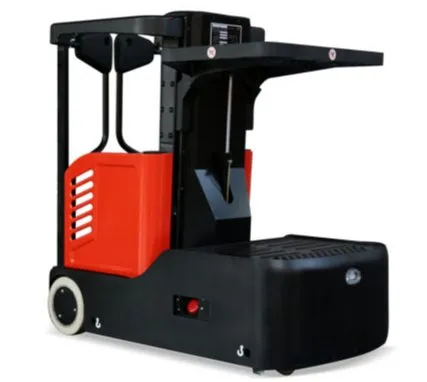

Order Picker

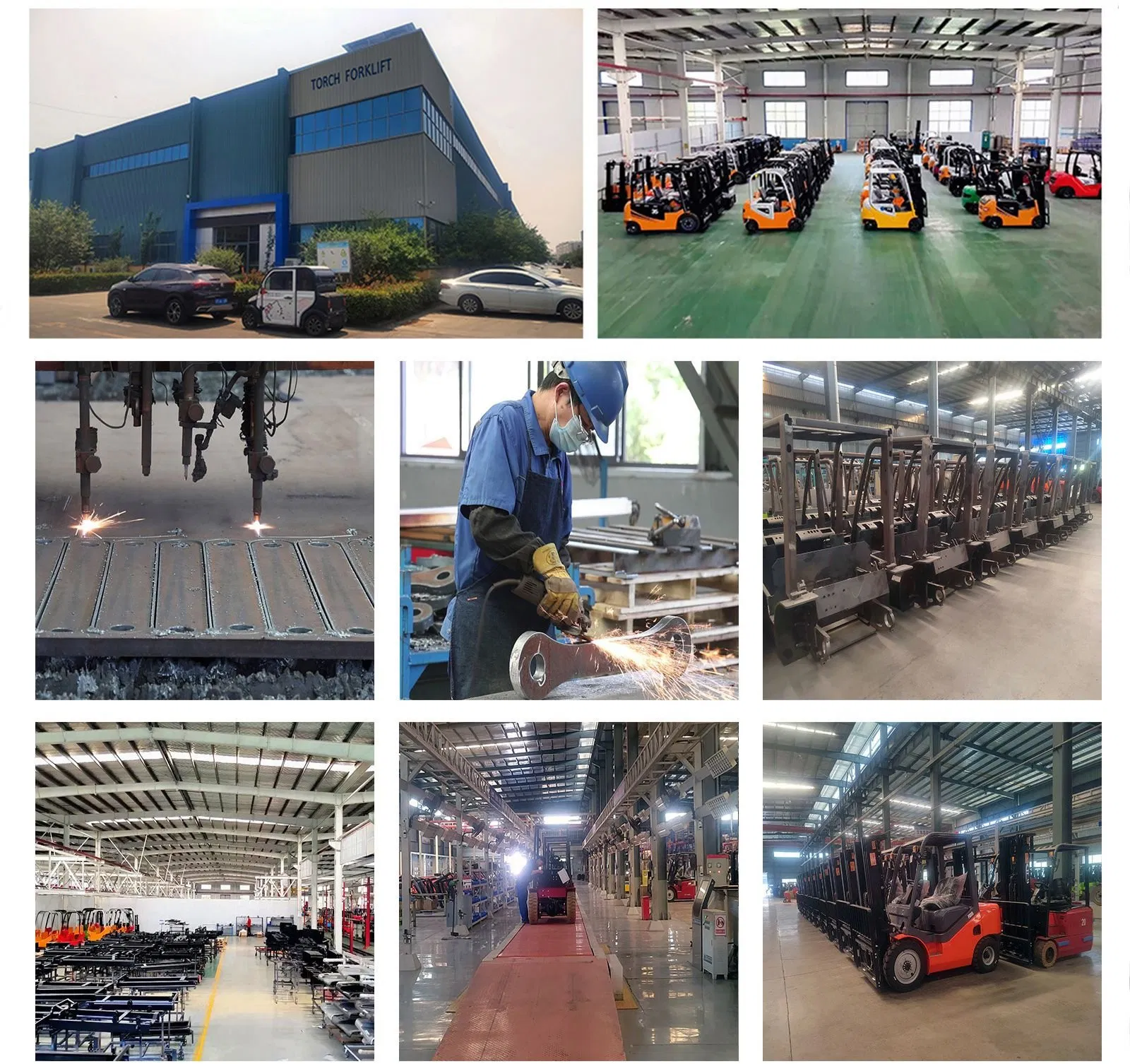

Established in 2020, we are a leading machinery manufacturer specializing in R&D, production, sales, and service of high-performance material handling equipment. Our product range includes electric forklifts, diesel forklifts, electric stackers, pallet trucks, and industrial AGVs.
