| Model NO. | WSA161i | Load Capacity | 1.6-2.0ton |
| Type | Stacker | Power | AC Motor |
| Lift height | 2915mm and 5500mm | Fuel | Electric |
| Condition | New | Certification | CE/ISO9001 |

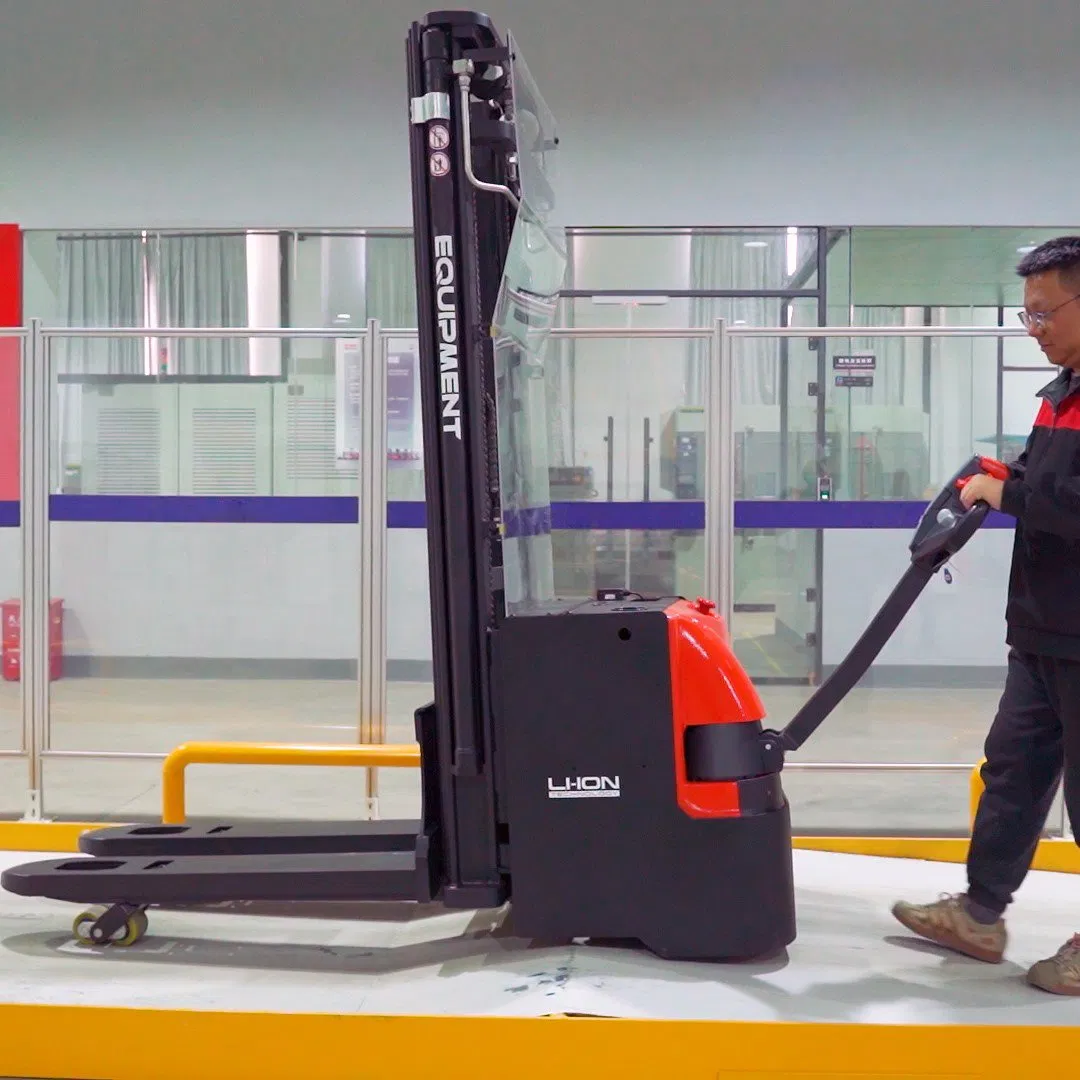

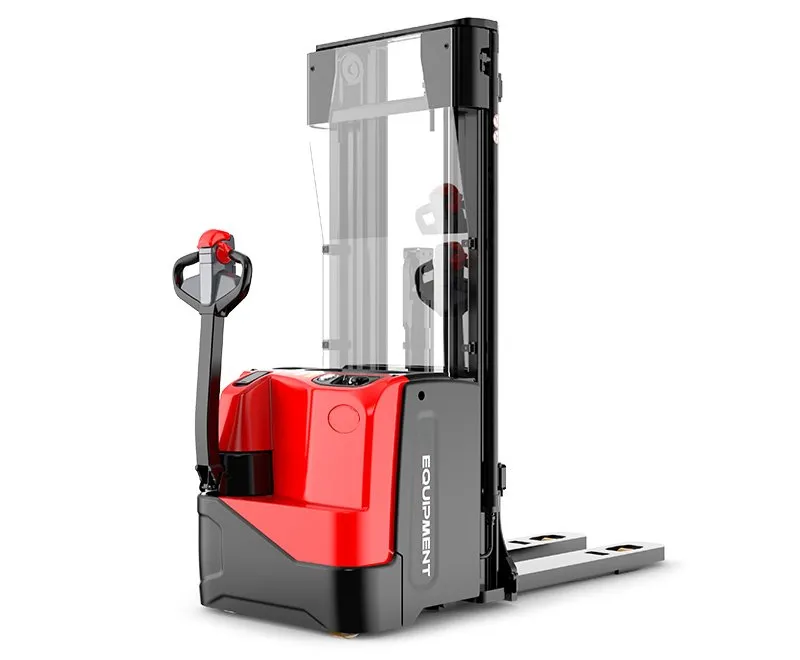

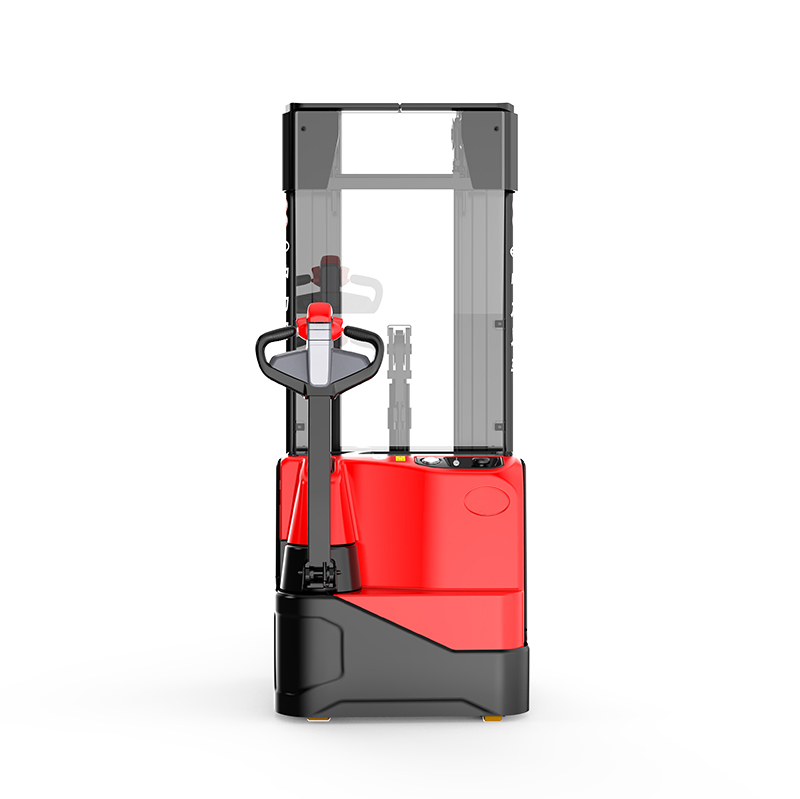

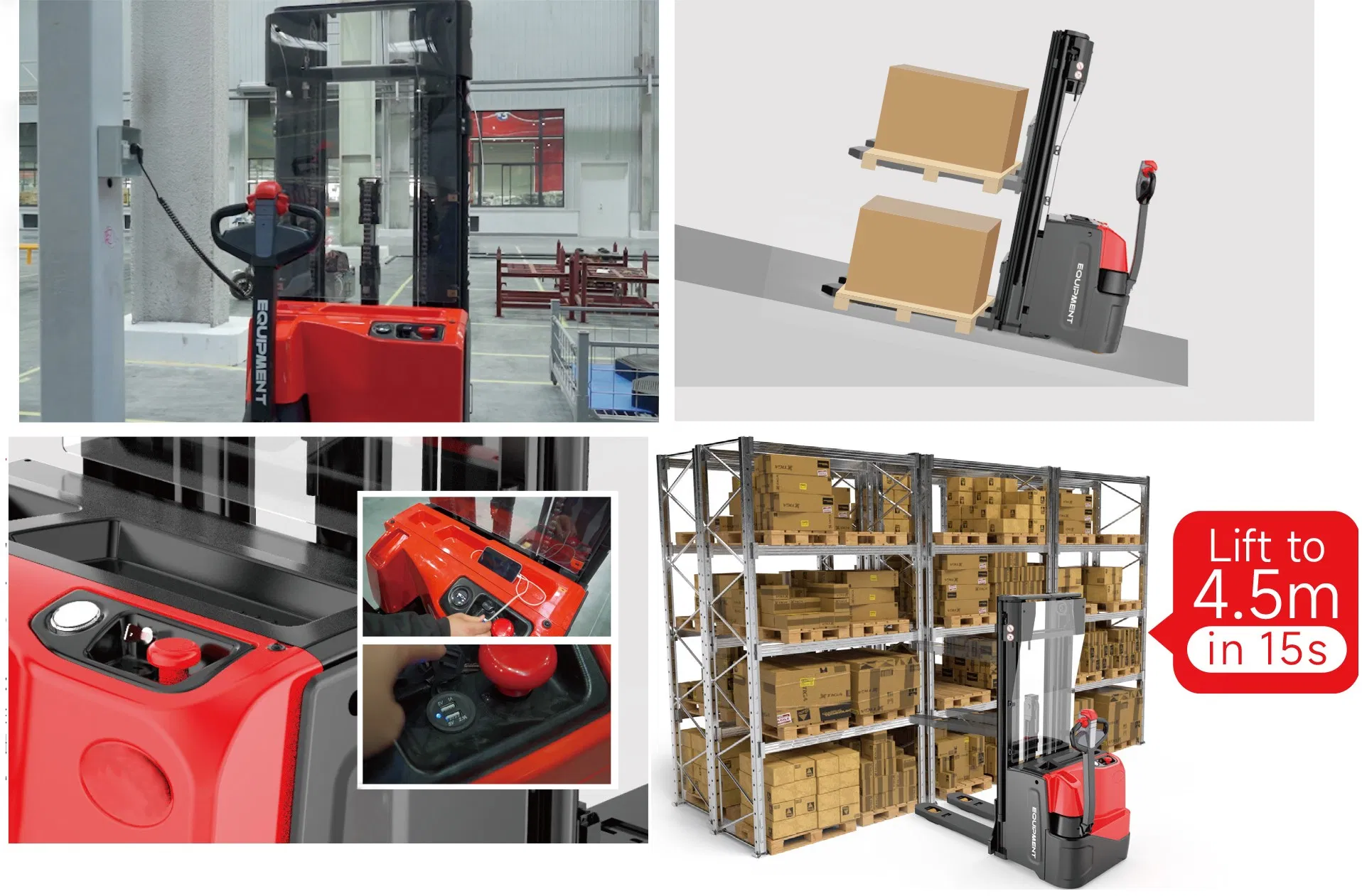

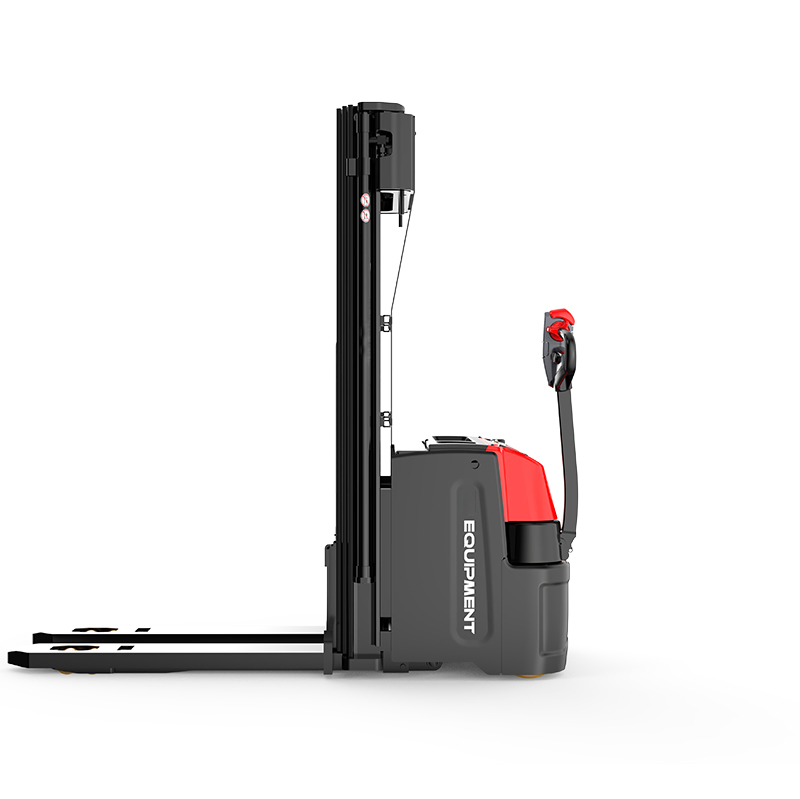

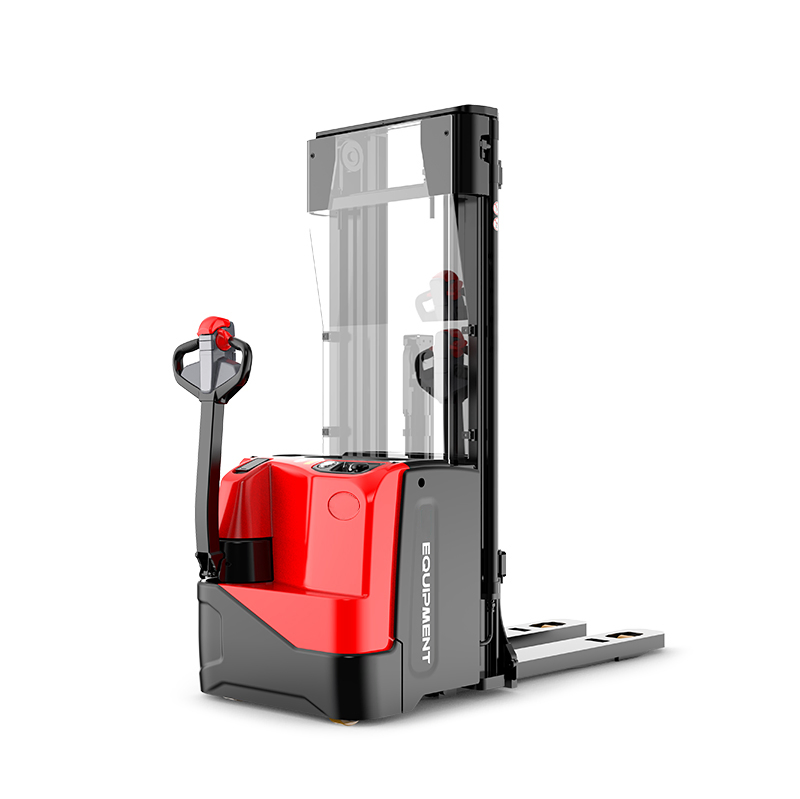

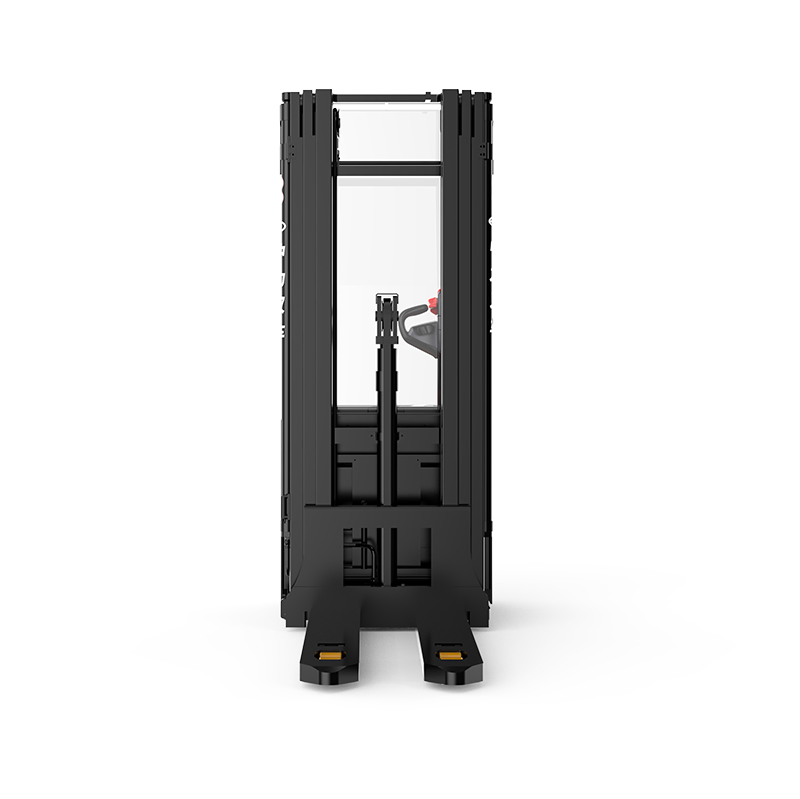

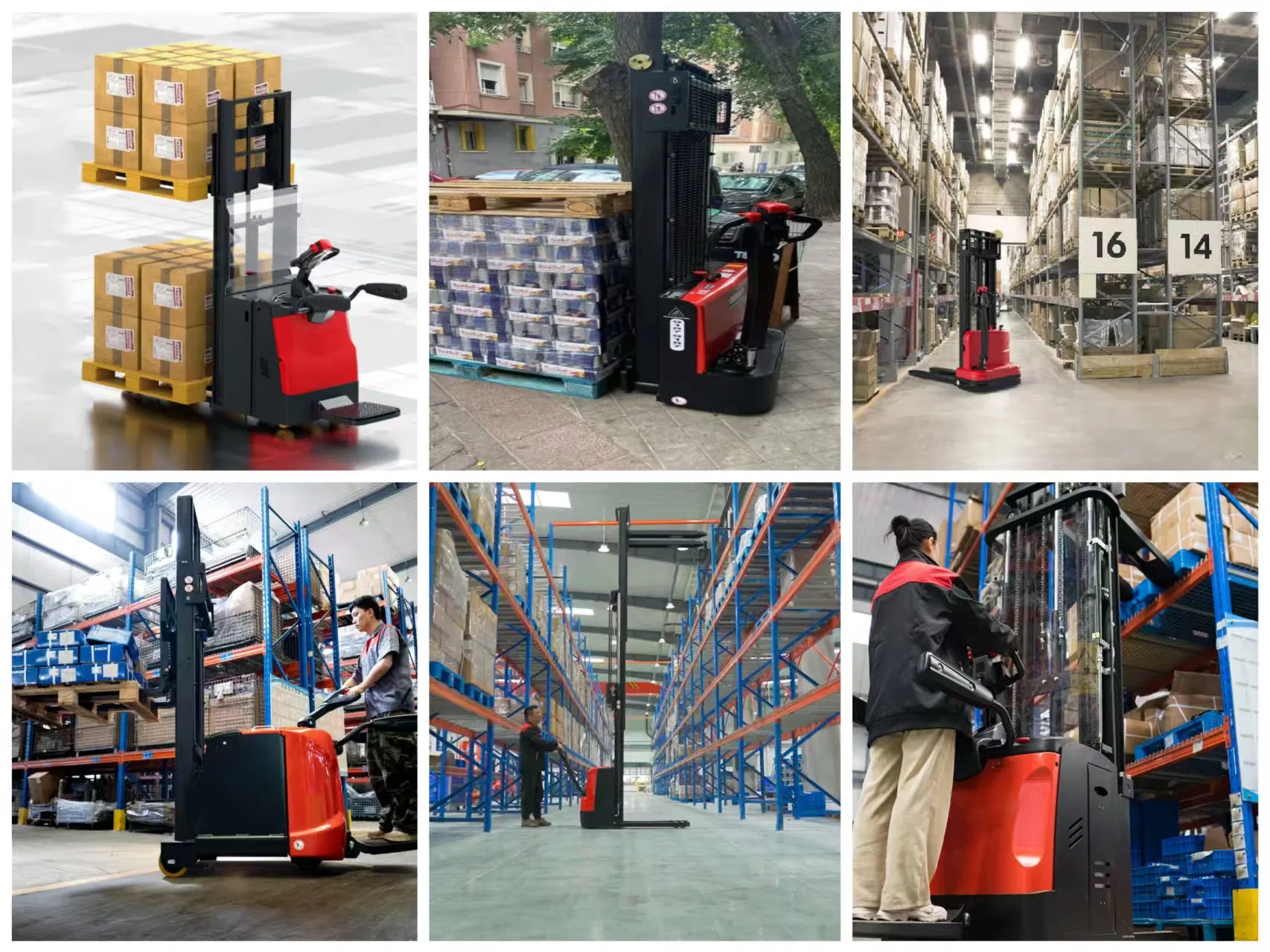

The WSA161i is a lithium-powered pedestrian stacker with an initial lift, capable of handling loads up to 1.6 tons and reaching heights of up to 5.5 meters. Thanks to the proper sized support arms, WSA161i can handle two pallets at a time to increasing transport efficiency. This stacker is fitted with 24V/100Ah Li-ion battery and 24V/30A integrated charger, offering opportunity charging and zero maintenance.

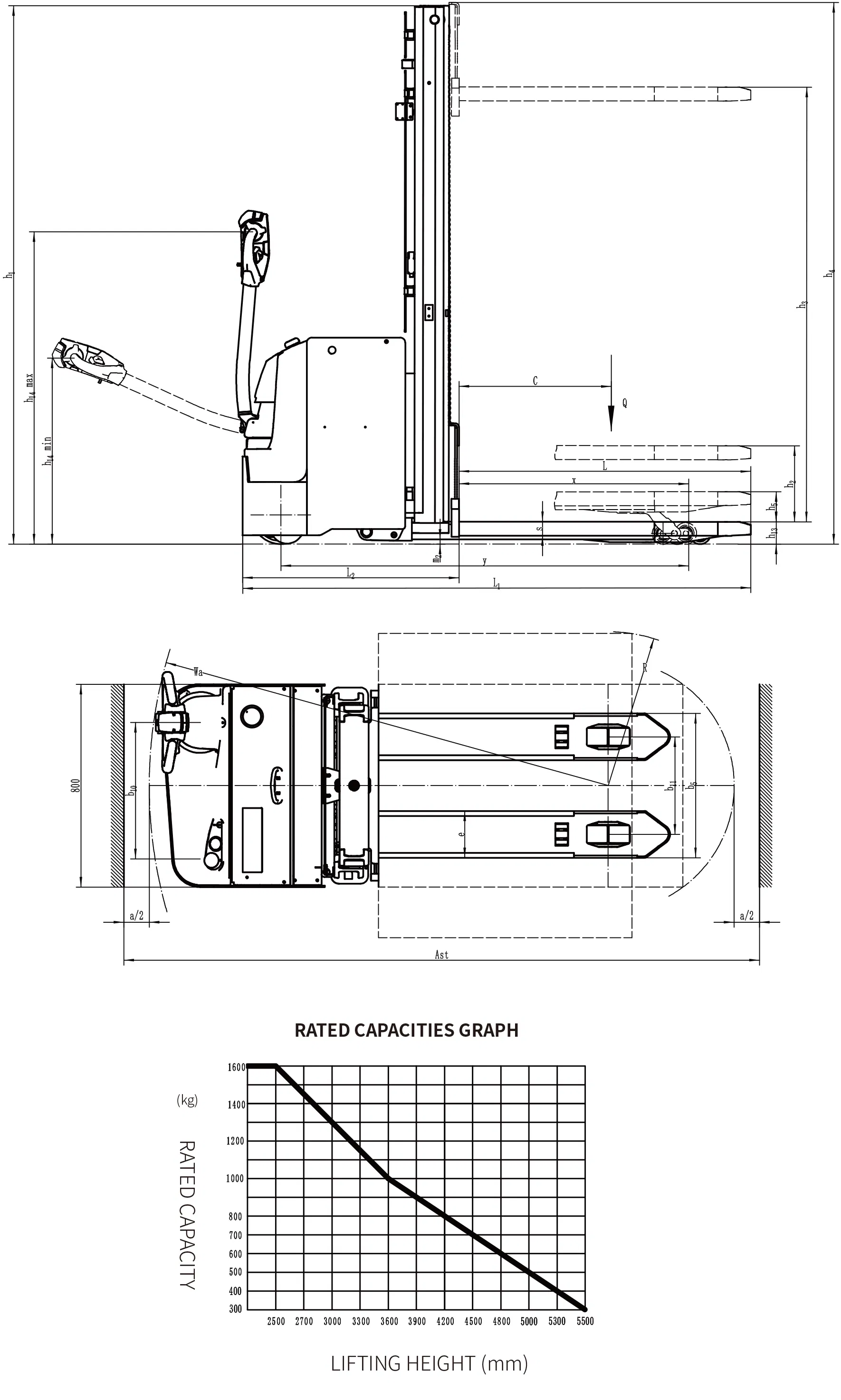

| No. | Description | Unit | Data |
|---|---|---|---|
| 1.1 | Brand | - | Torch |
| 1.2 | Model | - | WSA161i |
| 1.3 | Drive | - | Electric |
| 1.5 | Load capacity | Q (kg) | 1600 |
| 1.6 | Load center distance | c (mm) | 600 |
| 2.1 | Service weight | kg | 1120 |
| 4.4 | Lift height | h3 (mm) | 2015-5500mm |
| 4.21 | Overall width | b1/ b2 (mm) | 810 |
| 4.35 | Turning radius | Wa (mm) | 1826 |
| 5.1 | Travel speed, laden/unladen | km/h | 5/5 |
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24/100 |

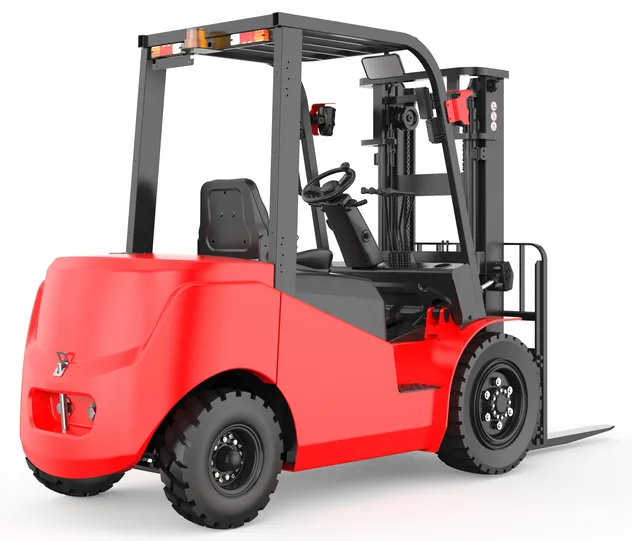

Forklift

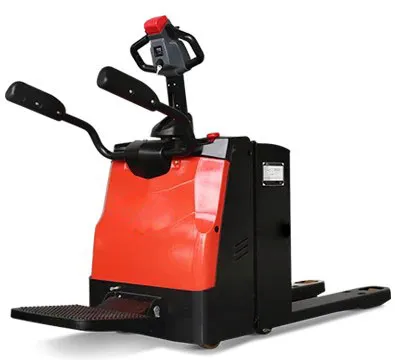

Pallet Truck

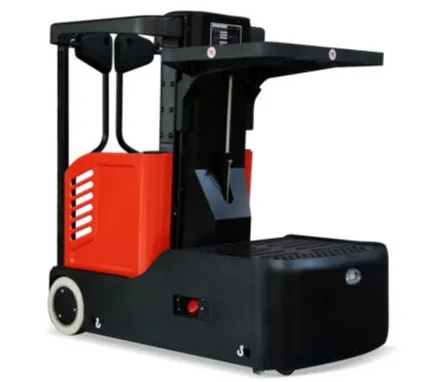

Order Picker
