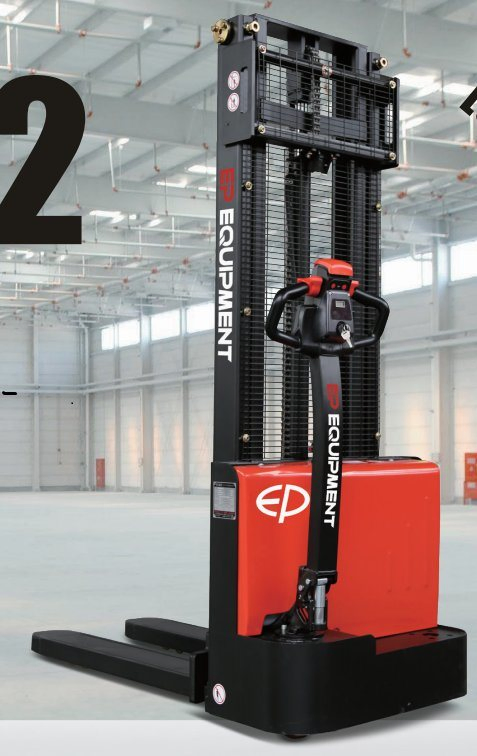

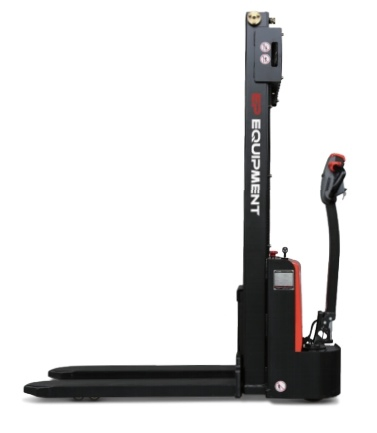

Ep 1200kg Pedestrain Stacker AGM Est122

Customization: Available
After-sales Service: Local Service
Warranty: 2 Years

Product Description

Basic Specifications

Model NO.
EST122
Type
Stacker
Power
AC Motor
Fuel
Electric
Condition
New
Retracted Mast Height
1856 mm
Overall Width
792 mm
Fork Dimensions
60/170/1150 mm
Turning Radius
1458 mm
Specification
595kg
Trademark
EP
Origin
China

Product Overview

EST(L)122 offers an economic and efficient solution for vertical stacking and is ideal for operating in confined spaces. It is able to pass the rollover test over 2.5m lifting height and ensure the operation safety with the high strength chassis and high rigidity mast.

✔ Ideal Applications:
  • Warehouses with medium height rack systems.
  • Lifting and moving in small to medium manufacturing facilities.
  • Operation along narrow aisles and tight spaces.

Key Features & Advantages

1
Strong Chassis

Side impact beams and reinforced plates reduce stress and deformation under heavy loads.

2
Rigid Mast

Enhanced beam structure provides smooth lifting and stable stacking for daily operations.

3
Easy Operation

Extra-long tiller with crawl speed button ensures better visibility and nimble maneuverability.

4
Li-Ion Technology

Supports opportunity charging: 7% charge in just 10 minutes to sustain daily shifts.

Visual Display

Frequently Asked Questions

What is the main advantage of the EST122 compared to older models?
The EST122 is more compact, lighter in service weight, has a smaller turning radius, and offers a more economical price point while maintaining high performance.
Does the battery support fast charging?
Yes, the Li-Ion battery version supports opportunity charging, allowing it to reach a 7% charge in as little as 10 minutes during breaks.
Is this stacker safe for high-lifting operations?
Absolutely. It has passed rollover tests for lifting heights over 2.5m and features a high-strength chassis and high-rigidity mast for maximum safety.
Can it be used in very tight warehouse aisles?
Yes, with a turning radius of only 1458mm and an offset tiller with a crawl speed button, it is specifically designed for nimble maneuverability in confined spaces.
What certifications does the product hold?
The Li-ion battery options are fully certified with CE, MSDS, and UN38.3 to ensure international transport safety and regional compliance.
How does the hydraulic system perform?
The stacker uses a high-quality hydraulic pump that ensures maximum efficiency, long-term durability, and very low noise levels during operation.
