| Model | ESi161 | Type | Stacker |
| Power | AC Motor | Load Capacity | 1.6ton |
| Fuel | Electric | Load Center | 600mm |
| Lift Height | 1520mm | Condition | New |
| Overall Length | 1770mm | Turning Radius | 1473mm |
| Certification | CE/ISO9001 | Origin | China |

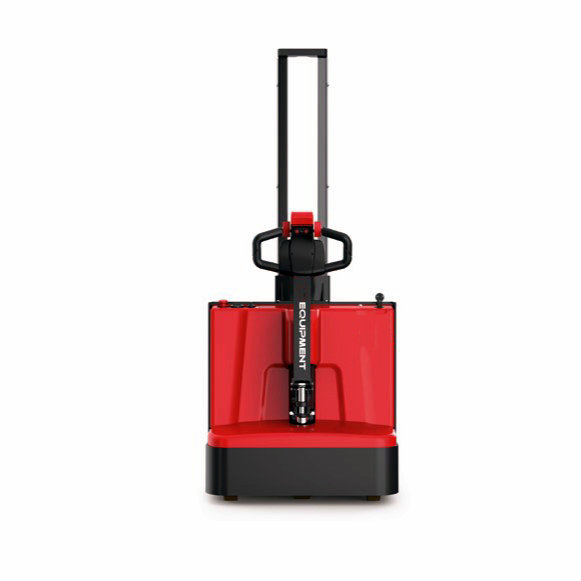

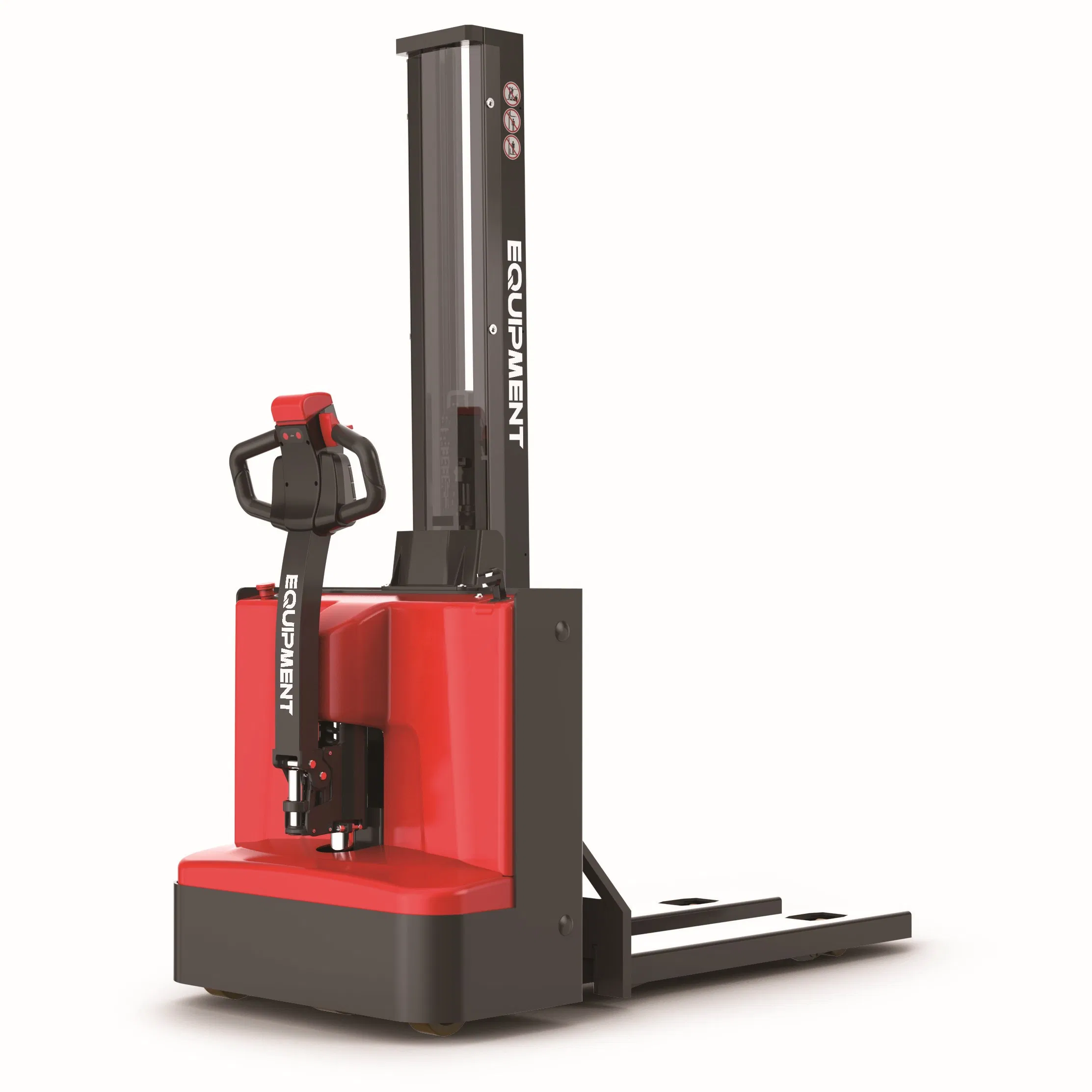

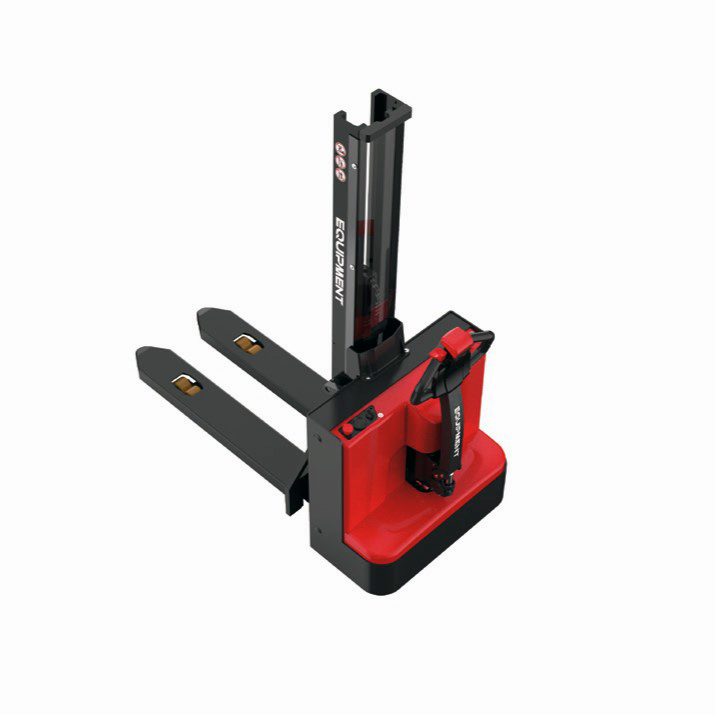

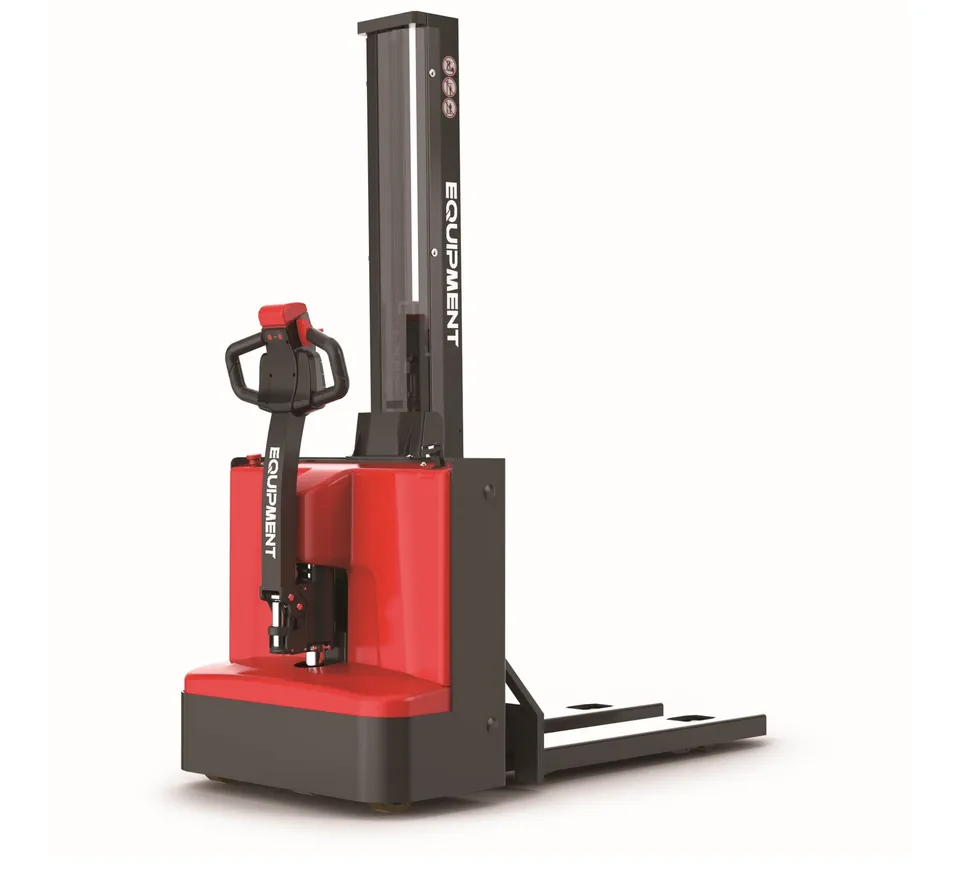

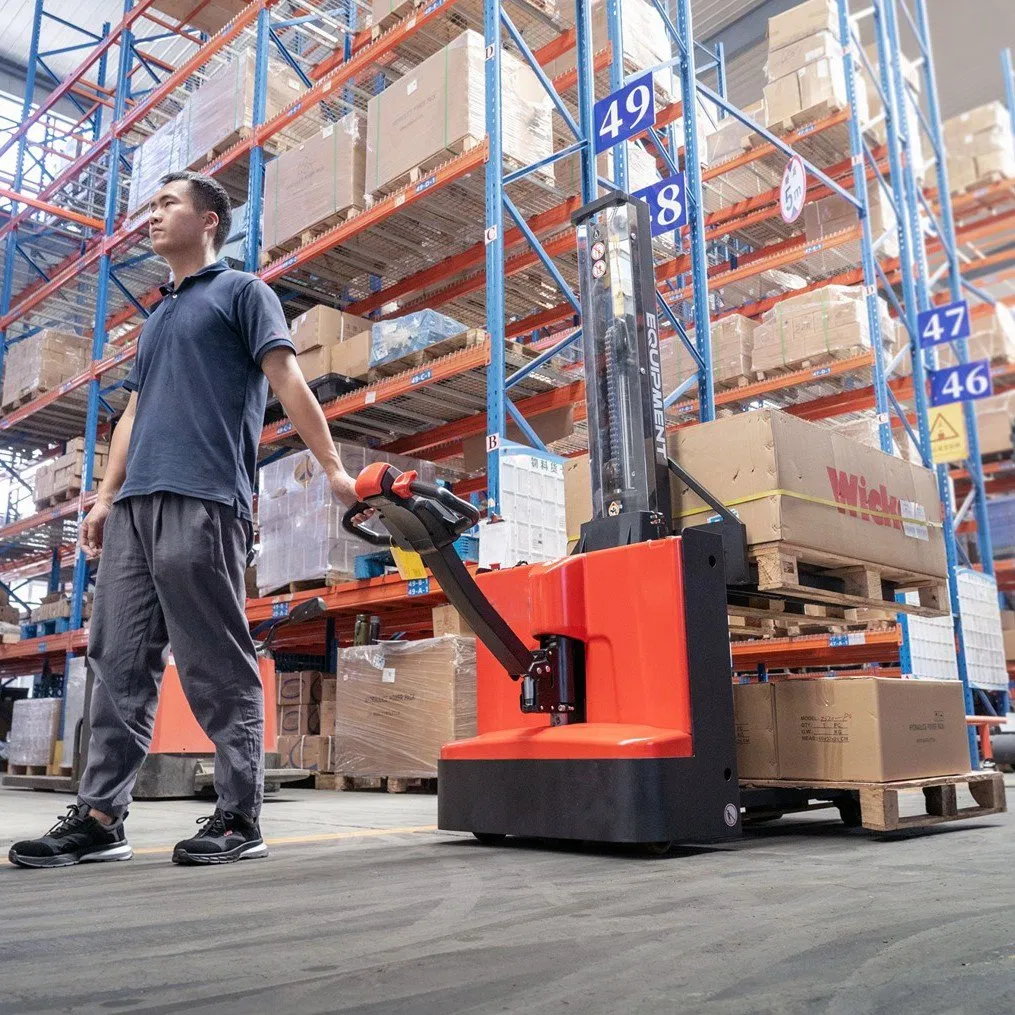

Versatile Mini Electric Forklift Reach Stacker for Manual Pallet Handling
The ESi161 is a lithium-powered electric pedestrian stacker with a 1.6-ton load capacity, ideal for low-to-medium intensity double-deck applications. This model is distinguished by its great visibility—with a mono mast and a transparent panel, the operator will have a clear view of the fork tips, ensuring precise stacking and retrieval safety.
The compact design of the ESi161 makes it highly maneuverable in tight spaces.

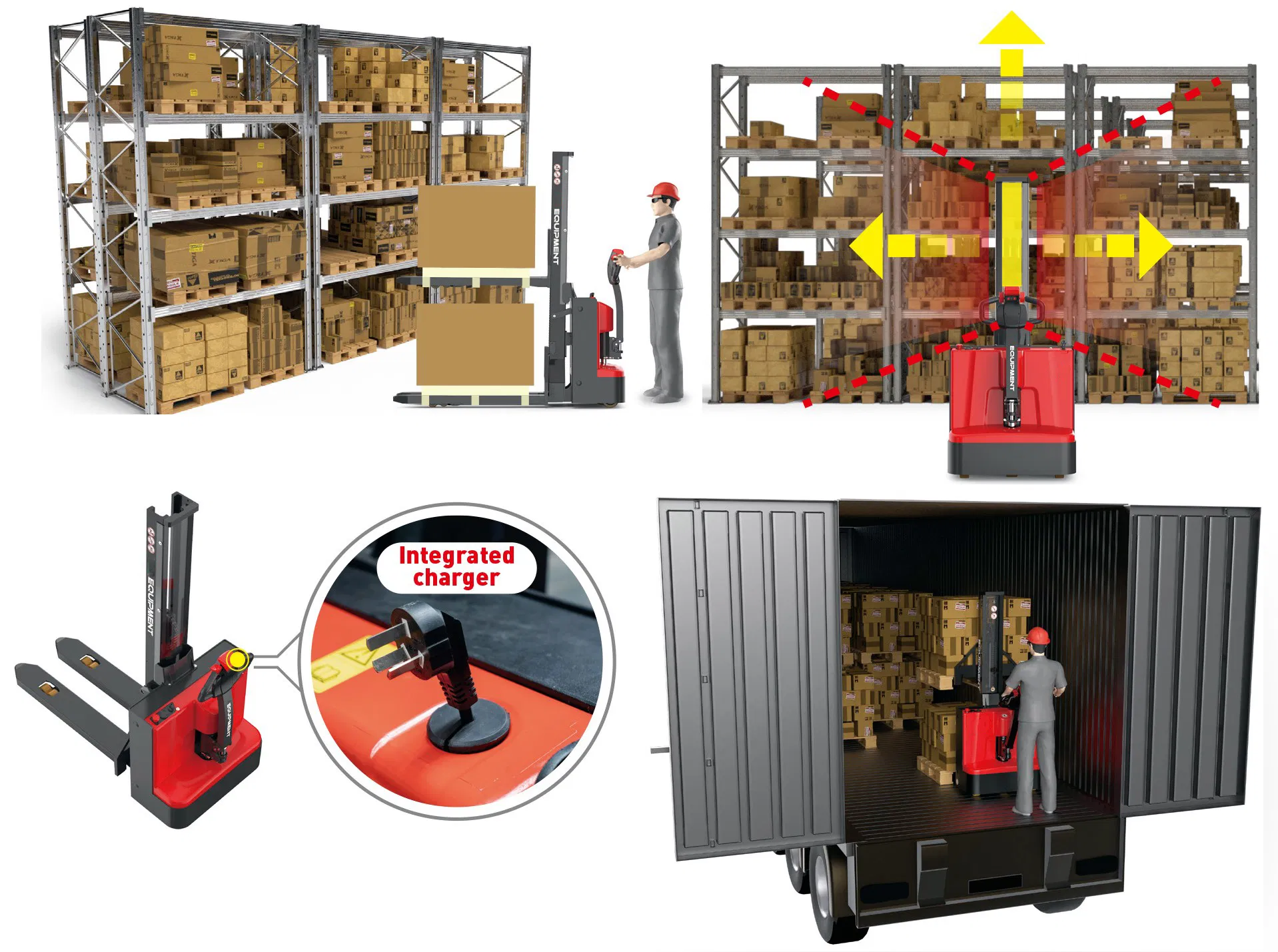

Lithium Technology
Adopts a Li-ion battery and an integrated charger as standard to increase uptime thanks to flexible and fast charging support.
Middle Drive Wheel
Demonstrates higher maneuverability in narrow aisles due to the centralized drive wheel, providing better traction.
All Round Visibility
The mono mast with a transparent panel offers an optimal view of the fork tips for precise stacking.

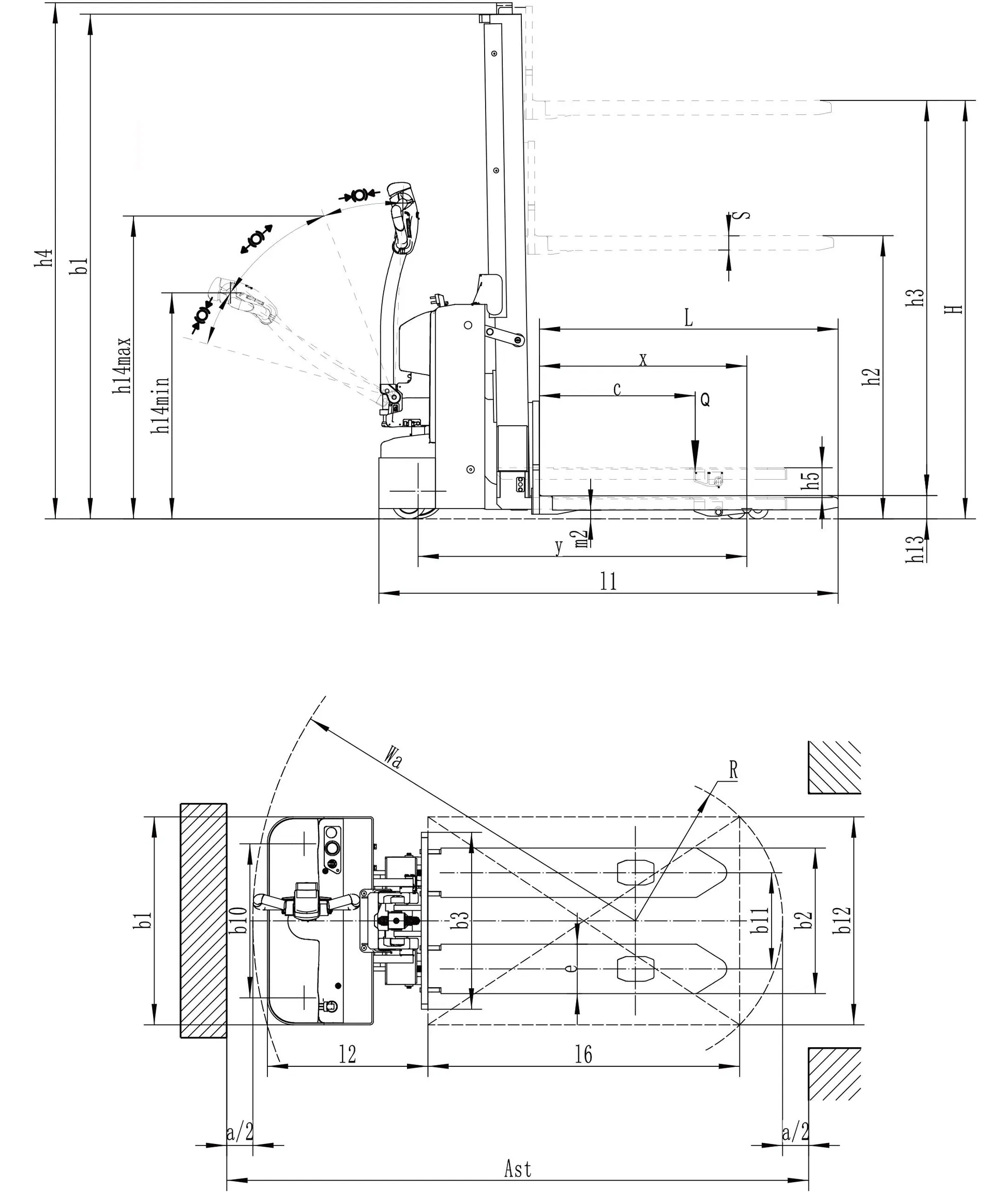

| 1.2 | Model | ESi161 |
| 1.3 | Drive | Electric |
| 1.5 | Load capacity | 1600 kg |
| 1.6 | Load center distance | 600 mm |
| 4.2 | Retracted mast height | 1942 mm |
| 4.4 | Lift height | 1520 mm |
| 4.19 | Overall length | 1770 mm |
| 4.21 | Overall width | 800 mm |
| 5.1 | Travel speed (laden/unladen) | 4.0/4.5 km/h |
| 6.4 | Battery voltage/capacity | 24V / 100Ah |

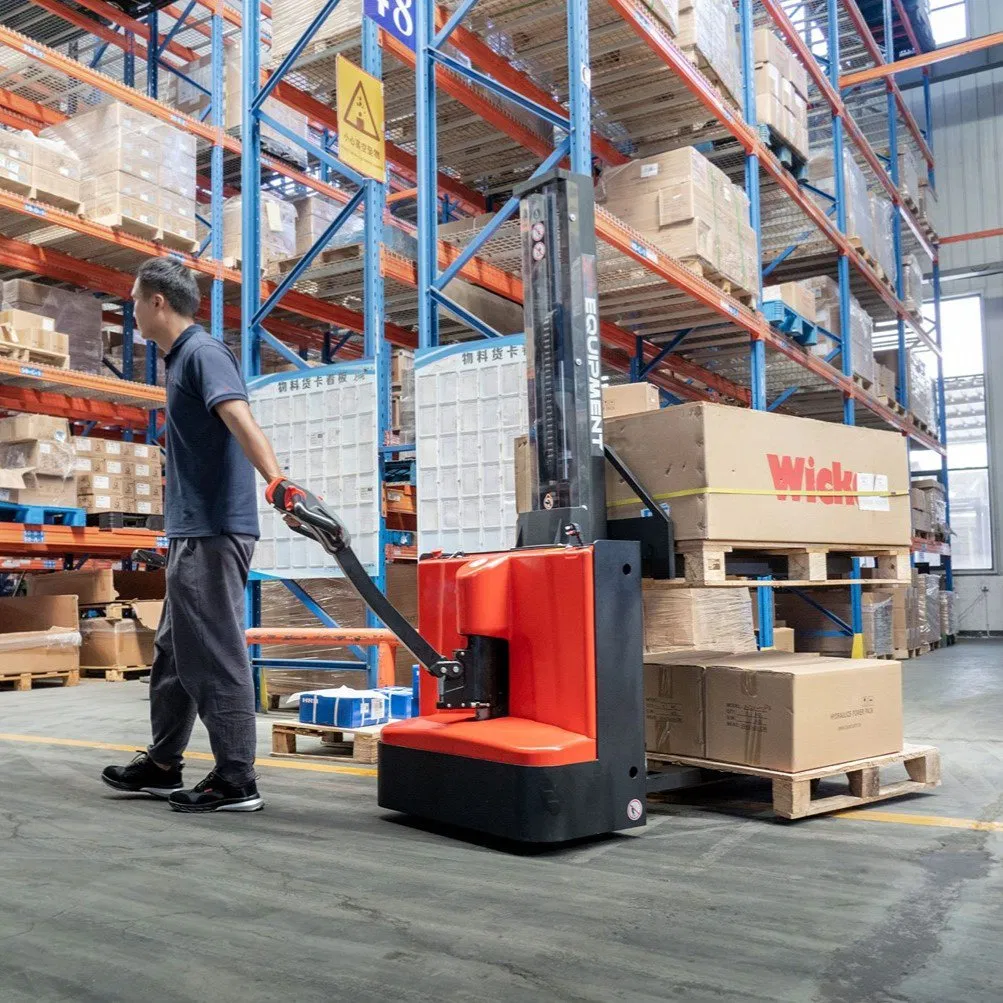

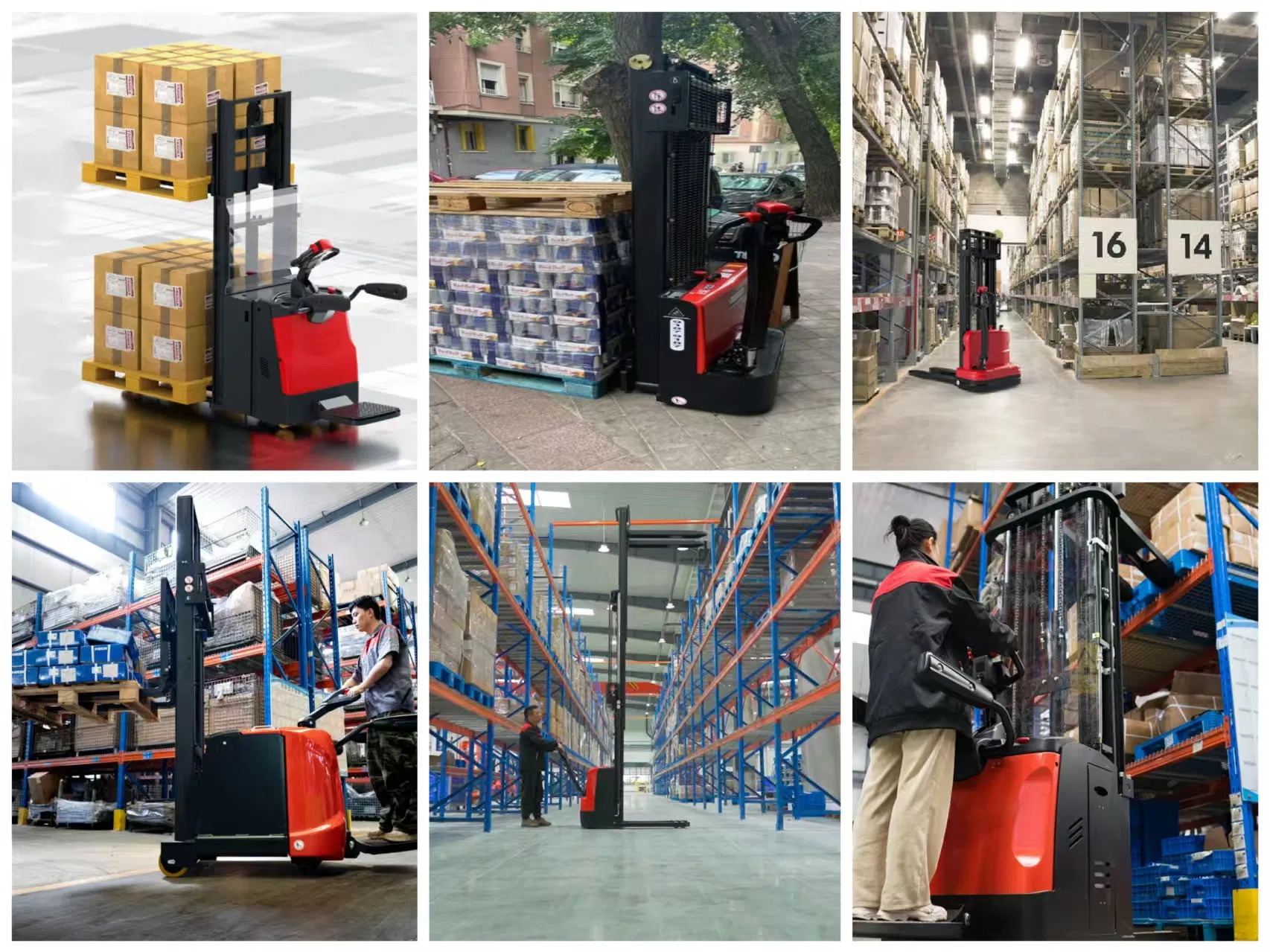

Stacking: Ideal for small to medium warehouses, retail environments, cargo lifts, and lorries. The double-deck feature allows it to handle variable stacking volumes flexibly.
Confined Spaces: With its compact chassis and effective design, the ESi161 excels in confined areas, offering significant advantages for loading and unloading tasks.
Order Picking: Can also be used as an order picker – the operator can adjust the forks to a comfortable working height.

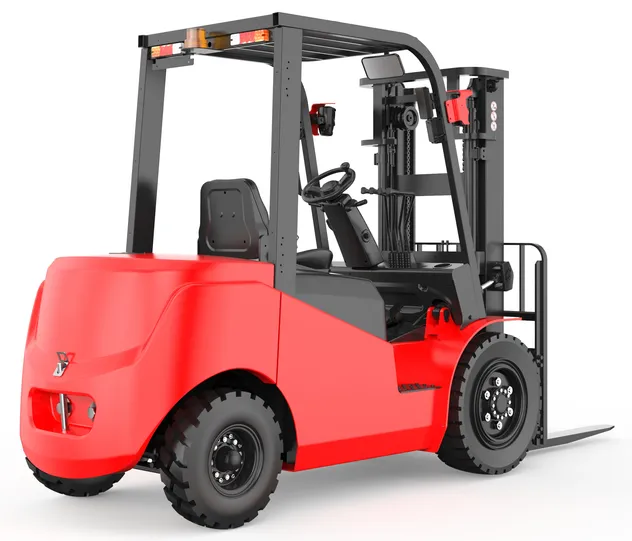

Forklift

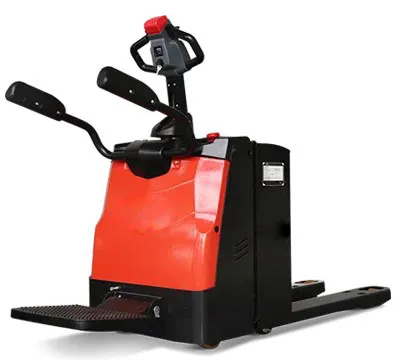

Pallet Truck
Order Picker

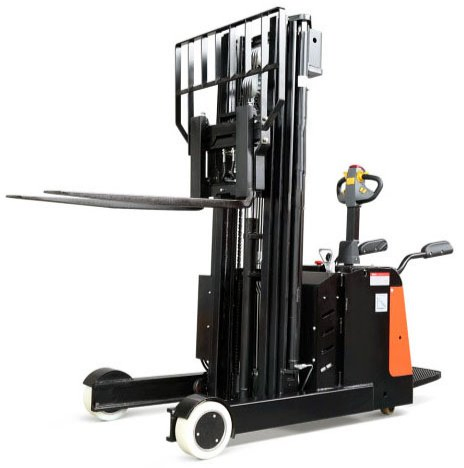

Reach Truck

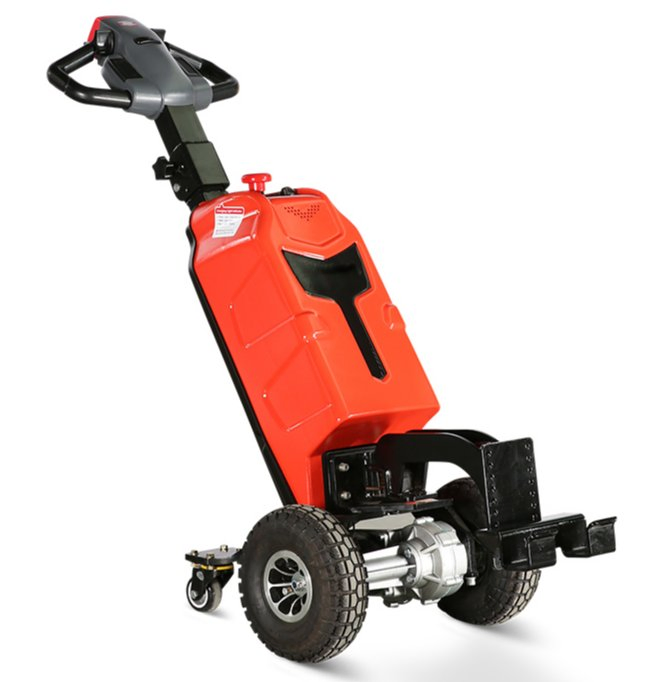

Tow Tractor
AGV

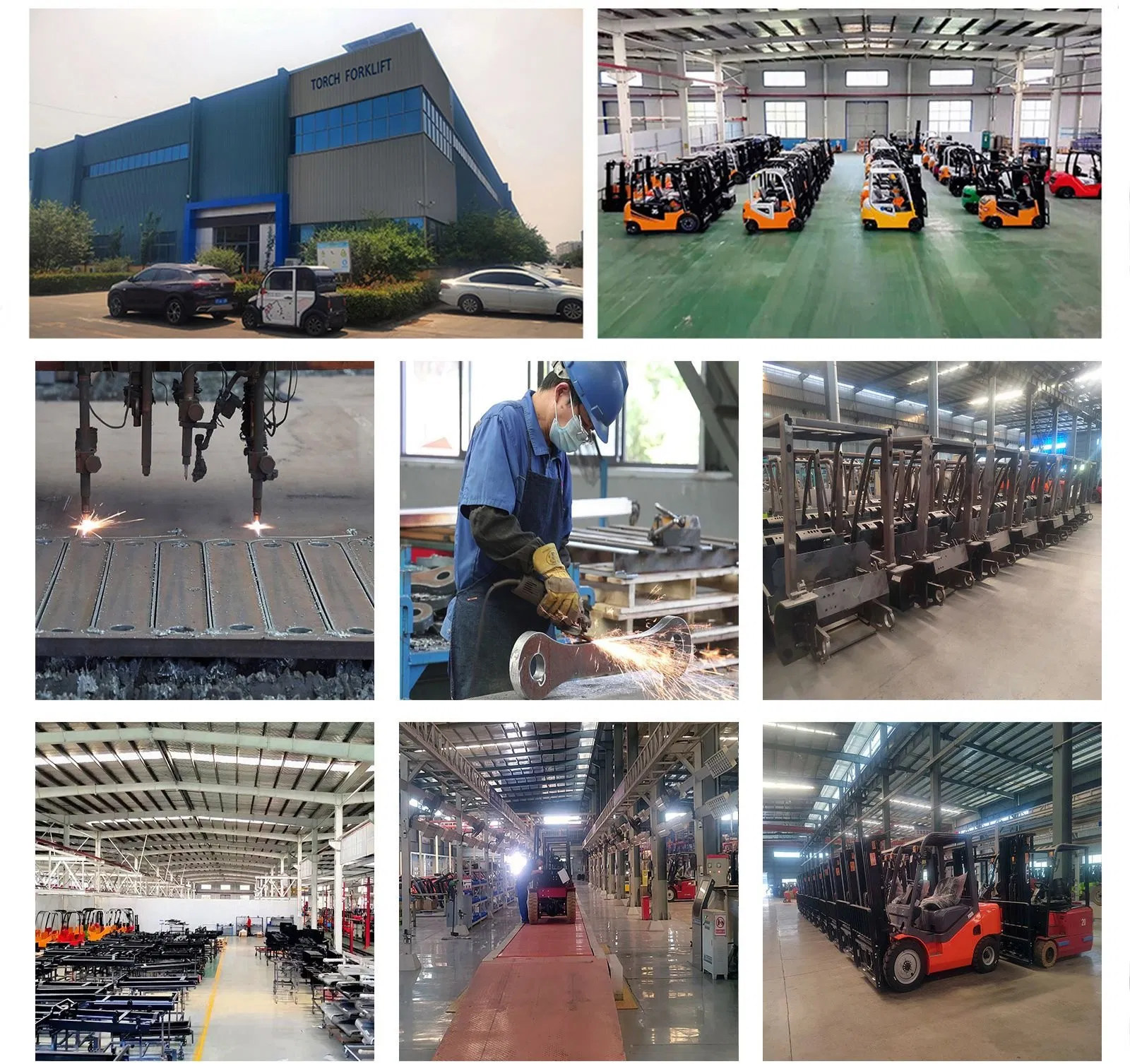

Established in 2020, we are a leading machinery manufacturer based in China, specializing in R&D, production, sales, and service of high-performance material handling equipment. Our product range includes electric forklifts, diesel forklifts, electric stackers, pallet trucks, material handling robots, industrial AGVs, and floor cleaning vehicles.
