| Model NO. | WSA161i | Type | Stacker |
| Power | AC Motor | Fuel | Electric |
| Load Capacity | 1.6-2.0ton | Load center | 600mm |
| Lift height | 2915mm - 5500mm | Turning Radius | 1826mm |
| Overall Length | 2028mm | Overall Width | 810mm |
| Certification | CE/ISO9001 | Condition | New |

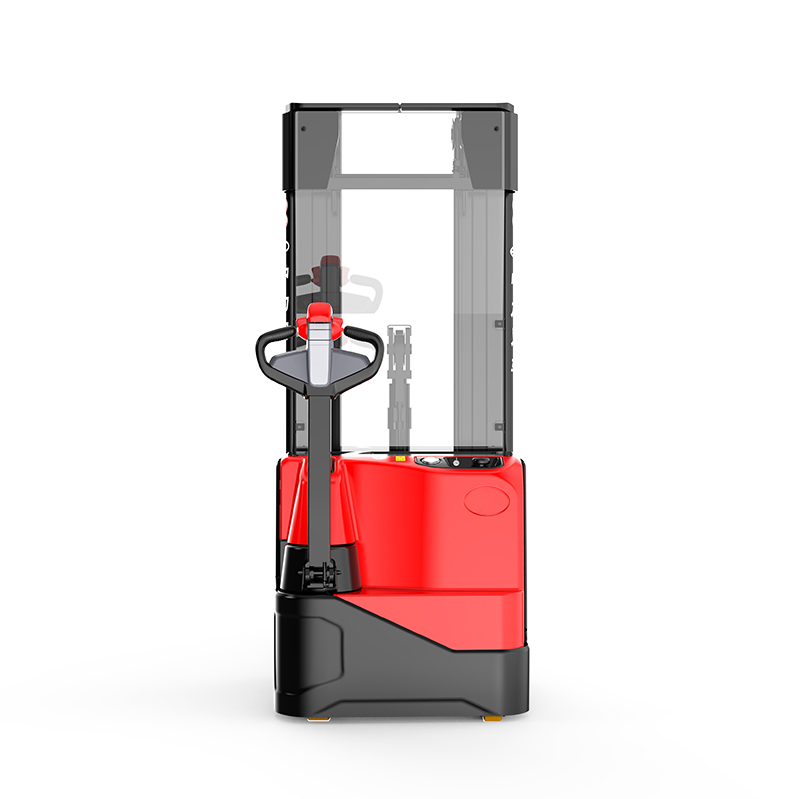

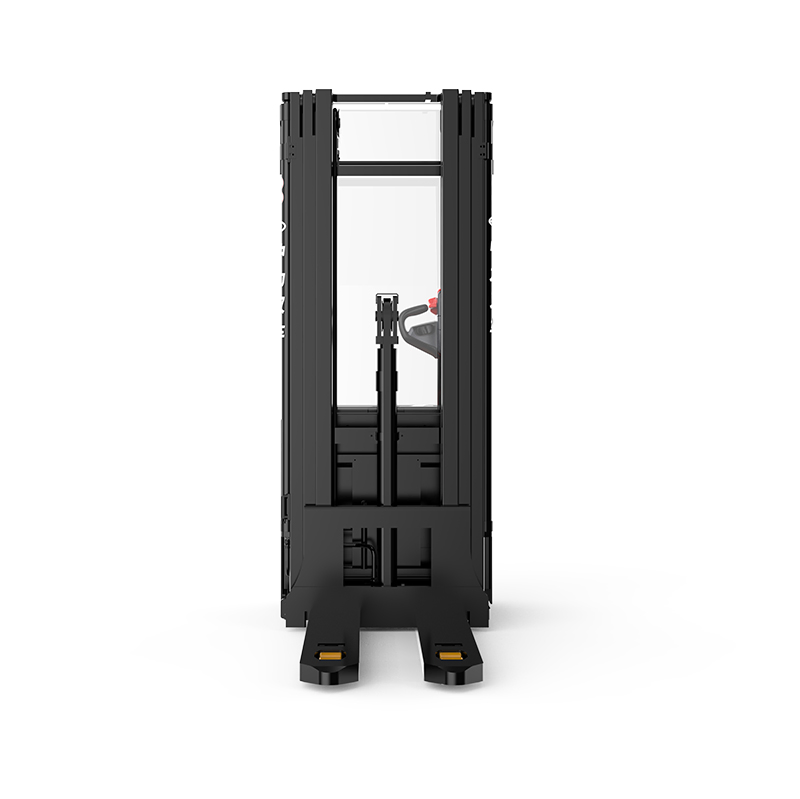

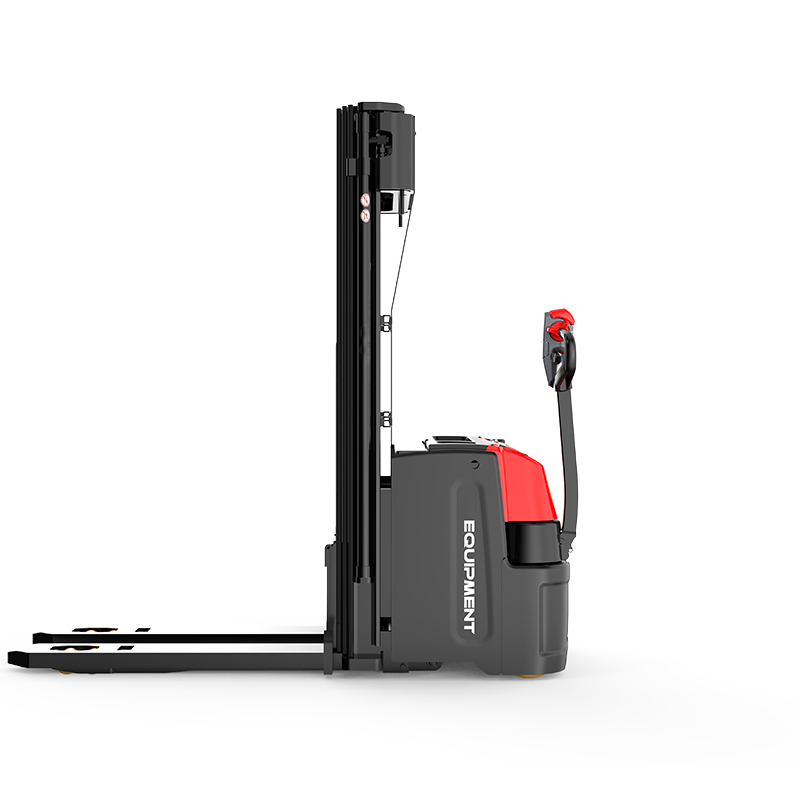

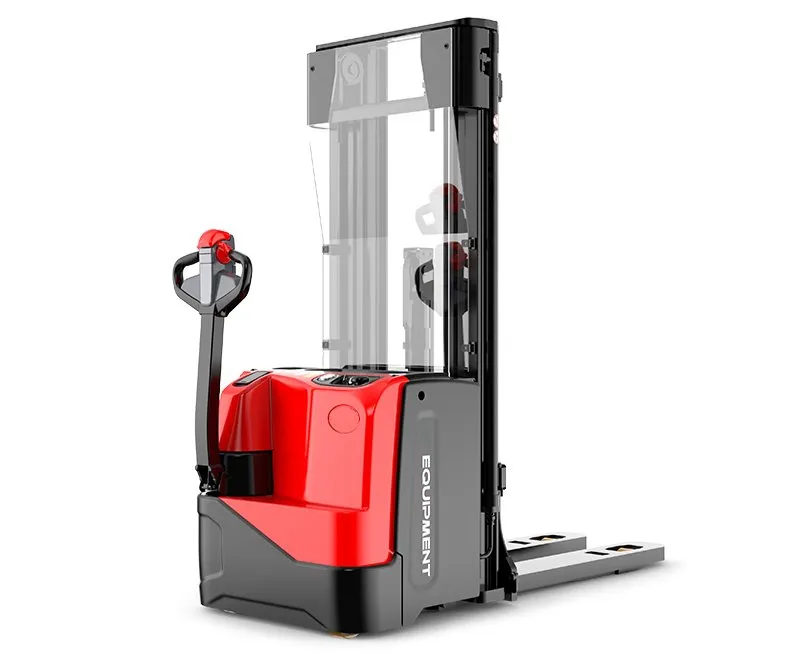

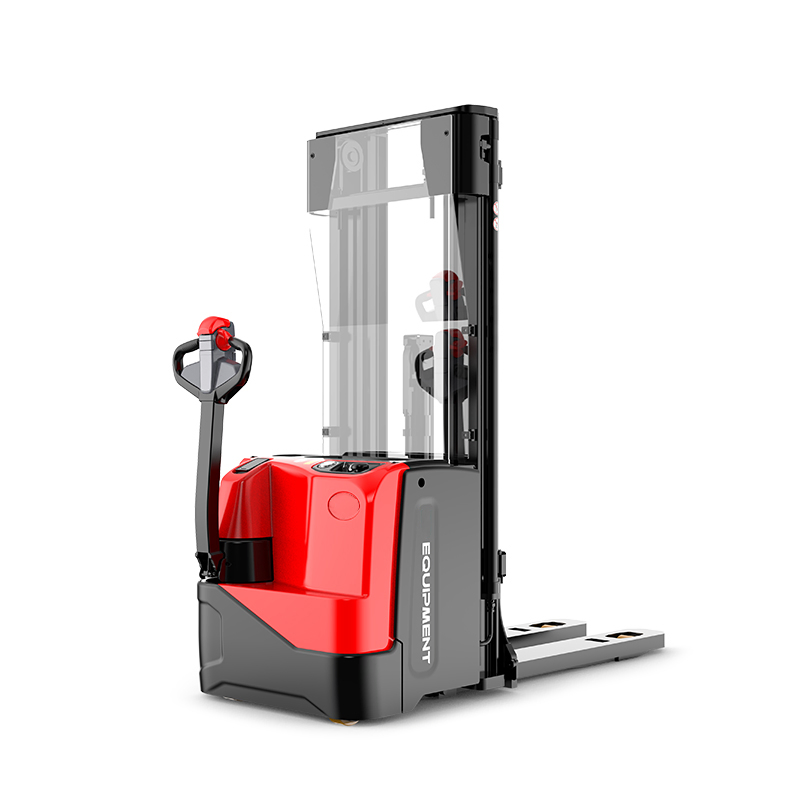

The WSA161i is a lithium-powered pedestrian stacker with an initial lift, capable of handling loads up to 1.6 tons and reaching heights of up to 5.5 meters.
Thanks to the properly sized support arms, the WSA161i can handle two pallets at a time to increase transport efficiency. This stacker is fitted with a 24V/100Ah Li-ion battery and 24V/30A integrated charger, offering opportunity charging and zero maintenance.

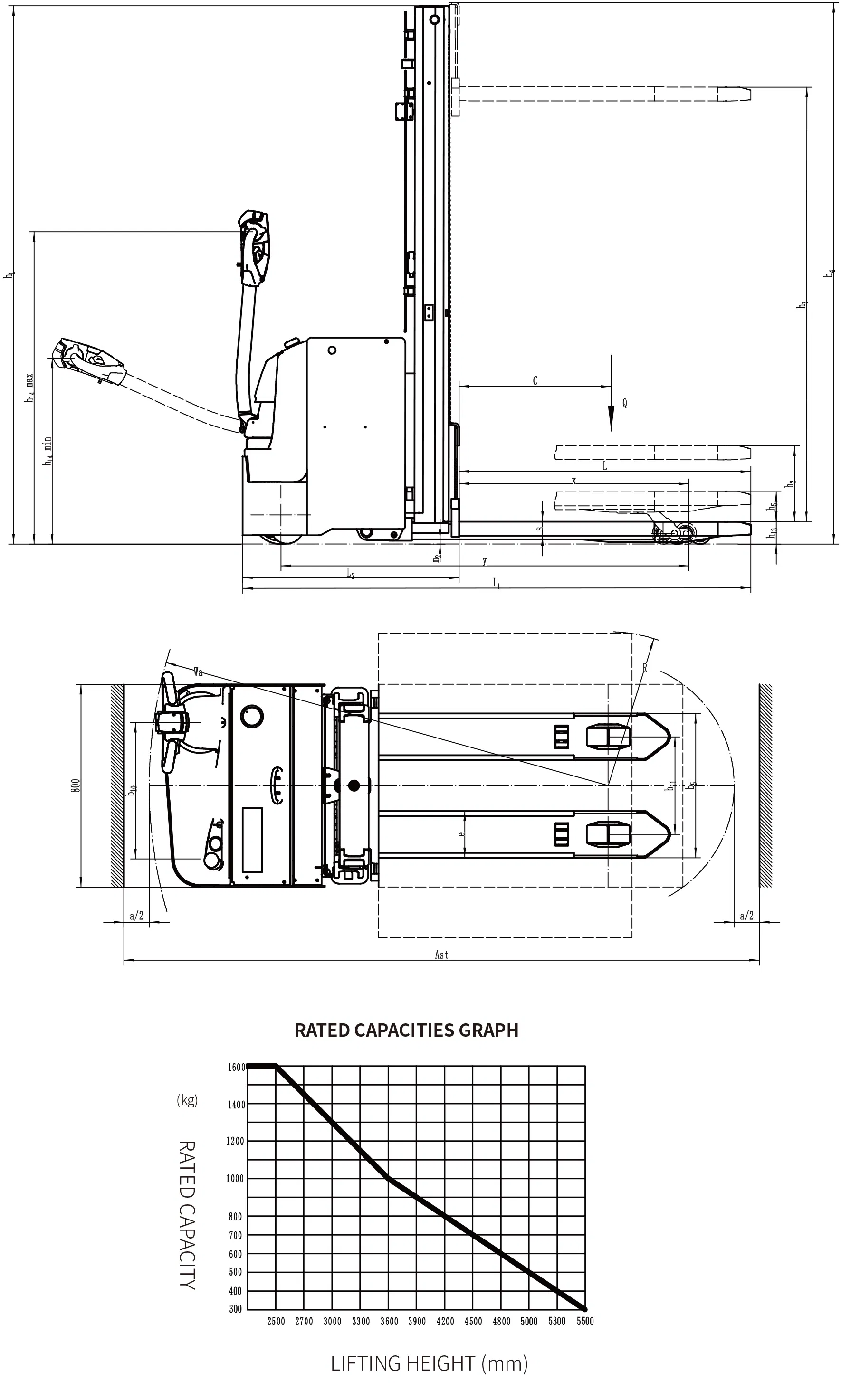

| Item | Description | Unit | Value |
|---|---|---|---|
| 1.1 | Brand | - | Torch |
| 1.2 | Model | - | WSA161i |
| 1.4 | Drive mode | - | Pedestrian |
| 1.5 | Load capacity | Q (kg) | 1600 |
| 2.1 | Service weight | kg | 1120 |
| 4.4 | Lift height | h3 (mm) | 2015-5500mm |
| 4.21 | Overall width | b1/ b2 (mm) | 810 |
| 4.35 | Turning radius | Wa (mm) | 1826 |
| 5.1 | Travel speed (laden/unladen) | km/h | 5/5 |
| 6.4 | Battery voltage/capacity | V/Ah | 24/100 (Li-ion) |

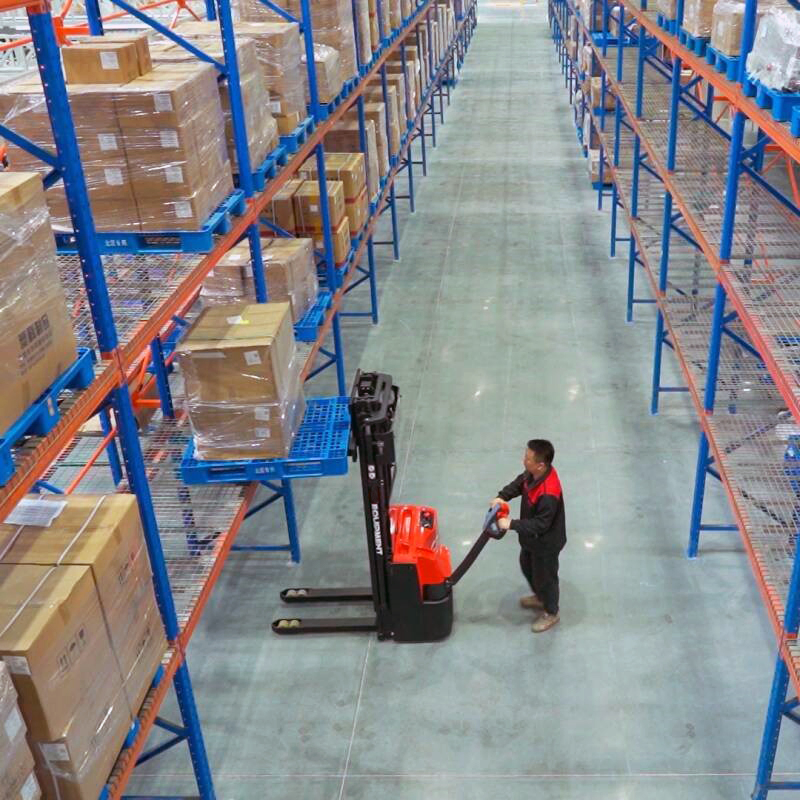

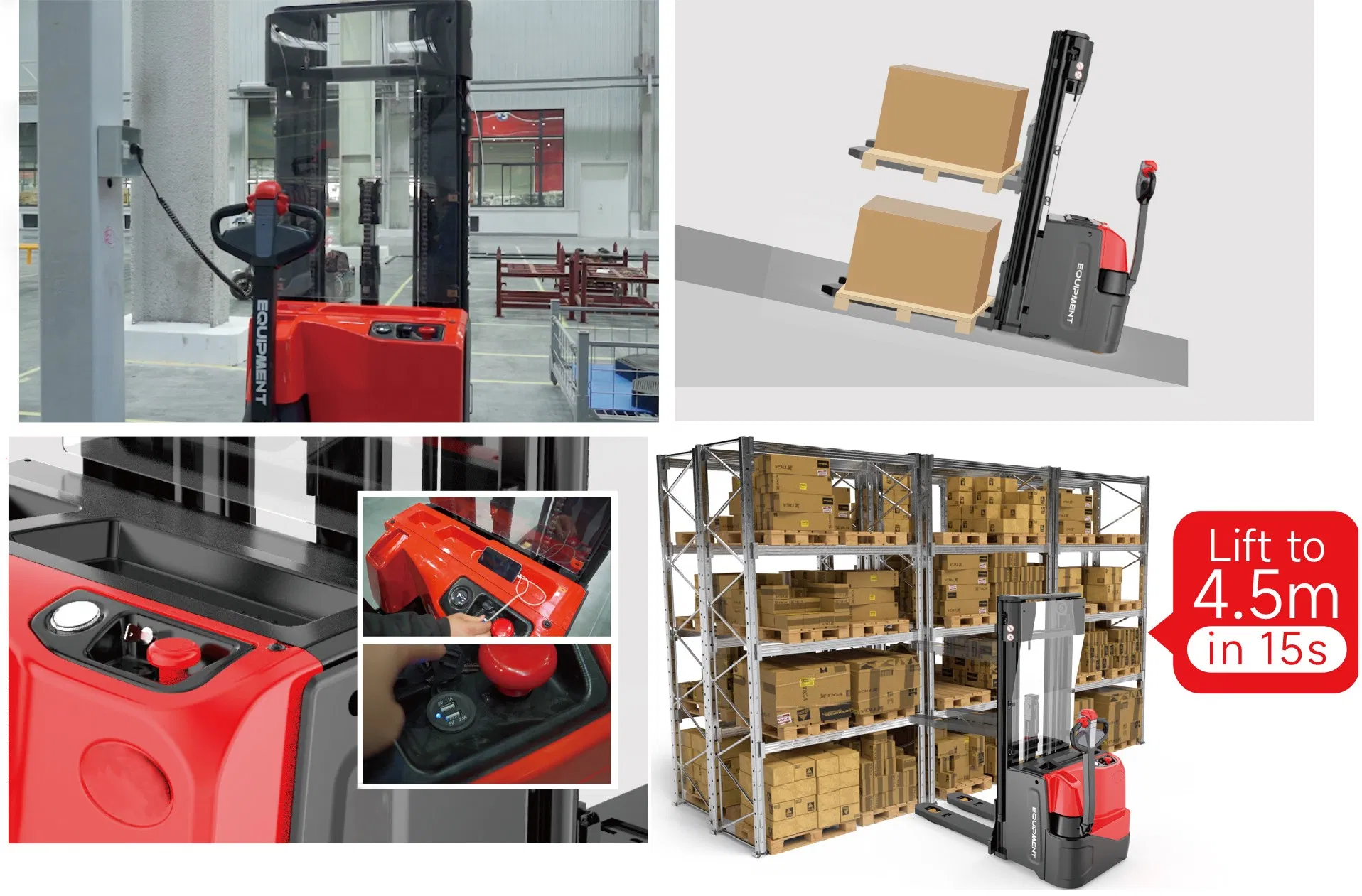

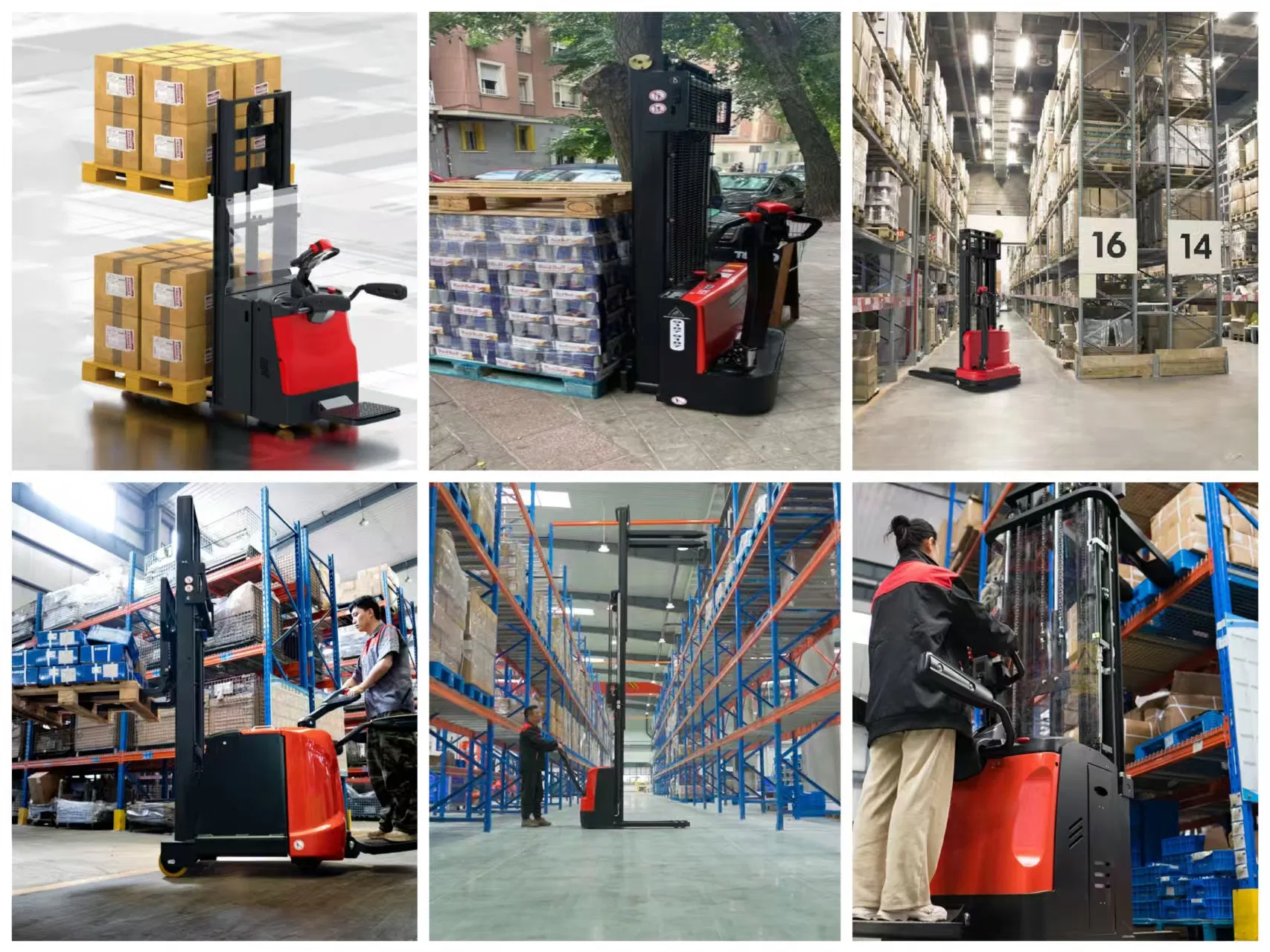

Rough Surface Capability: Ideal for use on uneven ground and ramps due to its initial lift, making it suitable for logistics warehouses, racking systems, and loading docks.

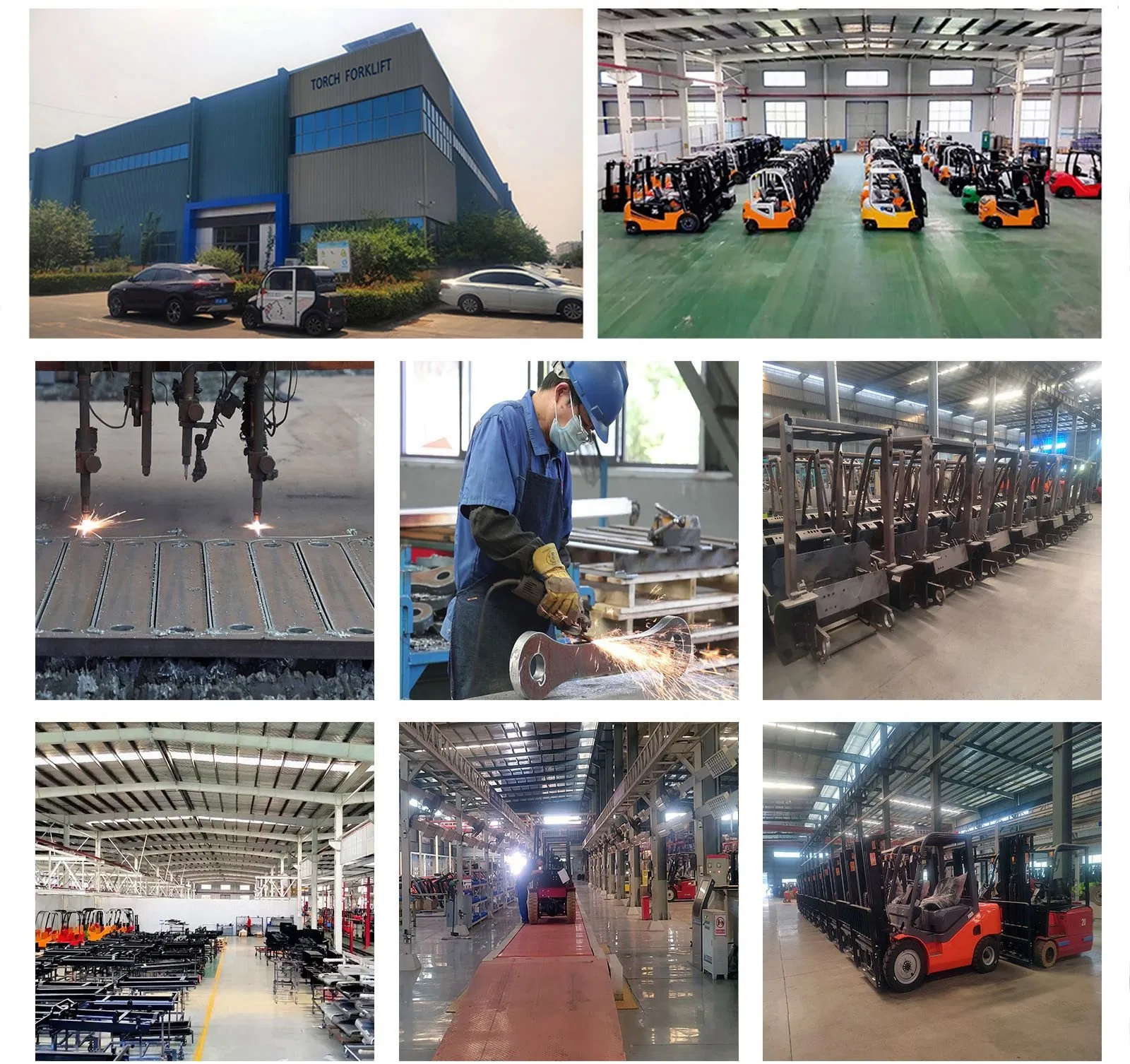

Established in 2020, we are a leading machinery manufacturer specializing in R&D, production, sales, and service of high-performance material handling equipment. Our equipment has been exported to more than 100 countries including the United States, Mexico, Canada, and Russia.
