| Model NO. | ESi161 |
| Type | Stacker |
| Power | AC Motor / Lithium Battery |
| Load Capacity | 1.6 Ton |
| Load Center | 600mm |
| Lift Height | 1520mm |
| Turning Radius | 1473mm |
| Overall Length | 1770mm |
| Certification | CE/ISO9001 |

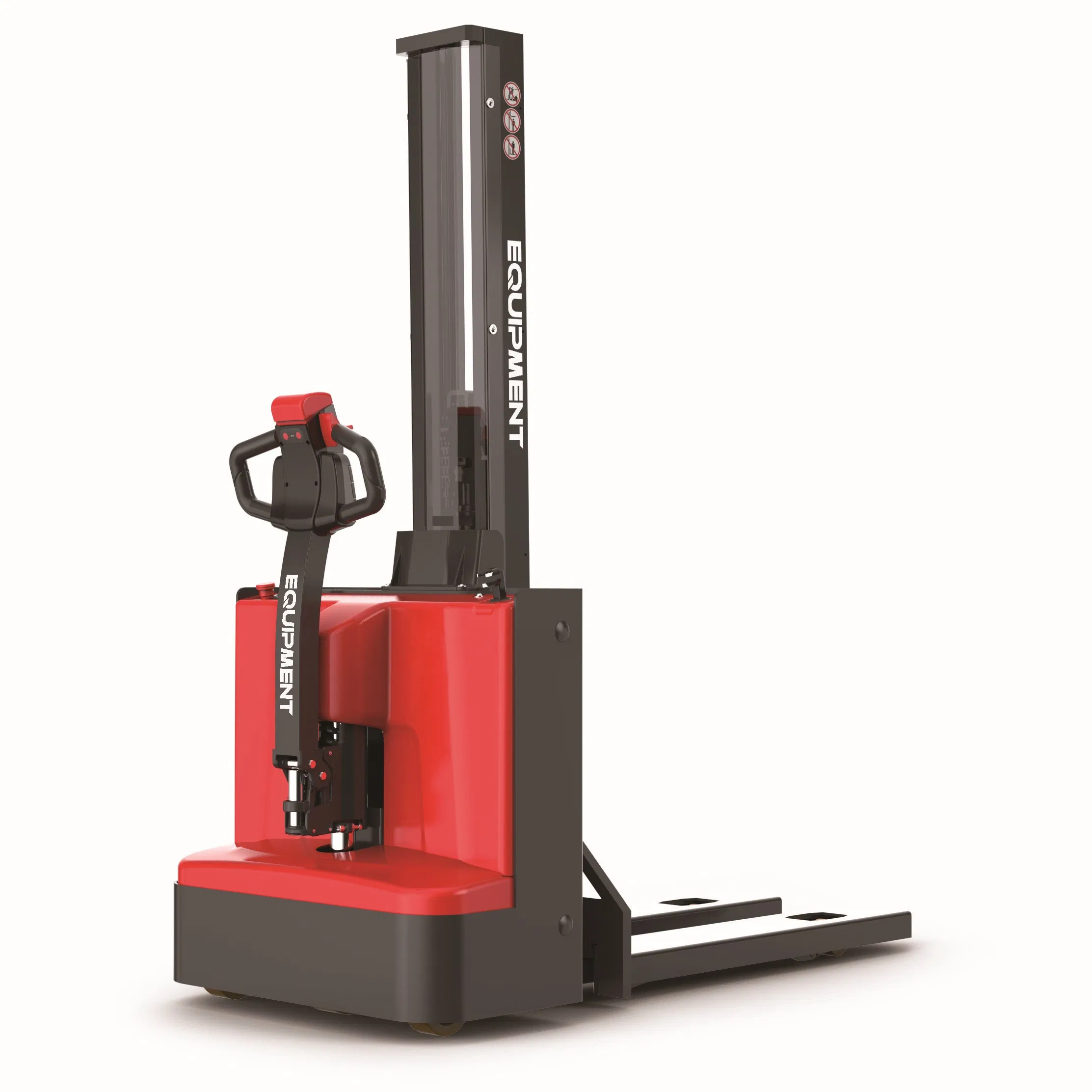

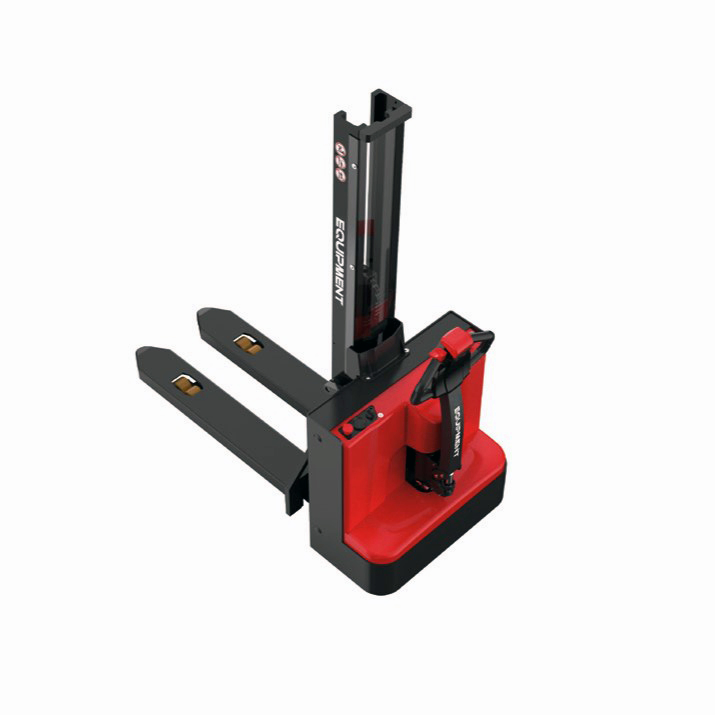

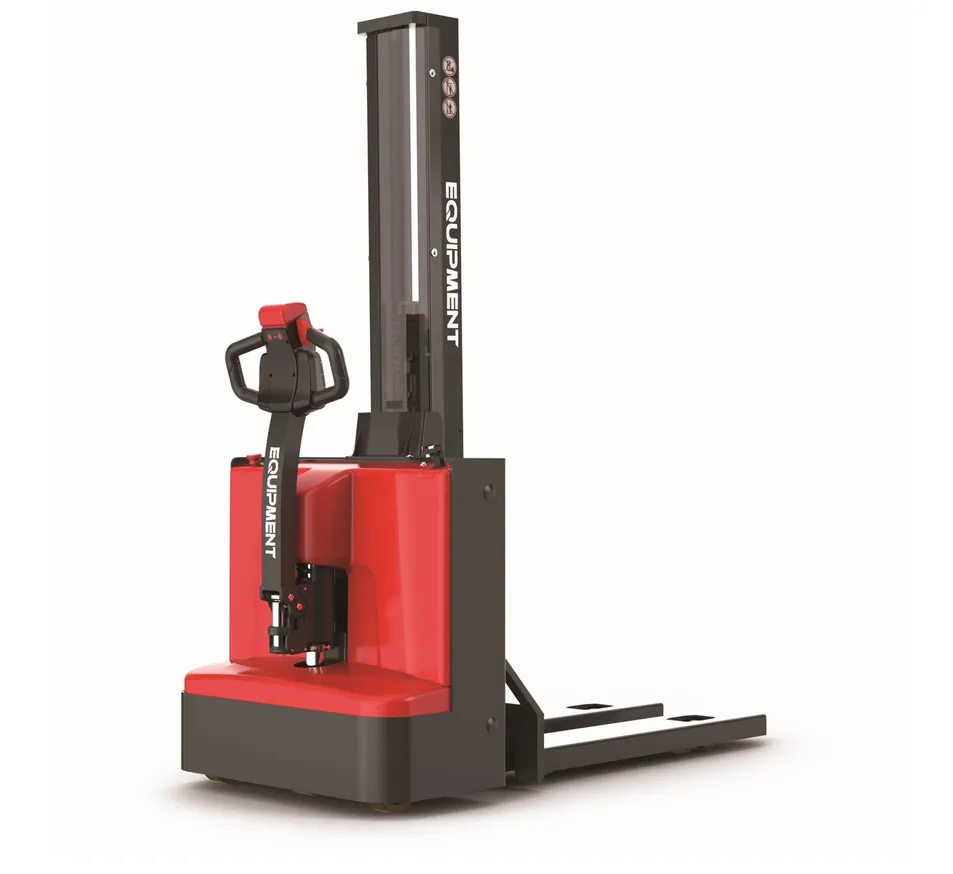

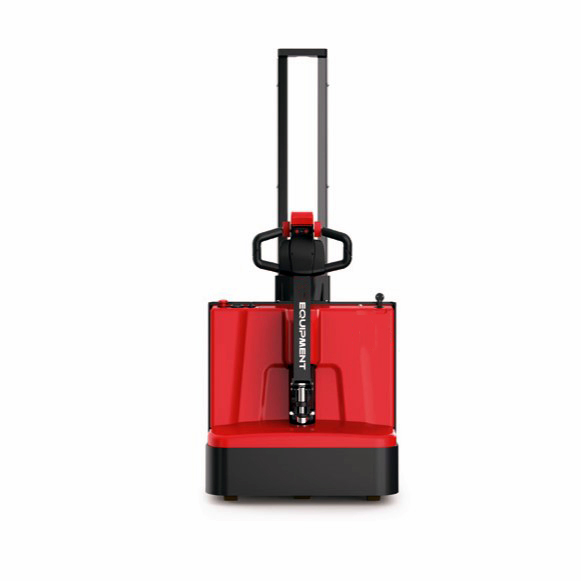

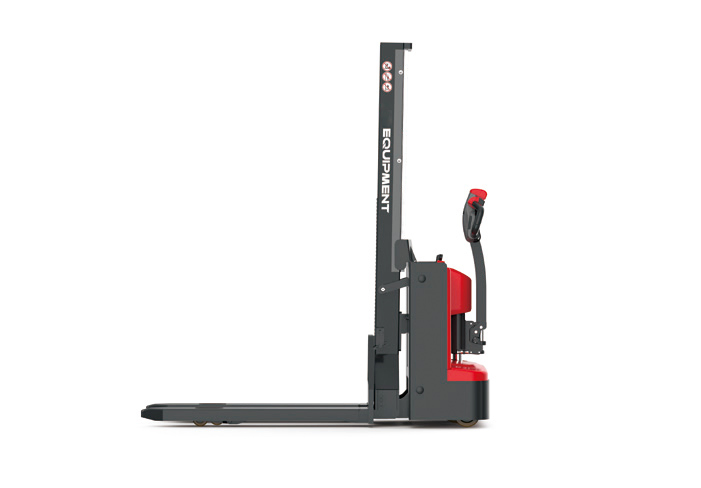

The ESi161 is a lithium-powered electric pedestrian stacker with a 1.6-ton load capacity, specifically designed for low-to-medium intensity double-deck applications. This model features a mono mast and a transparent panel, providing the operator with a clear view of the fork tips for precise stacking and retrieval safety.

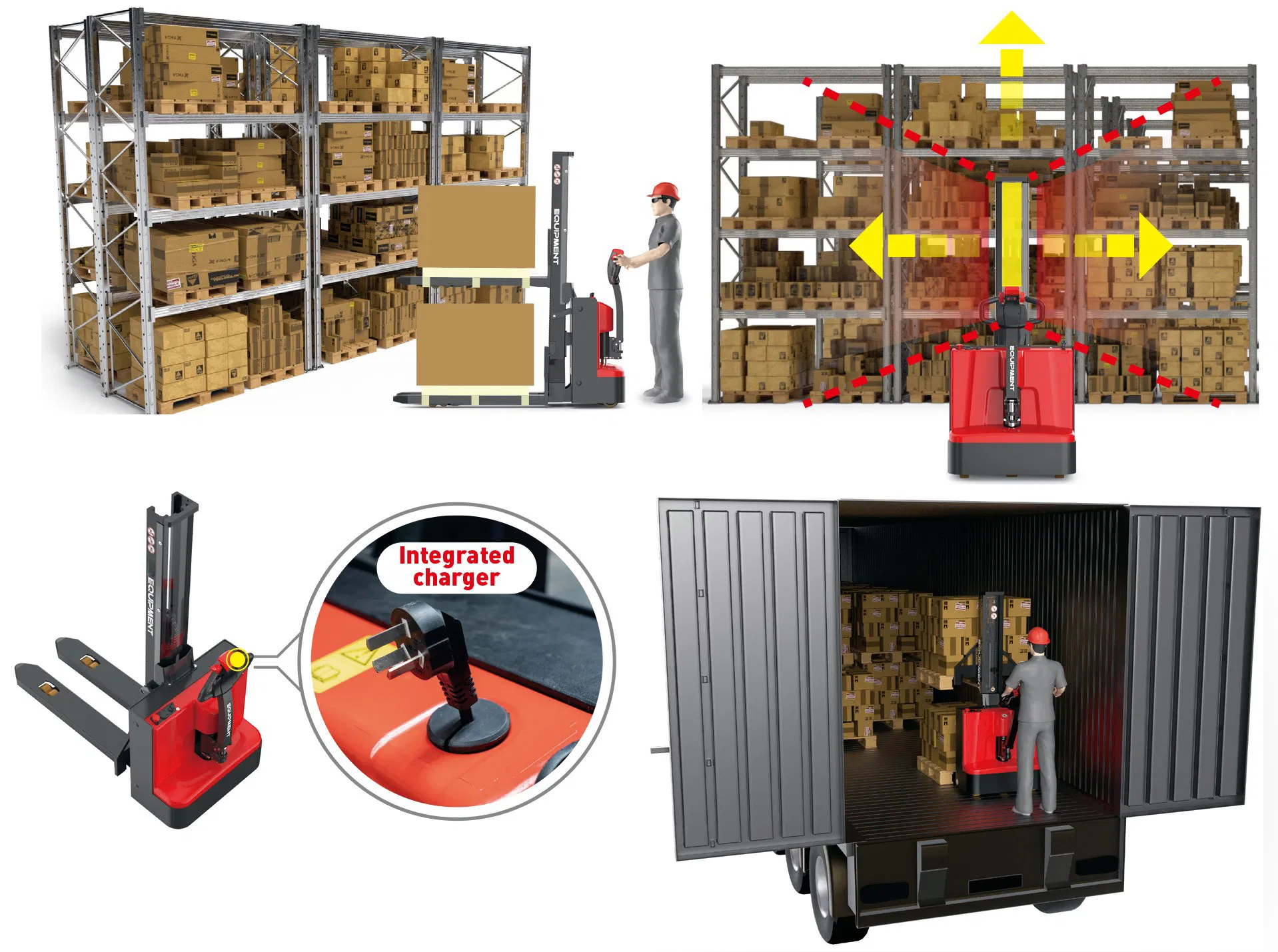

Mono mast and transparent panel ensure optimal visibility for safe operations.
Integrated Li-ion battery allows for fast opportunity charging and reduced downtime.
Centralized drive wheel provides superior traction and a compact turning radius.

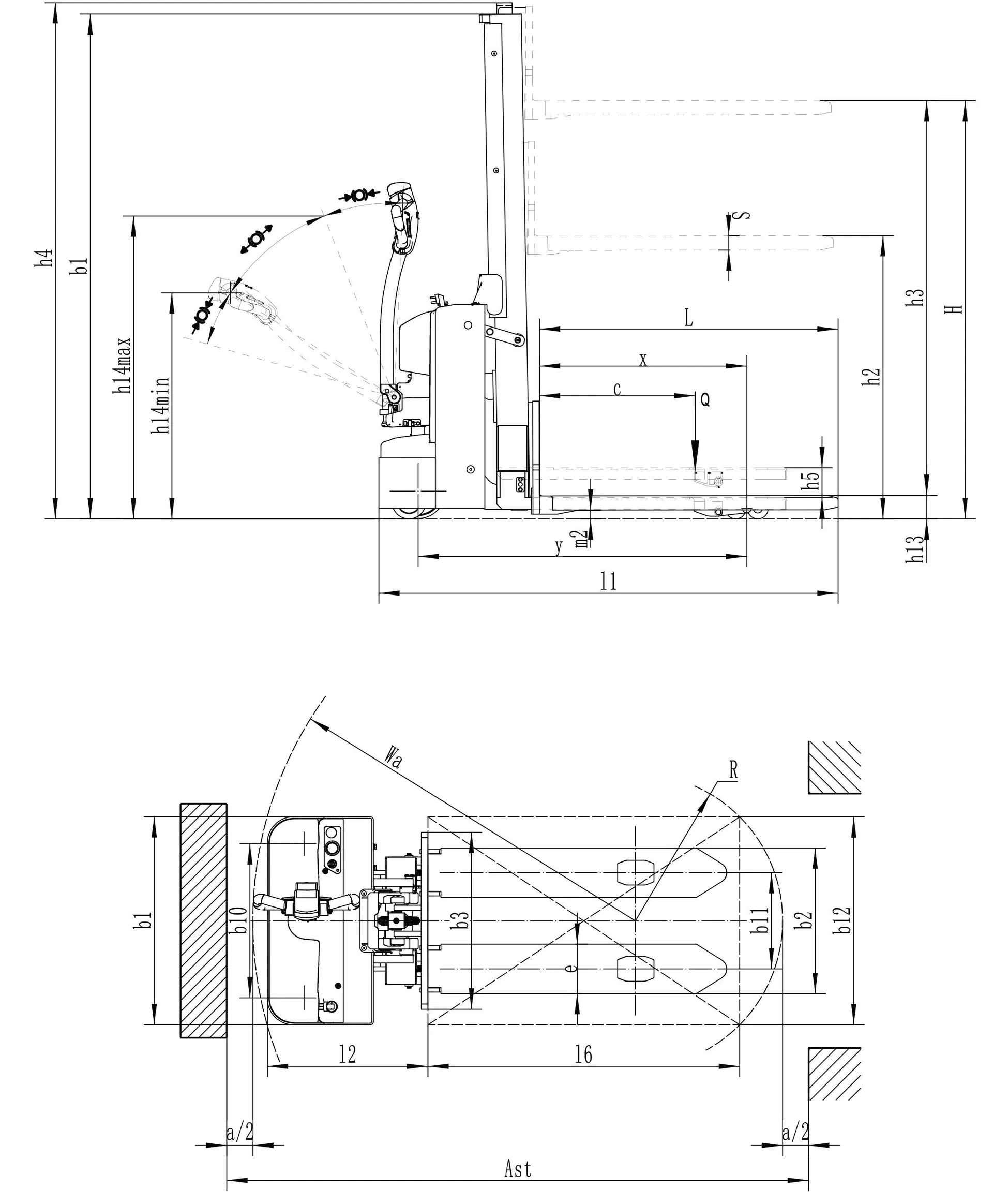

| Parameter | Detail | Value |
|---|---|---|
| 1.5 Load capacity | Q (kg) | 1600 |
| 1.6 Load center distance | c (mm) | 600 |
| 4.2 Retracted mast height | h1 (mm) | 1942 |
| 4.4 Lift height | h3 (mm) | 1520 |
| 4.35 Turning radius | Wa (mm) | 1473 |
| 5.1 Travel speed (laden/unladen) | km/h | 4.0/4.5 |
| 6.4 Battery voltage/capacity | V/Ah | 24/100 |

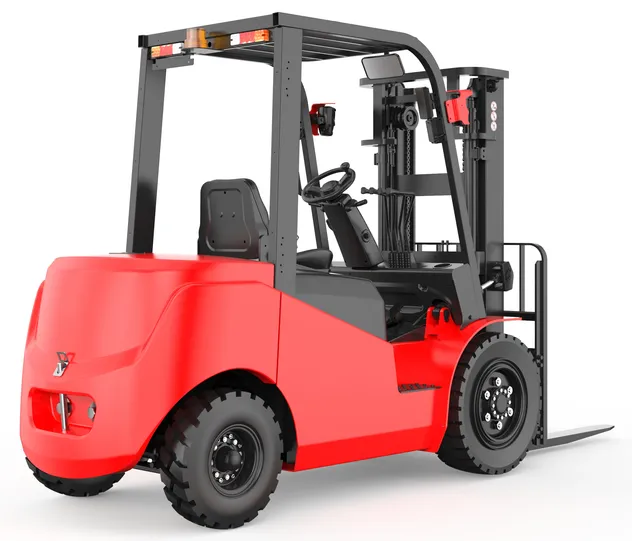

Electric Forklift

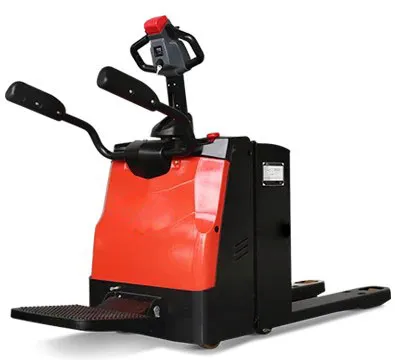

Pallet Truck

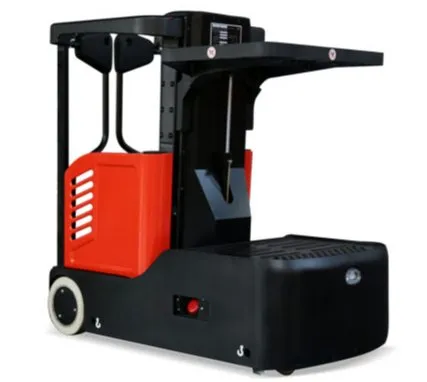

Order Picker

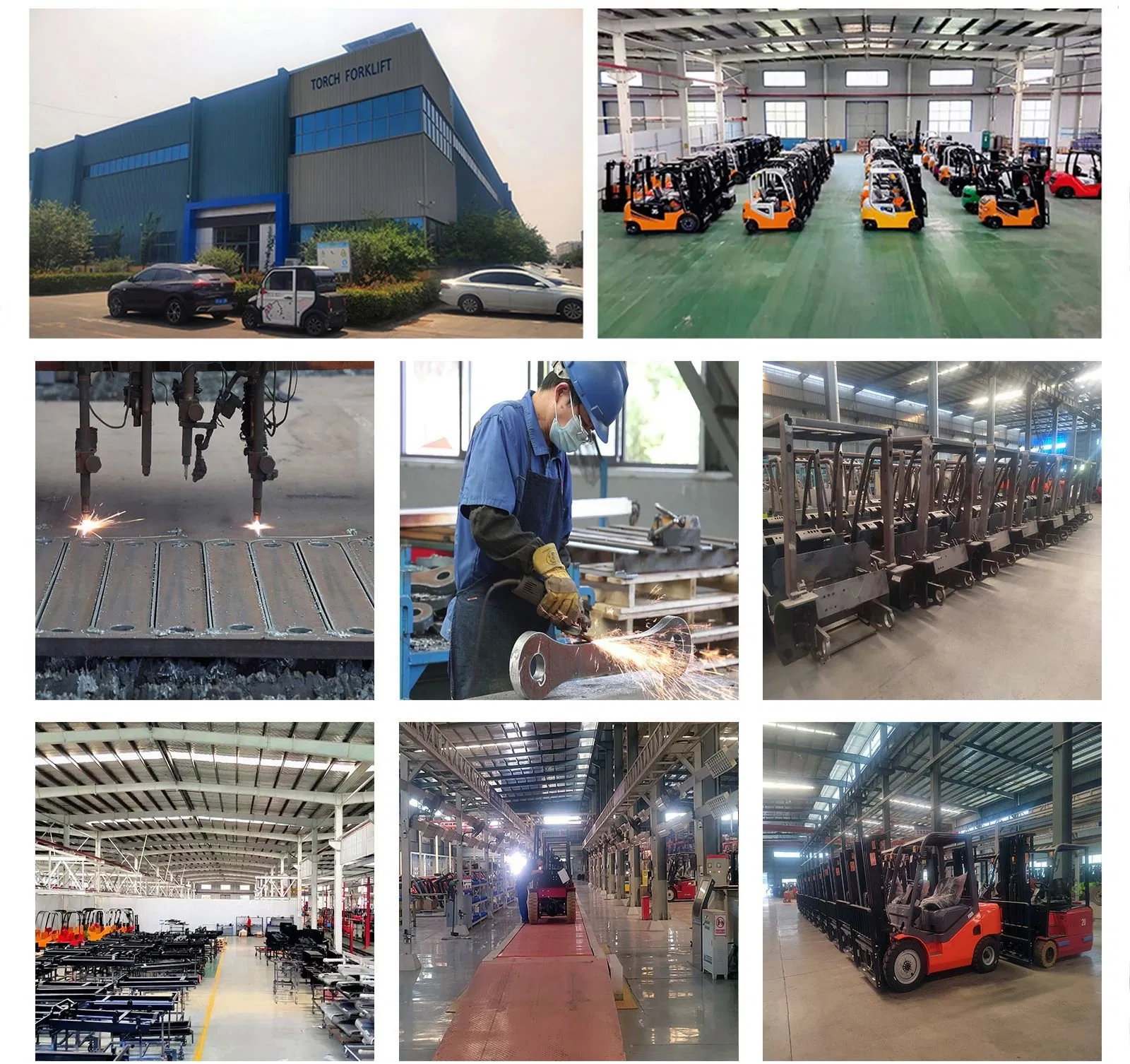

Our company is a leading machinery manufacturer specializing in the R&D, production, and service of high-performance material handling equipment. Our product range includes electric forklifts, diesel forklifts, electric stackers, material handling robots, and industrial AGVs.
