| Model | ESi161 | Type | Stacker |
| Power | AC Motor / Electric | Load Capacity | 1.6 Ton |
| Load Center | 600mm | Lift Height | 1520mm |
| Overall Length | 1770mm | Turning Radius | 1473mm |
| Battery | 24V/100Ah Li-ion | Certification | CE/ISO9001 |

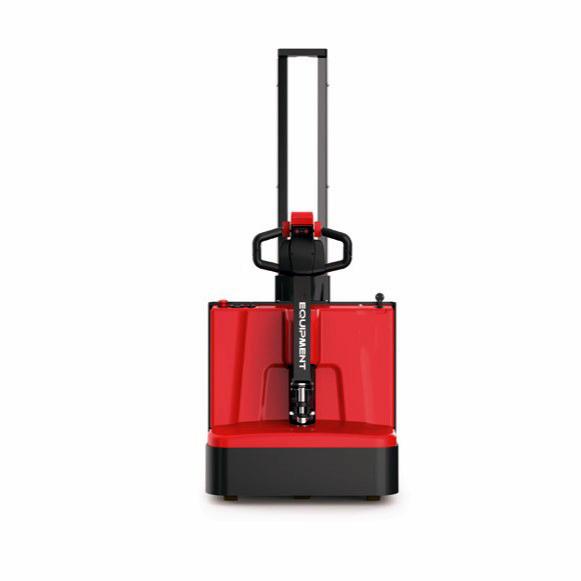

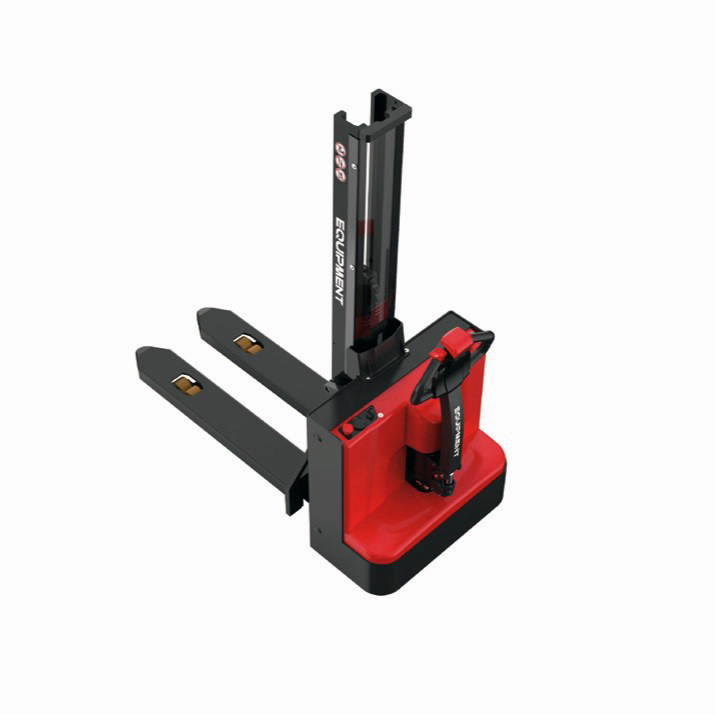

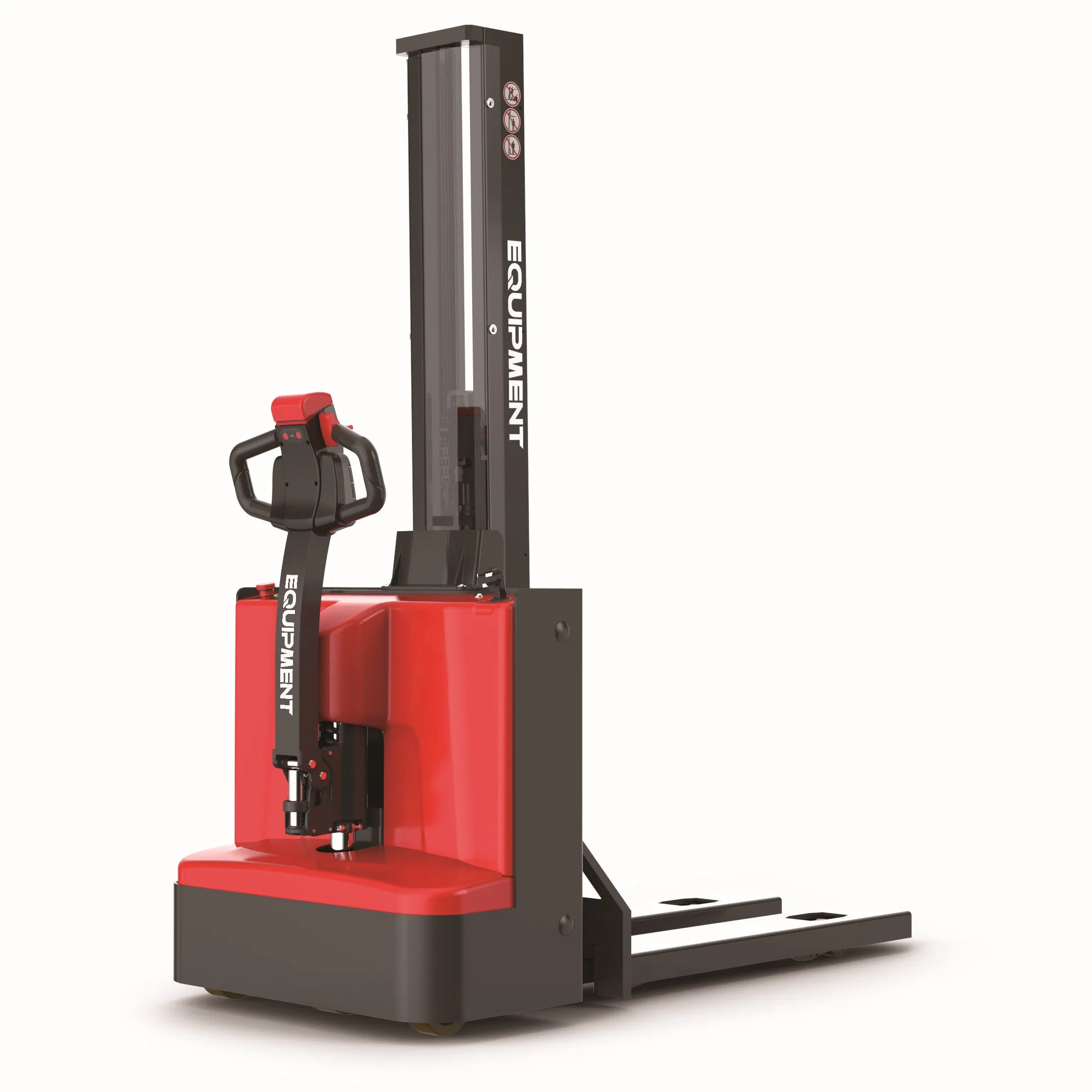

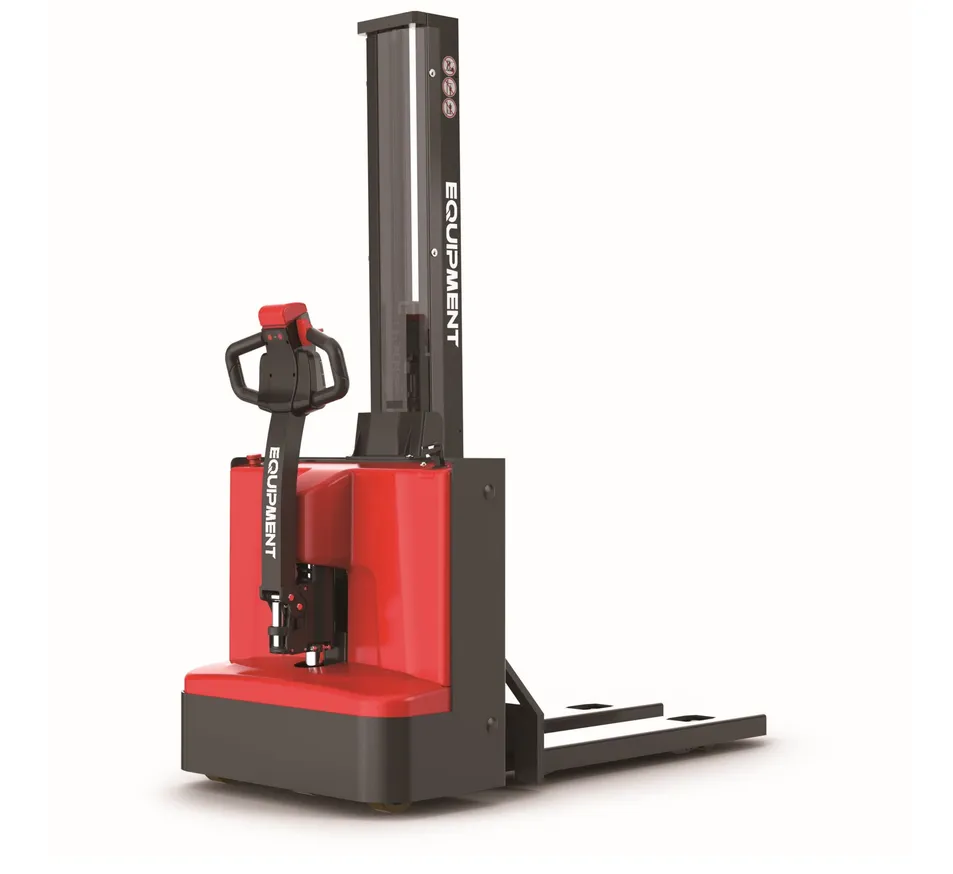

ESi161 is a lithium-powered electric pedestrian stacker with a 1.6-ton load capacity, ideal for low-to-medium intensity double-deck applications. This model is distinguished by its great visibility—with a mono mast and a transparent panel, the operator will have a clear view of the fork tips, ensuring precise stacking and retrieval safety.

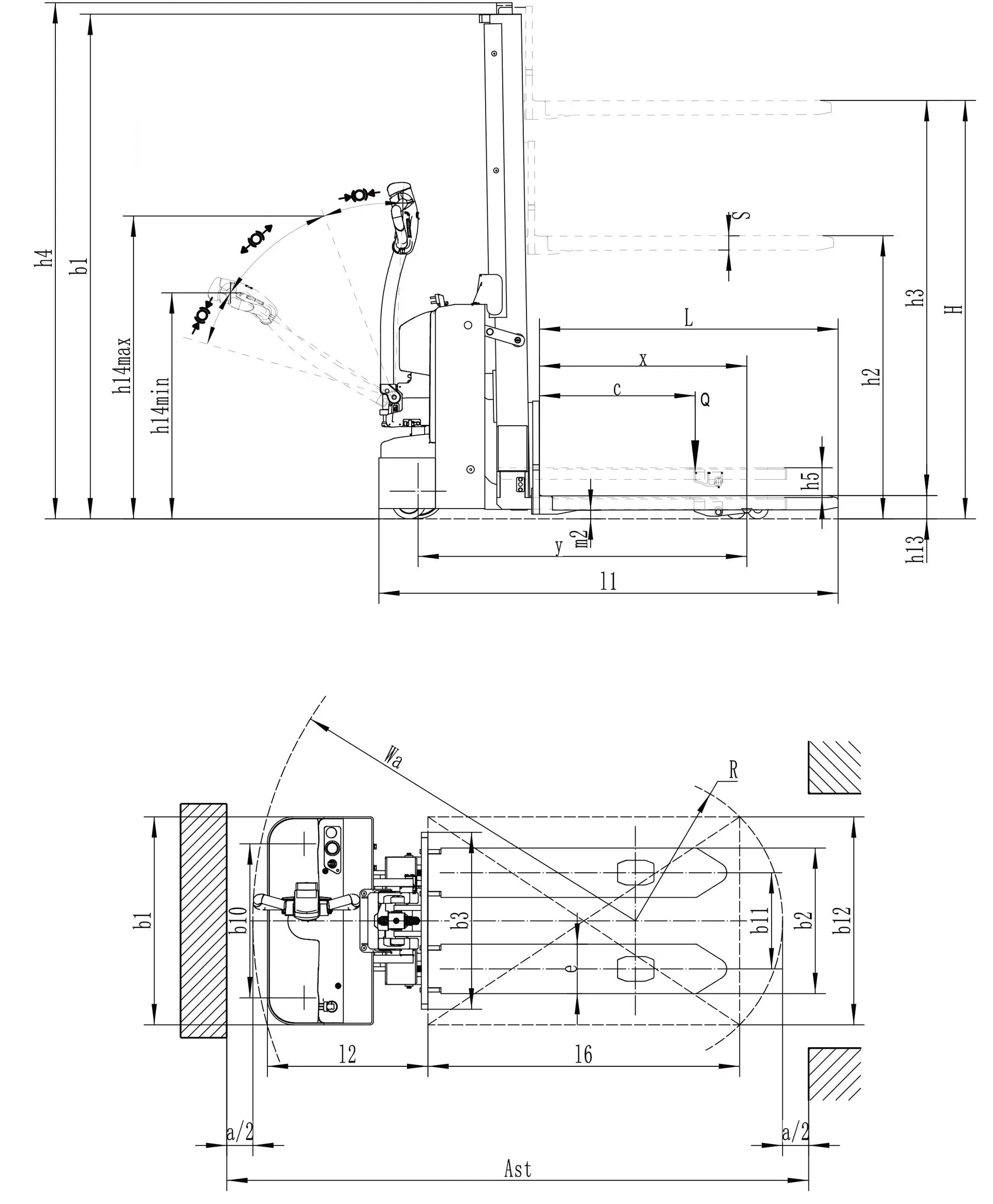

| Code | Description | Unit | Value |
|---|---|---|---|
| 1.5 | Load capacity | Q (kg) | 1600 |
| 1.6 | Load center distance | c (mm) | 600 |
| 4.2 | Retracted mast height | h1 (mm) | 1942 |
| 4.4 | Lift height | h3 (mm) | 1520 |
| 4.19 | Overall length | l1 (mm) | 1770 |
| 4.35 | Turning radius | Wa (mm) | 1473 |
| 5.1 | Travel speed (laden/unladen) | km/h | 4.0 / 4.5 |
| 6.1 | Drive motor rating | kW | 0.75 |

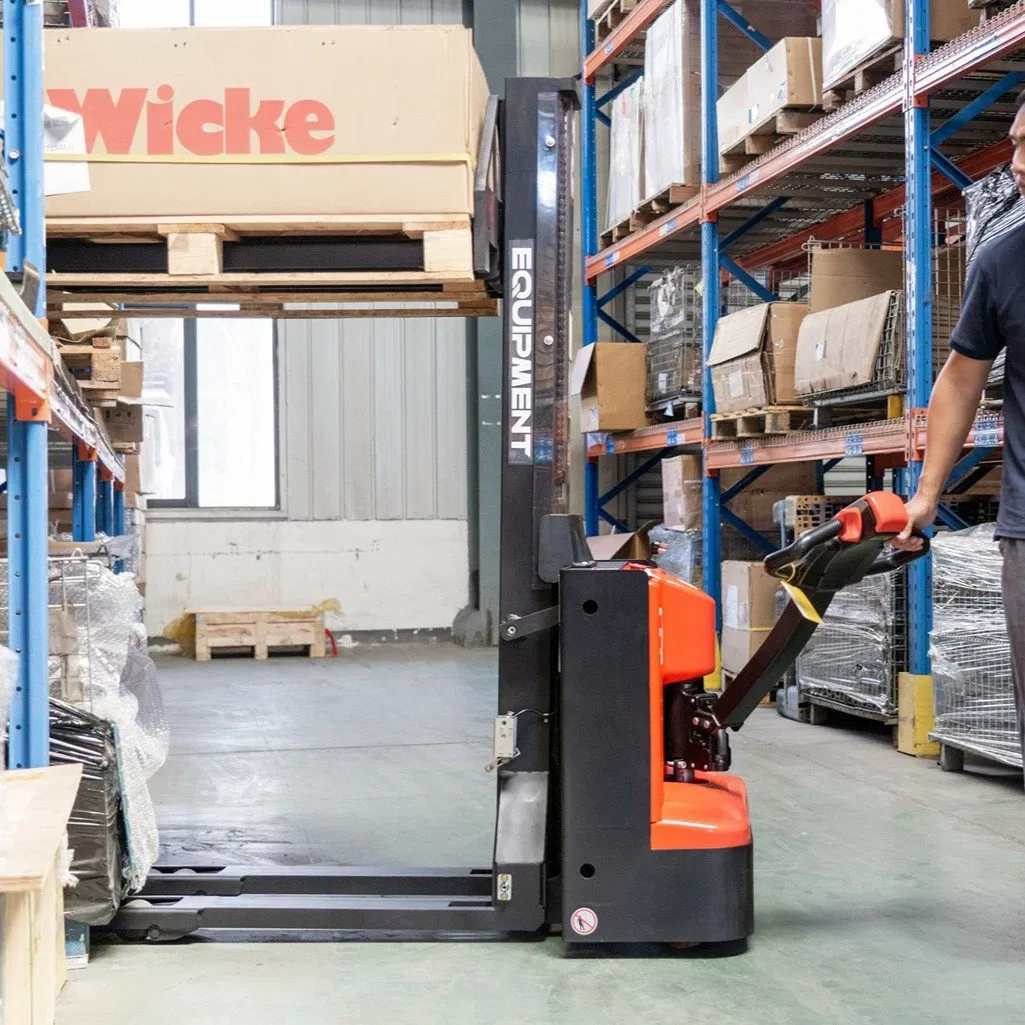

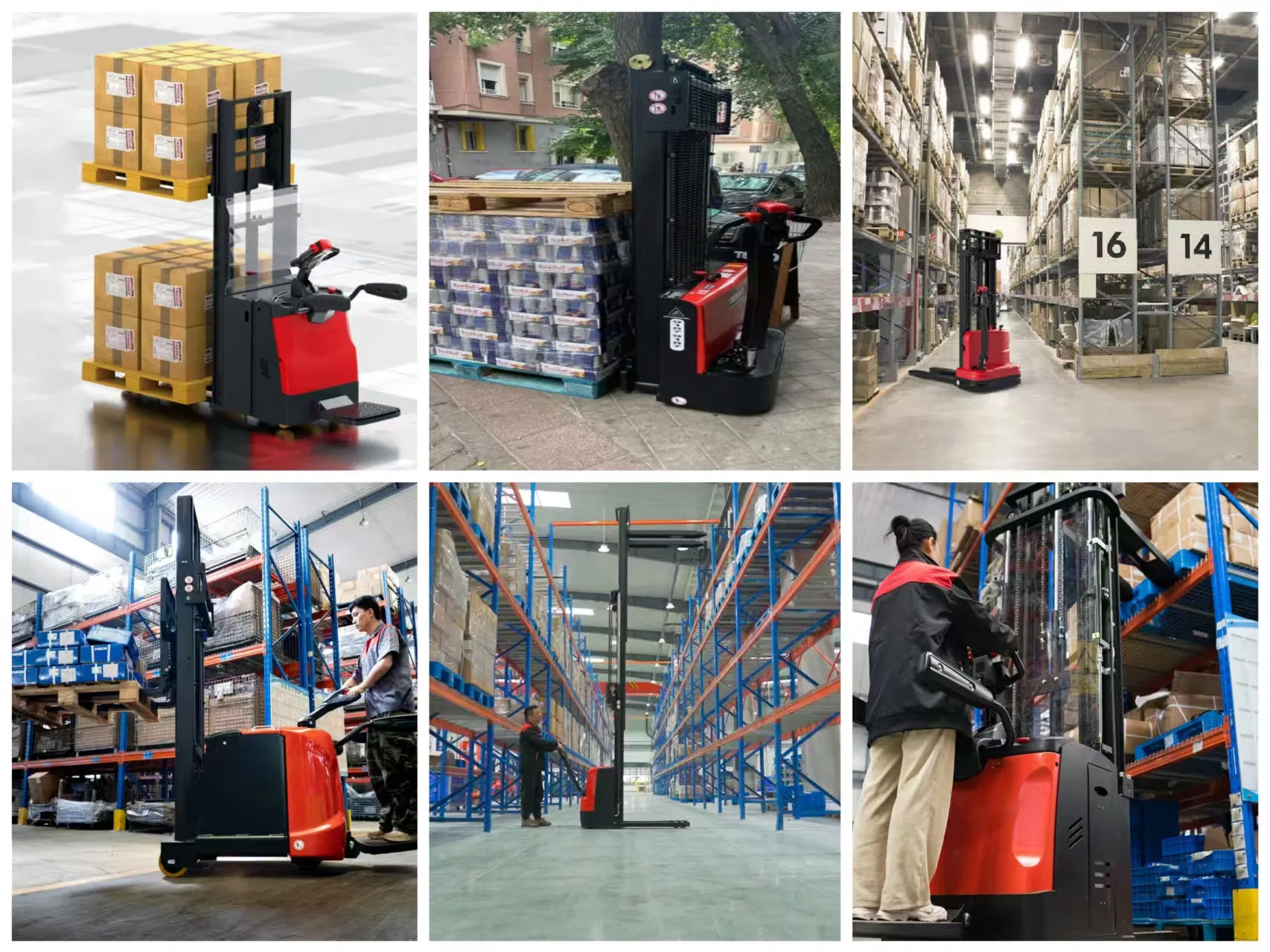

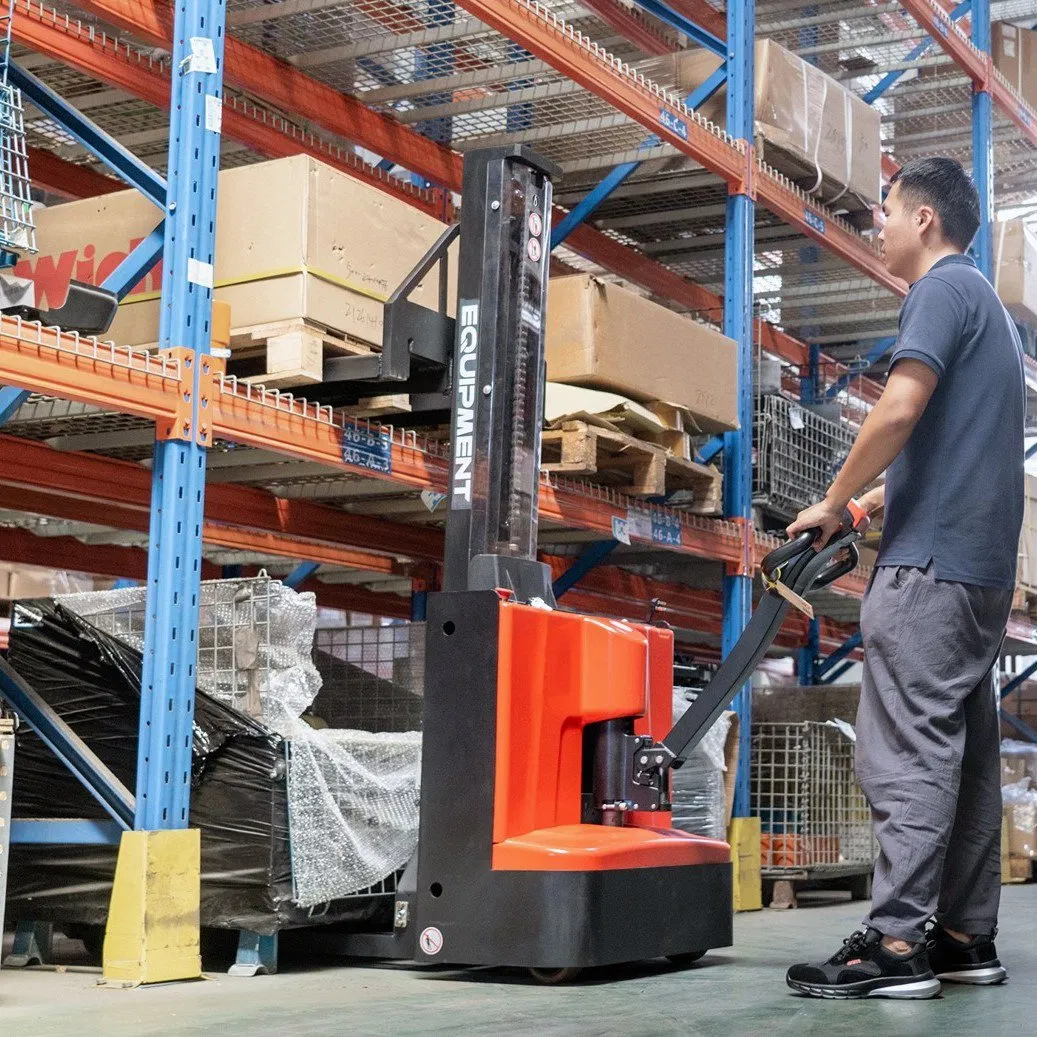

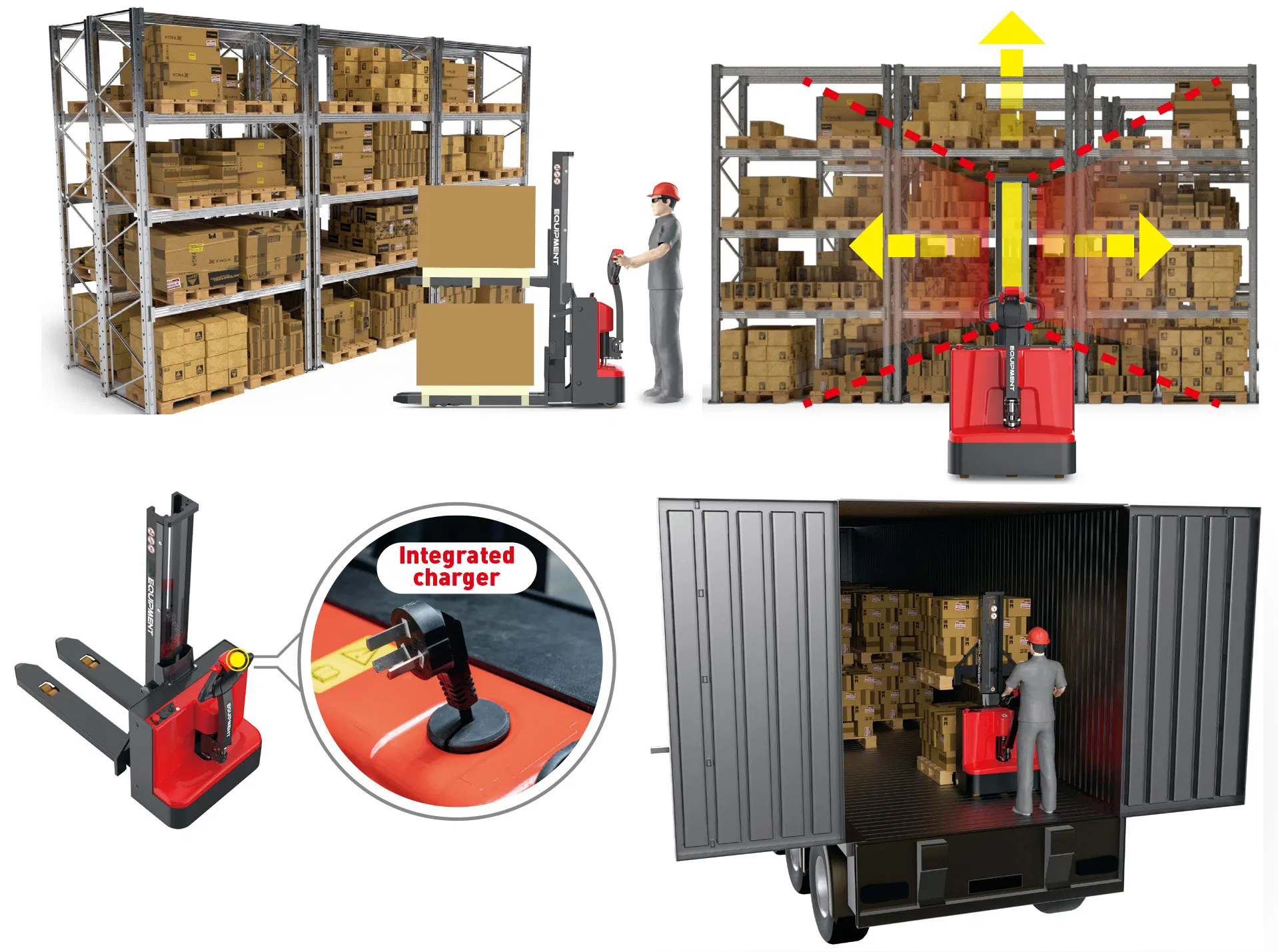

Stacking: Ideal for small to medium warehouses, retail environments, and lorries. The double-deck feature allows flexible handling.
Confined Spaces: Compact chassis design excels in narrow aisles and loading tasks.
Order Picking: Can be used as an order picker with adjustable fork heights for ergonomic operation.

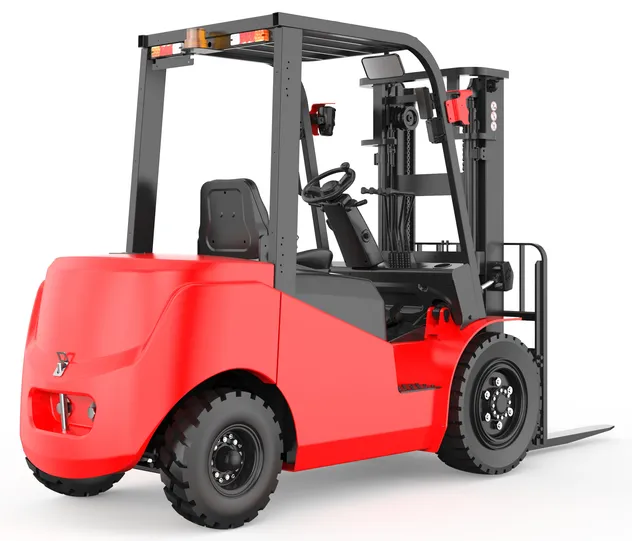

Electric Forklift

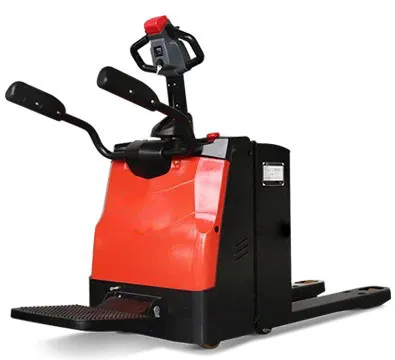

Pallet Truck

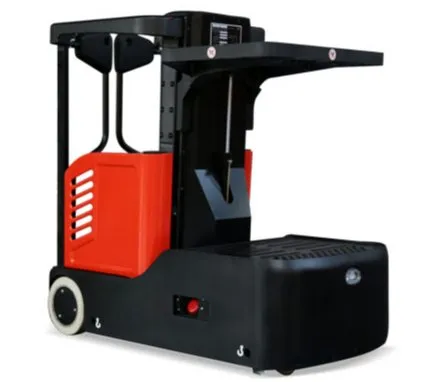

Order Picker

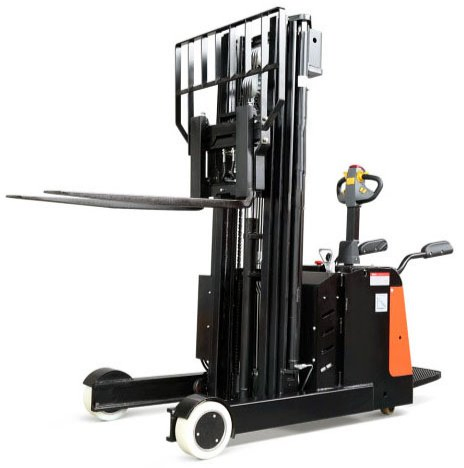

Reach Truck

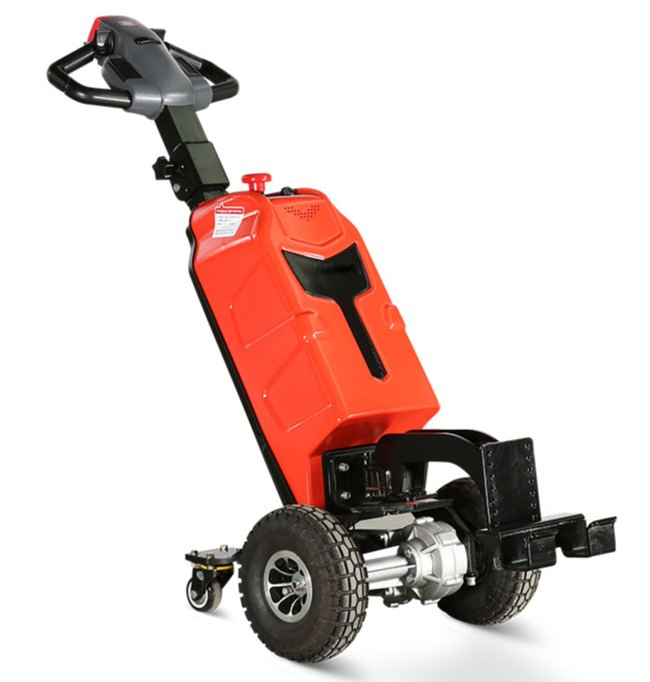

Tow Tractor
