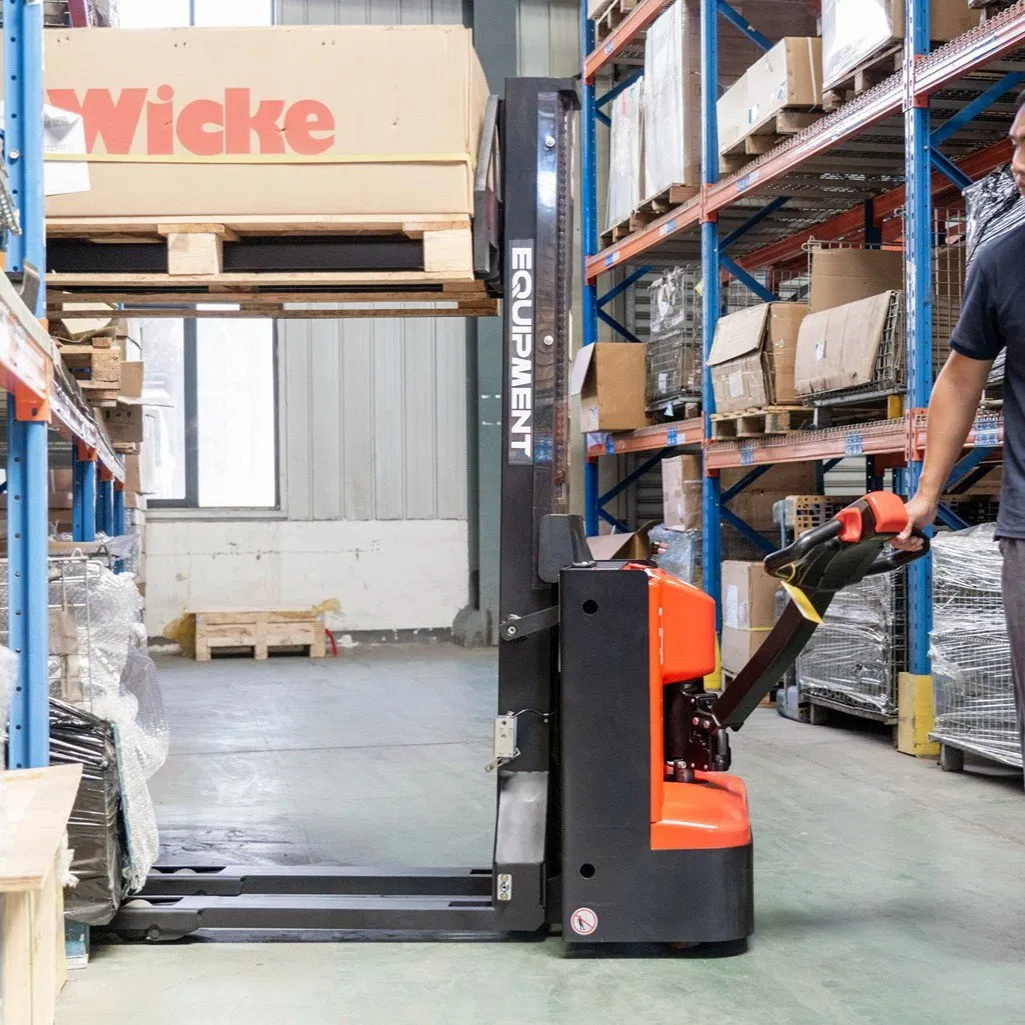

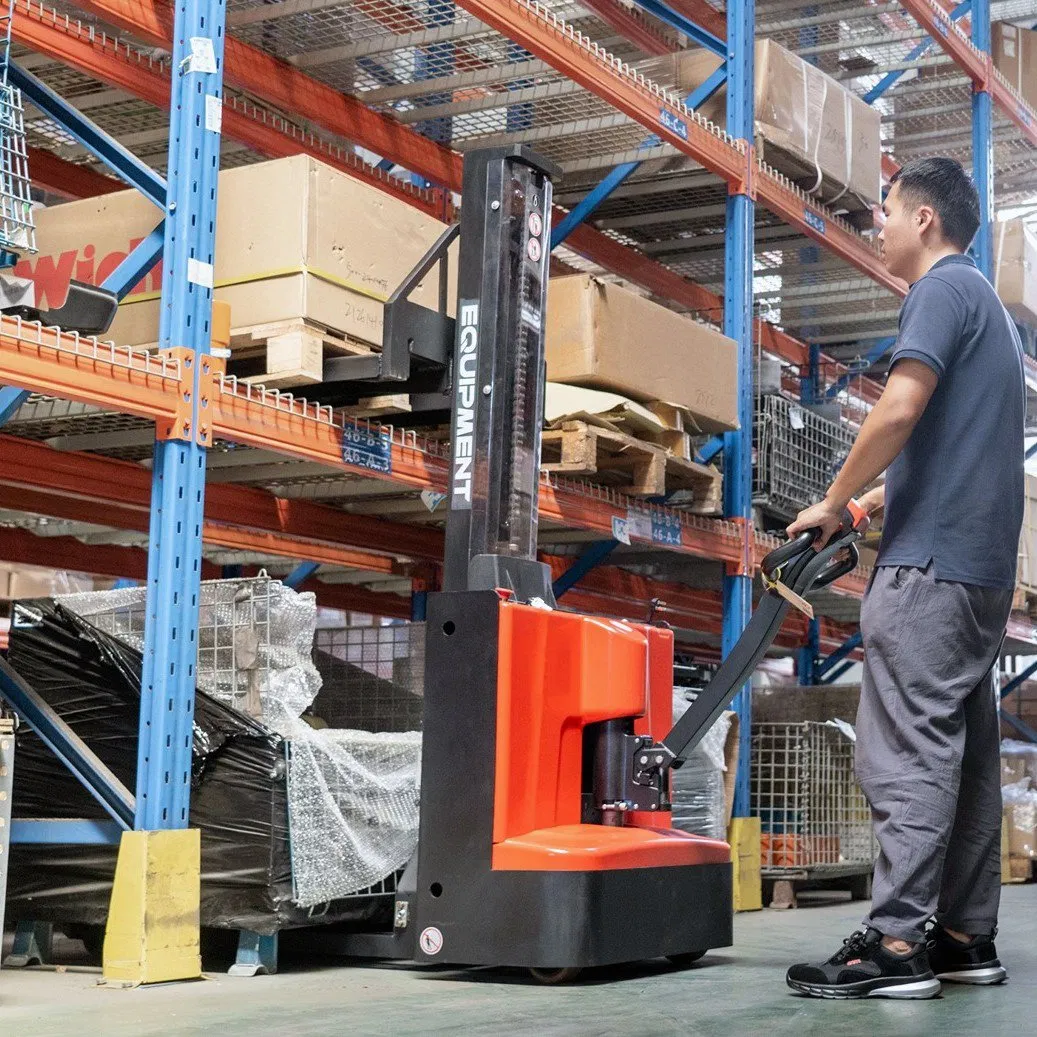

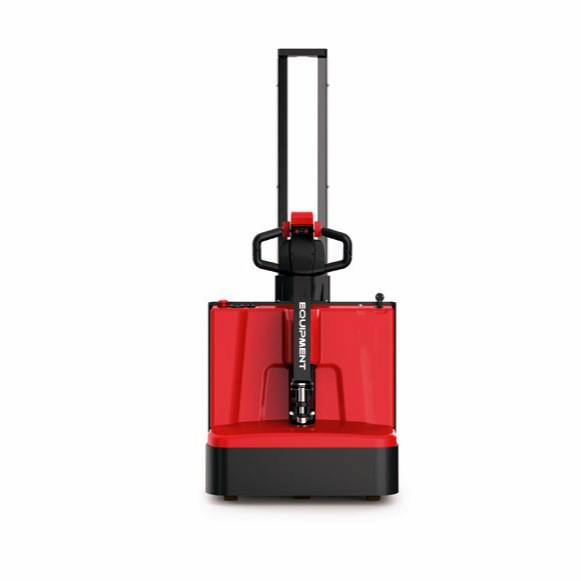

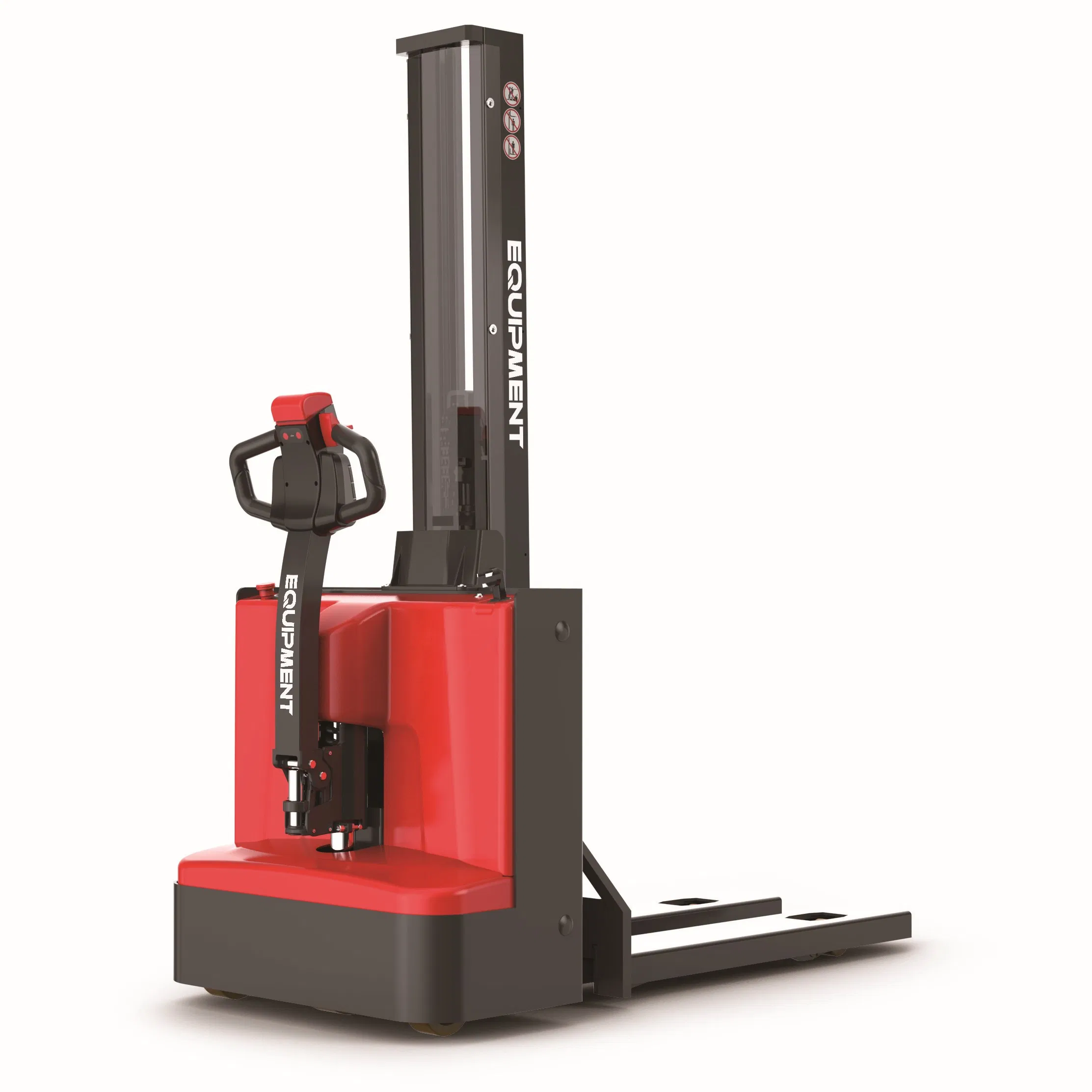

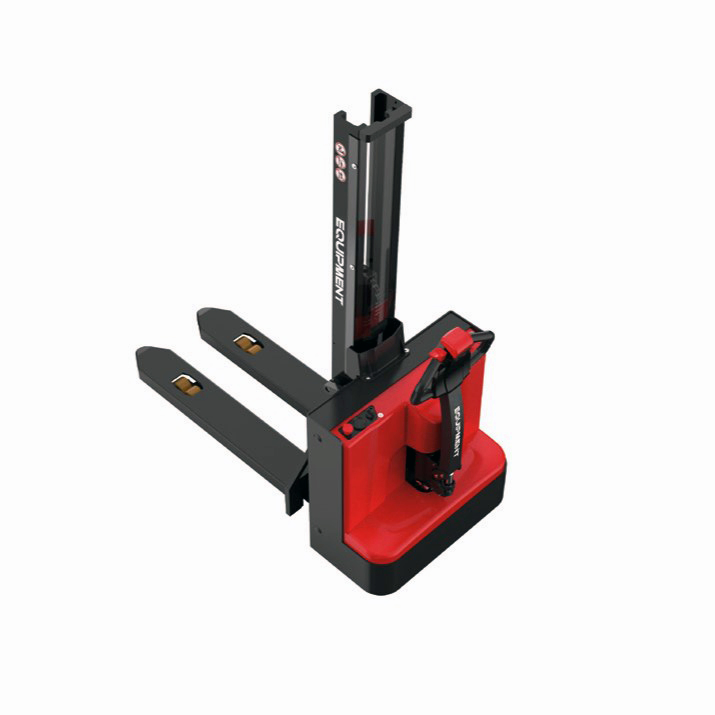

ESi161 is a lithium-powered electric pedestrian stacker with a 1.6-ton load capacity, ideal for low-to-medium intensity double-deck applications. This model is distinguished by its great visibility—with a mono mast and a transparent panel, the operator will have a clear view of the fork tips, ensuring precise stacking and retrieval safety.

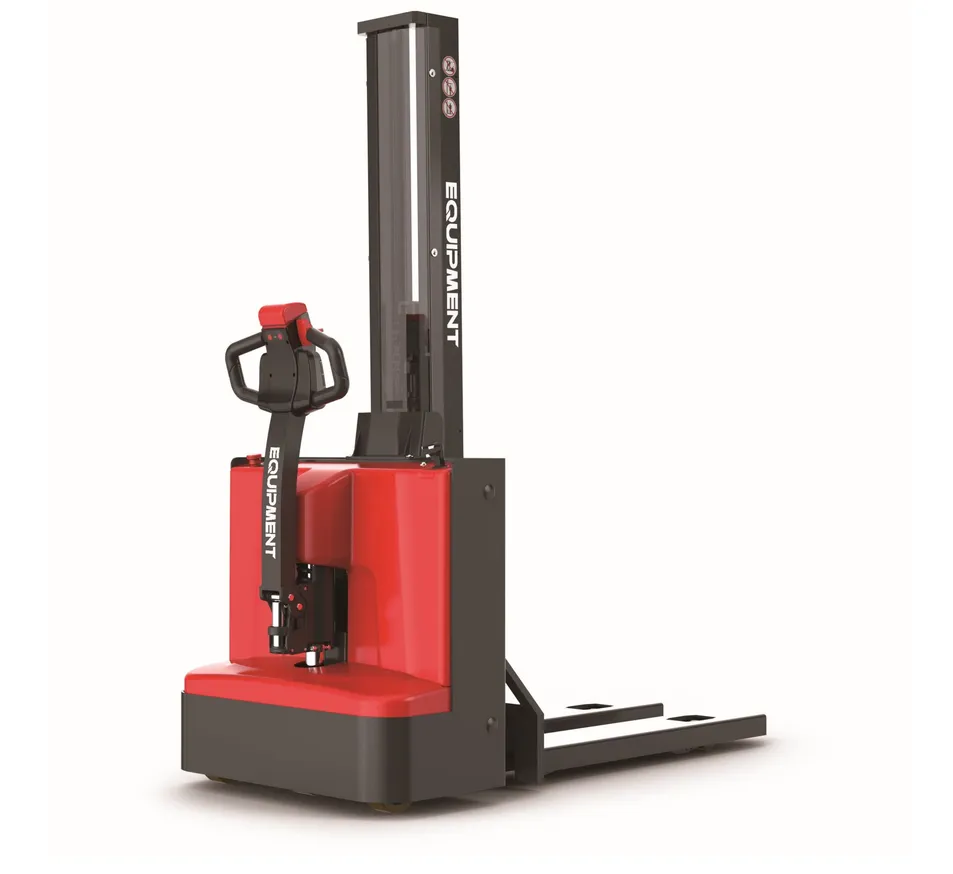

The compact design makes it highly maneuverable in tight spaces, ensuring efficient operation in modern warehouse environments.

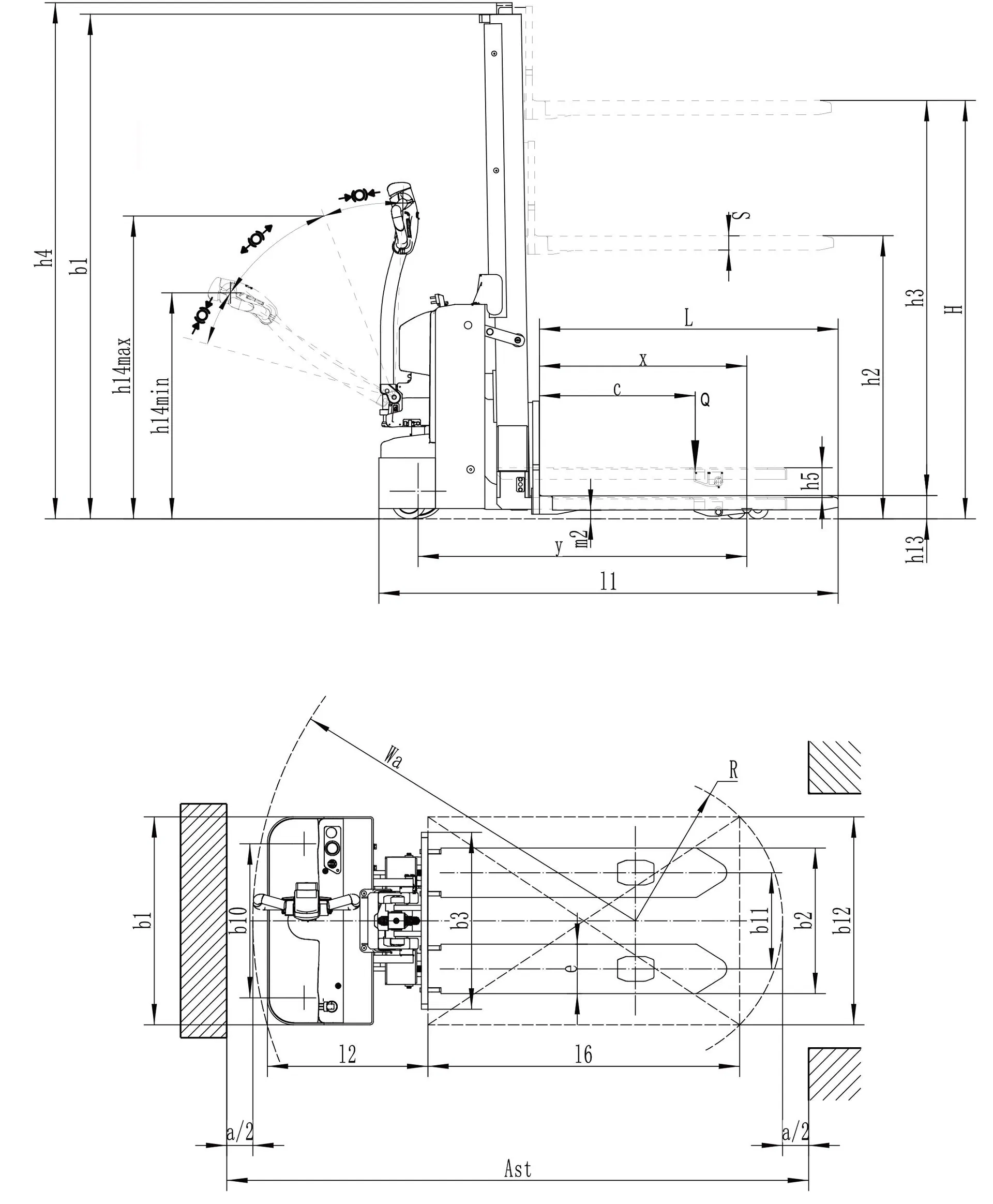

| No. | Description | Unit | Details |
|---|---|---|---|
| 1.2 | Model | - | ESi161 |
| 1.3 | Drive | - | Electric |
| 1.5 | Load capacity | Q (kg) | 1600 |
| 1.6 | Load center distance | c (mm) | 600 |
| 2.1 | Service weight | kg | 510 |
| 4.4 | Lift height | h3 (mm) | 1520 |
| 4.19 | Overall length | l1 (mm) | 1770 |
| 4.21 | Overall width | b1/b2 (mm) | 800 |
| 4.35 | Turning radius | Wa (mm) | 1473 |
| 6.4 | Battery voltage/capacity | V/Ah | 24/100 |

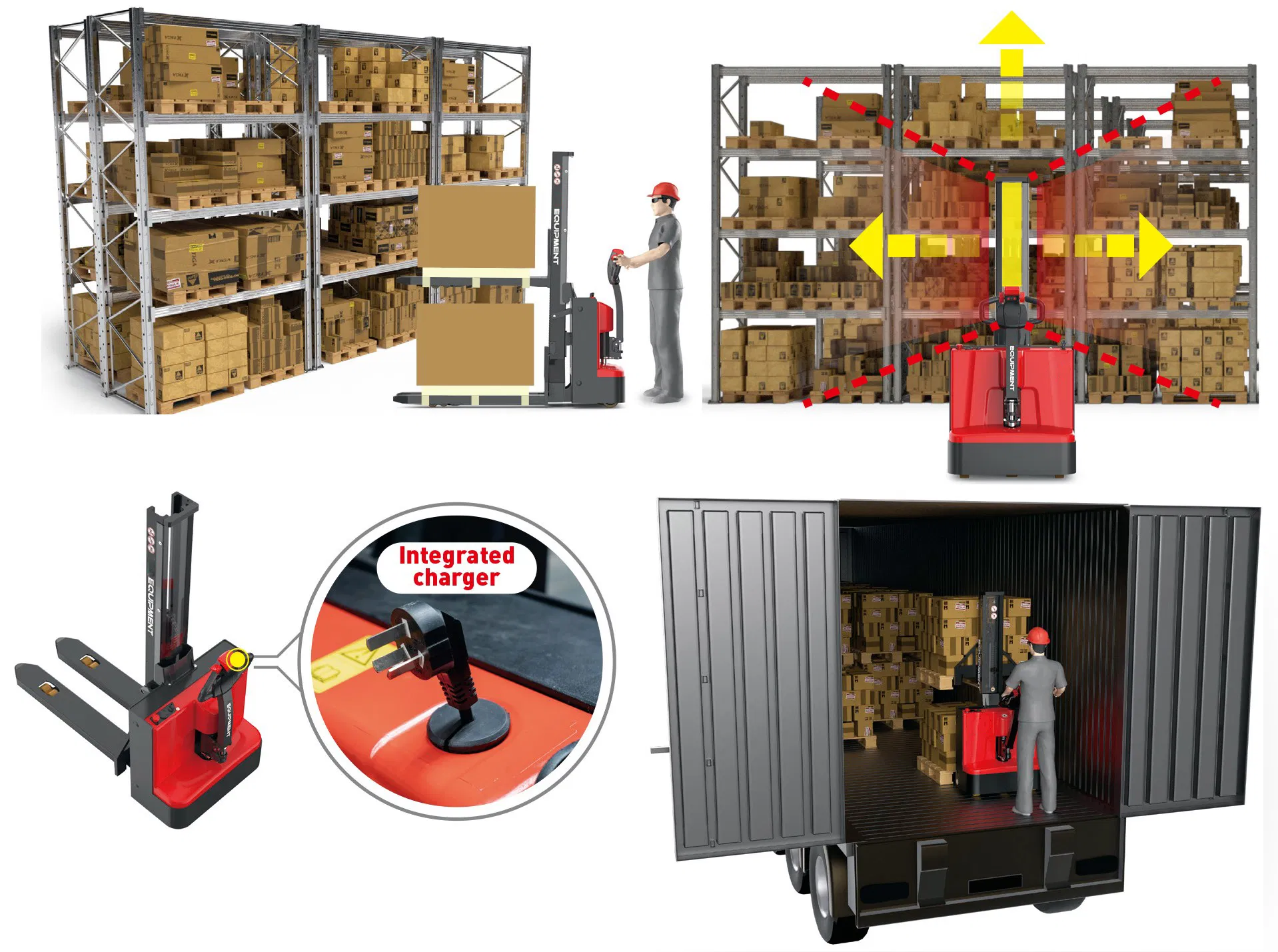

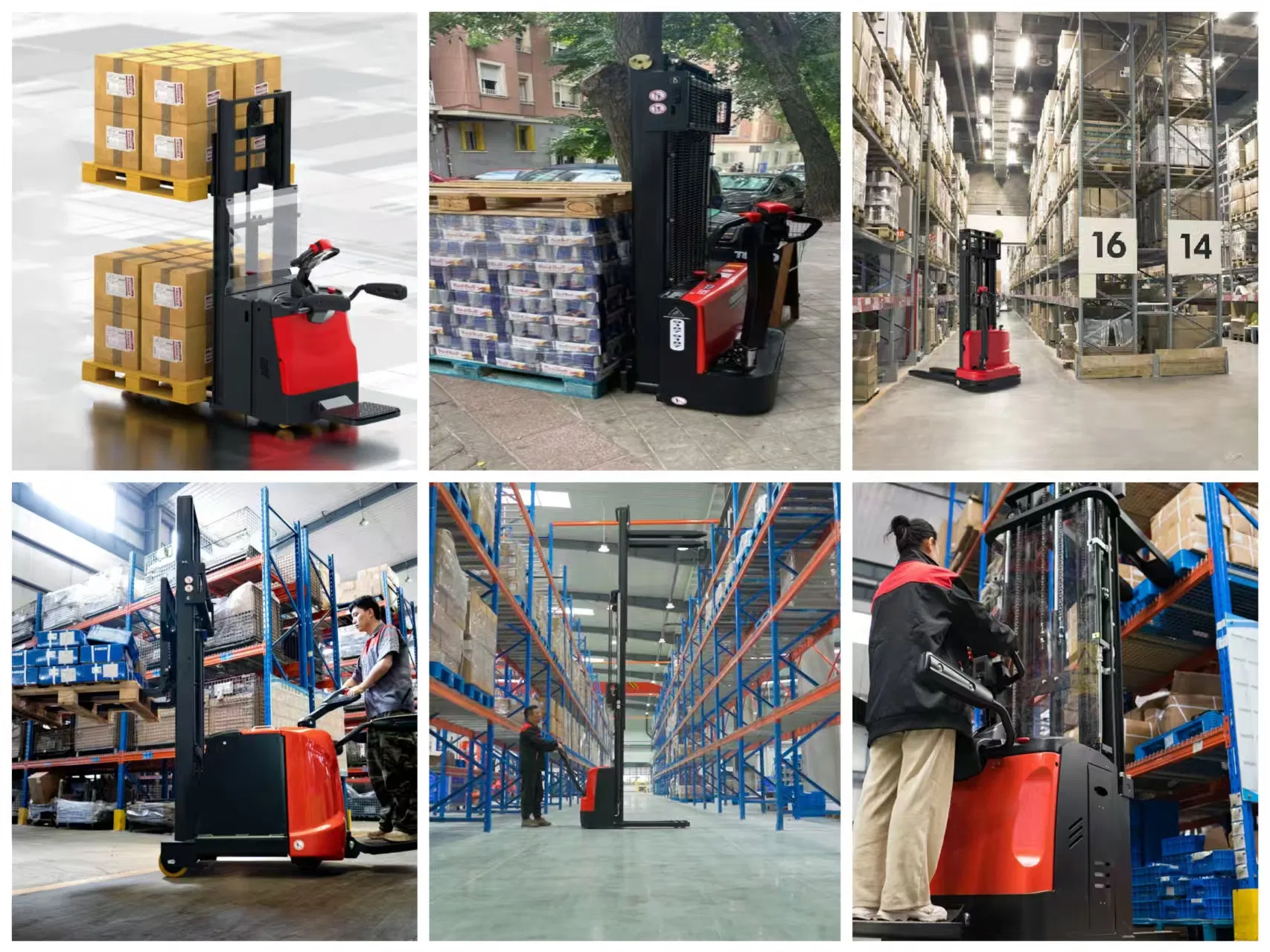

• Stacking: Ideal for small to medium warehouses, retail environments, and lorries.
• Confined Spaces: Excels in narrow aisles with its compact chassis.
• Order Picking: Can be used as an order picker with adjustable fork heights.
