| Model NO. | ESA121 | Type | Stacker |
| Power | DC Motor | Load Capacity | 1.2 ton |
| Fuel | Electric | Load Center | 600mm |
| Lift Height | 2930mm | Condition | New |
| Steering Design | Mechanical | Tyre Type | PU |
| Operator Type | Pedestrian | Service Brake | Electromagnetic |
| Battery | 24V/105Ah | Charger | 24V/15A |

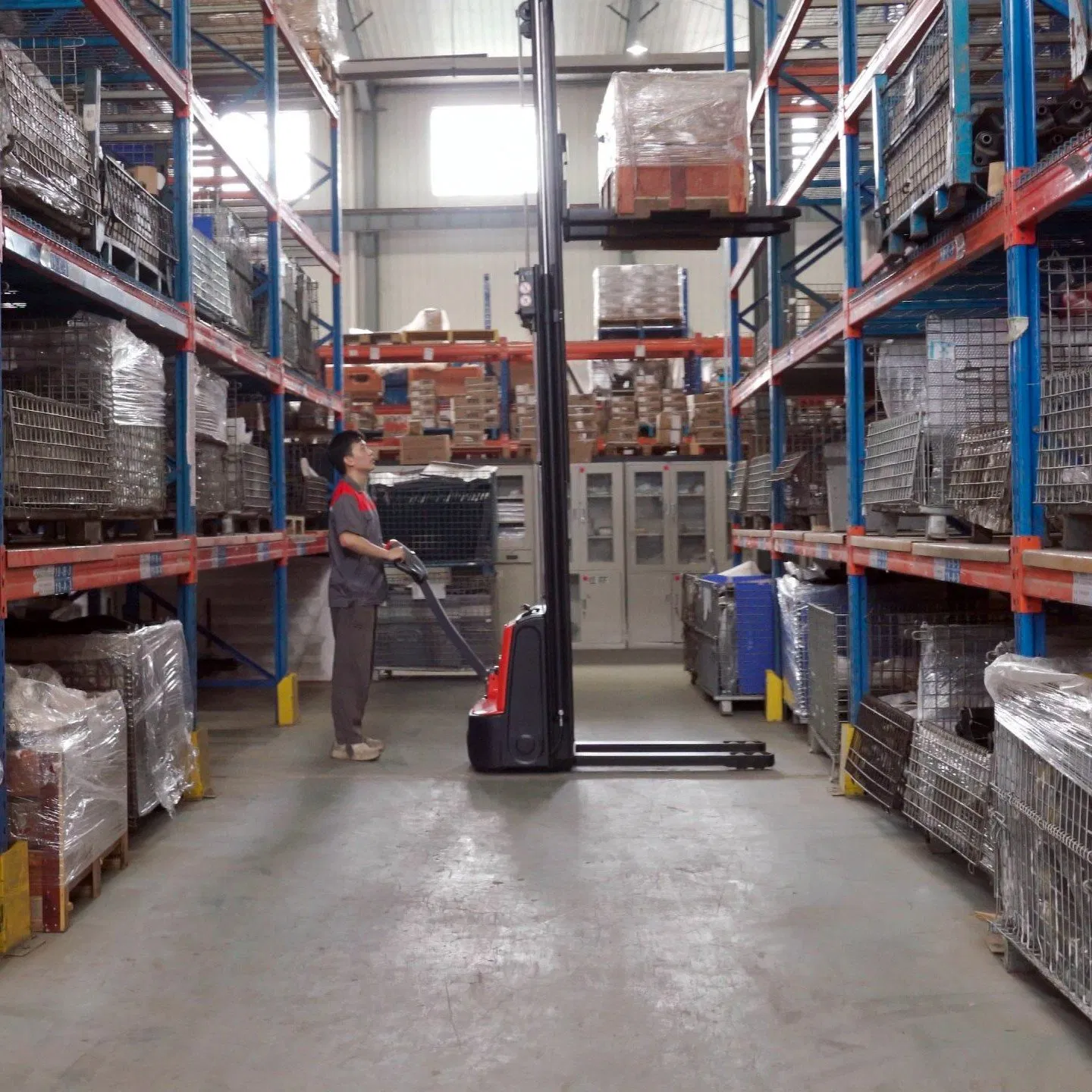

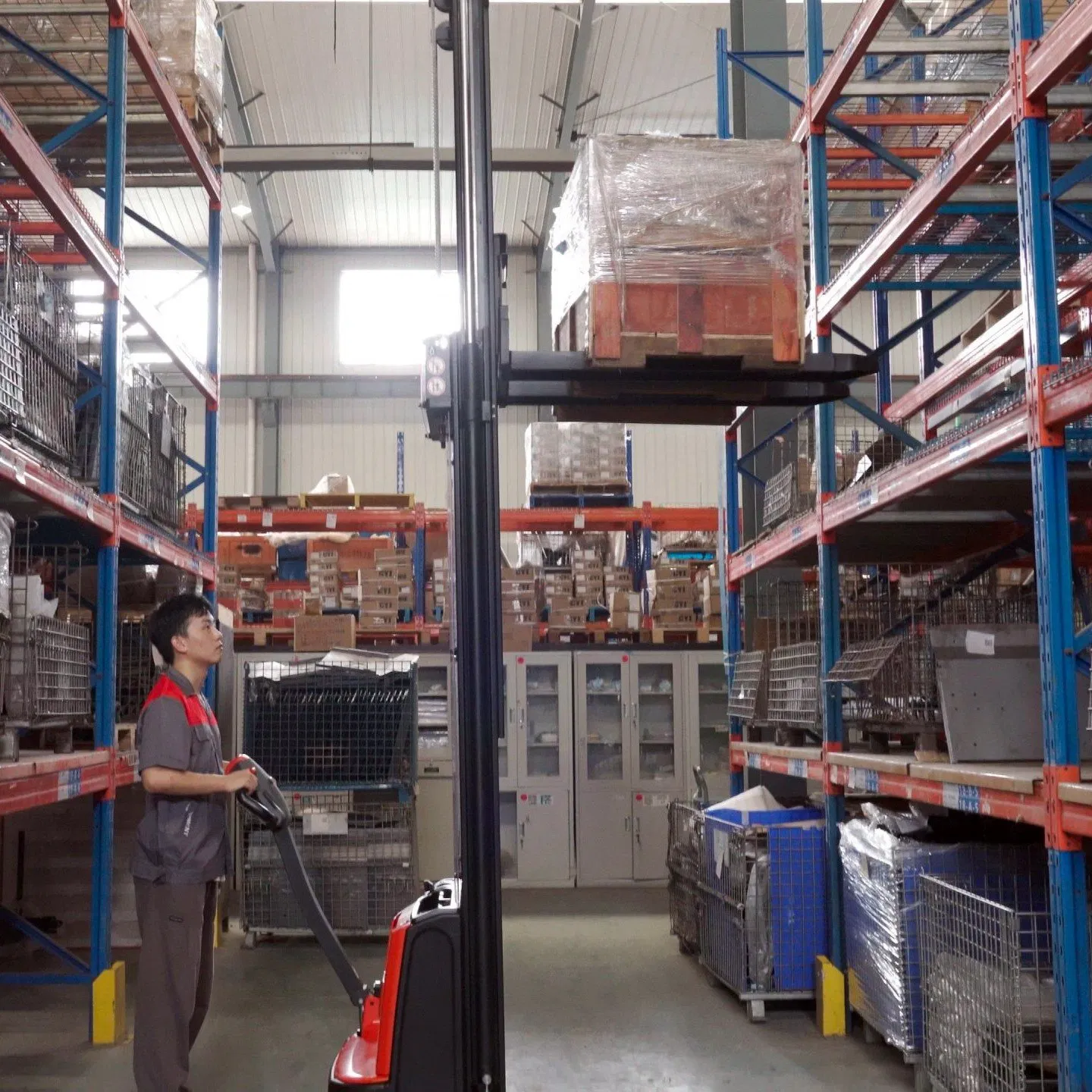

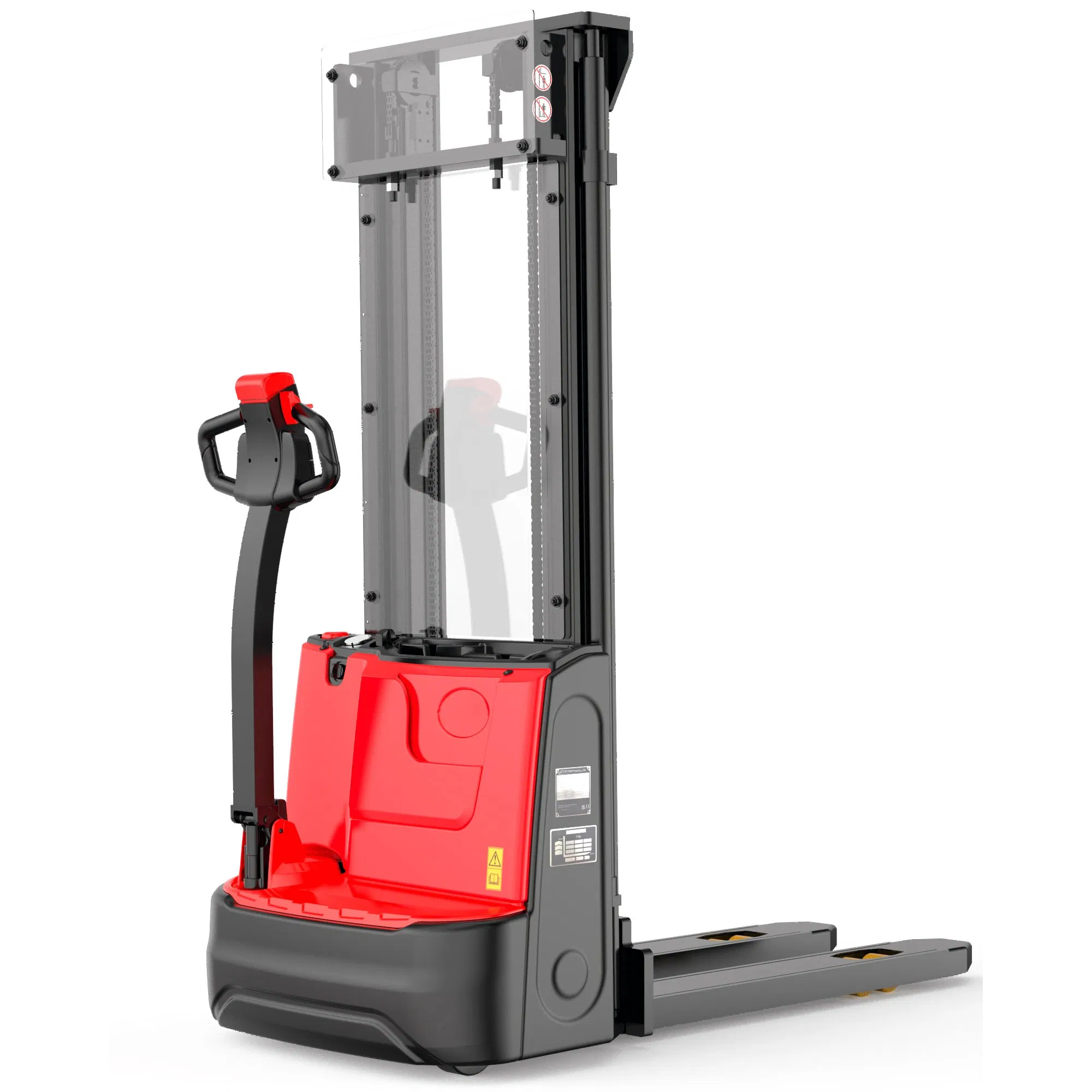

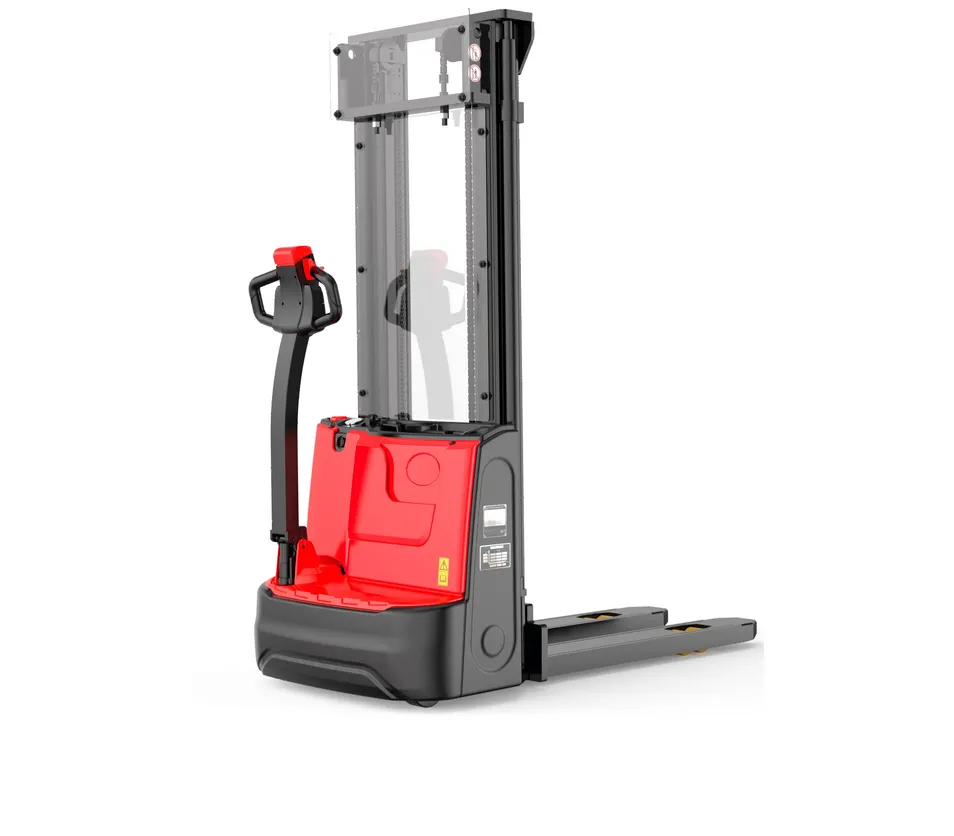

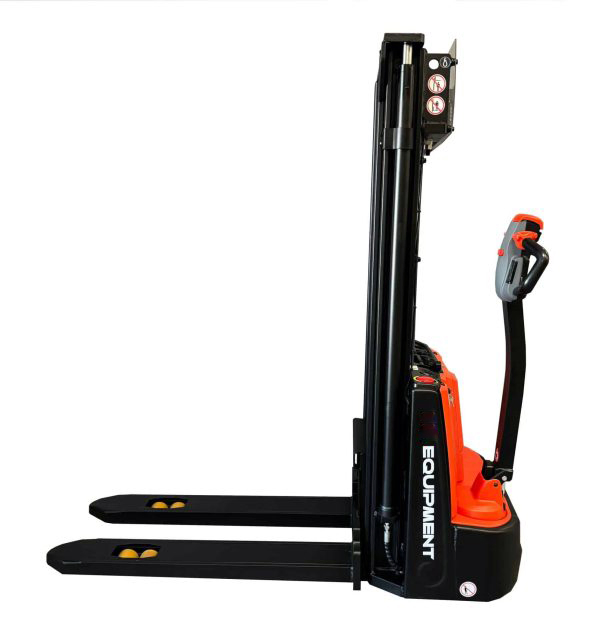

Multipurpose Electric Stacker for Safe Lifting and Moving

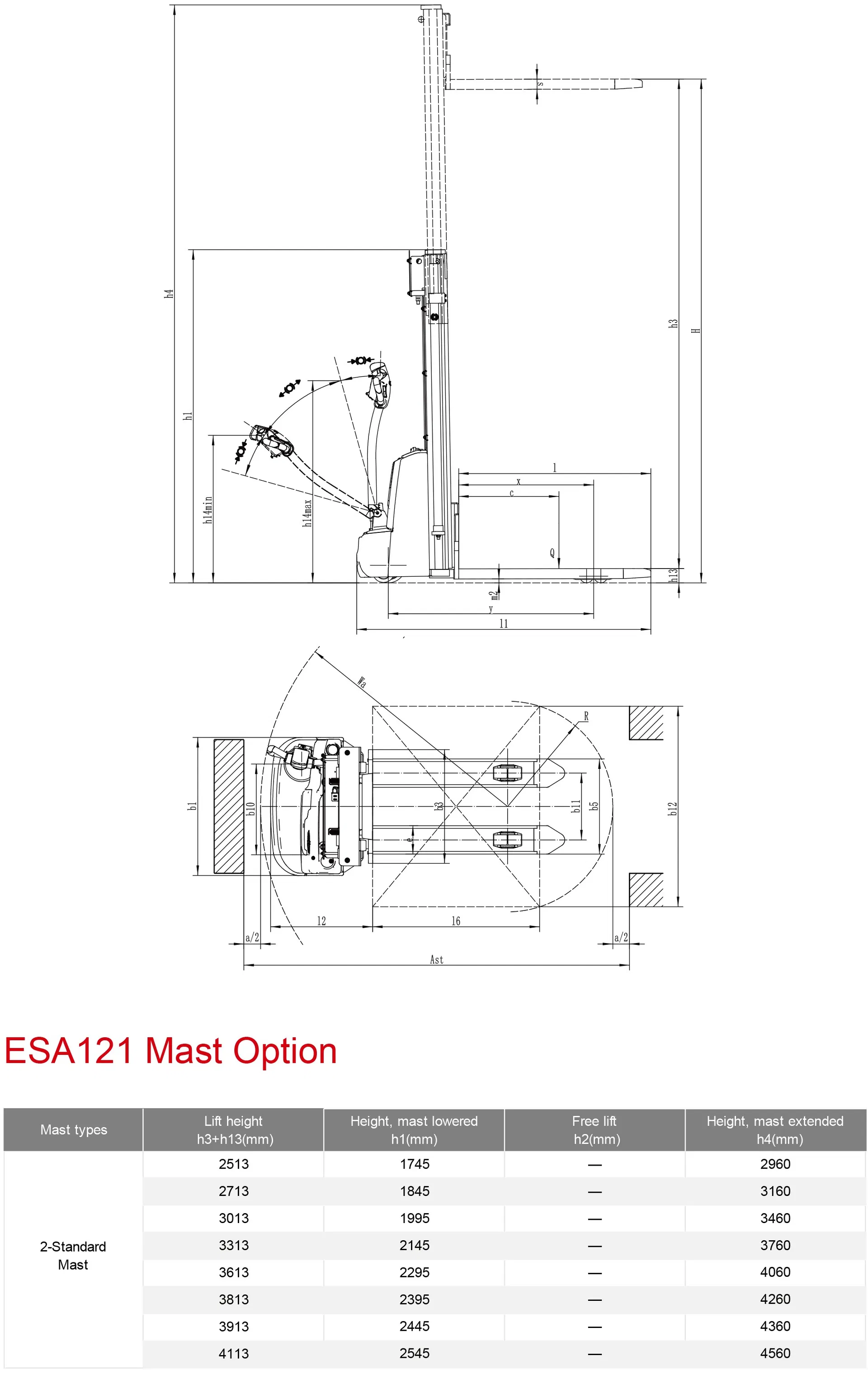

| Drive Mode | Pedestrian | Service Weight | 700 kg |
| Retracted Mast Height | 1995 mm | Lowered Height | 90 mm |
| Overall Length | 1760 mm | Overall Width | 826 mm |
| Turning Radius | 1480 mm | Travel Speed (Laden) | 4.0 km/h |
| Lifting Speed (Laden) | 0.15 m/s | Aisle Width (Pallet 1000x1200) | 2310 mm |
*Technical parameters are subject to change without further notice.

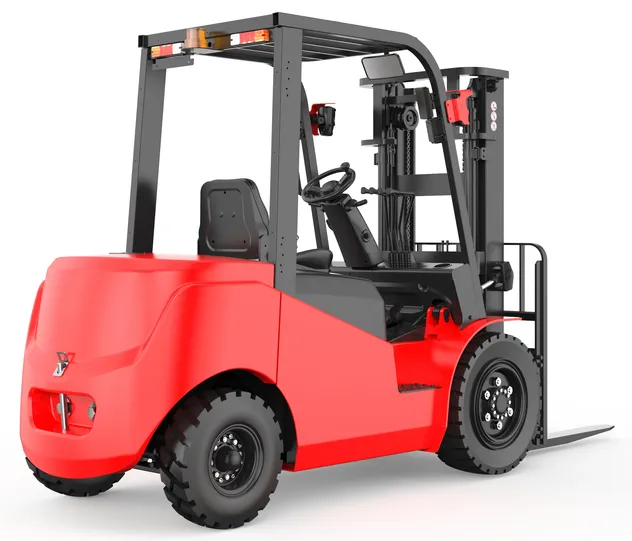

Electric Forklift
Pallet Truck

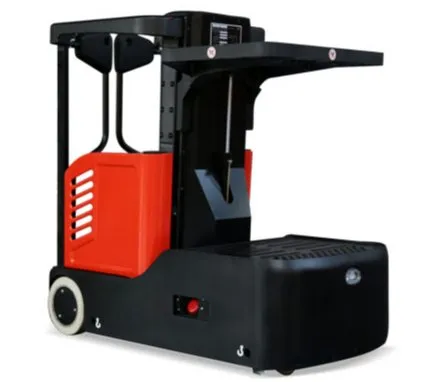

Order Picker
We are a leading machinery manufacturer specializing in R&D, production, and service of high-performance material handling equipment. Our product range includes electric forklifts, stackers, pallet trucks, and industrial AGVs. With a focus on high-quality standards and fast service response, our equipment is trusted by enterprises in over 100 countries including the USA, Canada, and Russia.
