| Model | WSA161i | Type | Stacker |
| Power | AC Motor | Load Capacity | 1.6-2.0ton |
| Fuel | Electric | Load Center | 600mm |
| Lift Height | 2915mm - 5500mm | Condition | New |
| Overall Length | 2028mm | Turning Radius | 1826mm |

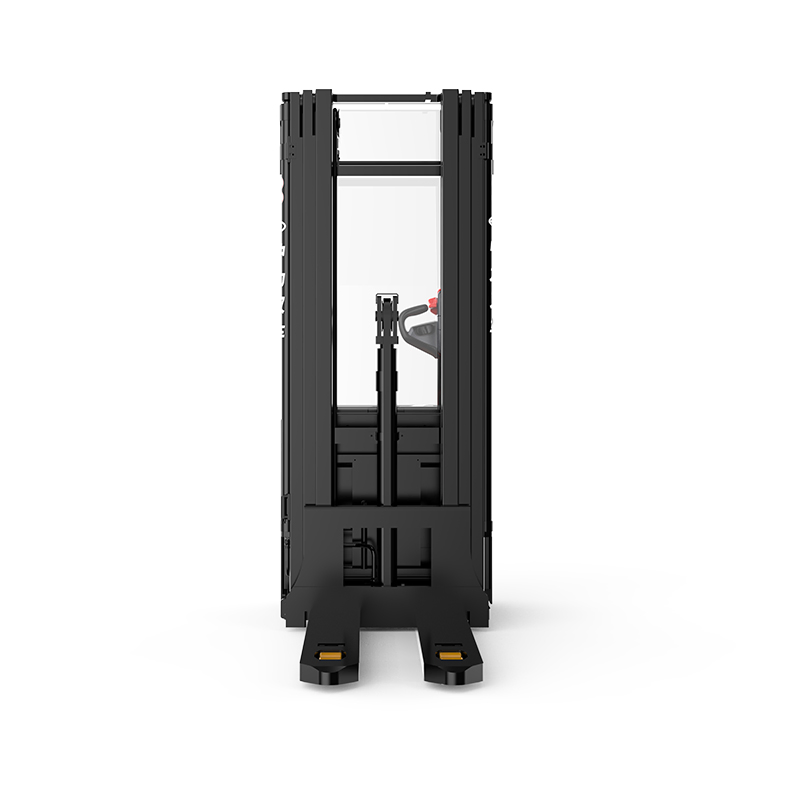

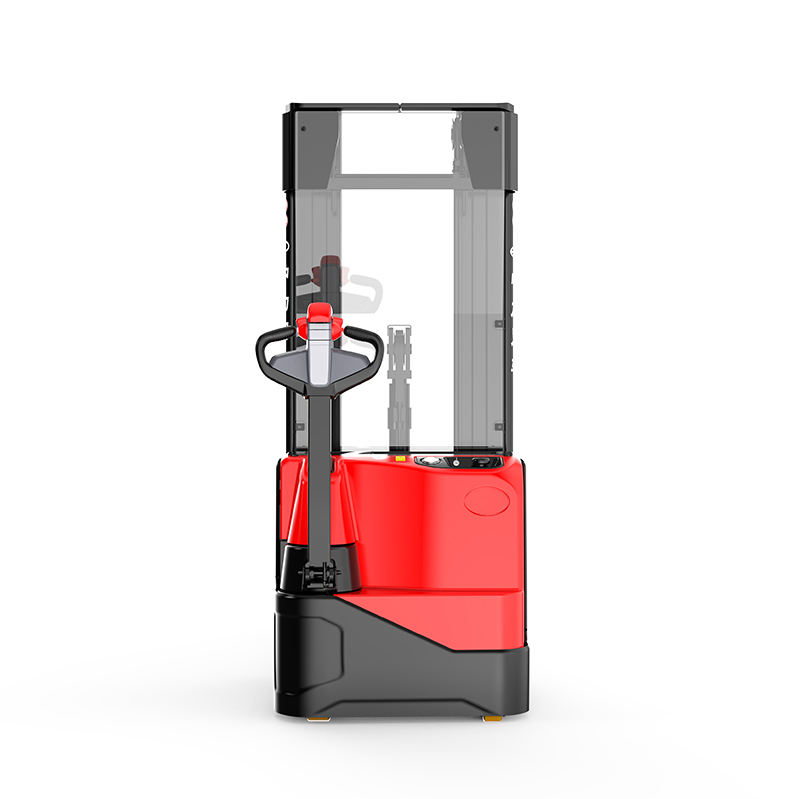

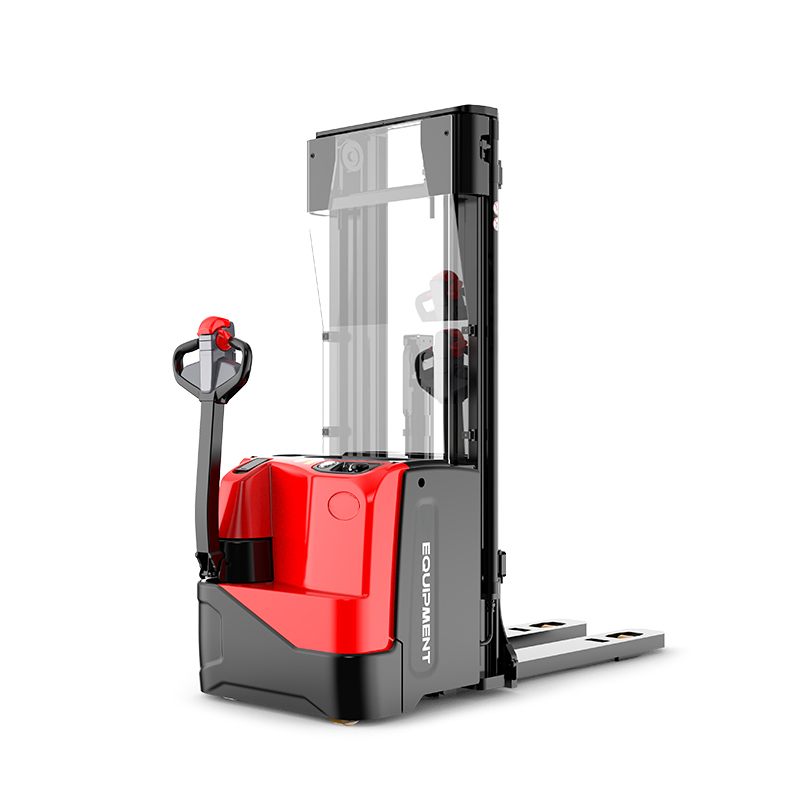

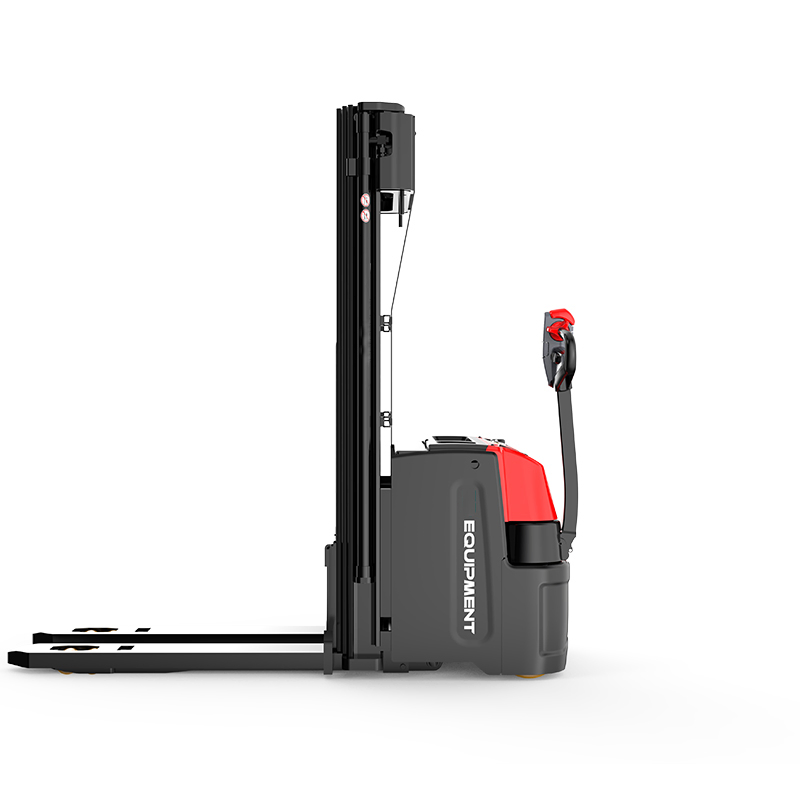

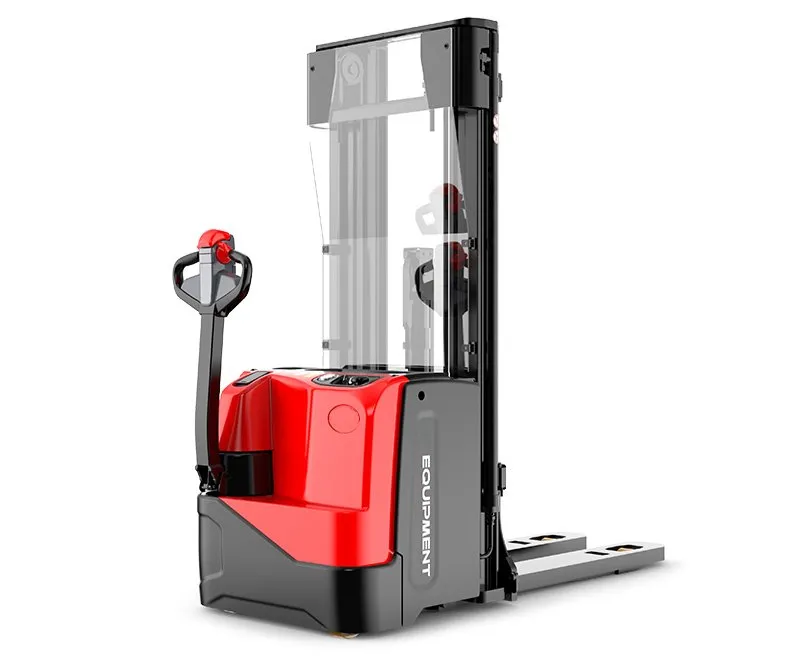

Battery Manual Hydraulic Mini Electric Forklift Pallet Reach Stacker

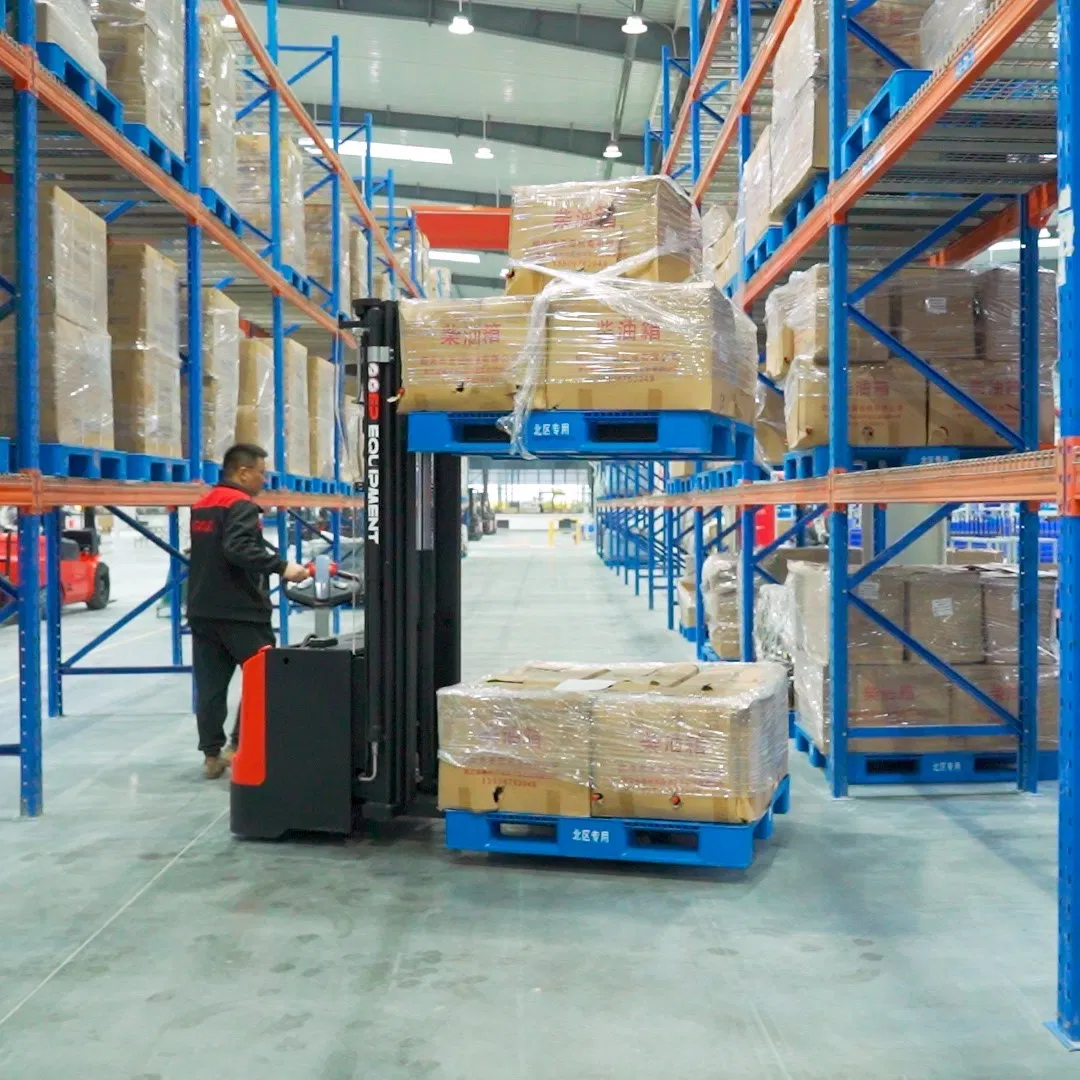

The WSA161i is a lithium-powered pedestrian stacker with an initial lift, capable of handling loads up to 1.6 tons and reaching heights of up to 5.5 meters. Thanks to the properly sized support arms, it can handle two pallets at a time, significantly increasing transport efficiency.
Equipped with a 24V/100Ah Li-ion battery and a 24V/30A integrated charger, this stacker offers opportunity charging and requires zero maintenance.

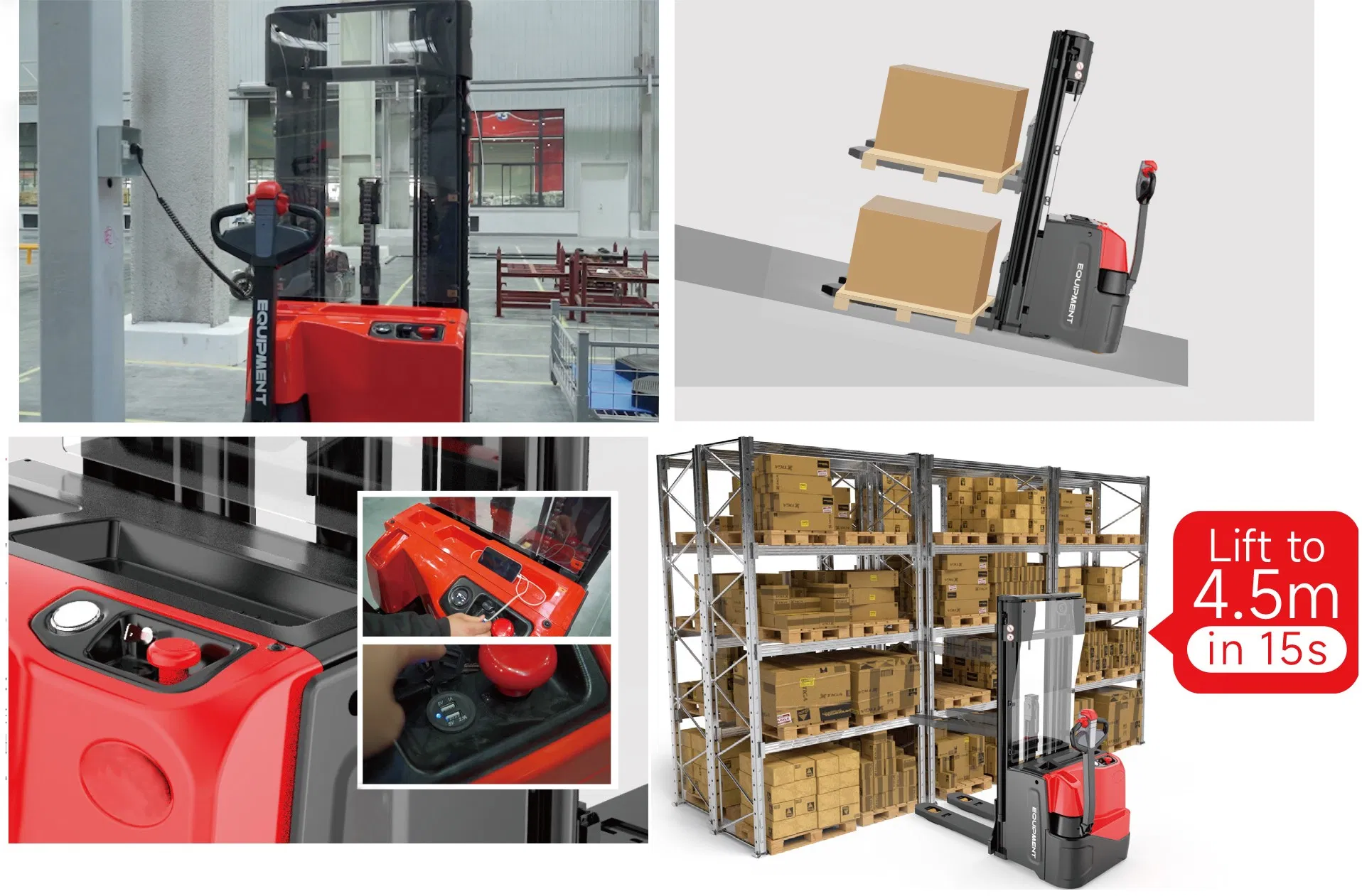

Standard proportional lifting system ensures gentle and precise handling of valuable or fragile goods.
Exceptional lifting and lowering speeds improve productivity by minimizing turnover cycles in warehouse settings.
Includes an optimized tiller head and an improved cover featuring storage space and a USB port.

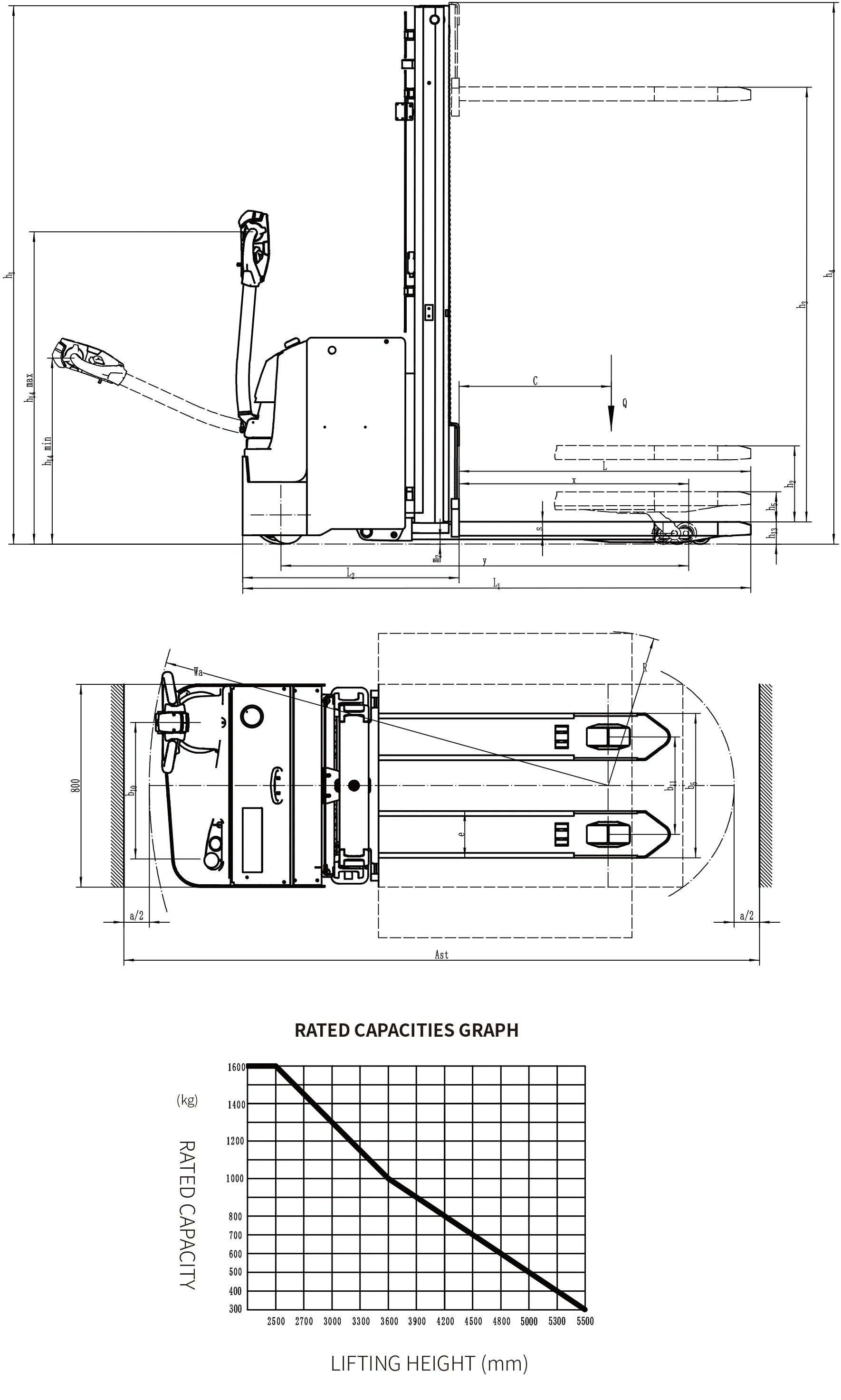

| No. | Item | Unit | Details |
|---|---|---|---|
| 1.5 | Load capacity | kg | 1600 |
| 1.6 | Load center distance | mm | 600 |
| 2.1 | Service weight | kg | 1120 |
| 4.4 | Lift height | mm | 2015-5500 |
| 4.19 | Overall length | mm | 2028 |
| 4.21 | Overall width | mm | 810 |
| 4.35 | Turning radius | mm | 1826 |
| 5.1 | Travel speed (laden/unladen) | km/h | 5/5 |
| 6.4 | Battery voltage/capacity | V/Ah | 24/100 |

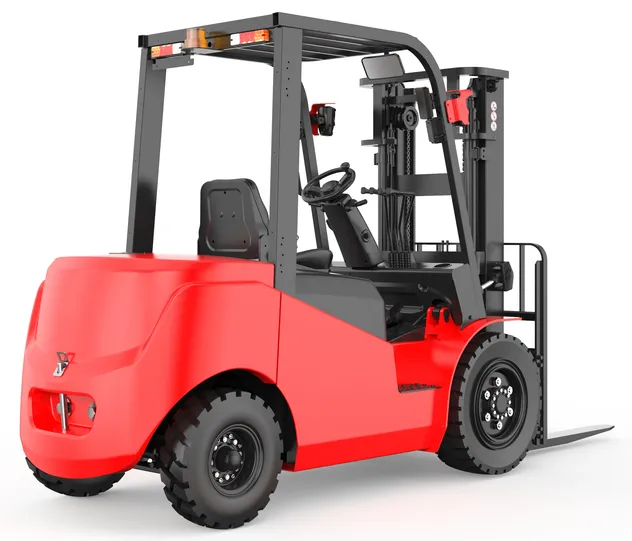

Electric Forklift

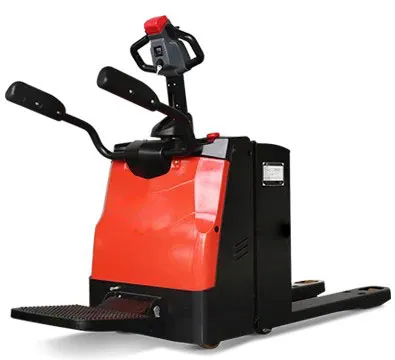

Pallet Truck

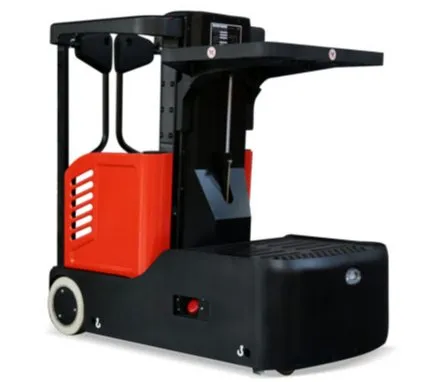

Order Picker

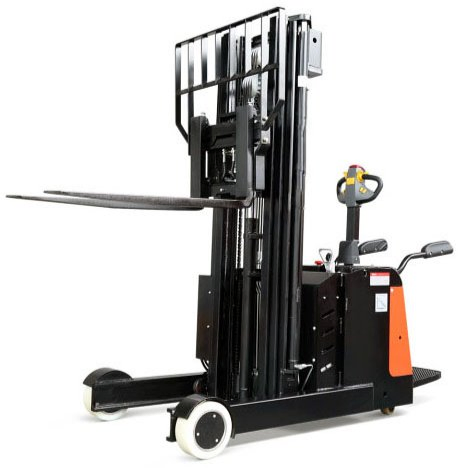

Reach Truck

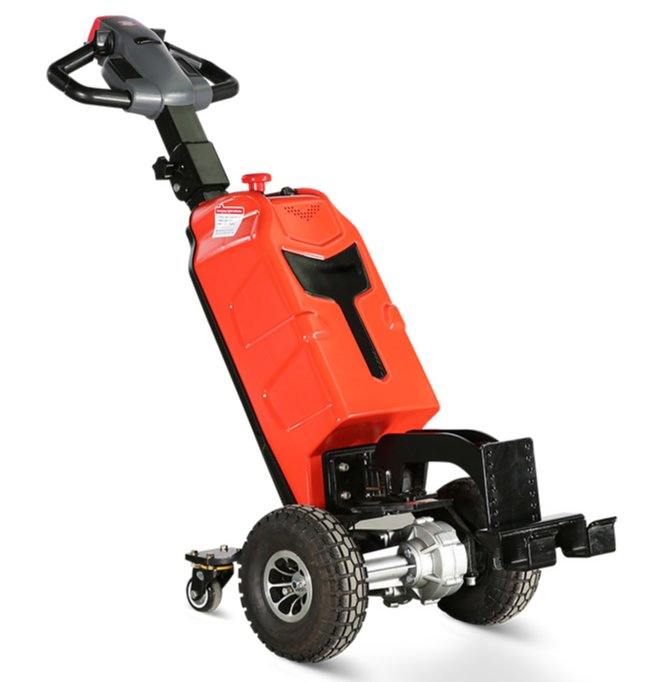

Tow Tractor

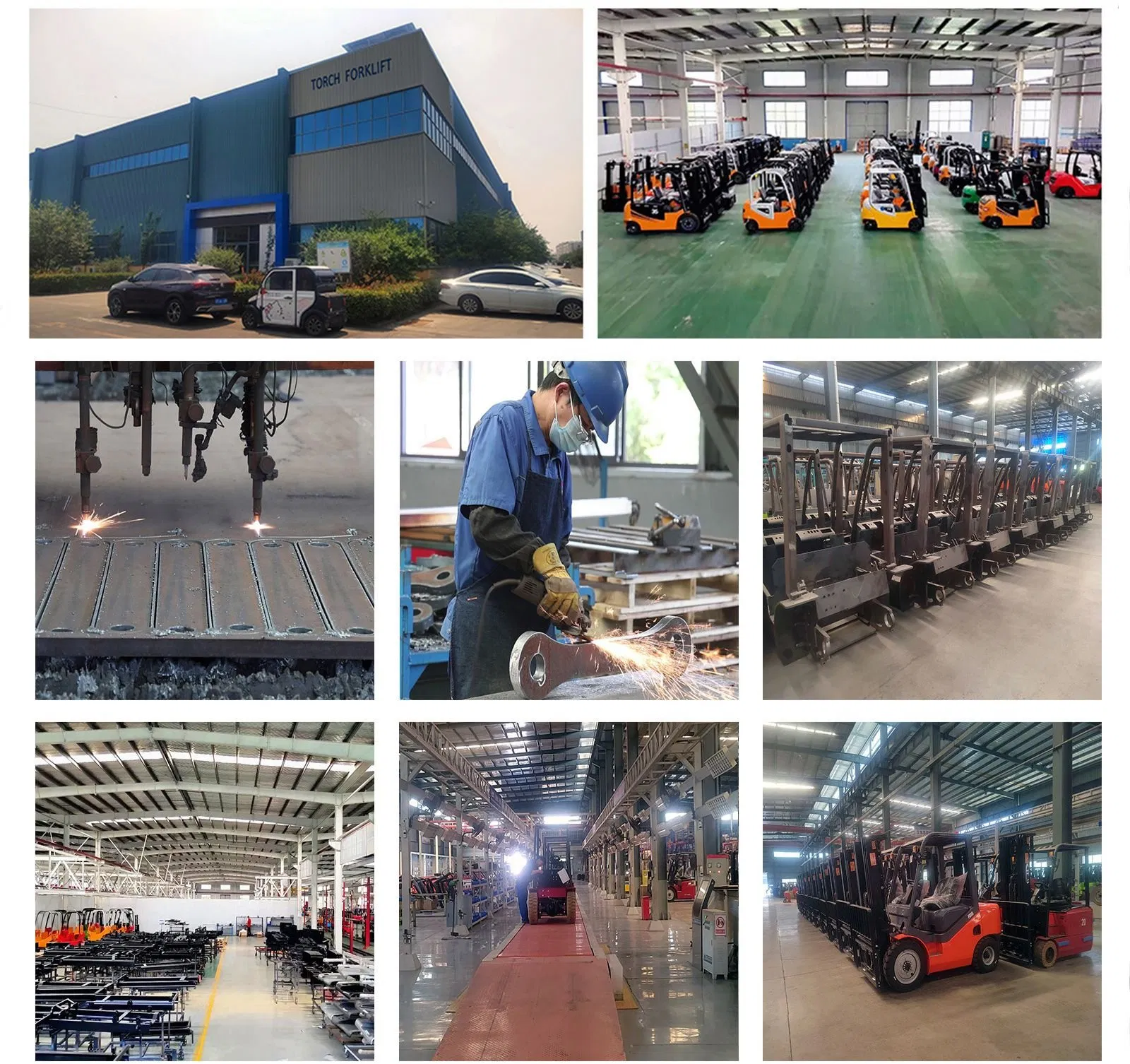

Established in 2020, we are a leading machinery manufacturer based in China, specializing in the R&D, production, sales, and service of high-performance material handling equipment. Our product range includes electric forklifts, diesel forklifts, electric stackers, pallet trucks, material handling robots, industrial AGVs, and floor cleaning vehicles.
