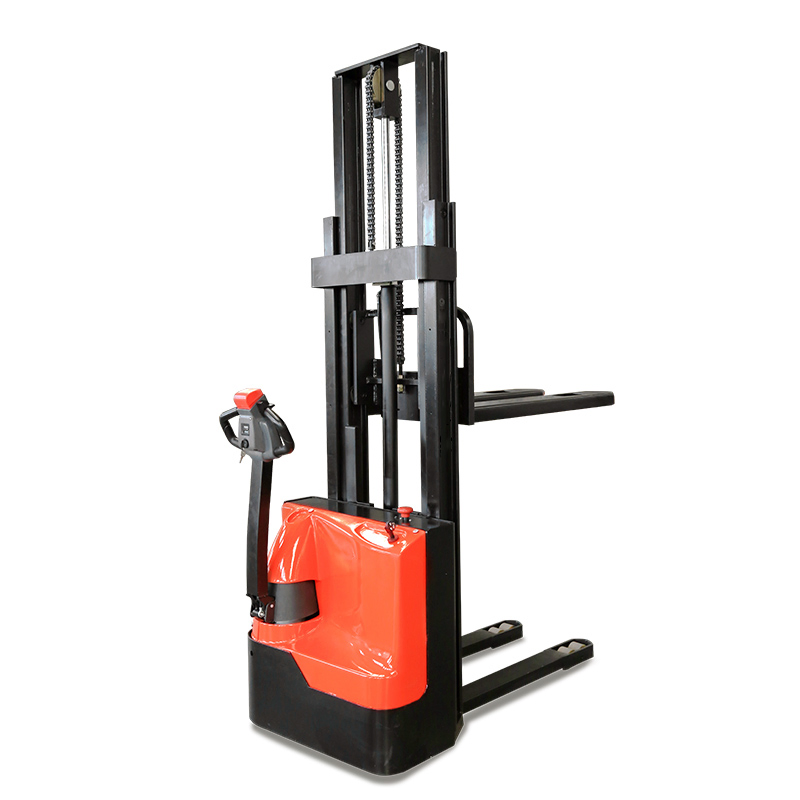

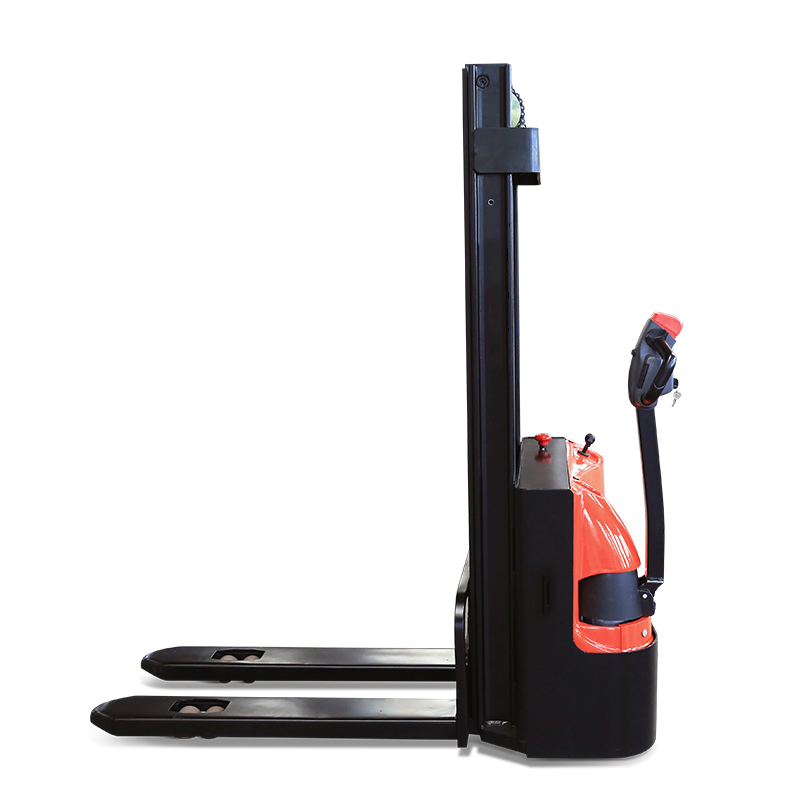

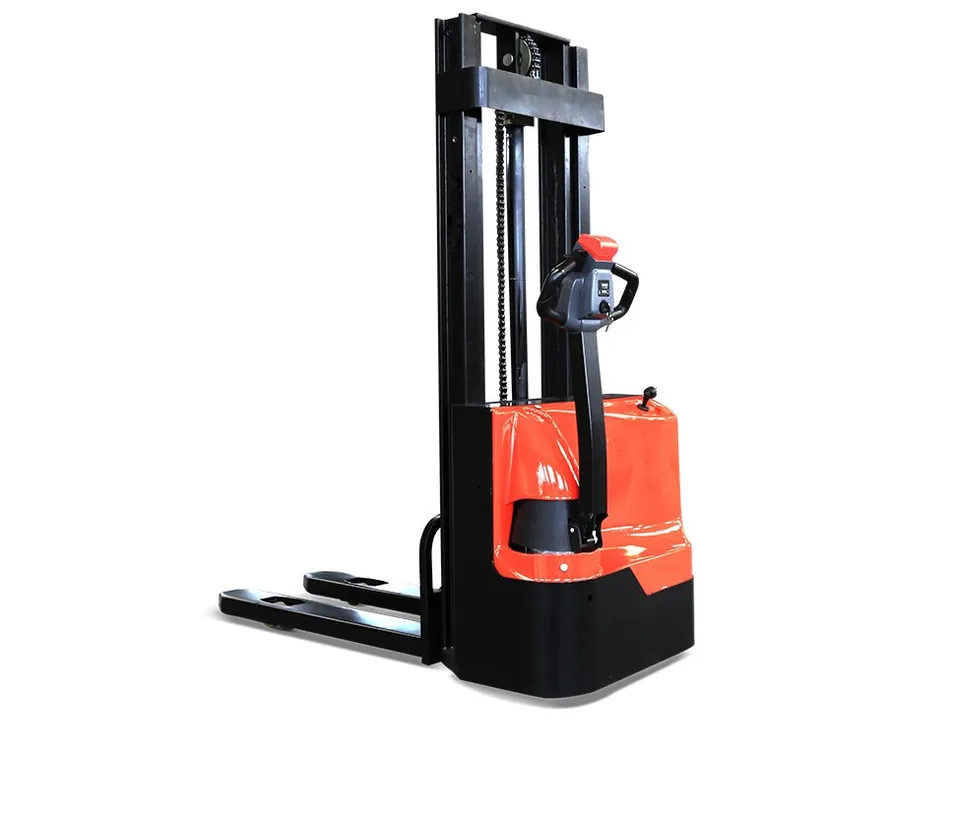

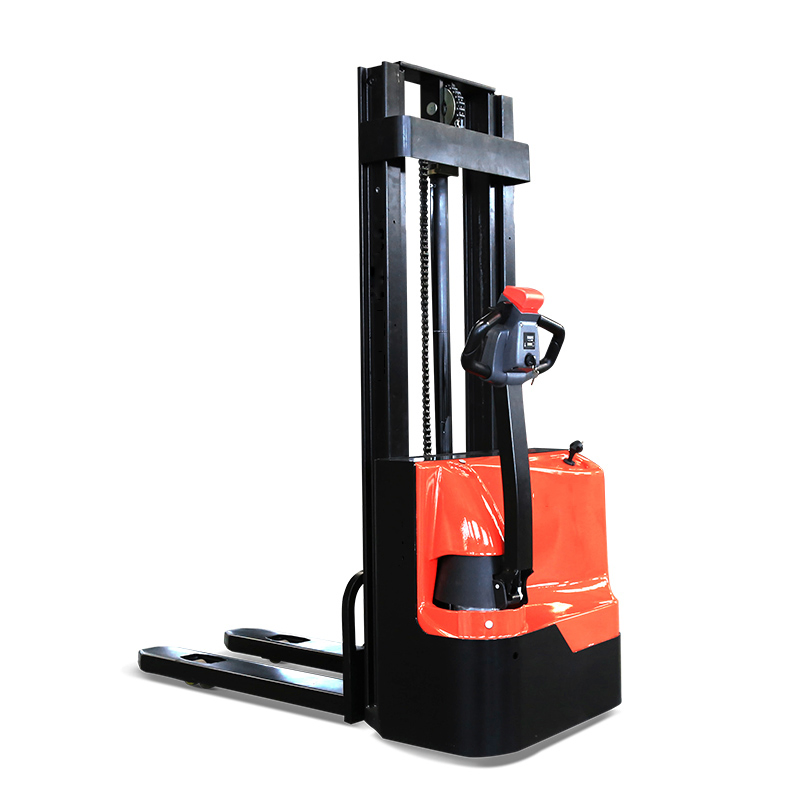

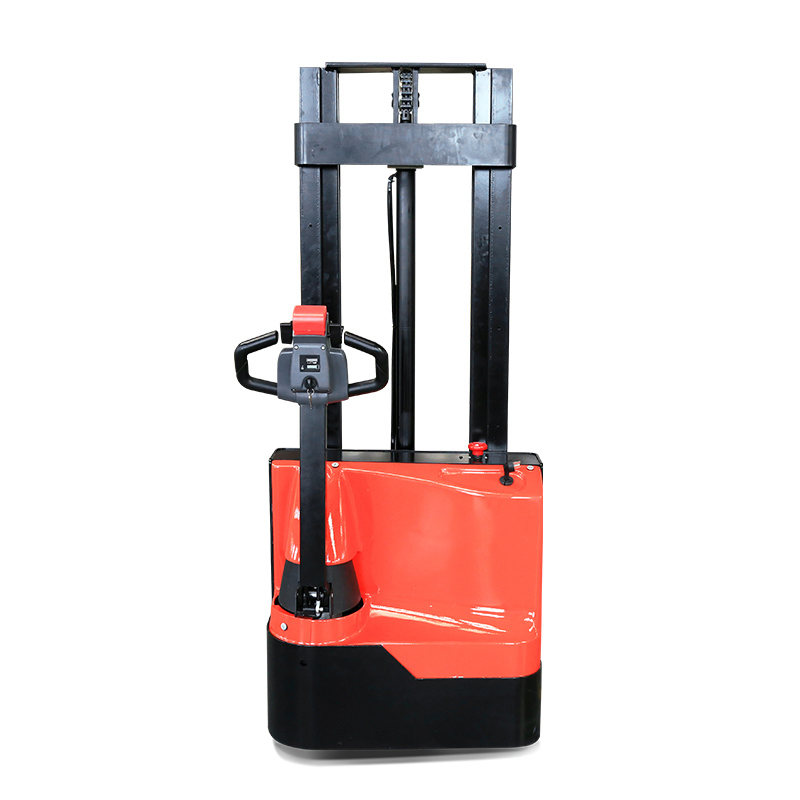

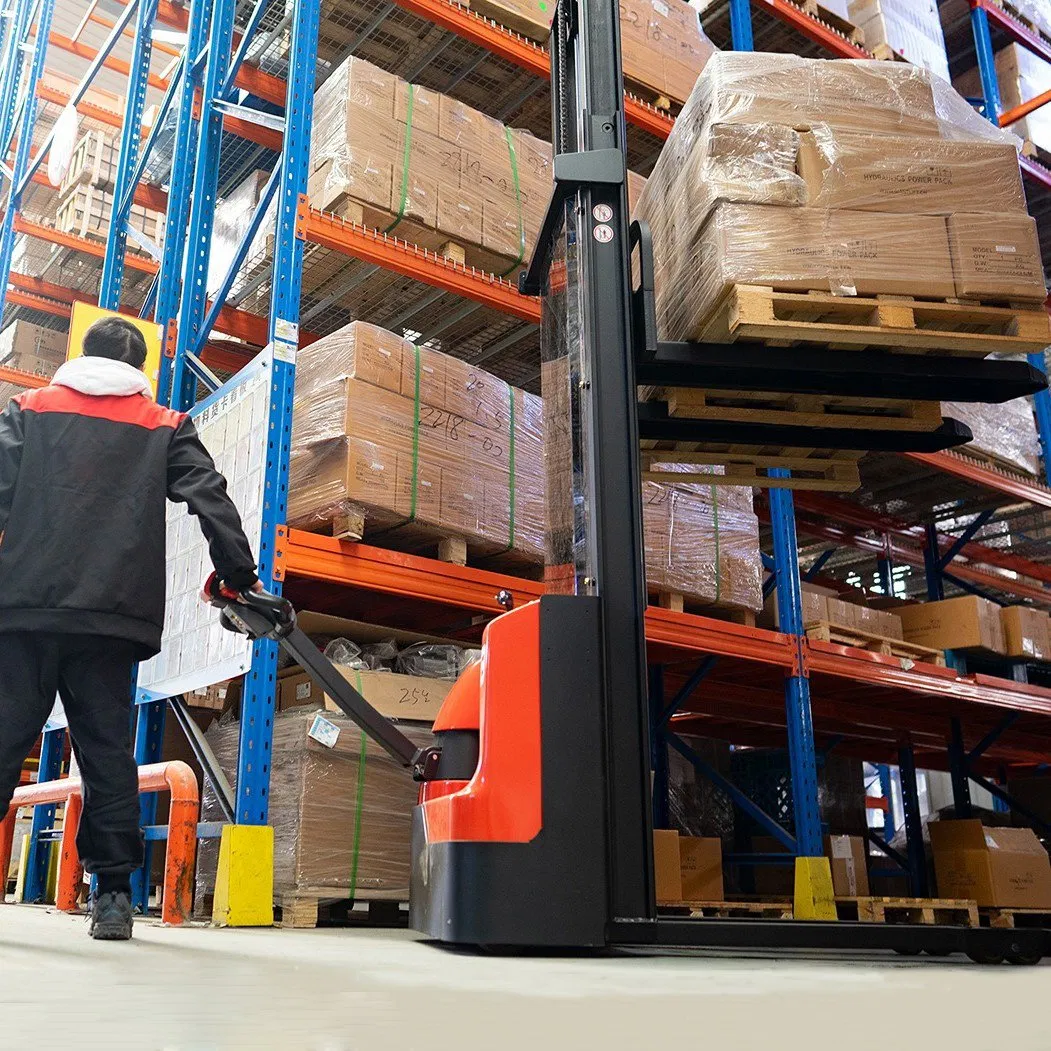

1.5T Compact Walkie Electric Pallet Stacker with Hydraulic Lift System and AGM Battery
The Electric Stacker ES 15-15ES is the perfect choice if you are looking for a compact, but powerful electric pallet stacker. Due to its AC motor and the 125Ah AGM batteries, this truck is much smaller than common 1.5ton electric stackers, making it an ideal choice for navigating in tight spaces or narrow aisles.
Key Highlights:

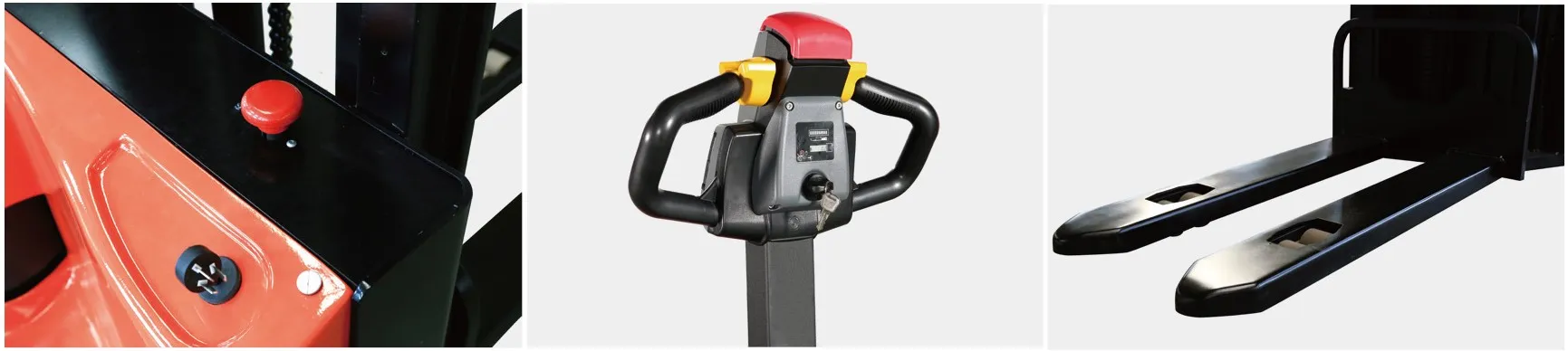

Safe hydraulic system design prevents mast from falling abruptly. Emergency reverse belly button and disconnector ensure operator safety. Automatic speed reduction at setting heights and anti-rolling back brakes for ramp safety.
Ergonomic tiller with key switch and BDI indicator. Compact chassis design offers the smallest turning radius needed. Side operating ensures excellent visibility and on-board charger for convenience.
Maintenance-free AGM battery. Easy access via detachable rear panel. Vertical motor design makes inspection and service much more convenient with low-voltage cut-off protection.

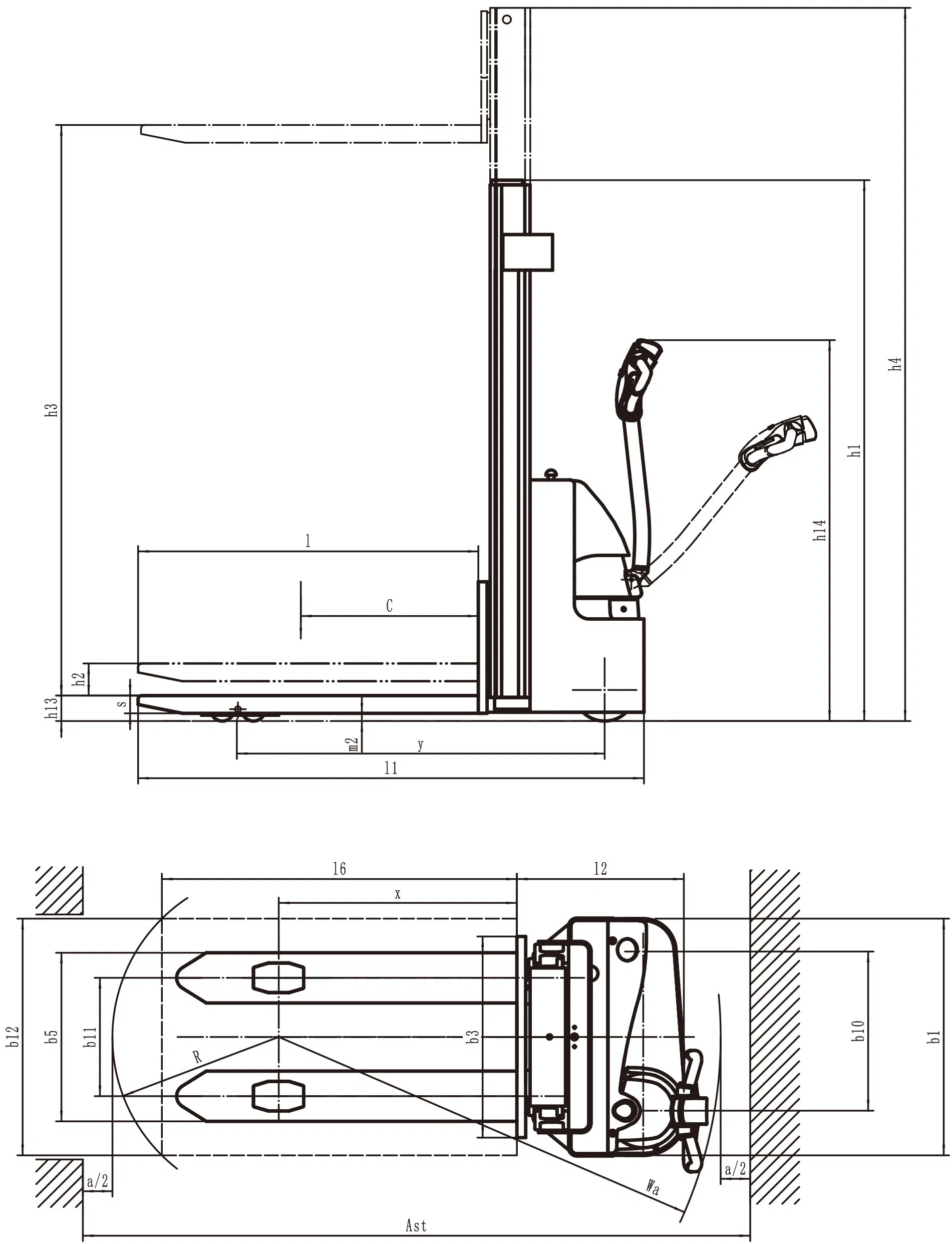

| No. | Parameter Item | Unit | Data |
|---|---|---|---|
| 1.1 | Brand | - | Torch |
| 1.2 | Model | - | ES 15-15ES |
| 1.3 | Drive | - | Electric |
| 1.5 | Load capacity | Q (kg) | 1500 |
| 1.6 | Load center distance | c (mm) | 600 |
| 2.1 | Service weight | kg | 755 |
| 4.4 | Lift height | h3 (mm) | 3227 |
| 4.19 | Overall length | l1 (mm) | 1740 |
| 4.21 | Overall width | b1/ b2 (mm) | 800 |
| 4.35 | Turning radius | Wa (mm) | 1500 |
| 5.1 | Travel speed (laden/unladen) | km/h | 5/5 |
| 6.4 | Battery voltage/nominal capacity | V/Ah | 24/125 |
