| Model NO. | ESi161 | Type | Stacker |
| Power | AC Motor | Load Capacity | 1.6ton |
| Fuel | Electric | Load center | 600mm |
| Lift height | 1520mm | Turning Radius | 1473mm |
| Fork Length | 1150mm | Overall Length | 1770mm |

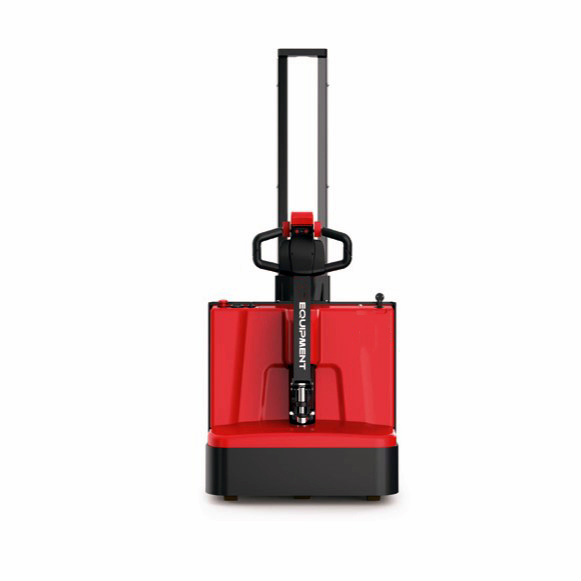

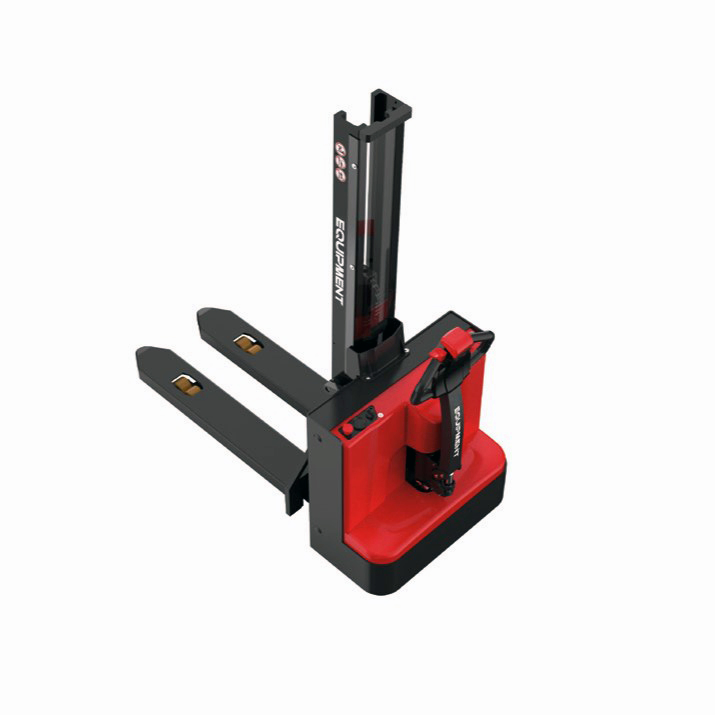

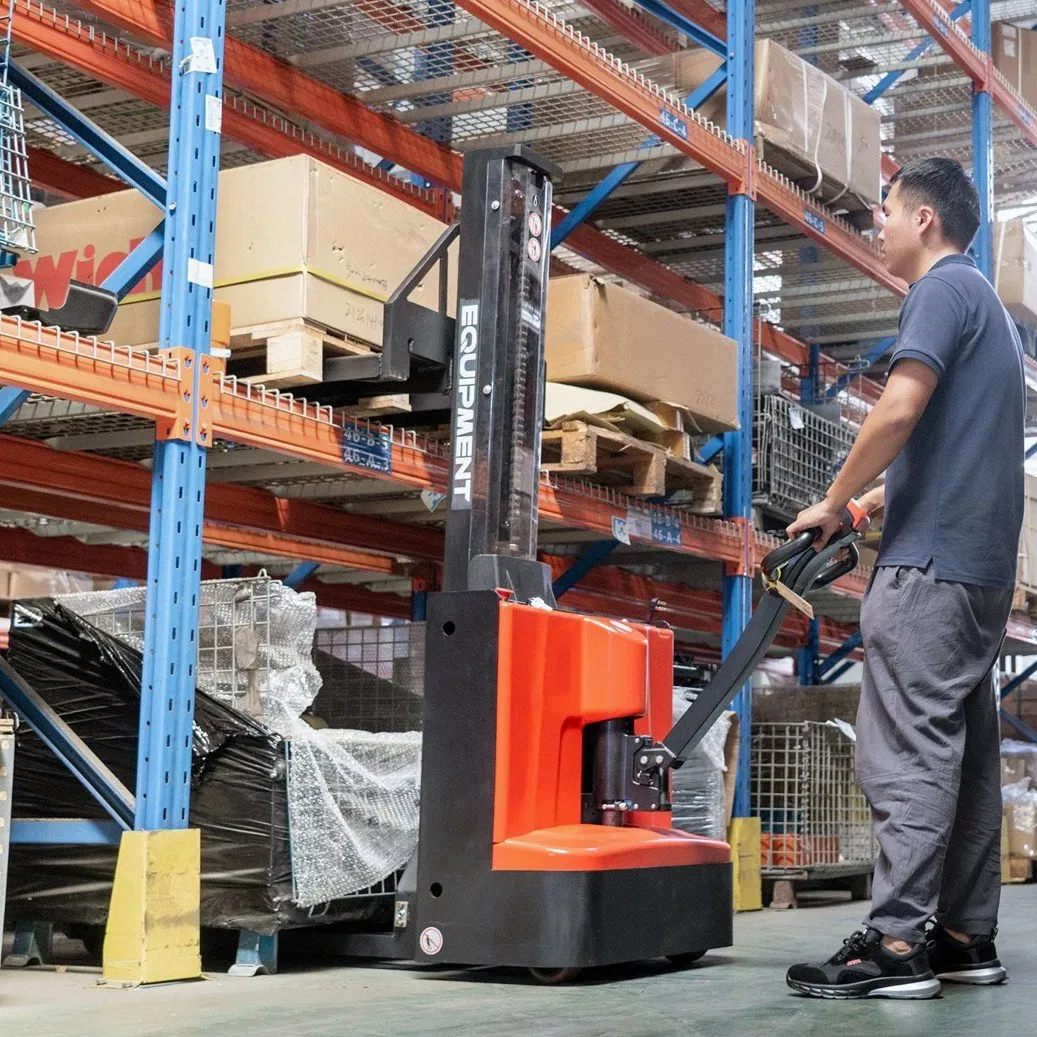

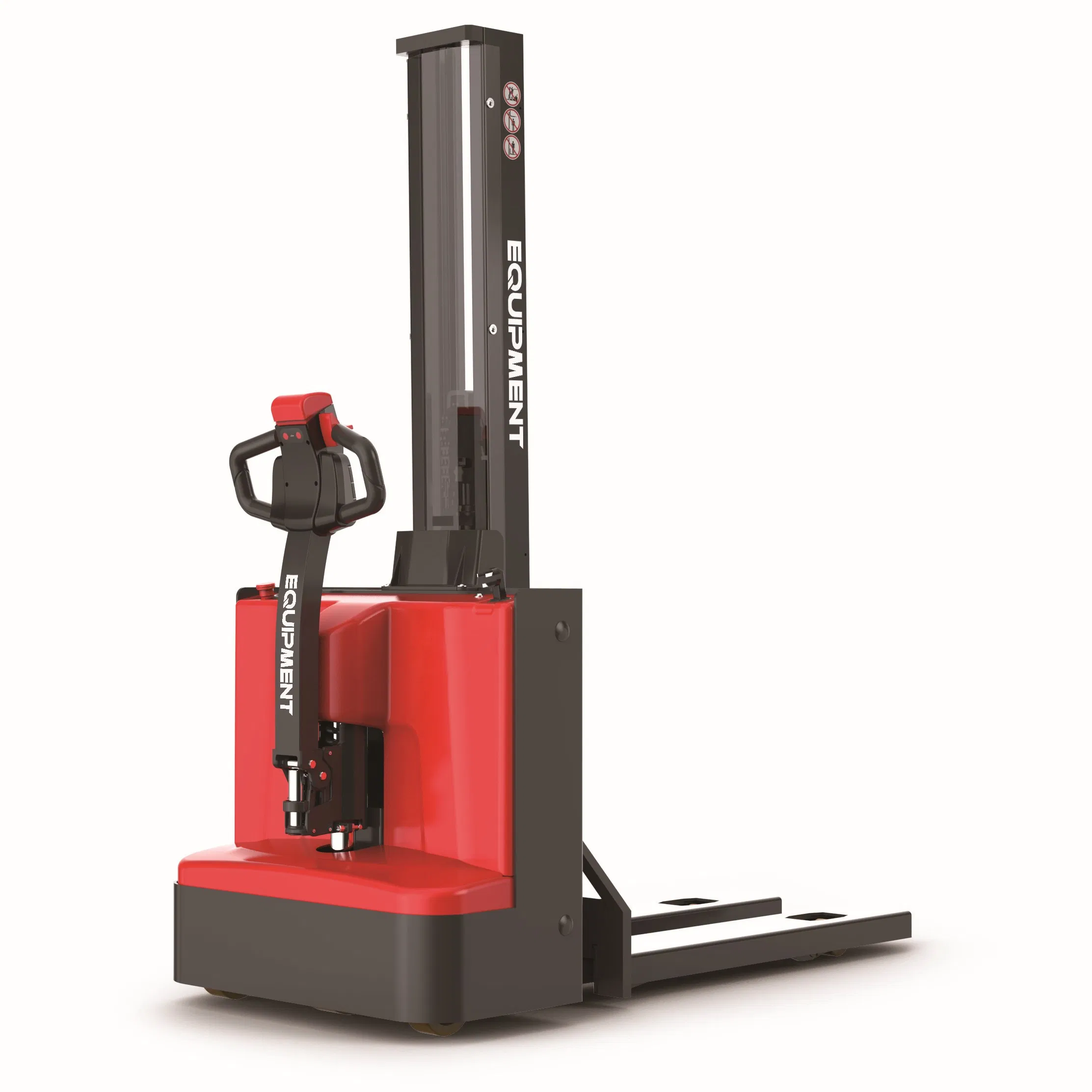

The ESi161 is a lithium-powered electric pedestrian stacker with a 1.6-ton load capacity, ideal for low-to-medium intensity double-deck applications. This model is distinguished by its great visibility—with a mono mast and a transparent panel, the operator will have a clear view of the fork tips, ensuring precise stacking and retrieval safety.

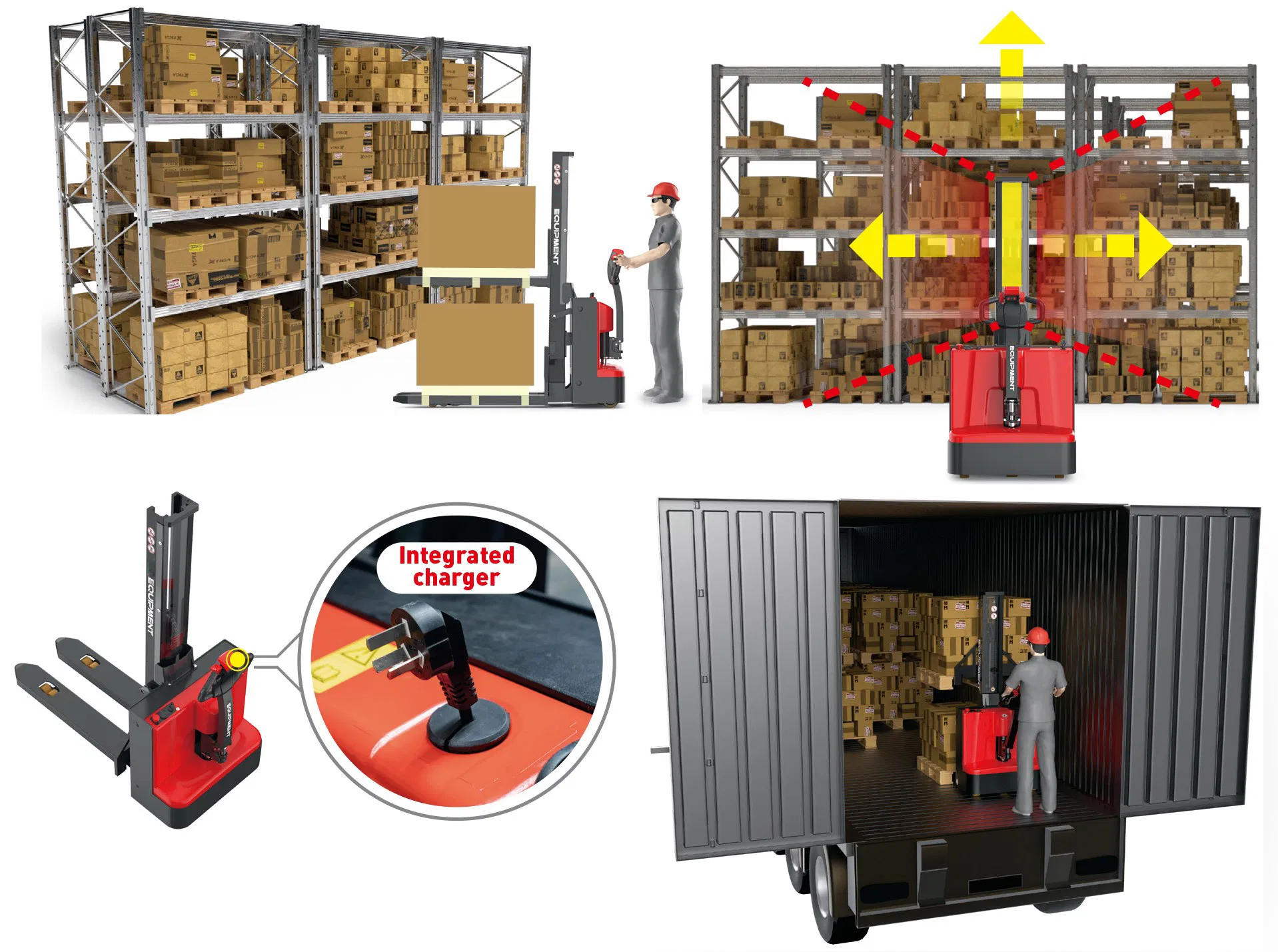

1 High Visibility for Safety: The mono mast and transparent panel ensure optimal visibility, crucial for safe and precise stacking.

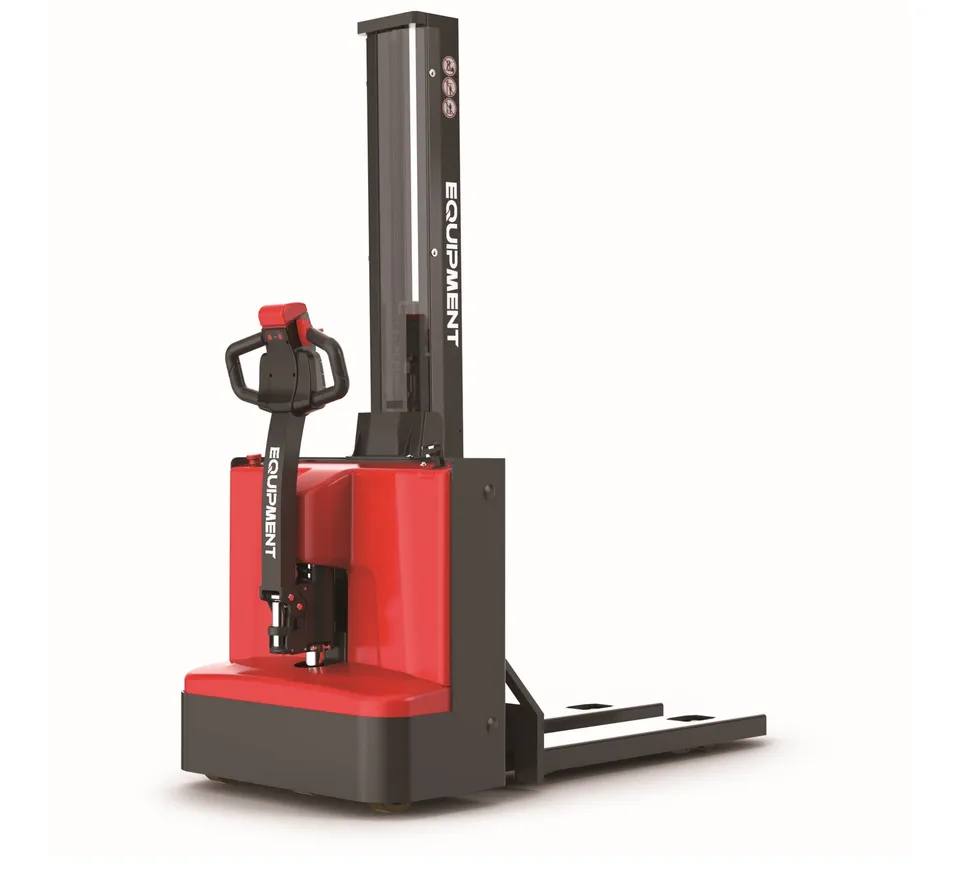

2 Compact Size: Ideal for confined spaces, ensuring efficient maneuverability and operation in tight warehouse aisles.
3 Sustainable Performance: Equipped with an integrated Li-ion battery and charger for quick opportunity charging, reducing downtime.
Adopts a Li-ion battery and an integrated charger as standard to increase uptime thanks to flexible and fast charging support.
Higher maneuverability in narrow aisles due to the centralized drive wheel, providing better traction compared to offset drives.
The mono mast with a transparent panel offers an optimal view of fork tips, ensuring precise retrieval safety.

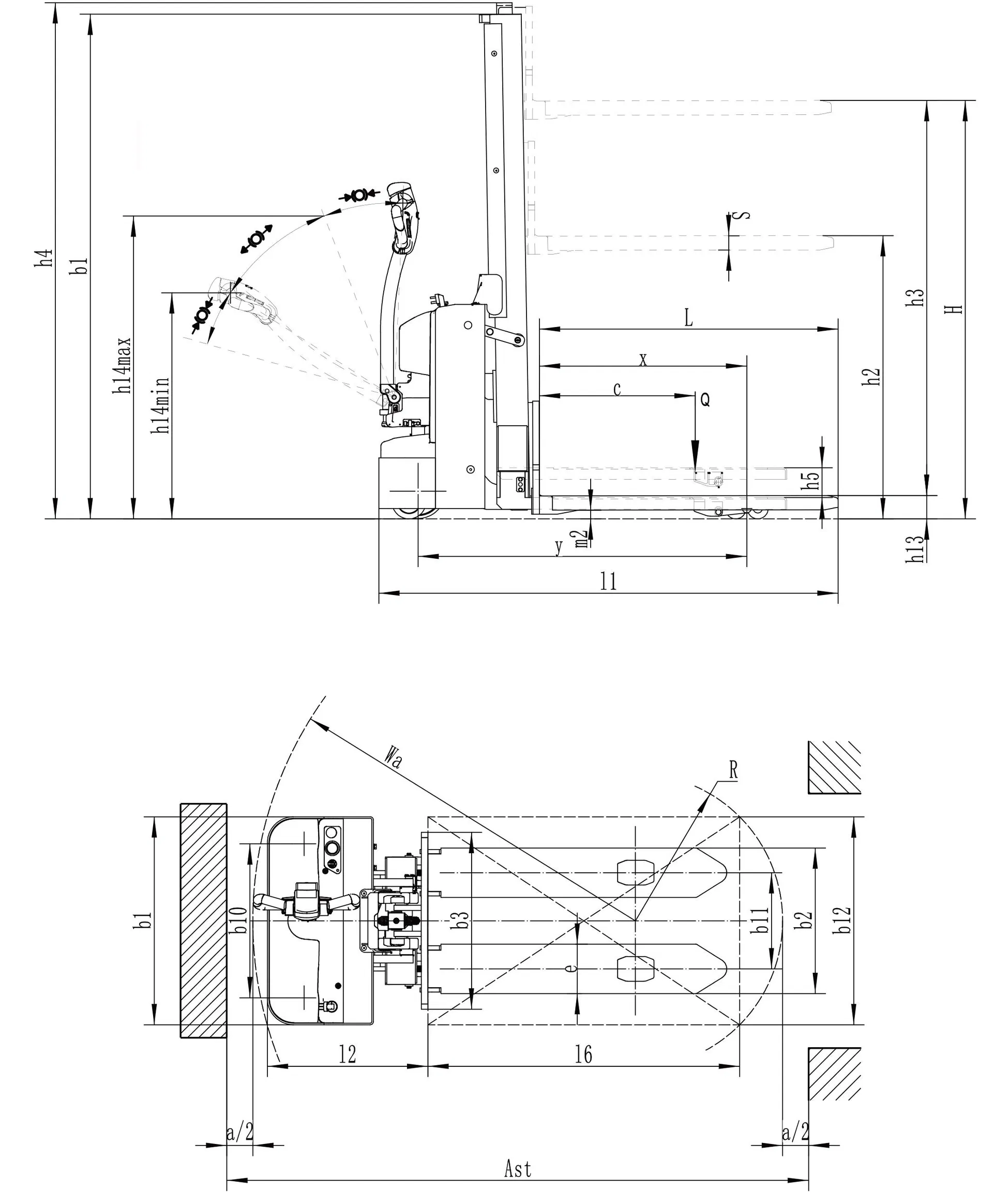

| 1.3 Drive | Electric | 2.1 Service weight | 510 kg |
| 1.4 Drive mode | Pedestrian | 4.2 Retracted mast height | 1942 mm |
| 1.5 Load capacity | 1600 kg | 4.4 Lift height | 1520 mm |
| 1.6 Load center | 600 mm | 4.19 Overall length | 1770 mm |
| 4.21 Overall width | 800 mm | 4.25 Distance between forks | 560 mm |
| 4.35 Turning radius | 1473 mm | 5.1 Travel speed (laden) | 4.0 km/h |
| 6.4 Battery voltage | 24V/100Ah | 5.2 Lifting speed (laden) | 0.1 m/s |

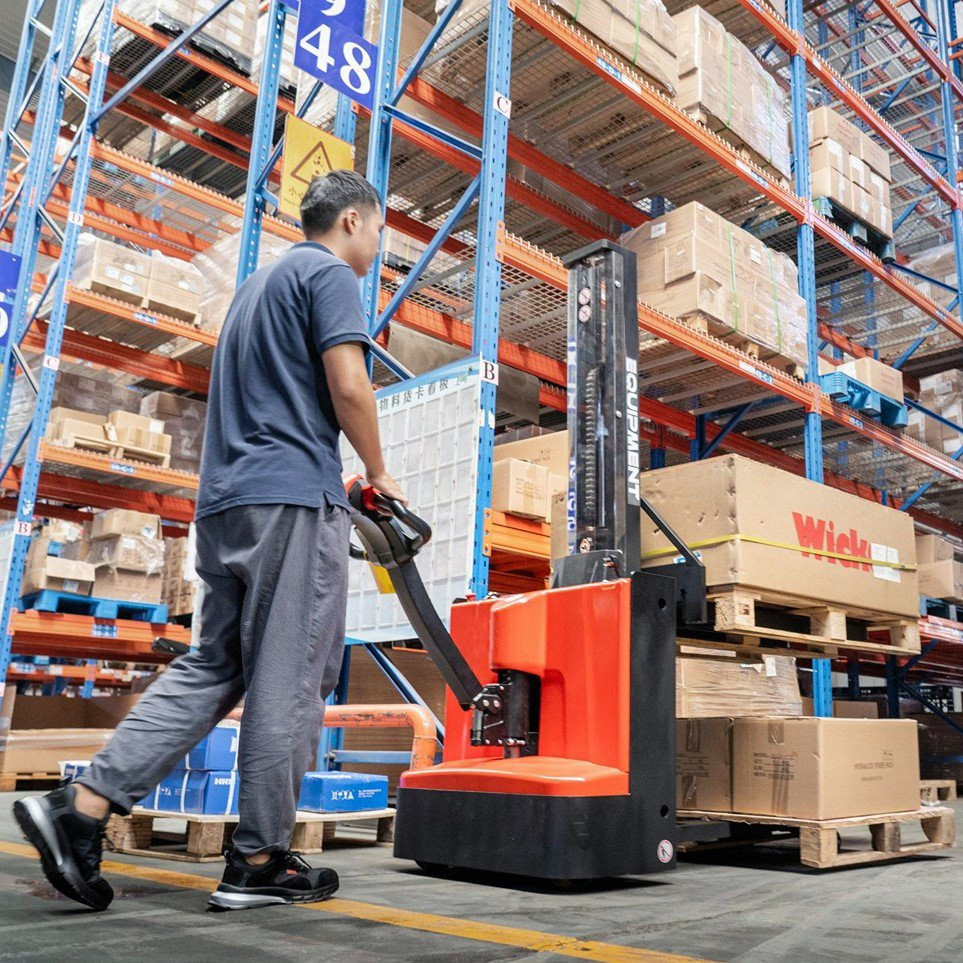

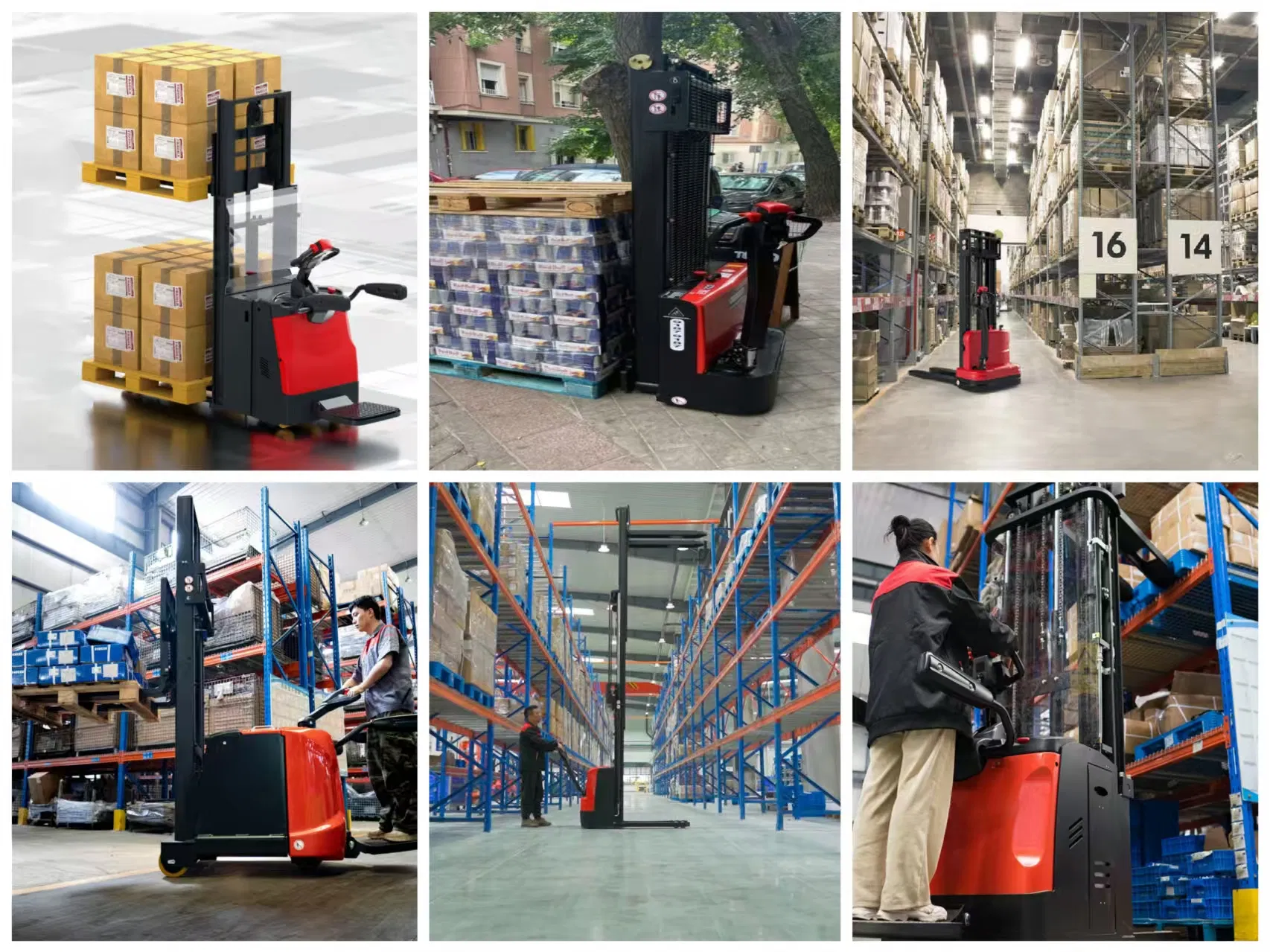

Stacking: Ideal for small to medium warehouses, retail environments, cargo lifts, and lorries. The double-deck feature allows variable stacking volumes.
Order Picking: The operator can adjust the forks to a comfortable working height, allowing for easy order picking alongside traditional stacking tasks.

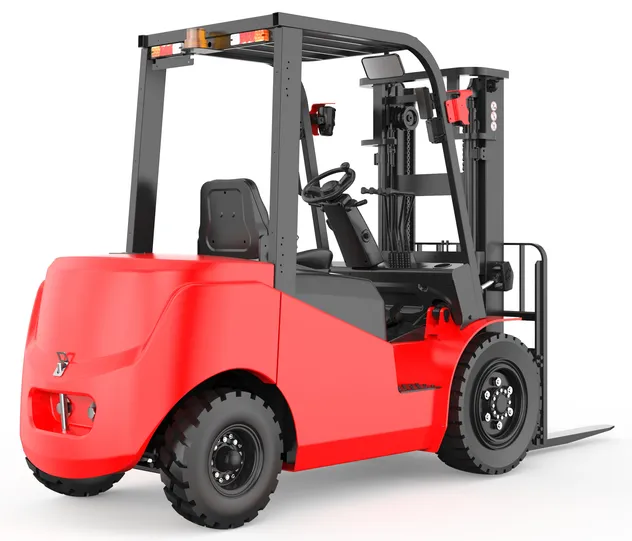

Forklift

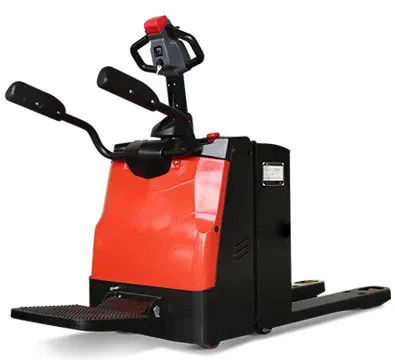

Pallet Truck

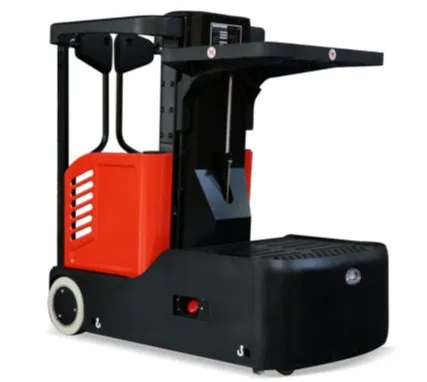

Order Picker

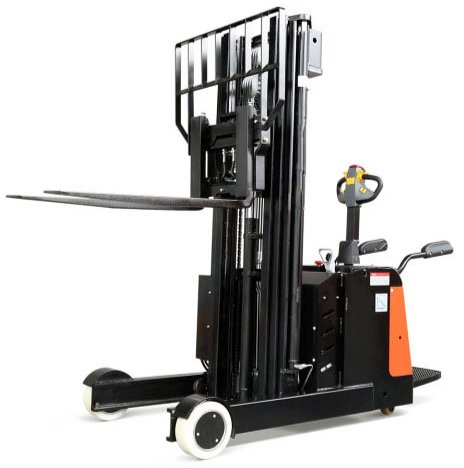

Reach Truck

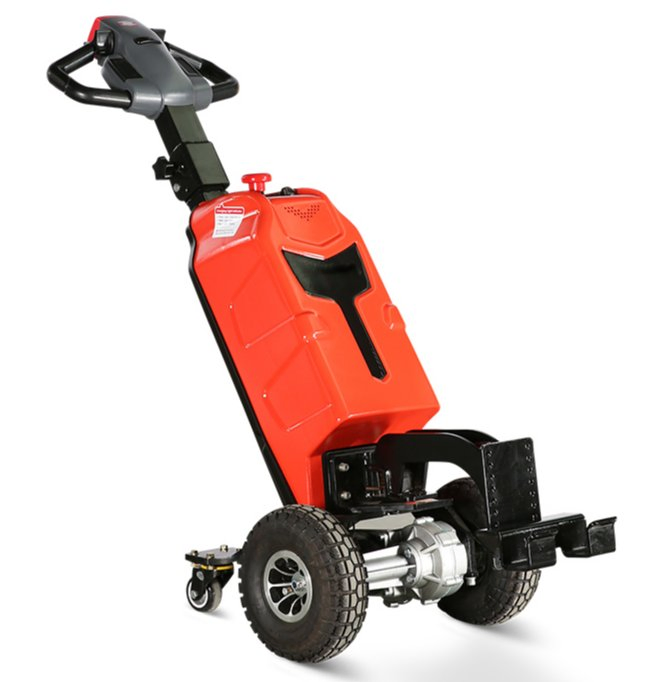

Tow Tractor

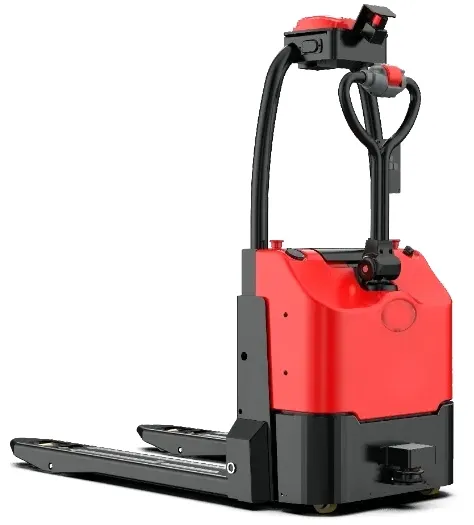

AGV
