| Model NO. | ES15-33DM |
| Type | Stacker |
| Power | AC Motor |
| Load Capacity | 1.5 ton |
| Fuel | Electric |
| Load Center | 600mm |
| Lift Height | 3220mm |
| Turning Radius | 1400mm |
| Fork Length | 40×100×1070mm |
| Overall Length | 1650mm |
| Certification | CE/ISO9001 |

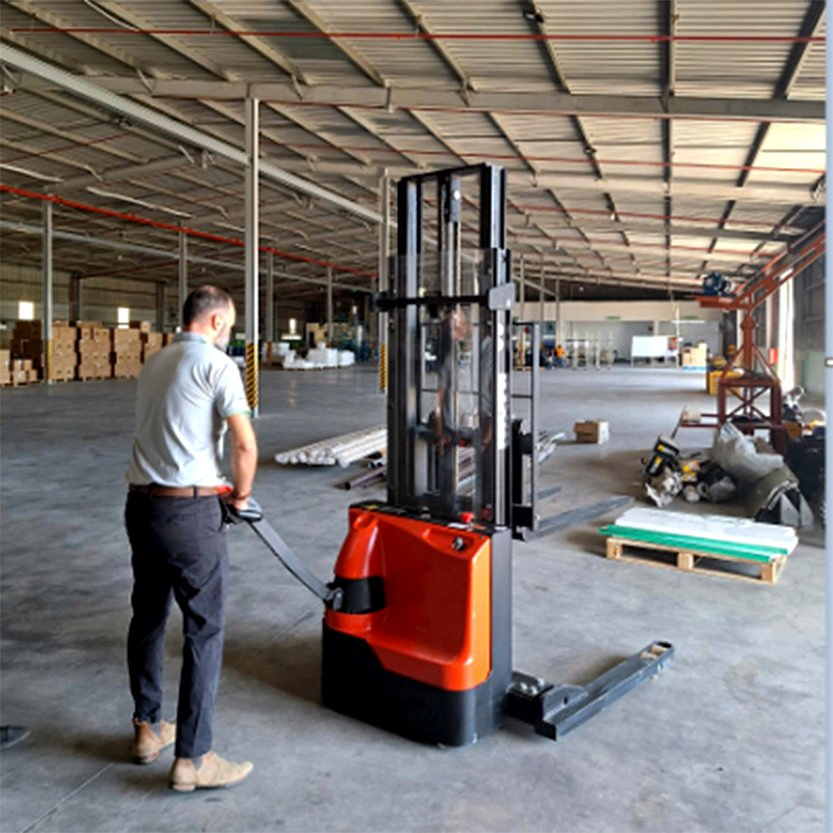

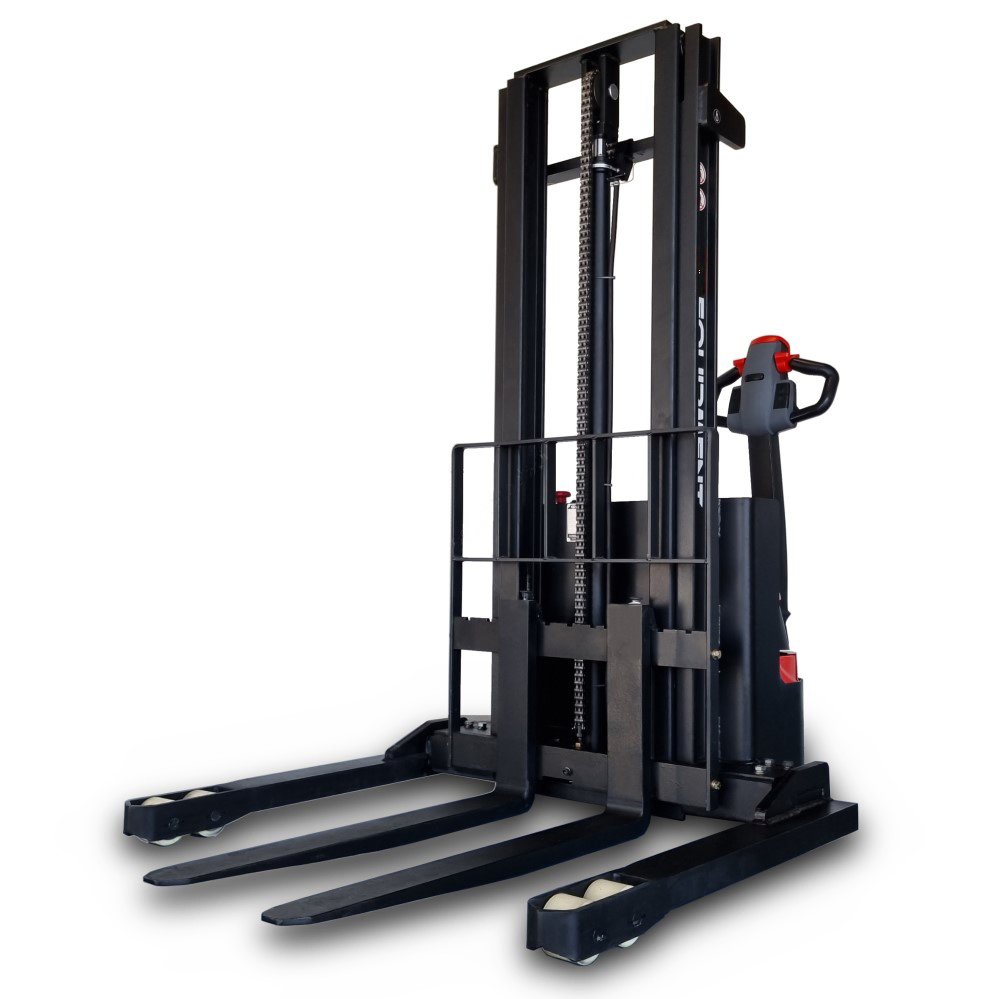

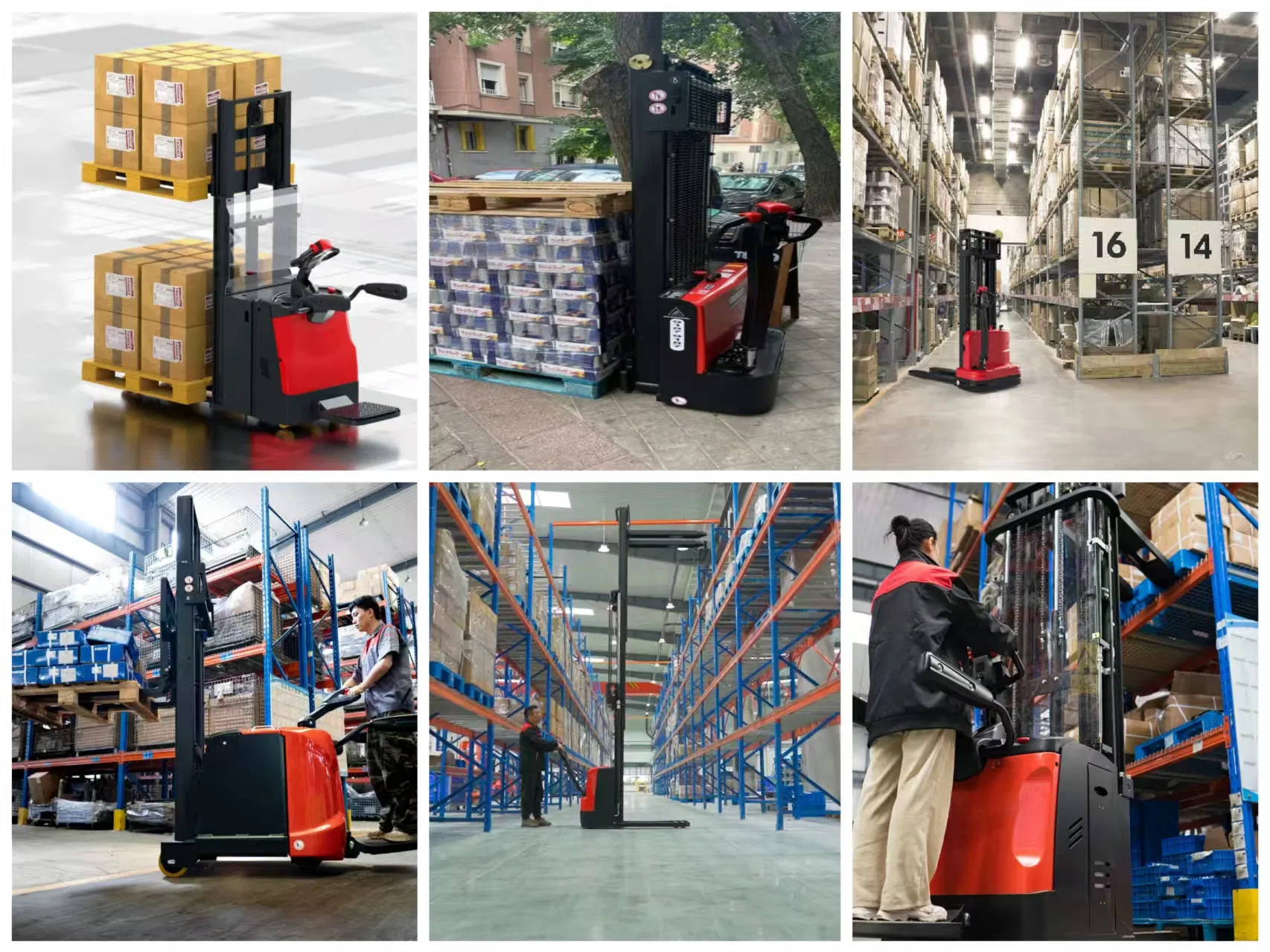

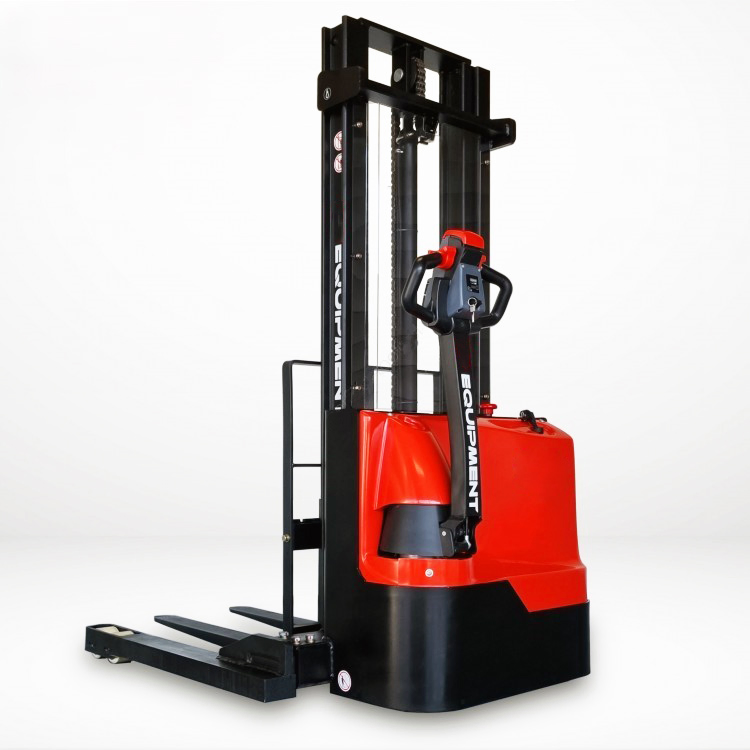

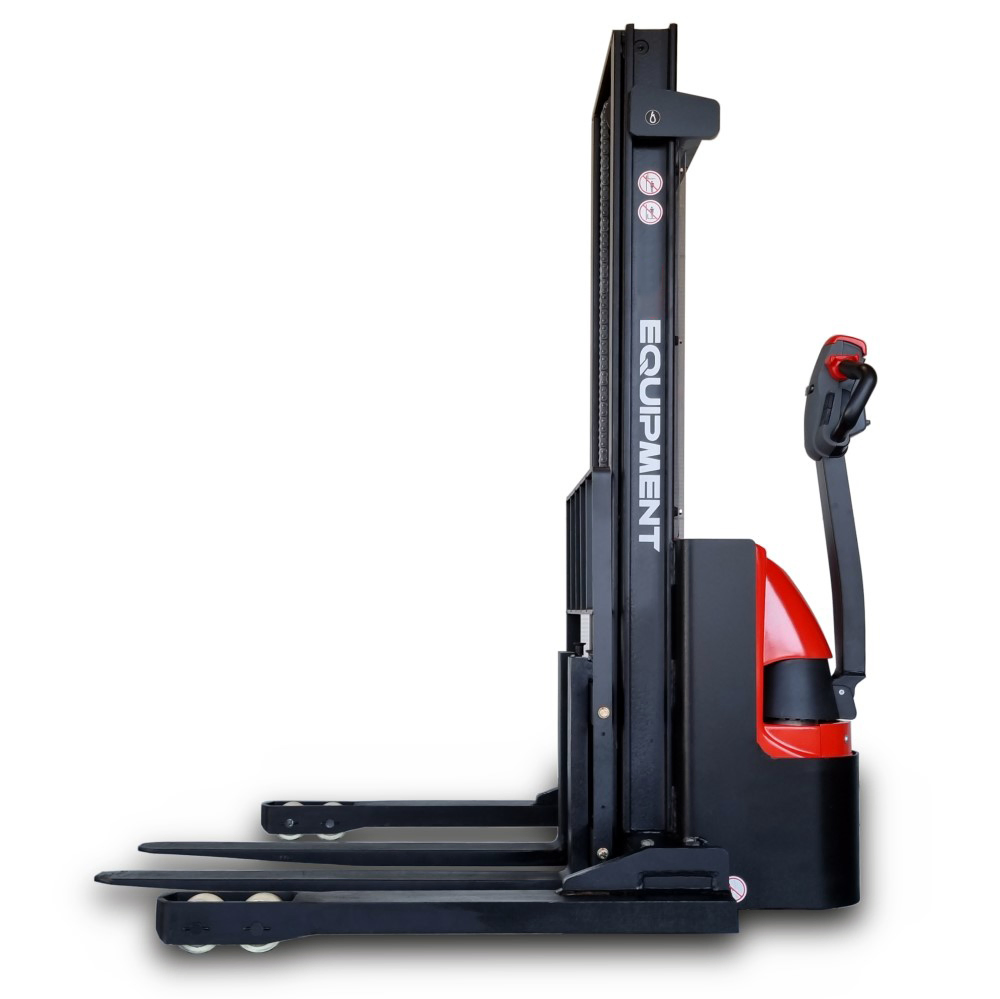

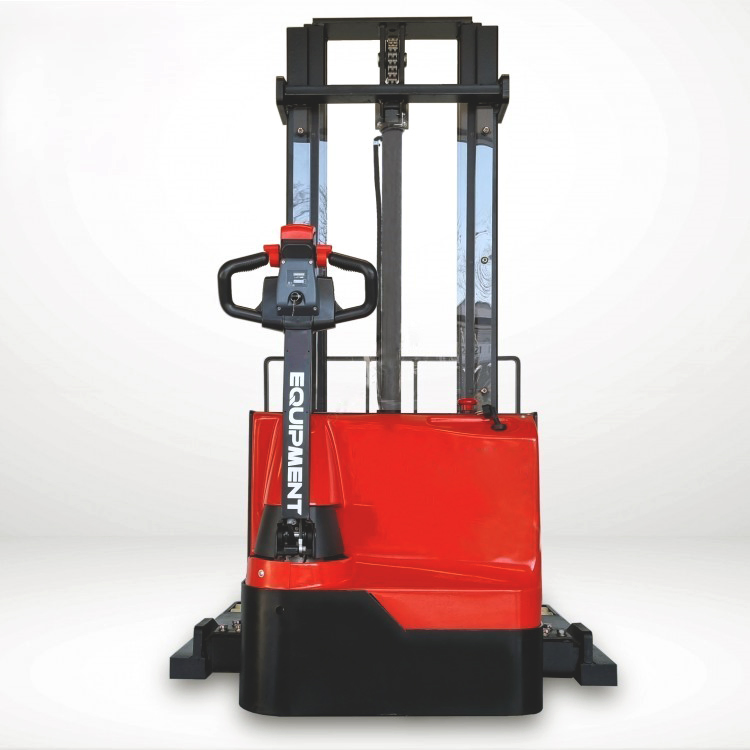

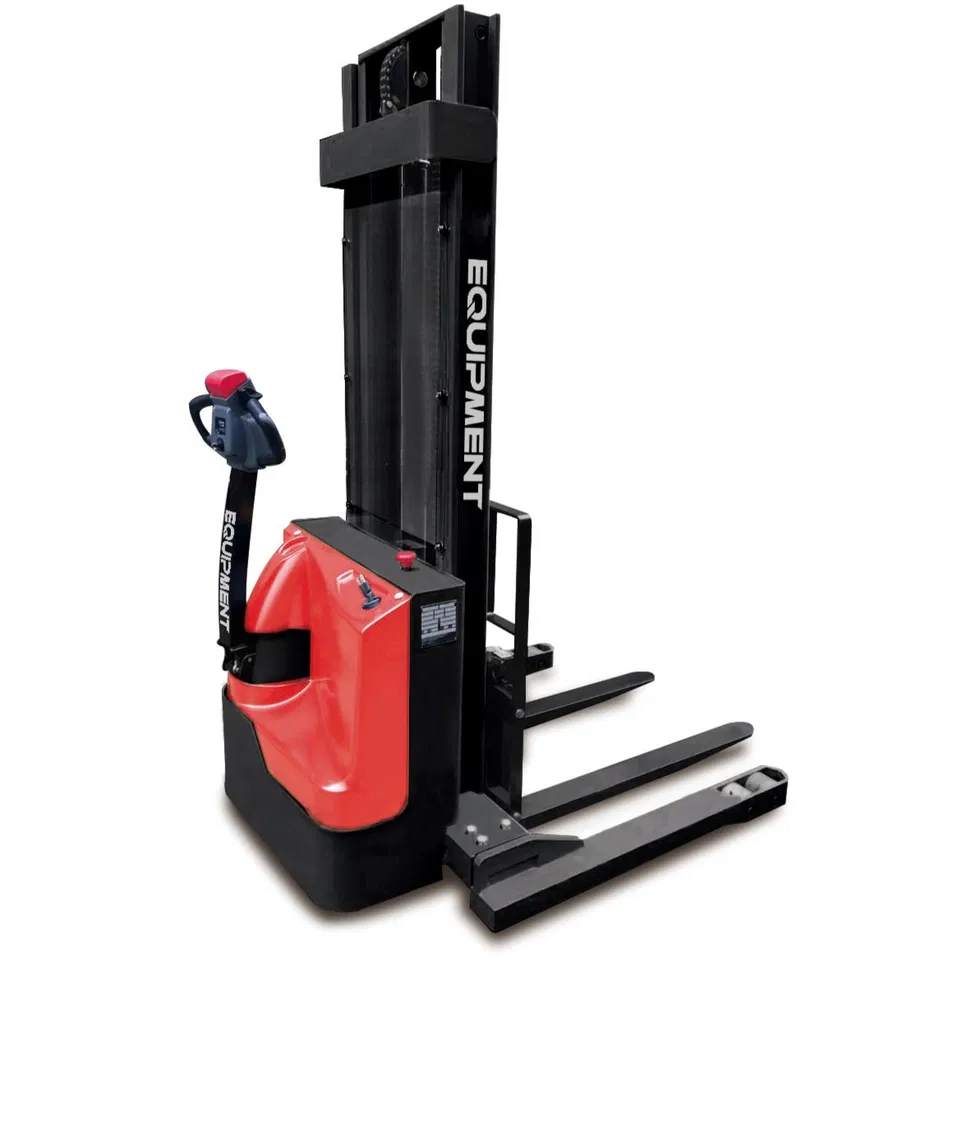

The ES15-33DM electric stacker is a professional-grade double mast construction machine with a 1.5-ton capacity. It is specifically engineered for high-efficiency material handling and stacking operations in warehouse and production environments.
Equipped with an improved double mast structure and balance wheels, ensuring stable operation even under maximum load. The 105Ah battery supports long endurance and high productivity.
Features a built-in 24V/15A charger for rapid power replenishment. The 3.3-meter lift height provides excellent utility in medium-to-high rack systems.

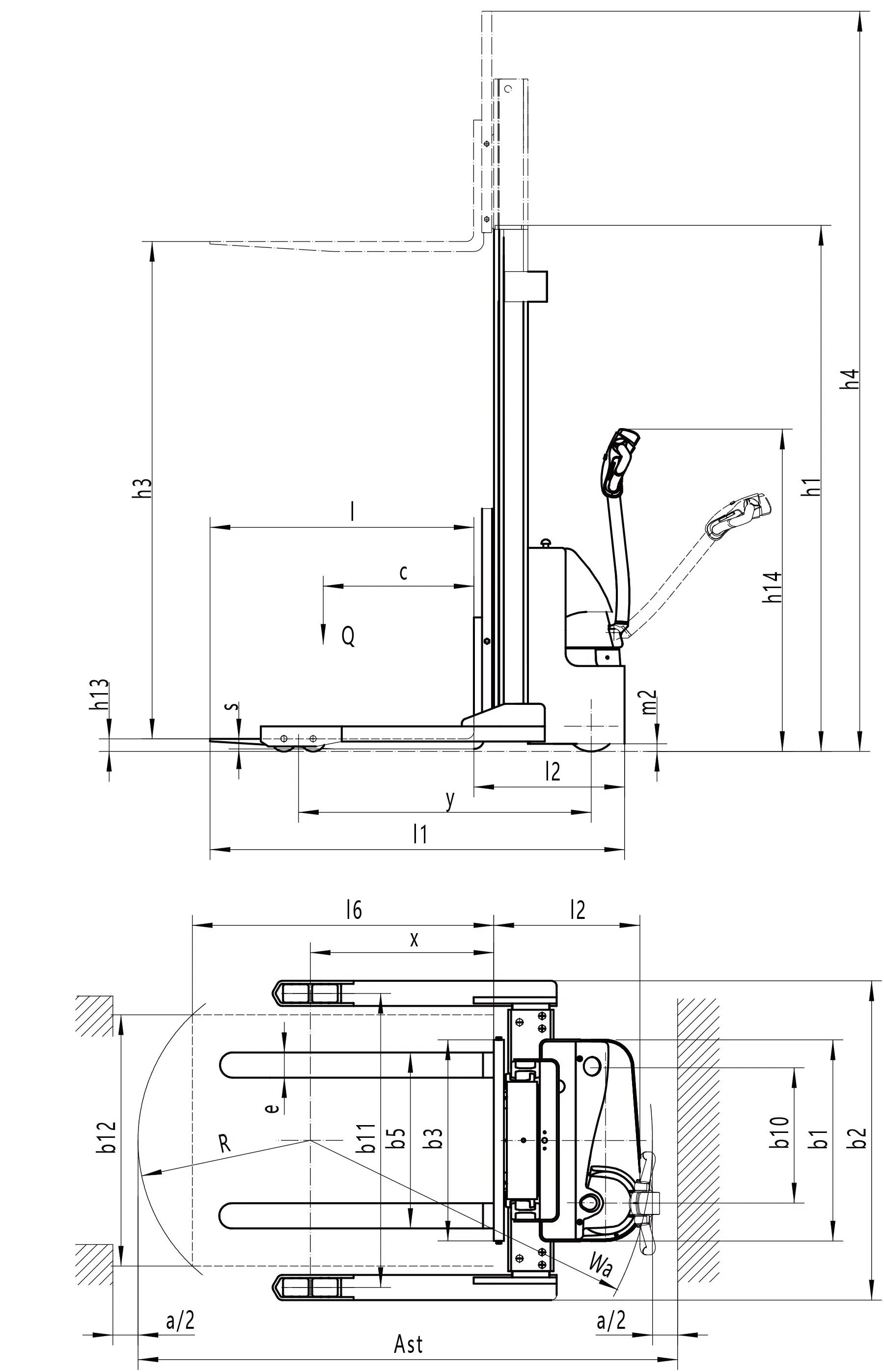

| Item | Description | Value |
|---|---|---|
| Drive Unit | Electric | Pedestrian |
| Load Capacity | Q (kg) | 1500 |
| Load Center | c (mm) | 600 |
| Service Weight | kg | 915 |
| Retracted Height | h1 (mm) | 2128 |
| Max Lift Height | h3 (mm) | 3227 |
| Overall Width | b1/b2 (mm) | 1270 |
| Turning Radius | Wa (mm) | 1400 |
| Travel Speed | Laden/Unladen (km/h) | 5/5 |
| Battery Voltage | V/Ah | 24/125 |

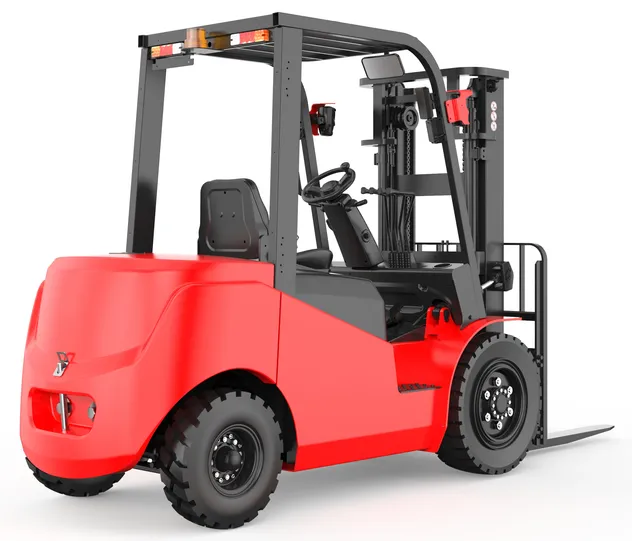

Electric Forklift

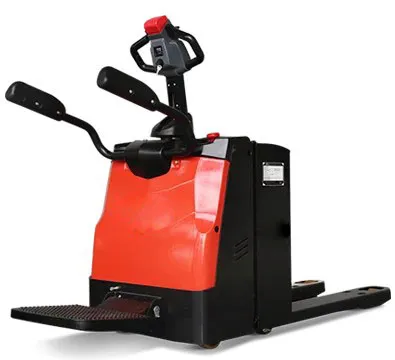

Pallet Truck

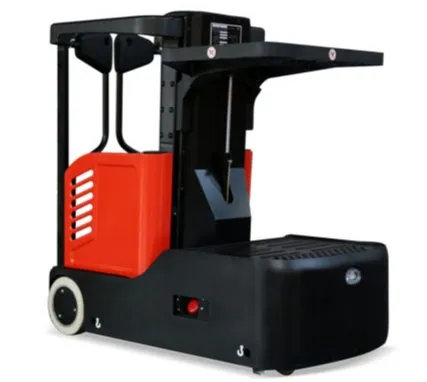

Order Picker

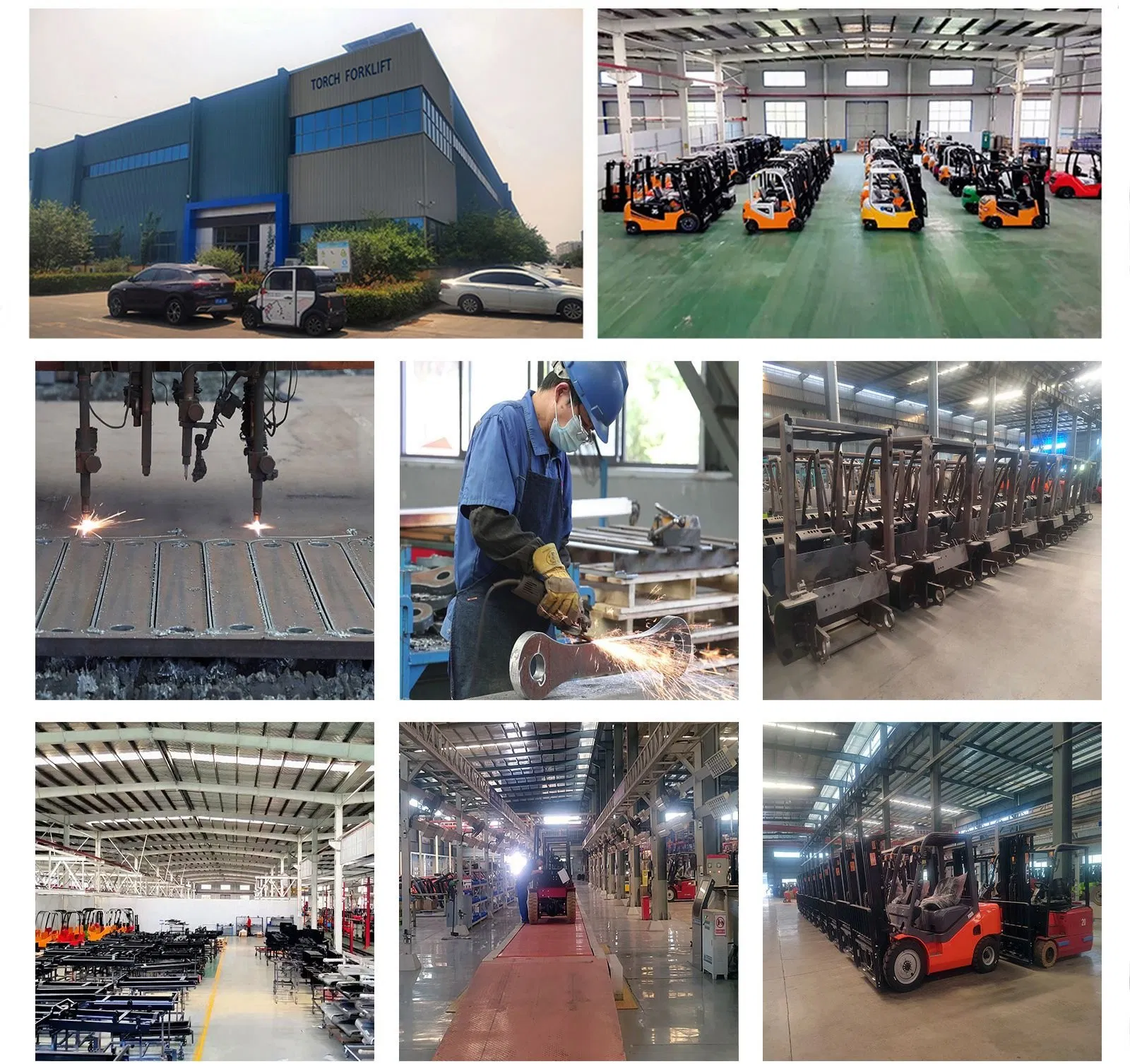

As a leading machinery manufacturer, we specialize in the R&D, production, sales, and service of high-performance material handling equipment. Our product range includes electric forklifts, diesel forklifts, electric stackers, pallet trucks, and industrial AGVs. With equipment exported to over 100 countries, we maintain a global reputation for quality and rapid service response.
