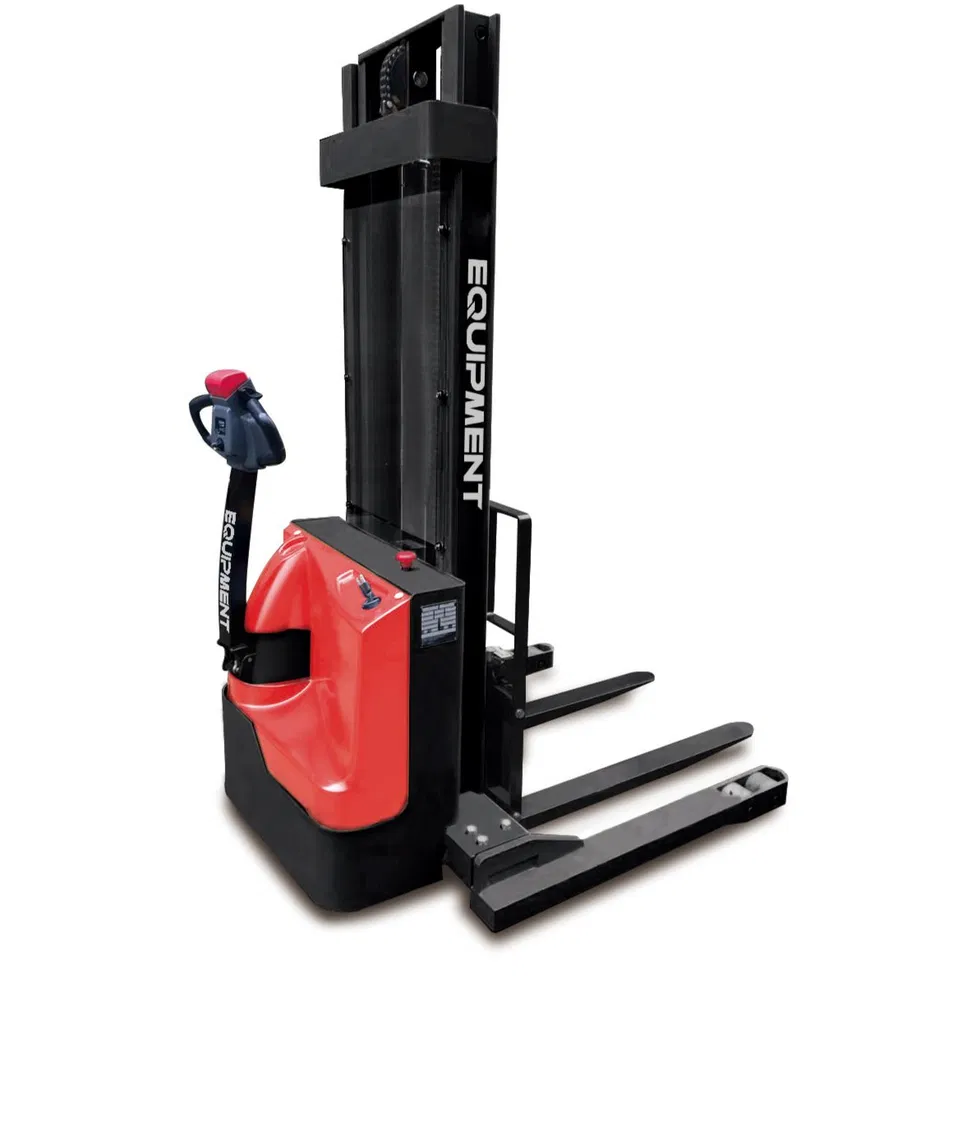

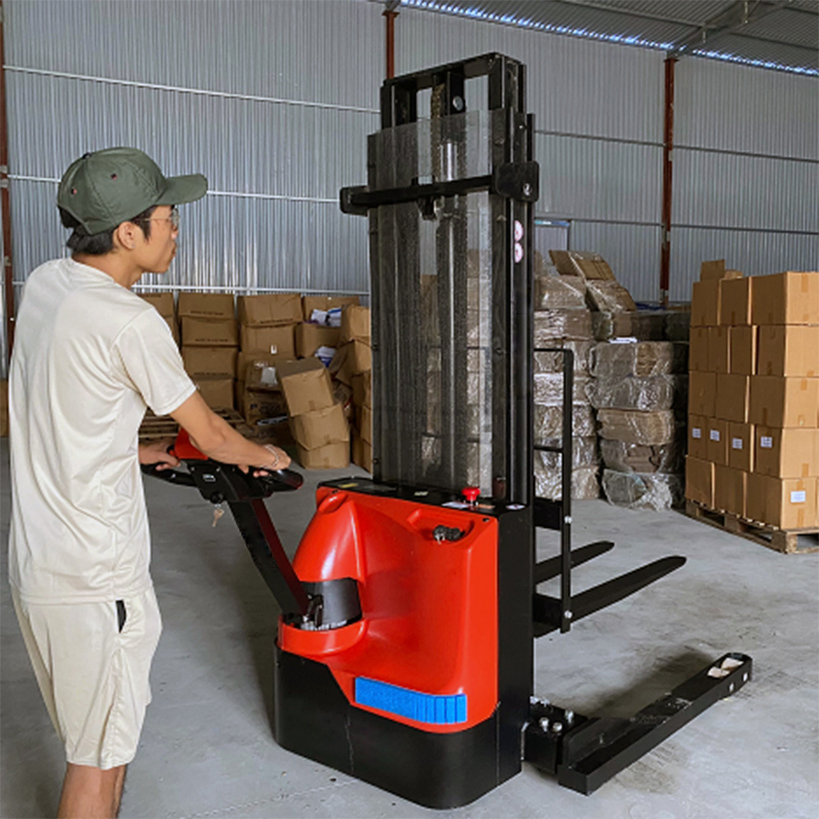

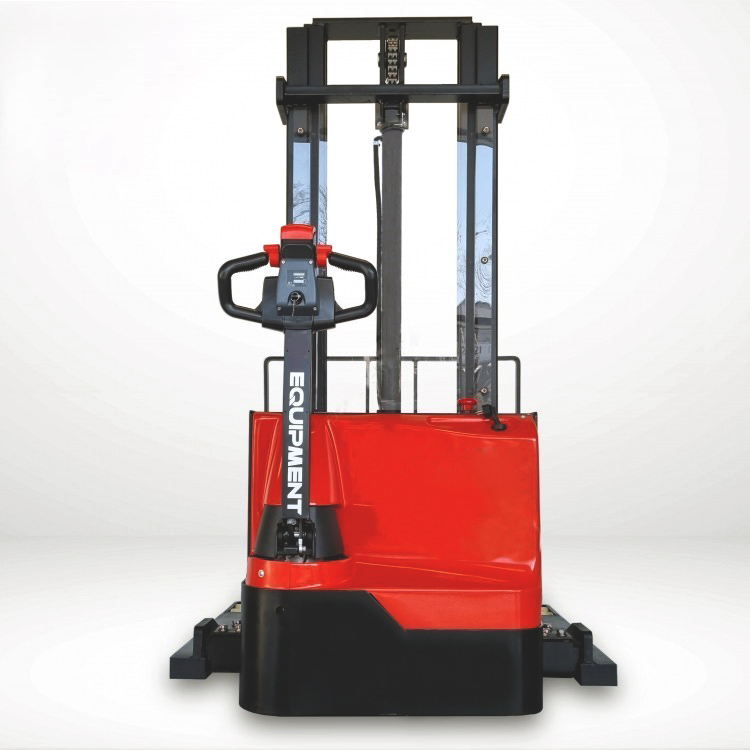

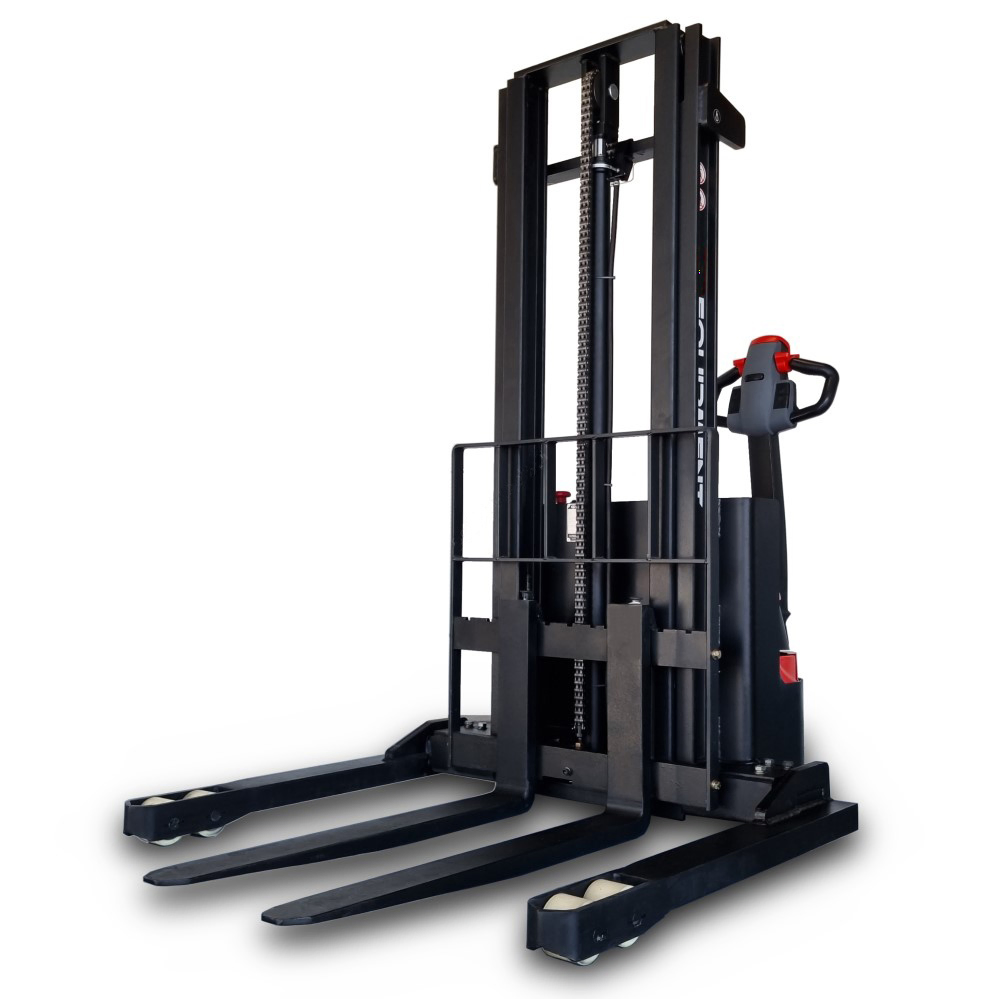

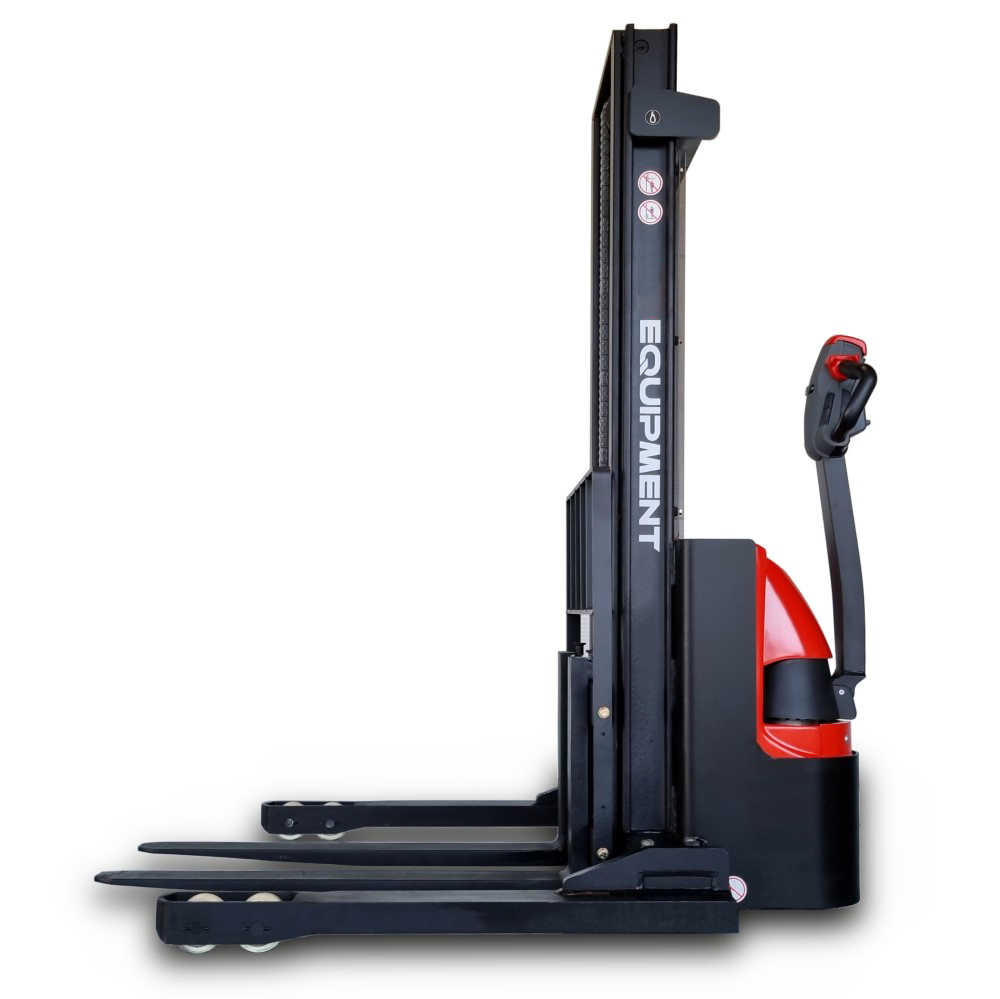

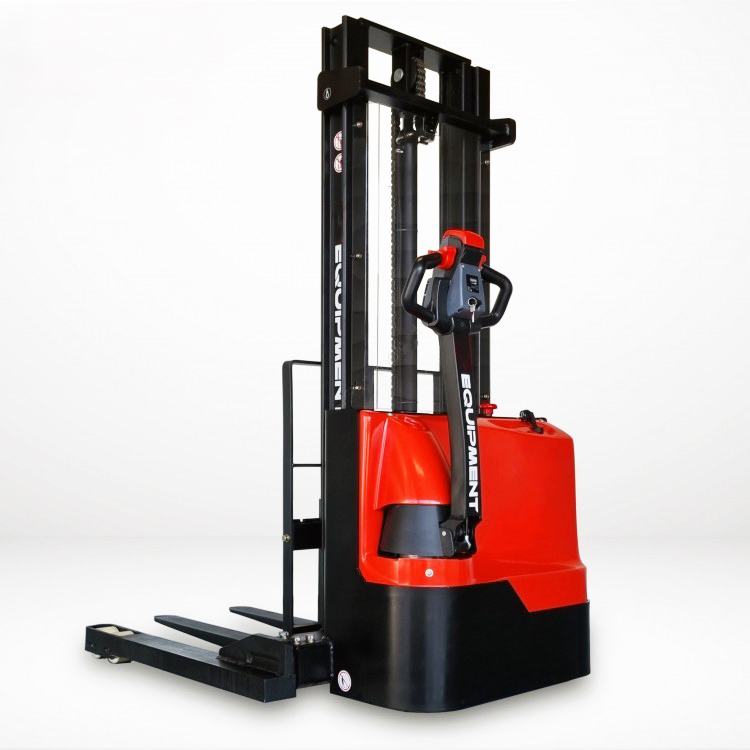

ES15-33DM electric stacker is a double mast professional construction machine with a capacity of 1.5 tons. It is designed for material handling and stacking operations efficiently and safely in warehouse and production areas.
High stability is achieved with an improved double mast structure. Features include easy charging and long working time with a built-in charger.
Safe hydraulic system design prevents mast falling. Emergency reverse belly button and disconnector ensure operator safety. Multiple lifting limit protections and automatic speed reduction at height.
Ergonomic tiller with key switch and troubleshooting indicator. Compact chassis design offers the smallest turning radius needed for narrow spaces.
Maintenance-free battery with display indicator. Detachable rear panel and vertical motor make inspection and service highly convenient.

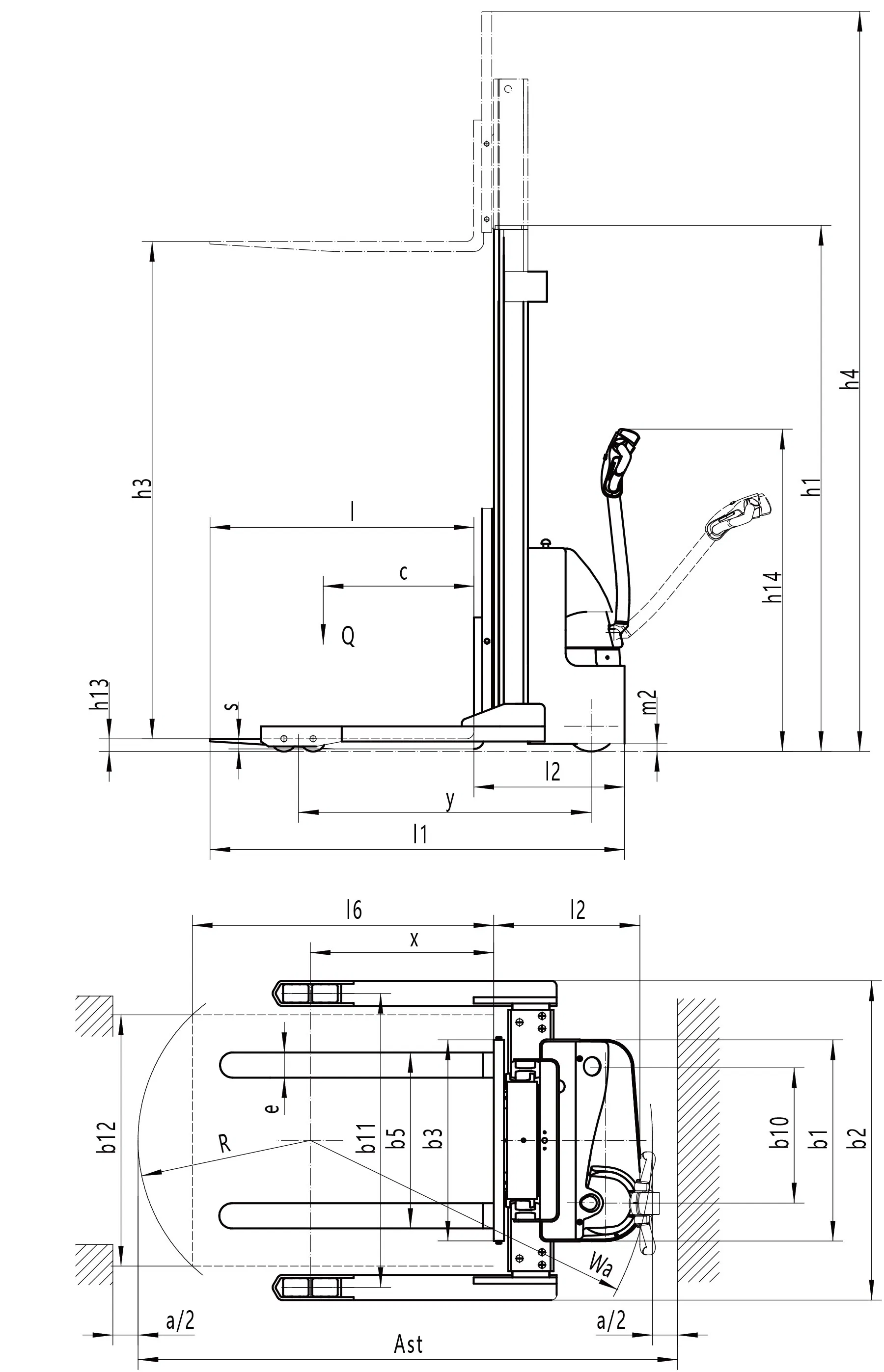

| Drive mode | Pedestrian | Service weight | 915 kg |
| Load capacity | 1500 kg | Lift height | 3227 mm |
| Overall length | 1650 mm | Overall width | 1270 mm |
| Turning radius | 1400 mm | Travel speed | 5/5 km/h |
| Battery voltage | 24V / 125Ah | Lifting speed | 0.14/0.20 m/s |

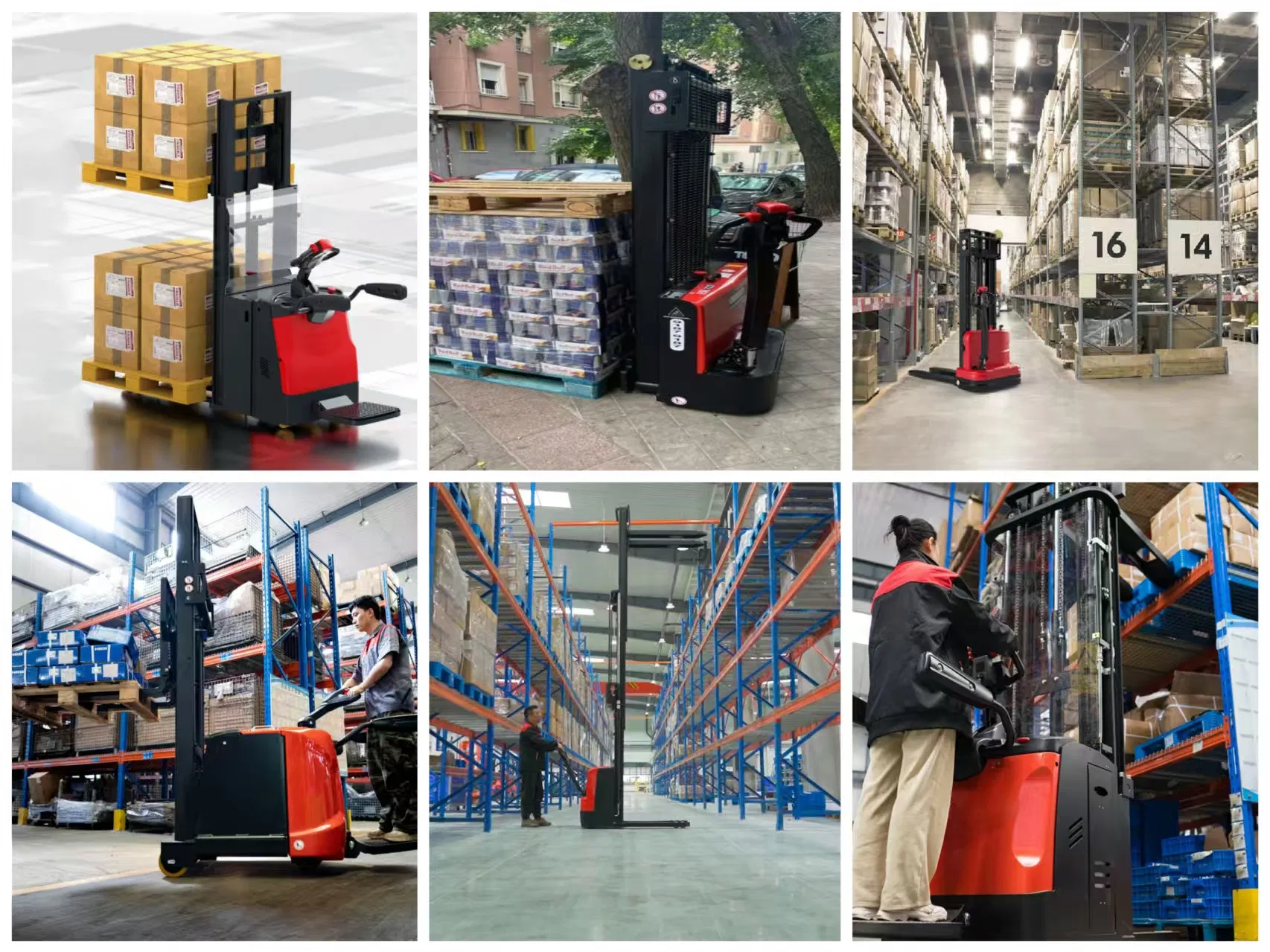

Warehouse and Production Areas: Material handling and stacking operations with 1.5 tons capacity.
Narrow Corridors: Easy to maneuver in confined spaces with a compact 1408mm turning radius.
Medium-High Rack Systems: Safe stacking operations up to 3.3 meters lifting height.

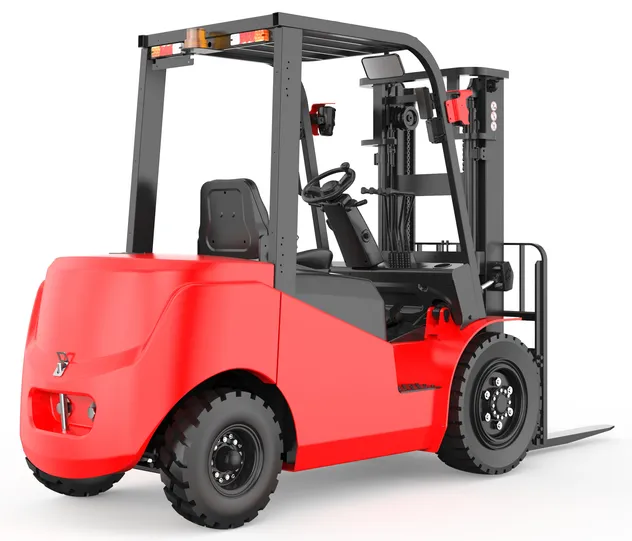

Forklift

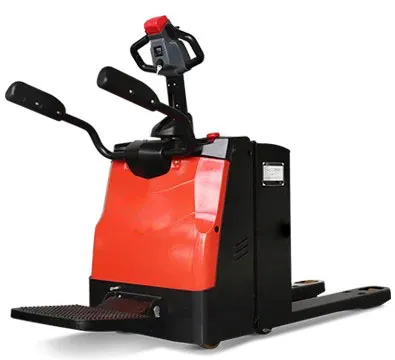

Pallet Truck

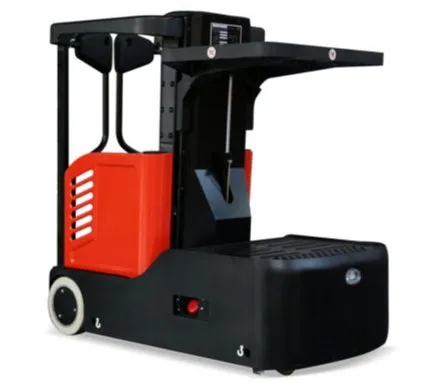

Order Picker

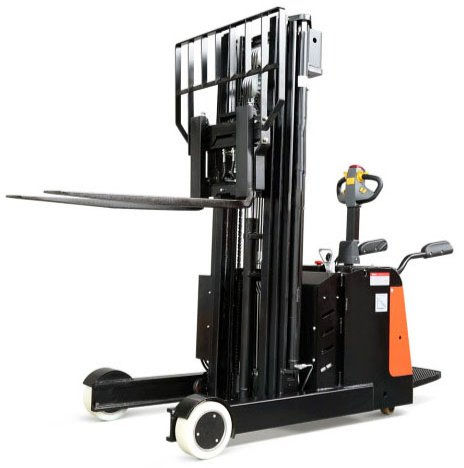

Reach Truck

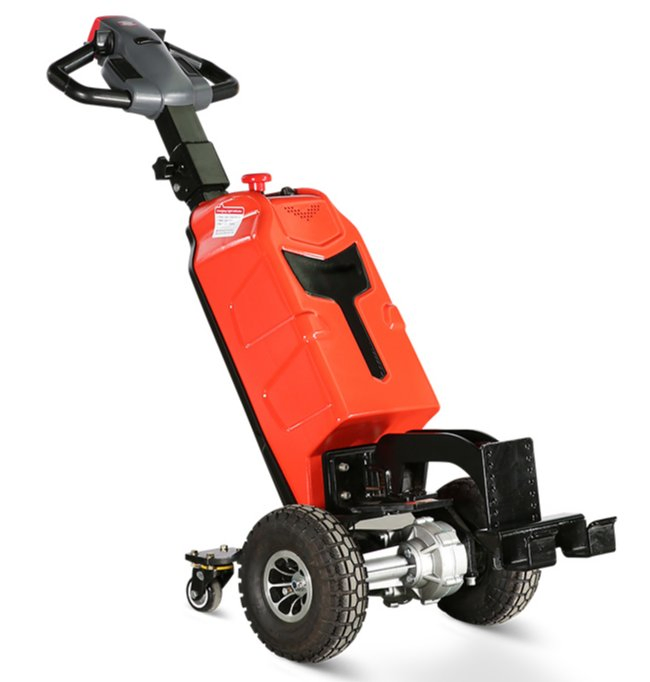

Tow Tractor

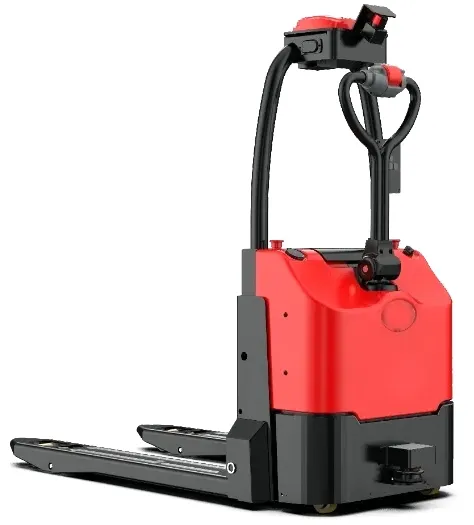

AGV

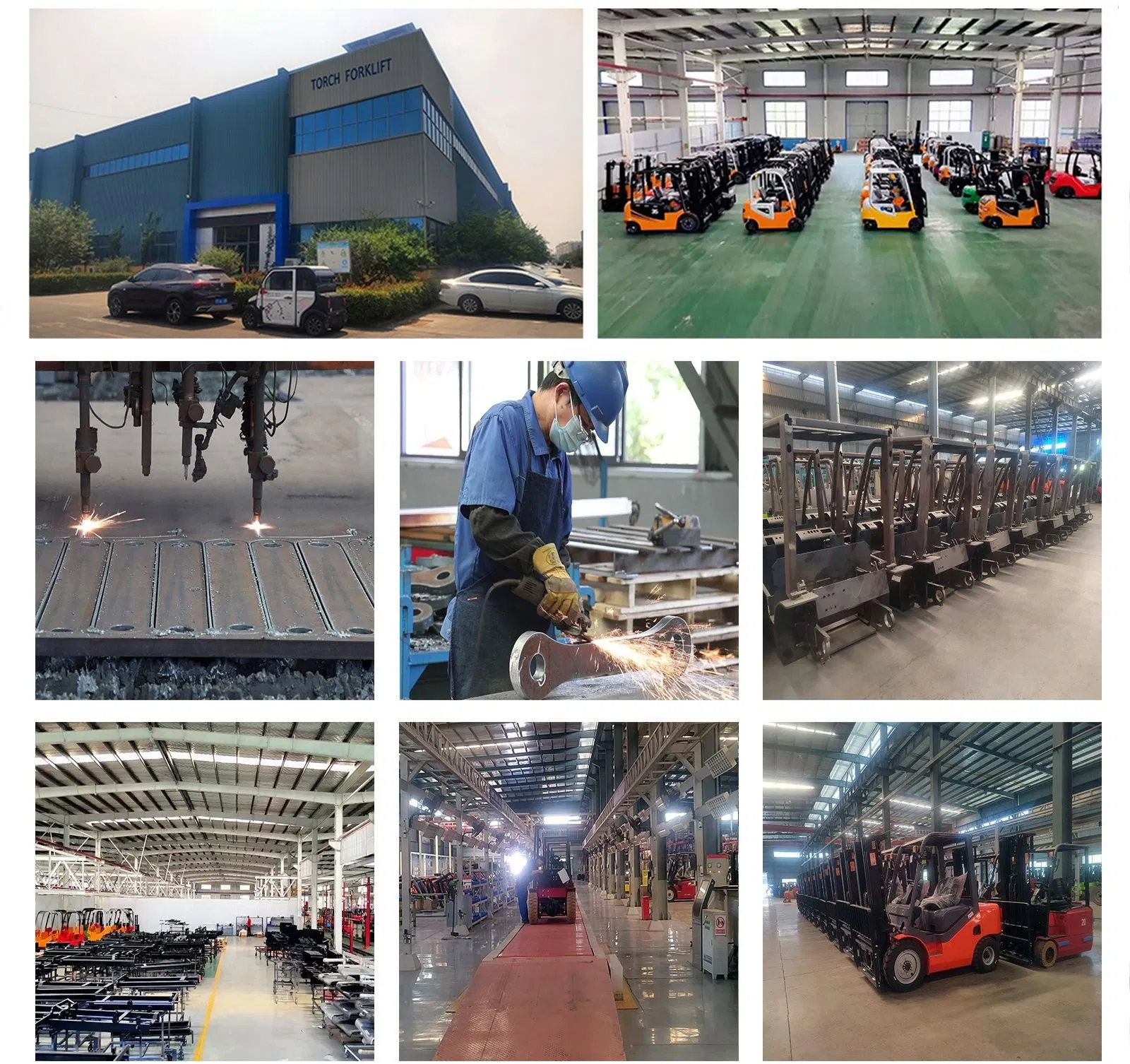

Specializing in R&D, production, sales, and service of high-performance material handling equipment. Our range includes electric forklifts, electric stackers, pallet trucks, handling robots, and industrial AGVs. With high-quality products and fast service response, we serve leading enterprises in various industries globally across more than 100 countries.
