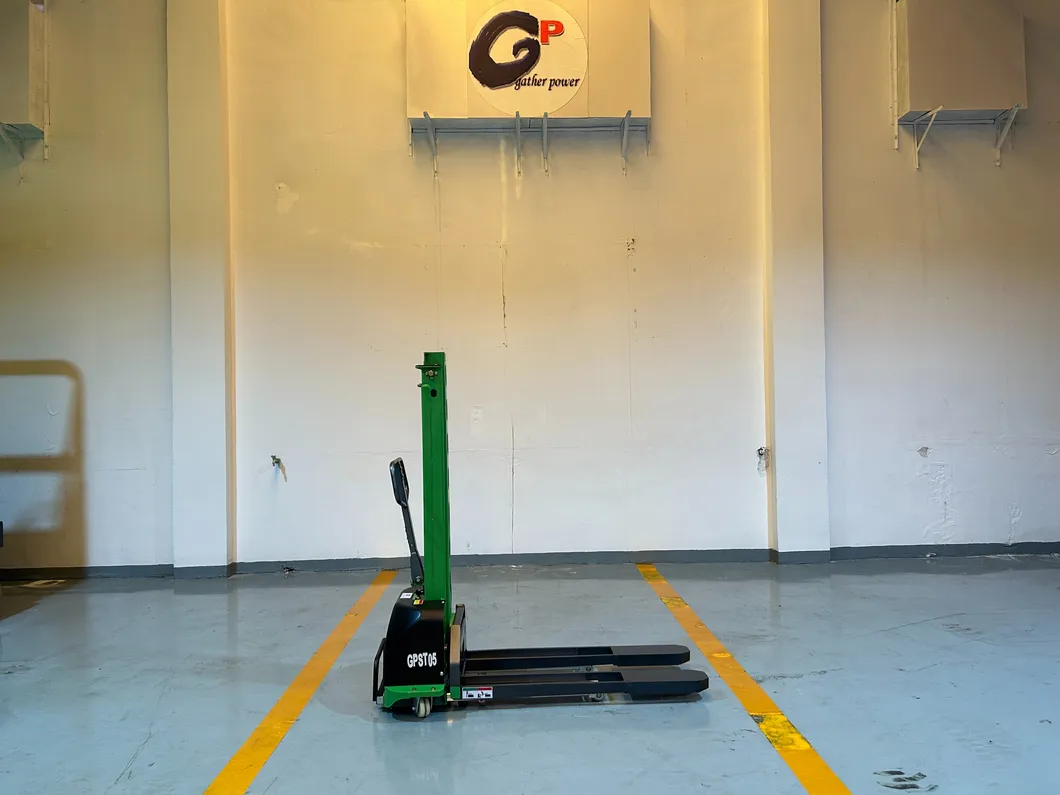

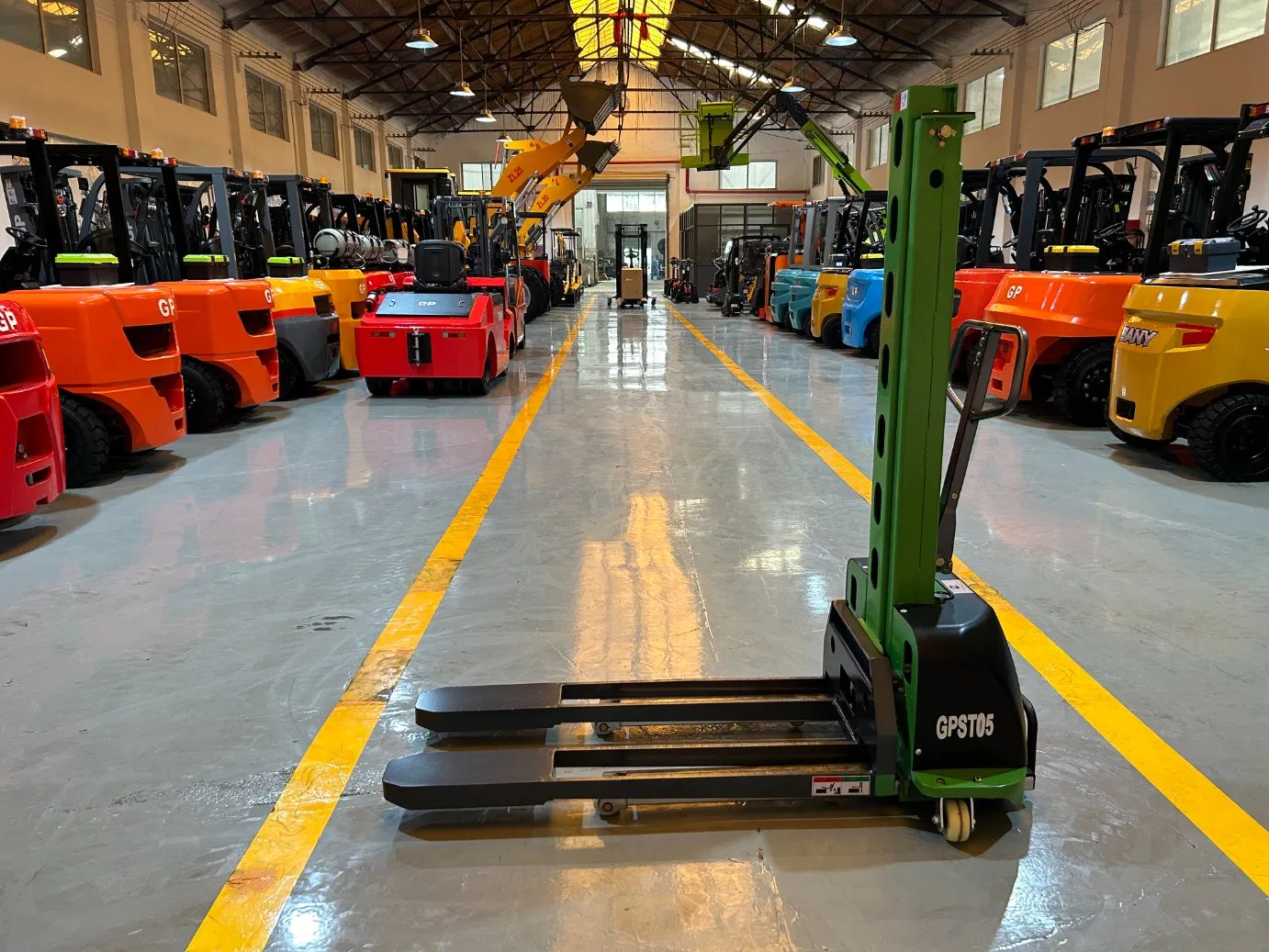

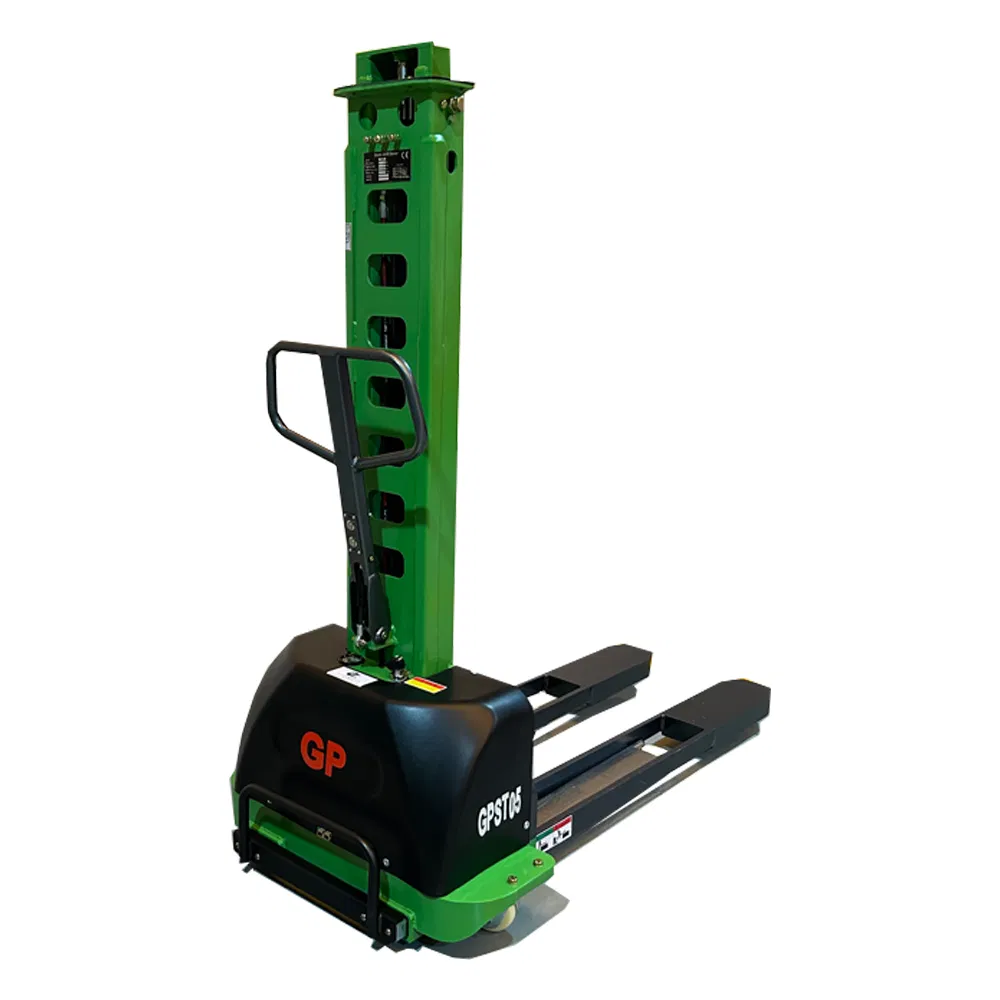

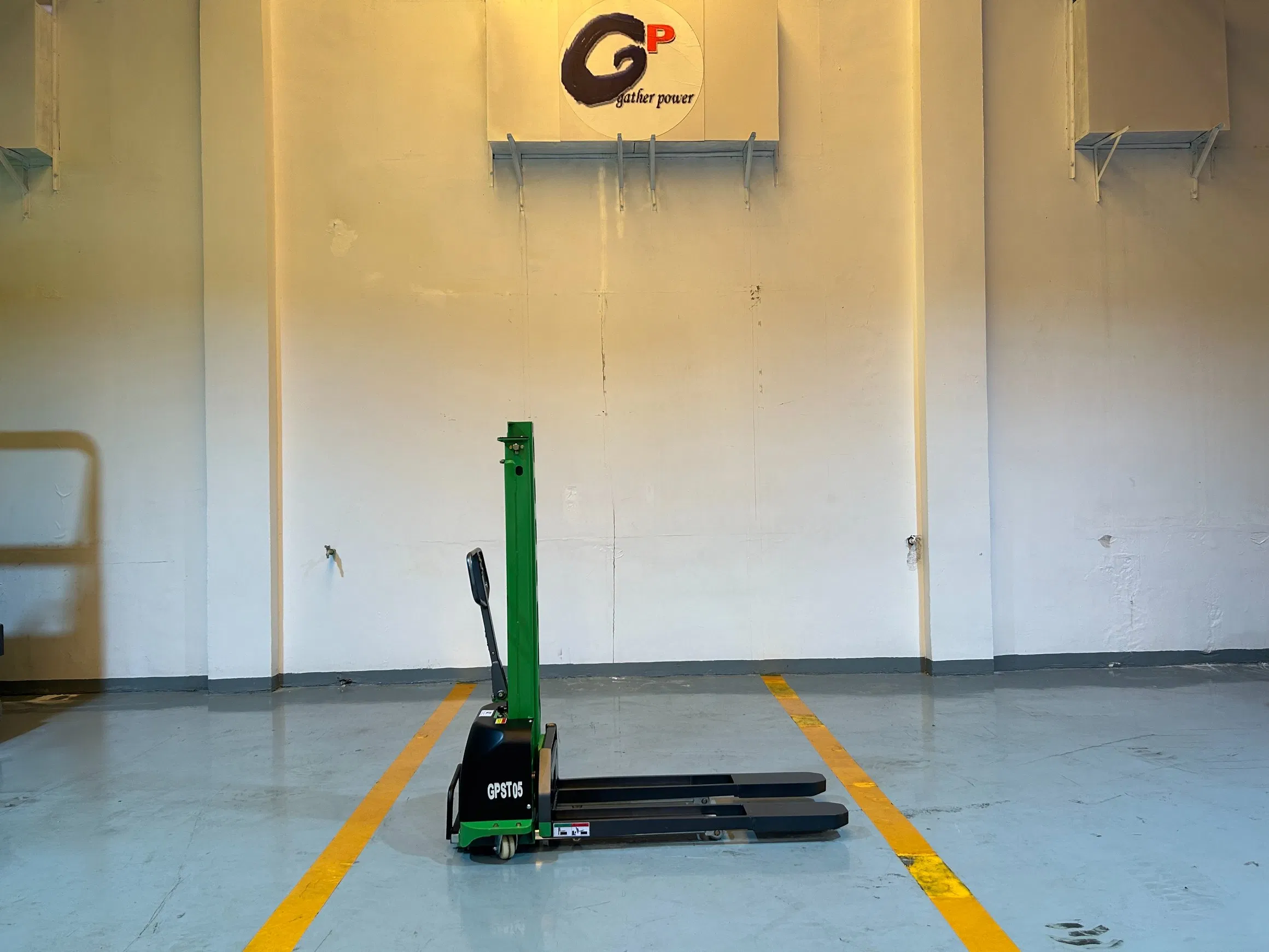

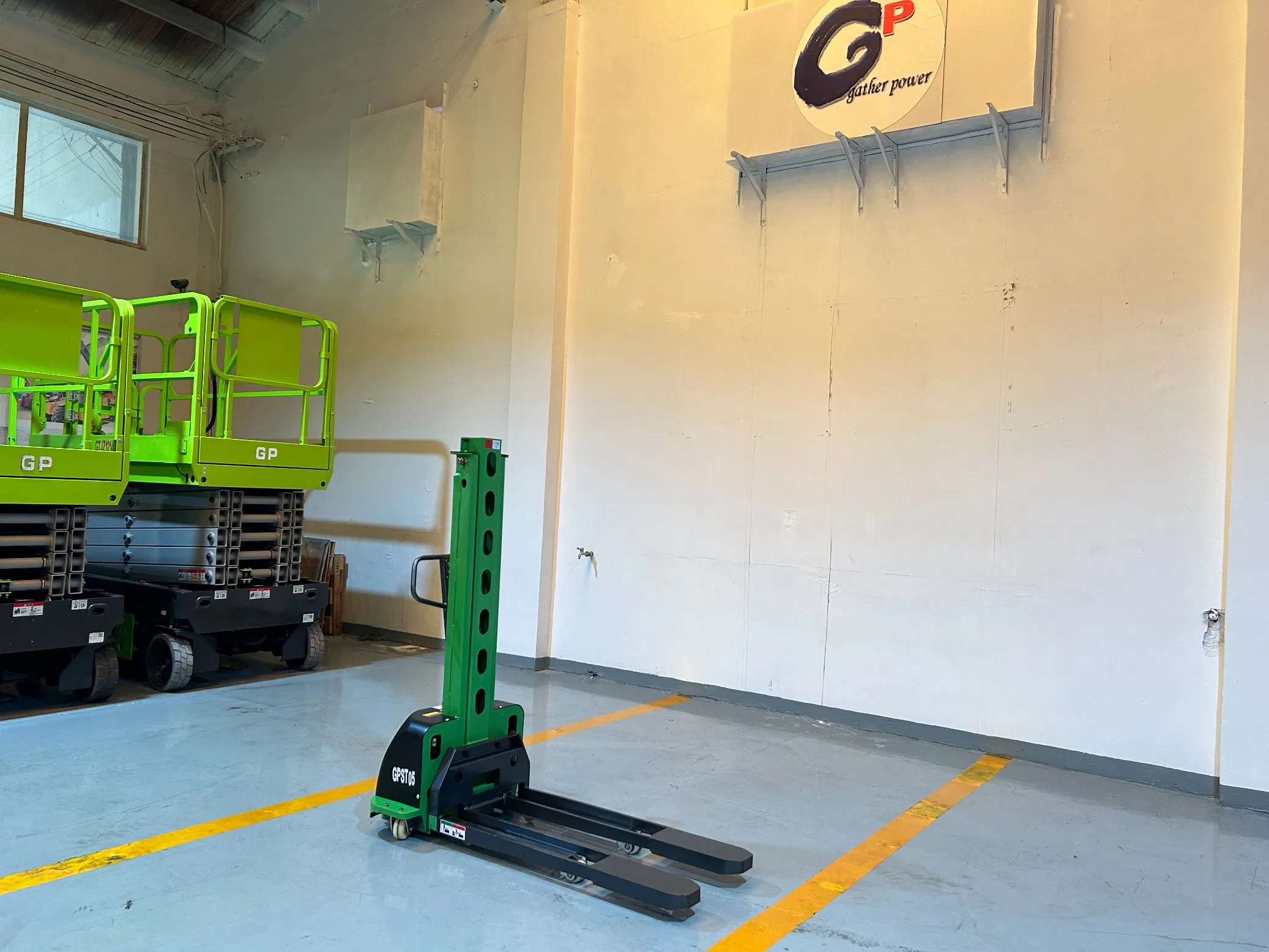

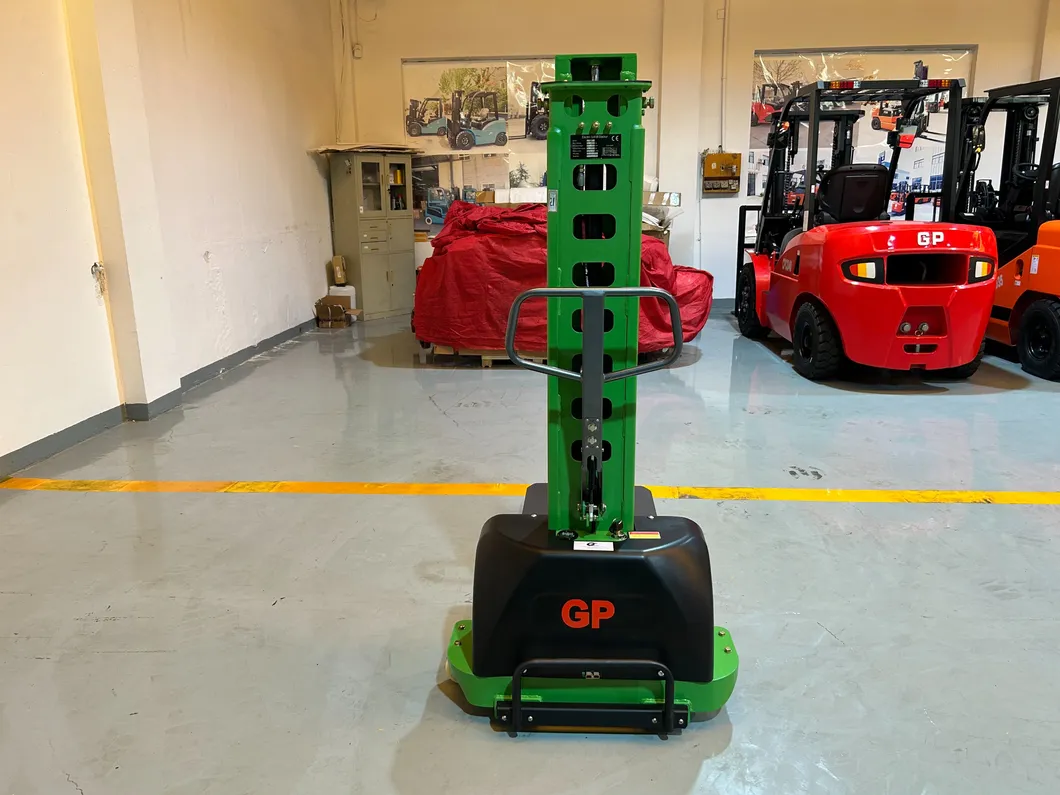

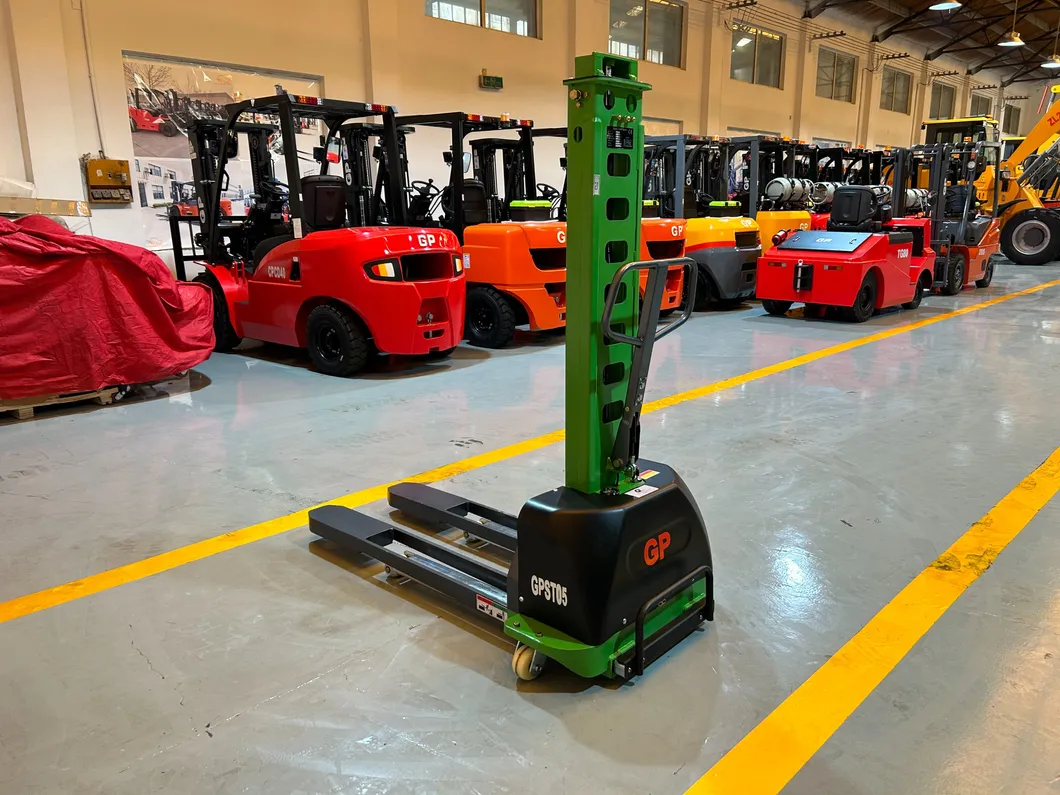

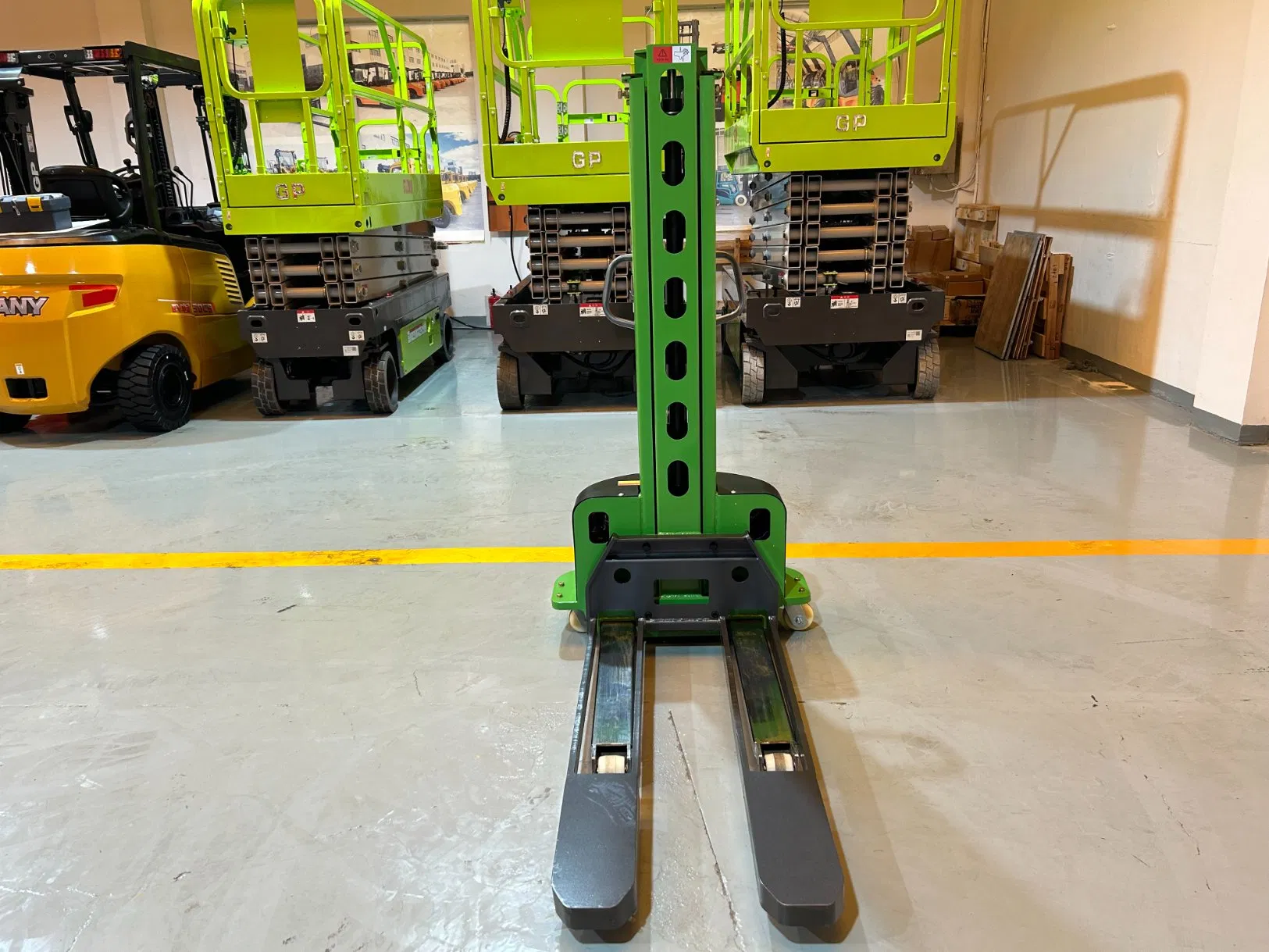

The Self-Stacker (self-stacker forklift) is a semi-automatic or fully automatic warehousing equipment, specially designed for narrow aisles and high-density storage. It can independently complete the lifting, handling and stacking of goods, and is suitable for efficient warehousing management in e-commerce, logistics and manufacturing industries.
| Model | Unit | GPST03 | GPST05 | GPST10 |
|---|---|---|---|---|
| Capacity | Q(Kg) | 300 | 500 | 1000 |
| Load center | C(mm) | 400 | 400 | 400 |
| Type of lifting | - | Electric | Electric | Electric |
| Operating type | - | Walkie | Walkie | Walkie |
| Wheel base | y(mm) | 860 | 860 | 860 |
| Bearing wheel size | mm | 70x60 | 70x60 | 70x60 |
| Steering wheel size | mm | 100x50 | 100x50 | 100x50 |
| Min.fork height | mm | 90 | 90 | 90 |
| Max.fork height | h3(mm) | 1100 | 1300 | 1300 |
| Fork length | l2(mm) | 1150 | 1150 | 1150 |
| Overall length | L1(mm) | 1600 | 1600 | 1600 |
| Overall width | b1(mm) | 790 | 790 | 790 |
| Battery capacity | V/Ah | 12/33 | 12/33 | 12/33 |
| Net weight | Kg | 187 | 209 | 215 |
