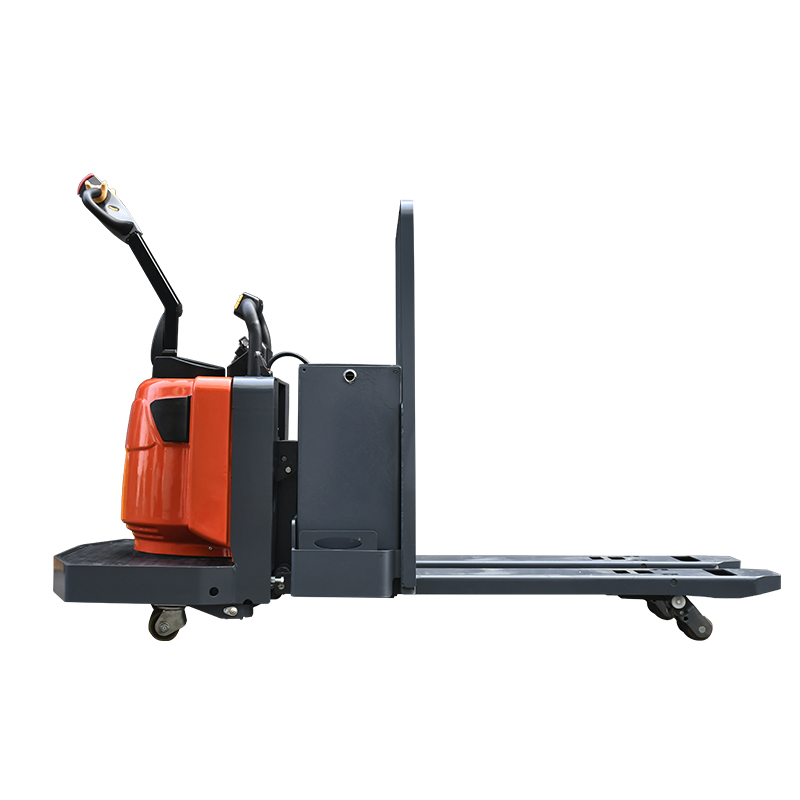

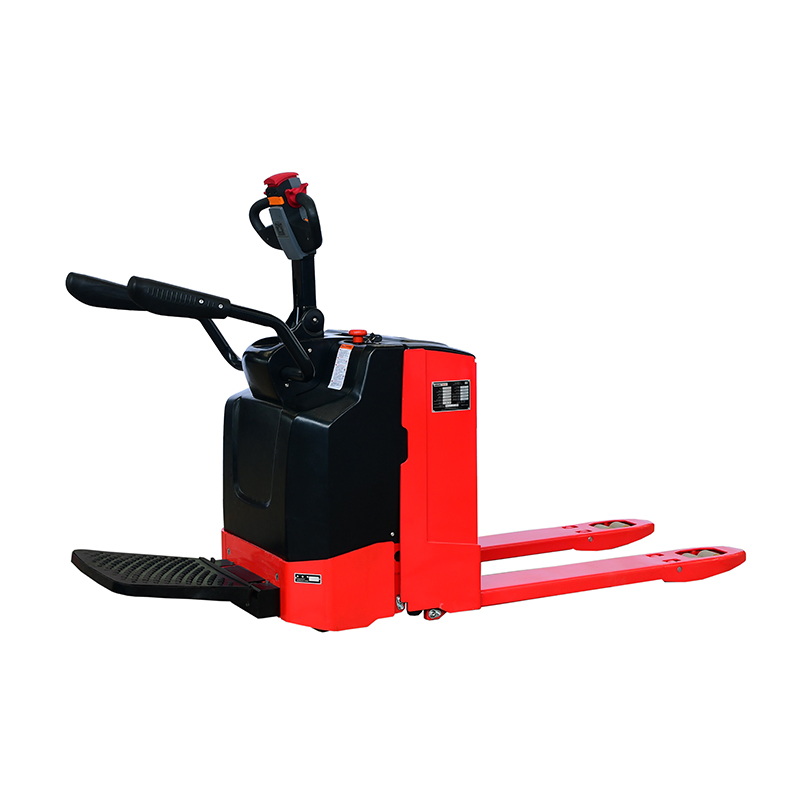

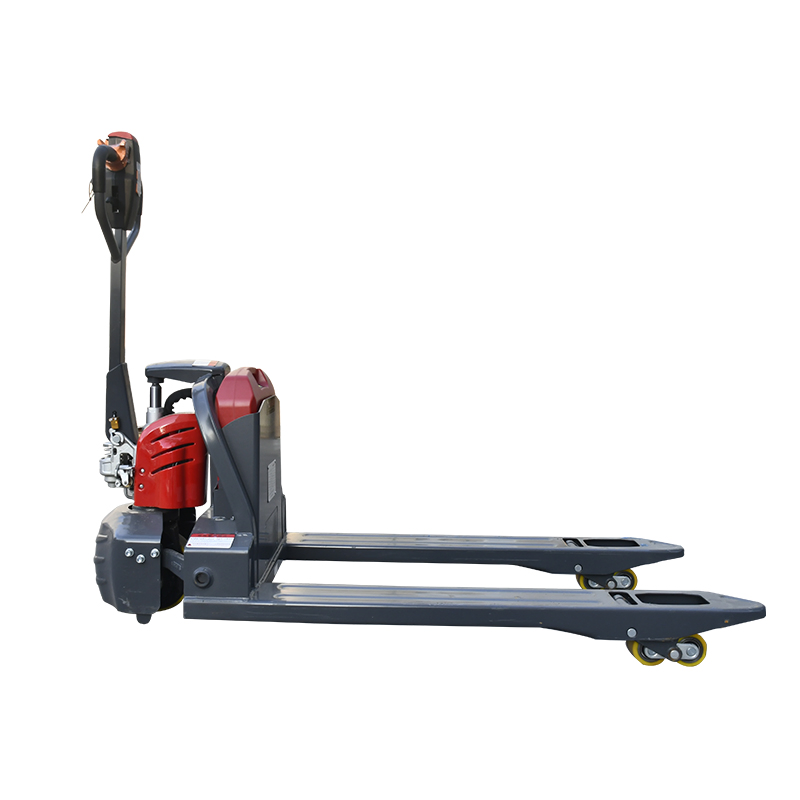

High Quality Electric Pallet Truck Pallet Truck Trolley

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Overview & Basic Info

Model NO.
Pallet Truck
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Load center
>500mm
Lift height
200
Condition
New
Color
Customized
Wheel Base
1345mm
Tyre
Polyurethane
Origin
China
HS Code
8427109000
P

Product Description

Electric Pallet Truck

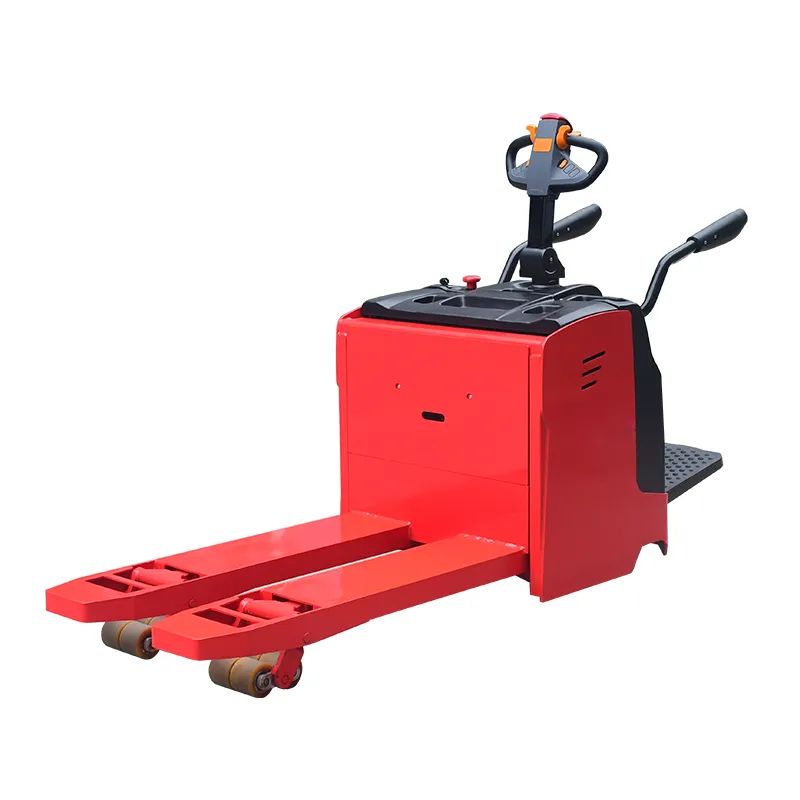

Pallet Truck Feature

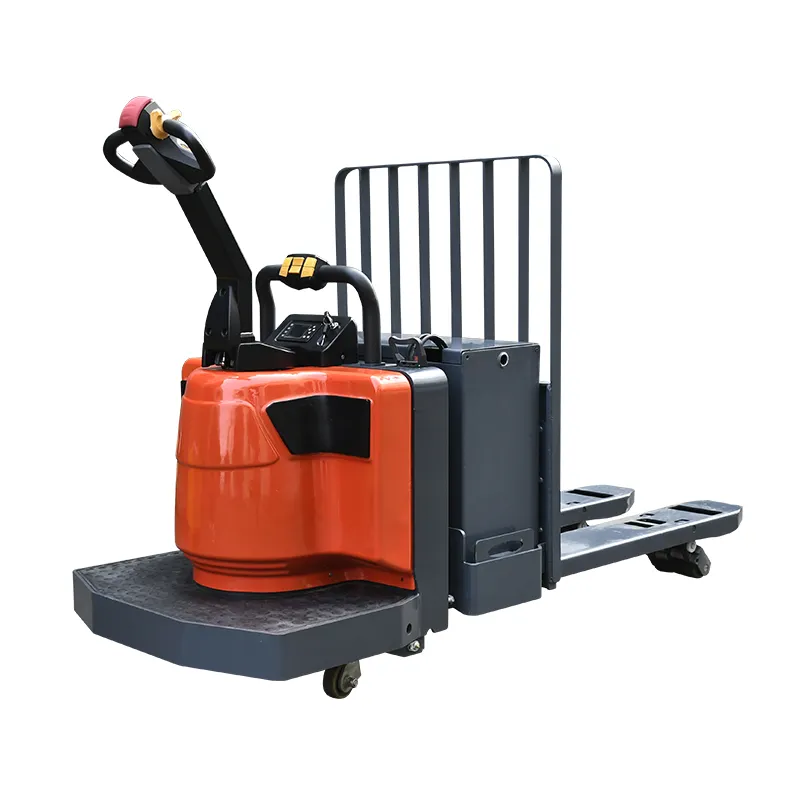

Pallet Truck Details

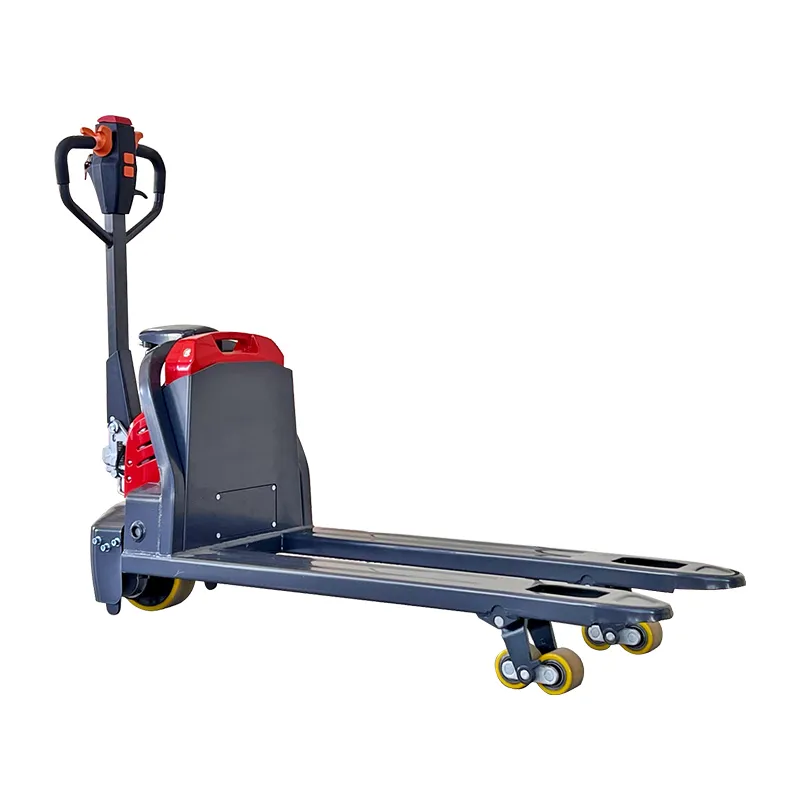

Performance View
Operating View

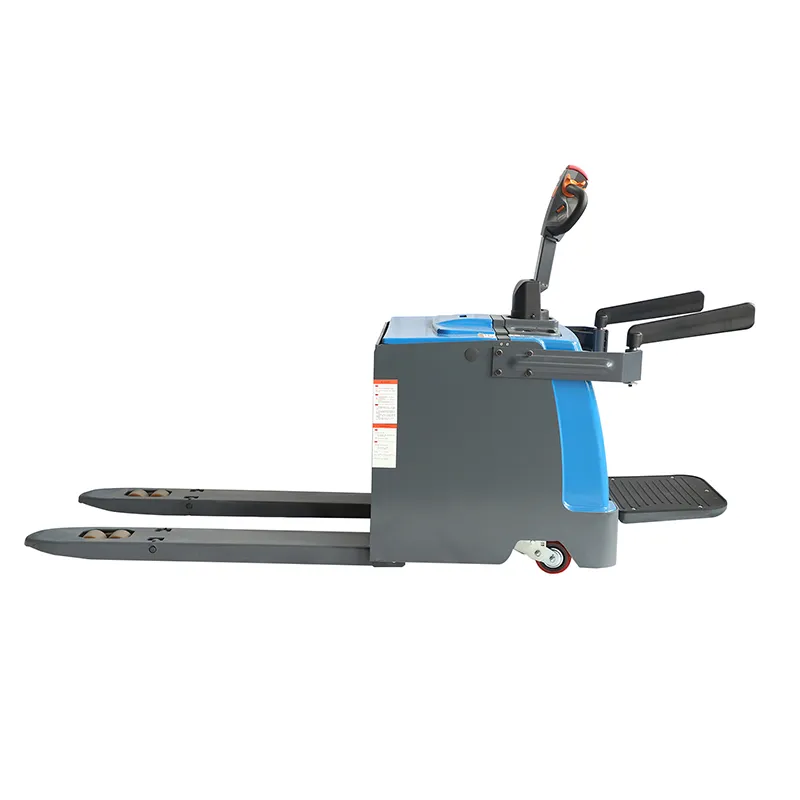

Control System

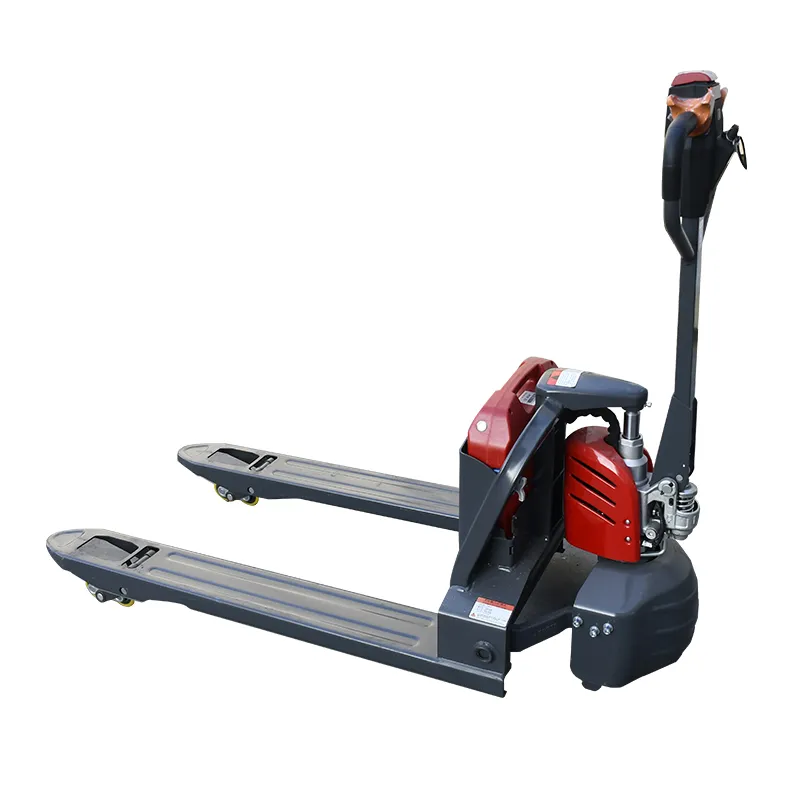

Motor System

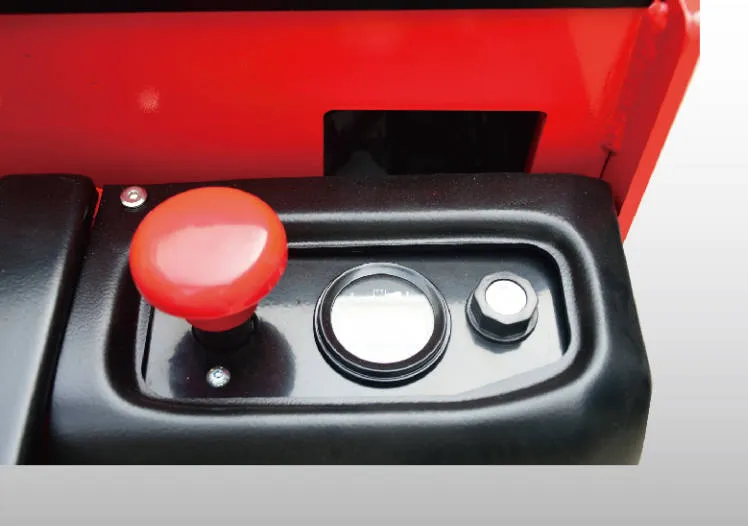

Safety Features
Emergency power-off switch, upper and lower handle brake, belly switch, turning speed limit, under voltage protection, lifting power limit and other safety functions ensure driving safety.
It is equipped with Curtis controller as standard, which is reliable and durable; amp waterproof and dustproof plug-in provides reliable circuit protection, greatly reducing electrical fault.

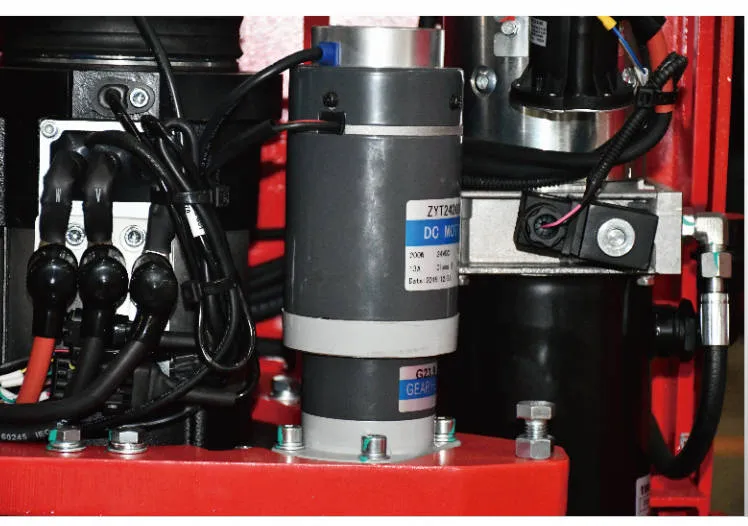

Control Unit

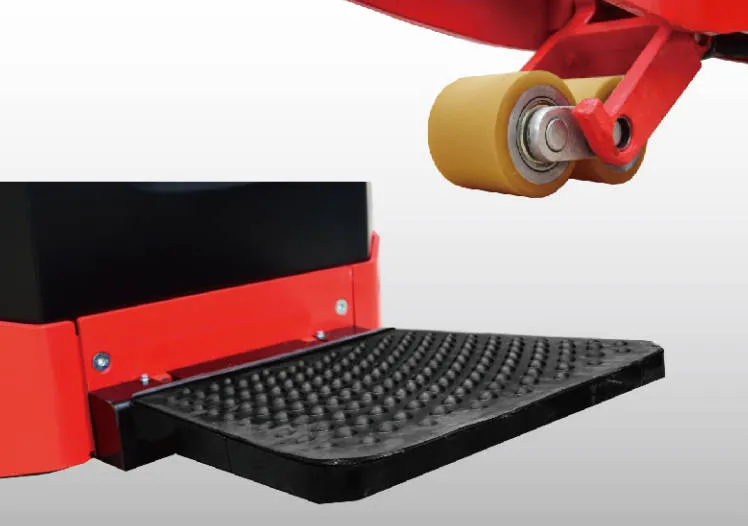

Damping System
Torsional spring and disc spring damping pedal, auxiliary wheel with hydraulic damper, comfortable and safe driving.
Maintenance free high-power AC drive system, providing reliable driving power; 210ah large capacity battery, strong endurance.

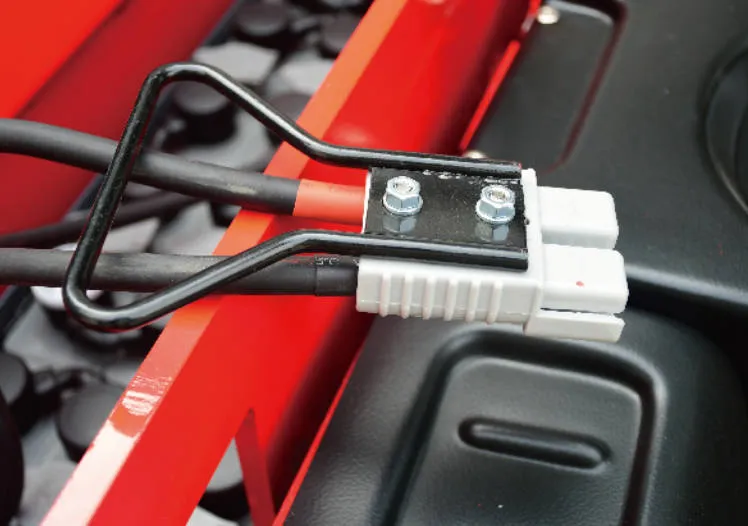

Battery System
S

Technical Specifications

Model ME20 ME25
PowerBatteryBattery
Operation TypeStation panelStation panel
Load Capacity (Kg)20002500
Load Center (mm)600600
Load Distance (mm)865865
Wheel Base (mm)13451345
Service weight (Kg)676676
Overall height (mm)13801380
Lift height (mm)120120
Fork height, lowered (mm)8585
Fork dimensions (mm)1150/170/561150/170/56
Overall length, stand up/down (mm)1900/23101900/2310

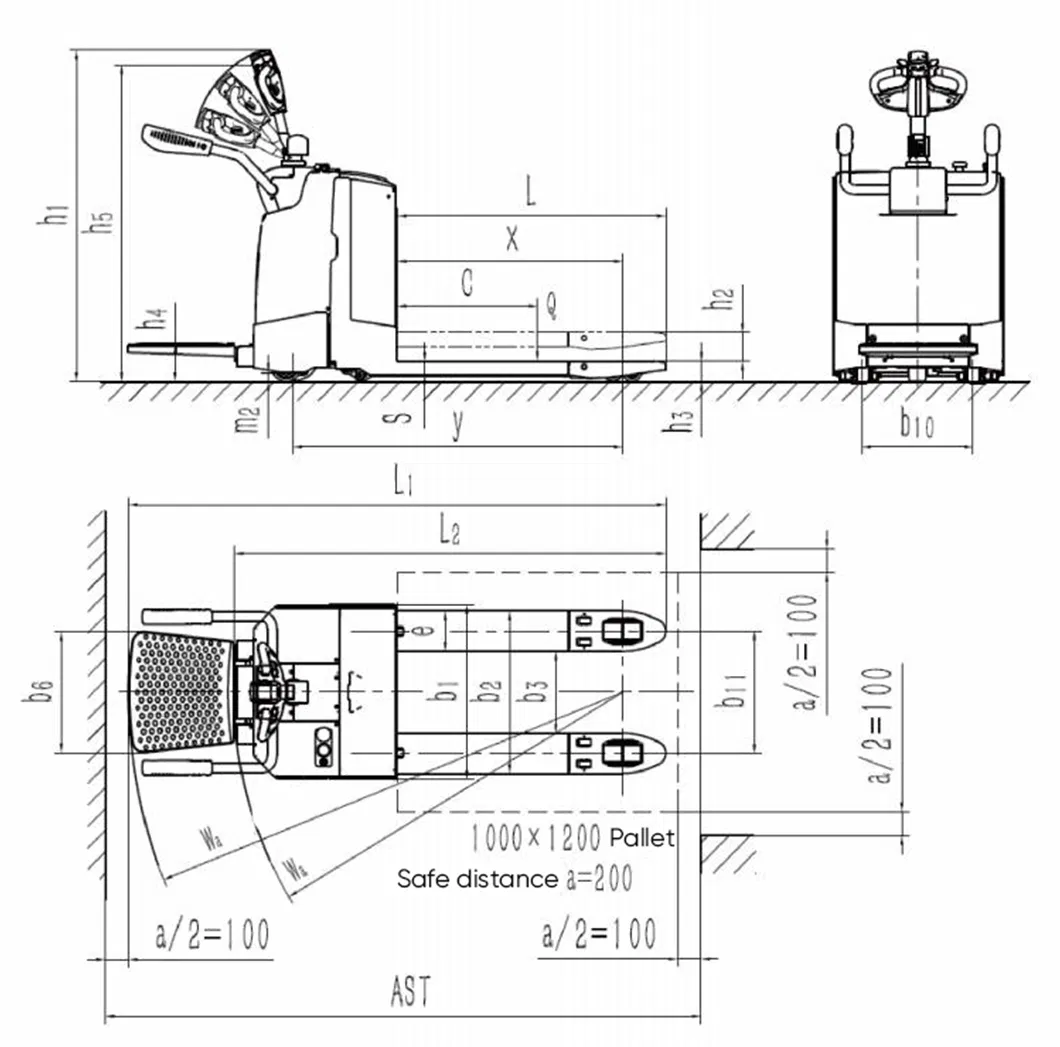

Technical Drawing 1

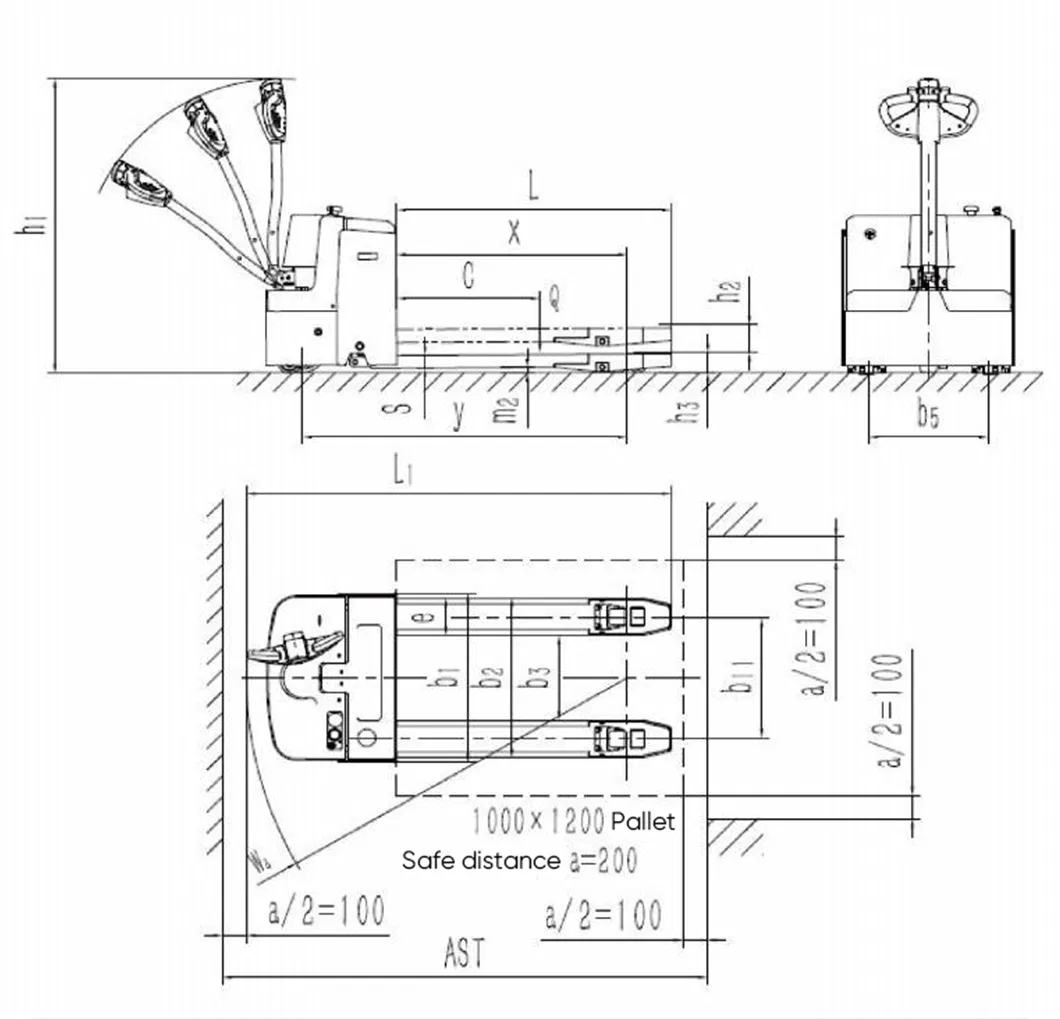

Technical Drawing 2
M

Main Product

Main Product Line
C

Profile

Warehouse
Founded in 2018, the company is a high-tech enterprise specializing in designing, developing and manufacturing of electric material handling equipment. The company covers an area of 12,000 m³ with more than 700 employees. After nearly 7 years of R&D and innovation, a full range of electric forklift products are now widely used in various industries around the world. Especially in the fields of narrow aisle dense storage, long material handling, heavy-duty handling, and AGV forklifts, we have been the market leader in the region.
Team
F

Our Factory & Certifications

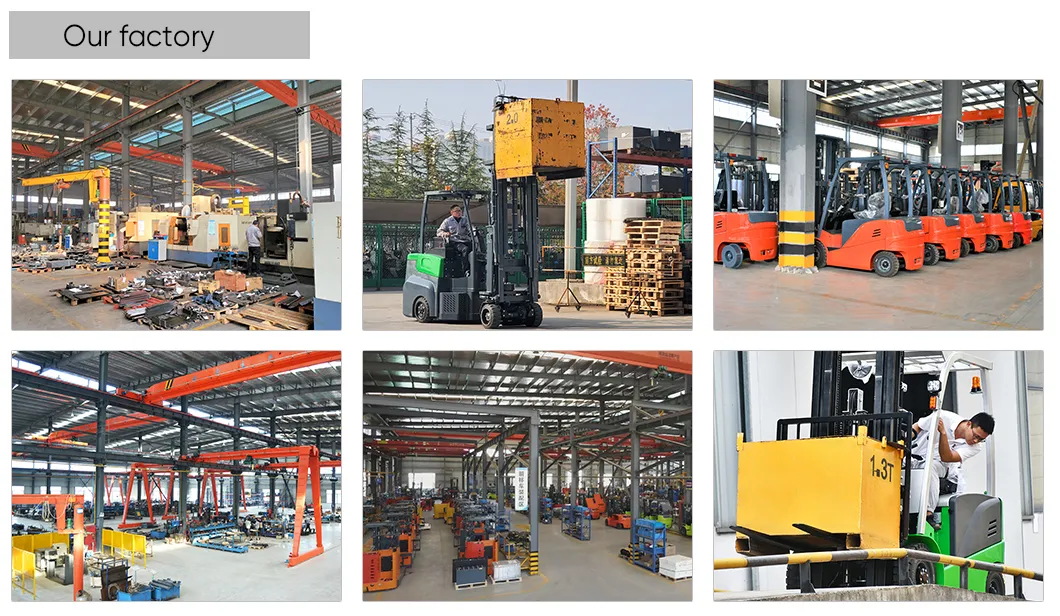

Factory Facility
Certificates
E

Exhibition & Logistics

Global Exhibition
Packaging and Shipping
?

Frequently Asked Questions

Are you a manufacturer or trading company?
We are a professional manufacturer with 10 years of experience. We accept OEM and ODM as per your requirements and ensure competitive pricing and quality.
Can you offer samples for testing?
Yes, we can provide samples for you to test and verify the quality of our equipment.
How do you handle quality control?
We have a professional QC team that inspects every item, from the initial production stages to the final packaging.
What is the typical delivery time?
Normally, it takes 30-35 days to complete an order after receiving your deposit.
What are your terms of payment?
Our standard terms are T/T 30% as a deposit and the remaining 70% balance before delivery.
Do you provide customization services?
Yes, we specialize in high-tech material handling solutions and can customize products to meet specific industrial needs like narrow aisle storage.
