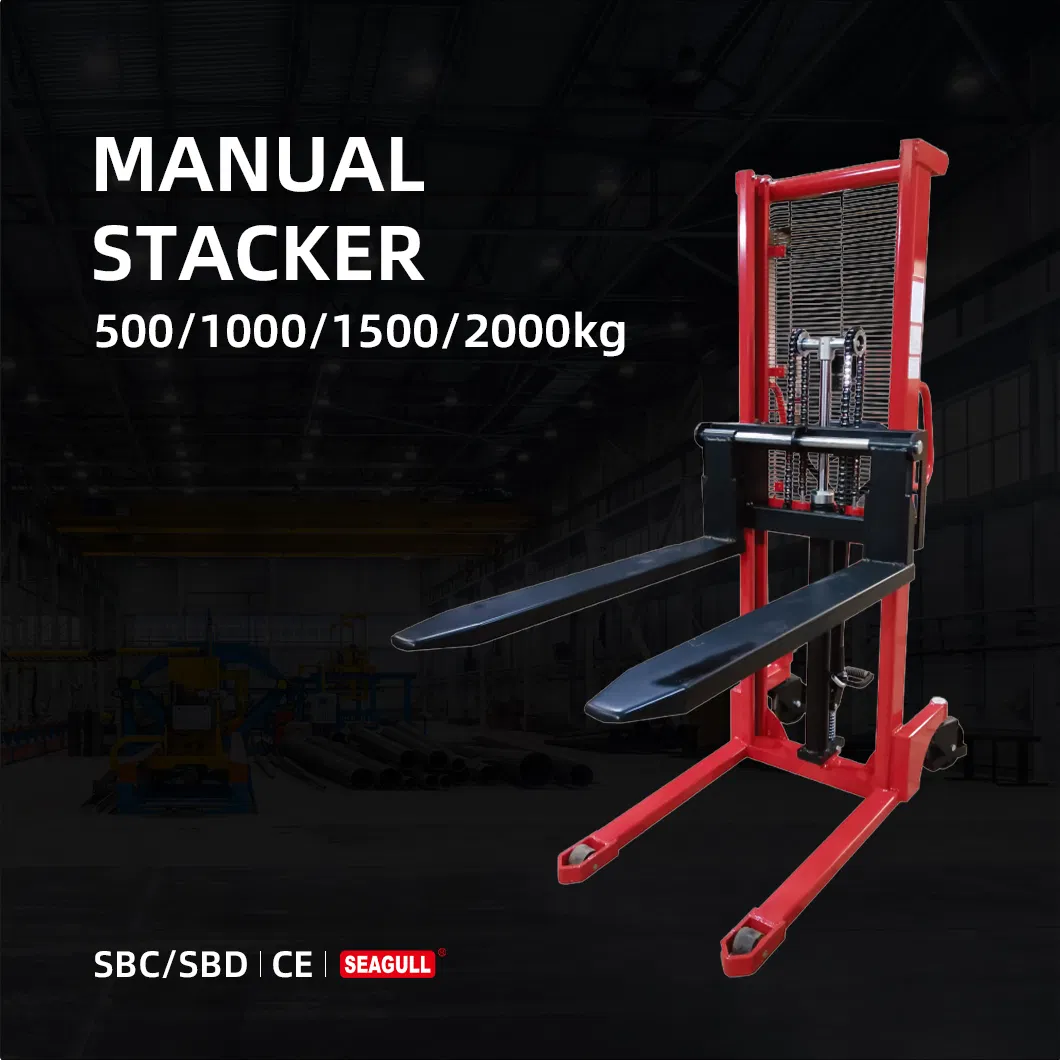

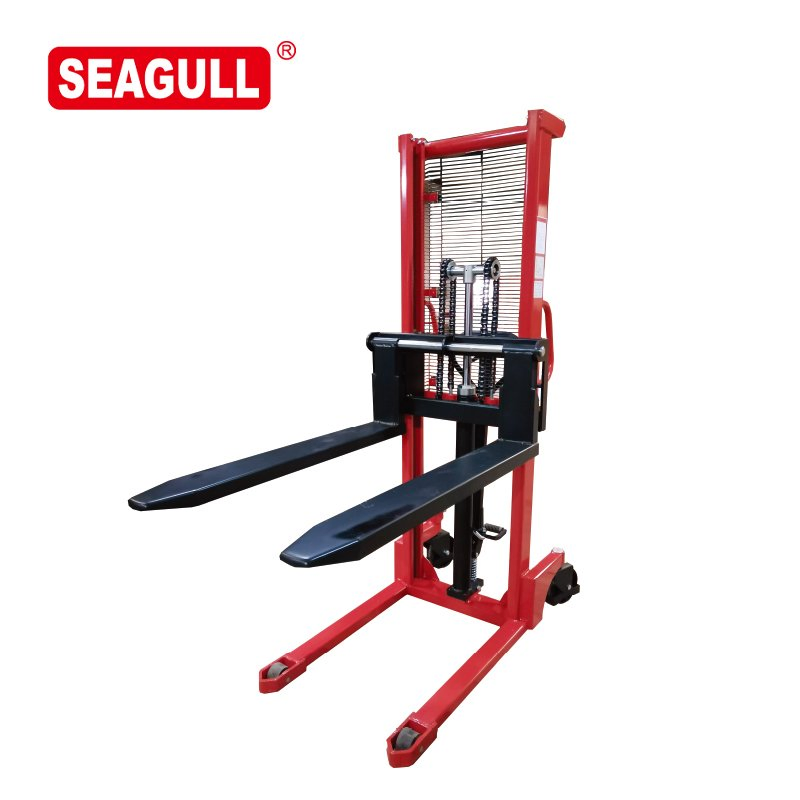

Seagull 500kg 1000kg 1500kg 2000kg Single/Double Frame Series Hydraulic Hand Forklift Manual Stacker

1 / 5

Seagull 500kg 1000kg 1500kg 2000kg Single/Double Frame Series Hydraulic Hand Forklift Manual Stacker

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

SBC/CBD

Type

Manual Stacker

Load Capacity

0.5t / 1t / 1.5t / 2t

Lift Height

1600mm

Power

Manual (None)

Load Center

500mm

Net Weight

150-330kg

Color

Red / OEM

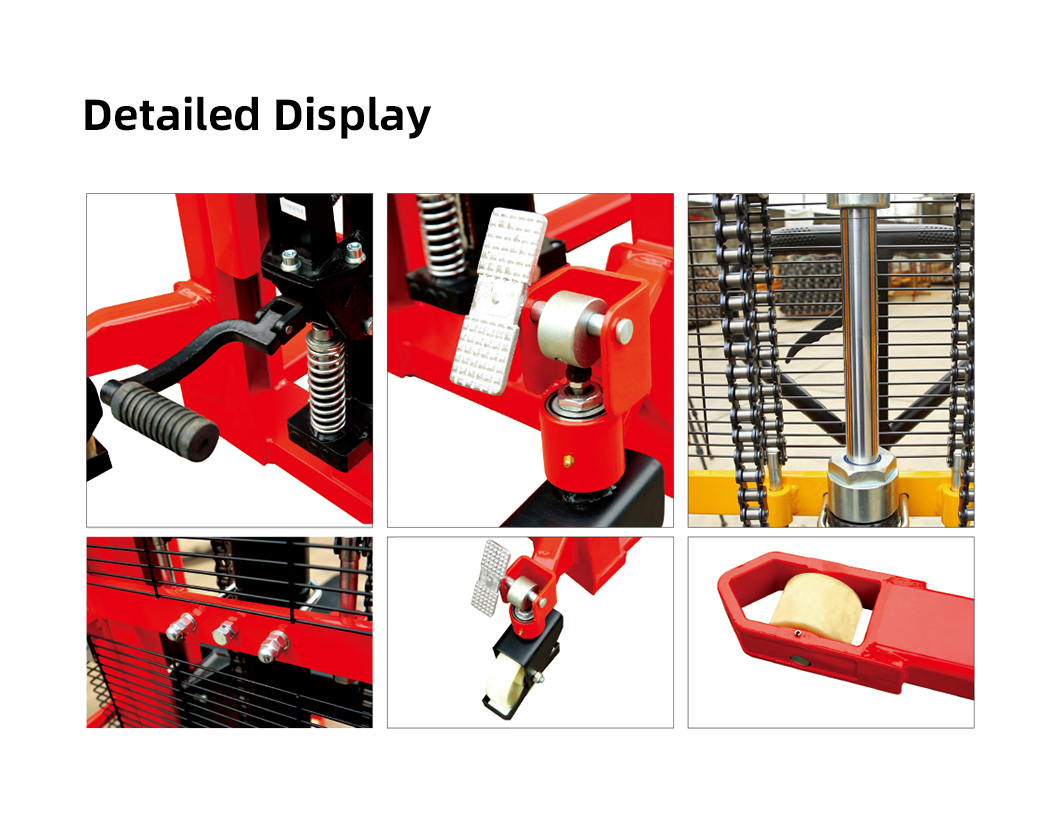

✨ Key Features

✔
Stable Structure: Applies C-type steel structure design for more stable and safe lifting.
✔
Safety Protection: Equipped with wheel frame protection devices for enhanced operator safety.
✔
Ergonomic Handle: Rubber-surrounded handle with a lengthening design for comfortable and easy use.
✔
Flexible Operation: Single frame models offer two ways to unload: manual or pedal.
✔
Adjustable Fork: Features an adjustable nut for easy fork height modification.
✔
Easy Maintenance: Wheel frame equipped with grease fittings for routine bearing maintenance.

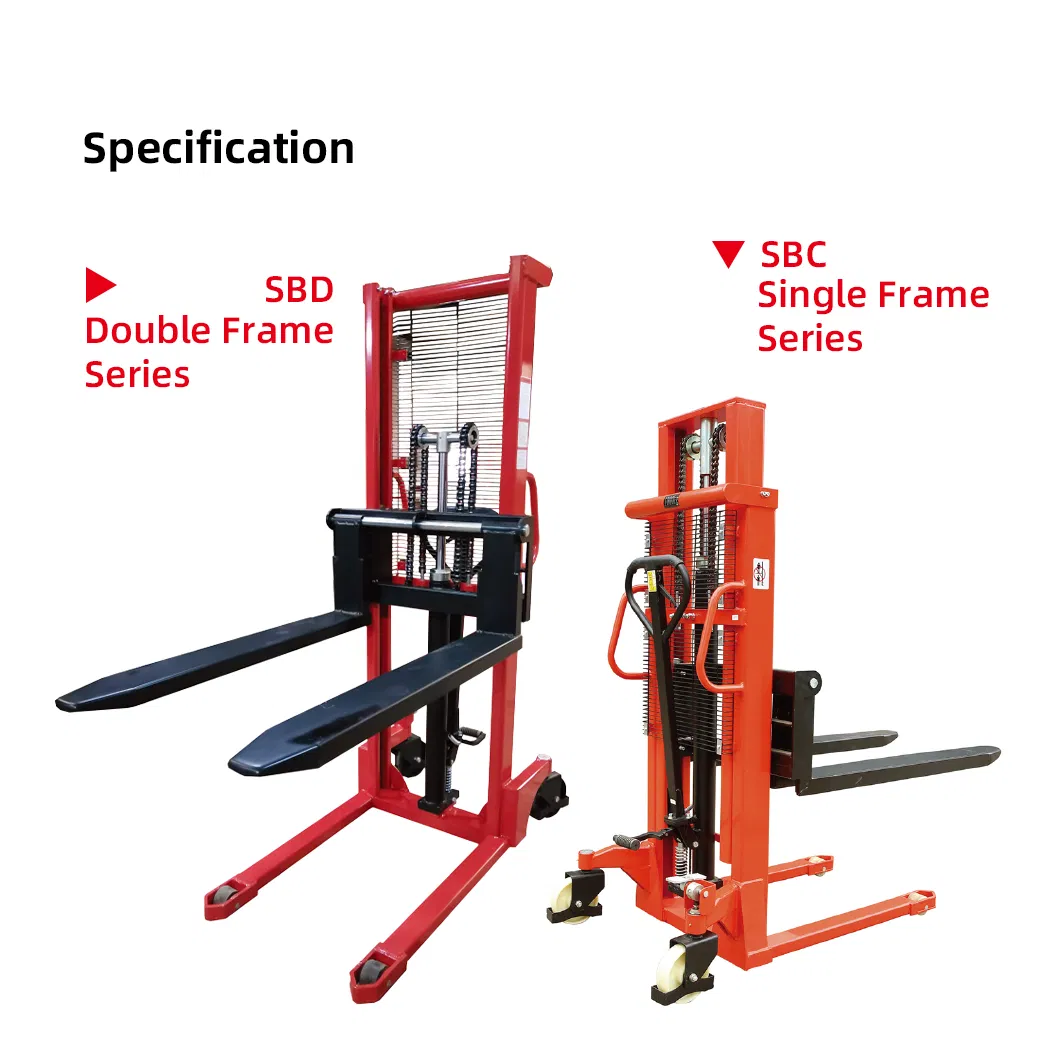

📊 SBC Single Frame Series Specifications

Model	SBC-500	SBC-1000	SBC-1500	SBC-2000
Capacity (kg)	500	1000	1500	2000
Max. Lifting Height (mm)	1600	1600	1600	1600
Lowered Fork Height (mm)	85	85	85	85
Fork Length (mm)	1000	1150	1150	1150
Fork Width (mm)	330-740	330-740	330-740	330-740
Net Weight (kg)	150	224	240	270

📊 SBD Double Frame Series Specifications

Model	SBD-1000/1500/2000	SBD-1000/1500	SBD-1000/1500
Capacity (kg)	1000/1500/2000	1000/1500	1000/1500
Max. Lifting Height (mm)	2000	2500	3000
Lowered Fork Height (mm)	85	85	85
Overall Dimension (mm)	16007601580	16007601840	16007602080
Net Weight (kg)	290	310	330

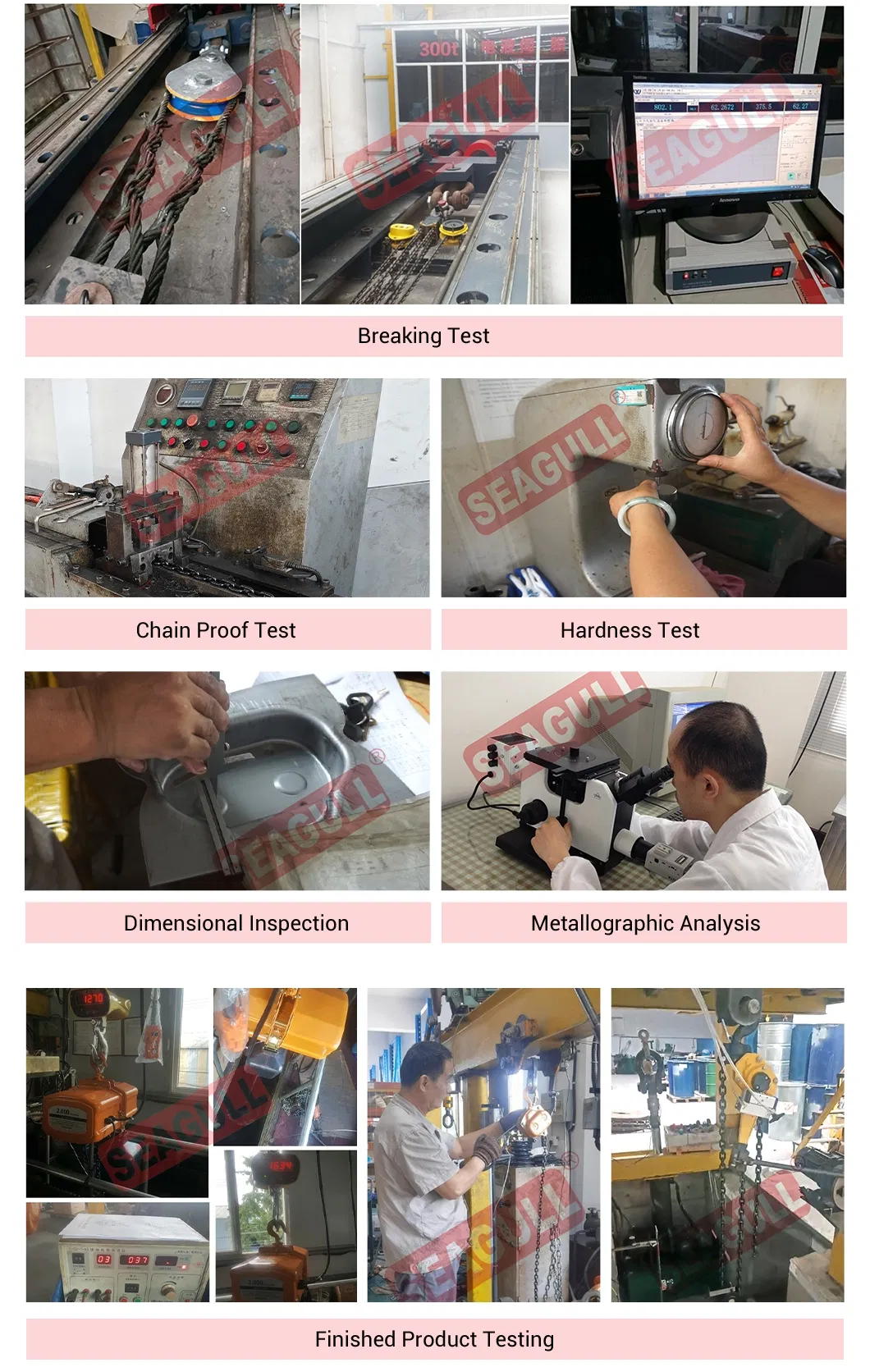

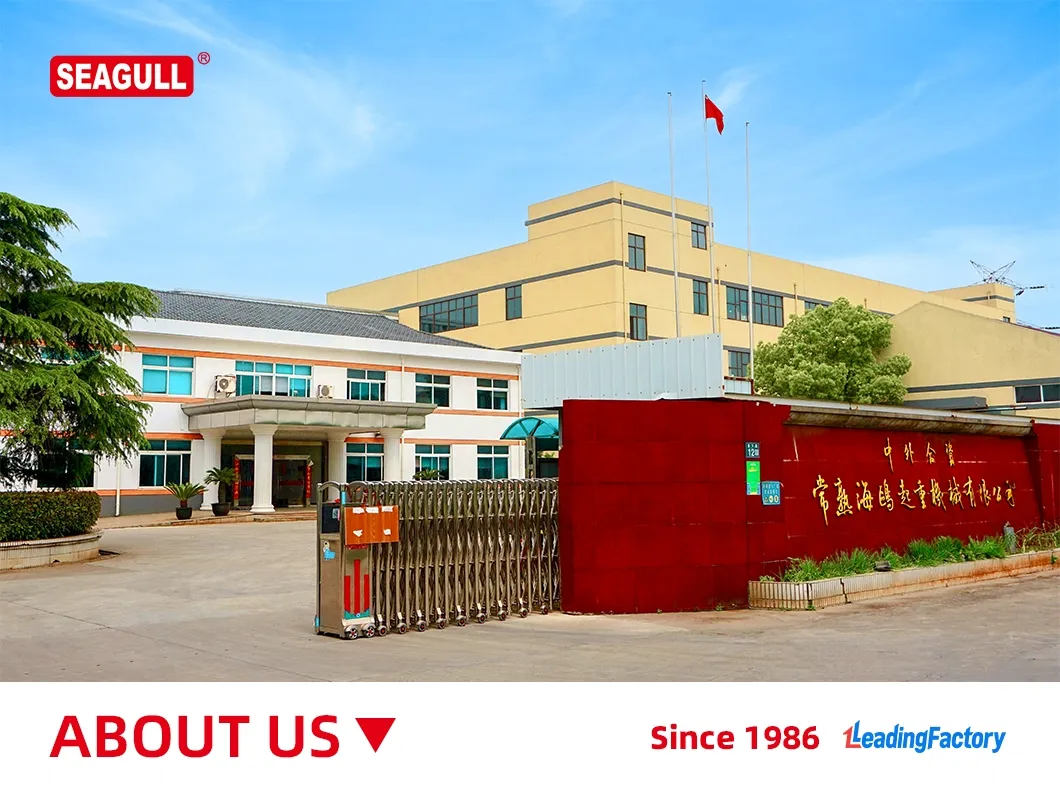

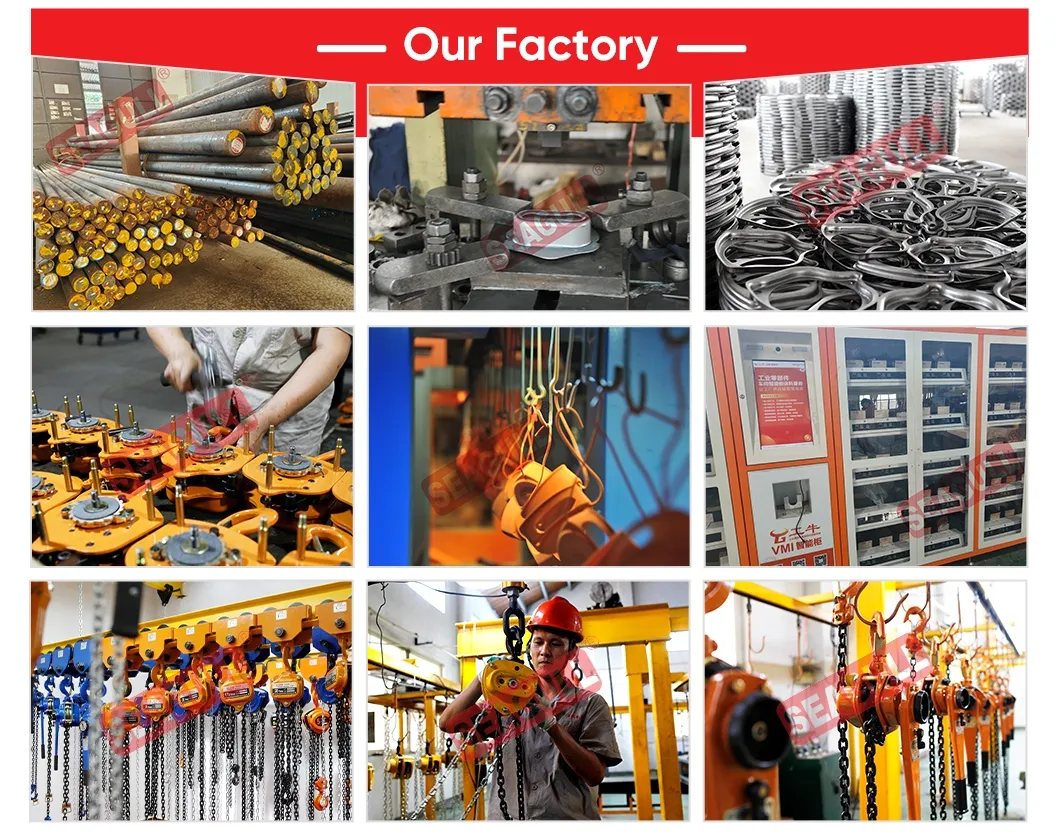

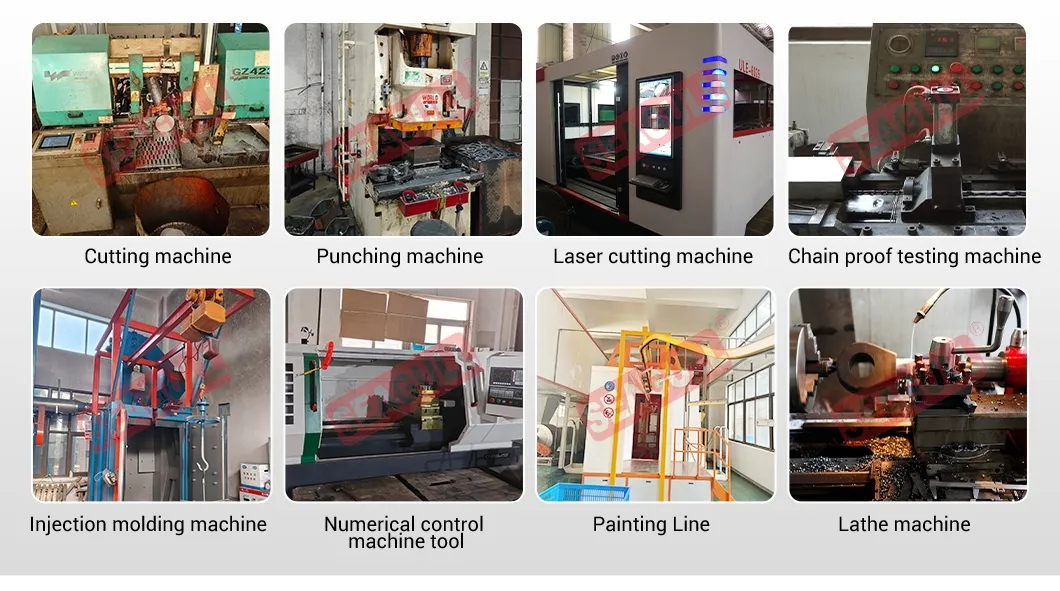

🏭 Manufacturing Excellence

With over 30 years of experience in the lifting equipment area, we are constantly improving manufacturing methods and adopting new advanced technologies. Our products are renowned for reliability and durability.

✔ ISO9001:2015 Certified

✔ TUV CE/GS Approved

✔ 100% QA Qualified

❓ Frequently Asked Questions

What is the maximum load capacity available?

Our manual stackers come in various capacities including 500kg, 1000kg, 1500kg, and 2000kg to suit different lifting needs.

What lifting heights can these stackers reach?

The SBC Single Frame series reaches up to 1600mm, while the SBD Double Frame series can reach heights of 2000mm, 2500mm, and up to 3000mm.

Are the forks adjustable?

Yes, the forks are equipped with an adjustable nut, allowing you to easily modify the fork height and width (typically 330-740mm) for different pallet sizes.

What safety features are included?

The stackers feature a high-strength C-type steel structure for stability, wheel frame protection devices, and a robust hydraulic system for controlled lifting and lowering.

How is the product maintained?

The wheel frames are designed with grease fittings to facilitate routine maintenance of the bearings, ensuring long-term durability and smooth operation.

What certifications do these products have?

Our manufacturing process is ISO9001:2015 certified, and products are compliant with TUV CE and GS international safety standards.
