| Model | Electric Stacker | Type | Cantilever Stacker & Reclaimer |
|---|---|---|---|
| Power Type | Li-ion Battery | Max. Load | 500-1000kg |
| Load Center | 400mm | Wheelbase | 815-780mm |
| Operation | Walk | Outriggers Length | 746-780mm |
| Max. Fork Height | 800-1600mm | Fork Length | 1150mm |
| Lifting Speed | 55mm/S | Descent Speed | 80-100mm/S |
| Controller | Chinese Qiankuo | Lift Motor | AC |
| Feature | Code | Unit | CDD05C | CDD07Z |
|---|---|---|---|---|
| Max. Load | Q | kg | 500 | 700 |
| Load Center | C | mm | 400 | 400 |
| Wheelbase | L0 | mm | 815 | 788 |
| Front Wheel | - | mm | φ70×60 | Φ80×60 |
| Max. Fork Height | H | mm | 800-1600 | 800-1600 |
| Overall Length | L1 | mm | 1570 | 1552 |
| Lifting Speed | - | mm/s | 55 | 55 |
| Battery Capacity | - | Ah | 52 | 52 |
| Charging Time | - | h | 5 | 5 |

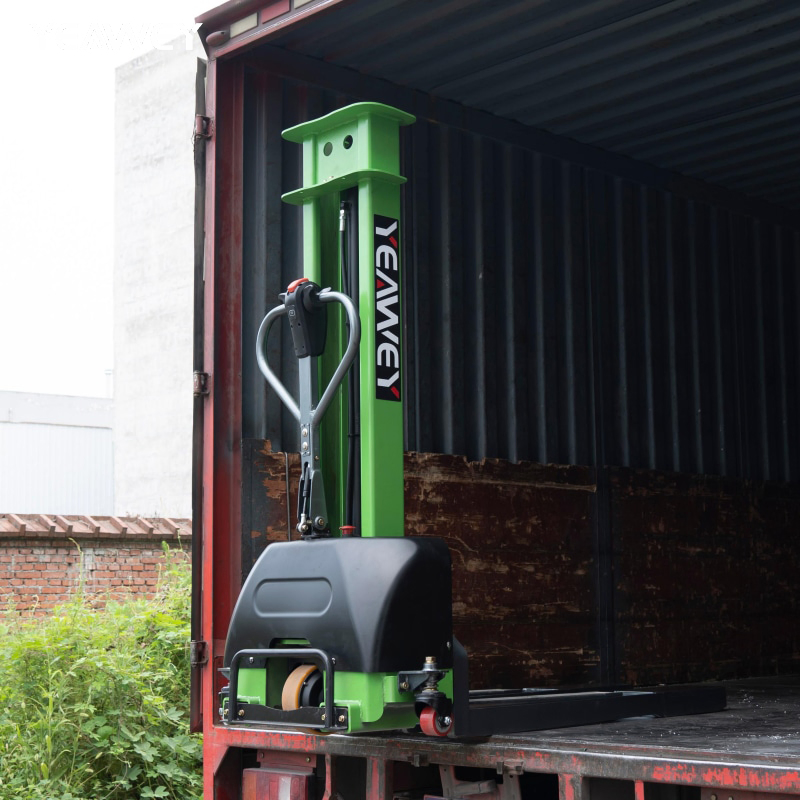

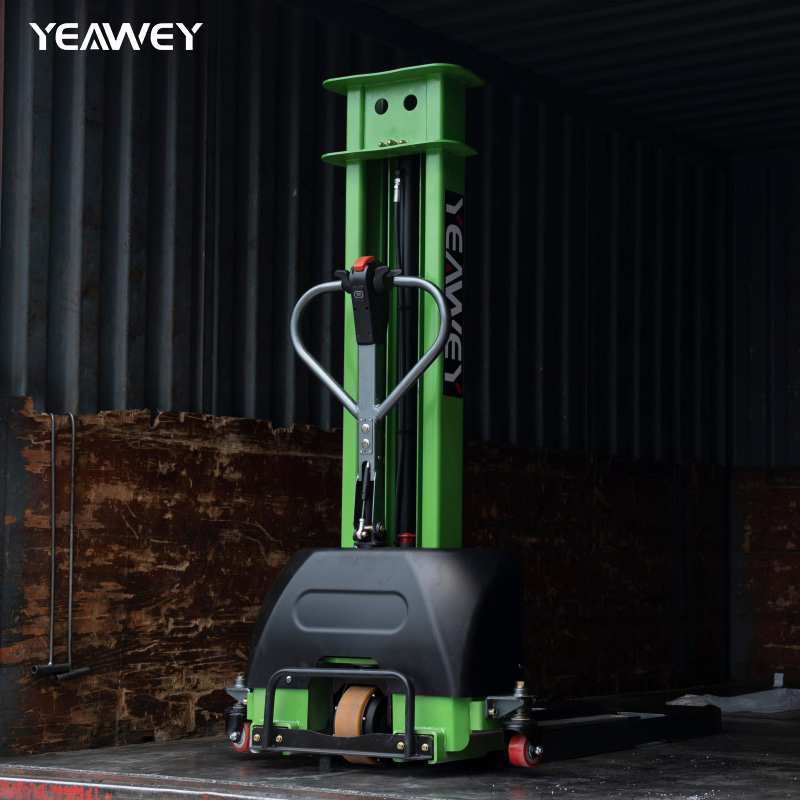

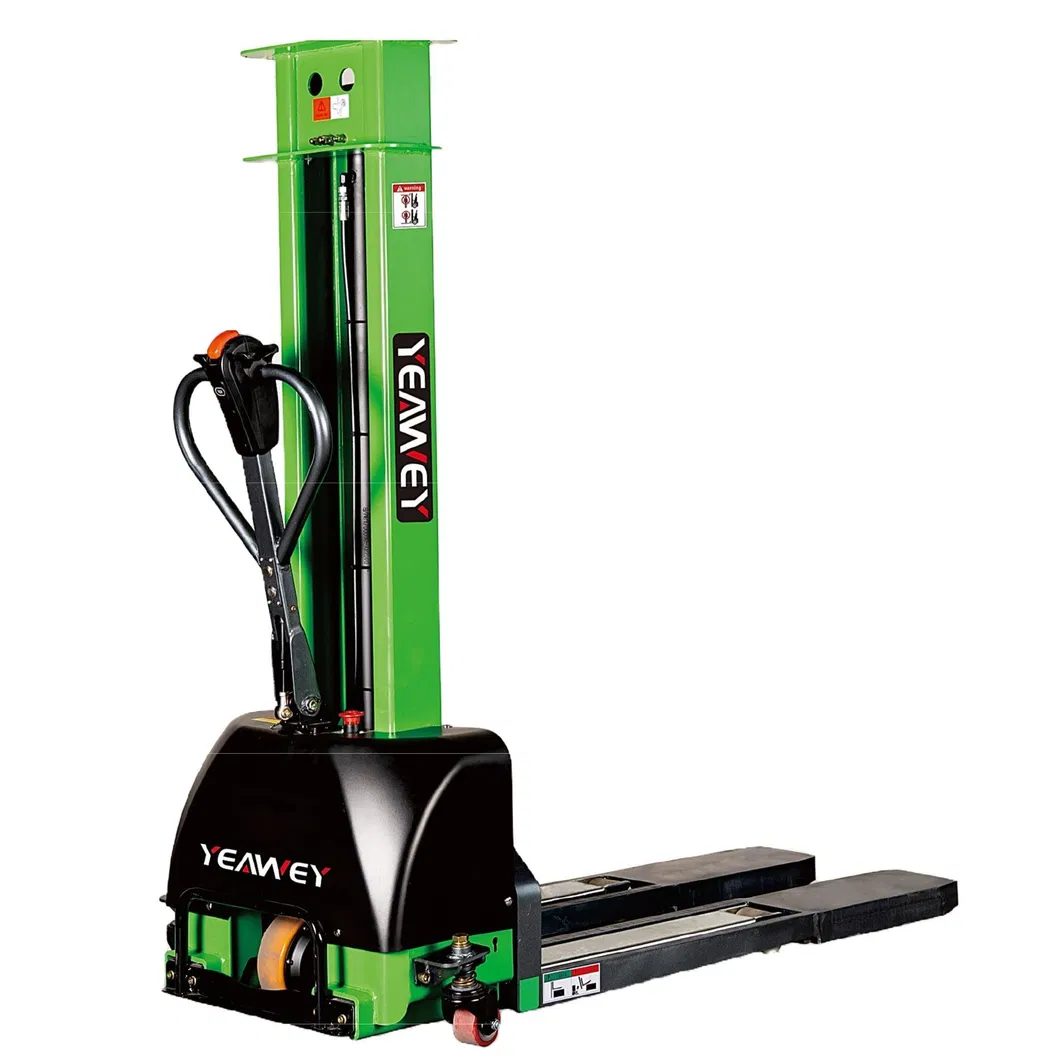

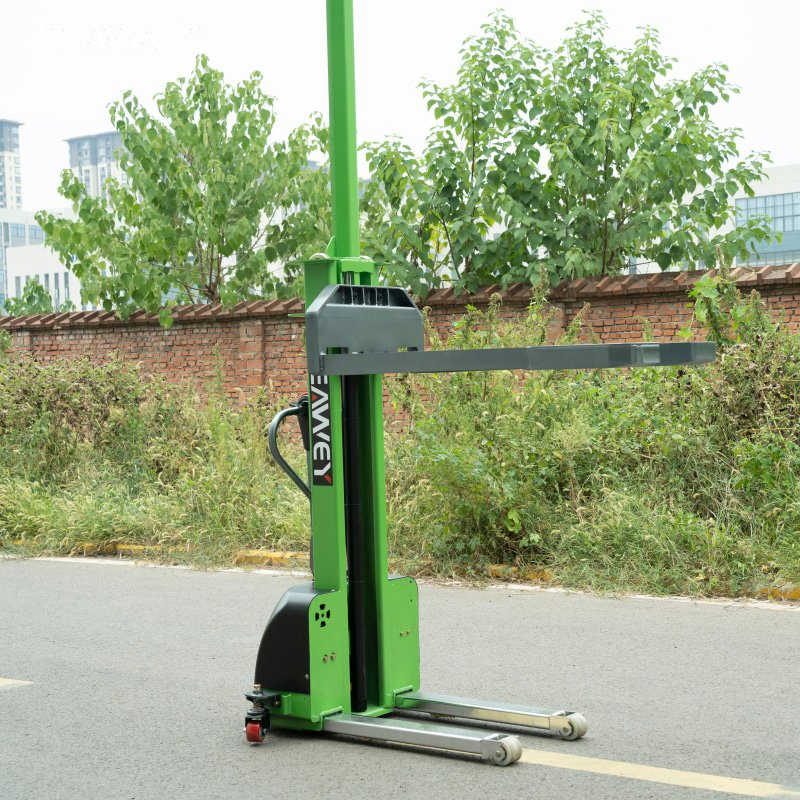

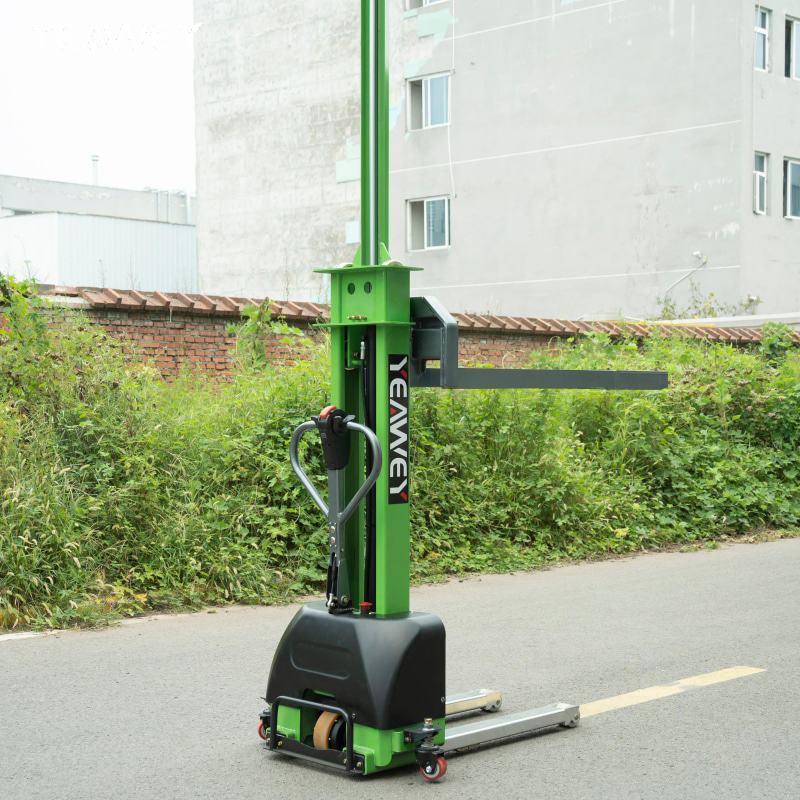

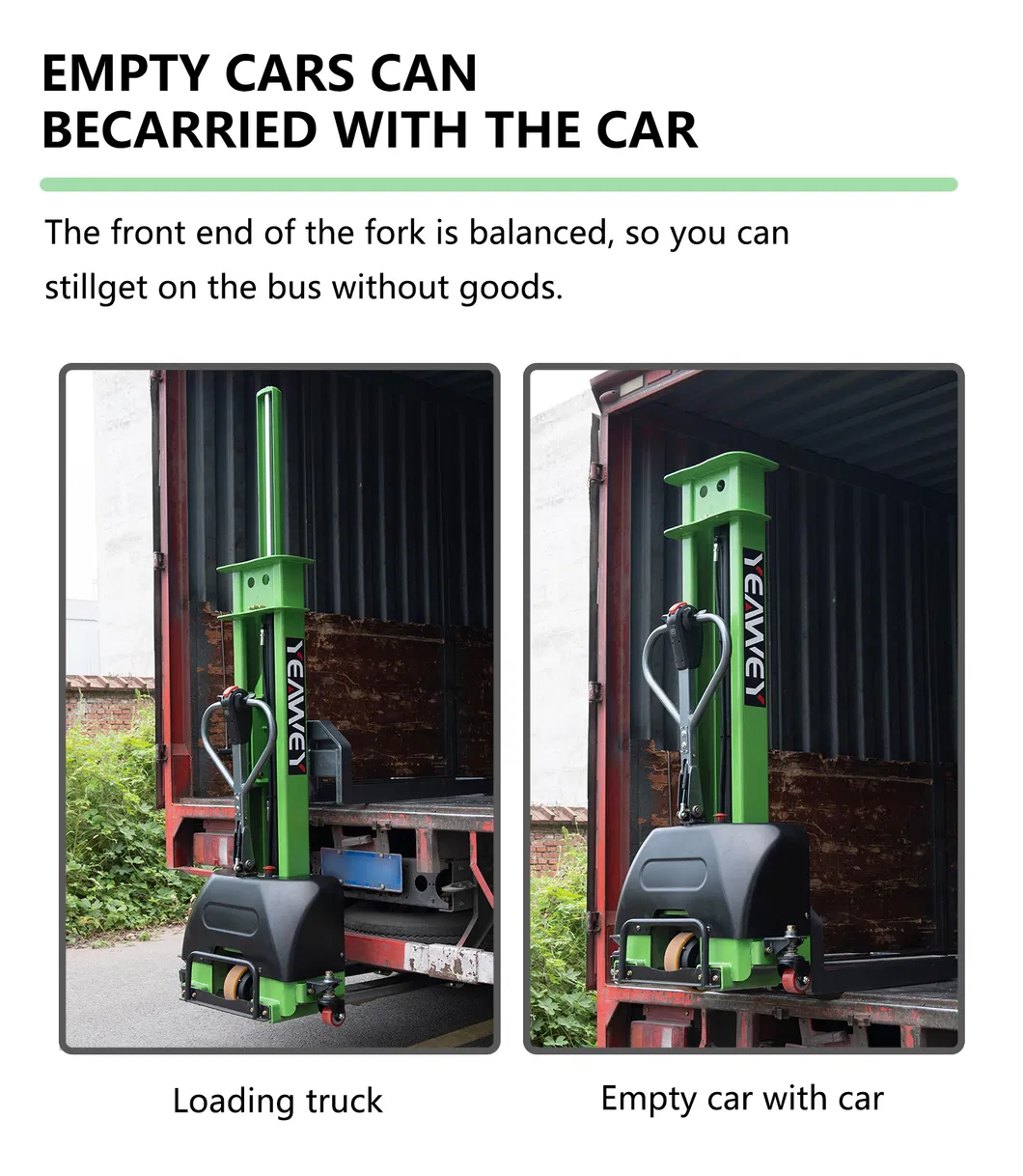

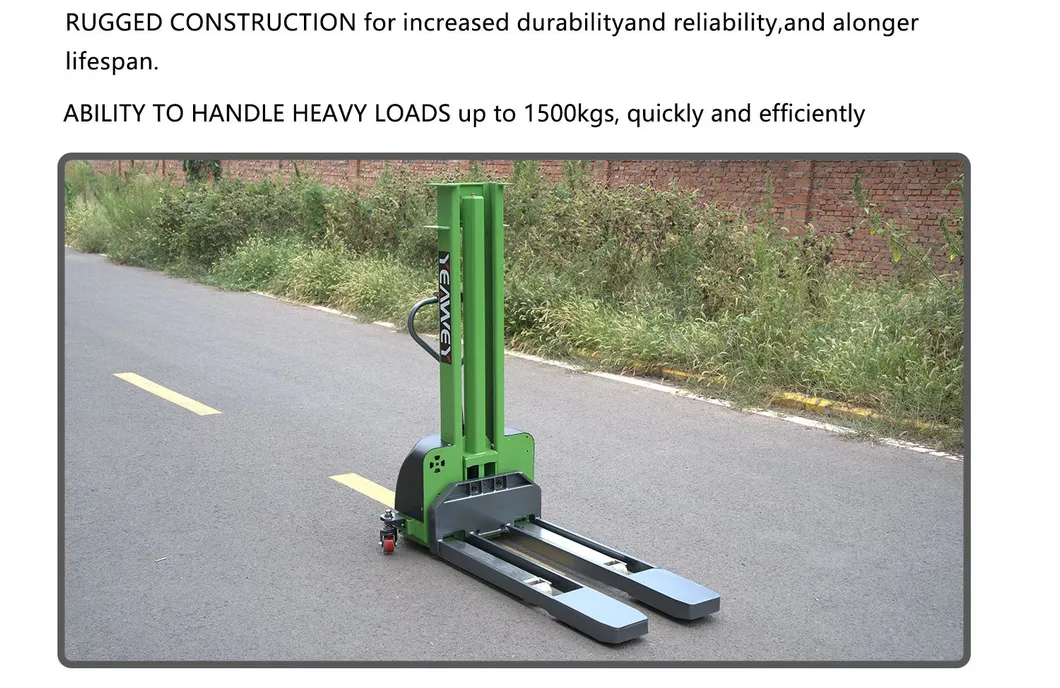

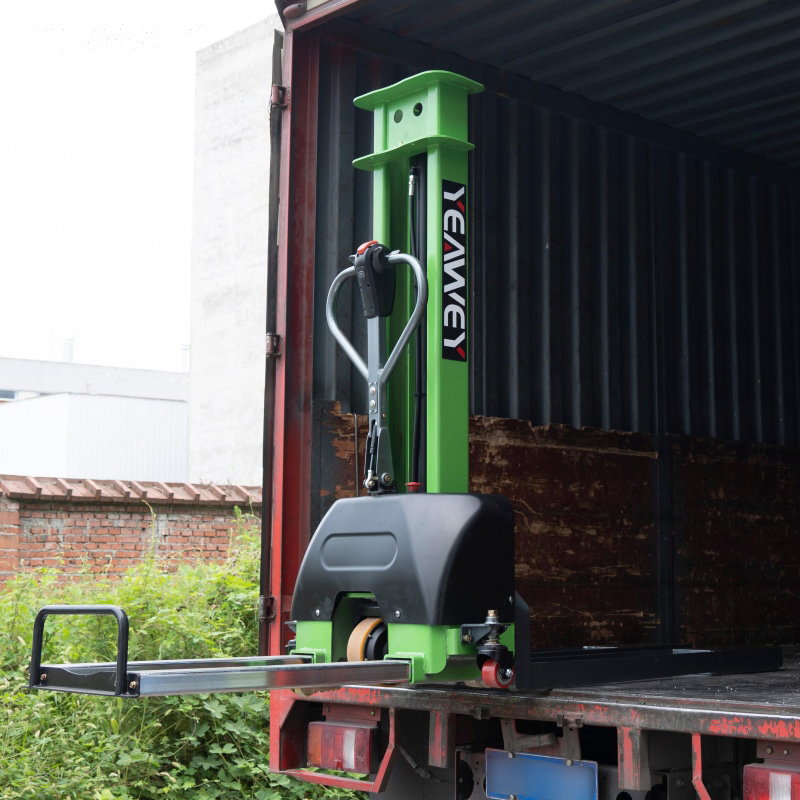

This self-loading stacker can travel with trucks, autonomously mounting and dismounting from vehicles for seamless loading and unloading integration. No need to rent additional handling equipment. It handles cargo from 500kg to 1500kg and fits various truck configurations with a flexible lift height of 800-1600mm.

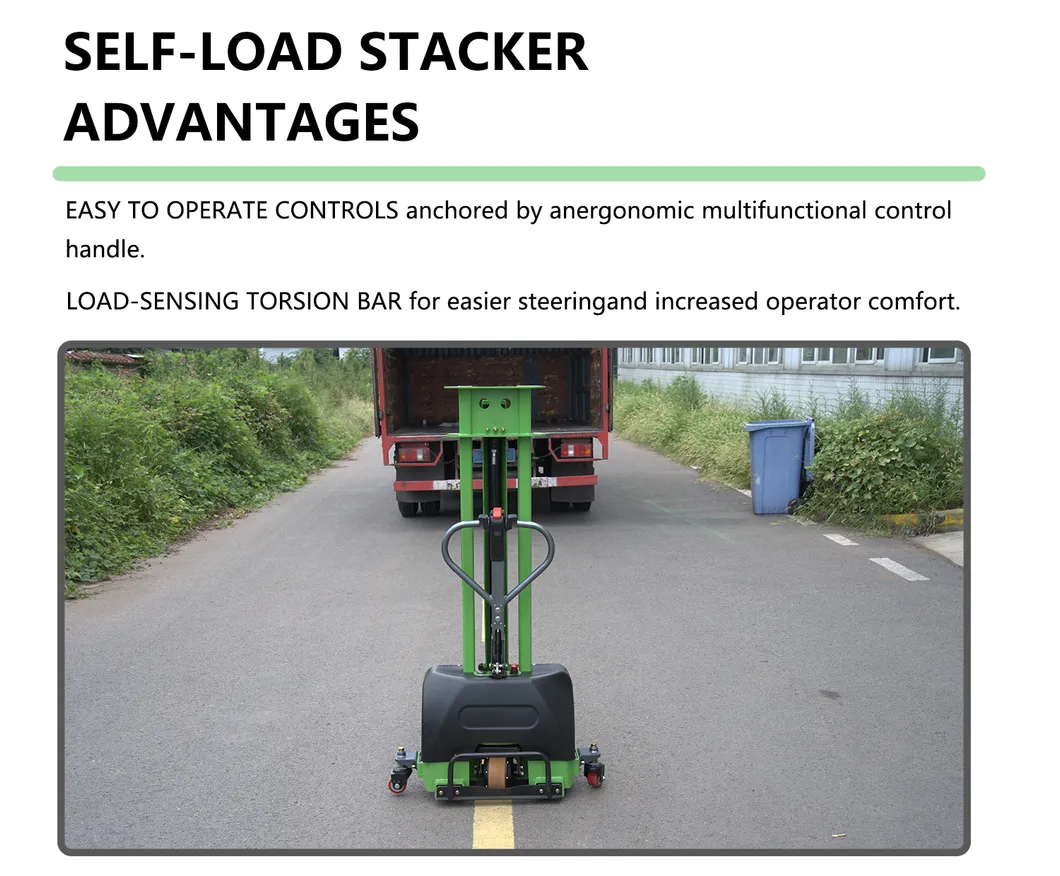

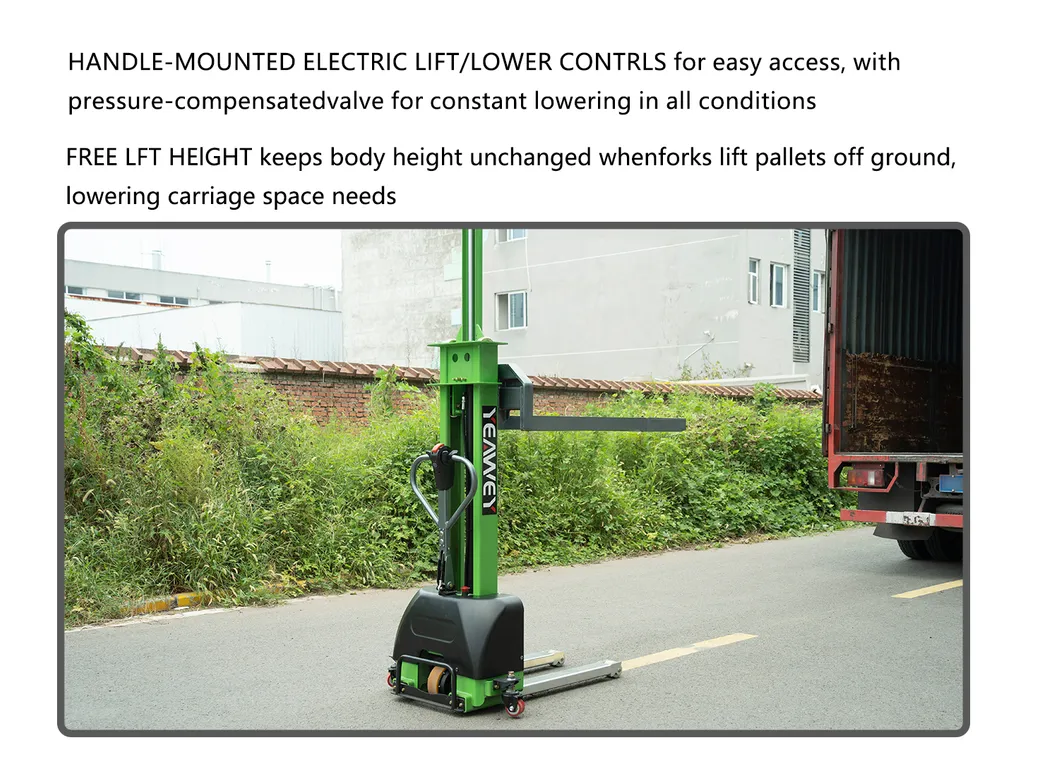

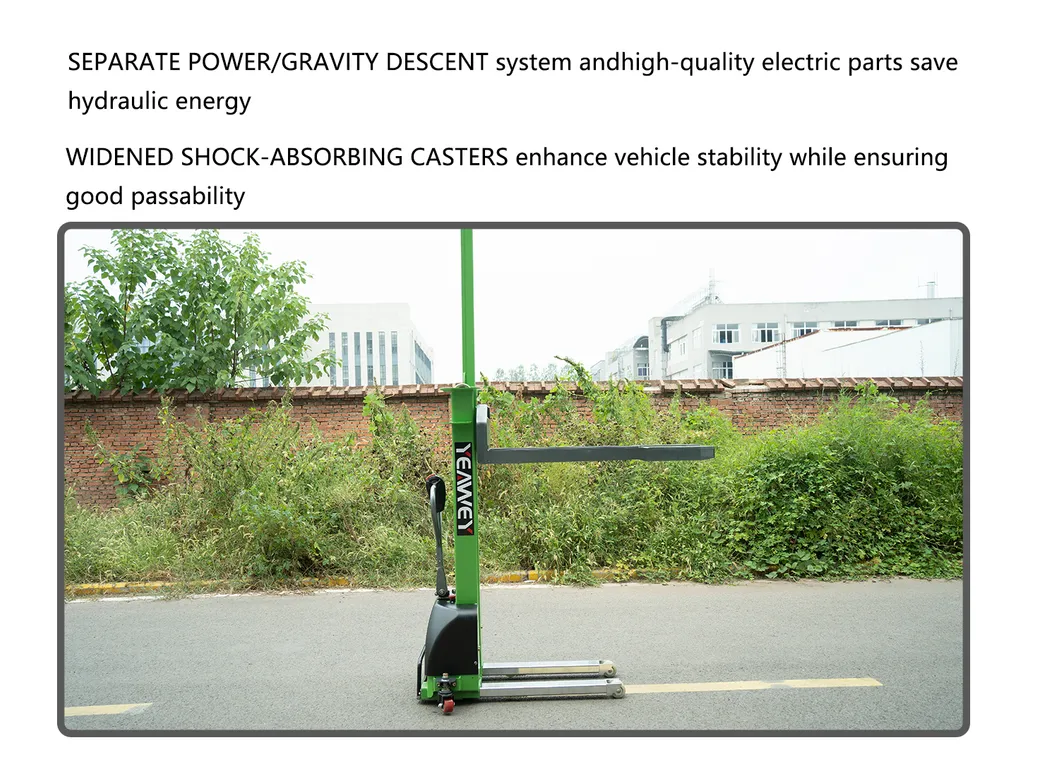

Compact, agile, and easy to operate, it features anti-slip and high-elevation speed limit safety designs for maximum efficiency.

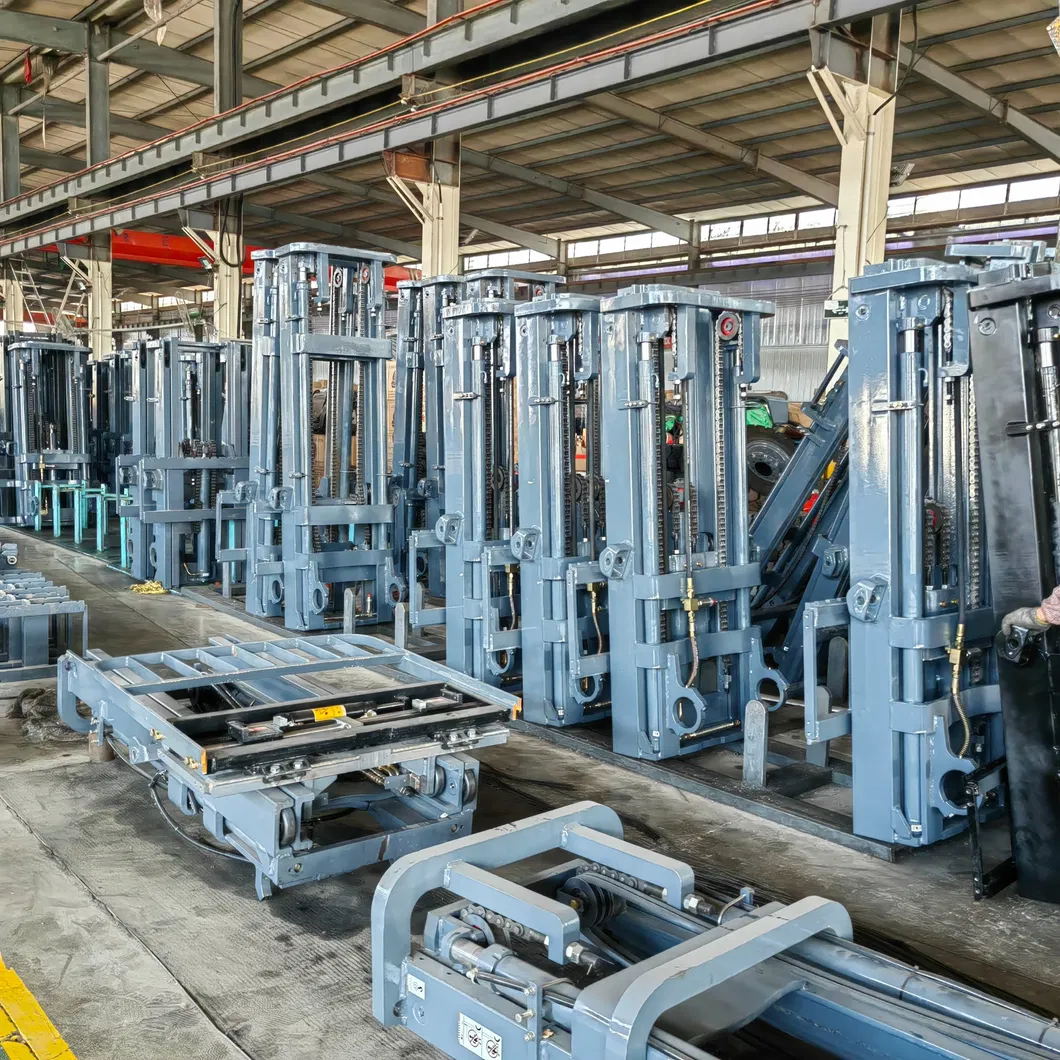

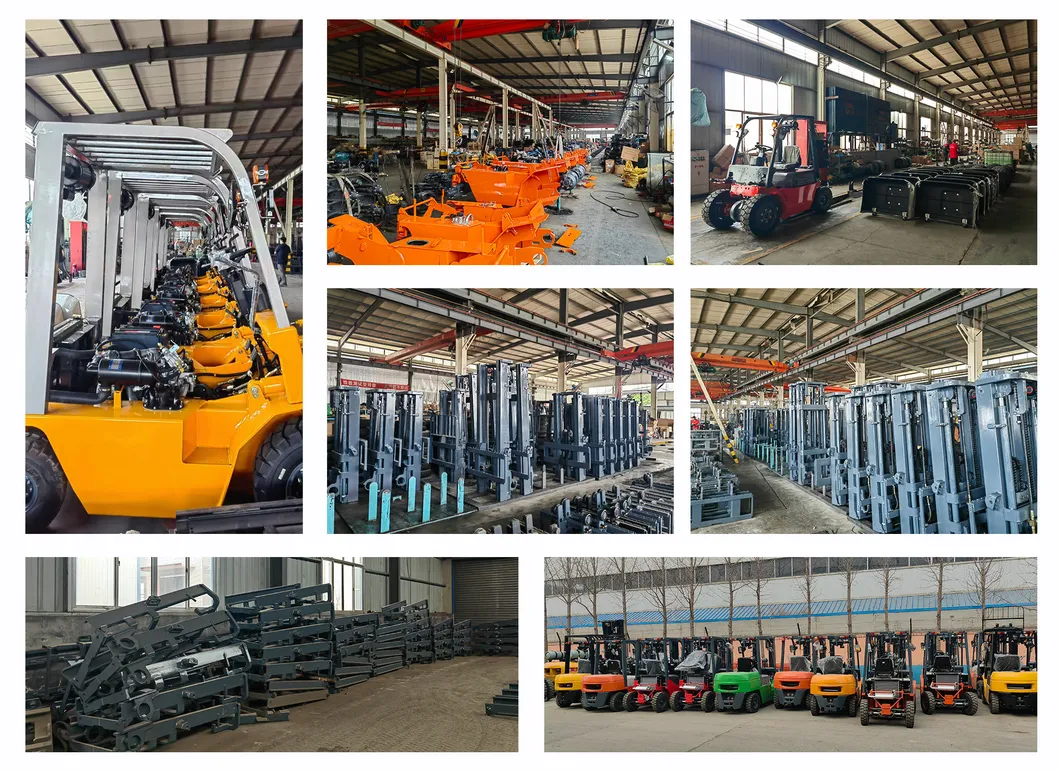

Our facility is a major materials handling equipment manufacturer, focusing on research development, production, sales, and service of various machines. We specialize in diesel forklifts, gasoline forklifts, LPG/dual fuel forklifts, electric forklifts, and warehouse handling equipment with capacities from 1.5 Ton to 15 Ton.
We provide customers with optimal products and professional services. Our after-sales team is dedicated to solving project-specific problems and providing operator training to improve work efficiency. Regular follow-up visits ensure we continuously improve based on customer suggestions.
