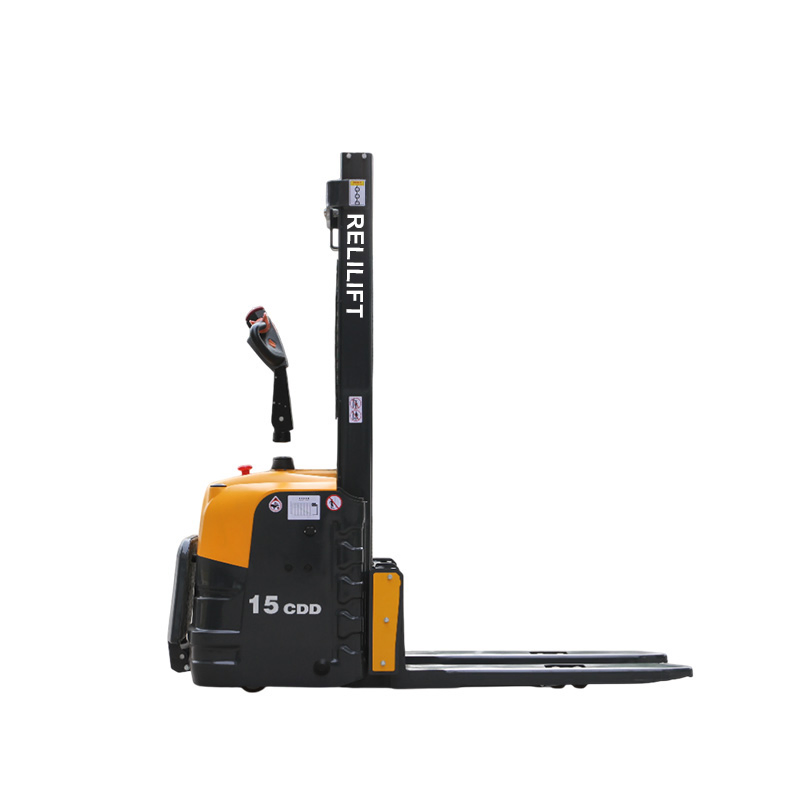

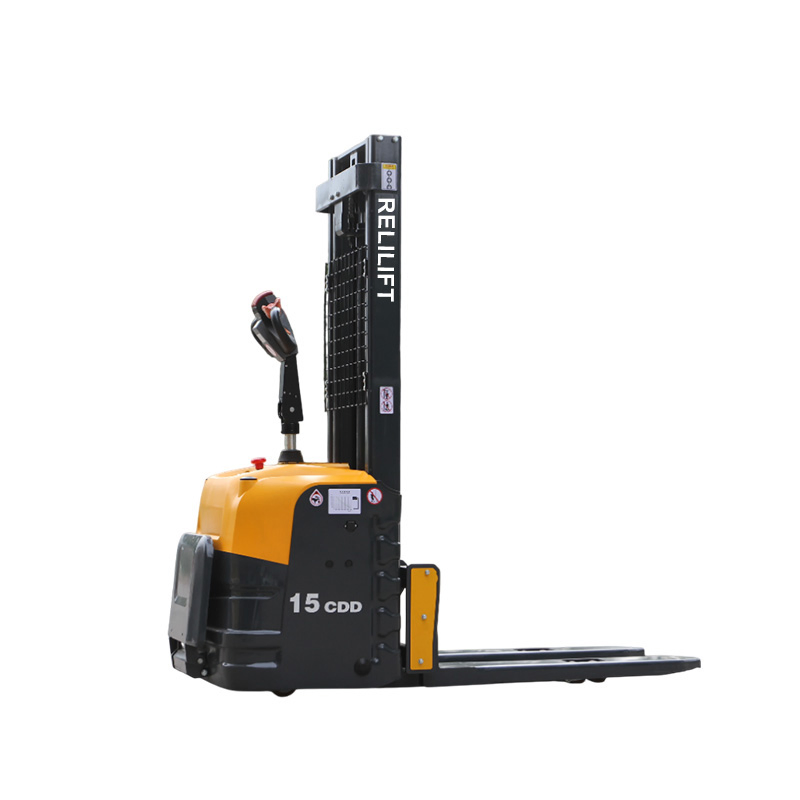

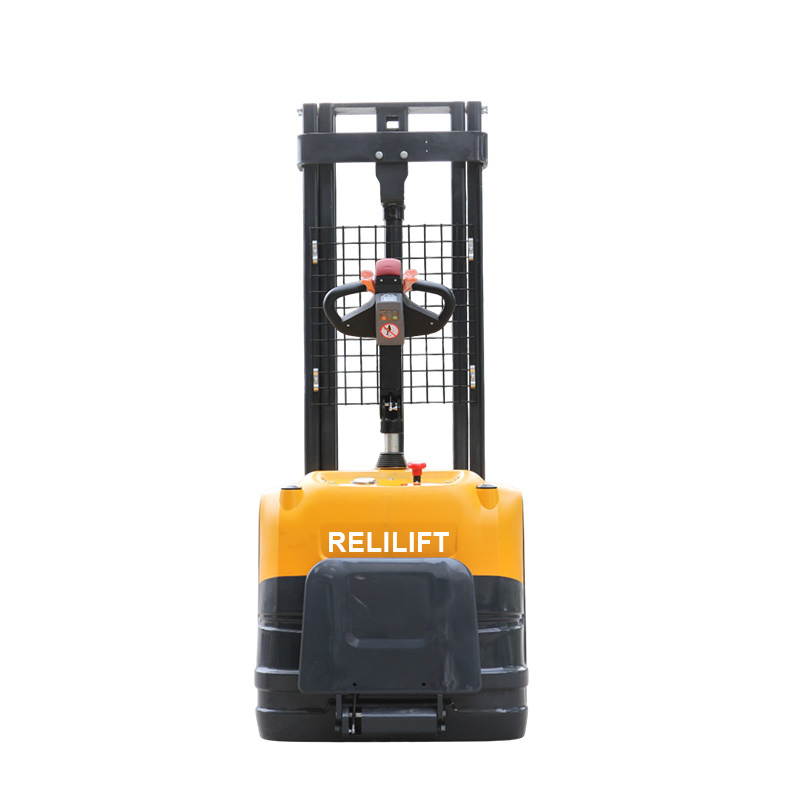

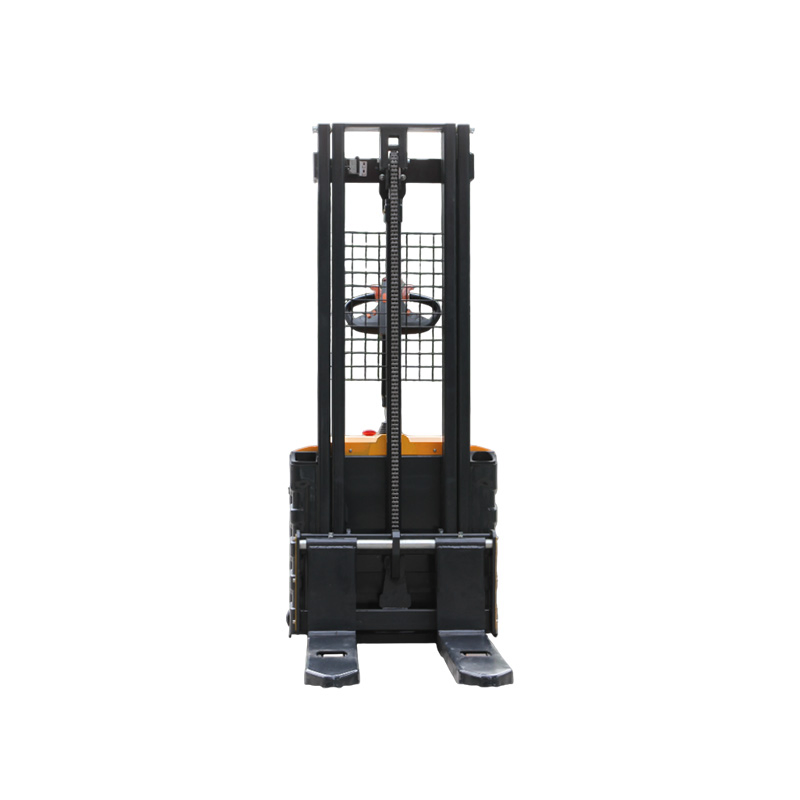

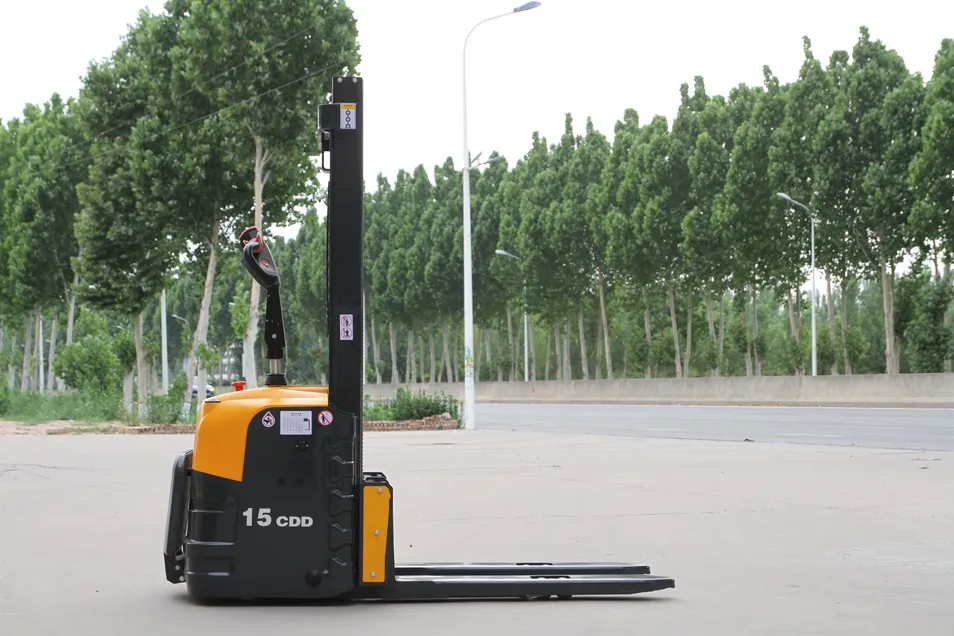

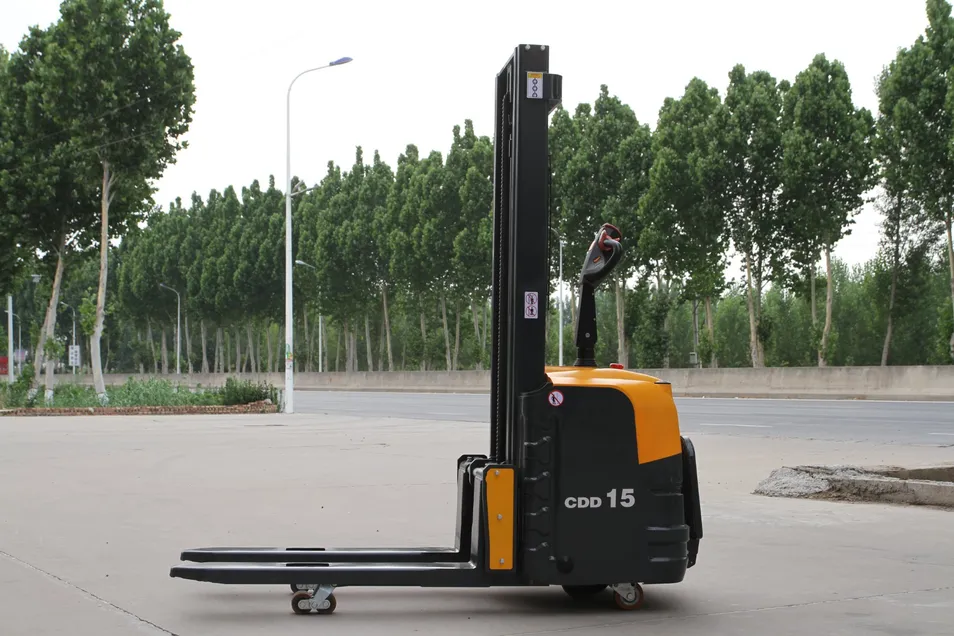

1.5T Electric Stacker Truck
Our 1.5T Electric Stacker Truck is a high-performance material handling equipment designed for efficient, safe, and cost-effective cargo stacking, loading, and unloading in warehouses, logistics centers, manufacturing plants, and retail facilities. With advanced electric drive technology and ergonomic design, it ensures smooth operation and long-term durability.
🚀 Power & Efficiency: Lightweight high-efficiency motor delivers consistent power for light to medium loads, ensuring lower energy consumption.
🏗️ Structure & Durability: Mast and forks are constructed with high-strength materials and reinforced welding at key points.
🛡️ Safety & Control: Features an easy-to-read display screen showing battery levels and real-time equipment status.
| Feature | Model CDD1520 | Model CDD1530 | Model CDD1535 |
|---|---|---|---|
| Load Capacity (kg) | 1500 | 1500 | 1500 |
| Lifting Height (mm) | 2000 | 3000 | 3500 |
| Load Center Distance (mm) | 500 | 500 | 500 |
| Self Weight (kg) | 540 | 600 | 630 |
| Overall Width (mm) | 820 | 820 | 820 |
| Turning Radius (mm) | 1600 | 1600 | 1600 |
| Travel Speed (km/h) | 3.7/4.0 | 3.7/4.0 | 3.7/4.0 |
| Battery Voltage (V/Ah) | 48V/32ah | 48V/32ah | 48V/32ah |
Ideal for various environments including:
