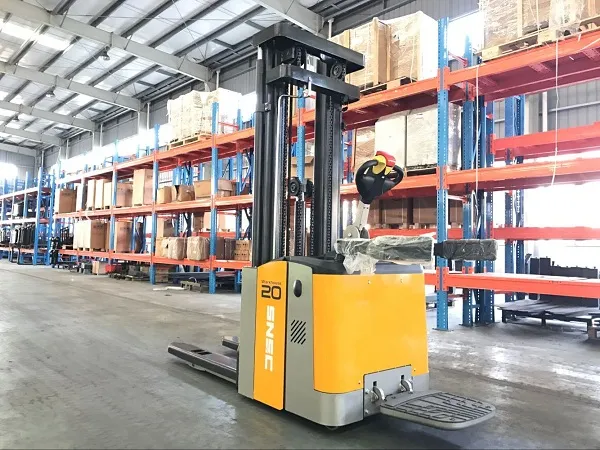

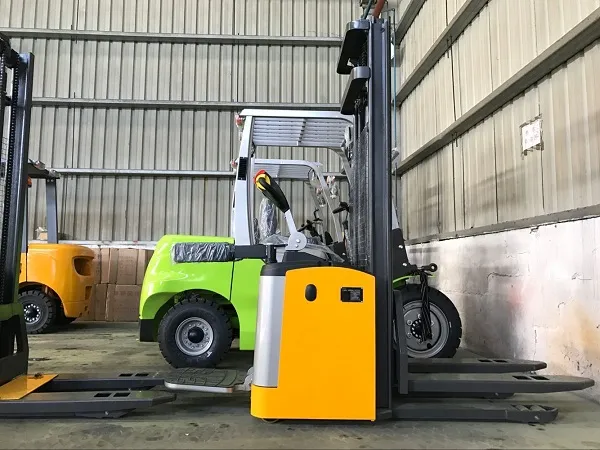

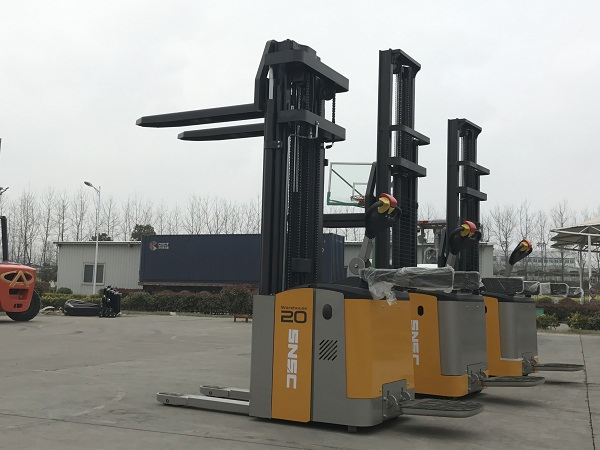

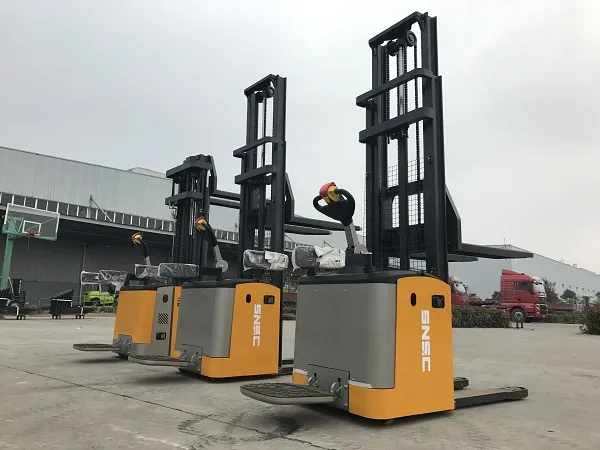

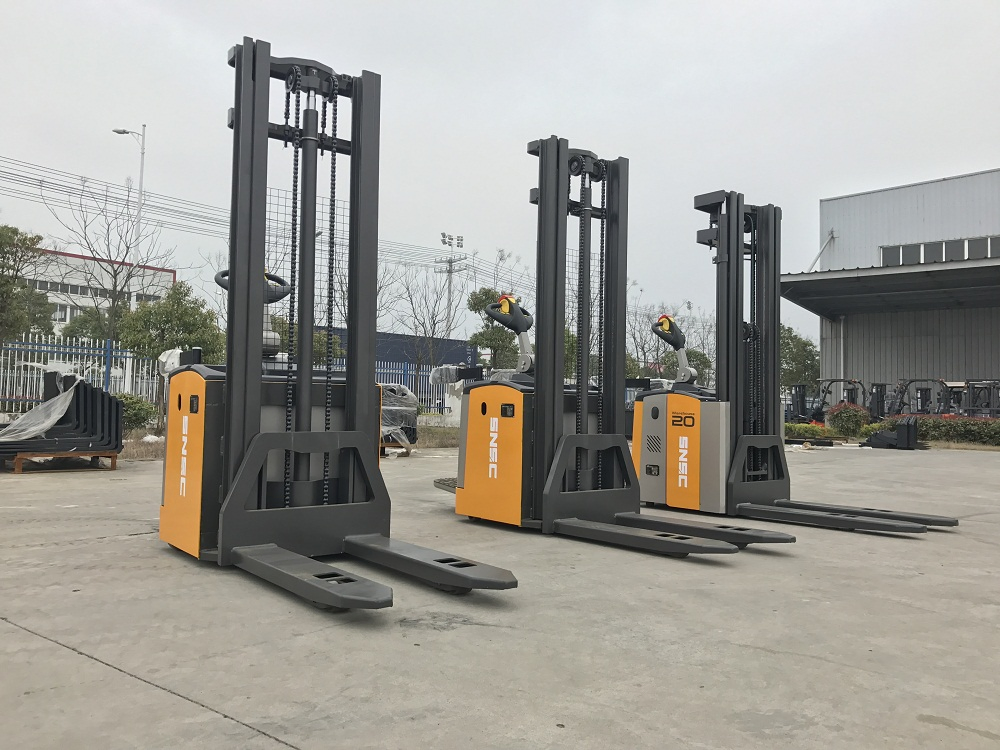

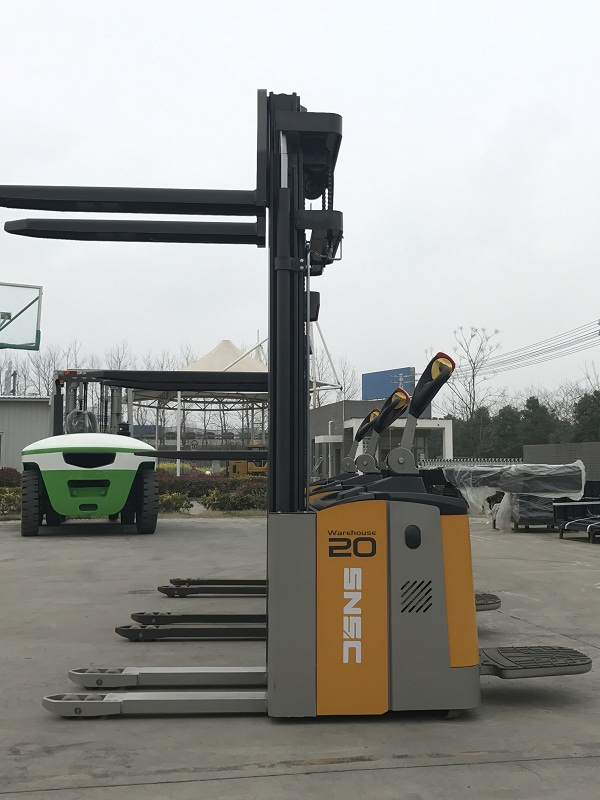

1.5 Ton 3m Height Electric Stacker for Sale

Customization:	Available
Cab Location:	Not Adjustable
Type:	Stacker

Basic Specifications

Model NO.

DB20

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Load center

600mm

Lift height

2500-5000mm

Condition

New

Battery Power

24V/285ah

Fork Length

1150mm

Controller

USA Curtis Brand Controller

Mast Type

Duplex / Triplex Full Free Mast

Operation Type

Stand-on

Turning Type

Electric Turning

Origin

China

HS Code

8427109000

Main Features

✓Operate Type: Stand-on for ergonomic use
✓Rated Capacity: 2000KG high-efficiency handling
✓Mast Options: Duplex or Triplex full free mast available
✓Lift Height: Versatile range from 3000mm to 5000mm
✓Braking System: Advanced electromagnetic service brake
✓Control System: USA Curtis AC drive control
✓Battery: High capacity 24V/285AH battery
✓Certifications: Fully ISO9001 and CE certified

Technical Specifications

Characteristics	ID	Description	Unit	DB12-R1	DB16-R1	DB20-R1
Drive	1.2	Power Type	-	Battery
Operator	1.3	Operator Type	-	Stand-on
Capacity	1.4	Load Capacity	kg	1200	1600	2000
Load Centre	1.5	Load Centre	mm	600
Weight	2.1	Service Weight	kg	1260	1340	1340
Wheels	3.1	Tyre Type	-	Polyurethane
Dimensions	4.2	Lifting Height	mm	3000
Dimensions	4.8	Overall Width	mm	850
Performance	5.1	Travel Speed (Laden)	km/h	5 / 5.5
Motor	6.1	Drive Motor (AC)	kW	1.5
Motor	6.4	Battery Voltage	V/Ah	24/210	24/285	24/285

Related Equipment Range

We offer a comprehensive range of material handling solutions to meet diverse industrial needs:

• Diesel Forklifts: Counterbalanced range from 1.5 to 10 ton.
• Electric Forklifts: Battery-powered range from 1.5 to 3.5 ton.
• Dual Fuel Forklifts: LPG and Gasoline powered from 1.5 to 3.5 ton.
• Warehouse Equipment: Pallet trucks, reach trucks, stackers, and scissor lifts.

Frequently Asked Questions

What is the maximum load capacity of this electric stacker?

The load capacity ranges from 1 Ton to 5 Ton, with the DB20 model specifically rated for a 2000kg load.

What are the available lifting height options?

This stacker supports a lifting height range from 2500mm up to 5000mm, depending on the mast configuration chosen.

Does the stacker come with a battery and charger?

Yes, the equipment includes a high-capacity 24V/285ah battery and a compatible charger is included in the package.

What type of controller is used in this equipment?

The stacker is equipped with a world-renowned USA Curtis Brand Controller for precise and reliable operation.

Is the steering manual or electric?

This model features Electric Turning, which significantly reduces operator fatigue and improves maneuverability in tight spaces.

What certifications does this electric stacker hold?

The product is manufactured under strict quality standards and holds both ISO9001 and CE certifications.
