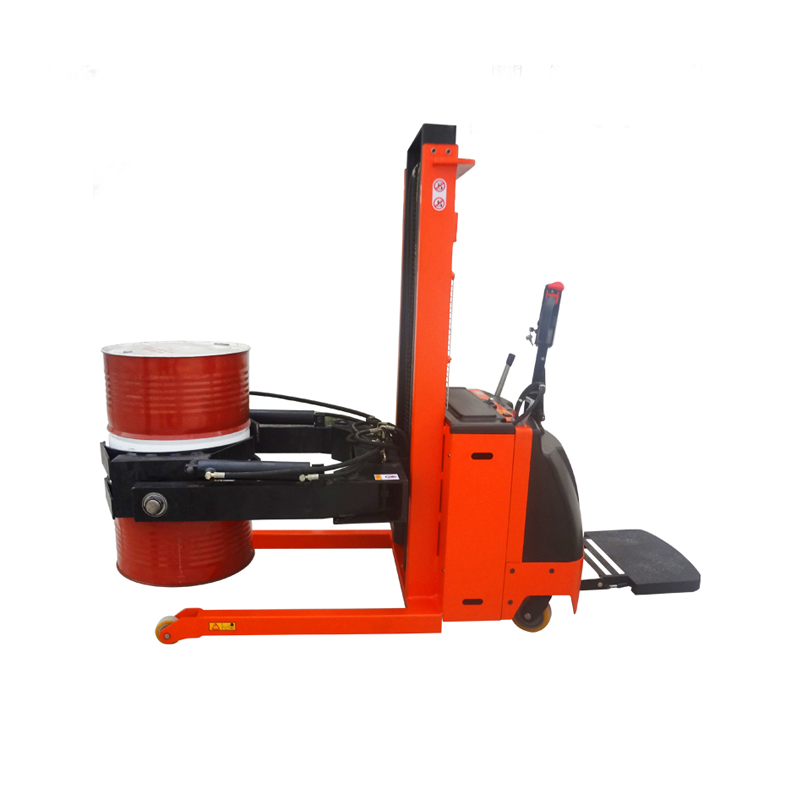

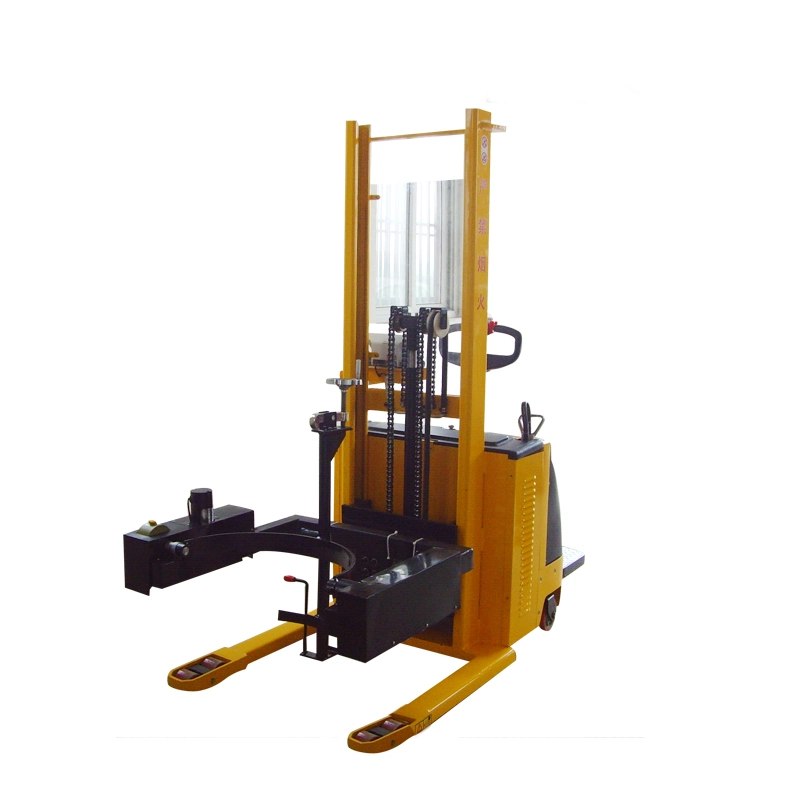

300kg Full Automatic Electric Drum Lifter Stacker for 55gal Steel Drum

1 / 5

300kg Full Automatic Electric Drum Lifter Stacker for 55gal Steel Drum

Customization:	Available
Cab Location:	Adjustable
Type:	Reach Forklift

Send Inquiry

Product Description

Basic Information

Model NO.

COT0316SD-P63

Power

AC Motor

Load Capacity

300kg

Fuel

Electric

Lift height

1600mm

Condition

New

Origin

China Jiangsu

HS Code

8427209000

Production Capacity

3000 Pieces/Year

Packaging & Delivery

Package Size

200.00cm * 150.00cm * 250.00cm

Gross Weight

500.000kg

Transport Package

Nude Package

Technical Specifications

Model	COT0316SD	COT0616SD	COT0520SD	COT0525SD	COT0530SD
Order Number	9.03001	9.03002	9.03003	9.03004	9.03005
Load Capacity(kg)	300	600	500	500	500
Max Lift height (mm)	1600	1600	2000	2500	3000
Min.height of clamp(mm)	540	540	540	540	540
Drum size (mm)	φ580 *900	φ580 *900	φ580 *900	φ580 *900	φ580 *900
Drum rotation (mm)	180	180	180	180	180
Battery (V/Ah)	24/80	24/80	24/80	24/80	24/80
Lifting motor (Kw)	2.5	2.5	2.5	2.5	2.5
Driving motor (Kw)	0.75	0.75	0.75	0.75	0.75
Weight (Kg)	510	520	530	540	550
Overall size (mm)	180010002000	180010002000	180010001580	180010001780	180010002050

Product Display

Key Features & Advantages

✔Widely used for moving and pouring materials in chemical, printing, and food industries.
✔Steel plate scale with zero setting, weighting, and decorticate functions for high accuracy.
✔Firm clamp design capable of moving and tilting materials securely.
✔Durable lead-acid battery supports continuous operation for extended periods.
✔Strong and stable driving system for reliable performance.
✔Integrated lifting pump with DC motor, valve, and pipe elements; compact, stable, and noiseless.
✔Automatic charger provides hints when the charging process is completed.
✔Noiseless PU wheels ensure smooth movement without scratching the floor.

Frequently Asked Questions

Q1: What is the maximum load capacity of this drum stacker? A: Depending on the specific model, the load capacity ranges from 300kg to 600kg.

Q2: Can the drum be rotated during operation? A: Yes, the system supports a drum rotation of 180 degrees for efficient pouring and material handling.

Q3: What type of battery and charger are included? A: It is equipped with a 24V/80Ah lead-acid battery and a 24V/15A charger that signals automatically when fully charged.

Q4: Is this equipment suitable for food-grade environments? A: Yes, it is widely used in the food, chemical, and printing industries due to its stable and environment-friendly performance.

Q5: Will the wheels damage my warehouse floor? A: No, the stacker uses noiseless PU (Polyurethane) wheels designed specifically not to scratch or damage floors.

Q6: What is the lifting speed of the stacker? A: The lifting speed is approximately 45/50 mm/s, providing a balance of efficiency and safety.
