Stacker Electric Stacker Mini Electric Manual Hydraulic Lifting Stacker Semi-Electric Stacker

1 / 5

Stacker Electric Stacker Mini Electric Manual Hydraulic Lifting Stacker Semi-Electric Stacker

Customization:	Available
After-sales Service:	Video Technical Support
Warranty:	One Year

Send Inquiry

Product Description

Overview

Cab Location

Ground

Type

Stacker

Power

DC Motor

Load Capacity

1T - 5T

Fuel

Hand

Load center

500mm

Lift height

1600~3000mm

Condition

New

Color

Red or Yellow Optional

Transport Package

Bubble Wrap

Origin

China

HS Code

8427109000

Product Description

Semi electric pallet stacker 1000KGS, 1500KGS, lift 1.6m, 2m, 2.5m and 3.5m.

Semi-electric Stacker Truck
Model	DYC10-1.6	DYC20-1.6	DYC10-2.0	DYC20-2.0	DYC10-2.5	DYC20-2.5	DYC10-3.0	DYC20-3.0	DYC10-3.5	DYC20-3.5
Lifting Height/mm	1600	1600	2000	2000	2500	2500	3000	3000	3500	3500
Loading Capacity/Kg	1000	2000	1000	2000	1000	2000	1000	2000	1000	2000
Lower Height/mm	85	85	85	85	85	85	85	85	85	85
Fork Length/mm	1000	1100	1000	1100	1000	1100	1000	1100	1000	1100
Outer Width of Fork/mm	320-680	320-680	320-680	320-680	320-680	320-680	320-680	320-680	320-680	320-680
Lifting Speed/s	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15	0.08-0.15
Lifting Motor	12/1.5	12/1.5	12/1.5	12/1.5	12/1.5	12/1.5	12/1.5	12/1.5	12/1.5	12/1.5
Battery	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH	12V/120AH

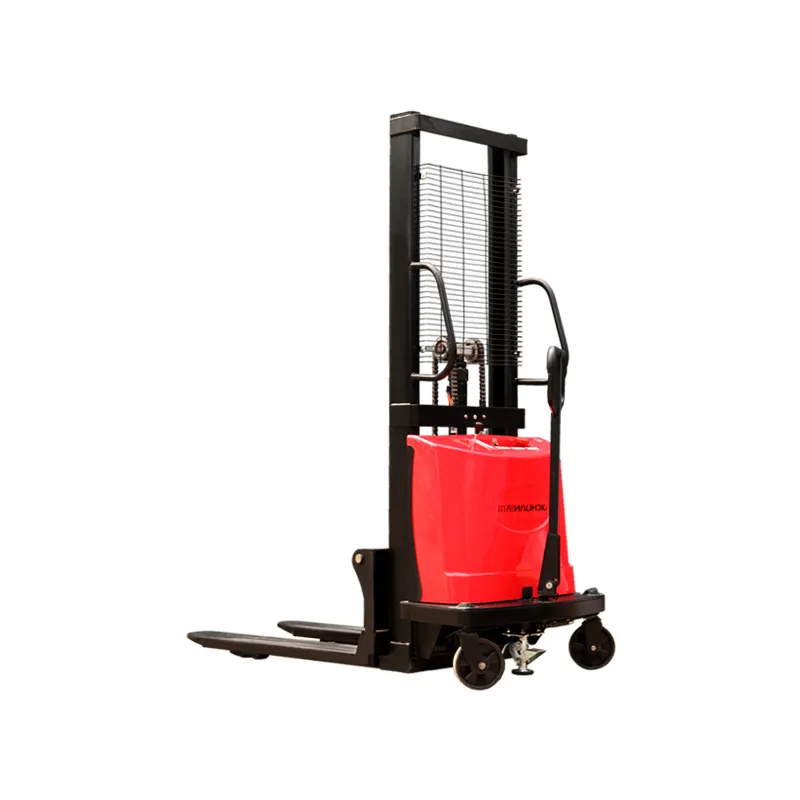

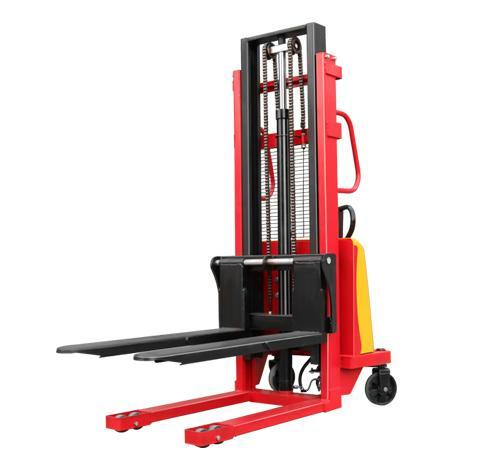

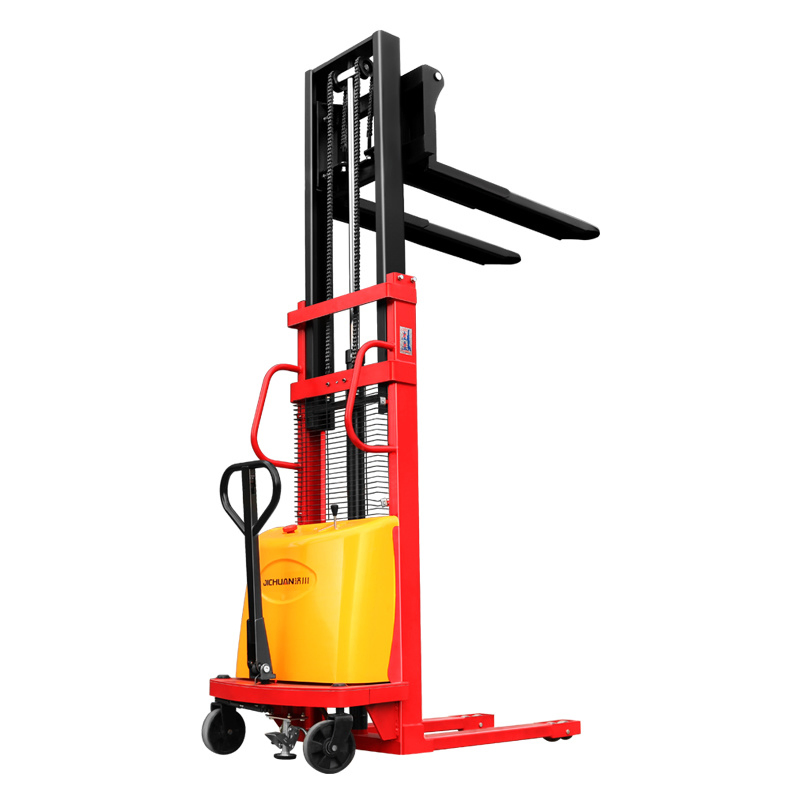

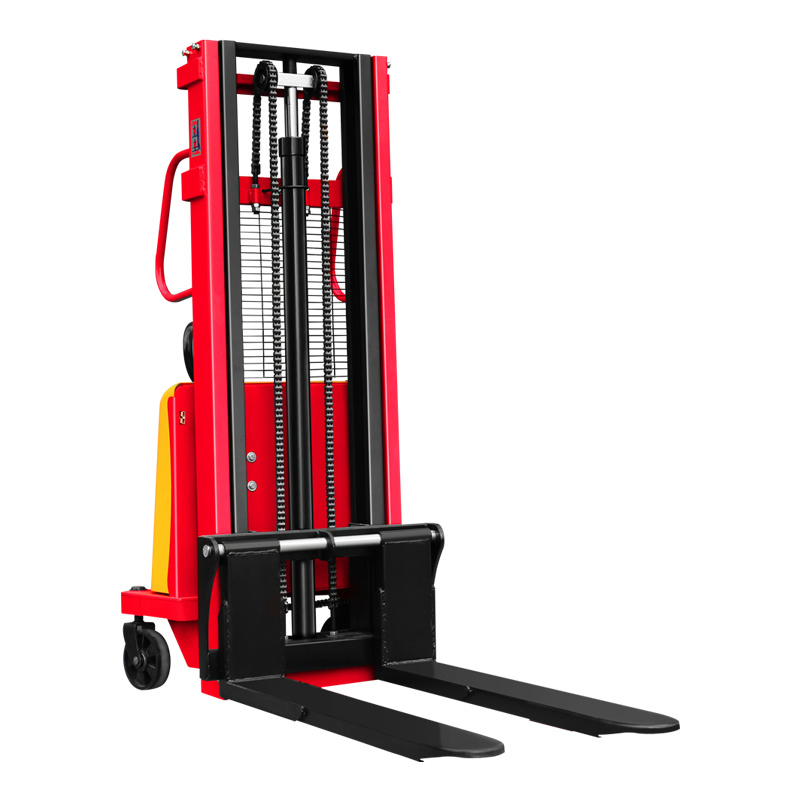

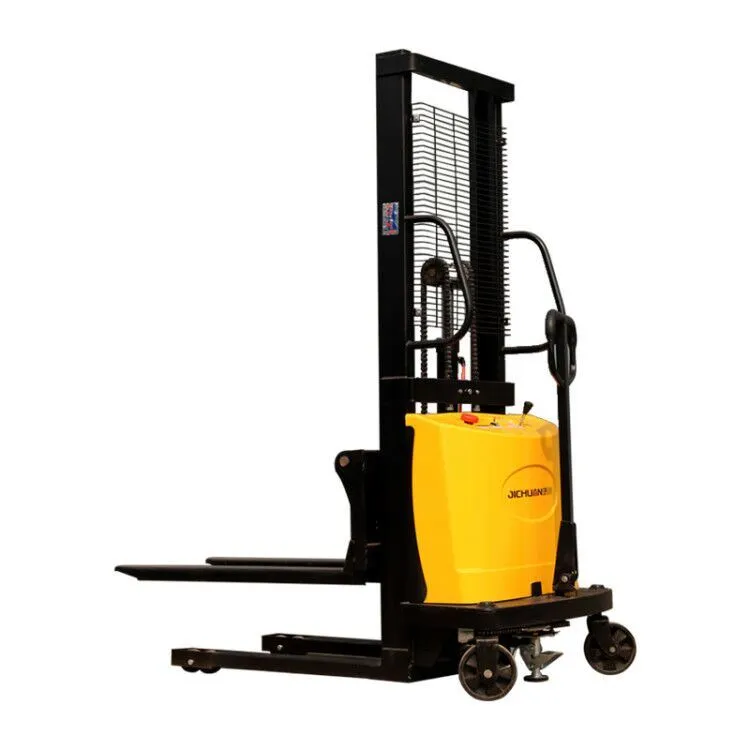

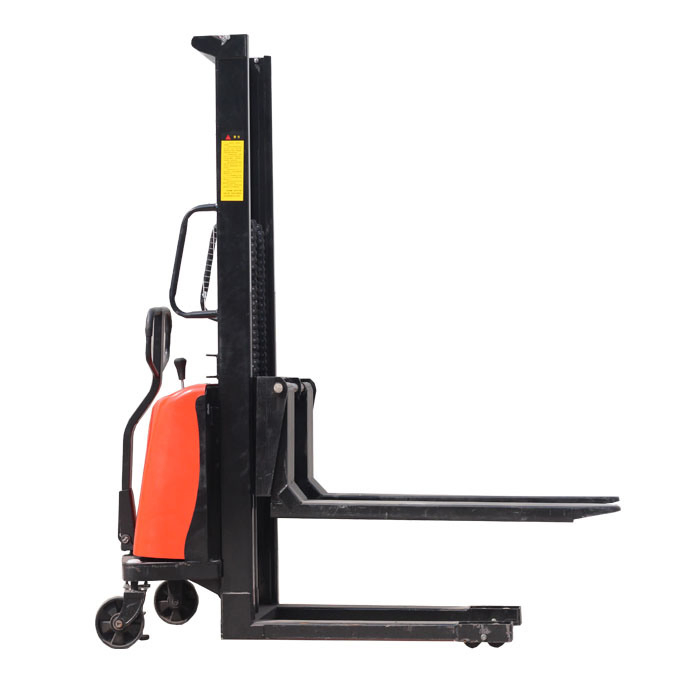

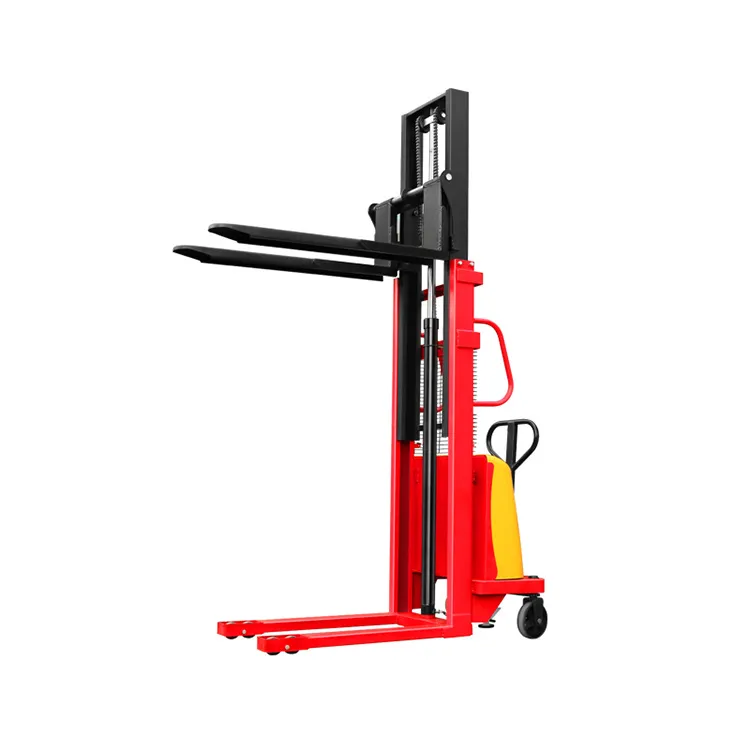

Detailed Photos

FAQ

What is the loading capacity range for this stacker?

The loading capacity ranges from 1000kg to 2000kg (1T to 2T) depending on the specific model selected.

What lifting heights are available?

We offer multiple lifting height options including 1600mm, 2000mm, 2500mm, 3000mm, and 3500mm to suit various warehouse needs.

What are the battery and charger specifications?

The unit is equipped with a 12V/120AH battery and a 12V/15A charger, powered by a efficient 1.5KW DC motor.

Can the fork width be adjusted?

Yes, the outer width of the fork is adjustable from 320mm to 680mm to accommodate different pallet sizes.

What is the standard color for the stacker?

The standard colors available are Red or Yellow, which can be selected based on your preference.

How is the product packaged for international shipping?

The stacker is professionally wrapped in bubble wrap to ensure protection against scratches and impacts during transport.
