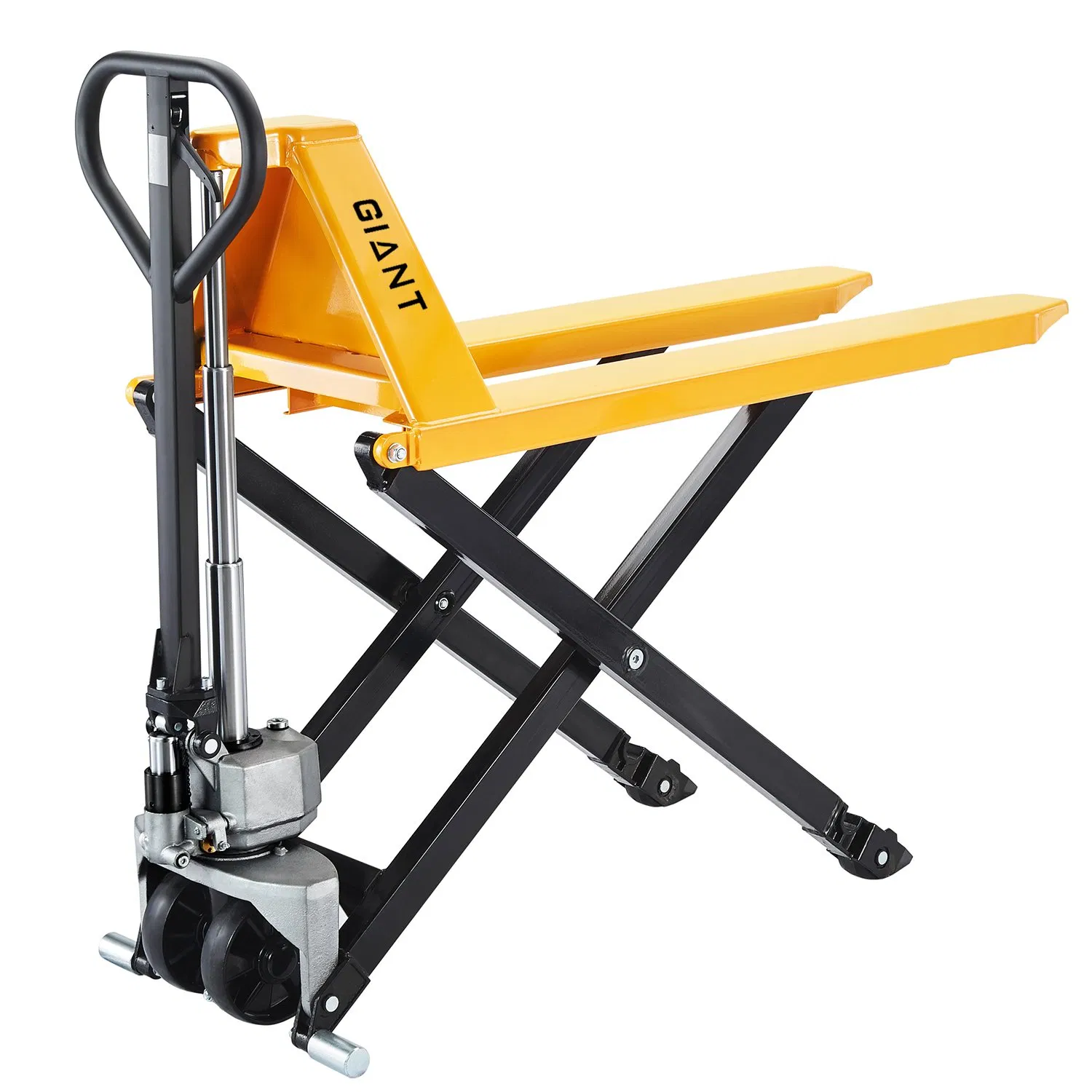

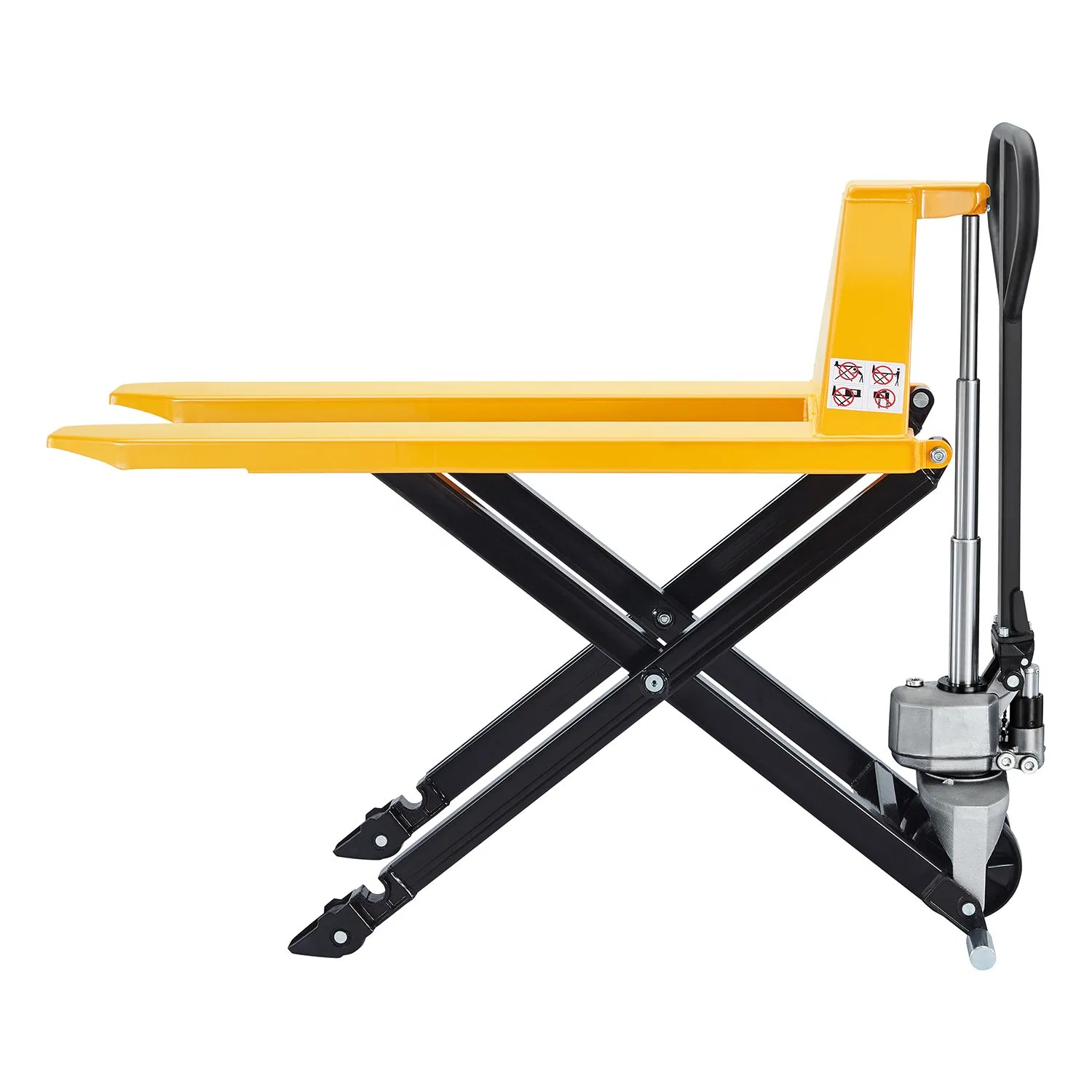

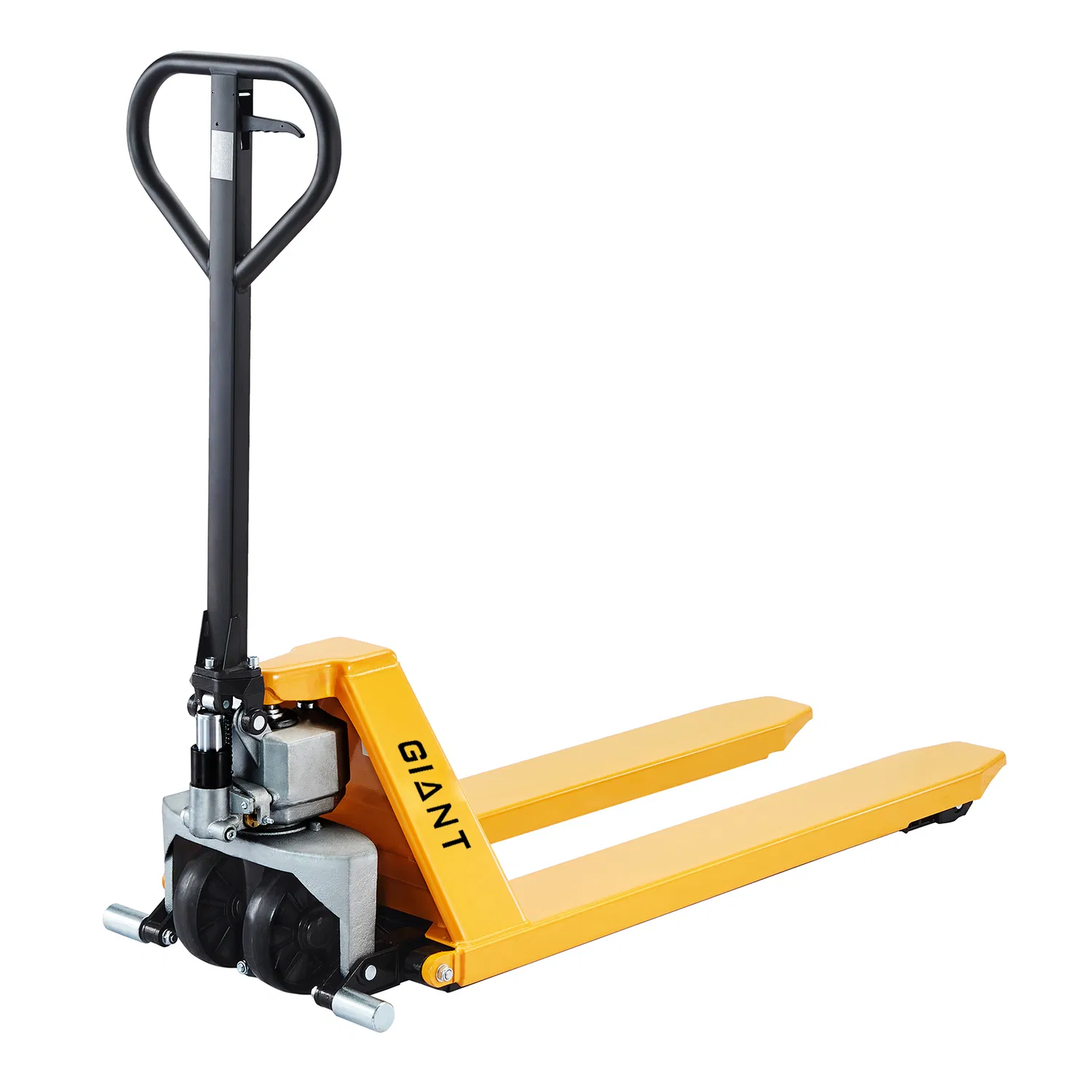

Pallet Lift Truck Manual Hydraulic Pallet Scissor 2200lbs 1000kgs Capacity High Lift Truck (JF)
Pallet Lift Truck Manual Hydraulic Pallet Scissor 2200lbs 1000kgs Capacity High Lift Truck (JF)
Pallet Lift Truck Manual Hydraulic Pallet Scissor 2200lbs 1000kgs Capacity High Lift Truck (JF)
Pallet Lift Truck Manual Hydraulic Pallet Scissor 2200lbs 1000kgs Capacity High Lift Truck (JF)
Pallet Lift Truck Manual Hydraulic Pallet Scissor 2200lbs 1000kgs Capacity High Lift Truck (JF)
1 / 5
Pallet Lift Truck Manual Hydraulic Pallet Scissor 2200lbs 1000kgs Capacity High Lift Truck (JF)
Pallet Lift Truck Manual Hydraulic Pallet Scissor 2200lbs 1000kgs Capacity High Lift Truck (JF)
Pallet Lift Truck Manual Hydraulic Pallet Scissor 2200lbs 1000kgs Capacity High Lift Truck (JF)
Pallet Lift Truck Manual Hydraulic Pallet Scissor 2200lbs 1000kgs Capacity High Lift Truck (JF)
Pallet Lift Truck Manual Hydraulic Pallet Scissor 2200lbs 1000kgs Capacity High Lift Truck (JF)

Pallet Lift Truck Manual Hydraulic Pallet Scissor 2200lbs 1000kgs Capacity High Lift Truck (JF)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

  • Overview
  • Product Description
  • Parameters
  • Quality Control
  • FAQ

Basic Information

Model NO.
JF
Lift height
85-800mm
Condition
New
Service Weight
104-115kgs
Transport Package
Wrapped on Pallet
Production Capacity
80000

Product Description

Manual Hydraulic Pallet Scissor Lift
Manual Hydraulic Pallet Scissor 2200lbs 1000kgs Capacity Hand Pallet High Lift Truck (JF)

Key Advantages

Ideal design with numerous possibilities makes this unit very suitable as pallet truck/scissor lift table.
Telescopic jack composes of 3 piston rods creating light pumping force giving great rigidity.
Support legs come into operation automatically to ensure safety.
Prevents the unit from moving when forks are raised to keep operator safety.
Truck automatically slows descending speed with heavy loads to prevent cargo damage.
210 degree turning radius for excellent maneuverability.
2 lateral stabilizers when raised ensure superior stability.

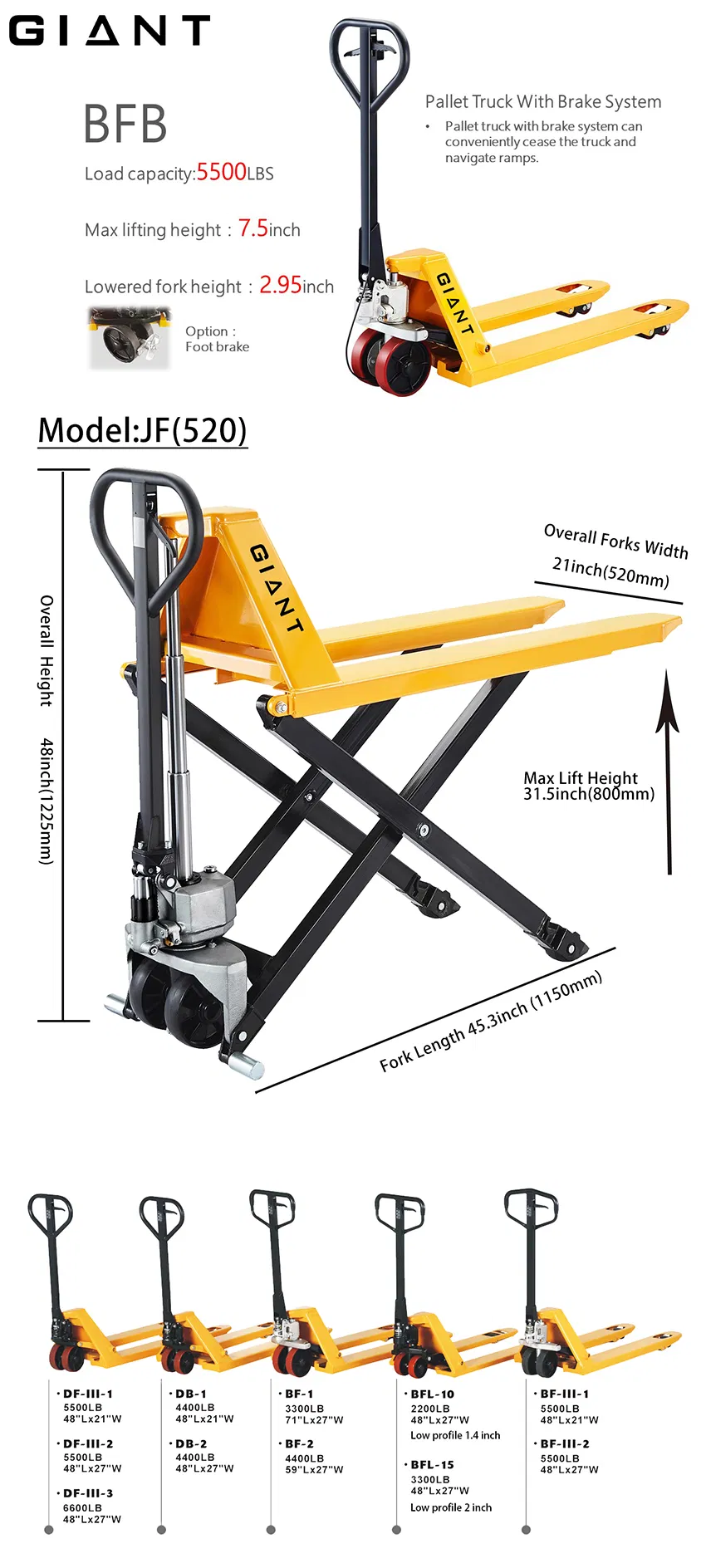

Option: Stainless Steel

Stainless Steel Pallet Lift

Technical Parameters

Model Parameter Imperial (inch/lbs) Metric (mm/kgs)
Capacity Q 2200 lbs 1000 kgs
Lowered fork height h13 3.3 inch 85 mm
Steering wheel - Φ7.1x2.0 inch Φ180×50 mm
Fork wheel - Φ2.9x2.0 inch Φ74x50 mm
Fork length l 45.3 inch 1150 mm
Width overall forks b5 21/21.7/27 inch 520/550/685 mm
Aisle width (1000x1200 cross) Ast 67.5 inch 1715 mm
Turning radius Wa 53.5 inch 1360 mm
Service weight - 230-254 lbs 104-115 kgs

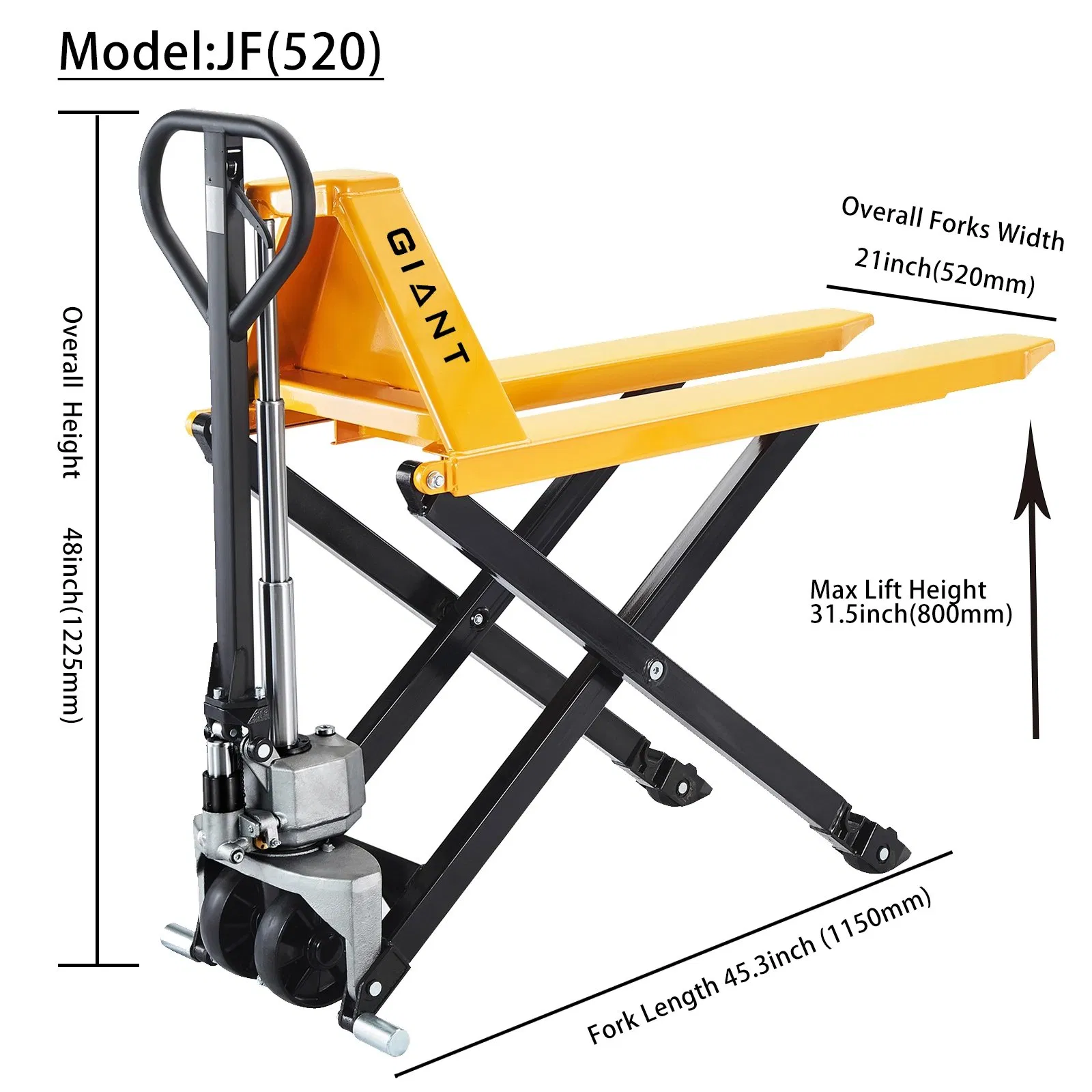

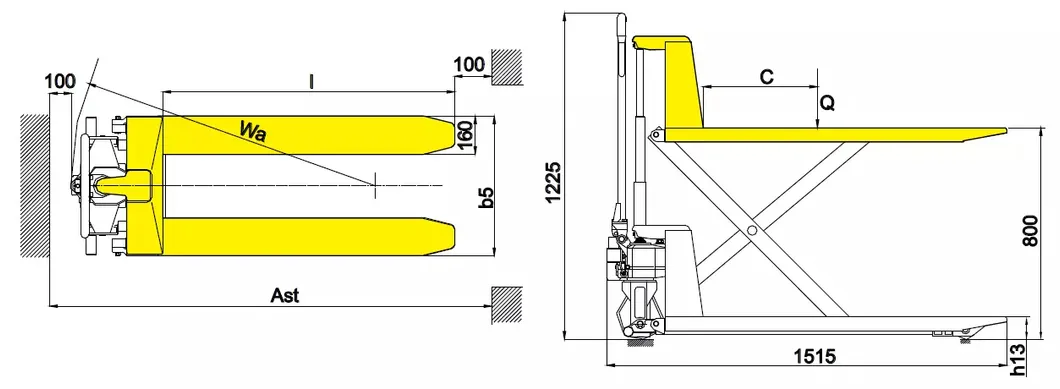

Dimension Diagram

Similar Products & Quality Control

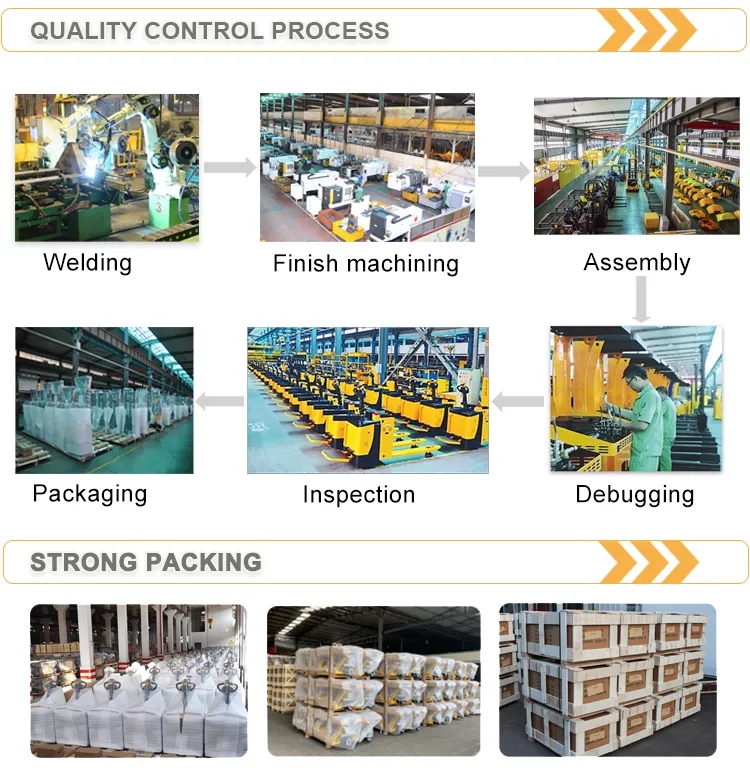

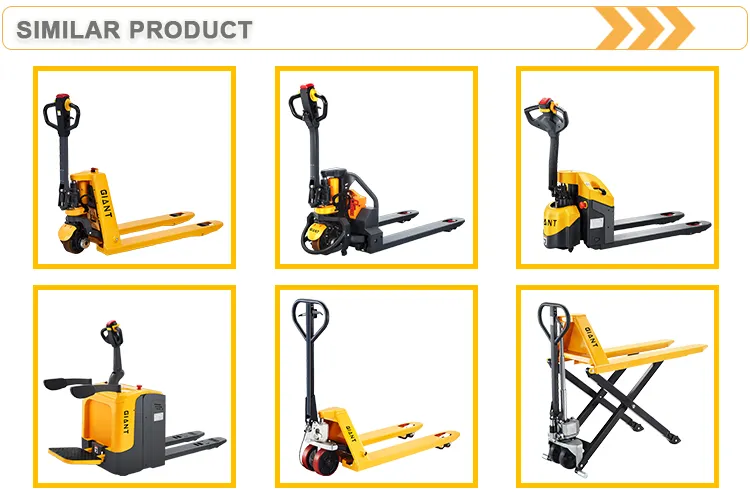

Similar Pallet Lifting Products Quality Control Flow

Frequently Asked Questions

Are you a manufacturer?
We have focused on manufacturing material handling products such as lift tables, manual & electric pallet trucks, and lifting platforms for over 35 years. We provide a one-stop purchase experience for industrial lifting and moving equipment.
Do you provide customized products (OEM/ODM)?
Yes, we can provide customized products according to your specific requirements. Both OEM and ODM services are available and acceptable.
How do you ensure product quality?
We select high-quality steel, use a standardized production process with traceable ID cards, perform 100% finished product testing before shipping, and hold ISO9001 certification. We also accept third-party inspections.
What is the warranty period for your products?
We provide a 12-month warranty for all of our products, excluding wear parts such as wheels, tires, or hydraulic oil.
What is the typical lead time for production?
Usually, production takes around 10-15 days after payment is received. During peak seasons or national holidays, it may extend to around 30 days.
What payment methods do you accept?
We primarily accept T/T (Telegraphic Transfer) or L/C (Letter of Credit). For other payment methods, please discuss with our sales team.
