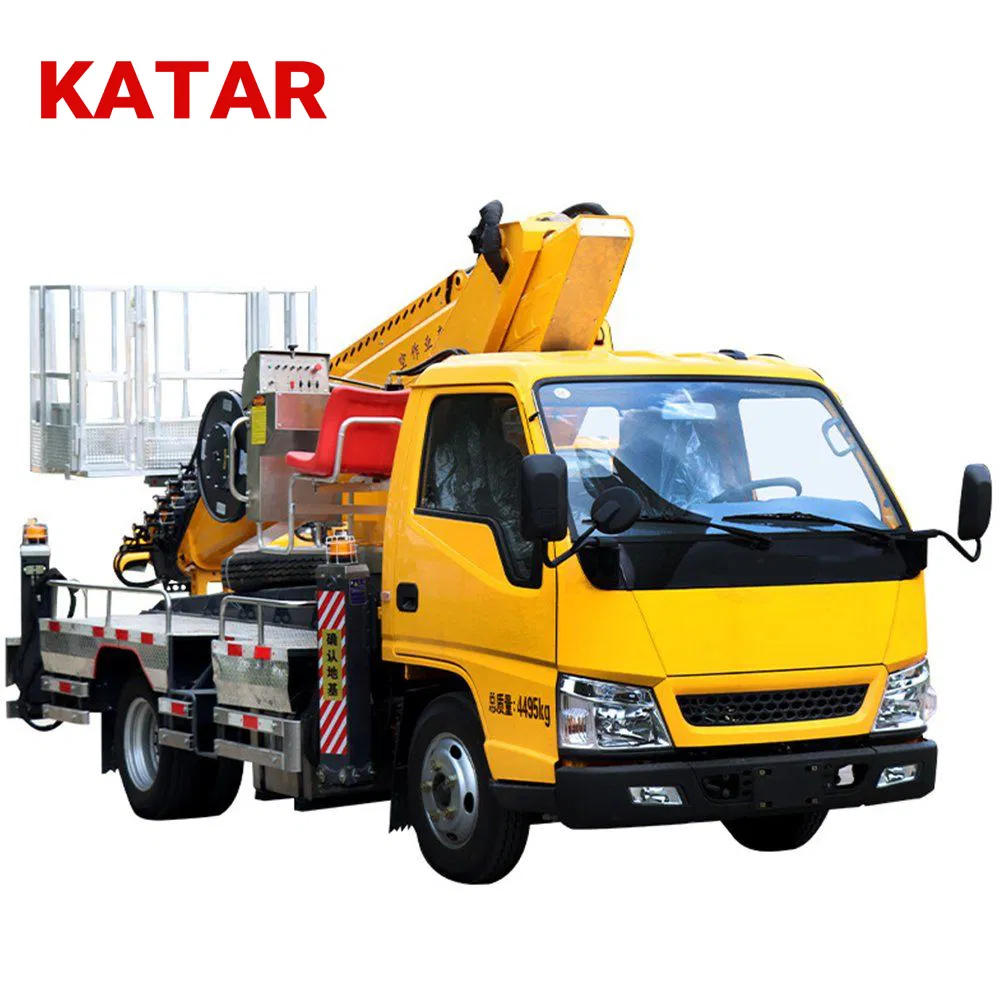

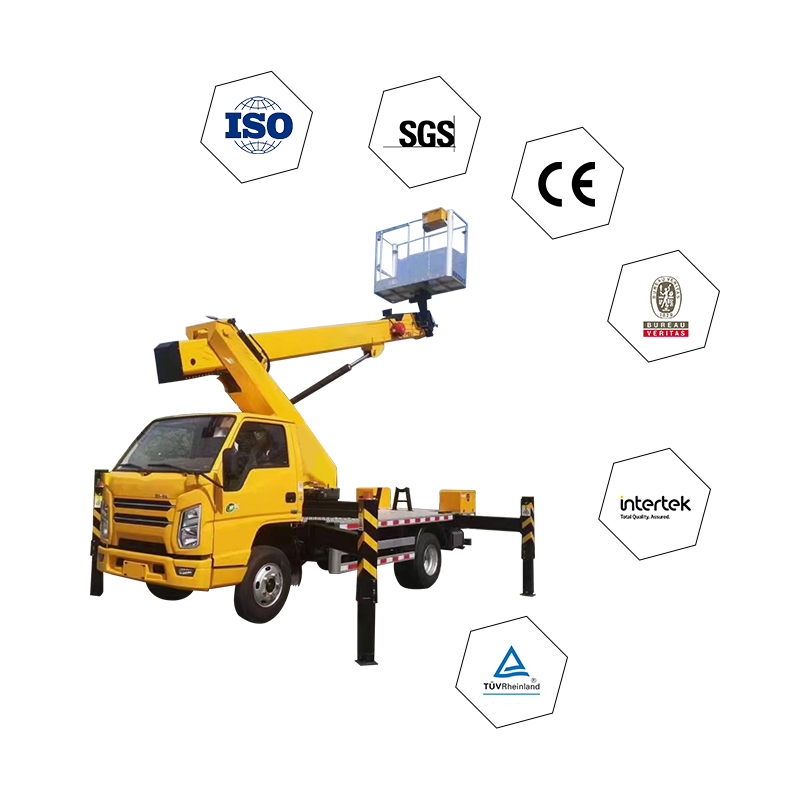

Aerial platform operation truck also named high altitude working truck is special purposed truck for high aerial working, which concerned street lamps, gardens, electric power, petrochemicals, etc.
Aerial platform operation truck could reach the different demand of maintenance streetlight, traffic light, garden operation, communication operation, signboard setting/cleaning and other high aerial works.
The boom could be straight or folding which could provide different choice due to your requirement.

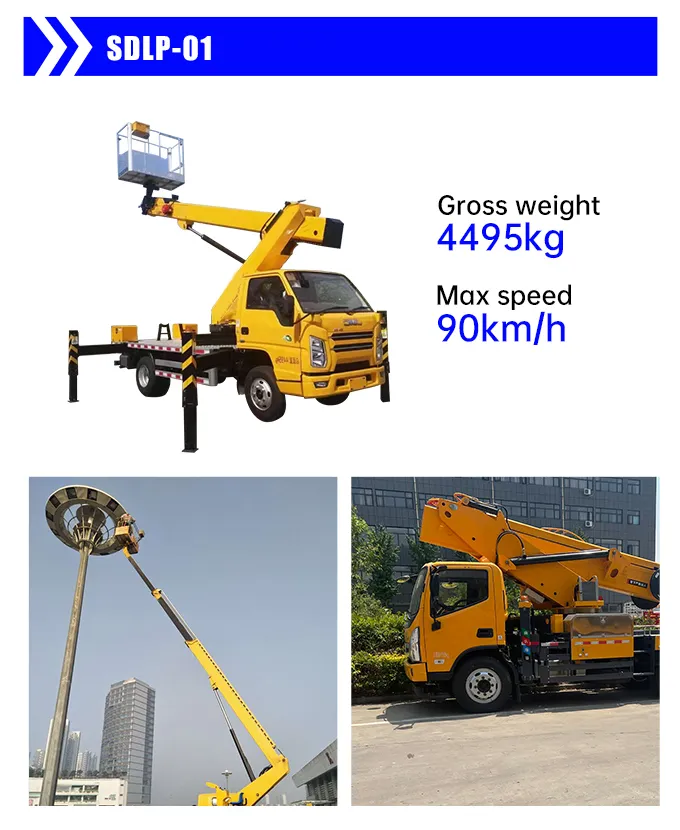

| Vehicle model | SDLP-01 | Chassis model | JX1041TSG25 |

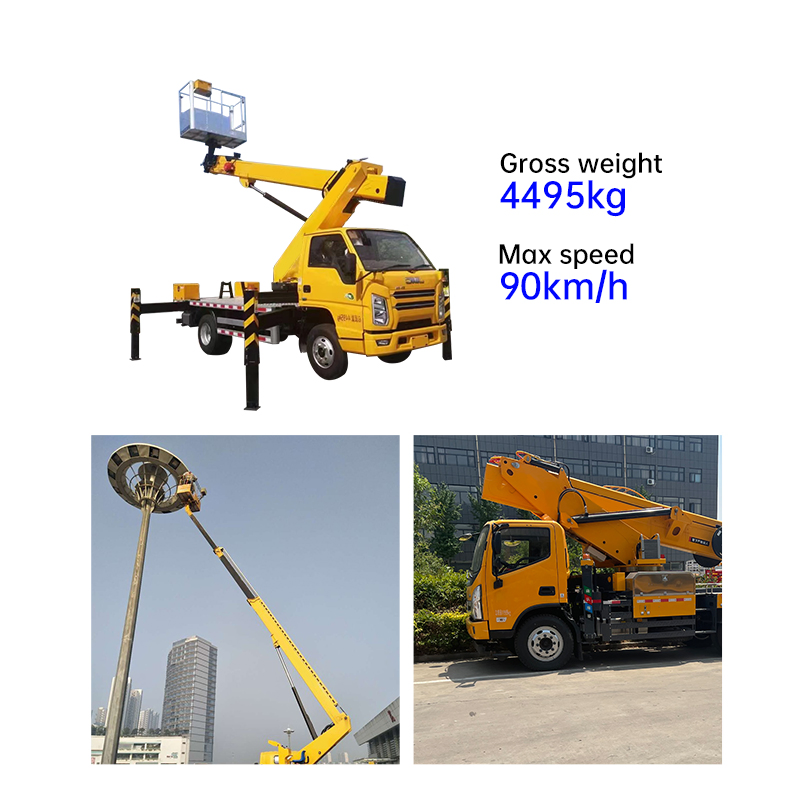

| Overall dimensions | 5998*2000*2950mm | Gross weight | 4495kg |
| Curb weight | 4470kg | Wheel base | 3360mm |
| Max speed | 90km/h | Tire specification | 7.00R15 |
| Engine type | JX493ZLQ5A | Traction system | 4x2 |

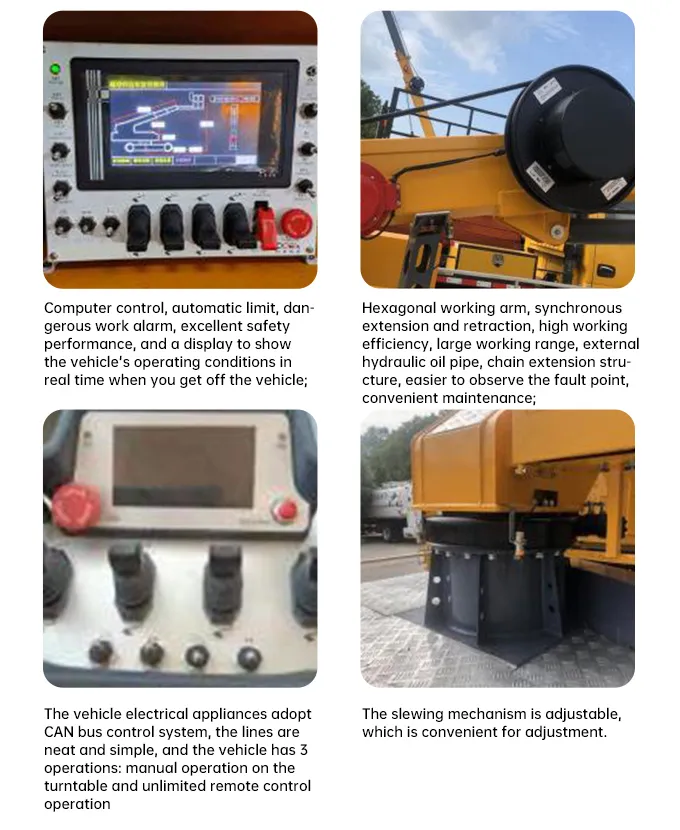

| Operation system | Electrically hydraulic control | Rotation angle | 360° |
| Operation Main Technical Parameters | |
| Height of platform above ground | >10.8m |
| Platform maximum operating range | >6m |
| Rated load of working bucket | 200kg |

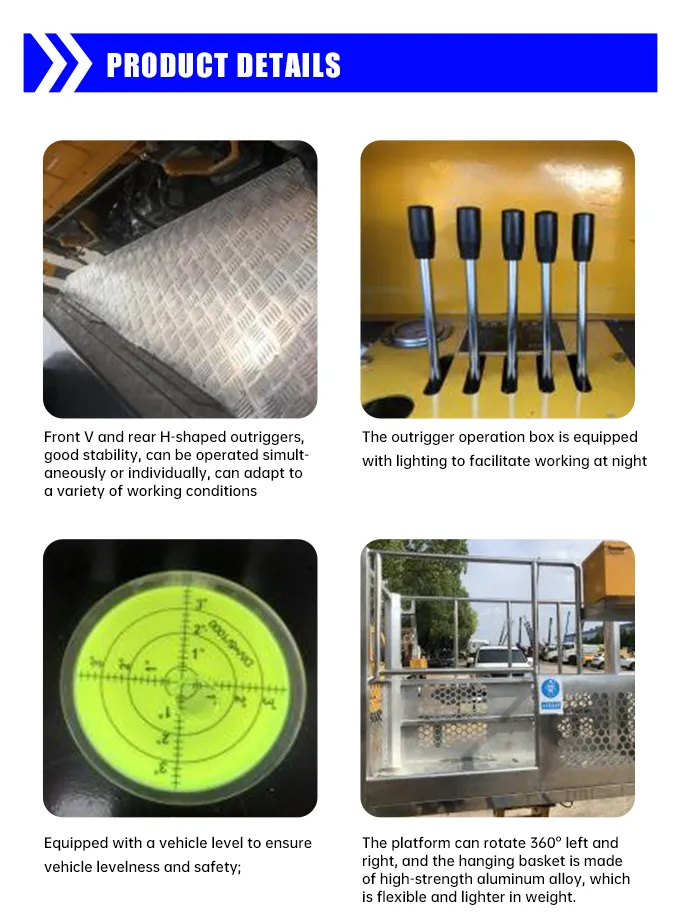

| Landing leg type | H type 4pcs (Front: 2720mm / Rear: 2850mm) |
| Max lifting weight | <1000kg (Safe value 800kg) |
