Well-known brand control system with multiple automatic protection systems for high functional safety.
Vertical brand gearbox and optimized gear meshing reduce noise while providing efficient operation.
Steering energy consumption reduced by ~20%, ensuring precise operation and reduced driver fatigue.
Equipped with a full AC drive system: small size, light weight, and no carbon brush replacement needed.
Standard emergency power-off switch allows immediate power cut-off in critical situations.

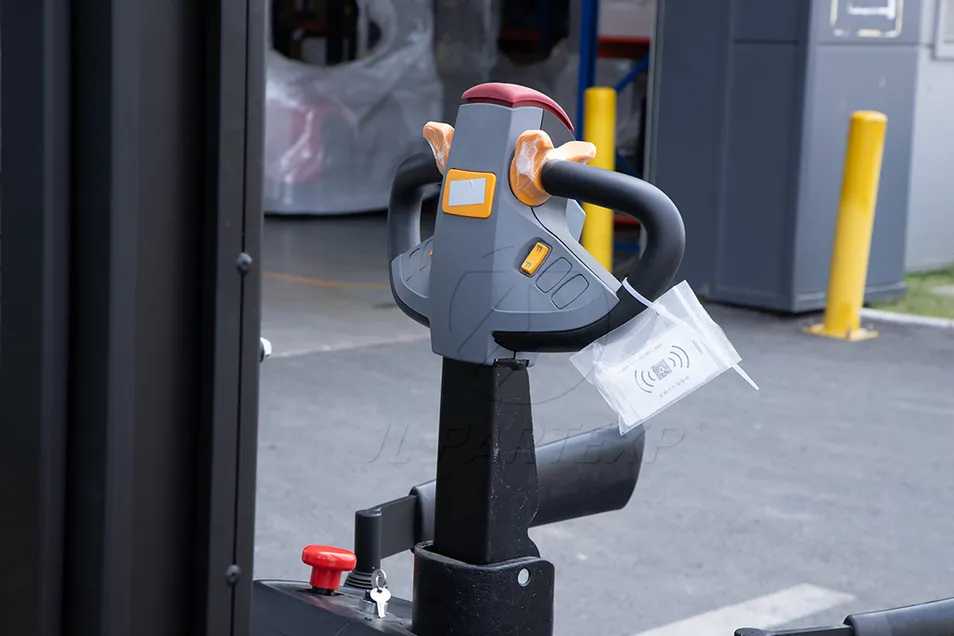

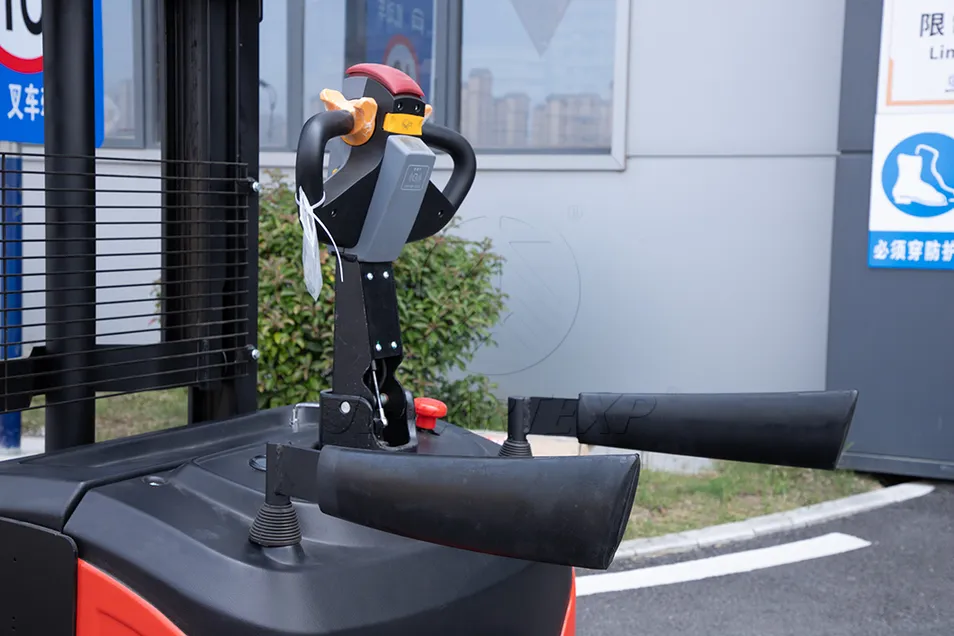

Integrated control for acceleration, horn, and lifting with an ergonomic collision-prevention design.
| Model | CDD10II-30 | CDD15II-30 | CDD20II-30 | CDD25II-30 | CDD30II-30 |
|---|---|---|---|---|---|
| Rated Load Capacity (kg) | 1000 | 1500 | 2000 | 2500 | 3000 |
| Load Center Distance (mm) | 500 | 500 | 500 | 500 | 500 |
| Lifting Height (mm) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Weight with Battery (kg) | 1075 | 1115 | 1150 | 1632 | 1632 |
| Travel Speed (km/h) | 5.5/5 | 5.5/5 | 5.5/5 | 5/4 | 5/4 |
| Drive Motor Power (kw) | 1.5 | 1.5 | 1.5 | 2.5 | 2.5 |
| Battery Voltage/Capacitance | 24/210 | 24/210 | 24/210 | 24/210 | 24/210 |
As a domestic advanced logistics robot and smart logistics system service provider, we focus on diversified businesses such as smart warehousing, smart workshops, and platform systems. We are committed to providing customized robot consulting, software development, system integration, and intelligent equipment production.

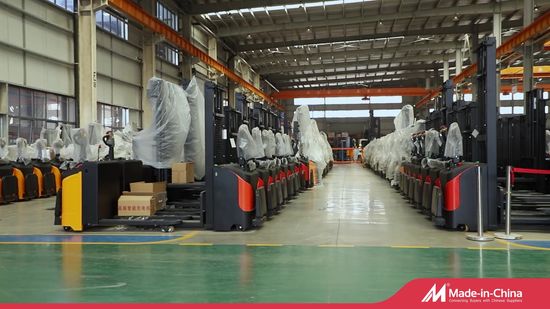

Our business integrates manufacturing, R&D, and service, launching high-performance electric forklifts, handling machinery, and miniature electric equipment. We rank among industry leaders in equipment manufacturing capacity with a rich and complete product line.
