| Model NO. | ND15Q01LD |
| Type | Stacker |
| Power | DC Motor |
| Load Capacity | 1.5t |
| Fuel | Electric |

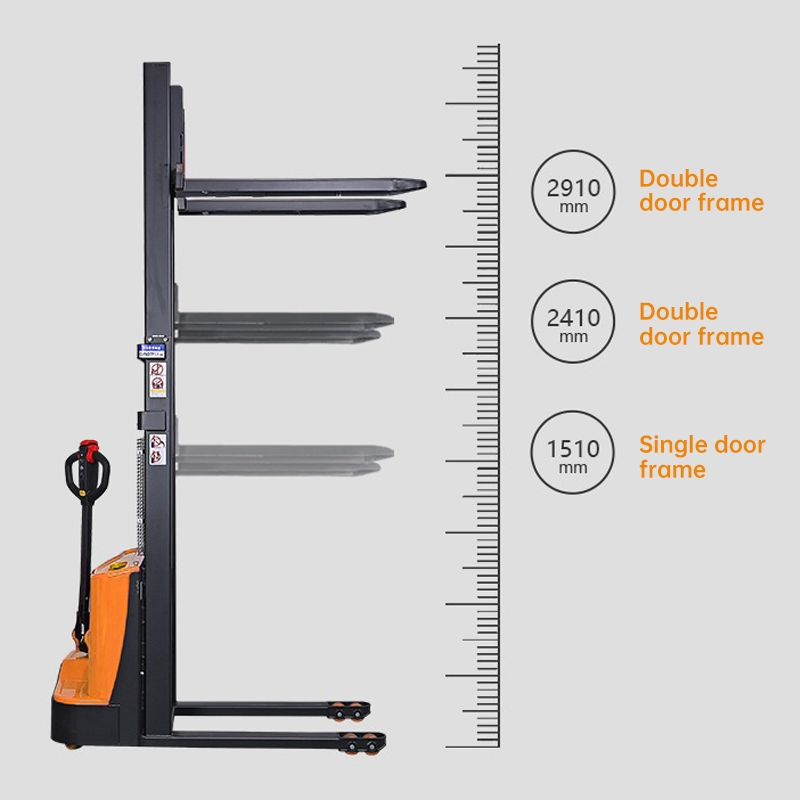

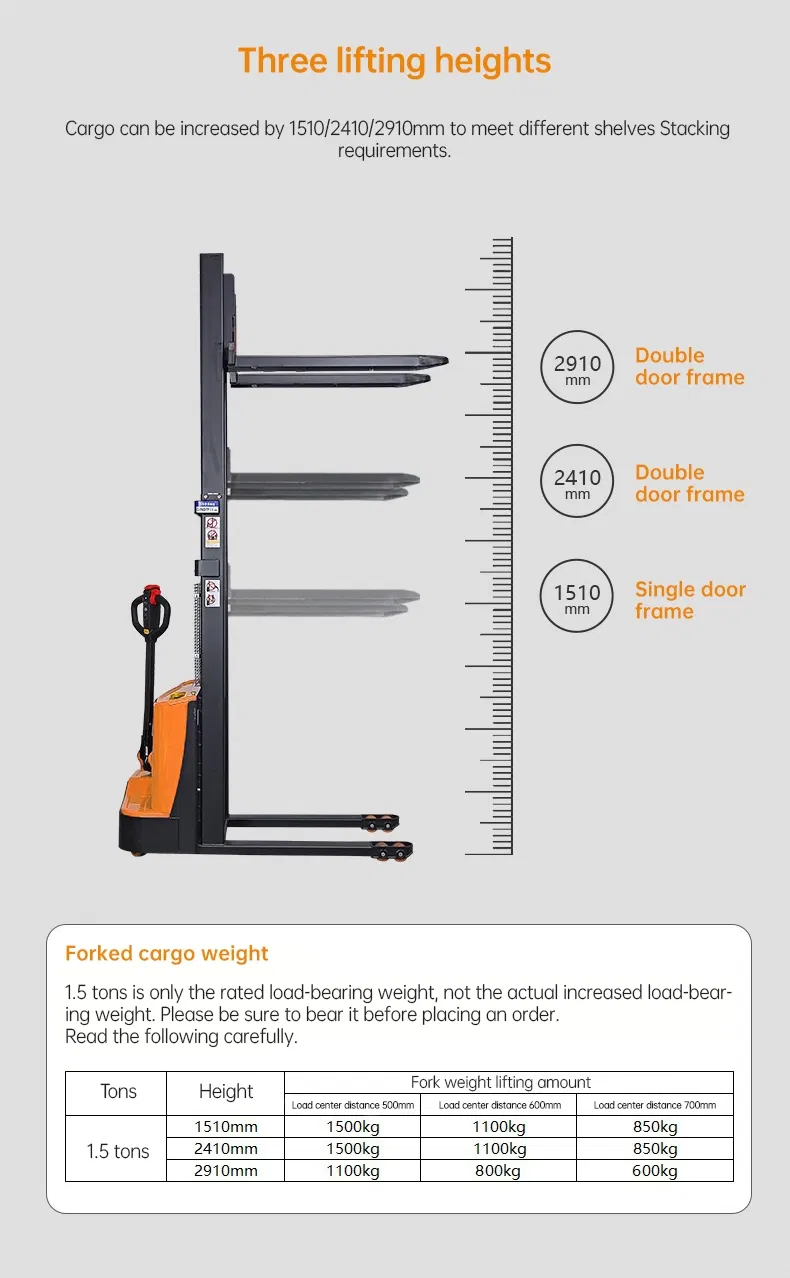

| Lift height | 1510/2410/2910mm |
| Battery Model | Lead Acid Battery (24V/85Ah) |
| Certification | CE, PSE |
| Driven Type | Electric, DC |
ND15Q01LD 1.5T Electric Pallet Stacker

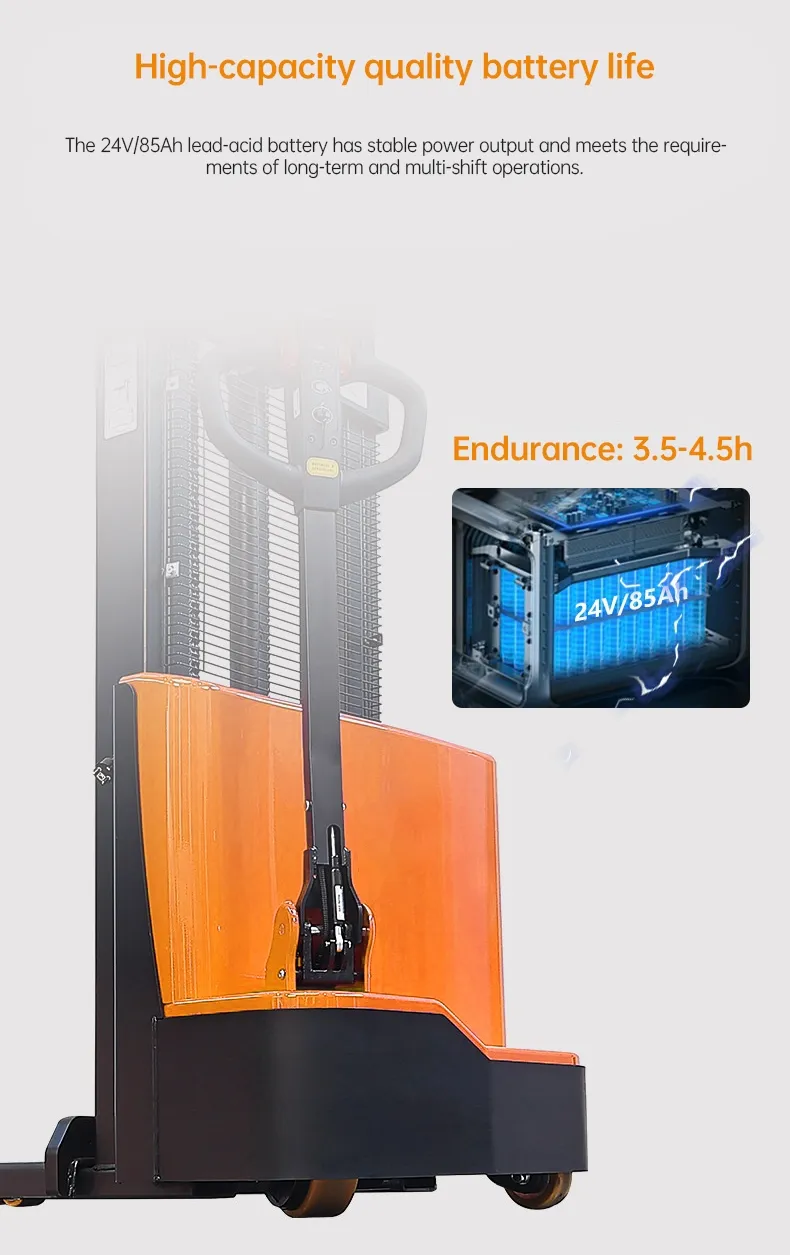

The ND15Q01LD is a 1.5T walk-behind electric pallet stacker designed for efficient warehouse stacking. It is equipped with a 24V85Ah Xupai battery offering long life and low-power protection. Powered by a 0.75kW drive motor and a 2.2kW lifting motor, it achieves speeds of 3.5/4km/h and a maximum lifting height of 2910mm.

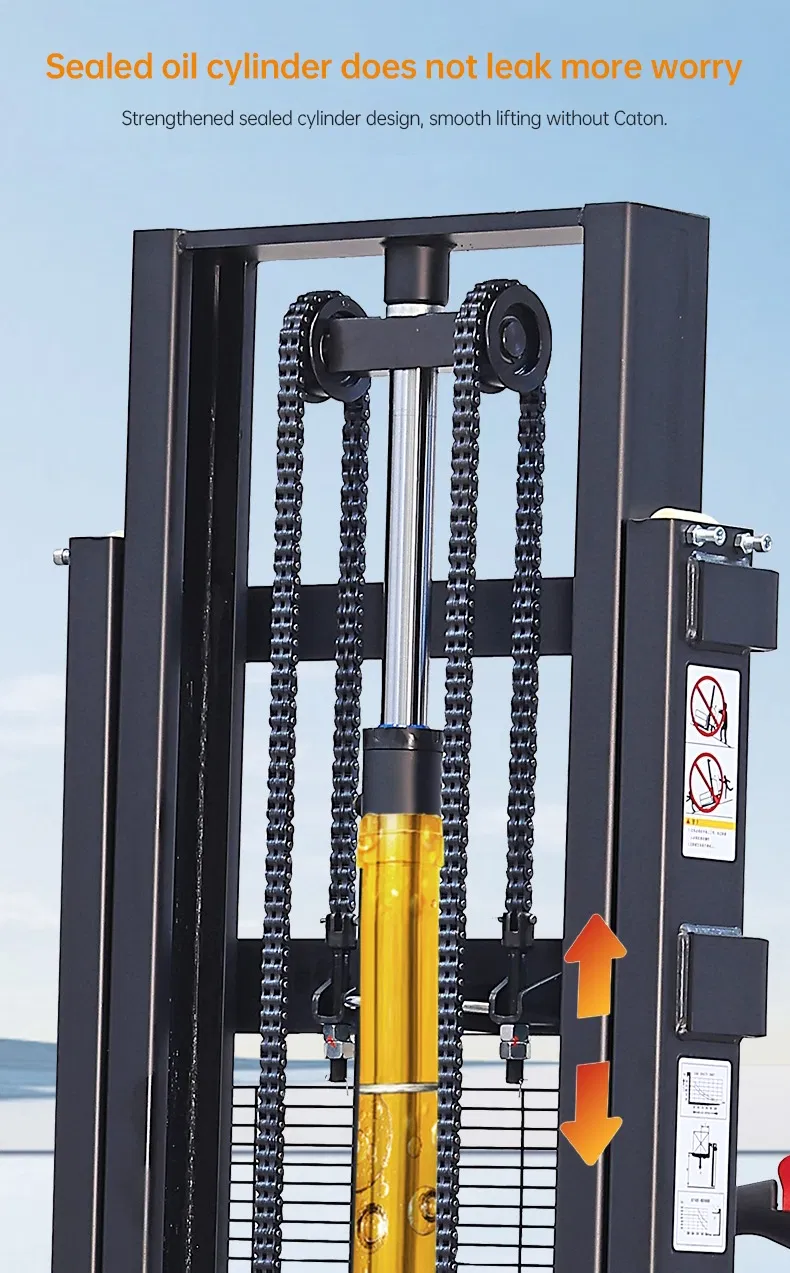

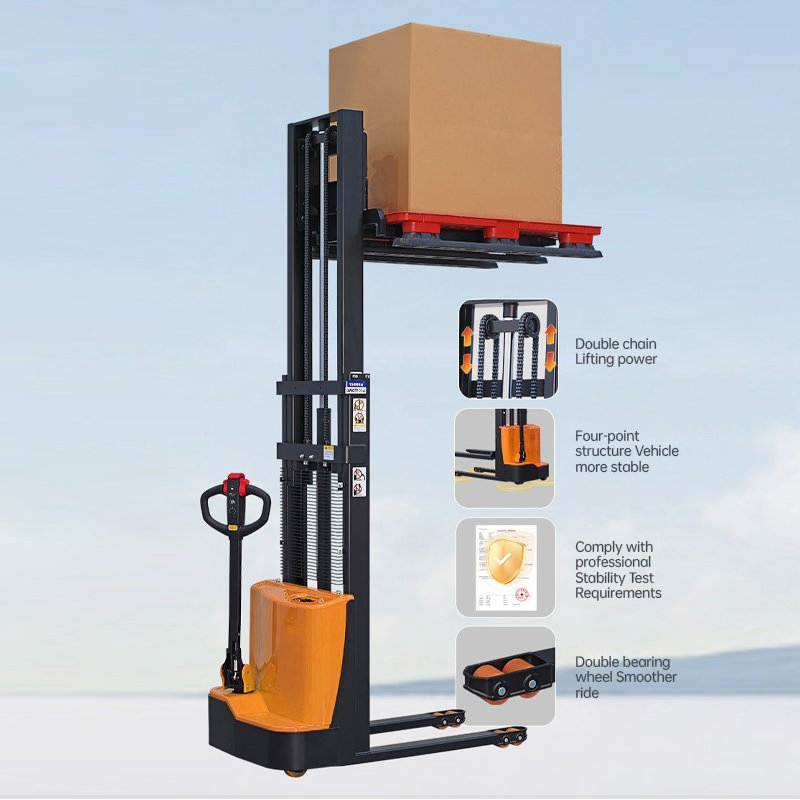

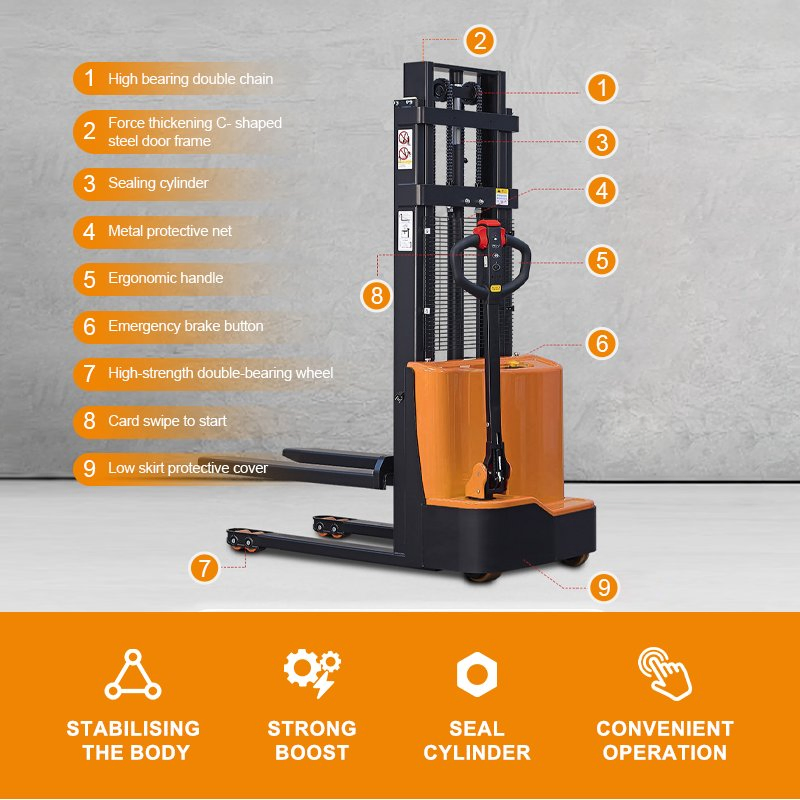

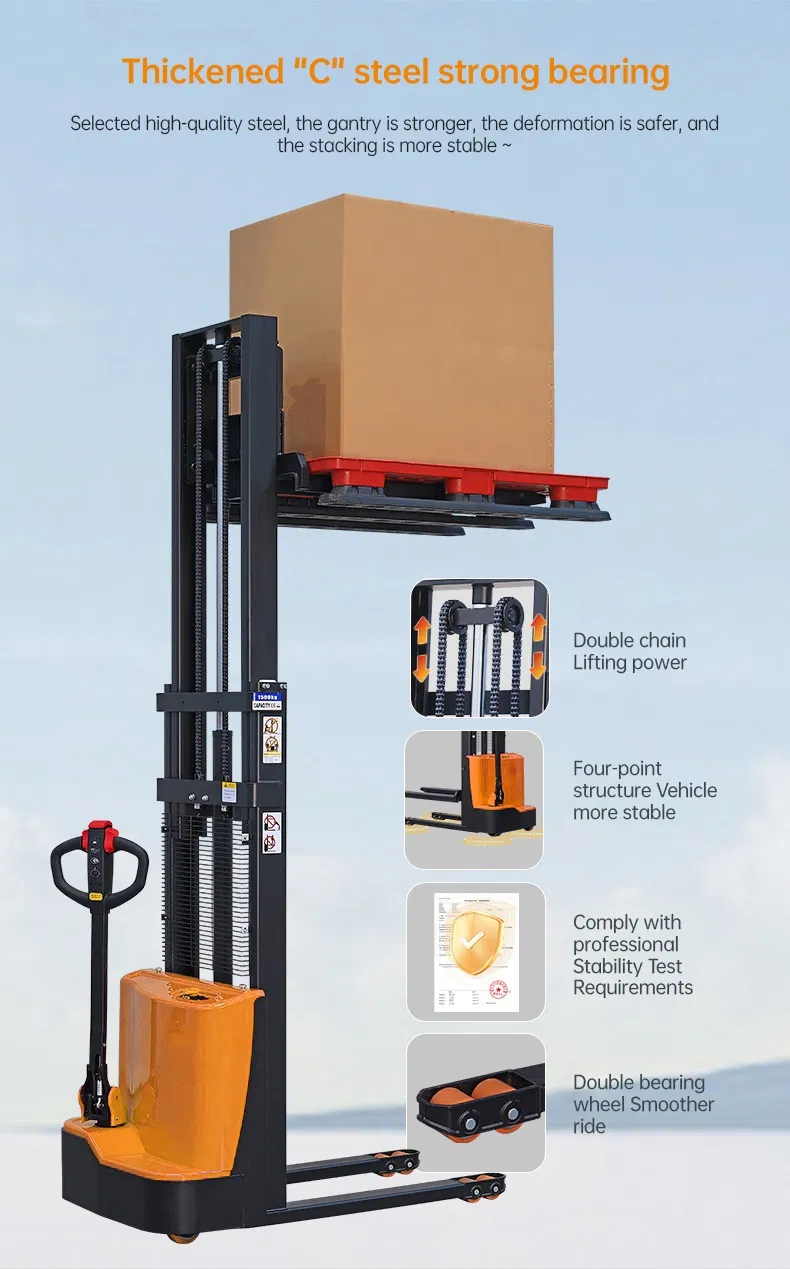

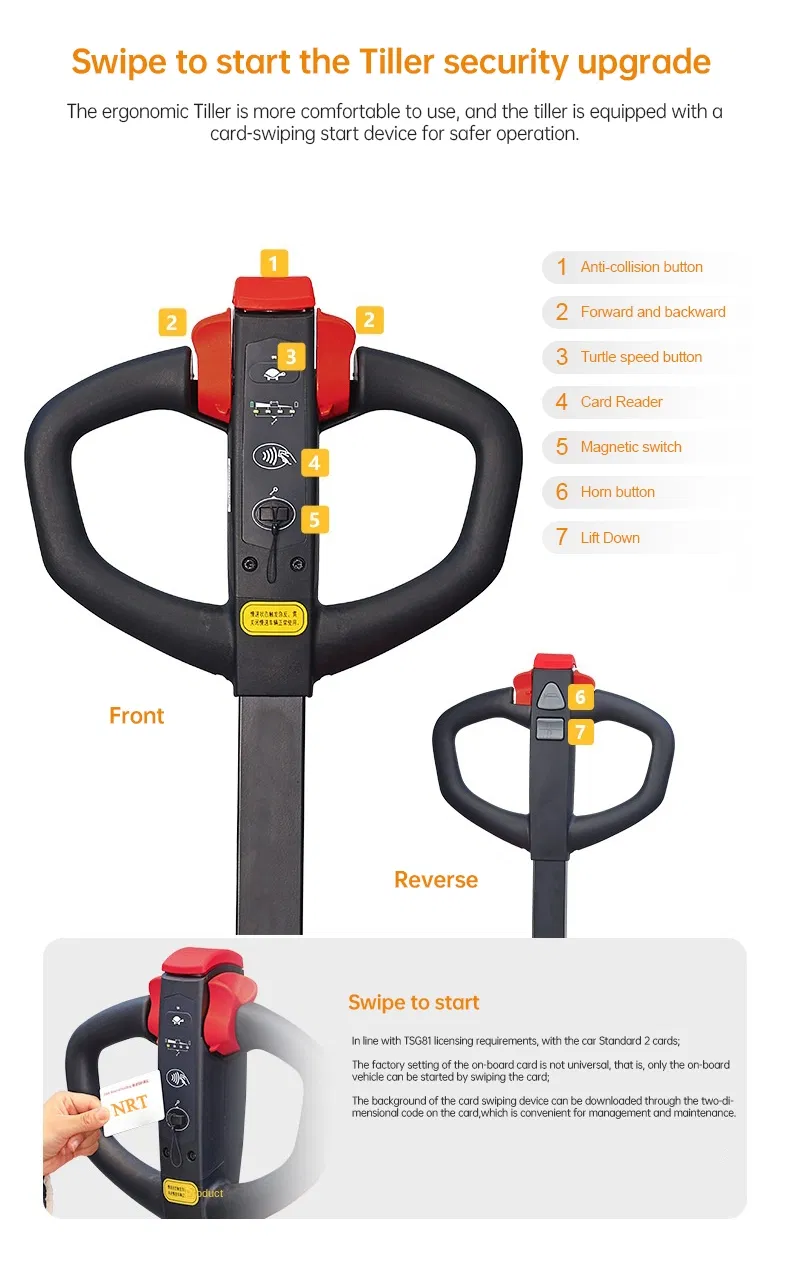

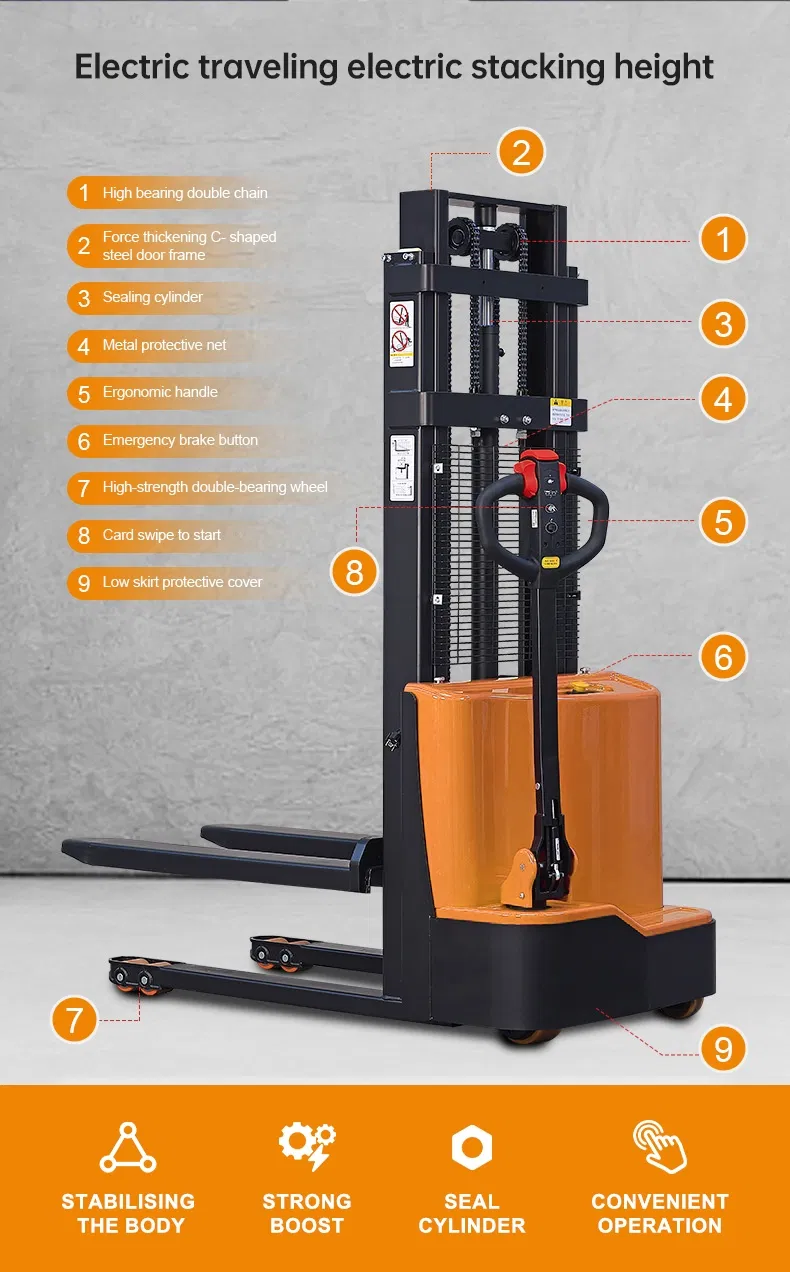

Key features include an integrated rubber-coated handle, one-click creep speed for narrow spaces, and a secure magnetic + card startup system. The C-type alloy steel mast (GB/T 26949.1 compliant) and dual load wheels ensure stability during operation.

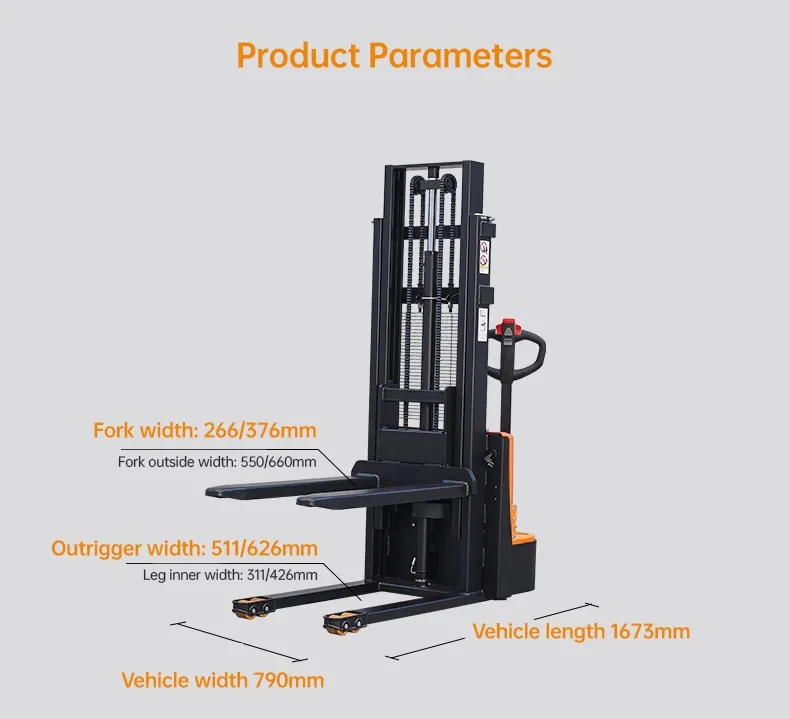

| Rated Load | 1500kg |
| Fork Size | 60x142x1150mm |
| Weight | 470kg |
| Driving Speed (Full/No Load) | 3.5/4km/h |
| Turning Radius | 1357mm |
| Battery Cycle Times | 400 times |
| Charging Duration | 8h |
| Package Size | 167.30cm * 66.00cm * 209.00cm |
| Gross Weight | 470.000kg |
| Lead Time | 31 days (1 - 1 pieces); To be negotiated (> 1 pieces) |
