High Precision Electric Pallet Lift Truck with 127X57mm Additional Wheels

1 / 5

High Precision Electric Pallet Lift Truck with 127X57mm Additional Wheels

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.CBD20/25/30R-II

TypePowered Pallet Truck

PowerAC Motor

Load Capacity2.0 Ton

FuelElectric

Lift height202 mm

Fork Dimensions53X180X1100(1150/1220) mm

Turning Radius1550/1600/1670 mm

Product Description

High Precision Electric Pallet Lift Truck with 127X57mm Additional Wheels

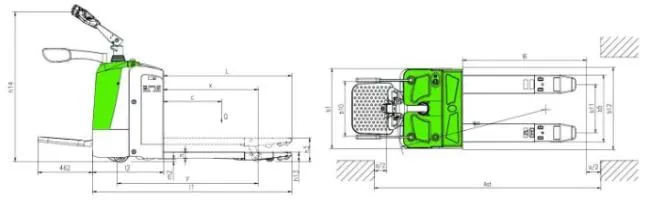

Technical Parameters

Model	Unit	CBD20R-II	CBD25R-II	CBD30R-II
Load capacity	Q(kg)	2000	2500	3000
Load center distance	c(mm)	600	600	600
Fork height, lowered	mm	82	82	82
Tyre size, front	mm	Dia250x70	Dia250x70	Dia250x80
Max. lift height	mm	202	202	202
Overall length	mm	1710/1760/1830	1710/1760/1830	1785/1835/1905
Travel speed, laden/unladen	Km/h	7/7.1	7/7.1	9/9.2
Battery voltage, nominal capacity	V/Ah	24/210	24/240	24/240(280)
Service weight (with battery)	Kg	720	750	780

Design & Advantages

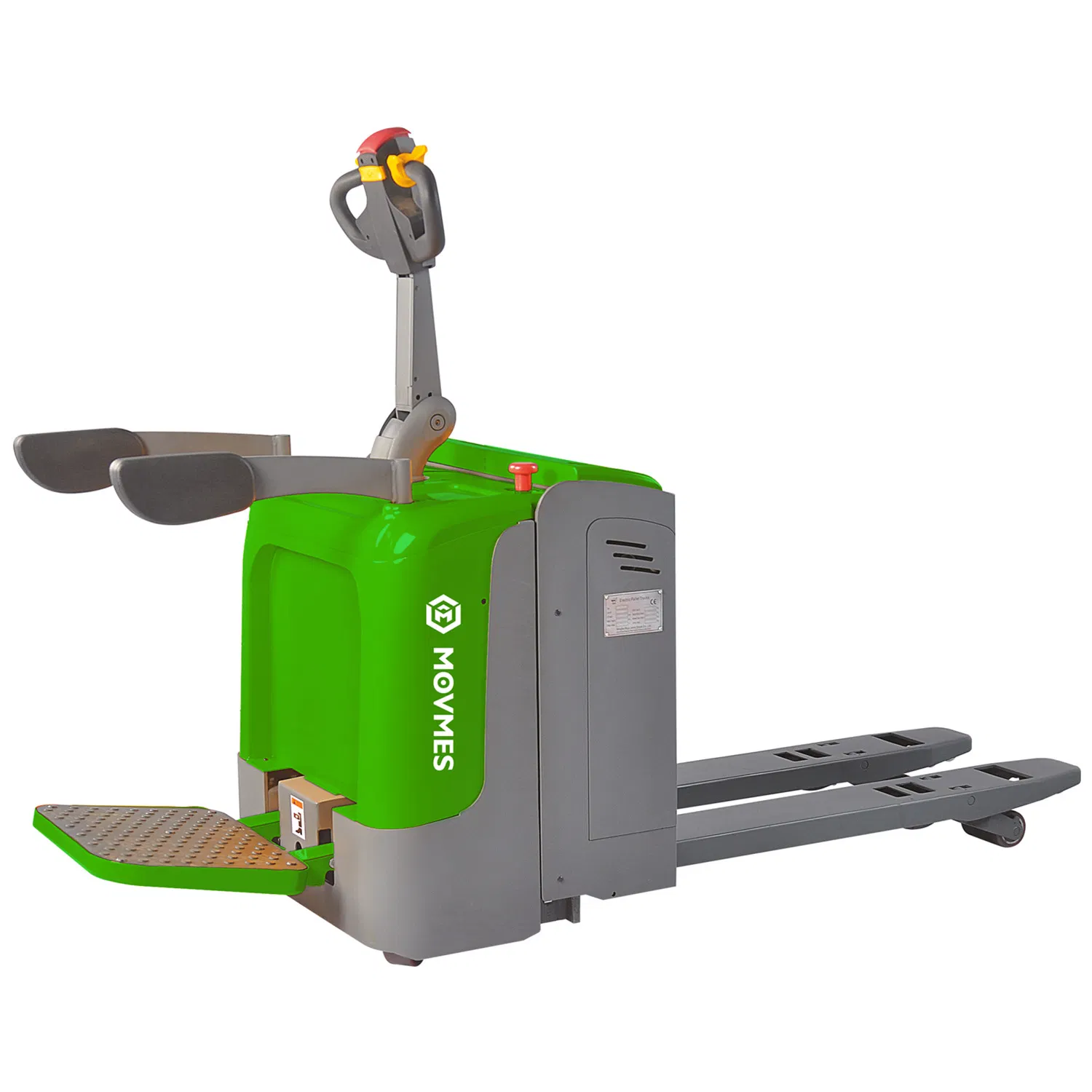

The stand-on type platform pallet truck features a small turning radius and a super light steering system. It is widely used in large warehouses and big supermarkets for medium-distance transport.

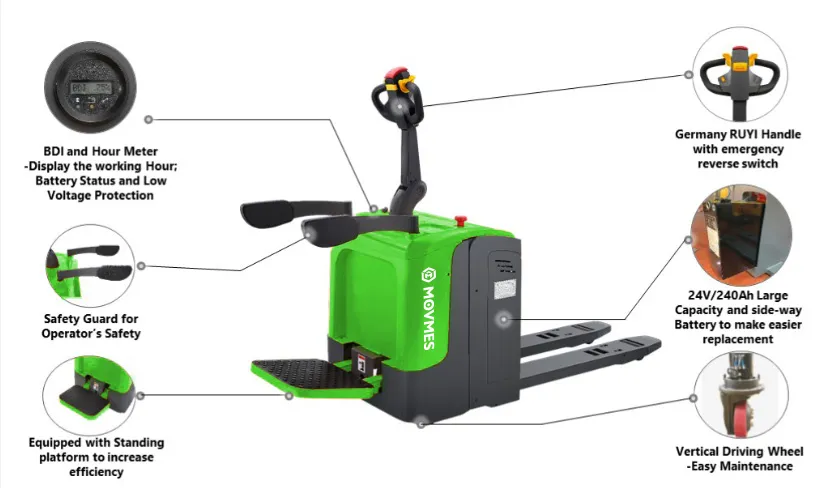

Standard Features:

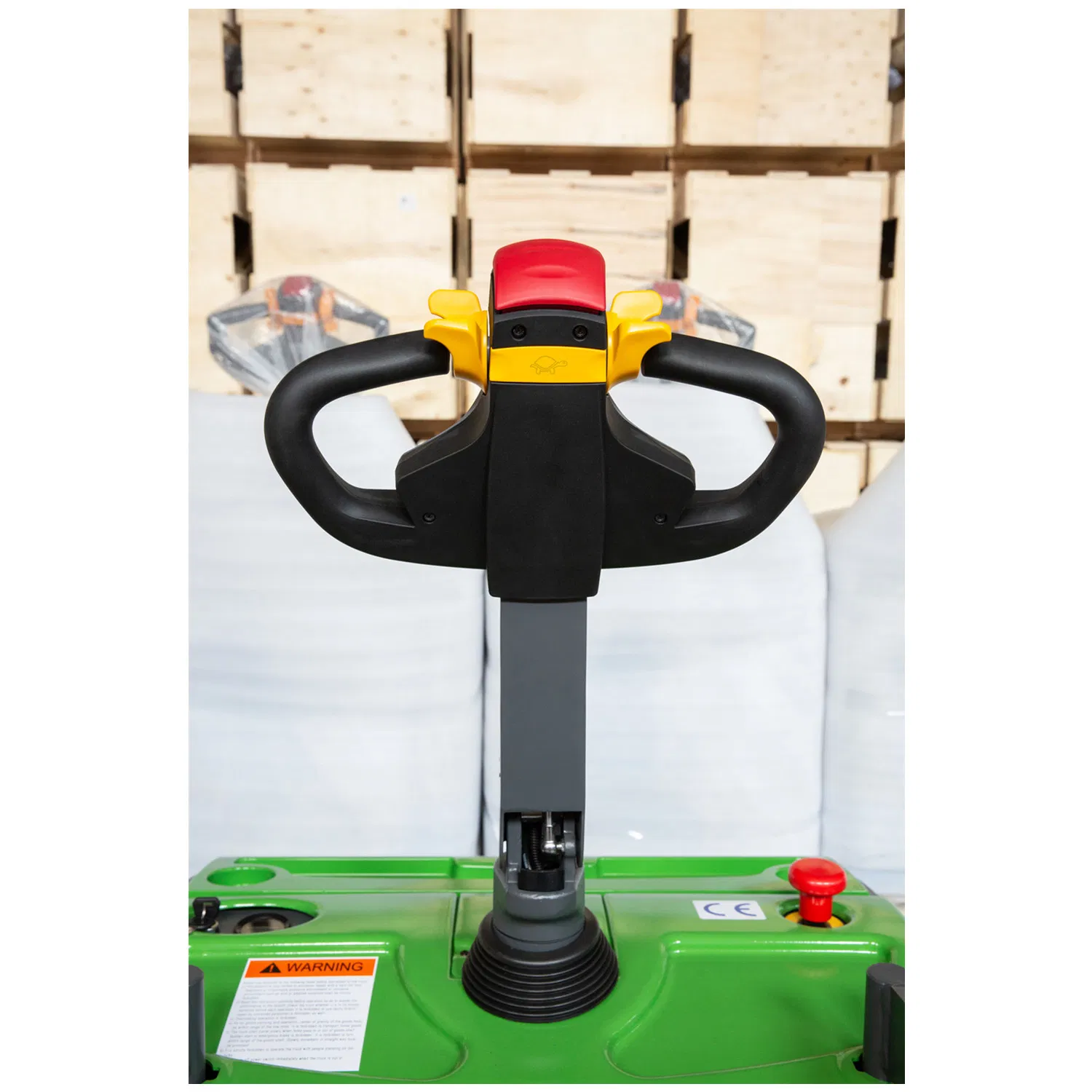

Professional handle system

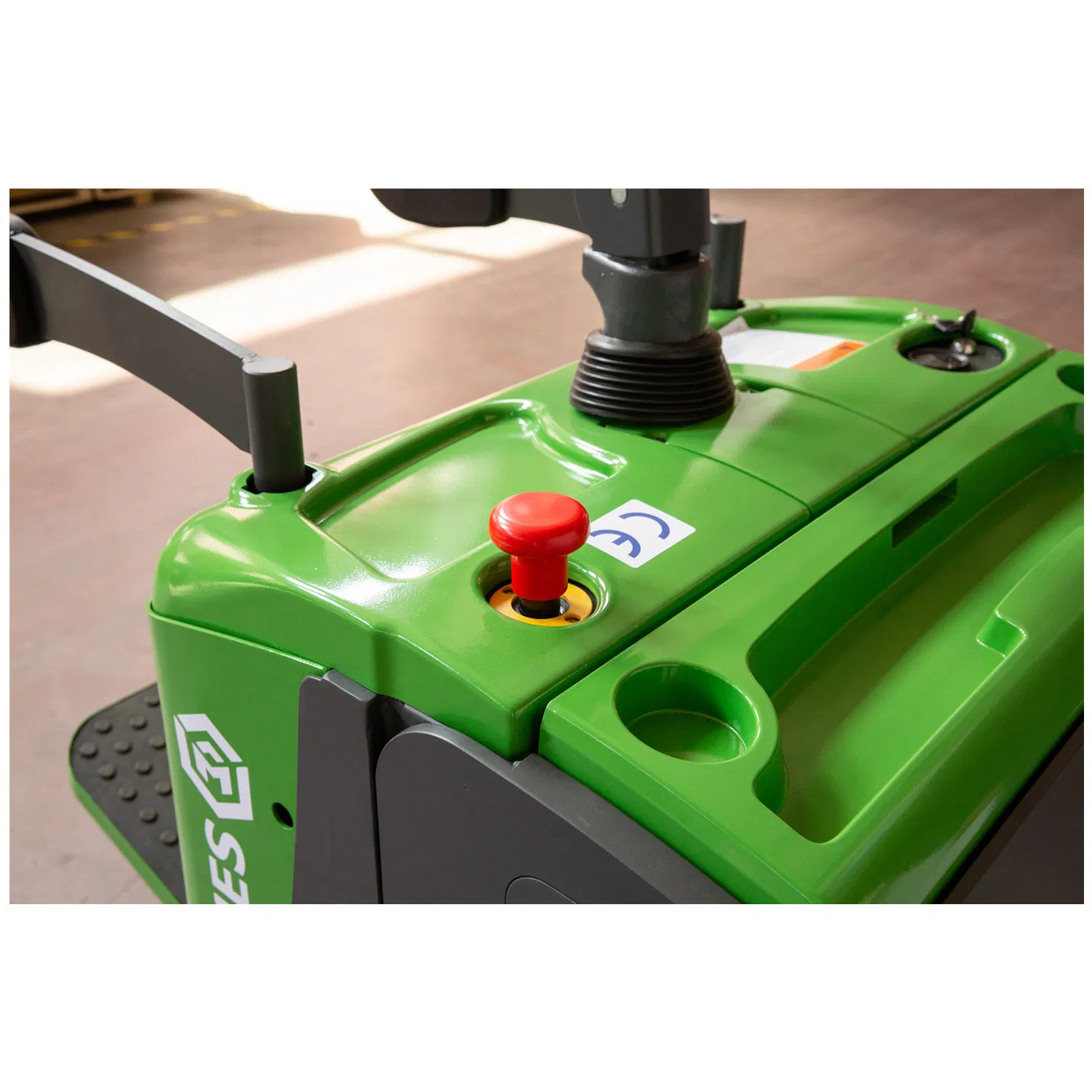

Emergency stop & belly button
BDI and hour meter

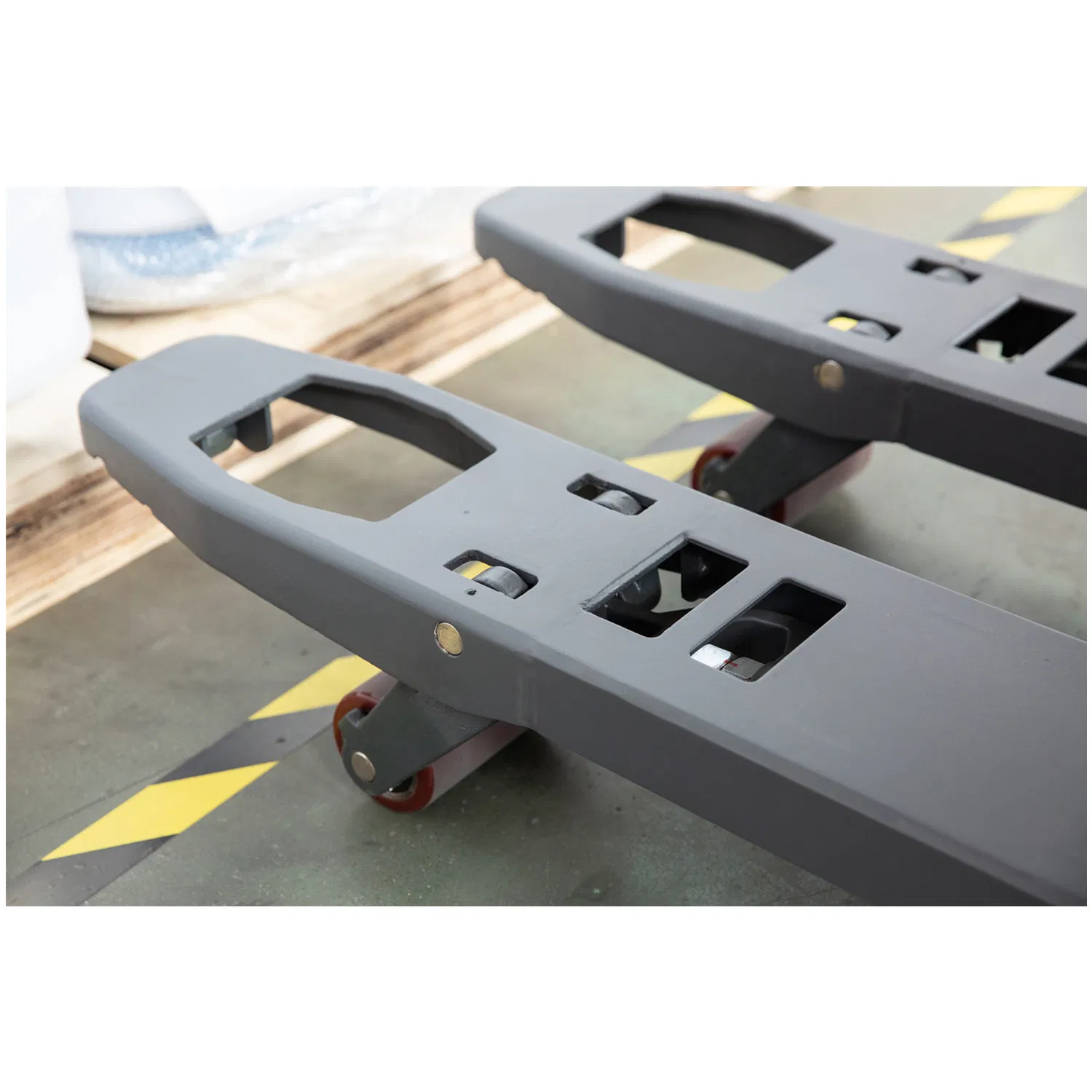

Casters to balance stability
Brushless AC motor & Vertical driving motor

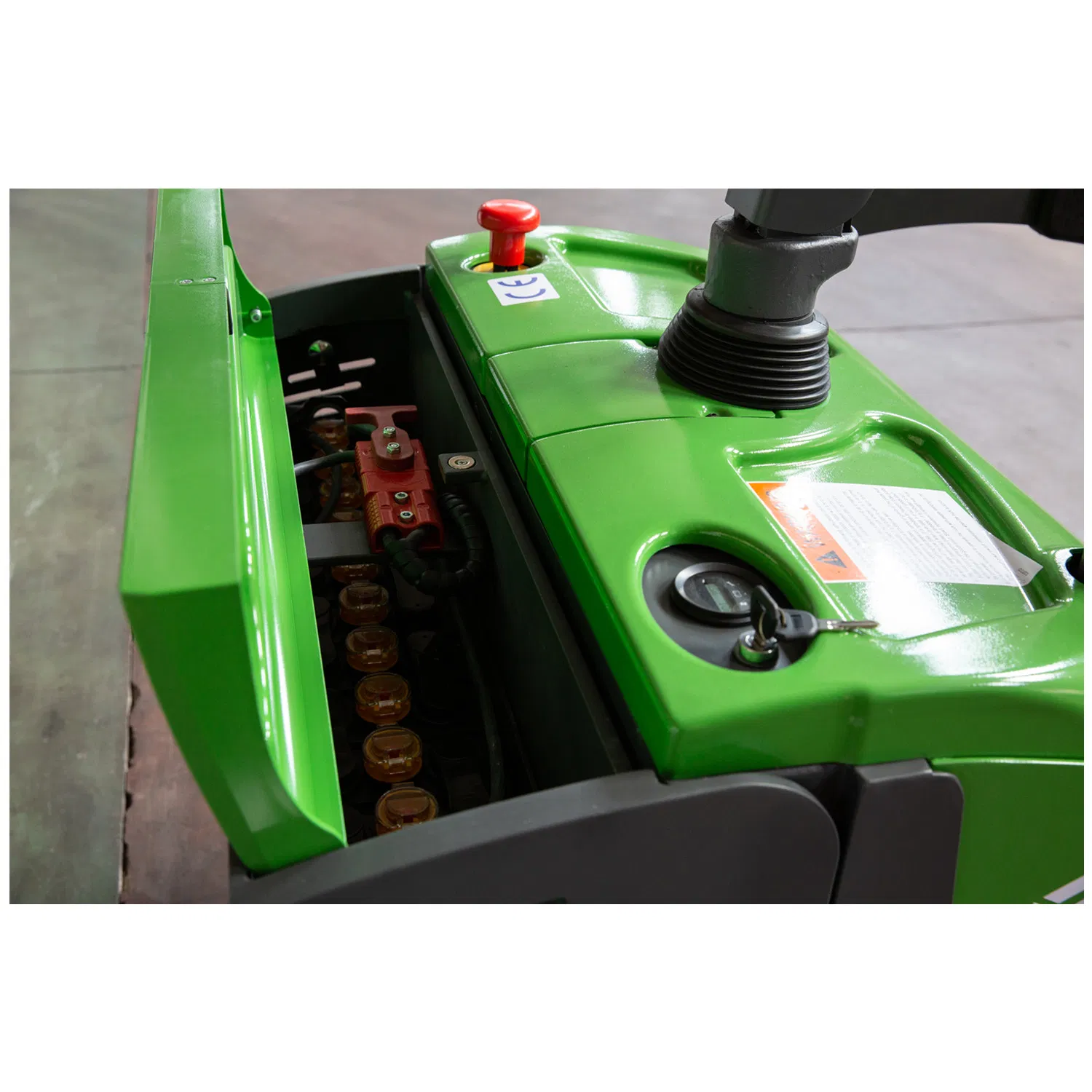

Sideway battery change system

Related Hot Sales

CBD15 Electric Truck

Lithium Electric Truck

Hand Pallet Truck

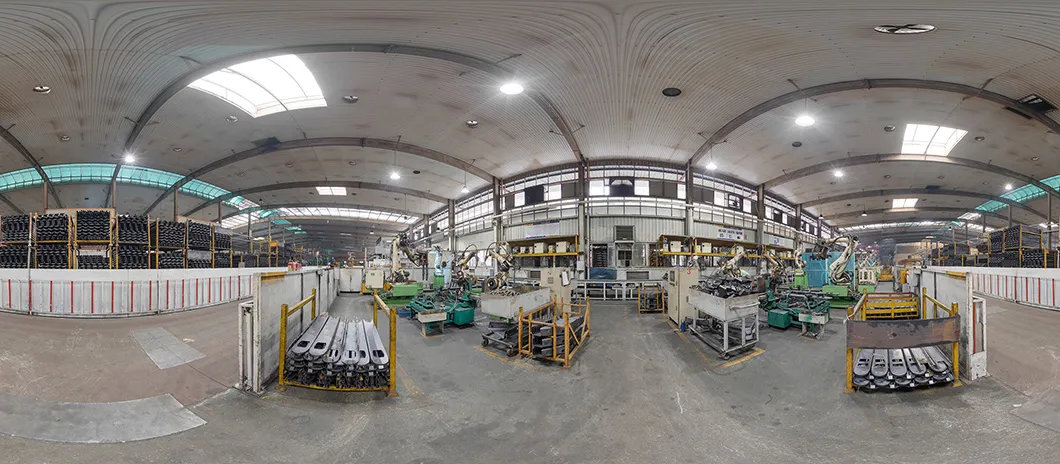

Quality Assurance & Testing

Every truck undergoes a rigorous five-item test before delivery to ensure maximum safety and performance:

Strengthening test detection
Stability detection
Climbing performance and current detection
Braking performance debugging
Technical parameters verification

Frequently Asked Questions

Q1: How long is the continuous working time and charging time? The battery continuous working time is approximately 3-6 hours depending on the volume. Full charging typically takes 3-6 hours.

Q2: What are the specifications for the chargers? Chargers are available in 24V/48V. We provide power plugs compatible with USA, UK, Australia, and European standards.

Q3: Do you provide customized OEM or ODM products? Yes, we have extensive experience in developing and producing warehouse logistics equipment and offer professional OEM services.

Q4: What is the warranty period for the products? We provide a one-year warranty. During this period, wearing parts damaged by non-human factors are provided free of charge.

Q5: Is the battery easy to replace? Yes, the truck is designed with a sideway battery change system and a roll-out system for very convenient replacement.

Q6: What safety features are included? The truck includes an emergency stop button, a belly button for operator safety, and a platform equipped with speed sensors.
