✓ 2000kg / 2500kg / 3000kg Weight Capacity
✓ 3.75mm Thickness Steel Plate Construction
✓ One-Piece Integrated Casting Pump

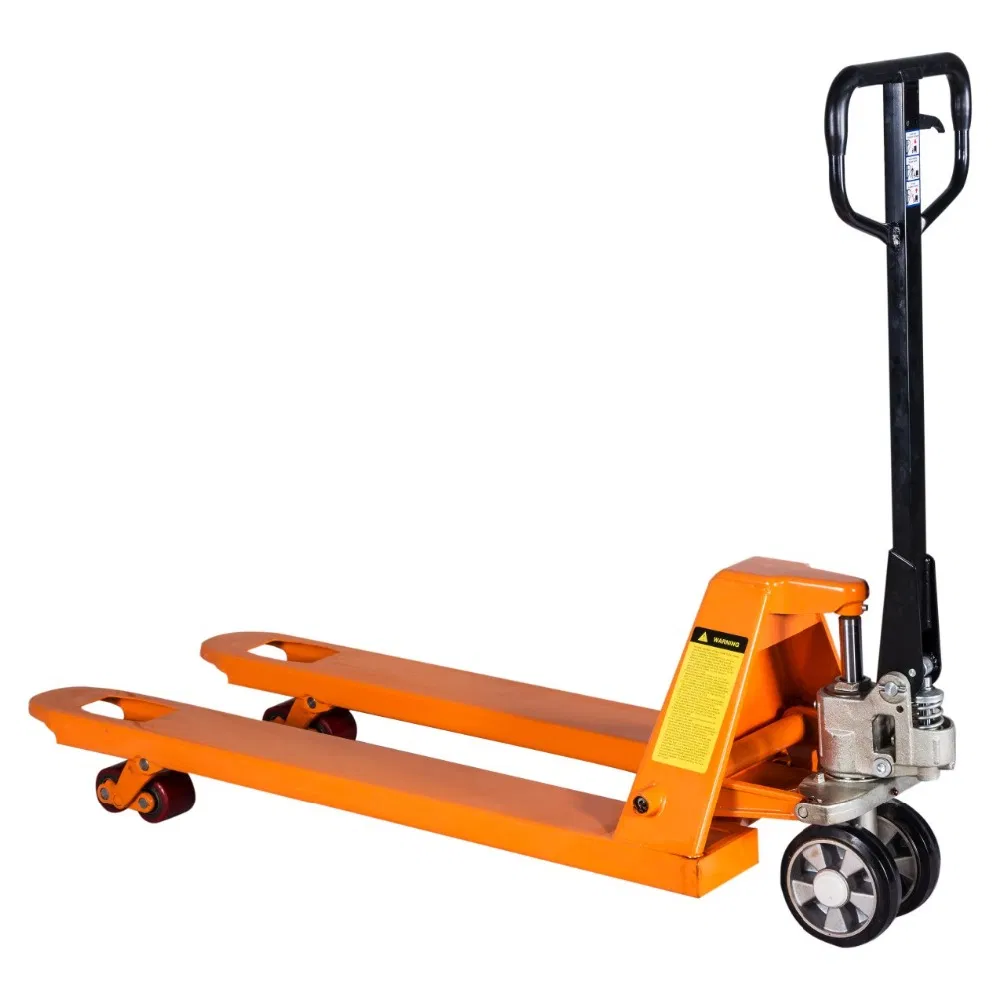

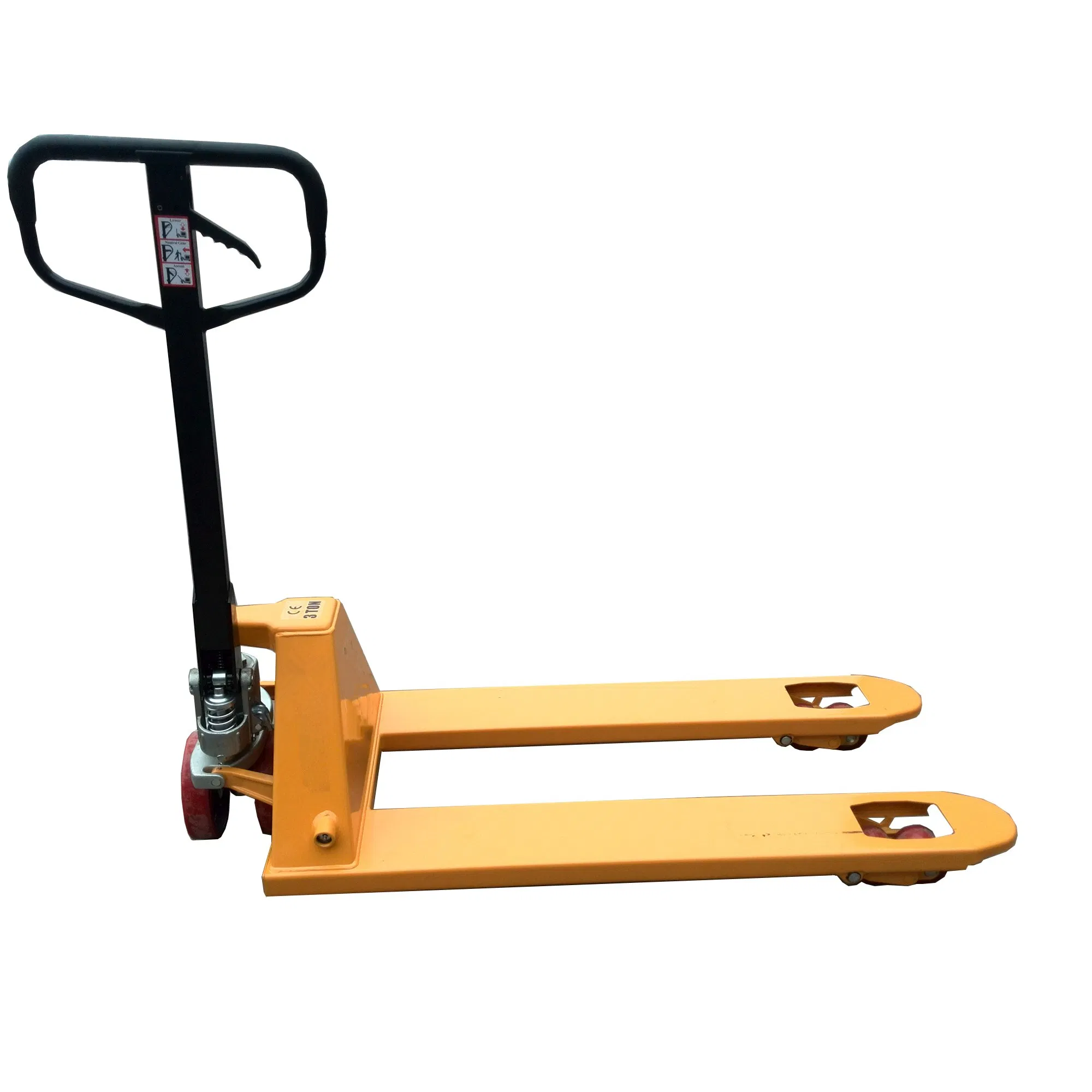

Standard pallet jack suitable for diverse applications including horizontal transport, order picking, loading/unloading, and stacking. Features a robust hydraulic pump design, cast in one piece to maintain oil integrity and prevent floor leaks. Configuration options available for wide-ranging industrial needs.
Service: 7*24Hrs Online Support | Warranty: 2-Year Long Term Warranty

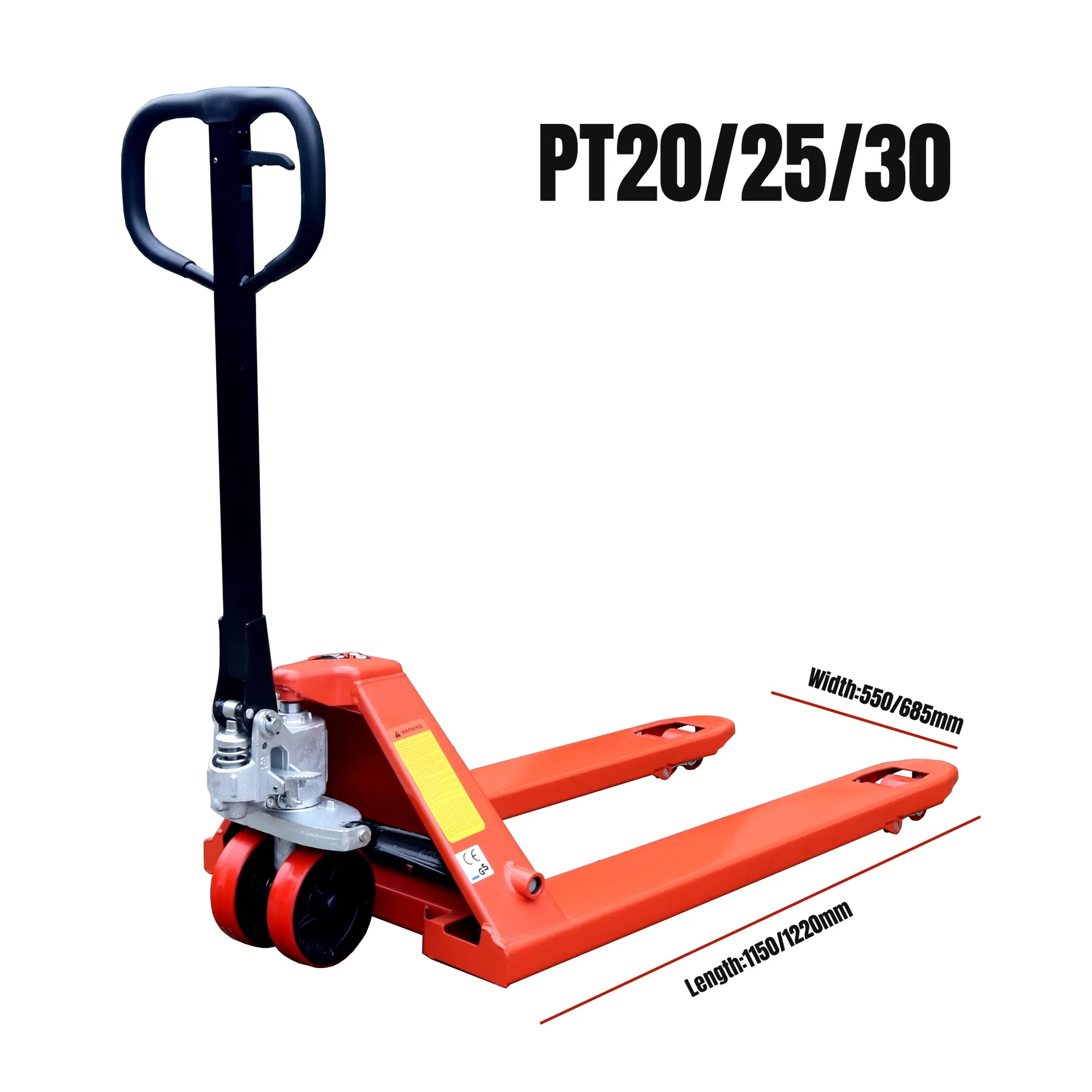

| Model | PT20 | PT25 | PT30 |
|---|---|---|---|
| Load Capacity(kg) | 2000 | 2500 | 3000 |
| Wheel Size, Front(mm) | 180*50 | 180*50 | 180*50 |
| Wheel Size, Rear(mm) | 80*70 | 80*70 | 80*70 |
| Min. Fork Height(mm) | 75/85 | 75/85 | 75/85 |
| Max. Fork Height(mm) | 190/200 | 190/200 | 190/200 |
| Overall Length(mm) | 1150/1220 | 1150/1220 | 1150/1120 |
| Overall Width(mm) | 550/685 | 550/685 | 550/685 |
| Fork Dimensions(mm) | 55*160*1150/1220 | 55*160*1150/1220 | 55*160*1150/1220 |

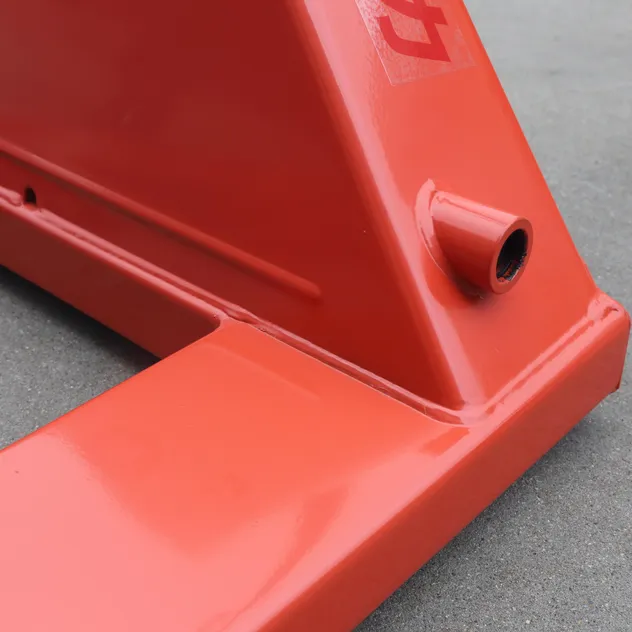

Strong Steel Instrument
Q235B Stainless Steel for decontamination and rust-free operation.

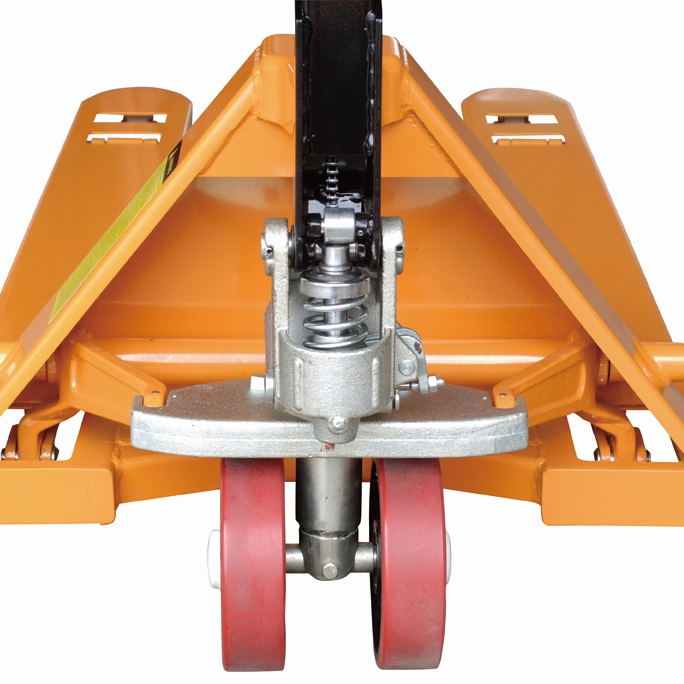

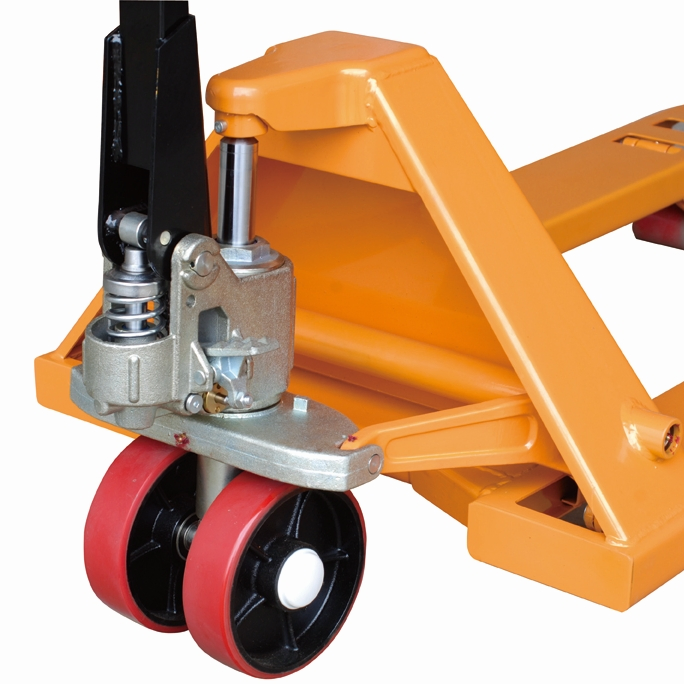

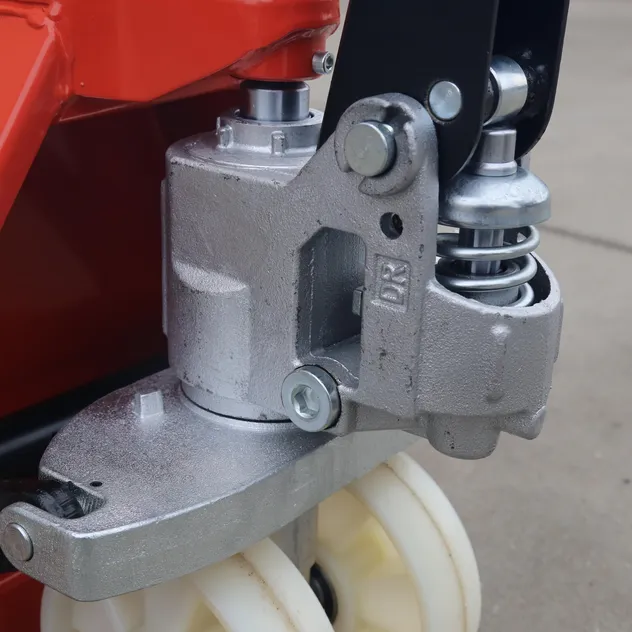

Integrated Pump
Reliable leak-proof hydraulic pump with German-made seal kits.

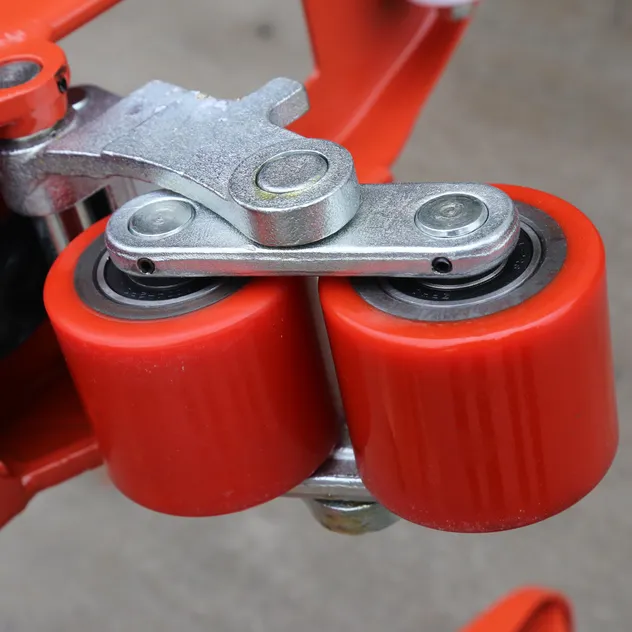

Durable Wheels
Smooth Nylon and PU wheels with low rolling resistance.

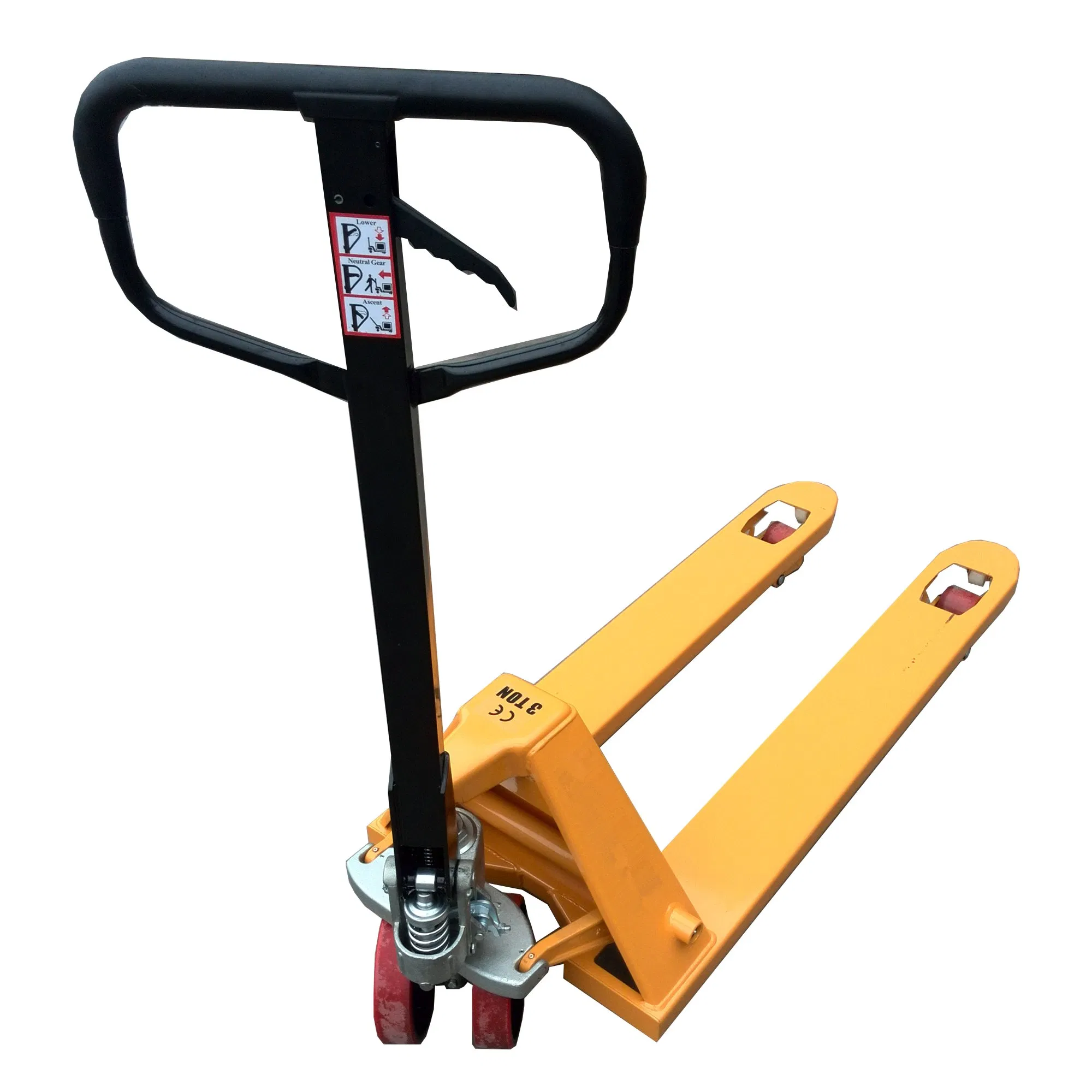

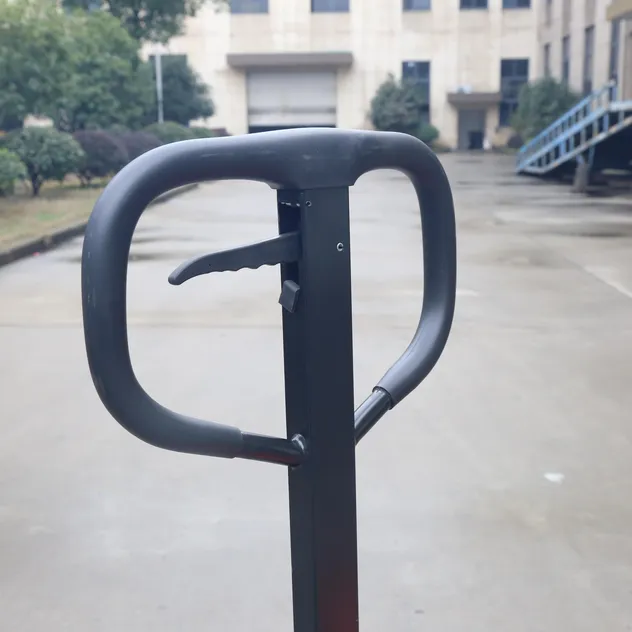

Ergonomic Handle
Loop handles with hand control for comfortable and efficient use.

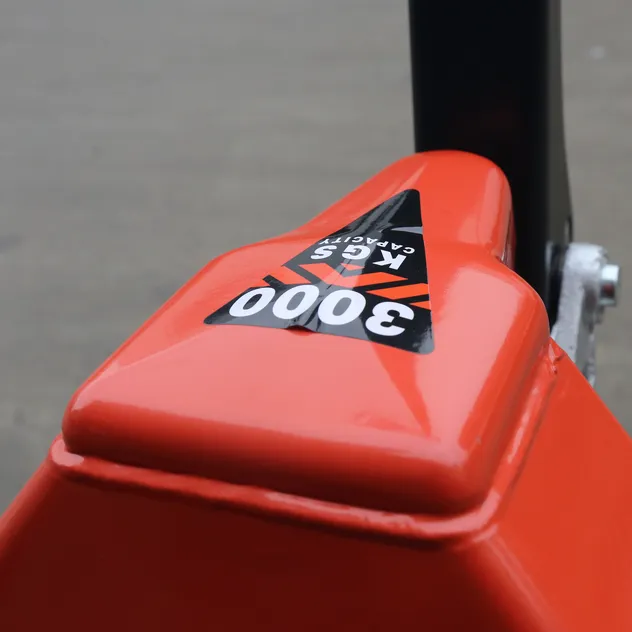

Solid Design
Patented triangular top cap design for superior stability.

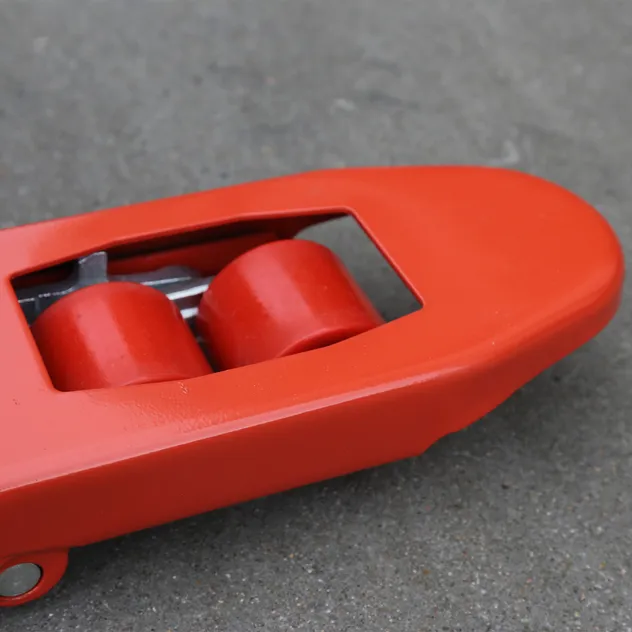

Robust Steel Fork
Flattened ends fitted with entry/exit rollers for easy pallet access.

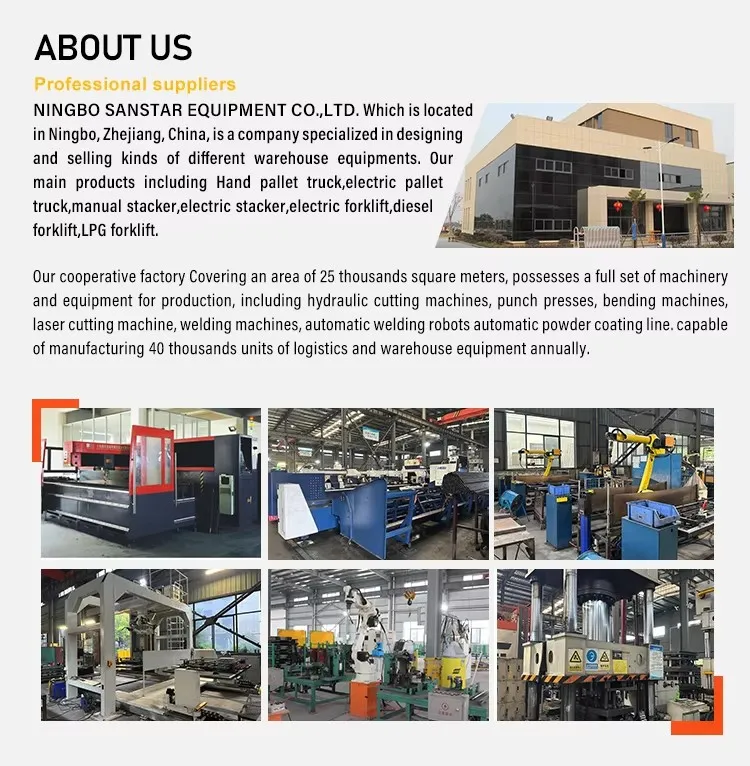

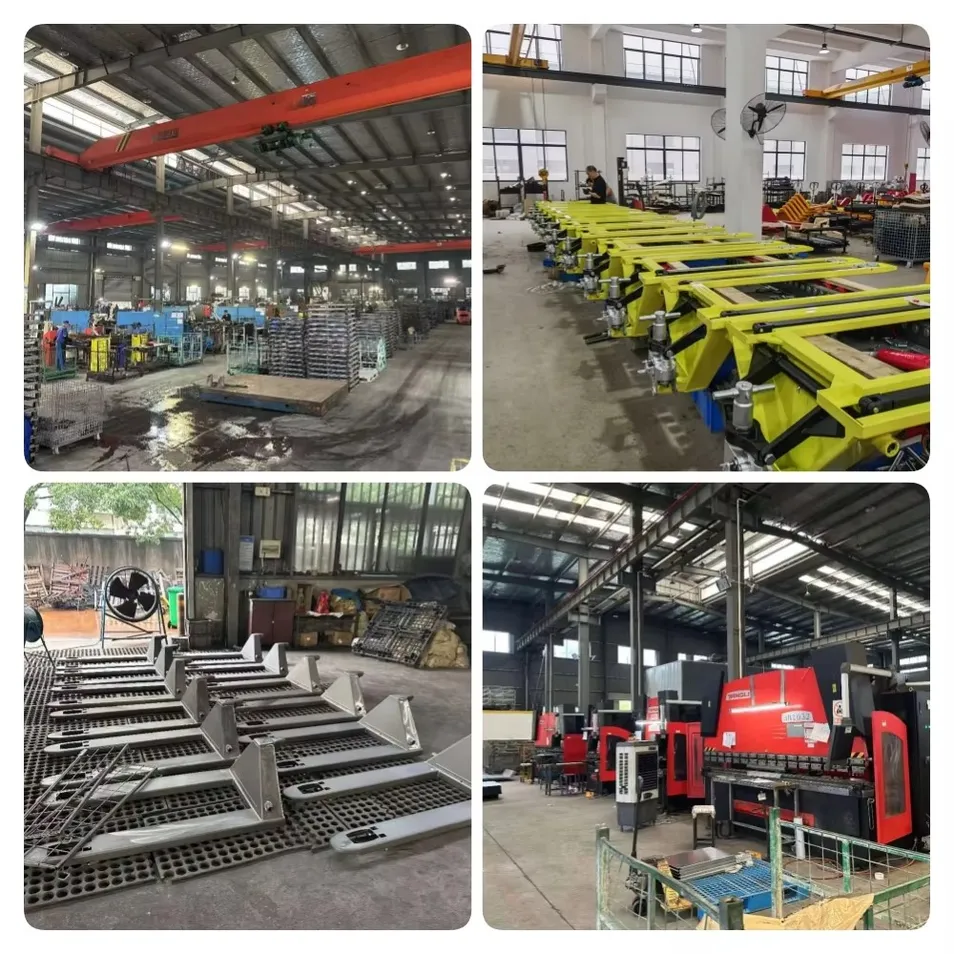

★Professional Expertise
Over 10 years of manufacturing experience and rich export history to 30+ countries.
★Cost-Effective Quality
Built with Q235B 3.75mm thickness steel and high-quality integrated pumps.
★Strong Packaging
Standard export wooden pallet or steel package for safe international delivery.
