| Model NO. | SPN1016F, SPN1033F, SPN1516F, SPN1533 |
|---|---|
| Type | Bridge Stacker & Reclaimer |
| Capacity | 1000kg, 1500kg, 2000kg |
| Max. Lifting Height | 1600~3500mm |
| Min. Height Of Forks | 85MM |
| Load Center | 600MM |
| Overall Length | 1807MM |
| HS Code | 8427900000 |
| Production Capacity | 2000 Pieces / Month |
| Specification | CE |

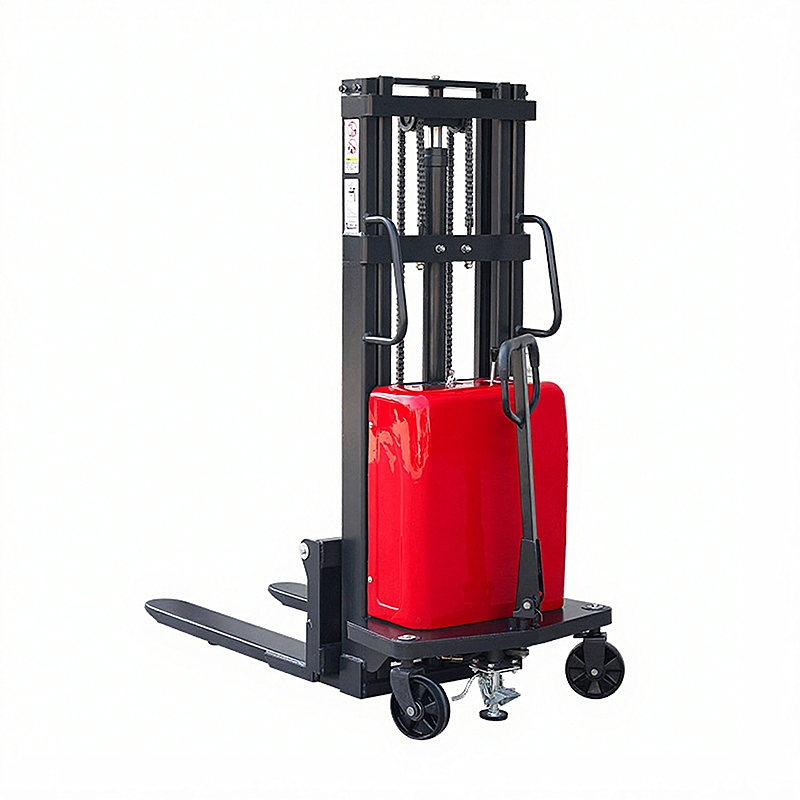

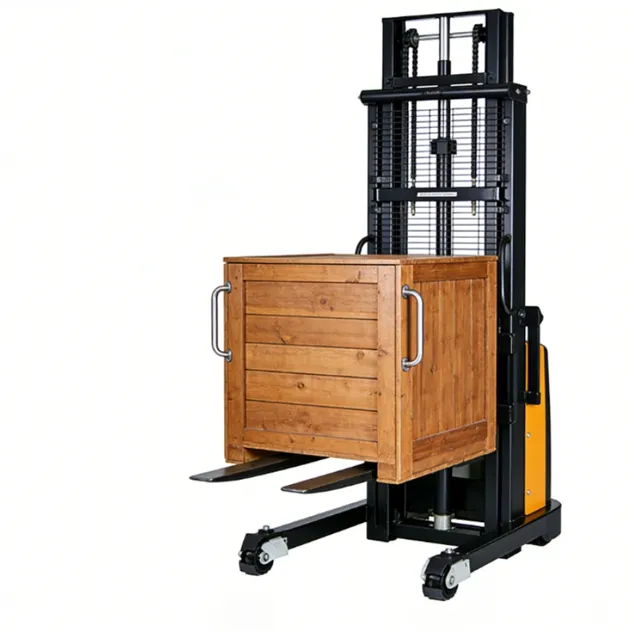

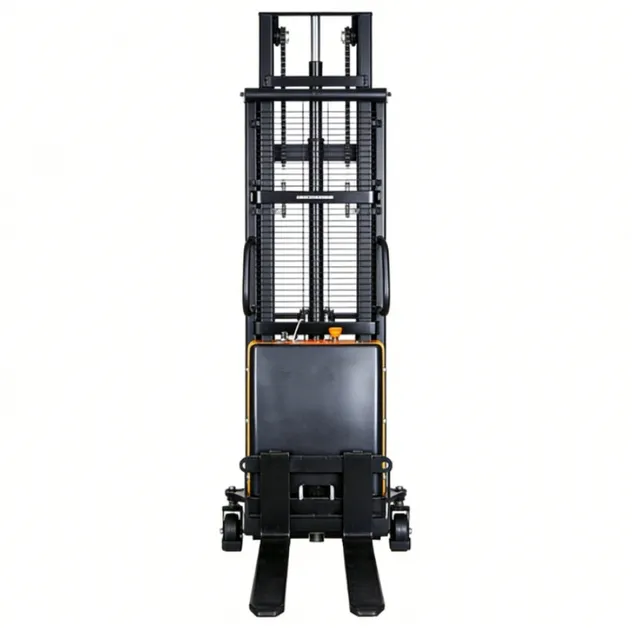

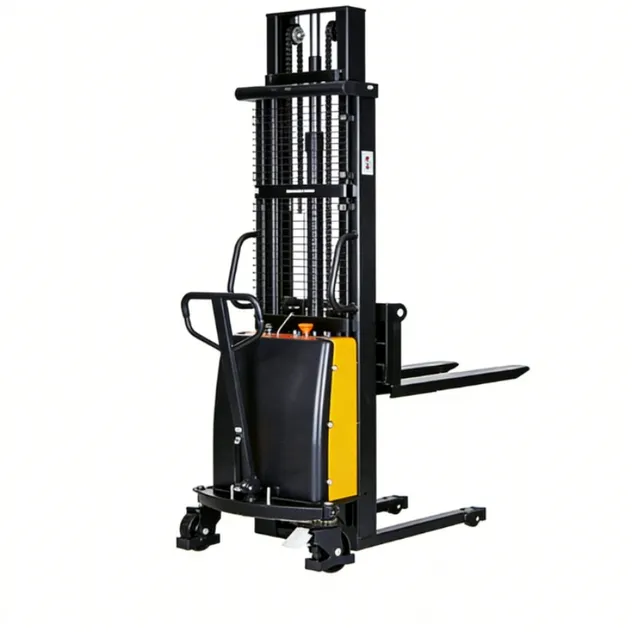

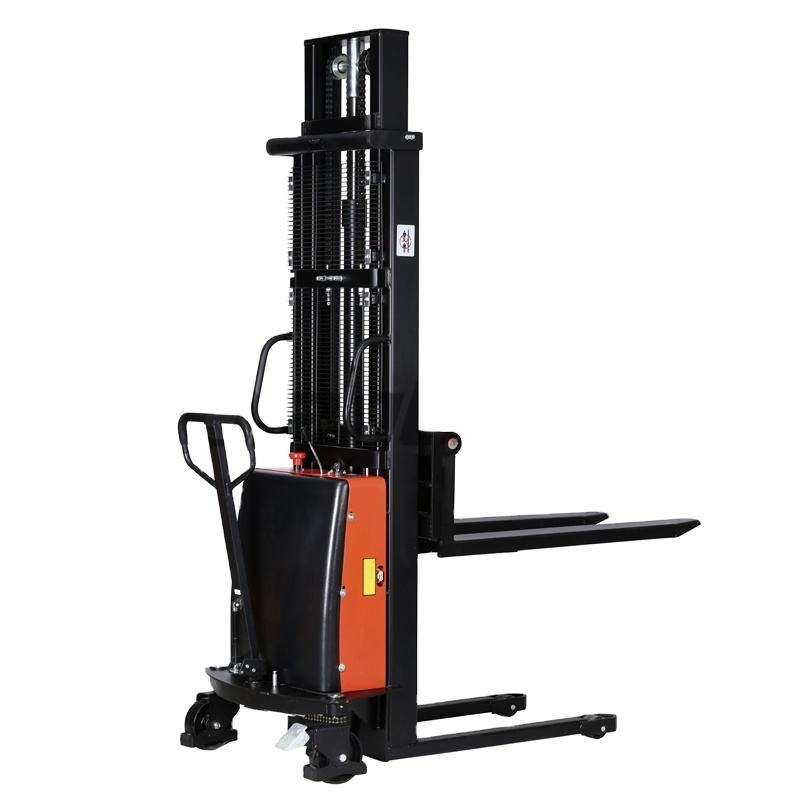

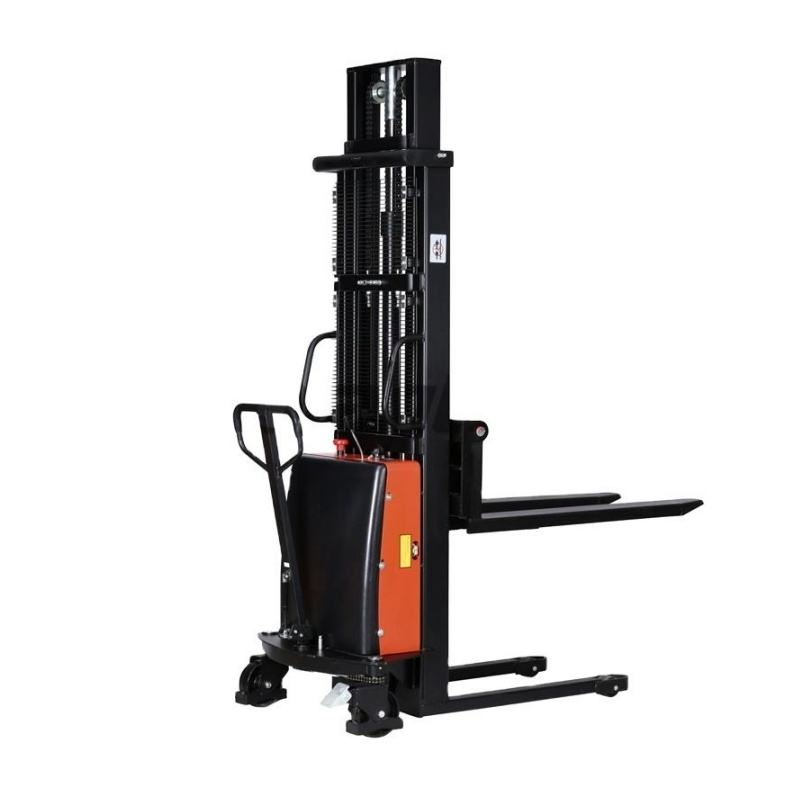

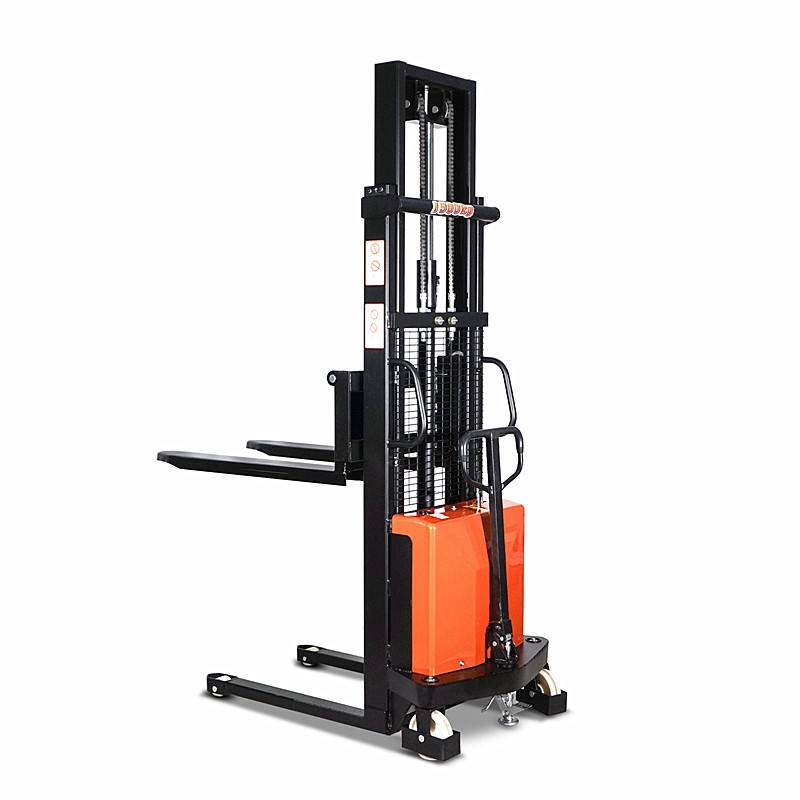

Built for durability and reliability in demanding daily operations, the stacker offers exceptional stability and precise control. Its ergonomic features, including an ultra-low fork design and optimized weight distribution, ensure safe and easy loading even in confined spaces. By empowering your team to handle heavy loads with minimal effort and maximum safety, the SPN Series Semi-Electric Stacker becomes a cornerstone of a smarter, more ergonomic, and highly productive workflow.
| Model Parameter | SPN1016F / 1516F | SPN1025F / 1525F | SPN1030F / 1530F | SPN1035F / 1535F | SPN2016F / 2020F |
|---|---|---|---|---|---|
| Load Capacity (kg) | 1000 / 1500 | 2000 | |||
| Max. Fork Height (mm) | 1600 | 2500 | 3000 | 3500 | 1600 / 2000 |
| Load Center (mm) | 600 | ||||
| Min. Fork Height (mm) | 85 | ||||
| Fork Dimension (mm) | 1150 × 160 × 56 | ||||
| Overall Length (mm) | 1807 | ||||
| Lift Motor (Kw) | 1.6 | ||||
| Battery (Ah/V) | 120 / 12 | ||||
