| Model NO. | EPL154 | Type | Pallet Jack |
| Power | DC Motor | Load Capacity | 1.5ton |
| Fuel | Electric | Load Center | 600mm |
| Lift Height | 115mm | Condition | New |
| Fork Size | 50X150X1150mm | Certification | CE/ISO9001 |
| Battery | 24V/30ah | Turning Radius | 1330mm |

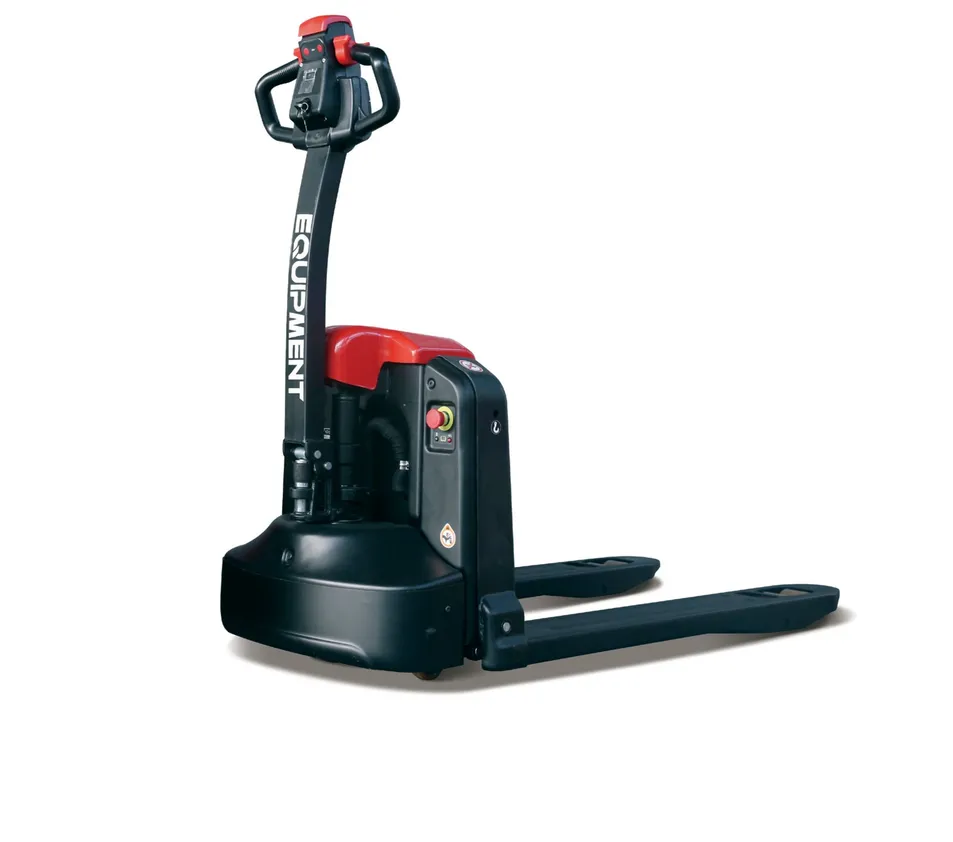

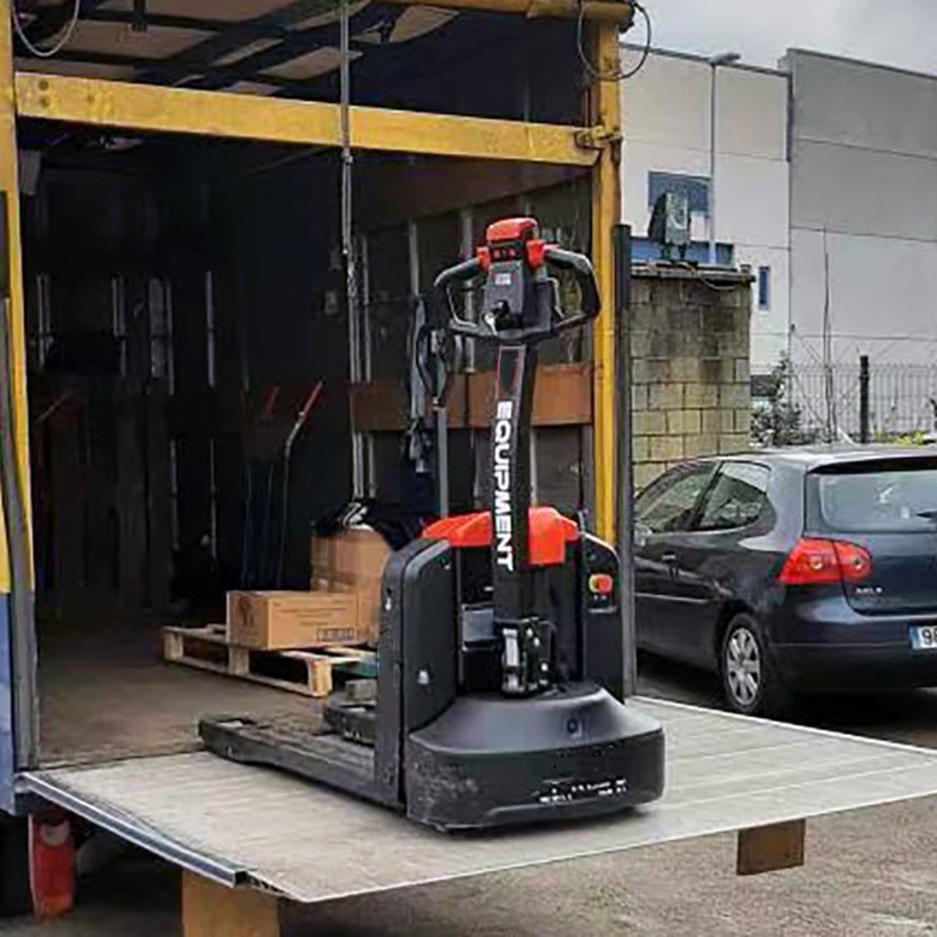

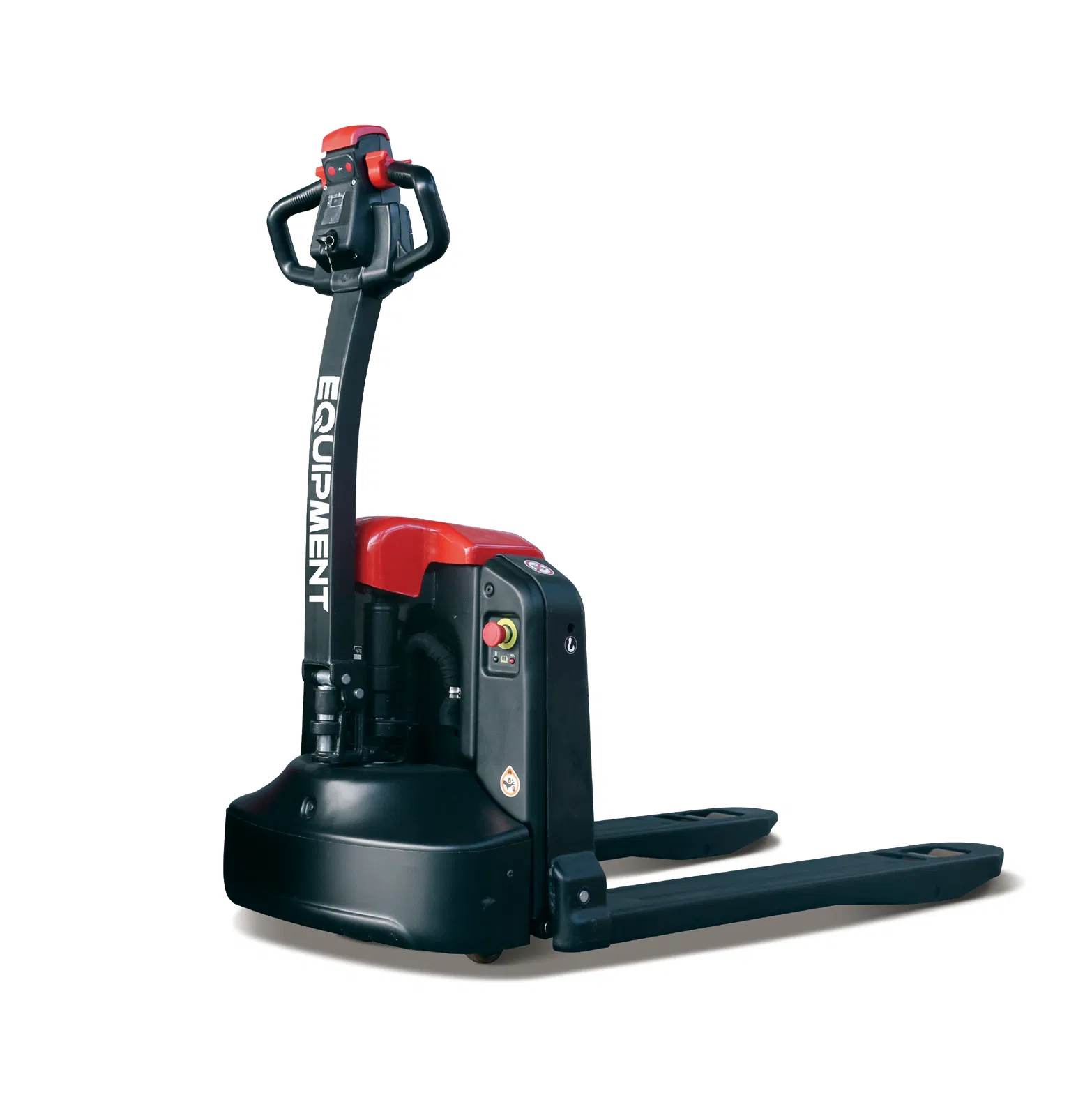

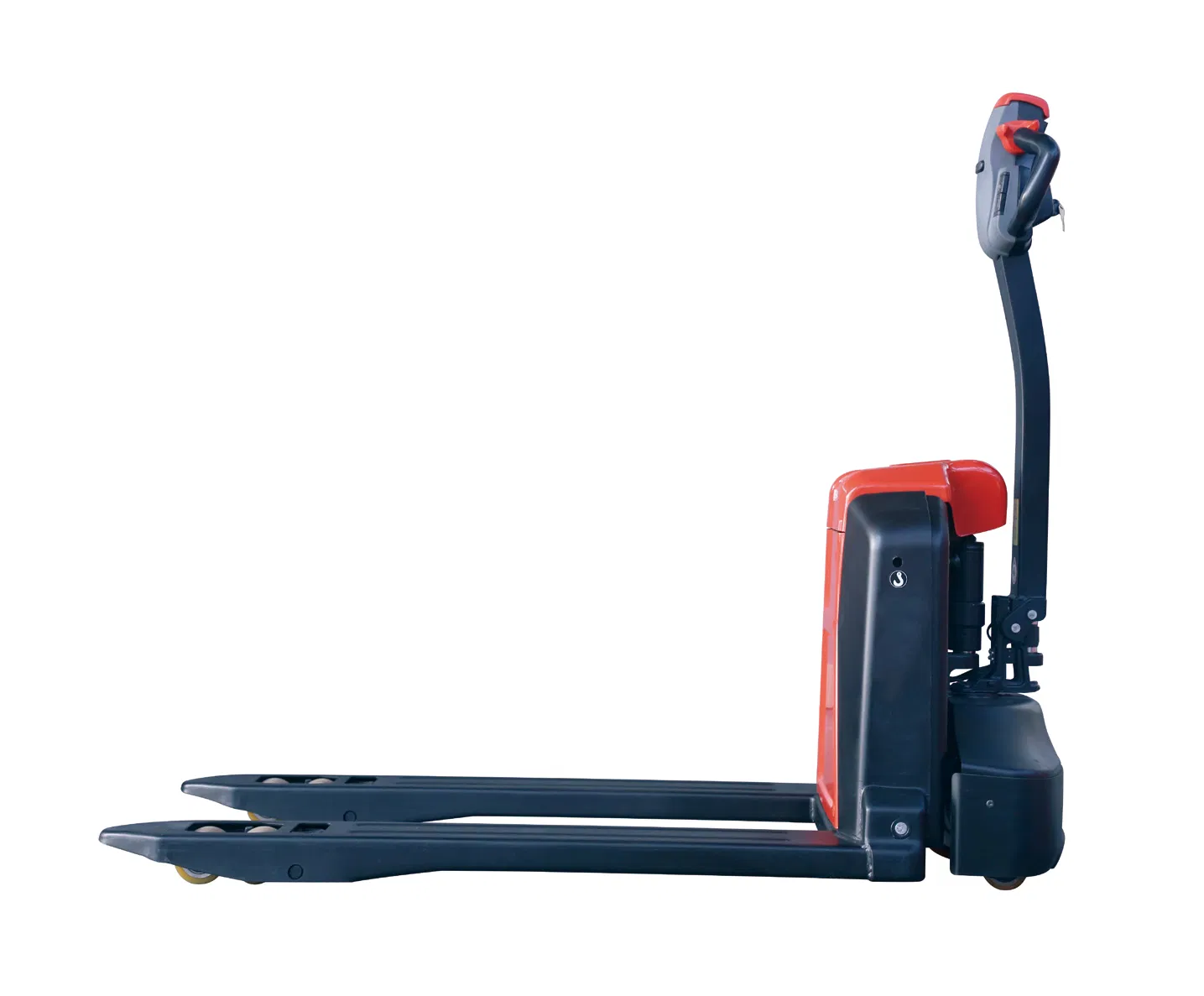

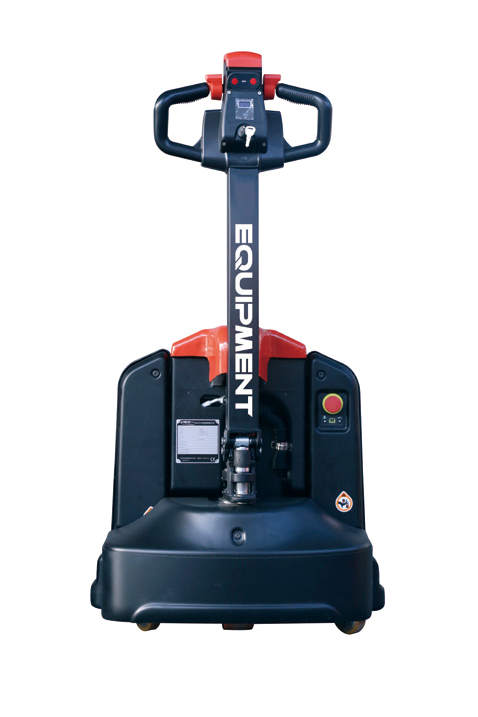

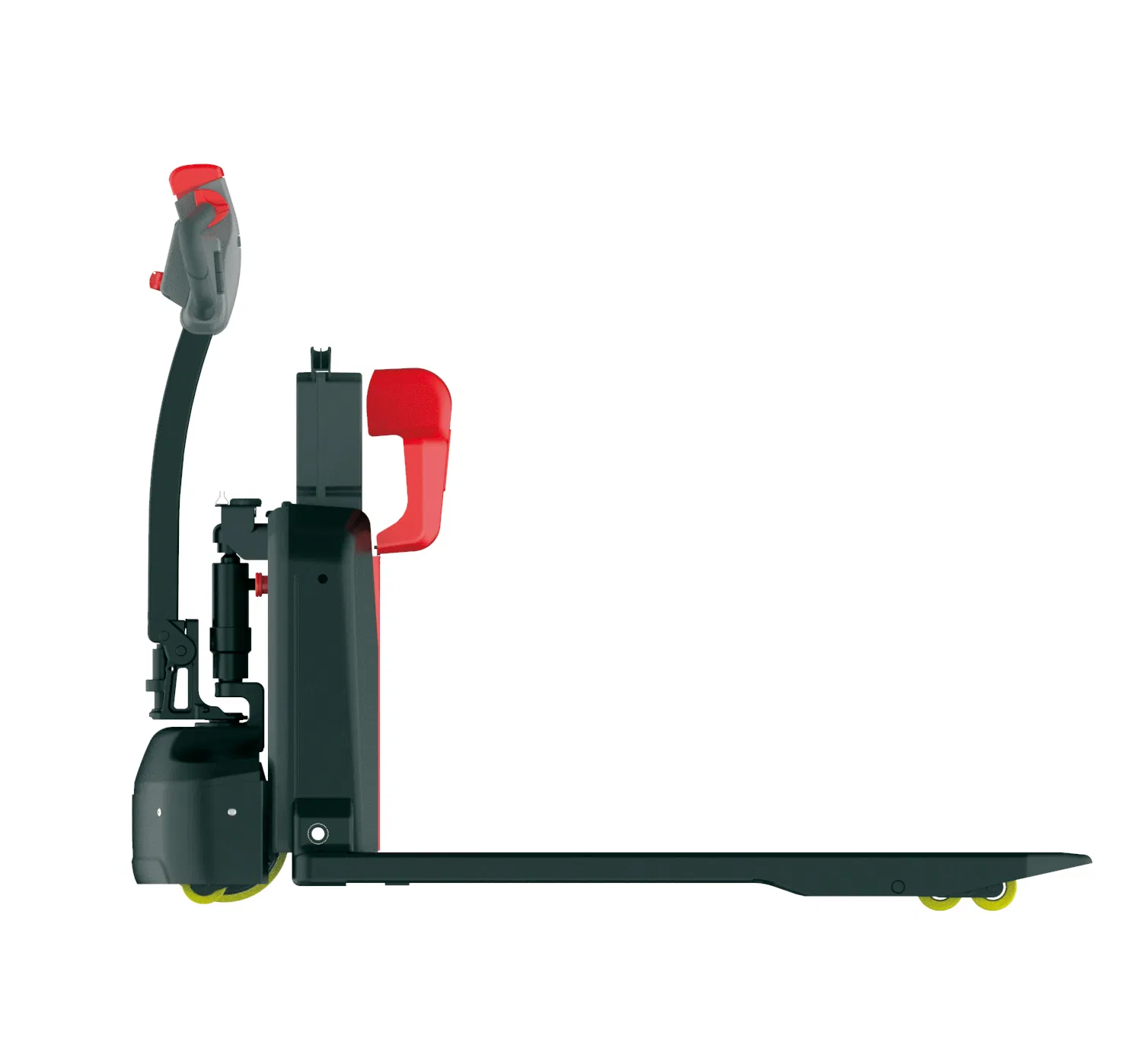

Semi Electric Lithium Battery Hydraulic Pallet Truck
The EPL 154 is the next generation electric pallet truck. Equipped with a newly developed Li-Ion battery and integrated chargers for maximum flexibility. Due to its compact size of only 400mm to face of forks, these are perfect for any standard application in warehouses, logistics and industry.
EPL154: equipped with a 30Ah 24V Battery and a 0.75kW motor, suitable for normal daily operations.
| Item | Description | Unit | Parameter |
|---|---|---|---|
| 1.2 | Model | - | EPL154 |
| 1.3 | Drive | - | Electric |
| 1.5 | Load capacity | Q (kg) | 1500 |
| 1.6 | Load center distance | c (mm) | 600 |
| 2.1 | Service weight | kg | 160 |
| 4.4 | Lift height | h3 (mm) | 115 |
| 4.19 | Overall length | l1 (mm) | 1550 |
| 4.22 | Fork dimensions | s/e/l (mm) | 50x150x1150 |
| 4.35 | Turning radius | Wa (mm) | 1330 |
| 5.1 | Travel speed, laden/unladen | km/h | 4.5/5.0 |
| 6.4 | Battery voltage/capacity | V/Ah | 24V/30Ah |

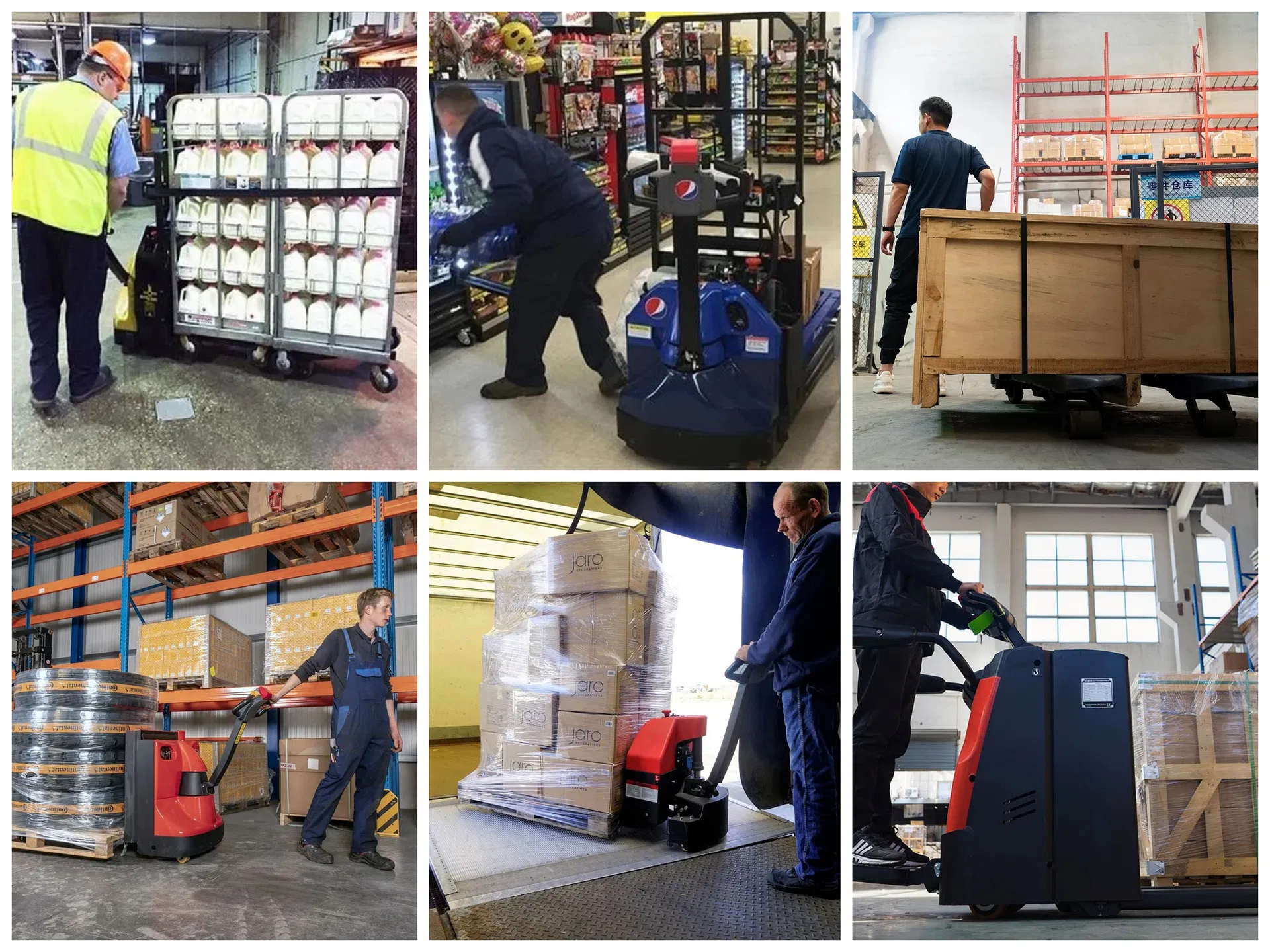

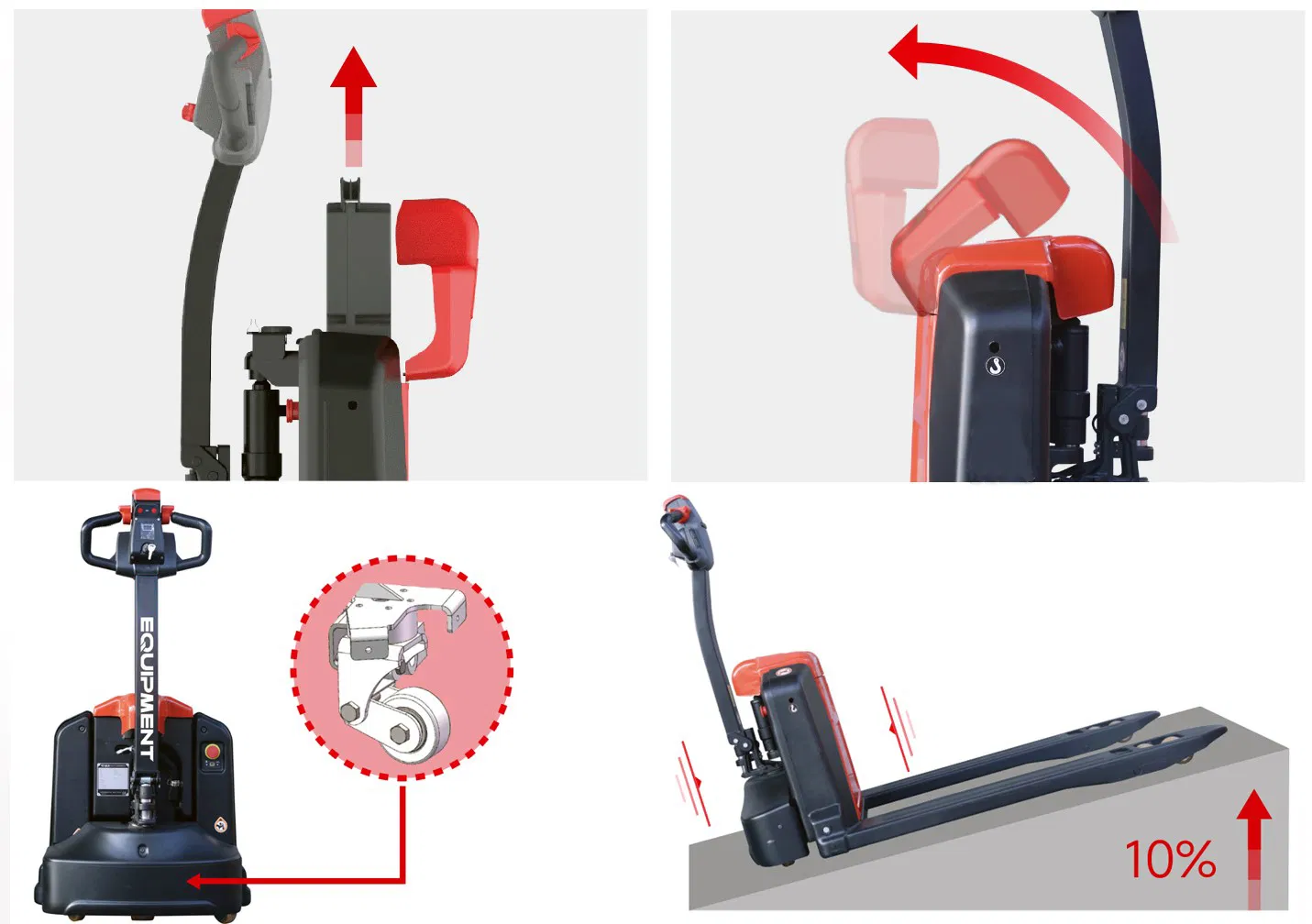

EPL154 has evolved with higher speed, stronger motors, and stabilizing wheels. This battery-operated pallet truck is highly versatile, perfect for use in logistics, delivery applications, and industrial environments.

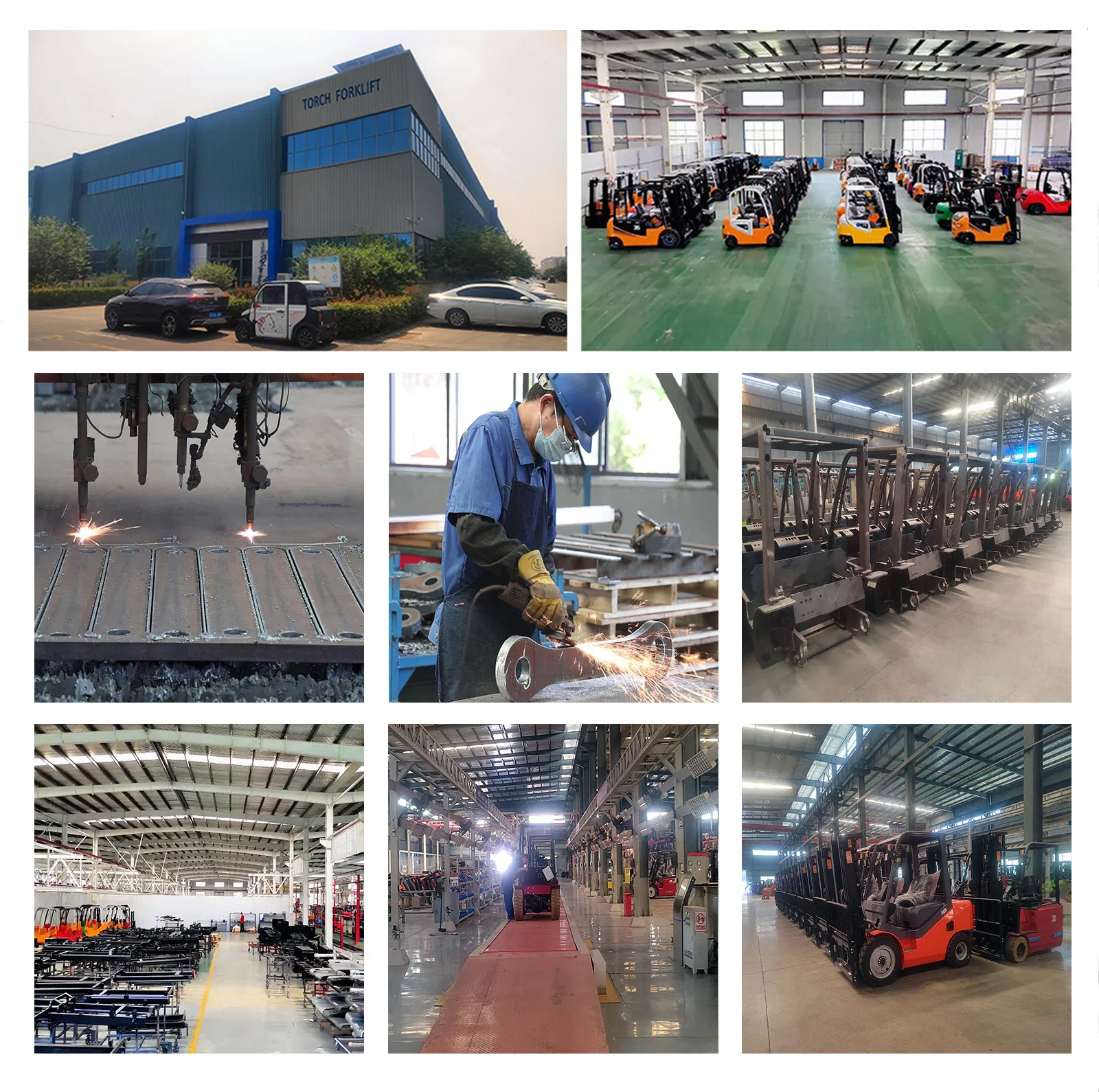

We are a leading machinery manufacturer specializing in R&D, production, sales and service of high-performance material handling equipment. Our products have been exported to more than 100 countries including the USA, Mexico, Canada, and Russia.
Standard Export Package: 155.00cm * 61.00cm * 65.00cm. Gross Weight: 160.000kg.
