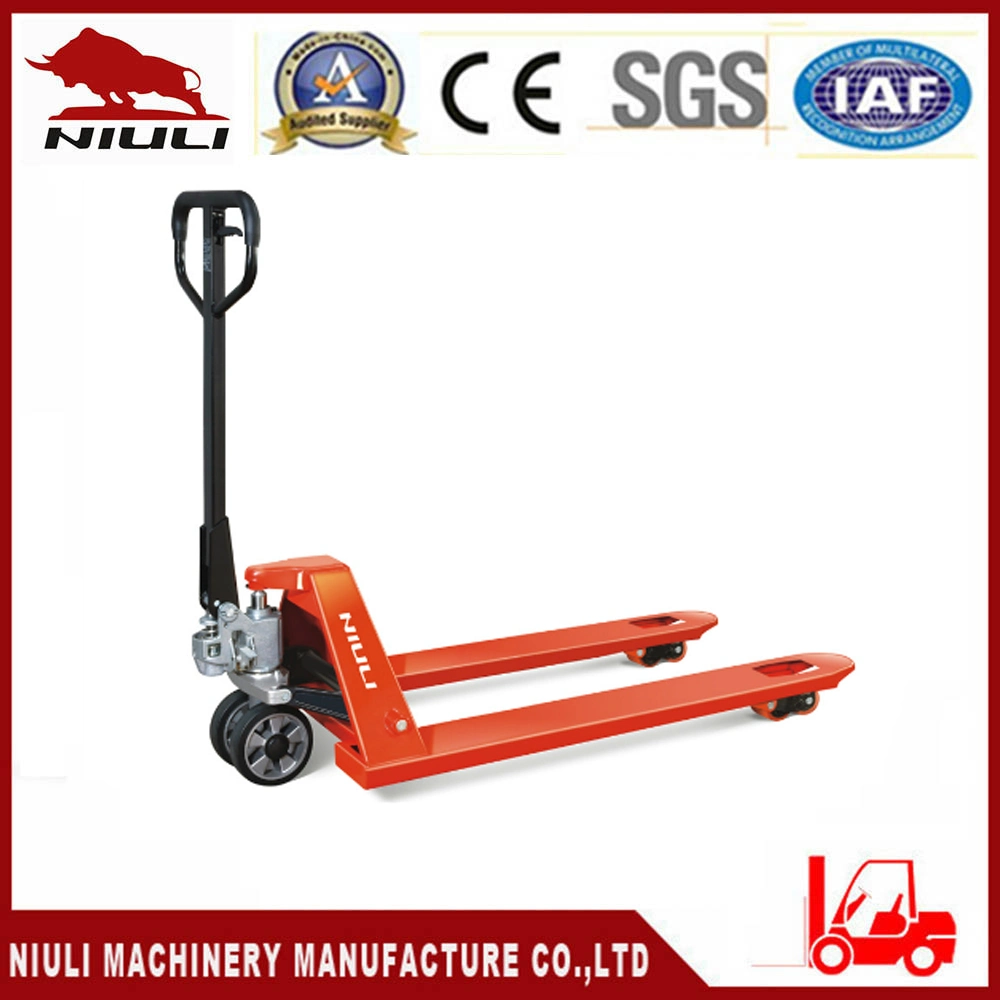

Casting Pump Hydraulic Jack Manual Forklift 2500kg Hand Pallet Truck

1 / 5

Casting Pump Hydraulic Jack Manual Forklift 2500kg Hand Pallet Truck

After-sales Service:	Online Service
Warranty:	1 Year
Product Name:	Hand Pallet Truck

Send Inquiry

Product Description

iBasic Information

Model NO.

CBY-AC

Material

Steel

Packing Size

220*60*70mm

Size

550X1120mm 685X1220mm

Transport Package

Iron/Wooden Pallets

Specification

550/685mm

HS Code

8427900000

Capacity

Depends on Demand

★Product Description

Packaging & Delivery
• Packaging Detail: Iron pallet: 2350*550/685*750mm
• Delivery Detail: Within 30 days

Specifications:

Hand pallet truck with CE & GS certificate
Customized products available
Excellent price-to-quality ratio

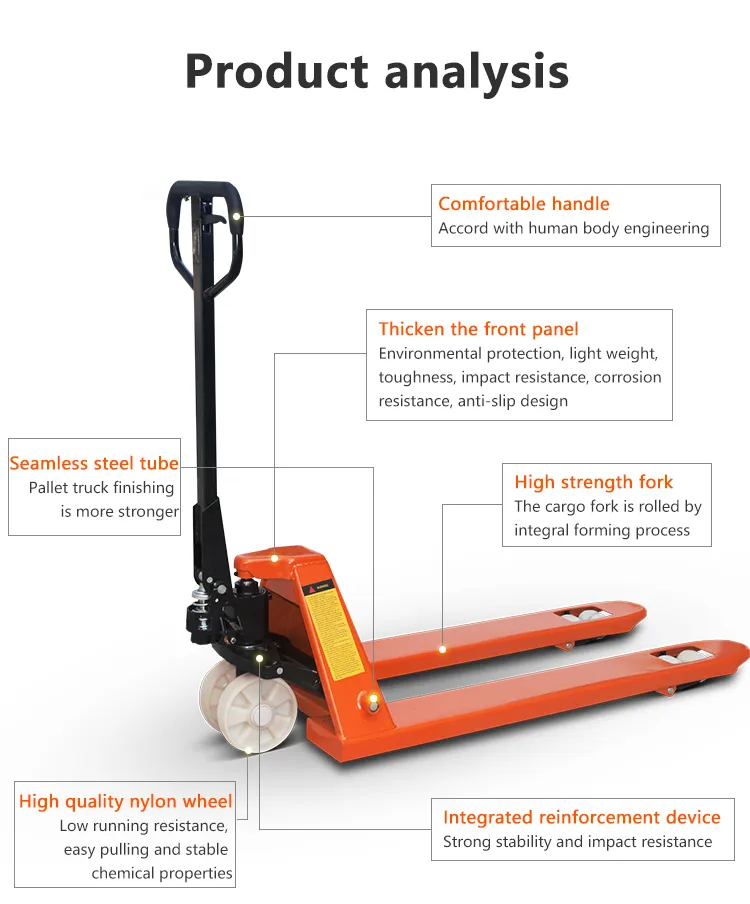

CBY. AC Hand Pallet Truck Features:

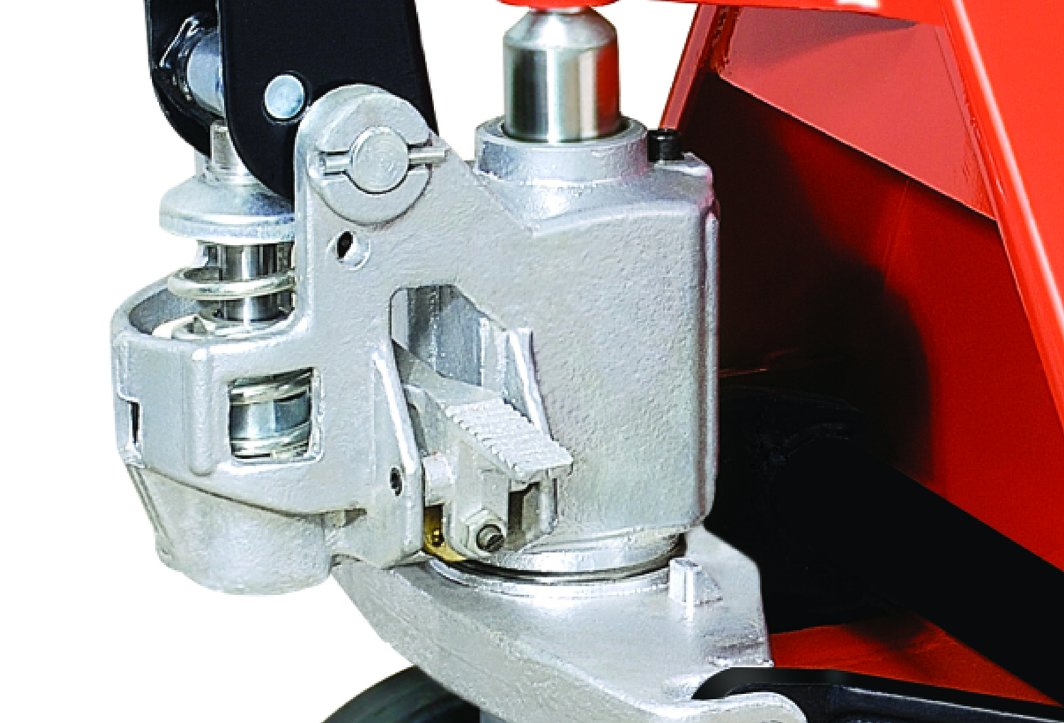

Top quality hydraulic system is made by investment casting. Hard chrome plated position and pump plunger ensure wear-resistant and corrosion resistance. Fully adjustable push rods under forks ensure the stability of forks. Special specifications can be manufactured according to customer's demands.

Casting Pump Hydraulic Jack Manual Forklift

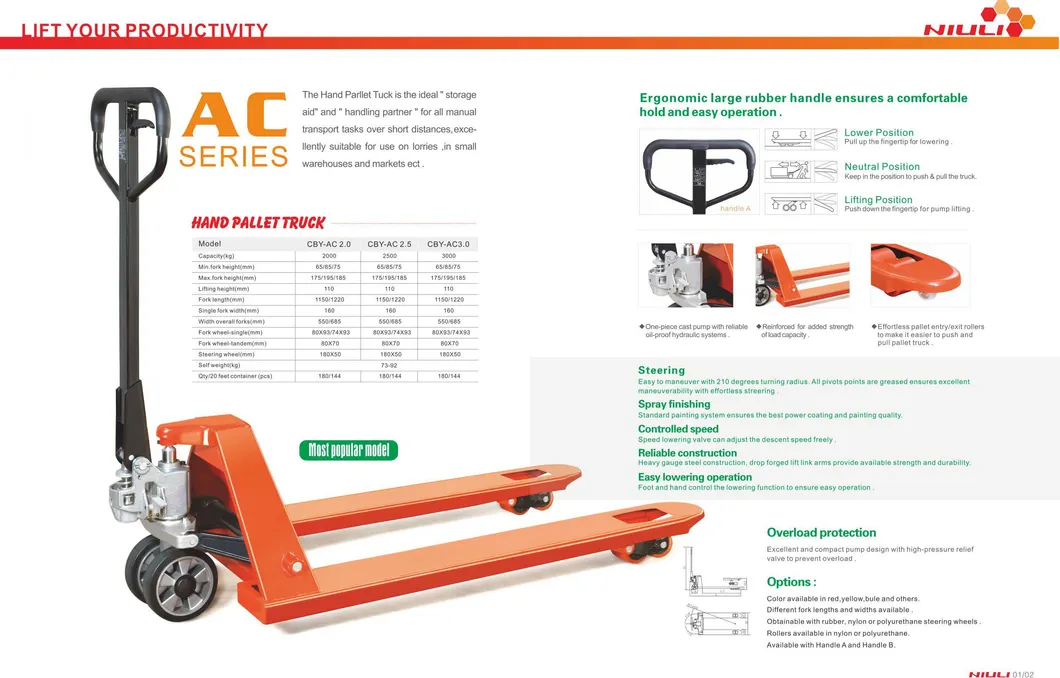

📋Technical Specifications

Model	CBY-AC 2.5	CBY-AC 3.0
Capacity (kg)	2500	3000
Min. fork height (mm)	85/75	85/75
Max. fork height (mm)	195/185	195/185
Lifting height (mm)	110	110
Fork length (mm)	1150/1220	1150/1220
Single Fork width (mm)	160	160
Fork overall width (mm)	550/685	550/685

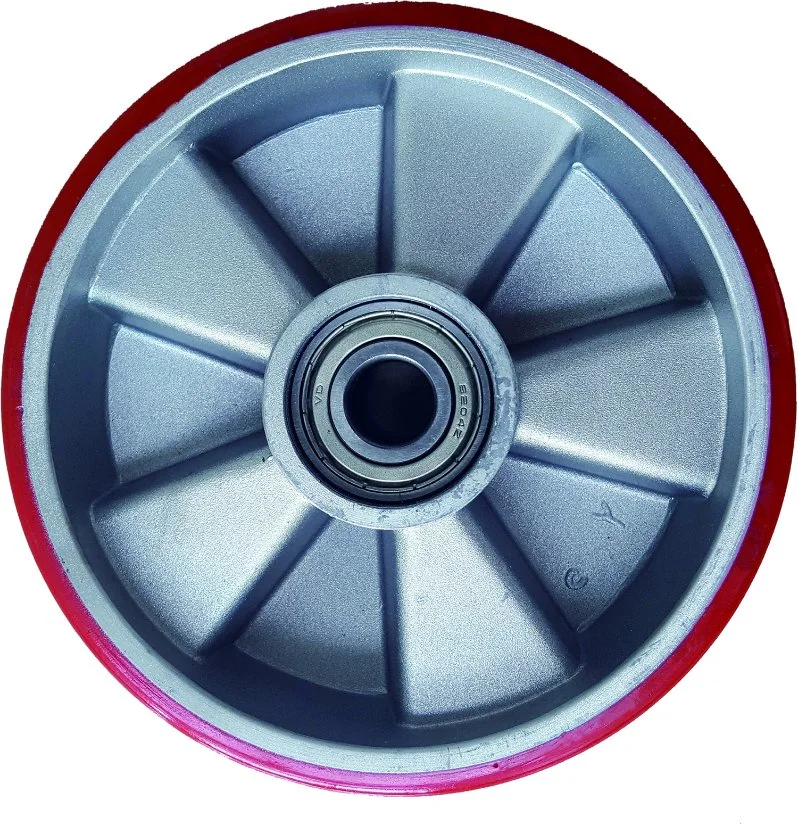

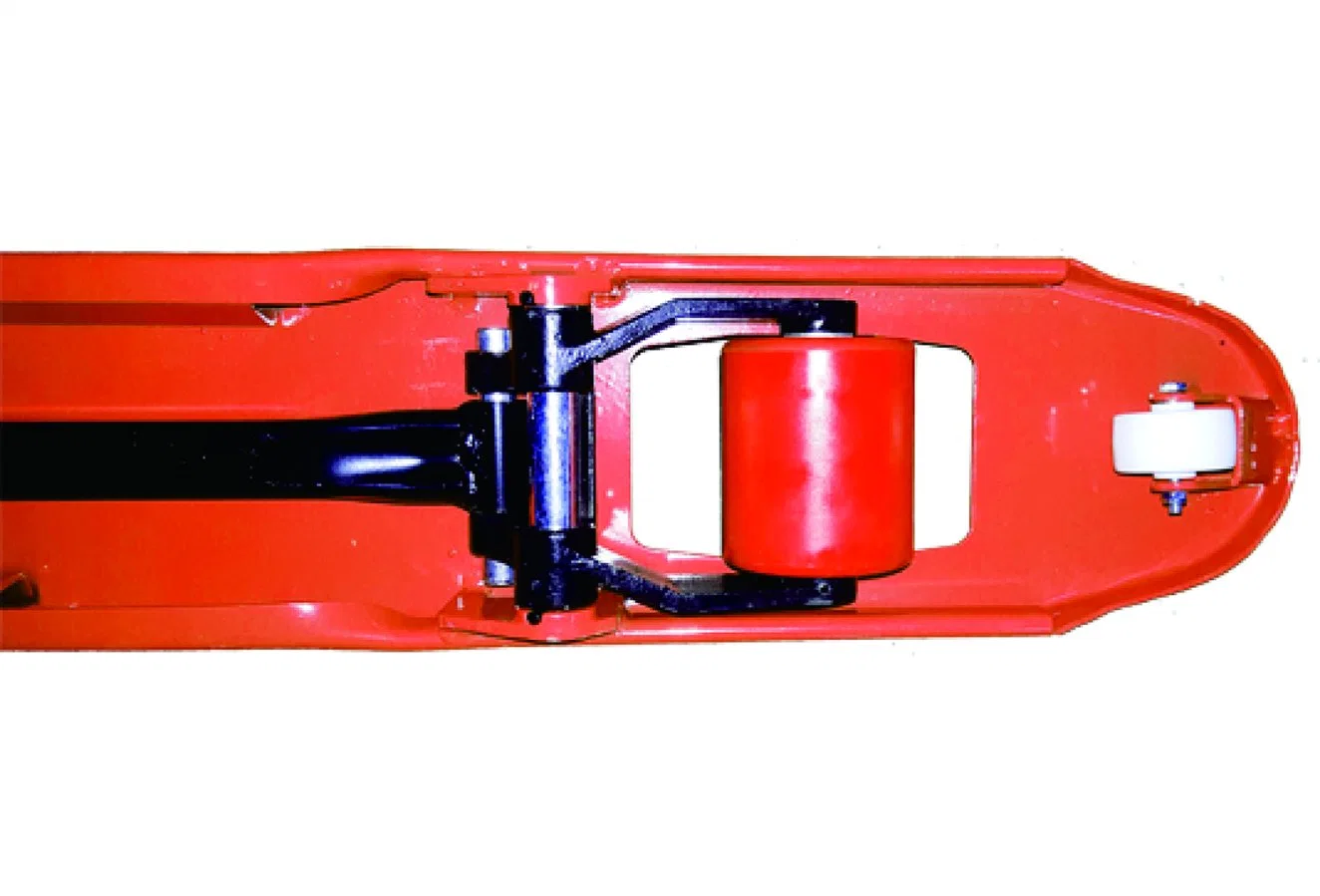

Fork wheel-single (mm)	Φ80X93/74X93	Φ80X93/74X93
Fork wheel-tandem (mm)	Φ80X70	Φ80X70
Steering Wheel (mm)	Φ180X50	Φ180X50
Self Weight (kg)	73-92	73-92
Qty/20 feet container (pcs)	180/144	180/144

?Frequently Asked Questions

1. What are the available load capacities for the CBY-AC series?

The CBY-AC hand pallet truck is available in two standard capacities: 2500kg (2.5 Ton) and 3000kg (3.0 Ton) to suit different material handling needs.

2. What makes the hydraulic pump durable?

The hydraulic pump is made using high-quality investment casting. It features a hard chrome-plated piston and pump plunger, which provides excellent wear resistance and protection against corrosion.

3. Does the pallet truck come with any certifications?

Yes, our hand pallet trucks are manufactured to meet international safety standards and come with both CE and GS certifications.

4. Can I request custom specifications for the forks?

Absolutely. We can manufacture special specifications, including different fork lengths or widths, based on specific customer demands and application requirements.

5. What is the typical lead time for delivery?

Standard orders are typically processed and ready for delivery within 30 days.

6. How is the stability of the forks maintained?

Stability is ensured through full adjustable push rods located under the forks, allowing for precise alignment and balance during lifting operations.
