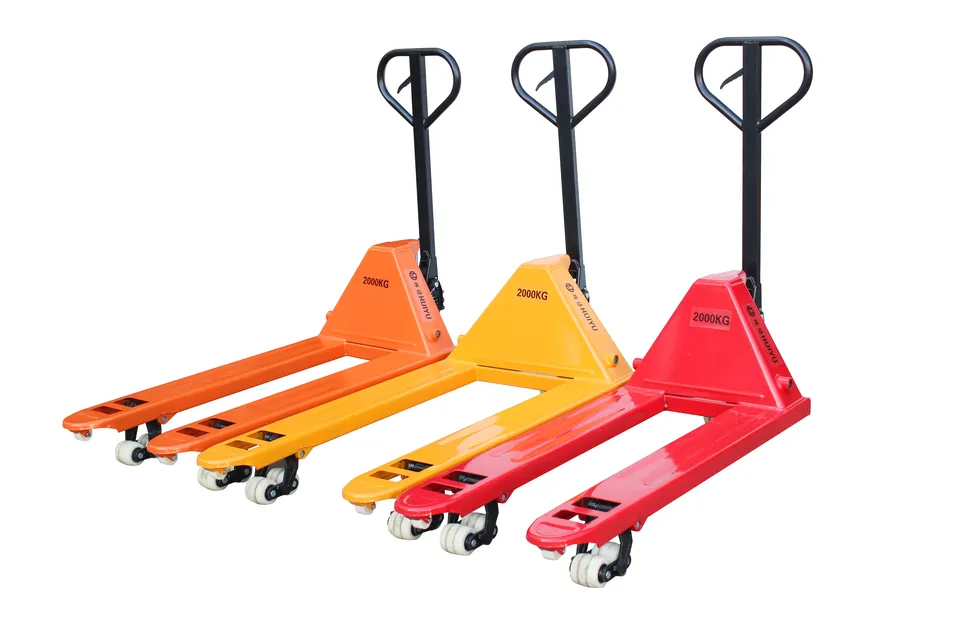

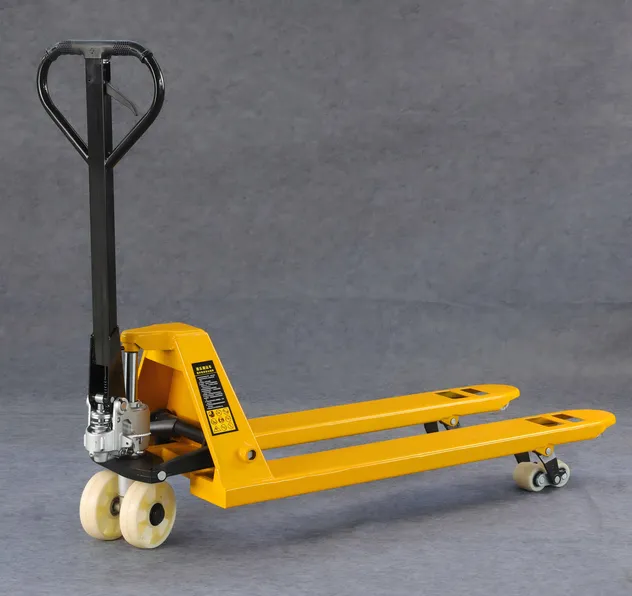

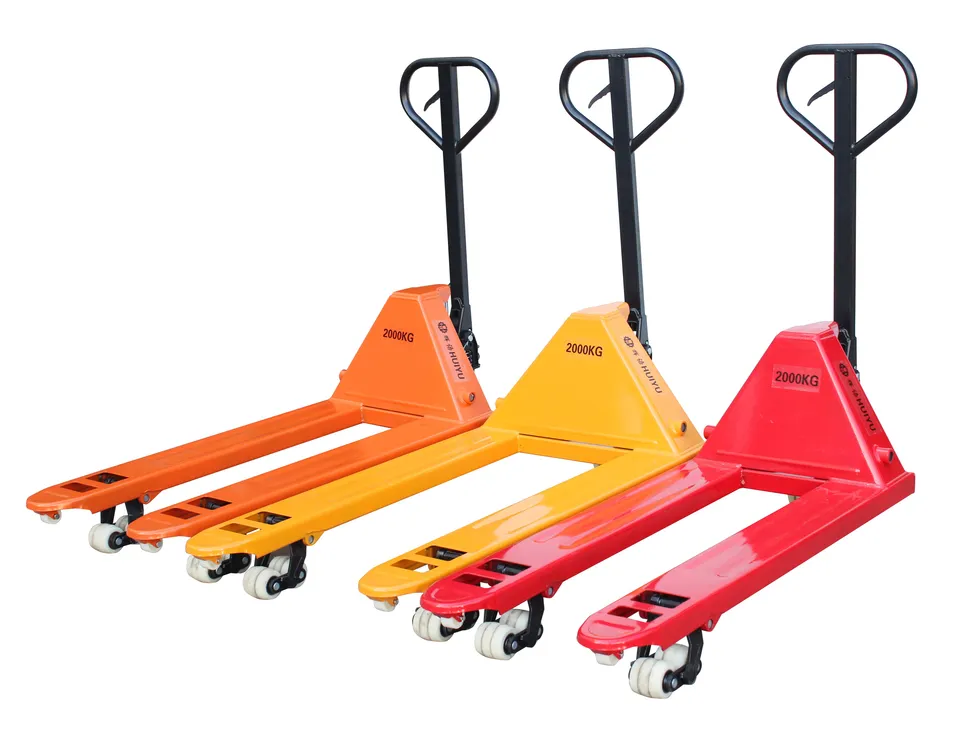

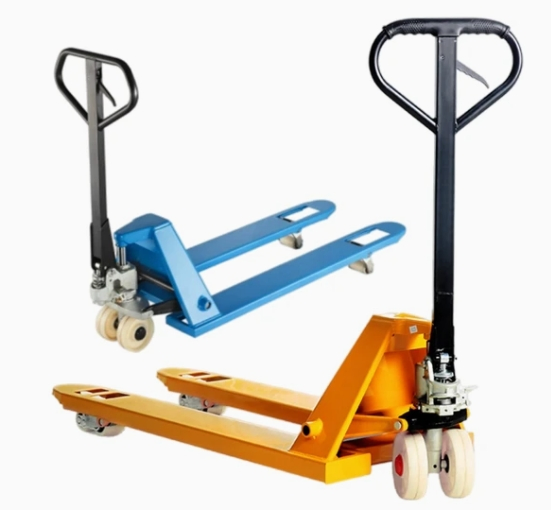

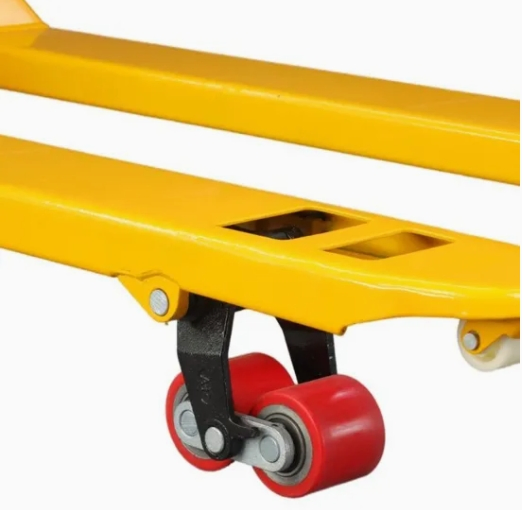

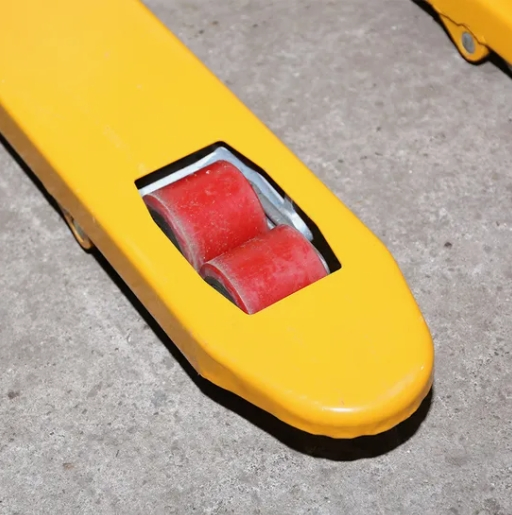

High-quality manual hydraulic pallet truck

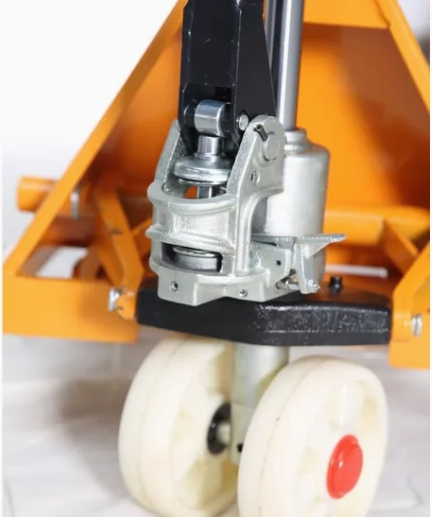

Hand pallet truck also known as manual pallet truck, is the simplest and most effective tool for transport. By using the hydraulic system to realize the pallet load lifting and falling, it is pulled by human to complete handling operations. Widely used in logistics, warehouses, factories, hospitals, schools, shopping malls, airports, and stations.
Key Features:
1. Factory production line: Used for material turnover, especially where wear and chemical resistance are needed.
2. Warehouses and logistics centers: Essential for stacking, loading, and short-distance transportation.

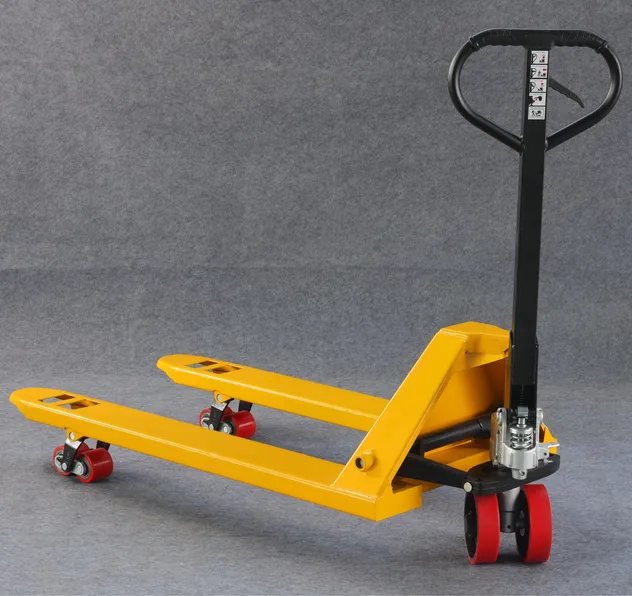

3. Supermarkets: PU wheel models provide quiet operation and floor protection.
4. Heavy equipment handling: Suitable for handling 3-5 tons of heavy equipment with alloy steel components.
5. Cold storage and food processing: Stainless steel options available for clean or low-temperature environments.
| Model | HY-2T | HY-2.5T | HY-3T | HY-5T |
|---|---|---|---|---|
| Lifting capacity (kg) | 2000 | 2500 | 3000 | 3500 |
| Lowered fork height (mm) | 85 | 85 | 85 | 90 |
| Max height (mm) | 195 | 195 | 195 | 195 |

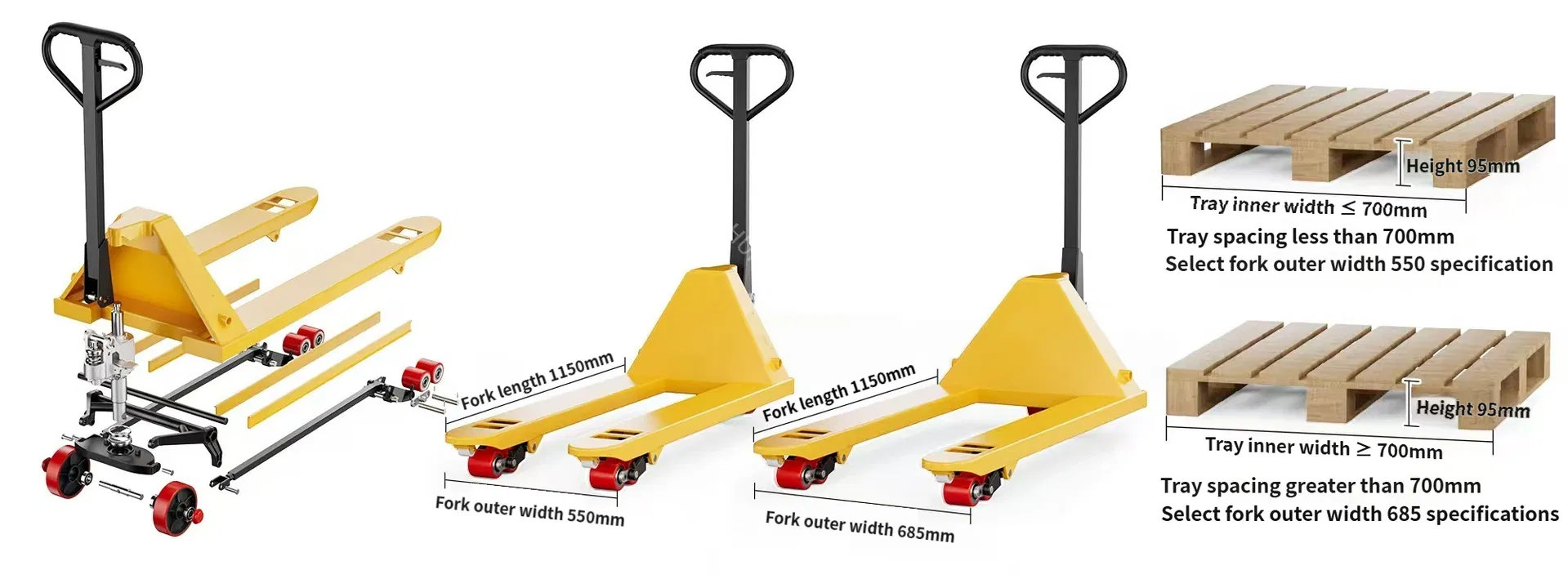

| Fork size (mm) | 55*160 | 55*160 | 55*160 | 55*160 |

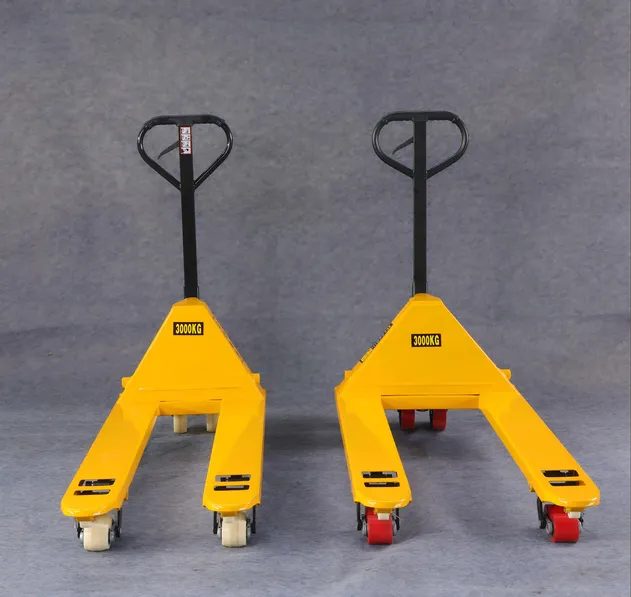

| Width of fork (mm) | 550/685 | 550/685 | 550/685 | 550/685 |
| Length of forks (mm) | 1150/1200 | 1150/1200 | 1150/1200 | 1150/1200 |
| Self weight (kg) | 60-70 | 62-72 | 68-75 | 110-115 |
Standard Warranty: 12 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: Remote operation and maintenance training available.

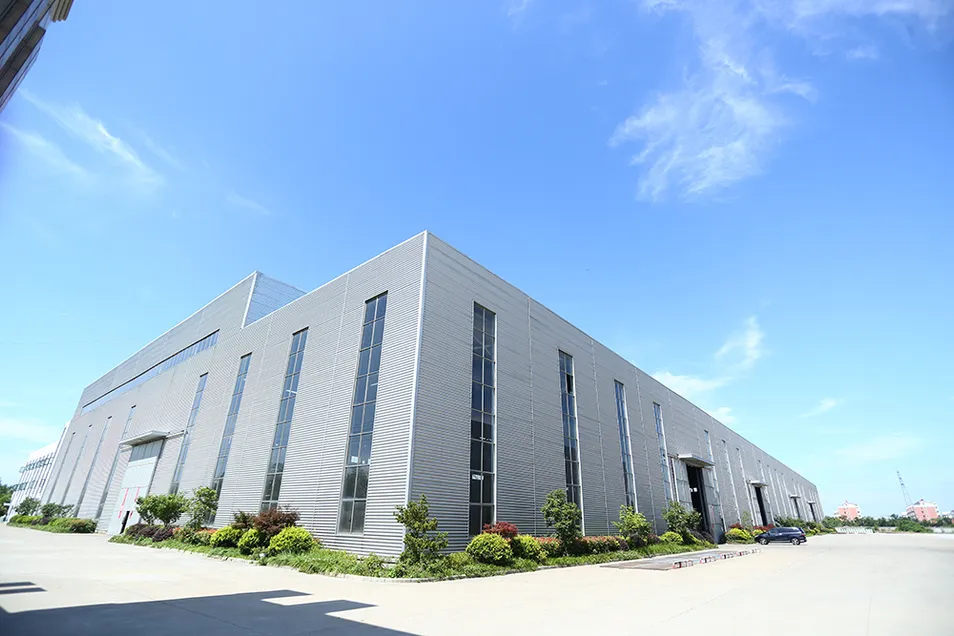

With over 20 years of professional production experience, we are a leading manufacturer of light lifting equipment. Certified by ISO 9001 and CE, our products are exported globally, backed by R&D innovation and strict quality control.
