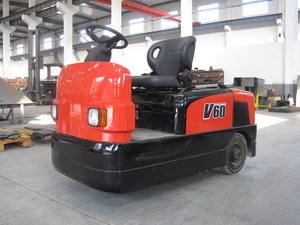

Redlift Seated Tow Tractor Heavy Electric Tractor with AC Power and CE ISO Certification for Sale

1 / 5

Redlift Seated Tow Tractor Heavy Electric Tractor with AC Power and CE ISO Certification for Sale

Customization:	Available
Type:	Reach Forklift
Power:	AC Motor

Send Inquiry

Product Description

Basic Specifications

Model NO.

mini electric forklift

Load Capacity

1-1.2t

Load Center

400 C(mm)

Lift Height

2930mm

Forklift Type

Mini 1t Forklift

Transport

in Container

Specification

Origin

China

HS Code

84271090

Capacity

50 Sets

Product Advantages

Model Designation: CPD10ET / CPD12ET

Durable and rigid frame construction ensure the stackers to handle heavy loads.

Hourmeter and BDI (Battery Discharge Indicator) informs the operator of recharge requirements on time.

Sideway battery exchange reduces intervals, ensuring working efficiency and productivity.

A wide choice of battery capacity and size enables the truck to be configured to match application needs.

Tilter head ergonomically designed for maximum operator comfort, with control buttons for either hand operation.

Limit switch mounted on top of mast to precisely set the max lifting height, avoiding motor overload risk.

Robust and rigid mast configuration optimizes lifting stability and safety.

Safe Grid covered on the mast to protect operator from injury risks.

Equipped with world-class hydraulic power pack, transmission case, and electric control system for quick response.

Innovative and maintenance-free AC system ensures a longer battery service life.

Imported AC electronic control steering system makes operation comfortable with low noise.

ZAPI walking motor controller and Bucher oil pump motor guarantee stability and maneuverability.

Comfortable and safe seat reduces the strain on the operator.

Technical Parameters

Characteristics
1.2	Model designation		CPD10ET	CPD12ET
1.3	Drive unit		Battery	Battery
1.4	Operator type		Rider seated	Rider seated
1.5	Load capacity	Q (kg)	1000	1200
1.6	Load center	c (mm)	400	500
Weights
2.1	Service weight (Incl. battery)	kg	1830	1940
2.2	Axle loading, loaded front/ rear	kg	2470/360	2670/470
Dimensions
4.2	Height, mast lowered	h1 (mm)	1980	1980
4.4	Lift height	h3 (mm)	2930	2930
4.19	Overall length	l1 (mm)	2530	2530
4.21	Overall width	b1/ b2 (mm)	948	948
Performance
5.1	Travel speed, loaded/ unloaded	km/ h	6/6.5	6/6.5
5.2	Lifting speed, loaded/ unloaded	m/ s	0.13/0.2	0.12/0.2
Drive & Battery
6.1	Drive motor rating	kW	1.5	1.5
6.4	Battery voltage/ capacity	V/ Ah	24/ 360	24/ 360
8.1	Type of drive control		AC	AC

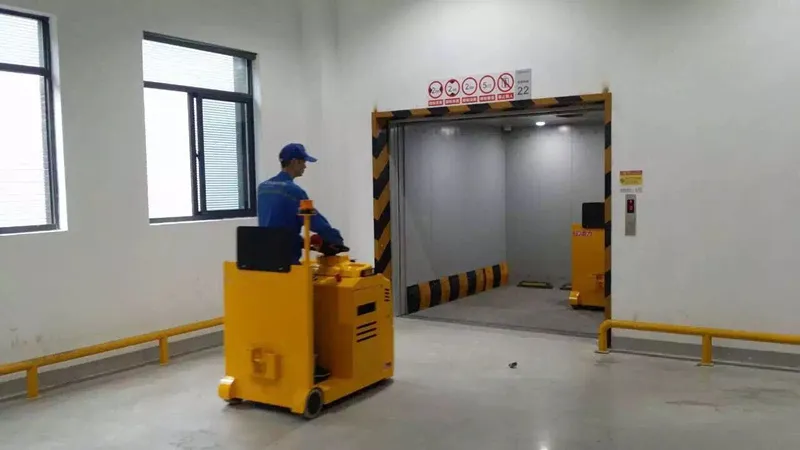

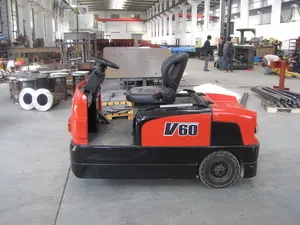

Product Display

Frequently Asked Questions

● What is the load capacity of these mini electric forklifts?

The CPD10ET model handles up to 1000kg, while the CPD12ET model can handle up to 1200kg.

● What is the maximum lift height for this series?

Both models feature a standard maximum lift height of 2930mm.

● Does the forklift use an AC or DC motor system?

It is equipped with an innovative maintenance-free AC system and a world-class electronic control system for superior efficiency.

● How is battery maintenance managed?

The vehicle features a sideway battery exchange design and a Battery Discharge Indicator (BDI) to alert operators for timely recharging.

● What safety measures are included for the operator?

Safety features include a mast-mounted limit switch, a protective safe grid on the mast, and an ergonomically designed seat to reduce operator strain.
