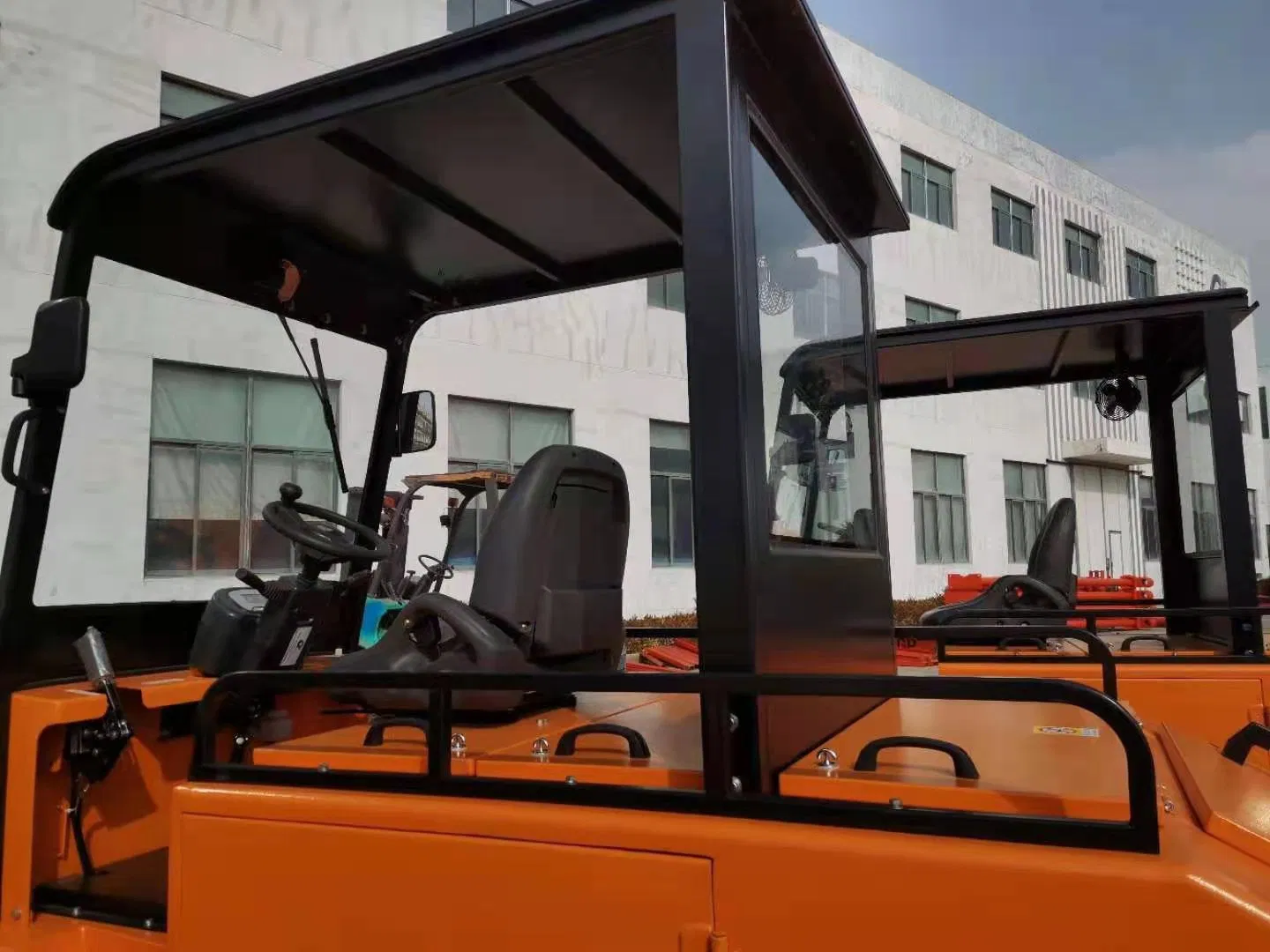

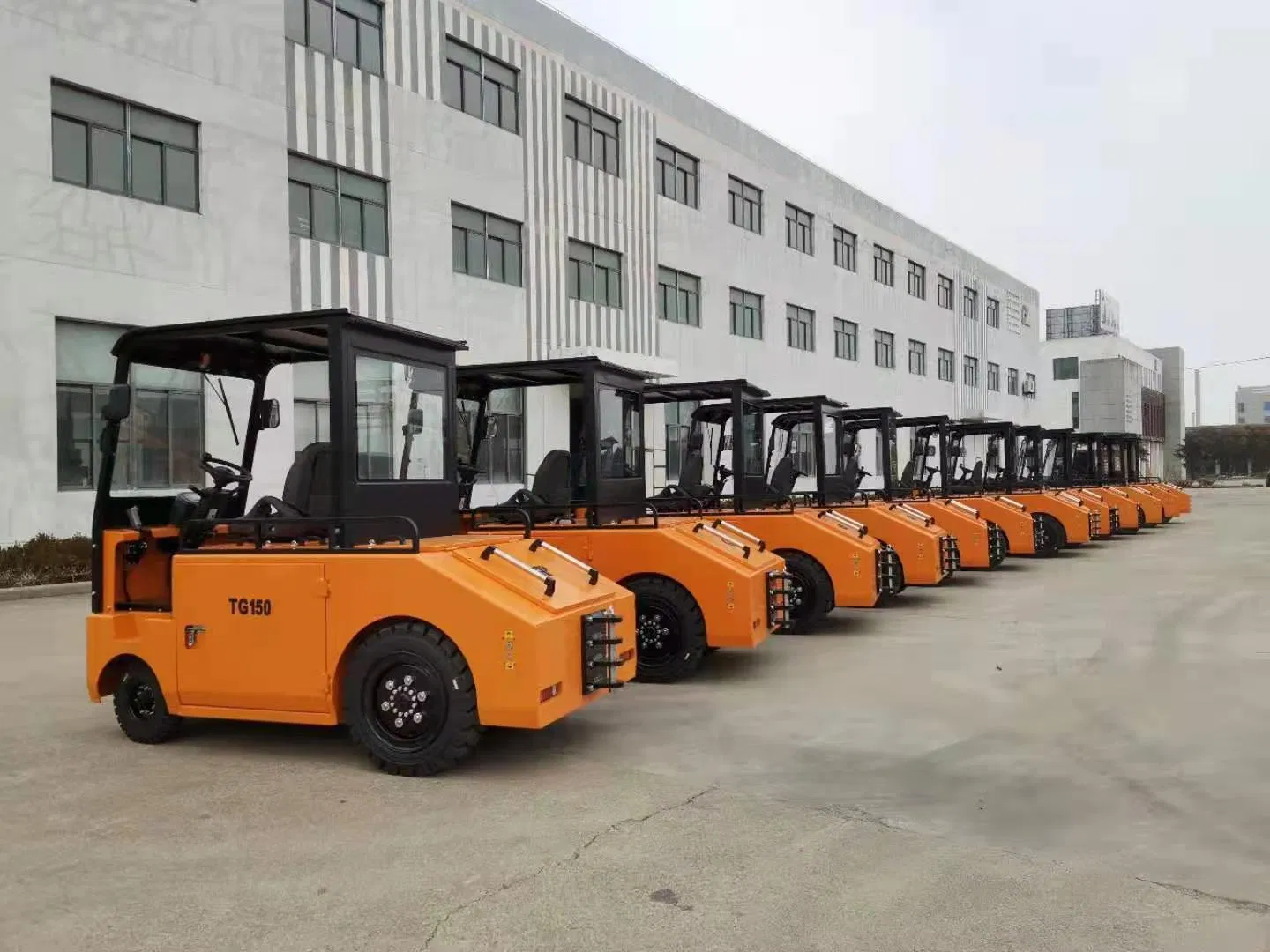

High Efficiency 8-10 Ton Three Wheels Mini Electric Tow Tractor (TG30, TG40, TG50, TG60, TG80, TG150)

1 / 5

High Efficiency 8-10 Ton Three Wheels Mini Electric Tow Tractor (TG30, TG40, TG50, TG60, TG80, TG150)

Customization:	Available
After-sales Service:	2years
Warranty:	1.5 Years

Send Inquiry

Product Description

📋 Basic Information

Model NO.

TG150

Type

Electric Towing Tractor

Power

AC Motor

Load Capacity

10T - 18T

Fuel

Electric

Load center

>500mm

Lift height

>5000mm

Condition

New

Power Type

Battery

Tire Type

Solid

Controller

Curtis / Intaliasme

Wheel Type

3-Wheel

Origin

China

HS Code

8427209000

📦 Packaging & Delivery

Package Size

279.00cm * 125.00cm * 157.00cm

Gross Weight

3500.000kg

Packing Type

Nude Packing

⚡ Product Highlights

Multi-function display: Real-time monitoring of battery status, hour meter, and error codes for easy maintenance.
Enhanced Safety: Integrated hand brake and hydraulic brake systems ensure high-level safety during operation.

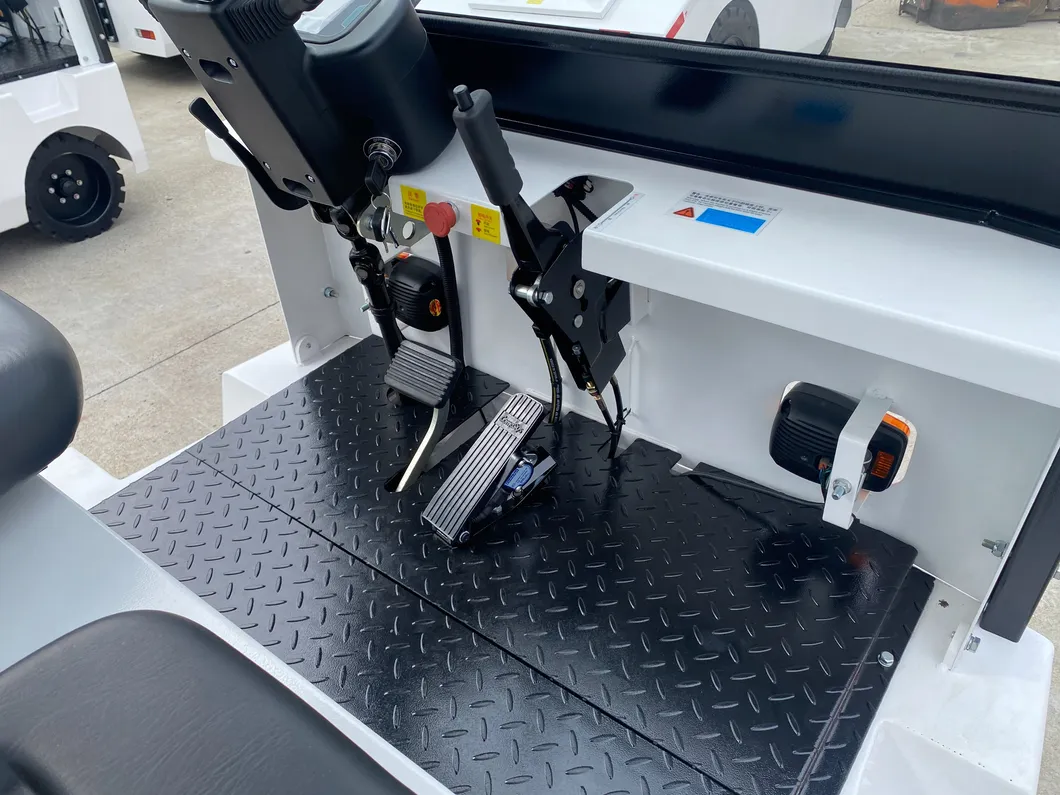

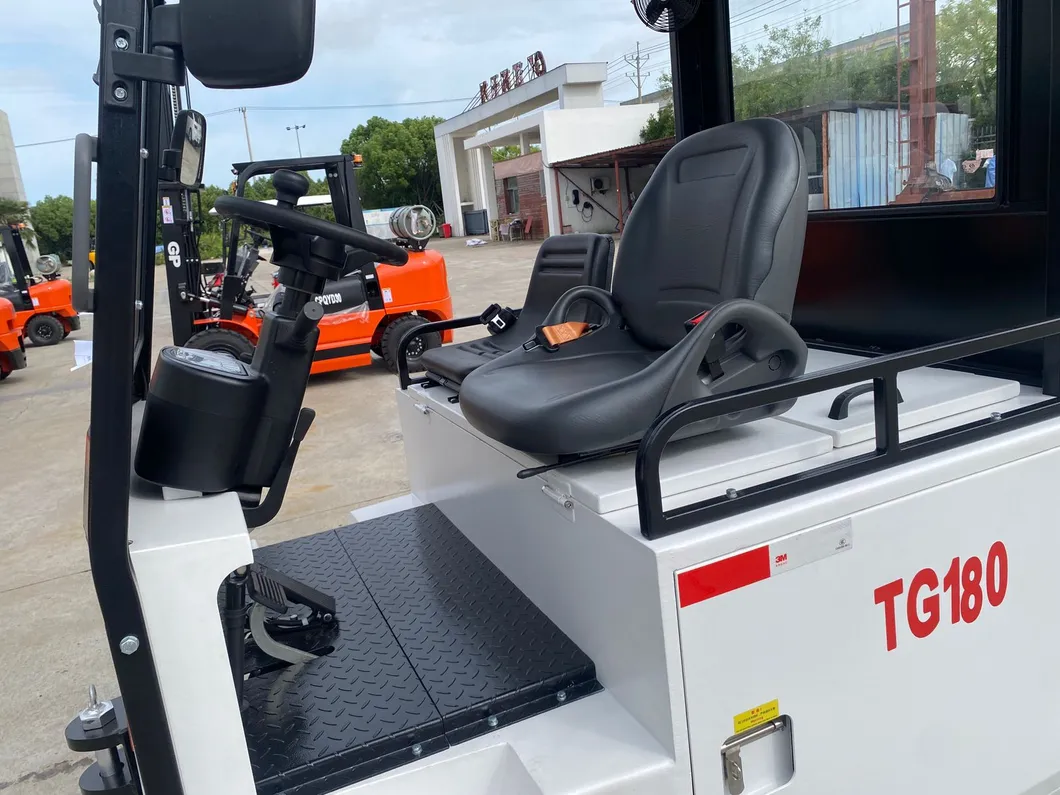

Ergonomic Design: Equipped with an adjustable steering wheel to accommodate different operators comfortably.

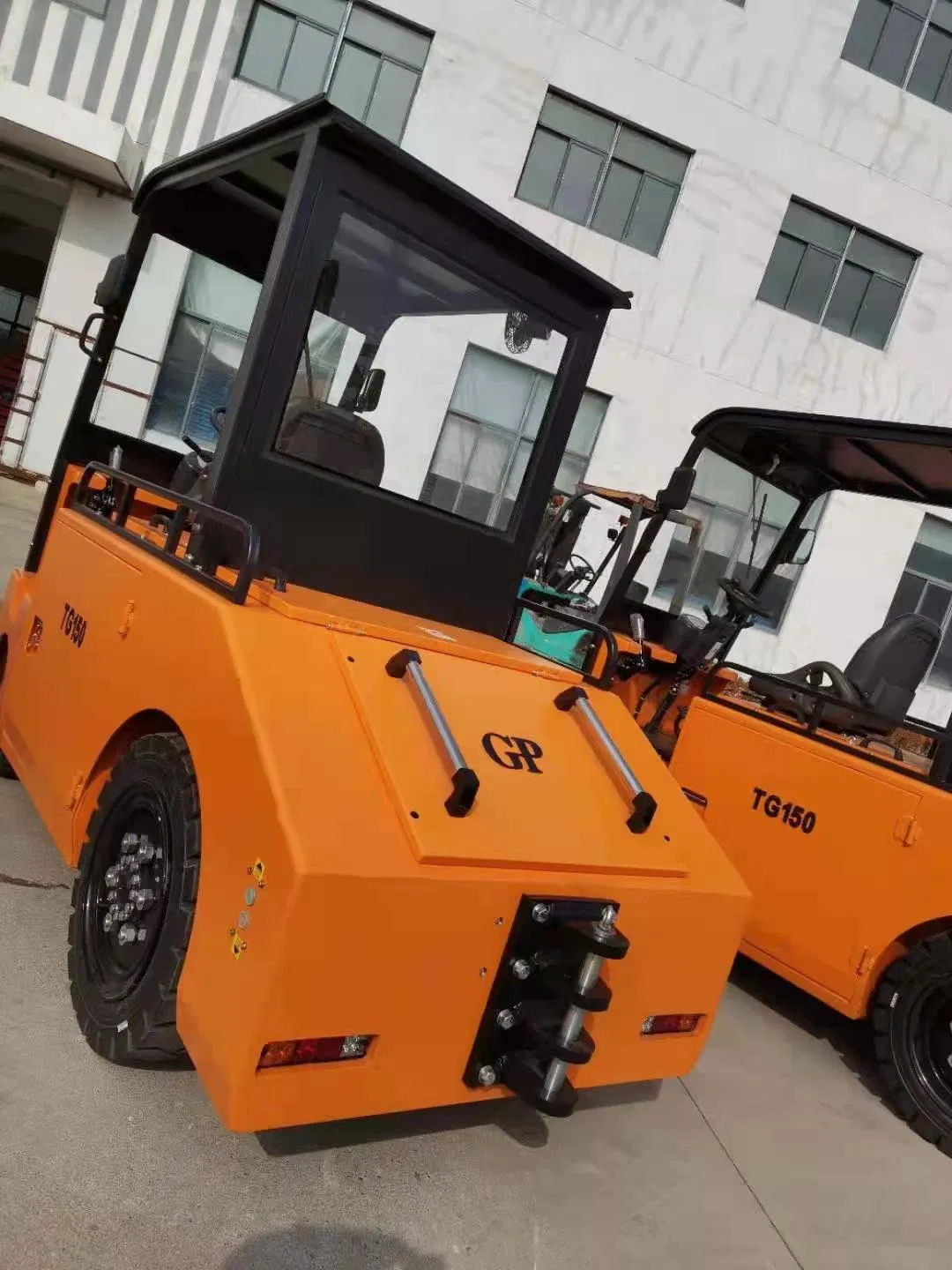

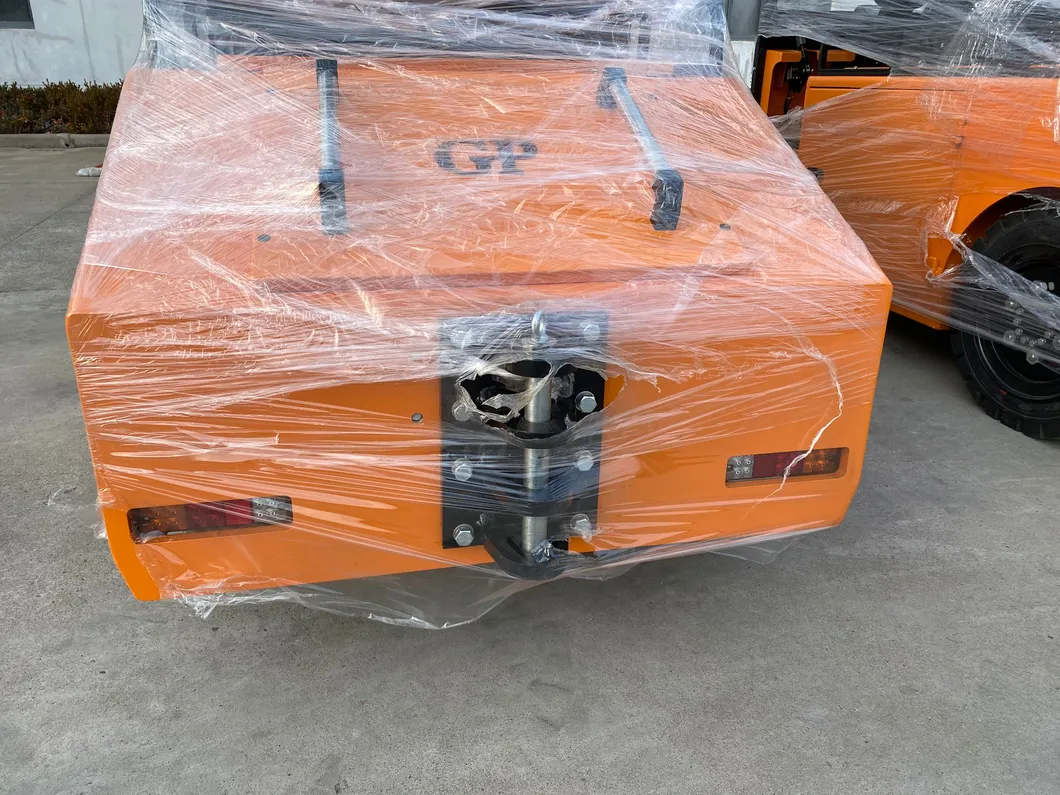

Advanced Linking: Specialized linking system designed with orienting and fixing brackets for secure trailer attachment.
Superior Stability: Battery placement at the lowest part of the frame provides a very low center of gravity.

📊 Technical Specifications

Model	Unit	TG100	TG150	TG200	TG250	TG300
Load Cap	kg	10000	15000	20000	25000	30000
Dimensions (L×W×H)	mm	2680×1250×1580			2880×1390×1580
Rated Traction	KN	16	21	25	28	32
Walking Speed (Empty/Full)	km/h	15 / 8 (Customizable)
Turning Radius	mm	≤2500 (Hydraulic)			≤3300 (Hydraulic)
Service Weight	kg	2900	3500	4100	4700	5300
Driving Motor (AC)	kw	11×1	16.6×1	19×1	23×1	31×1
Battery	v/ah	80/440	80/550	80/600	80/790	80/960

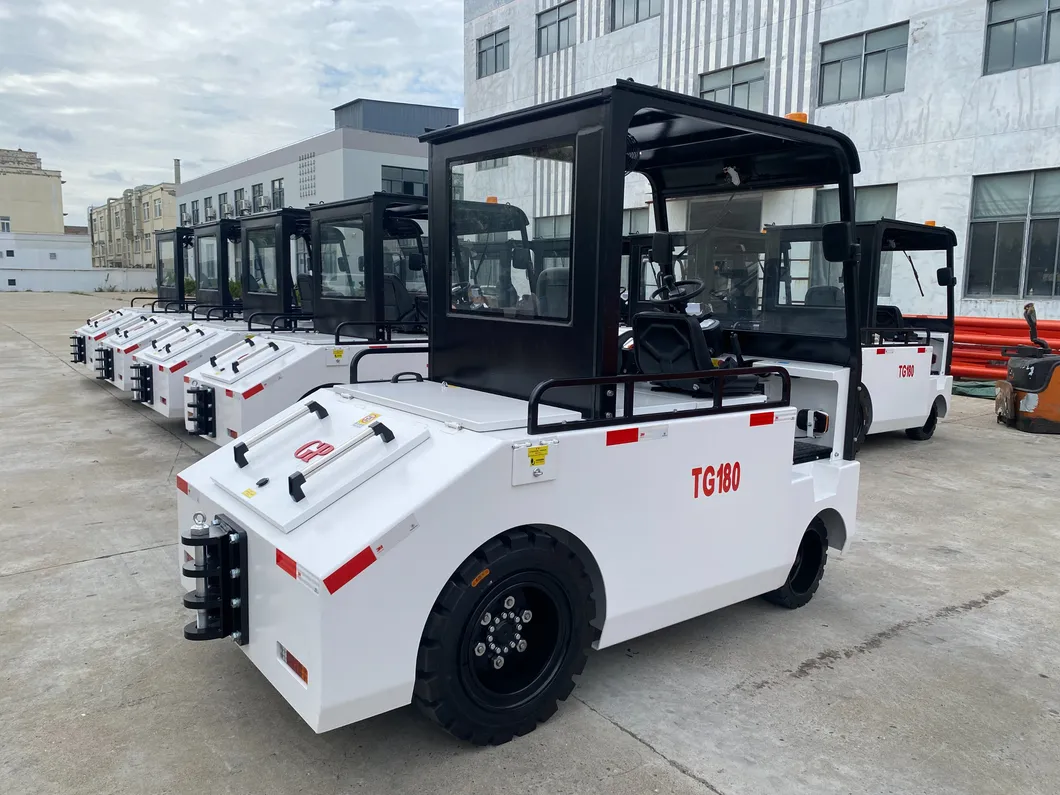

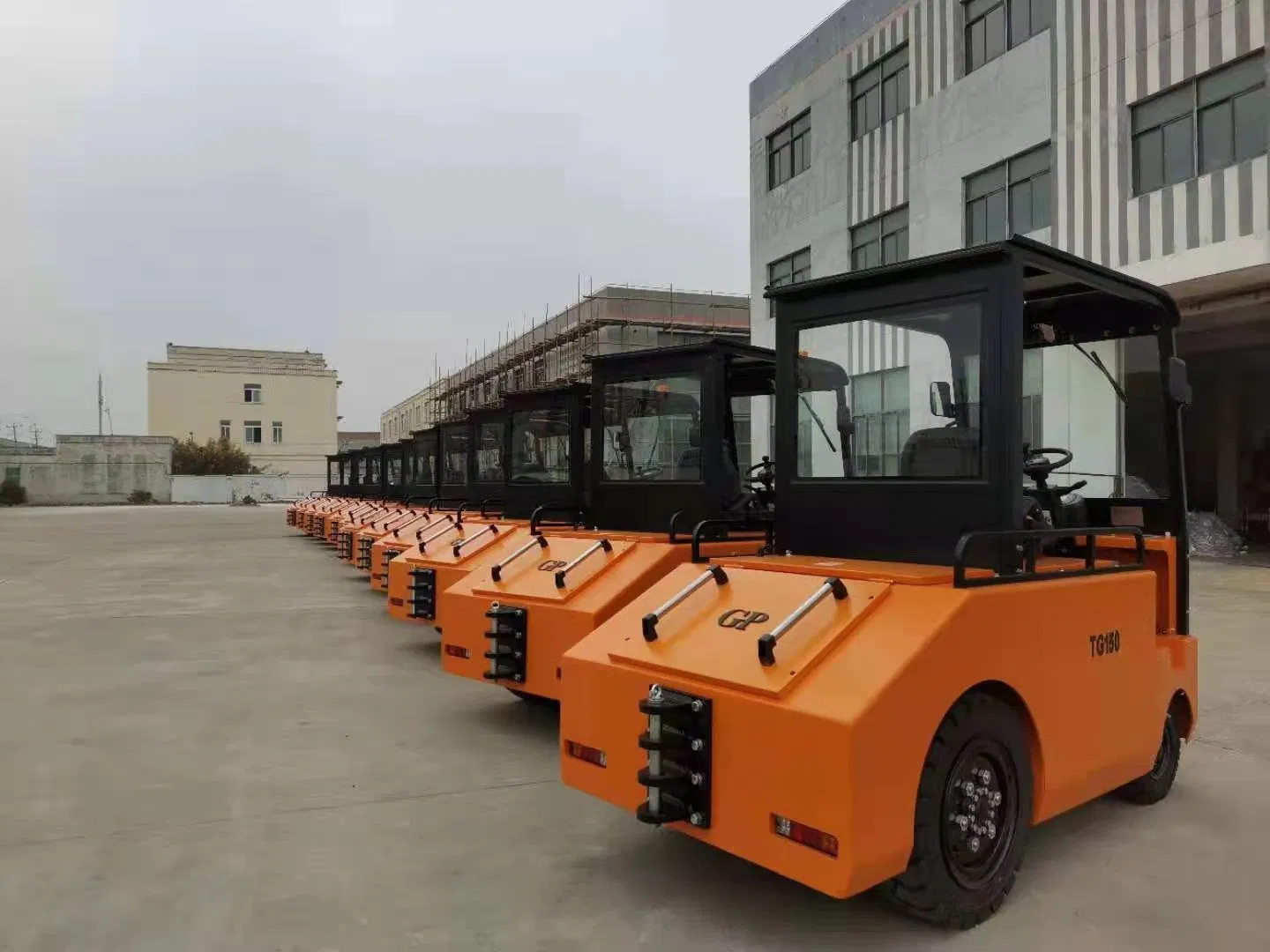

🖼️ Product Gallery

❓ Frequently Asked Questions

What is the maximum towing capacity of this series?

The TG series electric tow tractors offer a wide range of towing capacities, from 10,000kg up to 30,000kg, depending on the specific model selected.

Does the tractor feature a digital monitoring system?

Yes, it is equipped with a multi-function display that provides critical information such as battery status, operation hours, and error codes for efficient troubleshooting.

What makes the tractor stable while towing heavy loads?

Stability is achieved by placing the batteries in the lowest part of the frame, which ensures a very low center of gravity.

Is the steering system easy to operate?

Absolutely. The tractors are equipped with an adjustable steering wheel and, on higher capacity models, hydraulic power steering to reduce operator fatigue.

What type of braking system is used for safety?

The safety level is enhanced by a dual braking system consisting of a hydraulic foot brake and a manual hand lever brake.

Are the tires suitable for industrial environments?

Yes, the tractors use heavy-duty solid tires (e.g., 28×9-15 for the rear), which are ideal for industrial surfaces and offer long-lasting durability.
