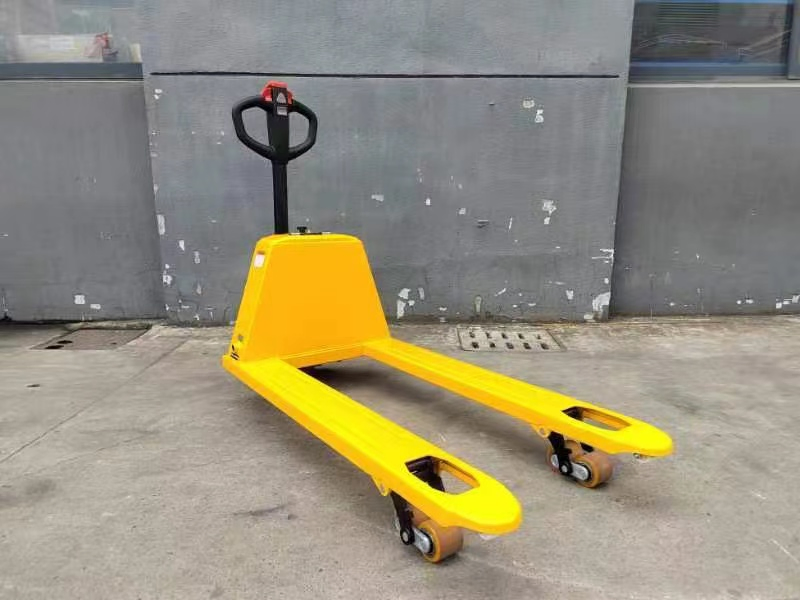

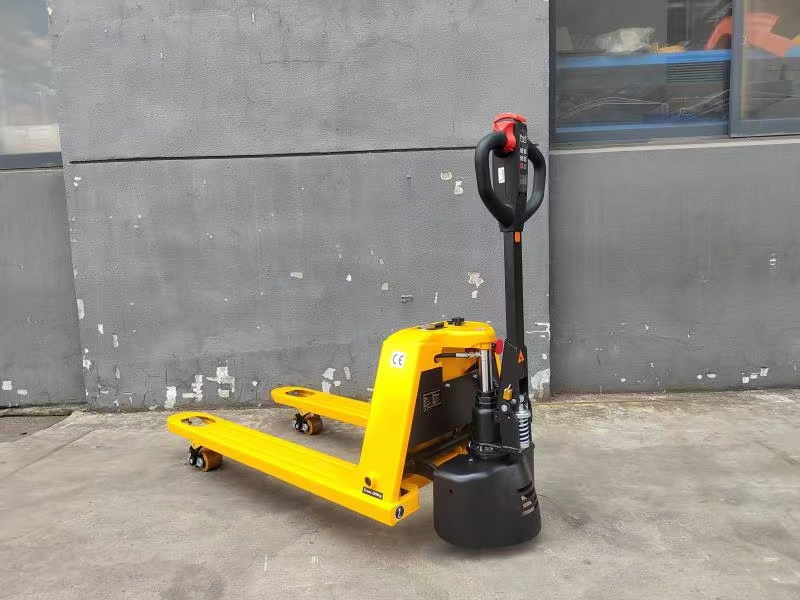

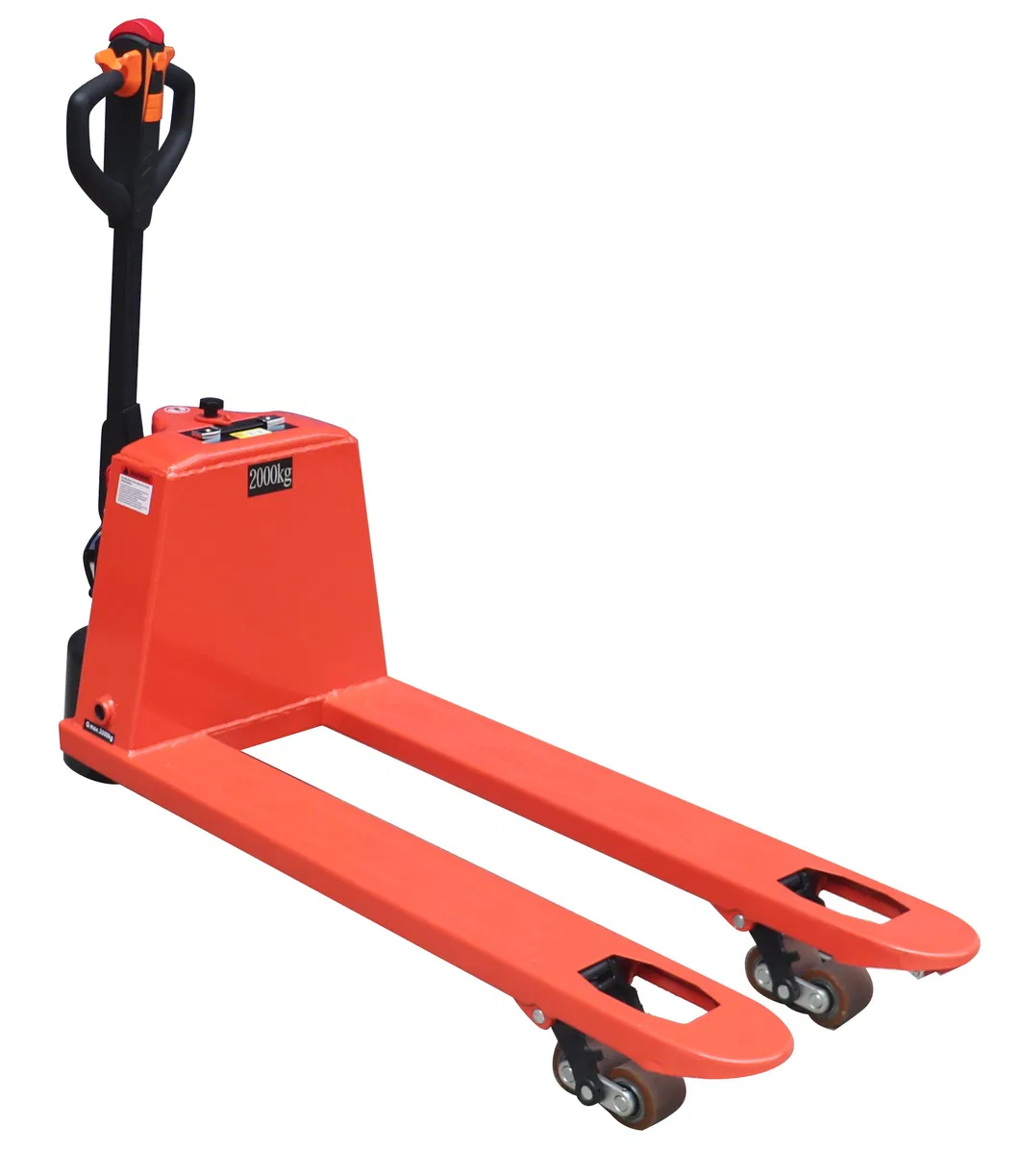

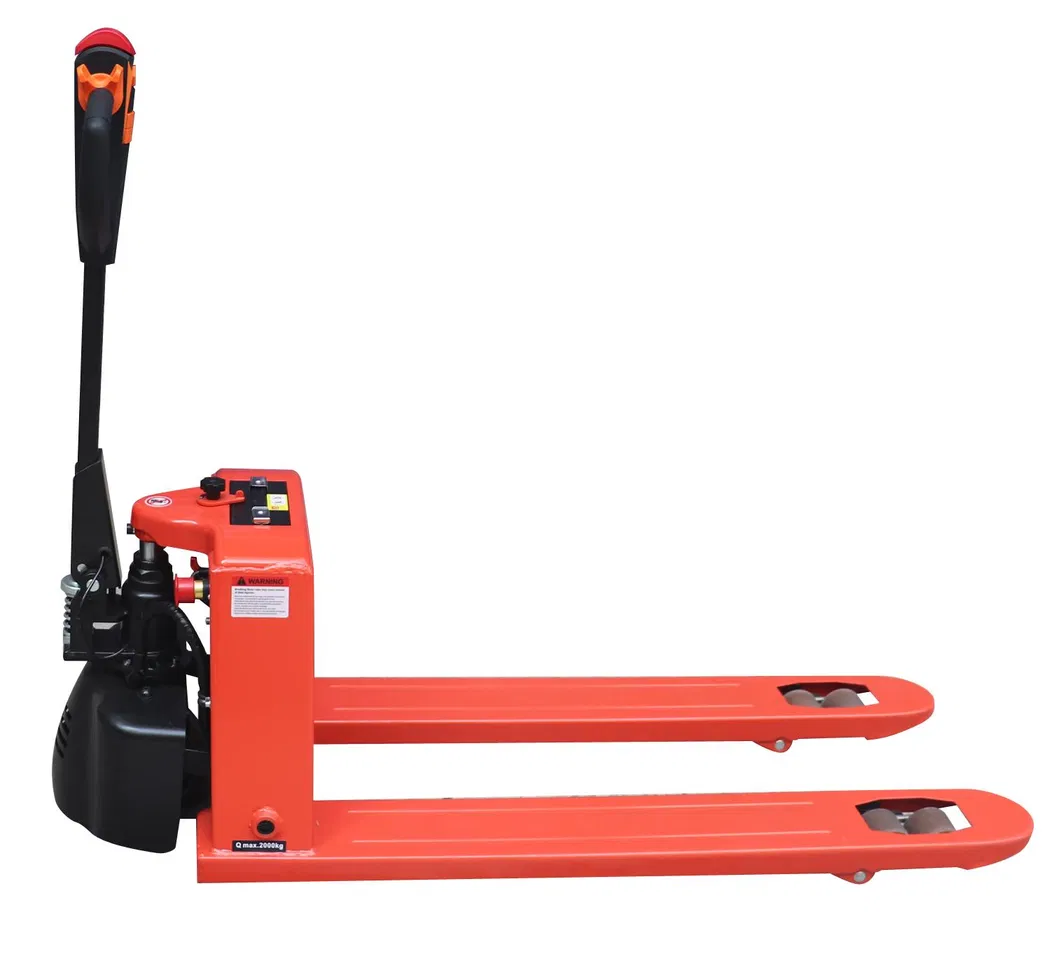

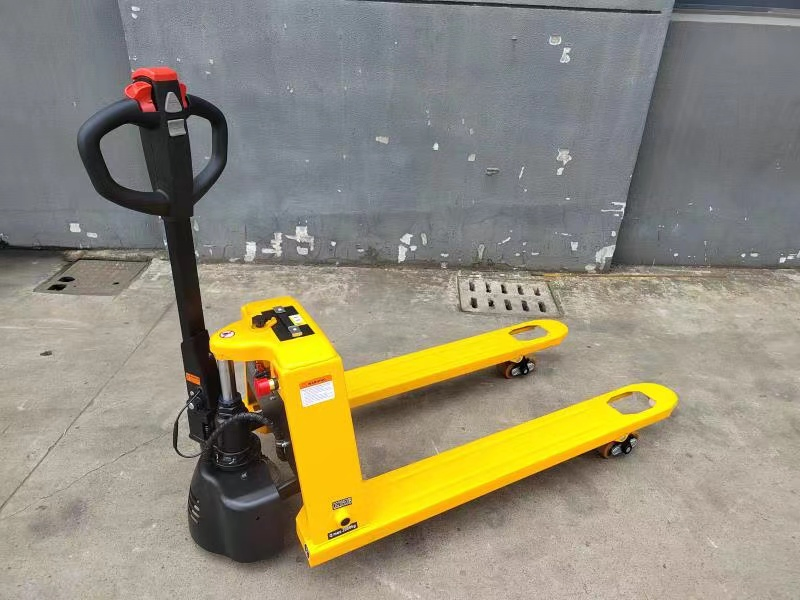

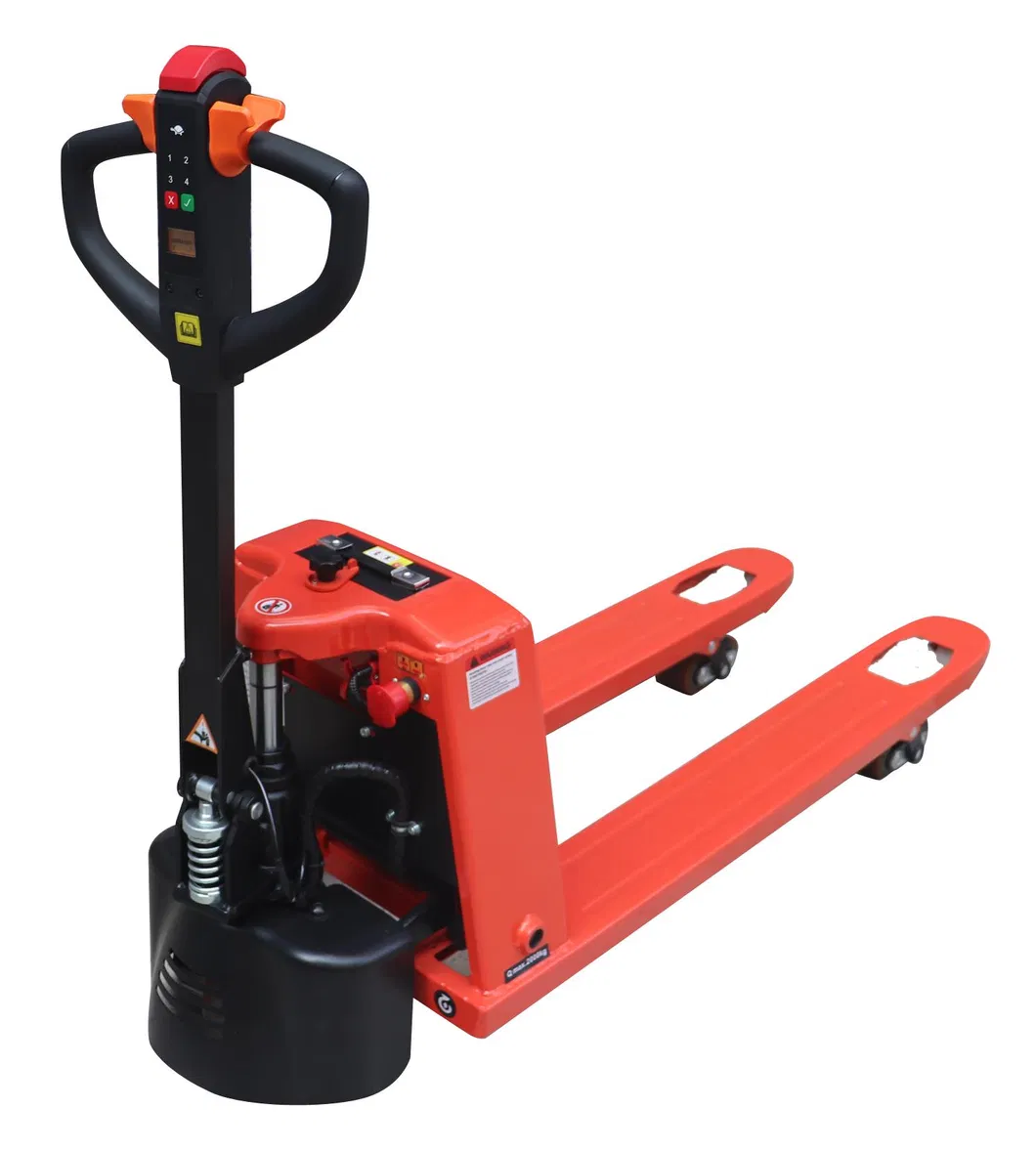

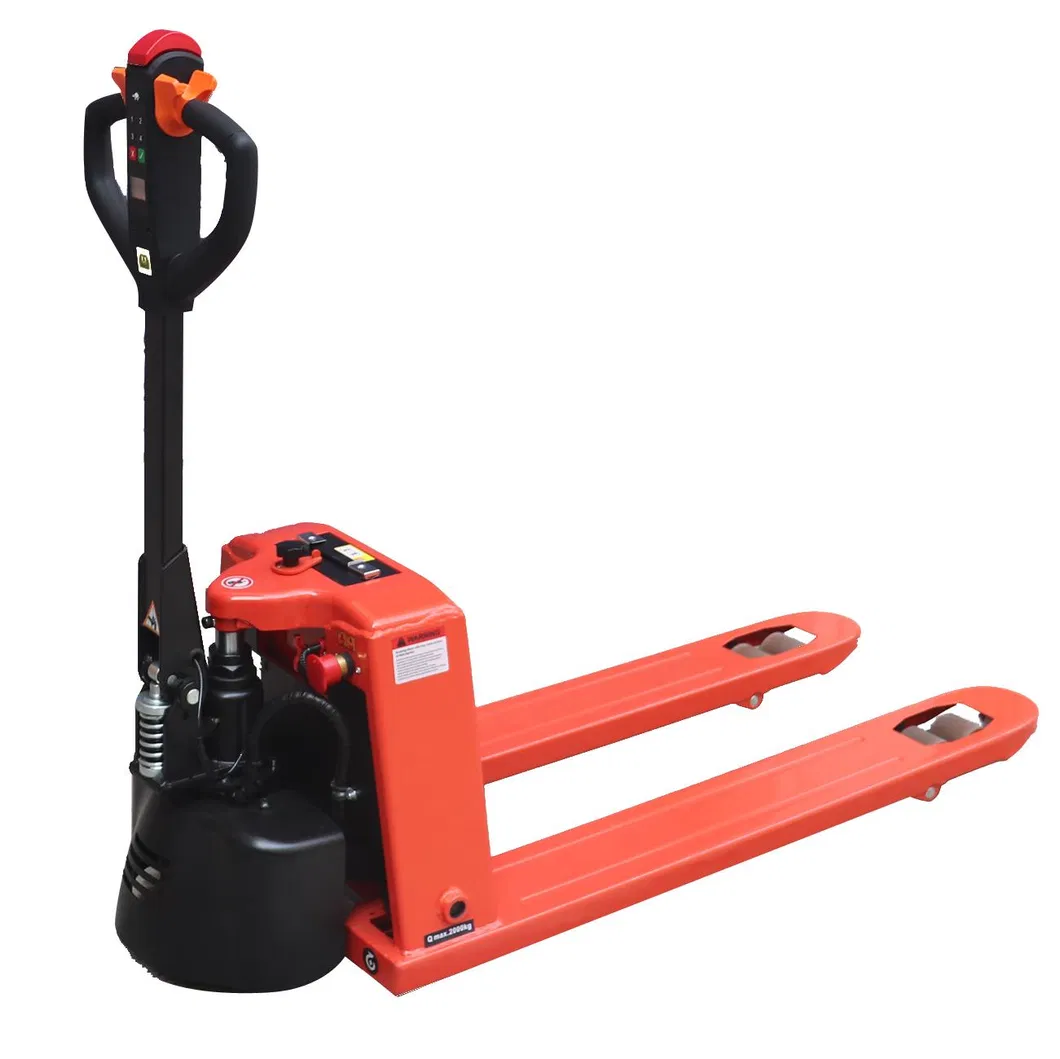

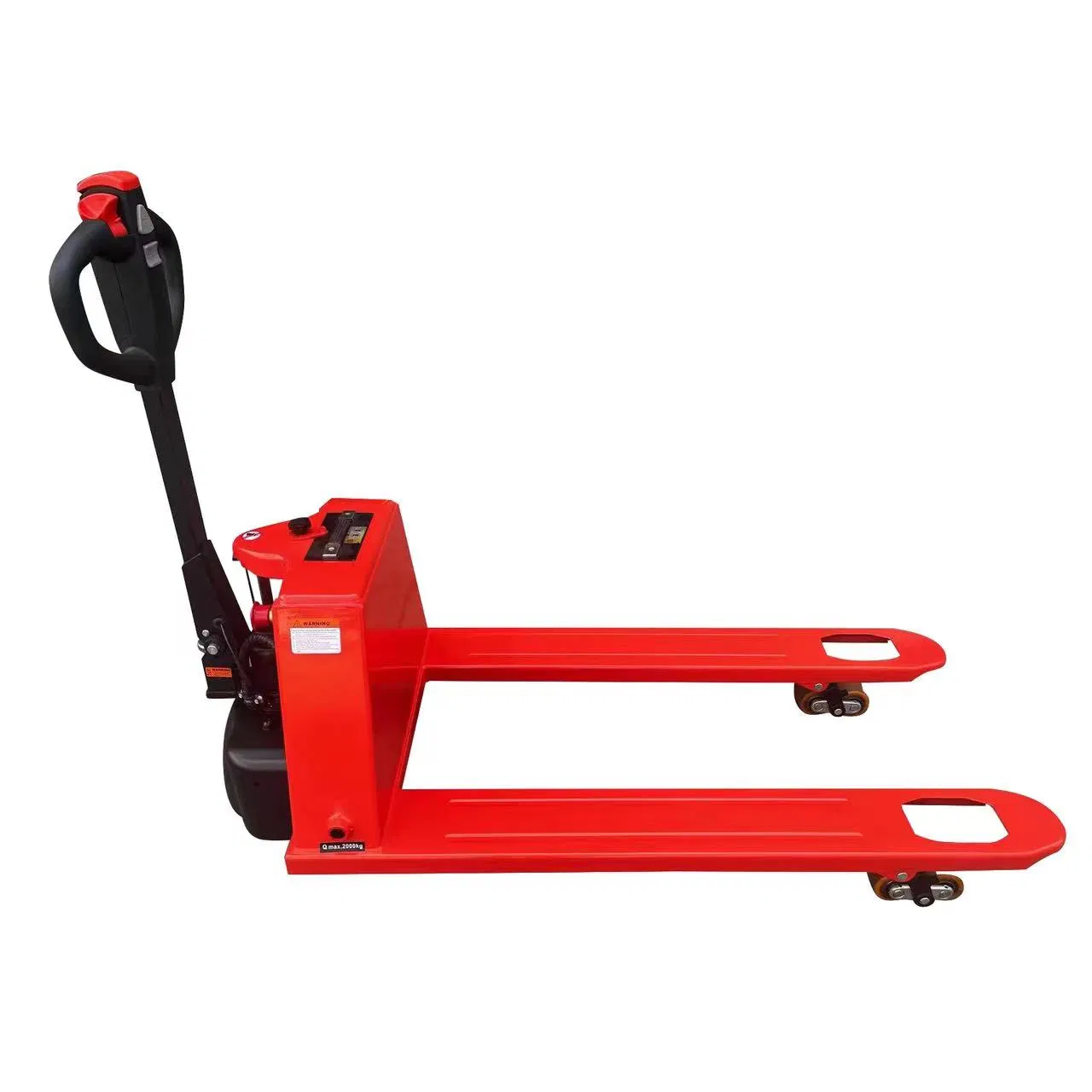

Andy or OEM Electric Power or Hand Stacker Hydraulic Forklift Lift Scale Steel Pallet Jack Truck

Basic Info.

Model NO.

EPT-20E

Cab Location

Adjustable

Type

Powered Pallet Truck

Power

DC Motor

Load Capacity

1T - 5T

Fuel

Electric

Load center

500mm

Condition

New

Certificate

CE and ISO

Transport Package

Wooden Box or Other

Specification

L1540mm*W560/680mm*H85mm

HS Code

8427900000

Production Capacity

20,000

The streamlined design of the body is more convenient for packaging and transportation; more convenient for usage space;
Abandon the traditional key, assemble the more convenient electronic combination lock in order to get rid of the risk of key lost;
The button walk straight keeps the electric pallet truck walk straight when passing through a narrow aisle;
Swiss buch pump station ensures the vehicle operation is more stable and efficient than average competitors;
Standard device of button tortoise makes the electric pallet truck keeping slow speed which is suitable to tyro;
With error code displayer;
Double front wheels and single front wheel is optional.

Model	Unit	EPT-20E
power unit	-	electric
operation	-	pedestrian
loading capacity	kg	2000
load centre	mm	600
wheel base	mm	1220
service weight with battery	kg	138
wheels type	-	PU
driving wheel size,number	mm	φ190*70/1
loading roller size,number	mm	φ80*70/4
lifting height	mm	110
height of tiler in driving position min/max	mm	1200
lowered height	mm	85
overall length	mm	1540
overall width	mm	560/680
single fork dimensions	mm	1601150/1601220
ground clearance	mm	30
channel width (1000mm*1200mm tray)	mm	1500
channel width (800mm*1200mm tray)	mm	1550
min. turning radius	mm	1350
travel speed Laden / unladen	km/h	4.2/4.5
lifting speed Laden / unladen	mm/s	22/17
lowering speed Laden / unladen	mm/s	26/30
maximum climbing ability, with/without load	%	6%-10%
service brake	-	electromagnetic
drive motor	kw	0.8
lifting motor	kw	0.6
battery voltage / rated capacity	V/Ah	48V/15Ah
battery weight	kg	4.5
charging time	h	2.5
working time after full charge	h	>3
