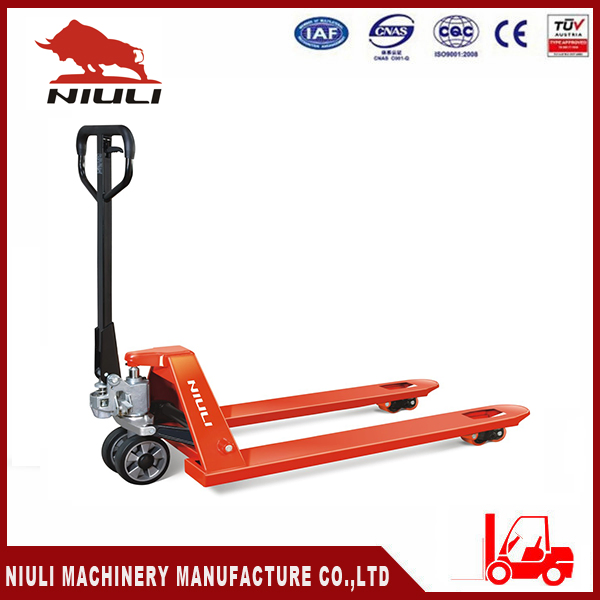

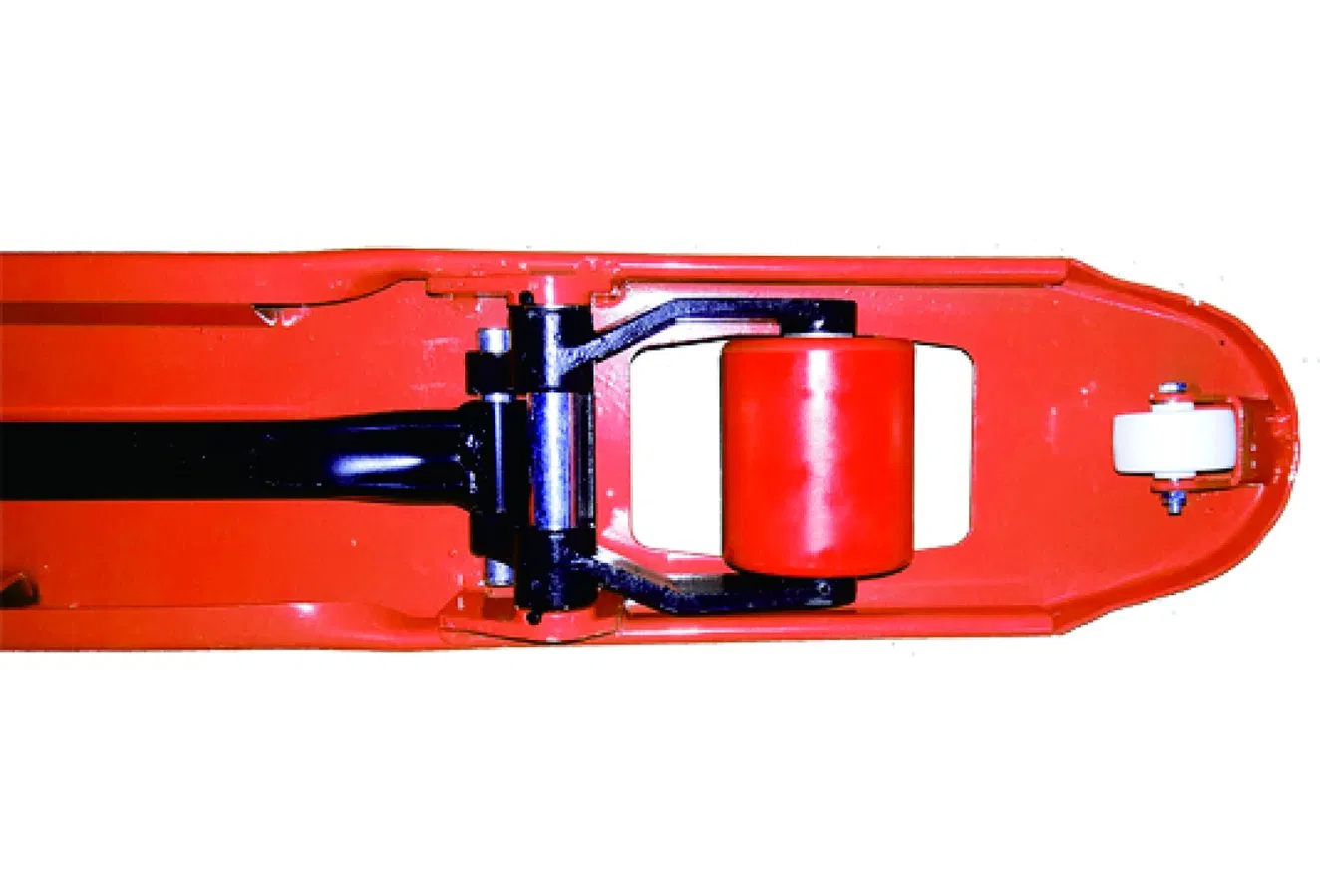

Niuli AC Hydraulic Hand Pallet Truck with Ce
Niuli AC Hydraulic Hand Pallet Truck with Ce
Niuli AC Hydraulic Hand Pallet Truck with Ce
Niuli AC Hydraulic Hand Pallet Truck with Ce
Niuli AC Hydraulic Hand Pallet Truck with Ce
1 / 5
Niuli AC Hydraulic Hand Pallet Truck with Ce
Niuli AC Hydraulic Hand Pallet Truck with Ce
Niuli AC Hydraulic Hand Pallet Truck with Ce
Niuli AC Hydraulic Hand Pallet Truck with Ce
Niuli AC Hydraulic Hand Pallet Truck with Ce

Niuli AC Hydraulic Hand Pallet Truck with Ce

After-sales Service: Online Service
Warranty: 1 Year
Cab Location: Not Adjustable
Send Inquiry

Product Description

Basic Information
Model NO.
CBY-AC hand pallet truck
Type
Manual Pallet Truck
Power
Hand
Load Capacity
1T - 5T
Fuel
Not
Load center
>500mm
Lift height
195mm
Condition
New
Material
Steel
Size
550X1150mm
Entry Type
2-Way
HS Code
8427900000
AC Hydraulic Hand Pallet Truck
Product Description
✔ Capacity: 2000kg, 2500kg, 3000kg, 5000kg
✔ Lowered Fork Height: 85mm, 75mm, 140mm
✔ Total Lift Height: 195mm / 185mm
✔ Fork Width: 1150mm / 1220mm
✔ Width Over The Forks: 550mm / 685mm
✔ Steering Wheel: 180X50mm
✔ Front Wheel: 80mm / 70mm
✔ Self Weight: 73-92kg
✔ Q'Ty/20 Feet Container: 180 / 144 PCS
Manual Pallet Truck Details
Model CBY-AC2.5 CBY-AC3.0
Capacity(kg) 2500 3000
Min. Fork height(mm) 85/75 85/75
Max. Fork height(mm) 195/185 195/185
Lifting height(mm) 110 110
Fork length(mm) 1150/1220 1150/1220
Single fork width(mm) 160 160
Width overall forks(mm) 550/685 550/685

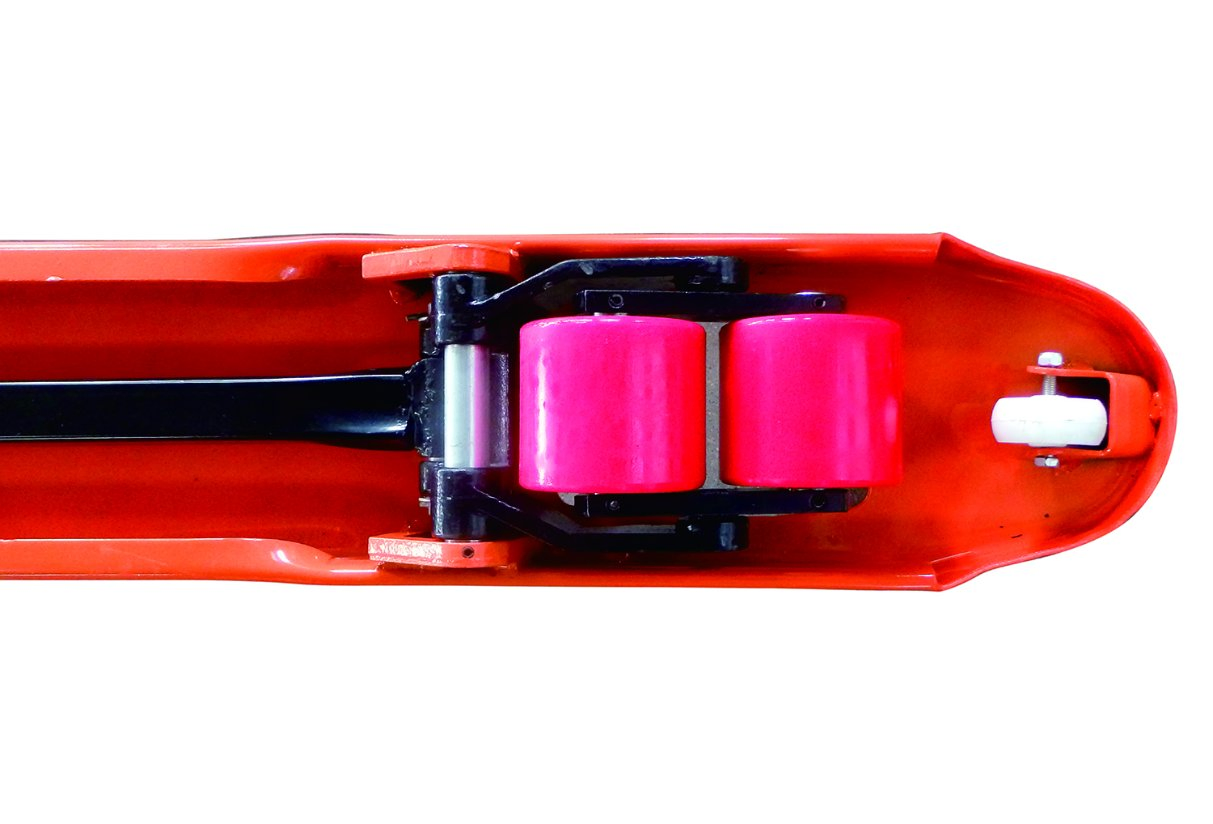

Fork wheel-single(mm) 80×93/74×93 80×93/74×93
Fork wheel-tandem(mm) 80×70 80×70
Steering wheel(mm) 180×50 180×50
Self weight(kg) 73-92

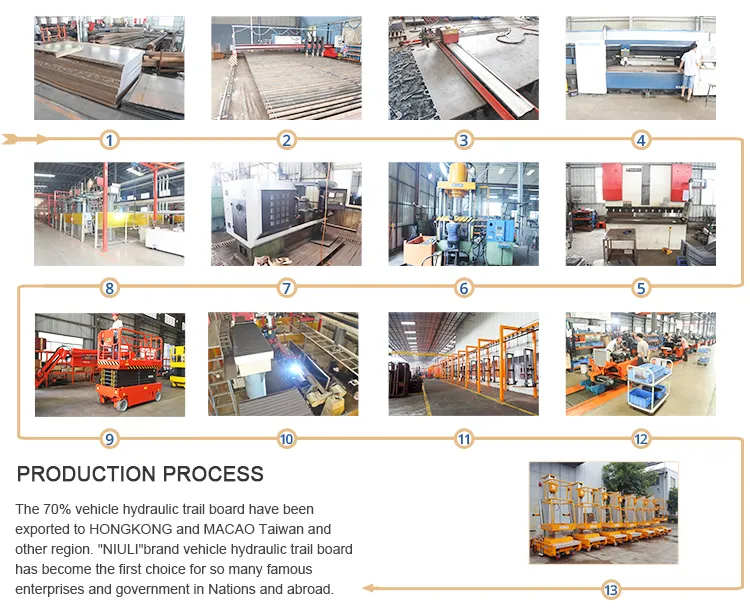

Hand Truck Feature 1
Hand Truck Feature 2
Hand Truck Feature 3

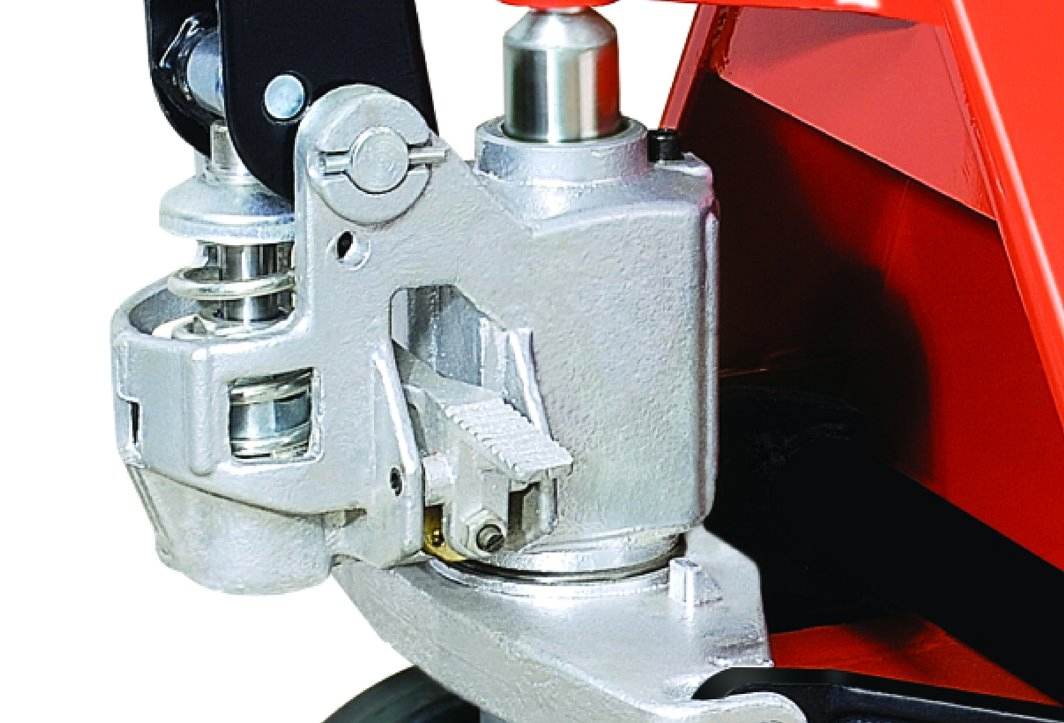

Hydraulic System View
Frequently Asked Questions
Q1: What is the maximum load capacity of this hand pallet truck?
A: The CBY-AC series offers a load capacity ranging from 1 ton up to 5 tons, suitable for various heavy-duty material handling tasks.
Q2: What materials are used in the construction of the truck?
A: The truck is built with high-quality, durable steel to ensure long-term reliability and structural integrity under heavy loads.
Q3: Are there different fork sizes available?
A: Yes, standard fork sizes include 550x1150mm and 685x1220mm, accommodating different pallet types and workspace requirements.
Q4: What is the standard lift height for the forks?
A: The maximum lift height is approximately 195mm, providing sufficient clearance for transporting standard pallets.
Q5: How many units can fit in a 20-foot container?
A: Depending on the specific configuration and packaging, a 20-foot container can typically hold between 144 to 180 units.
Q6: What type of wheels does the pallet truck use?
A: It features a high-performance steering wheel (180x50mm) and durable front wheels (80mm or 70mm) for smooth maneuverability.
