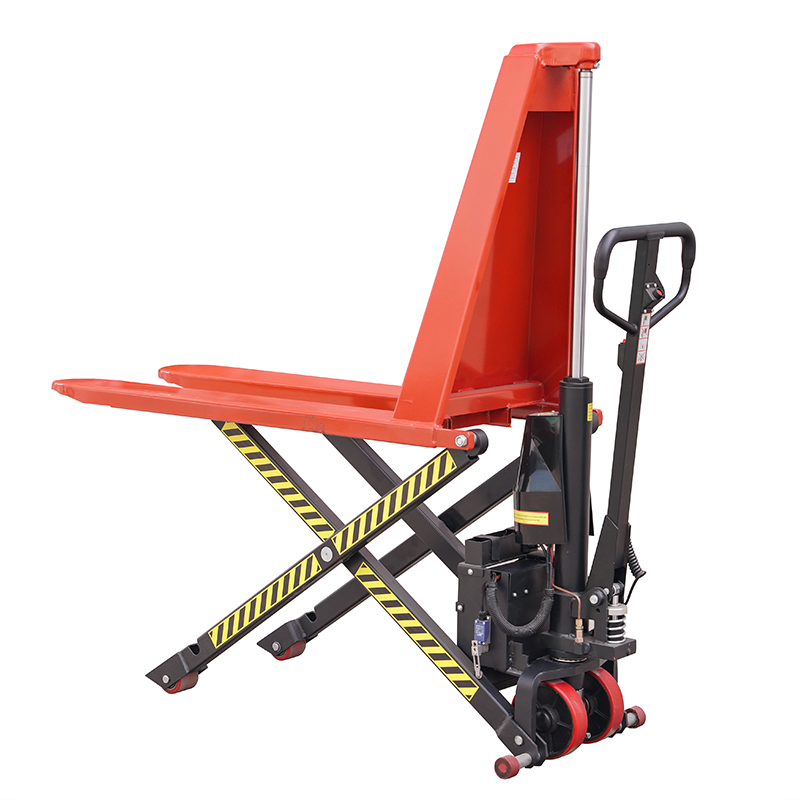

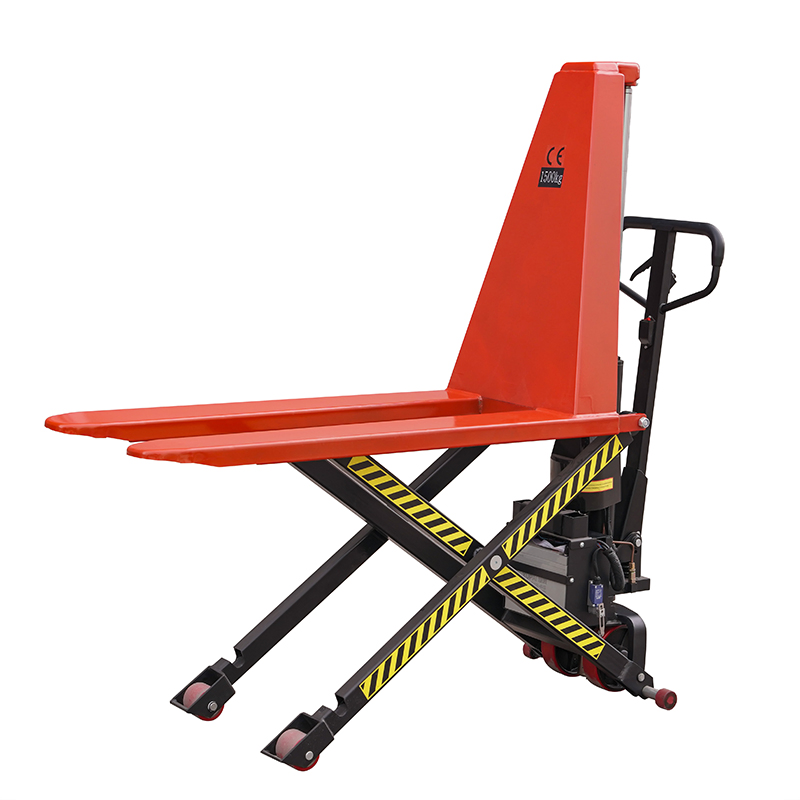

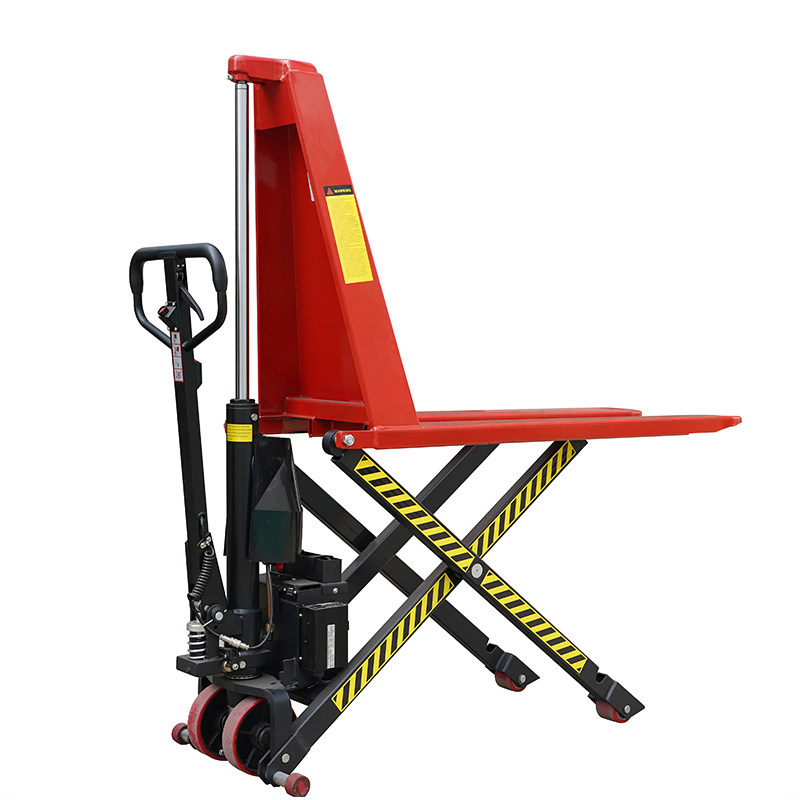

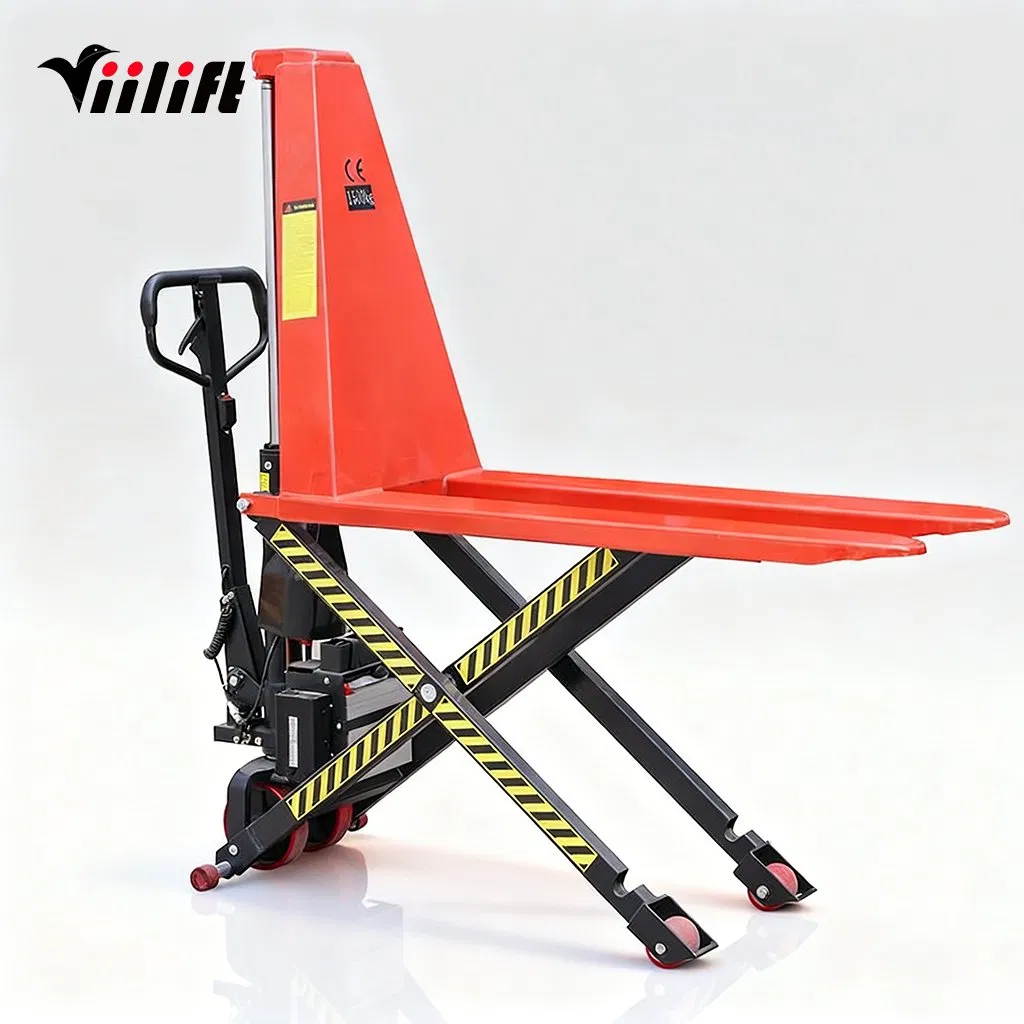

New Model Material Handling Equipment 1500kg Capacity 800mm Height Scissor High Lift Pallet Truck
New Model Material Handling Equipment 1500kg Capacity 800mm Height Scissor High Lift Pallet Truck
New Model Material Handling Equipment 1500kg Capacity 800mm Height Scissor High Lift Pallet Truck
New Model Material Handling Equipment 1500kg Capacity 800mm Height Scissor High Lift Pallet Truck
New Model Material Handling Equipment 1500kg Capacity 800mm Height Scissor High Lift Pallet Truck
1 / 5
New Model Material Handling Equipment 1500kg Capacity 800mm Height Scissor High Lift Pallet Truck
New Model Material Handling Equipment 1500kg Capacity 800mm Height Scissor High Lift Pallet Truck
New Model Material Handling Equipment 1500kg Capacity 800mm Height Scissor High Lift Pallet Truck
New Model Material Handling Equipment 1500kg Capacity 800mm Height Scissor High Lift Pallet Truck
New Model Material Handling Equipment 1500kg Capacity 800mm Height Scissor High Lift Pallet Truck

New Model Material Handling Equipment 1500kg Capacity 800mm Height Scissor High Lift Pallet Truck

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information

Type
Manual Pallet Truck
Power
Manual / Hydraulic
Load Capacity
1000kg / 1500kg
Lift Height
800mm
Fork Width
550/685mm
Fork Length
1150/1500mm
Lowered Height
85mm
Wheel Type
PU / Nylon
Turning Radius
1350mm
Condition
New
Scissor High Lift Pallet Truck Banner

Product Description

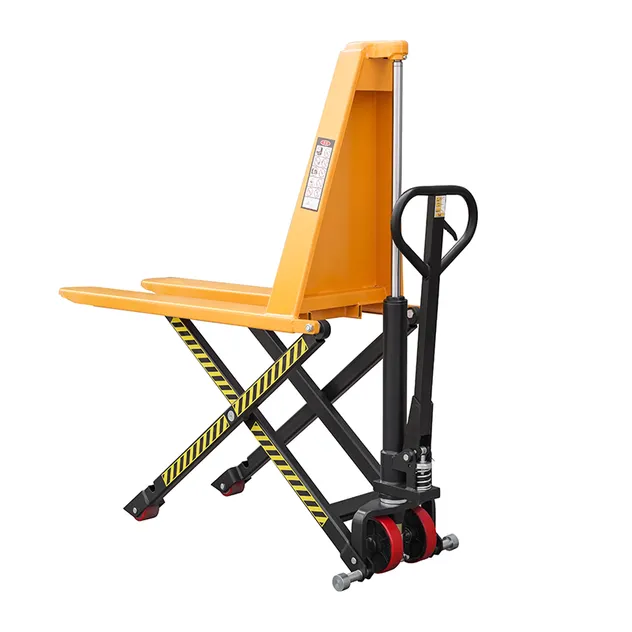

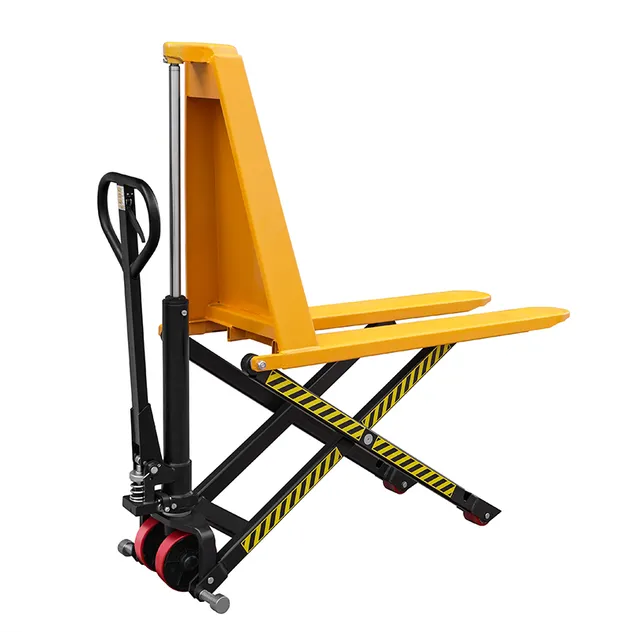

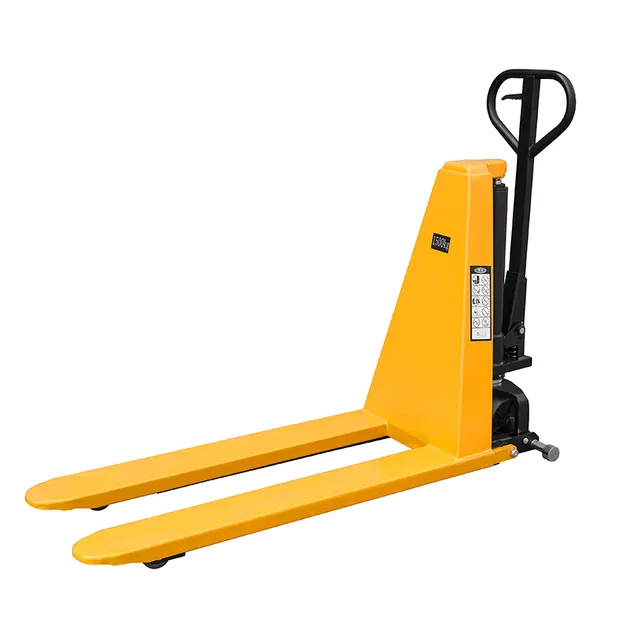

High Lift Pallet Truck Detail 1 High Lift Pallet Truck Detail 2 High Lift Pallet Truck Detail 3

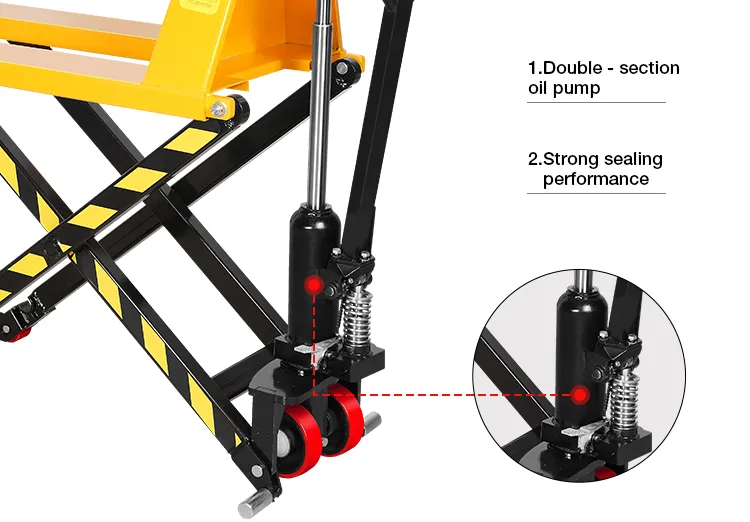

Oil Cylinder Detail
Split-type Double-stage Oil Cylinder
High-quality dual-stage hydraulic pump with strong sealing, no sticking, reduces maintenance frequency, and extends overall service life.

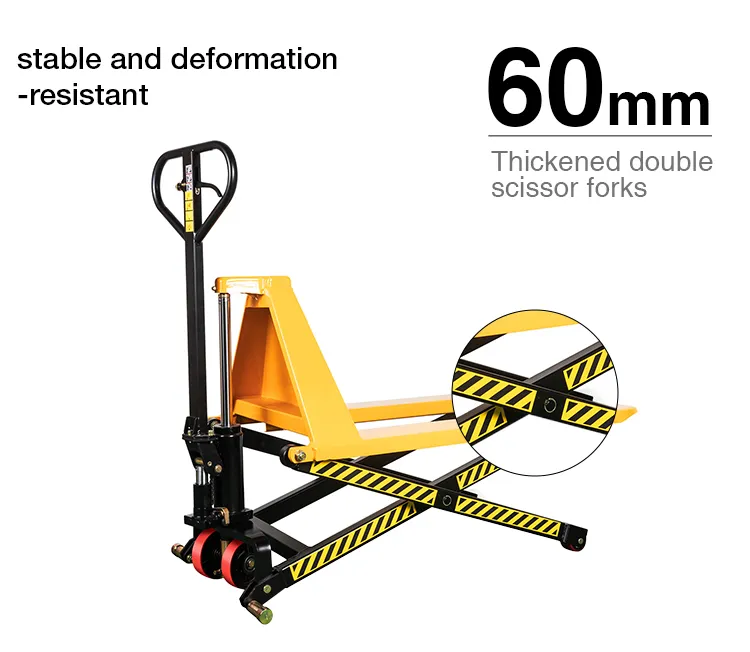

Scissor Structure Detail
Double Scissor Structure
60mm thickened double scissor design offers excellent resistance to bending and compression, ensures smooth lifting, and resists deformation over long-term use.

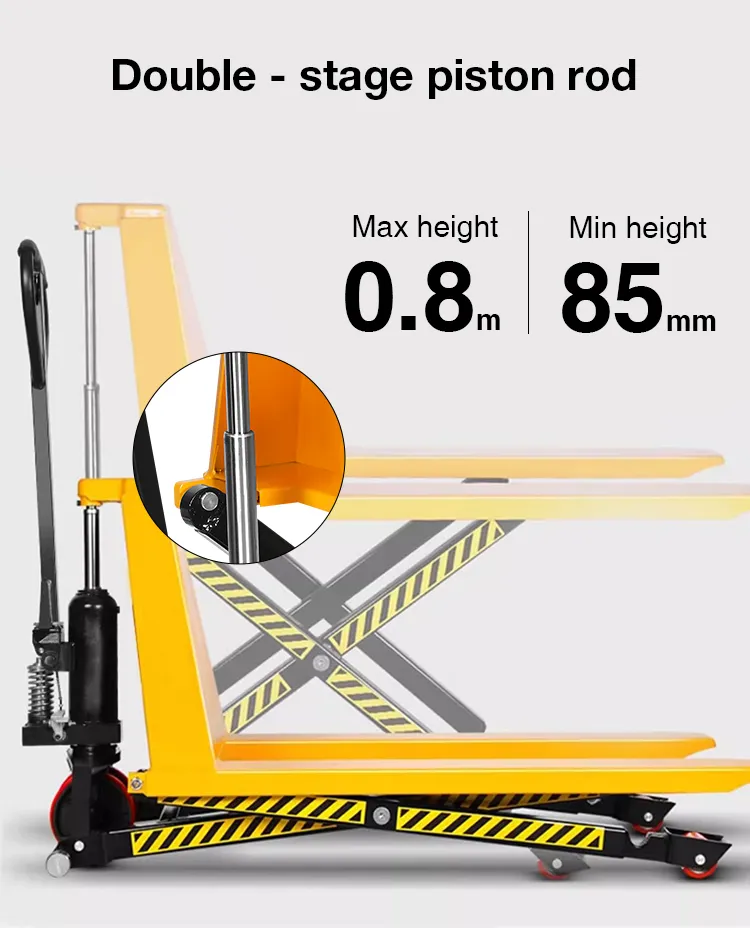

Piston Rod Detail
Double-stage Piston Rod
Equipped with dual-stage piston rods, enabling faster lift speed and higher lift height, suitable for different working heights.

Technical Specification

Model GBC10 GBC15
Load Capacity (kg)10001500
Fork Length (mm)11501150
Outside Fork Width (mm)550 / 685550 / 685
Lowered Height (mm)8585
Lifting Height (mm)800 / 1000 / 1200800 / 1000 / 1200
Wheel TypePolyurethanePolyurethane
Overall Length (mm)15501550
Weight (kg)120140
HS Code8427900084279000
Technical Drawing

Production Overview

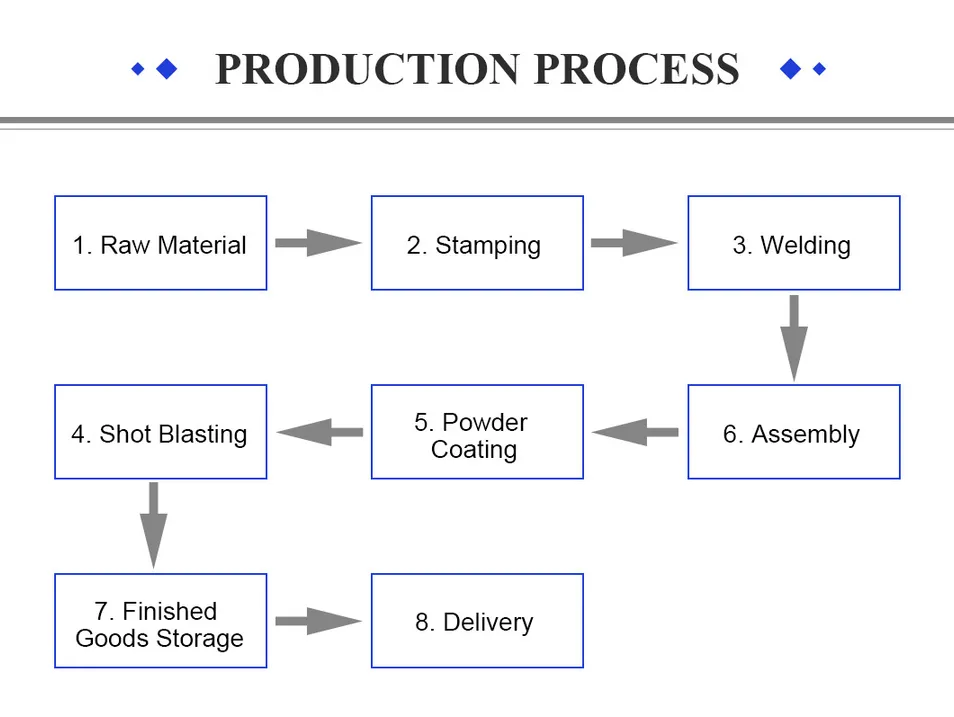

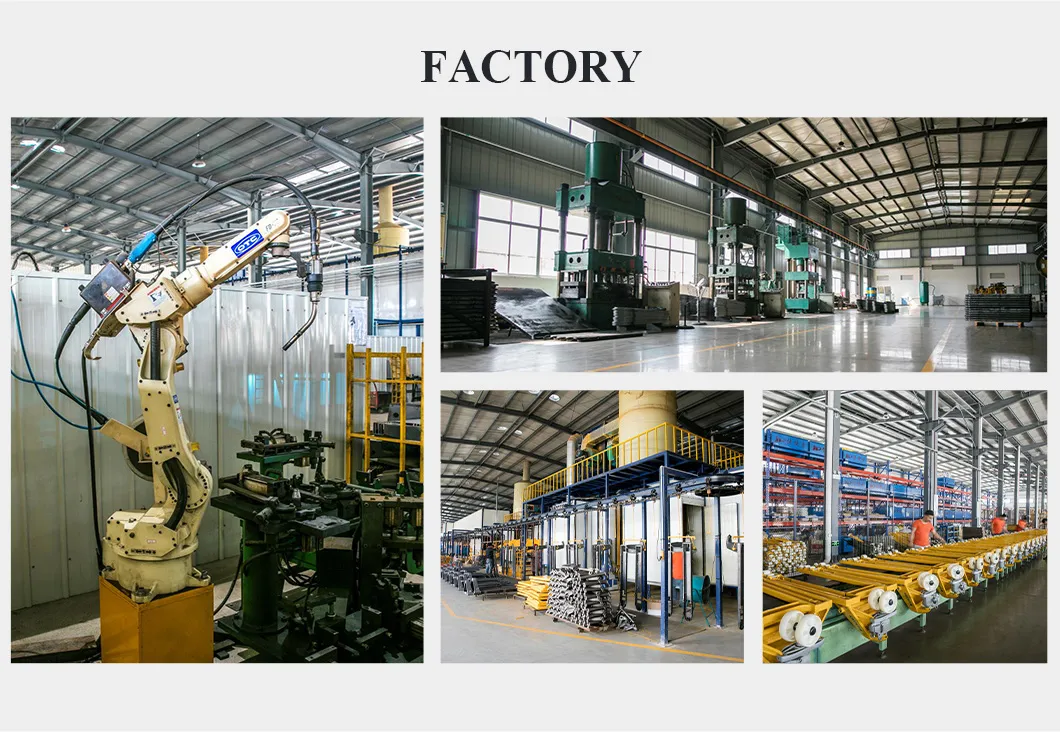

Production Process Quality Control
Warehouse 1 Warehouse 2

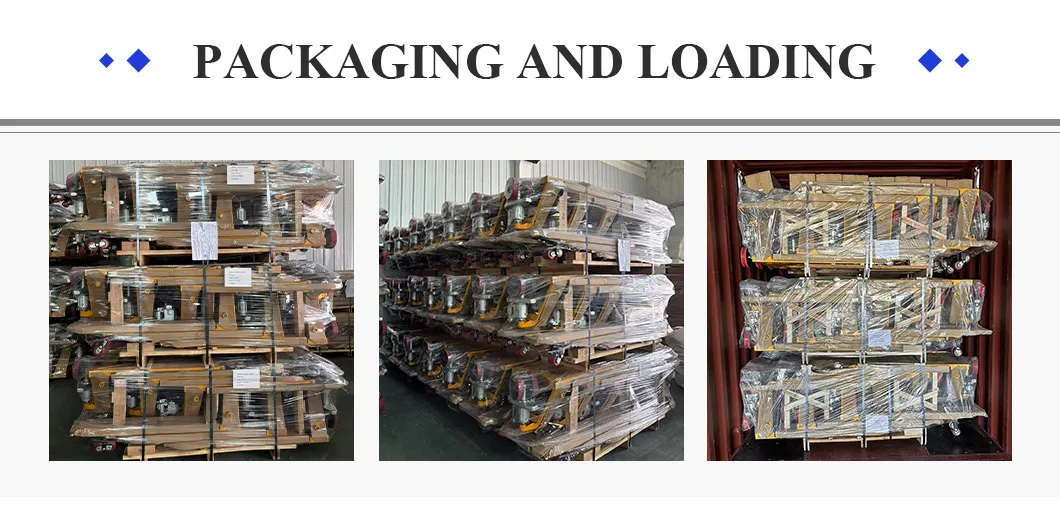

Shipping Preparation Delivery

Frequently Asked Questions

1. What are the key benefits of the double scissor structure?
The double scissor structure uses 60mm thickened steel to provide superior stability and resistance to deformation, ensuring safe operation even under full 1500kg loads.
2. Is this high lift pallet truck suitable for all pallet types?
It is designed for open-bottom pallets. The scissor structure requires space to expand, making it ideal for standard Euro pallets and similar designs.
3. What is the advantage of the dual-stage hydraulic pump?
The dual-stage pump allows for faster lifting speeds and a more compact design. It features high-quality seals to prevent oil leaks and reduce maintenance needs.
4. Can I customize the fork width and lift height?
Yes, we accept customization requests. While standard lift height is 800mm, we can offer options up to 1200mm and different fork widths like 550mm or 685mm.
5. What kind of wheels should I choose: PU or Nylon?
PU (Polyurethane) wheels are quieter and better for smooth indoor floors, while Nylon wheels are harder and easier to push on rough surfaces or for heavy-duty warehouse use.
6. What is the typical lead time for a bulk order?
Standard production time is approximately 20-35 days after order confirmation, depending on the customization requirements and order quantity.
