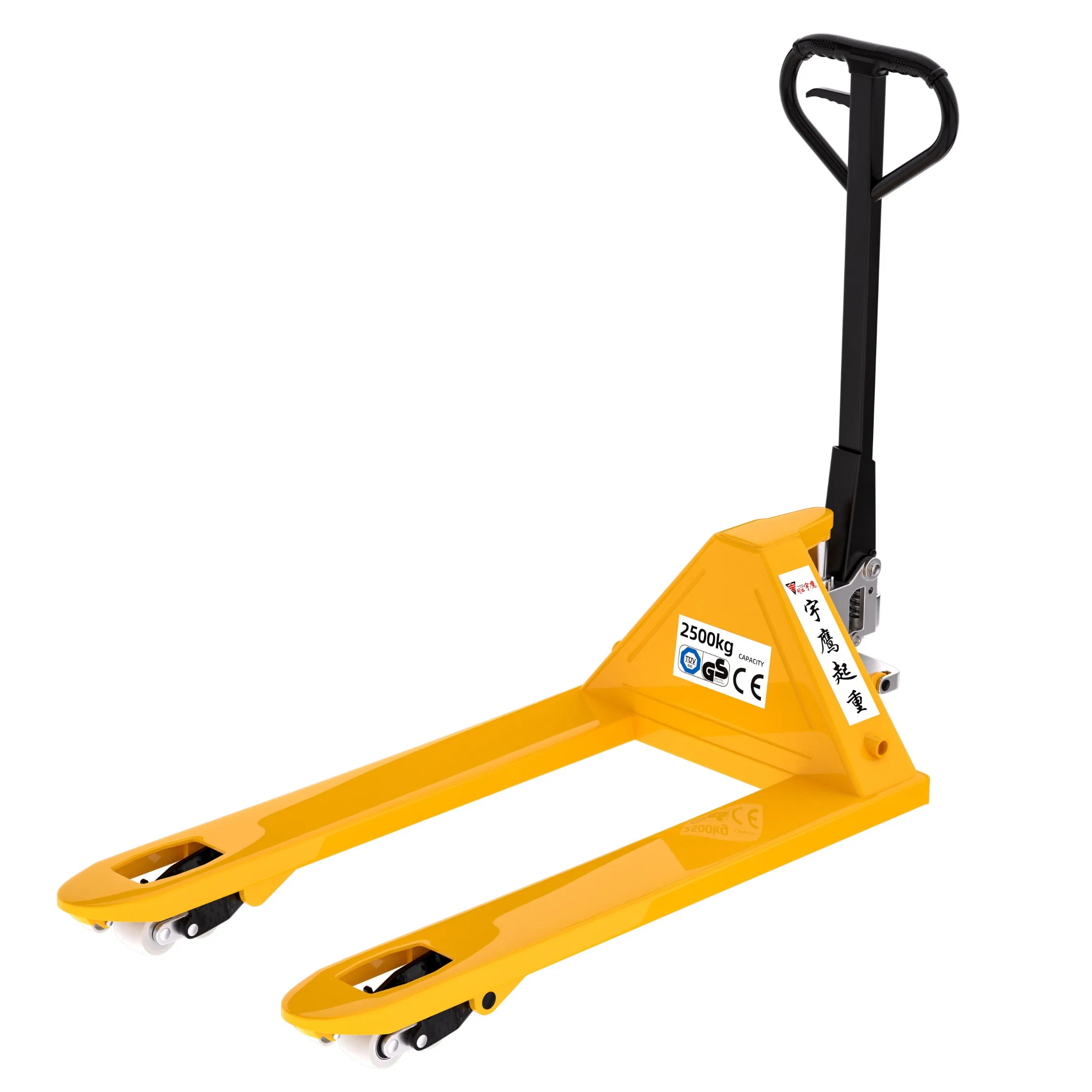

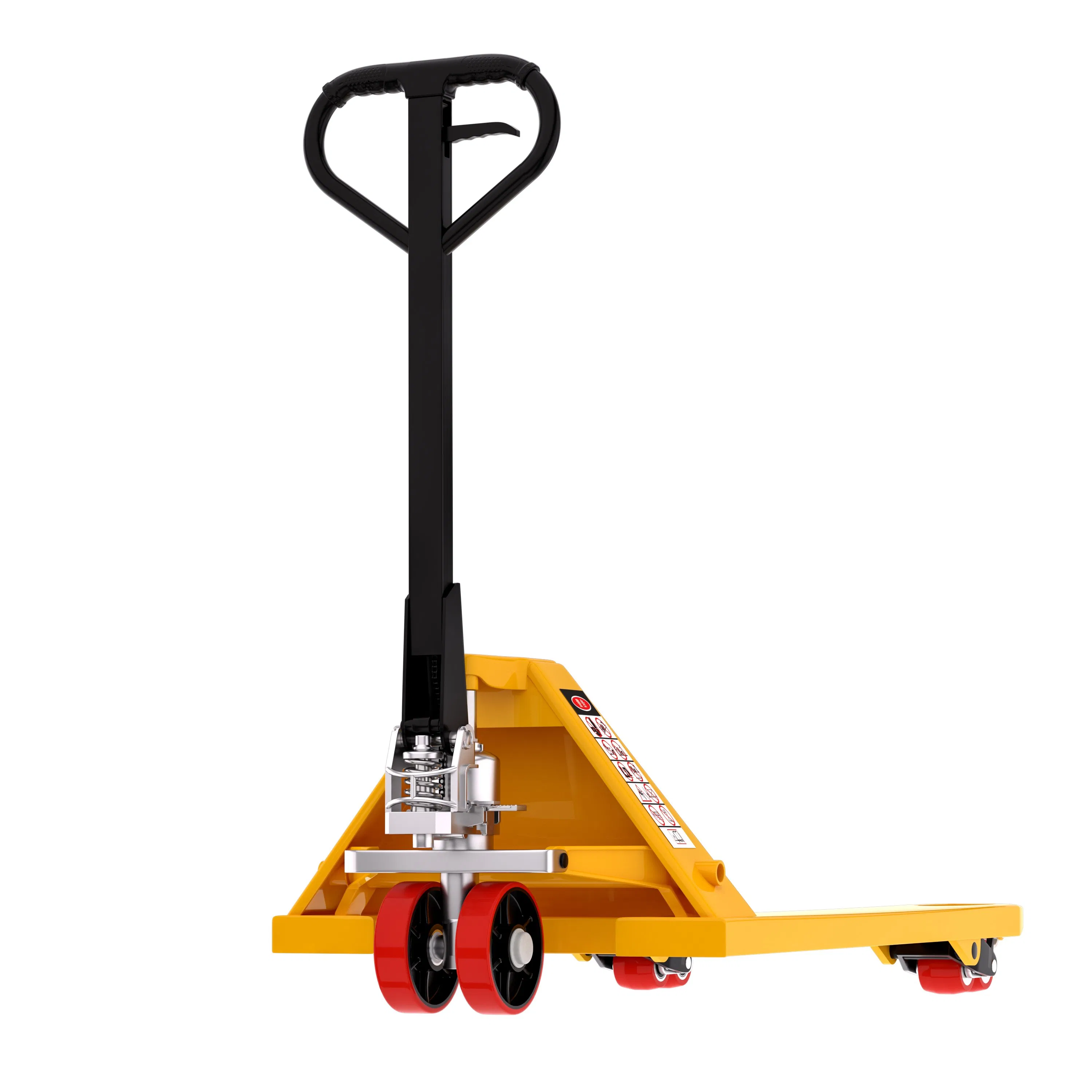

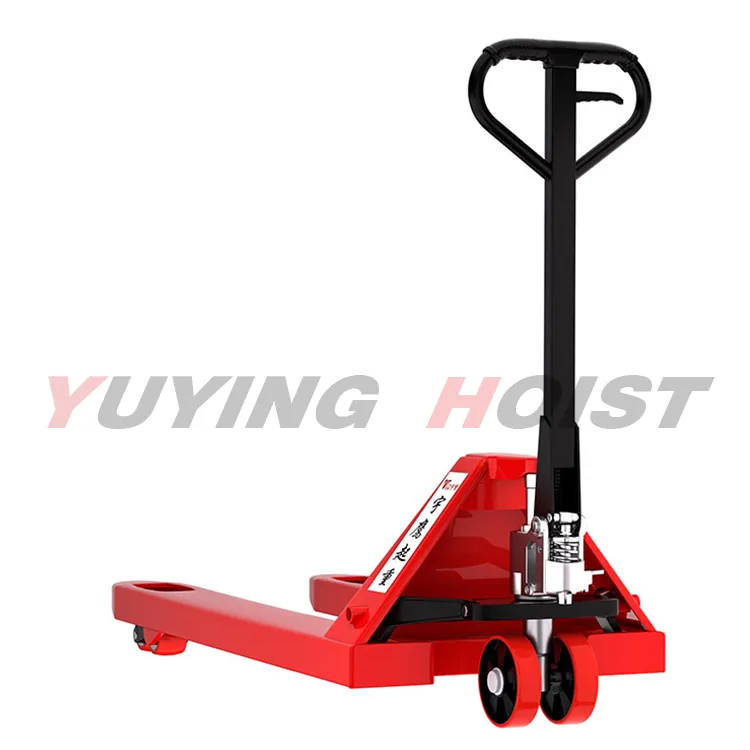

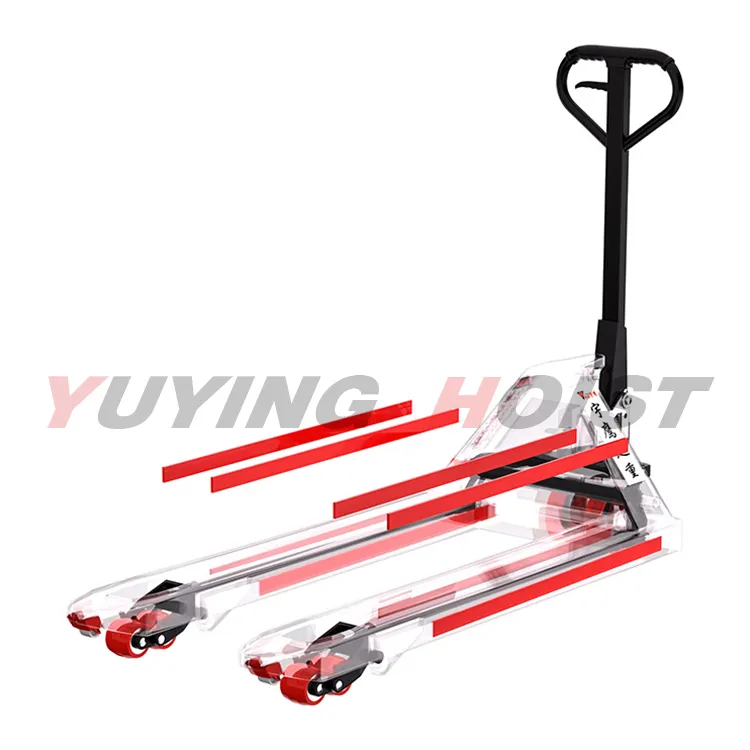

Hang Truck Manual Lift Hand Pallet Truck Warehouse

1 / 5

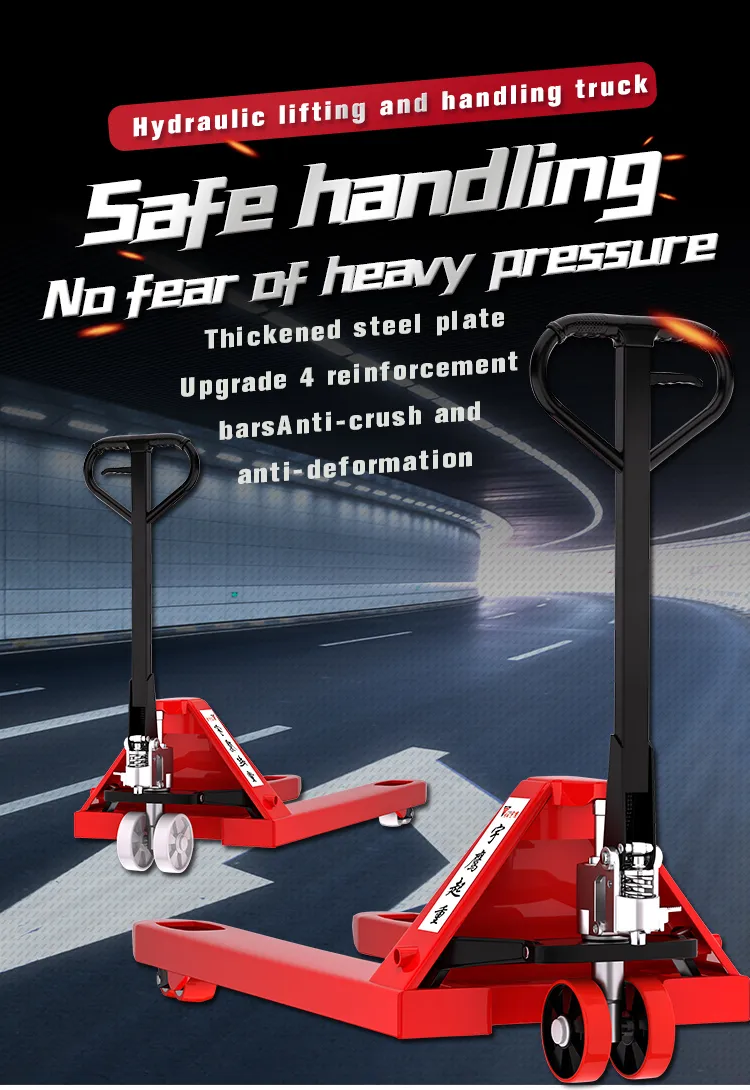

Hang Truck Manual Lift Hand Pallet Truck Warehouse

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Product Name

Hand Pallet Jack

Type

Hydraulic

Load Capacity

1T - 5T

Load Center

>500mm

Condition

New

Wheels

Nylon PU

Min. Lifting Height

85mm

Fork Width

550/685mm

Fork Length

1200mm

Power Source

Manual

Application

Material Handling Equipment

Test Report

Provided

⚙️

Product Specifications

Model	2T 550	2T 685	2.5T 550	2.5T 685	3T 550	3T 685	5T 685
Rated load (kg)	2000	2000	2500	2500	3000	3000	5000
Min fork height	80mm	80mm	80mm	80mm	80mm	80mm	90mm
Max fork height	200mm	200mm	200mm	200mm	200mm	200mm	195mm
Steel thickness	4mm	4mm	4mm	4mm	4mm	4mm	6mm
Fork Width	550mm	685mm	550mm	685mm	550mm	685mm	685mm
Fork Length	1200mm	1200mm	1200mm	1200mm	1200mm	1200mm	1200mm
Oil cylinder	Monolithic	Monolithic	Monolithic	Monolithic	Monolithic	Monolithic	Monolithic

📸

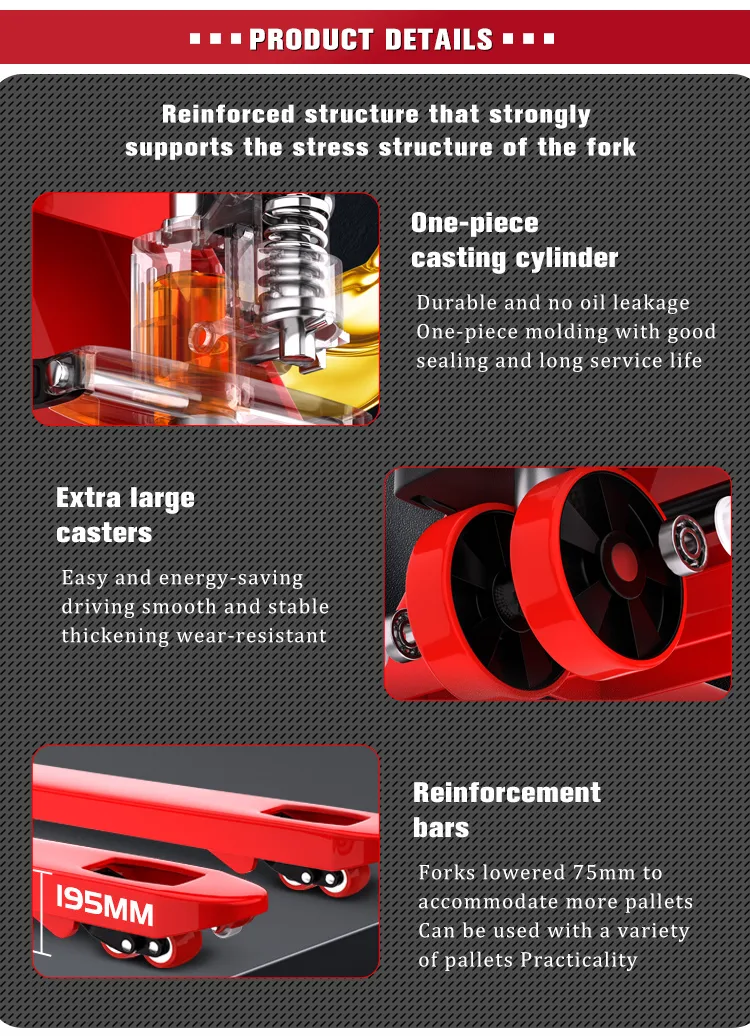

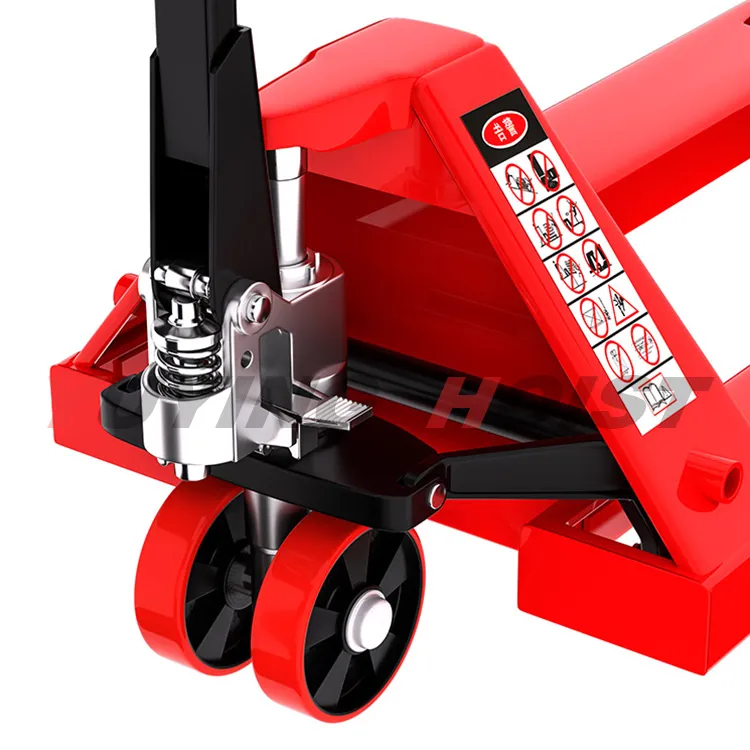

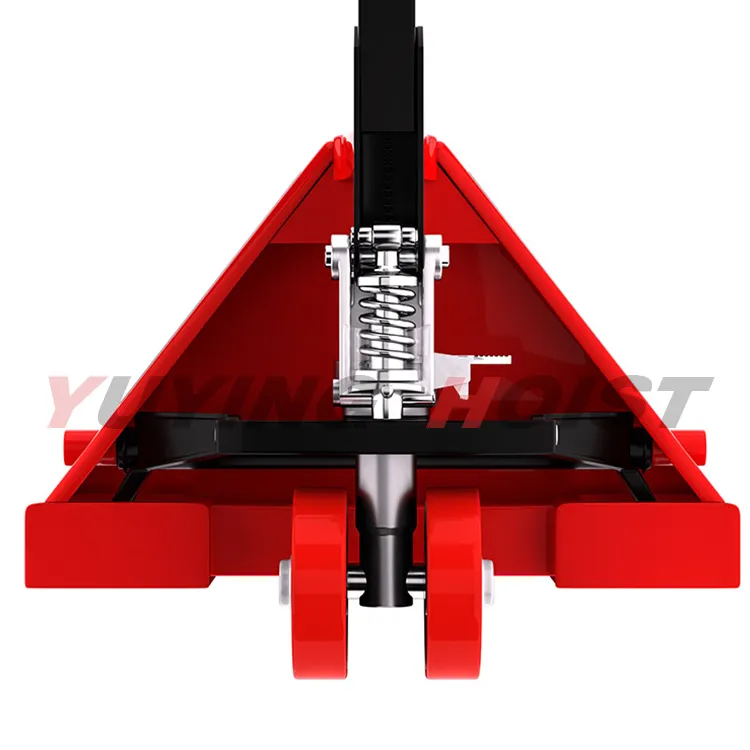

Product Details

❓

Frequently Asked Questions

Q1: What is the maximum load capacity of this hand pallet jack?

The rated load capacity ranges from 2000kg (2T) up to 5000kg (5T) depending on the specific model chosen.

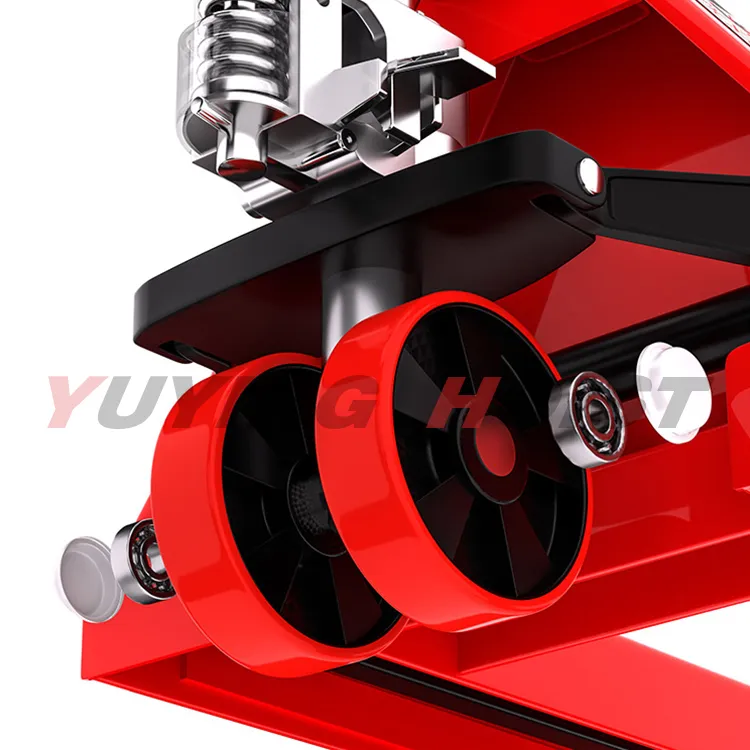

Q2: What types of wheels are used on the pallet truck?

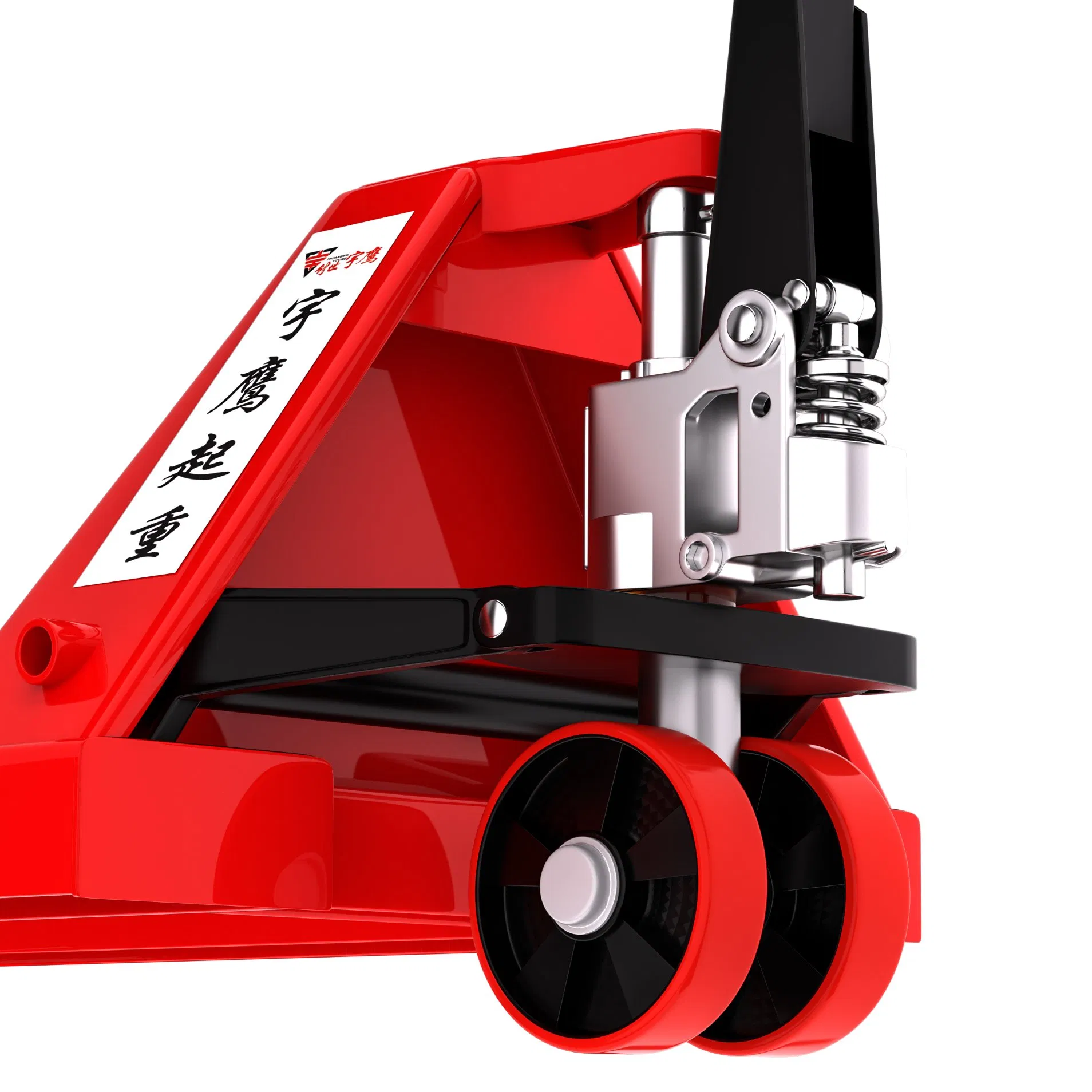

The equipment is fitted with high-quality Nylon or PU (Polyurethane) wheels, providing smooth movement and durability across various warehouse surfaces.

Q3: What are the available fork widths?

We offer two standard fork widths: 550mm (narrow) and 685mm (wide) to accommodate different pallet sizes.

Q4: Is the hydraulic system reliable?

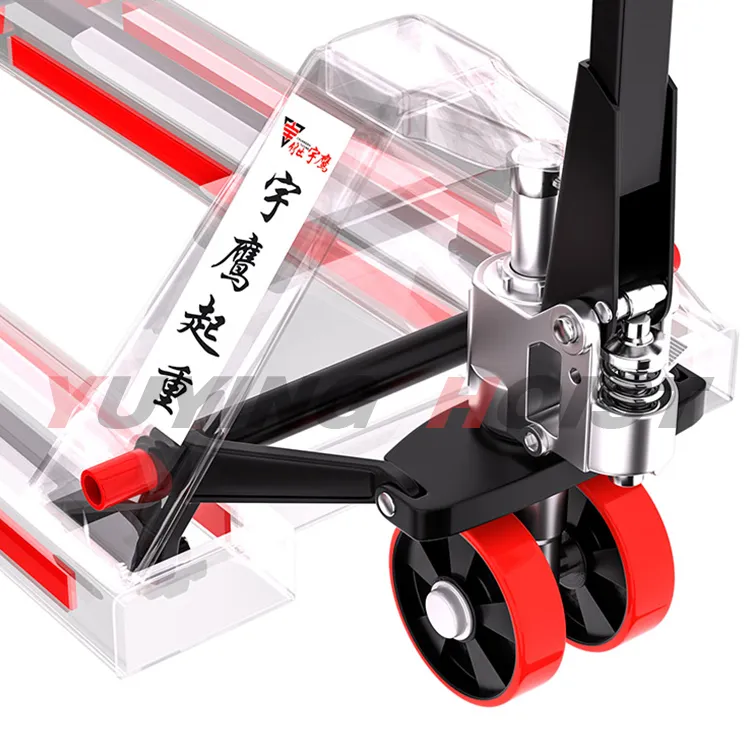

Yes, our pallet jacks feature a monolithic oil cylinder design which ensures stable lifting performance and reduces the risk of oil leakage.

Q5: What is the minimum and maximum lifting height?

The minimum fork height is 80mm-90mm, and it can lift to a maximum height of approximately 195mm-200mm.

Q6: How is the product packaged for transport?

The units are typically packed in wooden cases, cartons, or secured on pallets to ensure safe delivery during transit.
