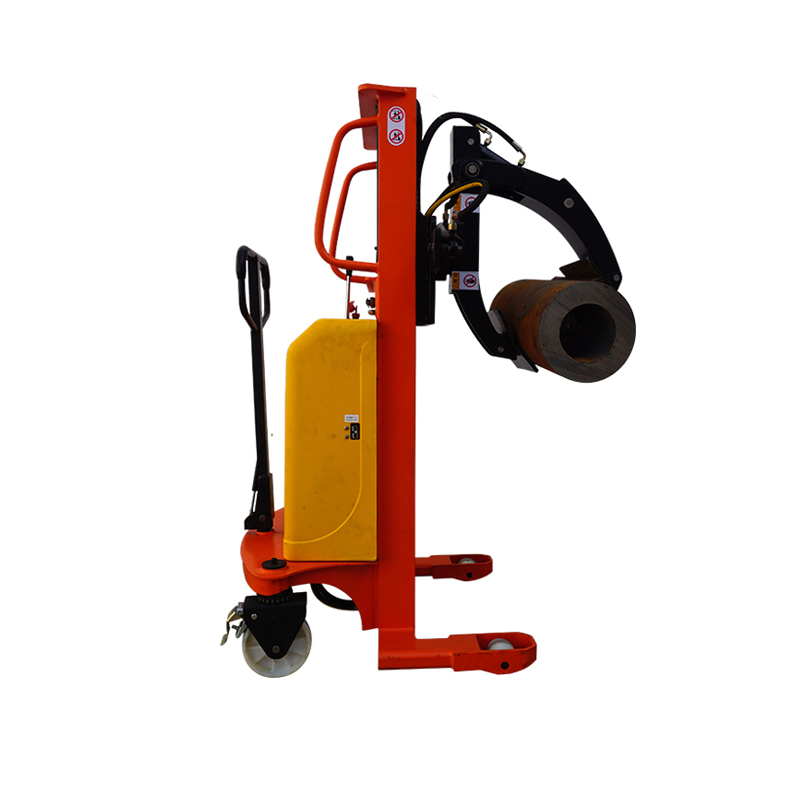

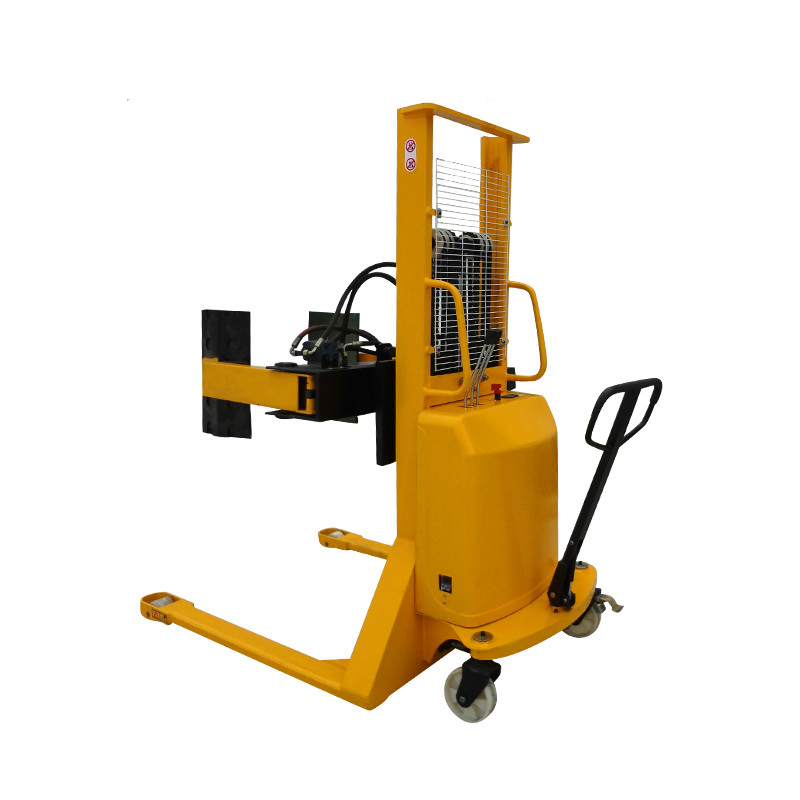

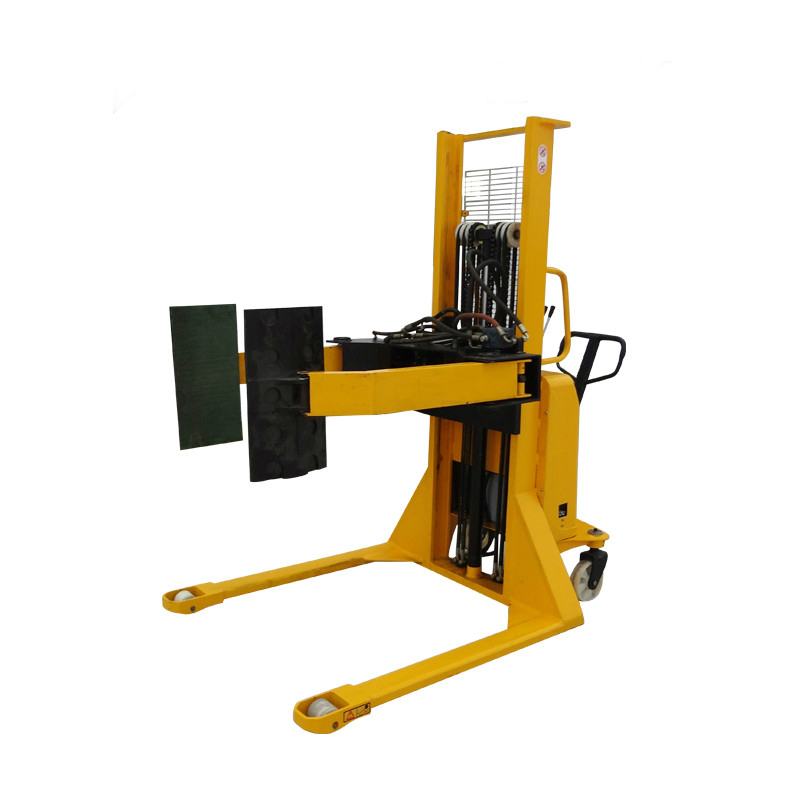

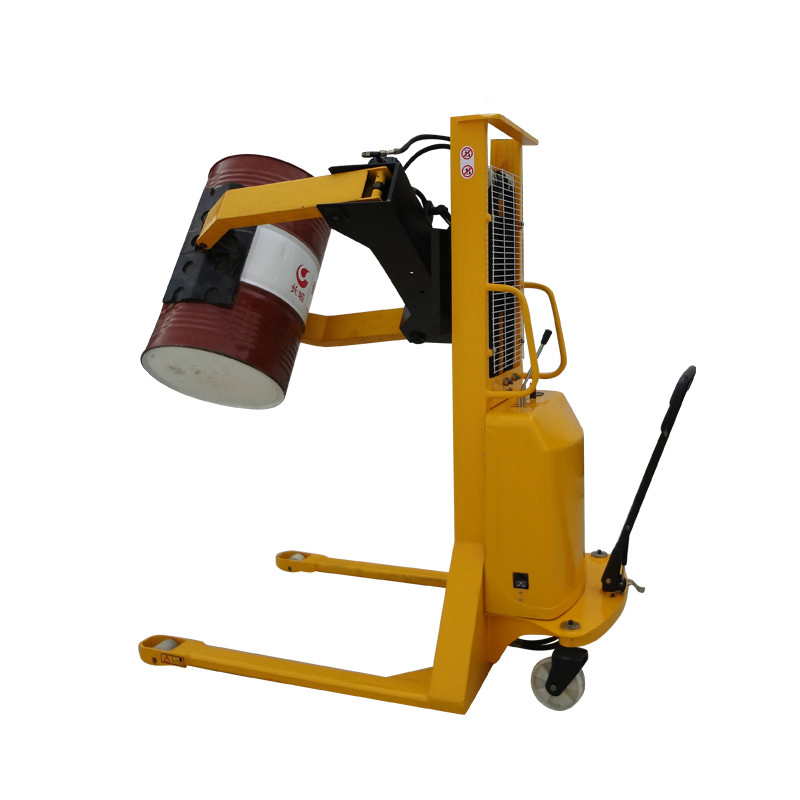

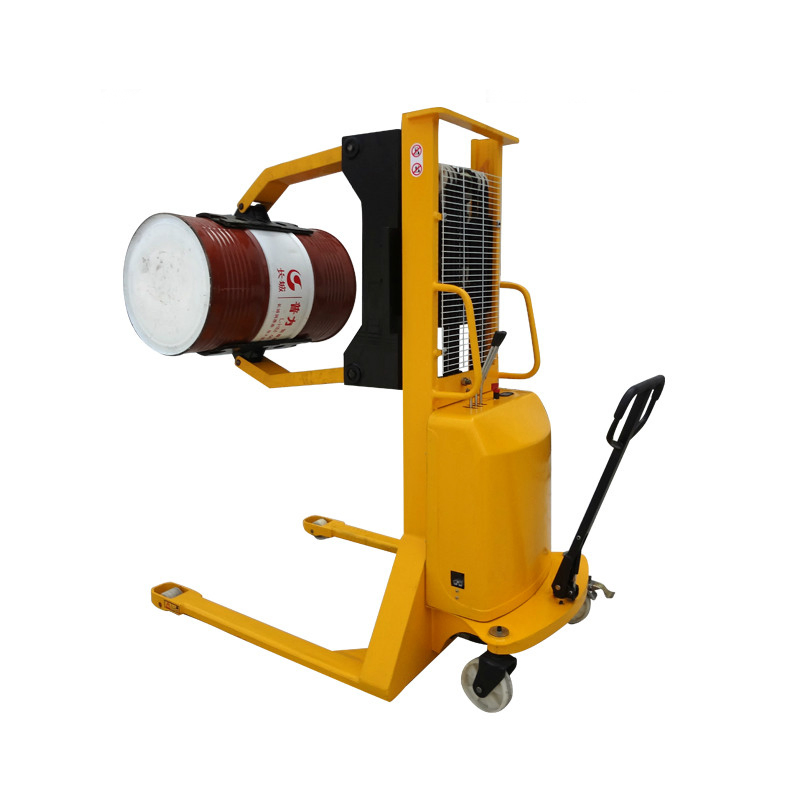

Mini Portable Hydraulic 500kg Semi Electric Stacker for Paper Roll
Mini Portable Hydraulic 500kg Semi Electric Stacker for Paper Roll
Mini Portable Hydraulic 500kg Semi Electric Stacker for Paper Roll
Mini Portable Hydraulic 500kg Semi Electric Stacker for Paper Roll
Mini Portable Hydraulic 500kg Semi Electric Stacker for Paper Roll
1 / 5
Mini Portable Hydraulic 500kg Semi Electric Stacker for Paper Roll
Mini Portable Hydraulic 500kg Semi Electric Stacker for Paper Roll
Mini Portable Hydraulic 500kg Semi Electric Stacker for Paper Roll
Mini Portable Hydraulic 500kg Semi Electric Stacker for Paper Roll
Mini Portable Hydraulic 500kg Semi Electric Stacker for Paper Roll

Mini Portable Hydraulic 500kg Semi Electric Stacker for Paper Roll

Customization: Available
Cab Location: Adjustable
Type: Semi Electric Paper Roll Lifter
Send Inquiry

Product Description

Basic Information
Model NO.
CTS0516-1000Z-P27
Power
AC Motor
Load Capacity
≤1T
Fuel
Electric
Load center
700mm
Lift height
1600mm
Condition
New
Origin
China Jiangsu
HS Code
8427209000
Production Capacity
3000 Pieces/Year
Product Description
Model CTS0216-500Z CTS0525-500Z CTS0516-1000Z CTS0530-1000Z
Order Number 5.01001 5.01002 5.01003 5.01004
Capacity(kg) 200 500 500 1000
Lift max.height(mm) 1600 2500 1600 3000
Minimum clamp height 520 520 520 520
Clamp width (mm) 635-950 635-950 1135-1450 1135-1450
Clamp length (mm) 820 820 1220 1220
Paper roll diameter ¢200-500mm ¢200-500mm ¢600-1000mm ¢600-1000mm
Load center (mm) 350 350 700 700
Weight (Kg) 498 550 560 640
Over size(mm)L*W*H 1700*950*2000 1700*950*1780 1900*1500*2000 1900*1500*1780
Channel request(mm) 1900Turn 1900Turn 2100Turn 2100Turn
Forward and Back request 1000mm 1000mm 1600mm 1600mm
Real wheels (mm) 2*¢80*70
Front wheels (mm) 2*¢150*50
Battery (V/Ah) 12/120
Charger (V/A) 12/15
Lifting motor (Kw) 1.6
Product Gallery
Electric Stacker 1

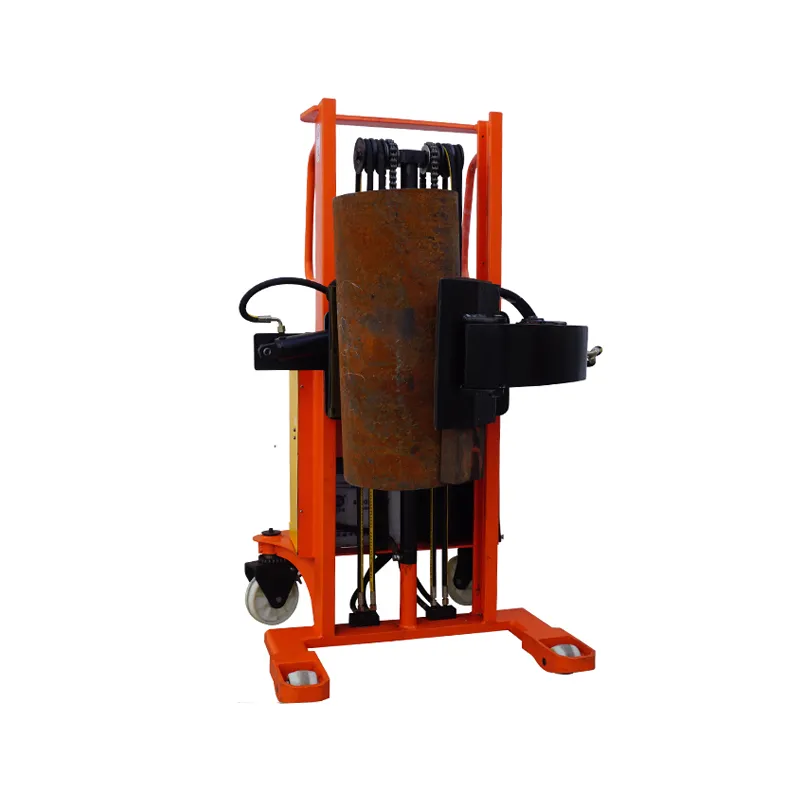

Electric Stacker 2

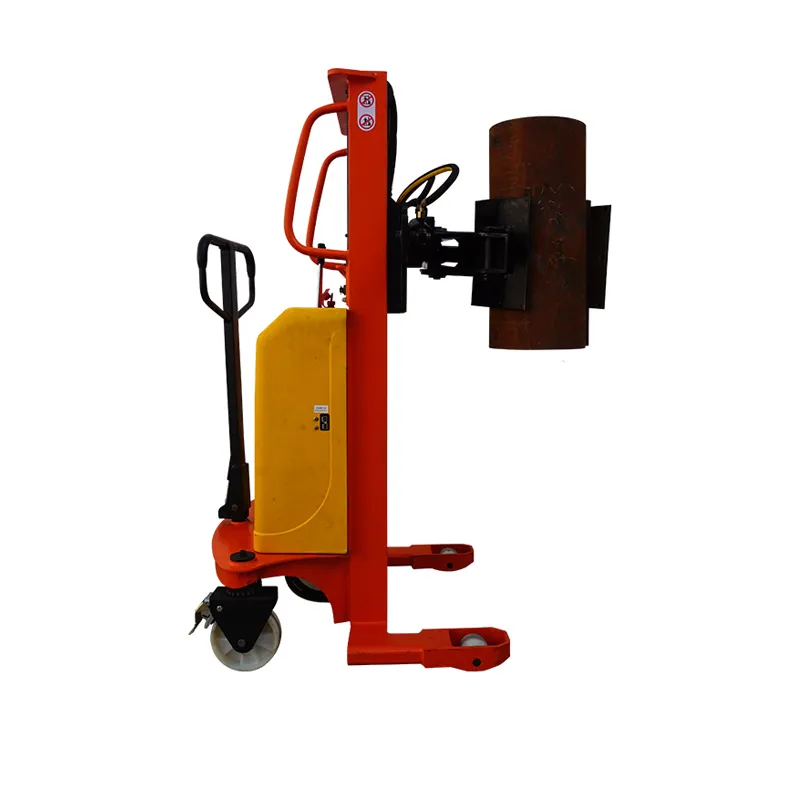

Electric Stacker 3

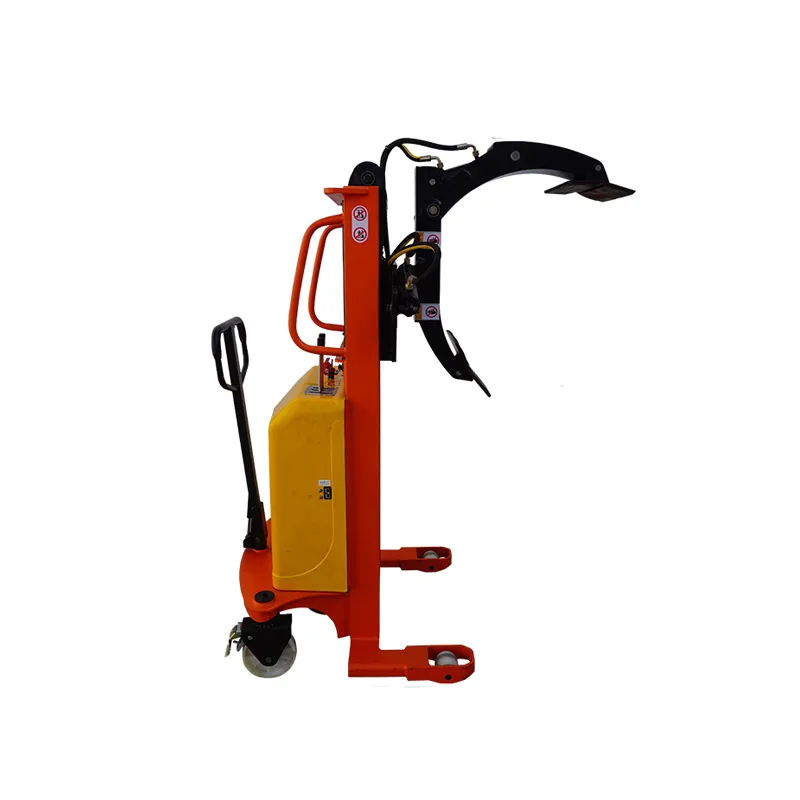

Electric Stacker 4

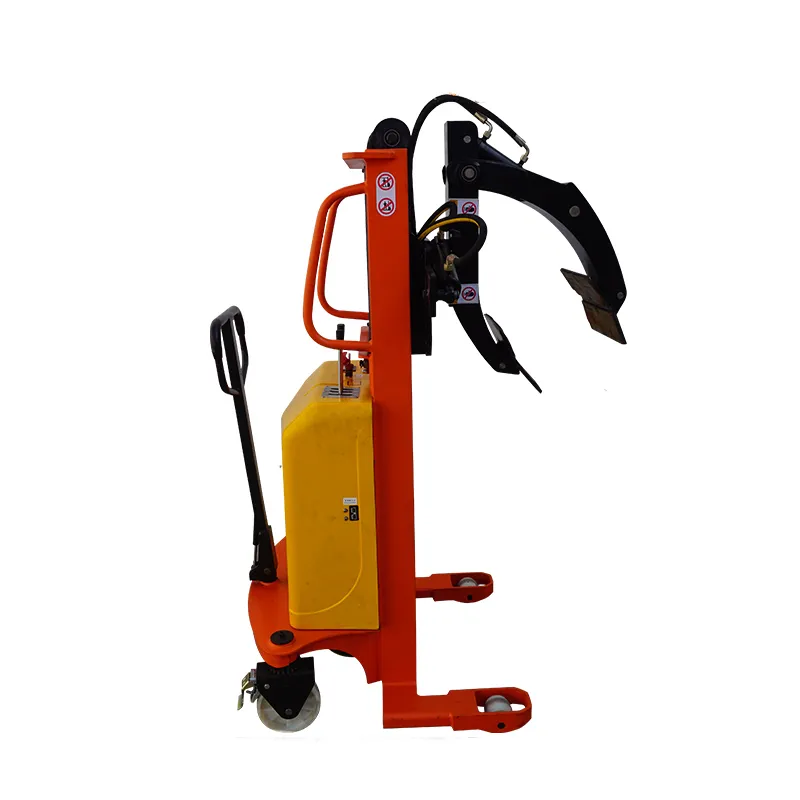

Electric Stacker 5

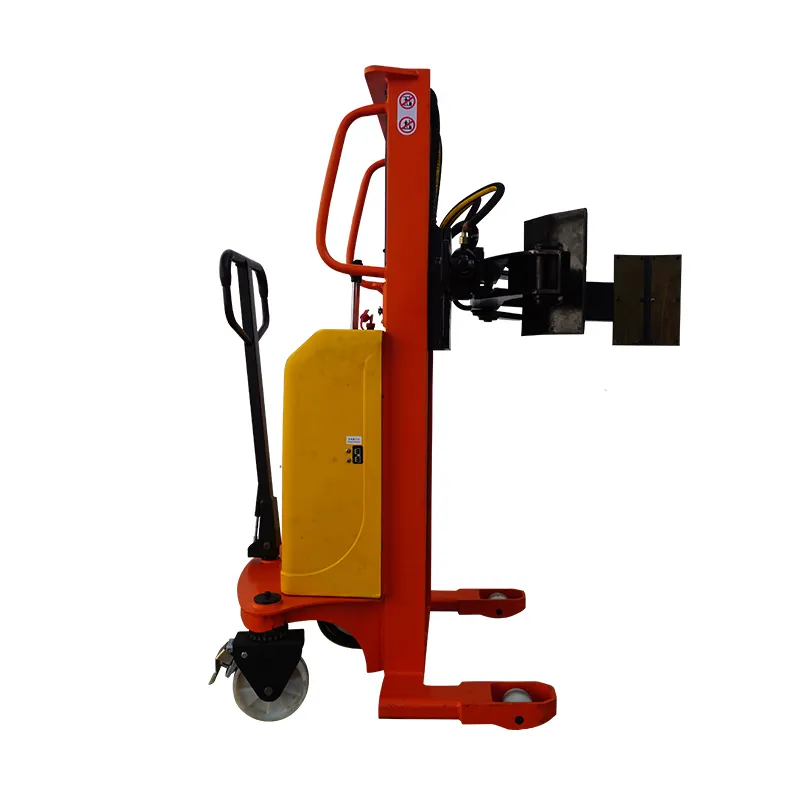

Electric Stacker 6
Key Features
1
Use formed C steel mast, providing high bending strength for heavy operations.
2
Equipped with wear-resistant nylon wheels and brakes to ensure no sliding after stopping.
3
Wide view mast designed with a security fence to protect the operator's hands from squeezing.
4
Versatile application: Ideal for paper fabrication, packaging, printing, and textiles industries.
5
Powerful lifting motor with small size and low noise operation.
6
High-performance chain bearing for enhanced durability and smooth lifting.
Frequently Asked Questions
What is the maximum load capacity of this series?
Depending on the model, the load capacity ranges up to 1000kg (1 Ton).
What are the available lifting heights?
We offer different models with maximum lifting heights ranging from 1600mm to 3000mm.
Is the stacker suitable for different paper roll diameters?
Yes, we have models designed for small rolls (¢200-500mm) and larger rolls (¢600-1000mm).
What type of power source does it use?
This is a semi-electric stacker powered by a 12V/120Ah battery with an included charger.
Which industries typically use this equipment?
It is widely used in paper manufacturing, packaging plants, printing facilities, and the textile industry.
What safety features are included?
The stacker includes a high-strength C steel mast, a safety fence for hand protection, and nylon wheels with integrated brakes.
