Material Handing Four Directional Vna Seated Full Power/Powered/Battery/Electric Fork/Forklift/Lift/Reach Truck Price with Single or Double Scissors Max 10000

Basic Specifications

Model NO.

CQDH20C

Type

Reach Forklift

Power

AC Motor

Load Capacity

1.6 Ton

Fuel

Electric

Lift height

5000/7000/9000/10000mm

Condition

New

Turning Radius

1865 mm

Battery

36V / 700Ah

Travel Speed

10.5/11 Km/H

Product Overview

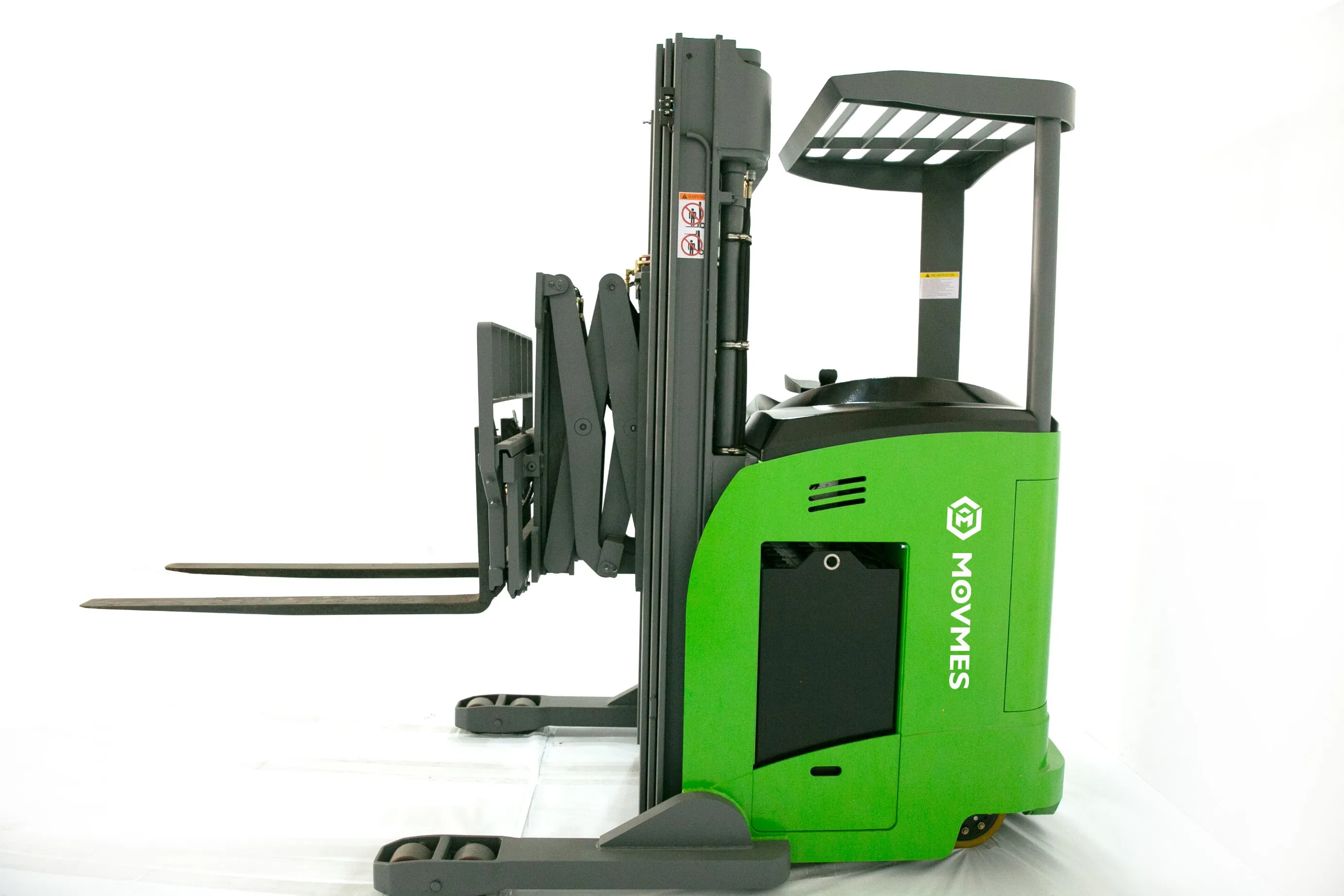

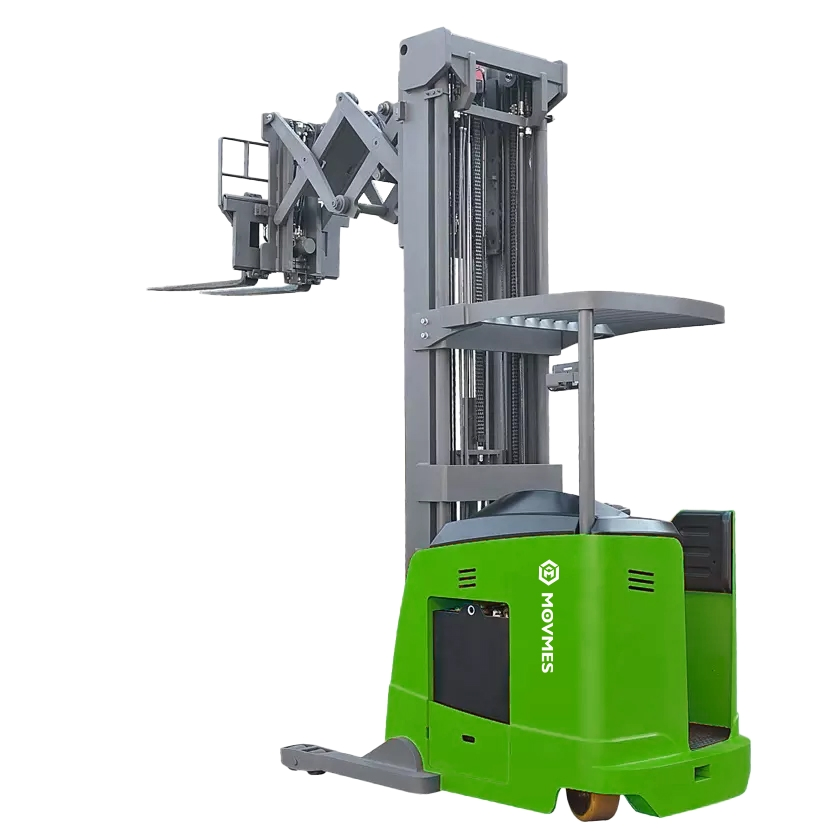

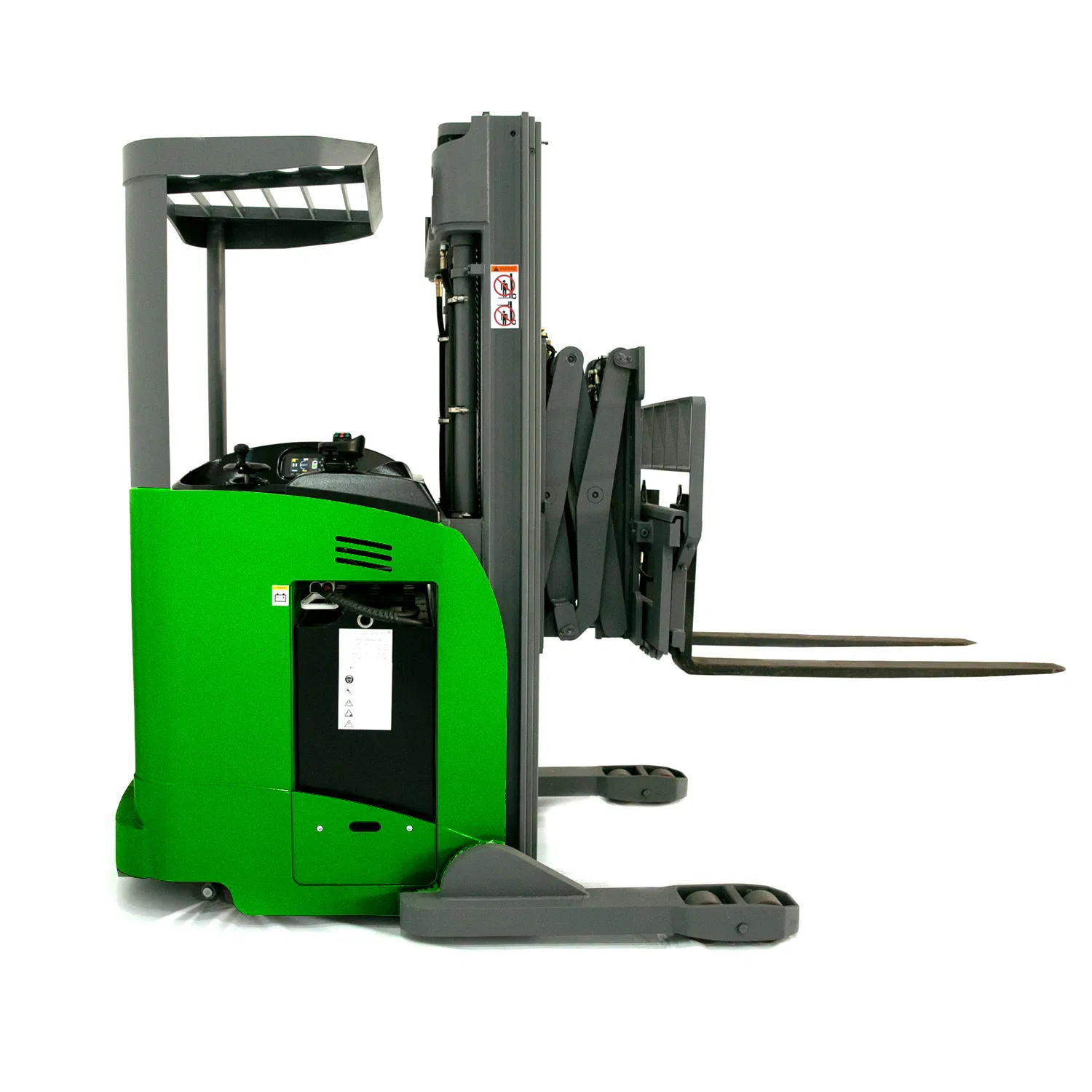

Electric Fork Reach Truck with Single or Double Scissors

Technical Parameters

Parameter Item	Unit	Double Scissor Specs
Drive type	-	Battery
Load capacity/rated load	Q(kg)	1600
Load centre distance	c(mm)	600
Tyre size, front	mm	343*140
Max. lift height	h3(mm)	Up to 10500
Overall width	b1/b2(mm)	1352/1070
Reach distance	I4(mm)	1085
Drive motor rating	KW	7.0 (AC)
Travel speed (laden/unladen)	Km/h	10.5/11
Battery voltage/capacity	V/Ah	36/700 - 36/1000

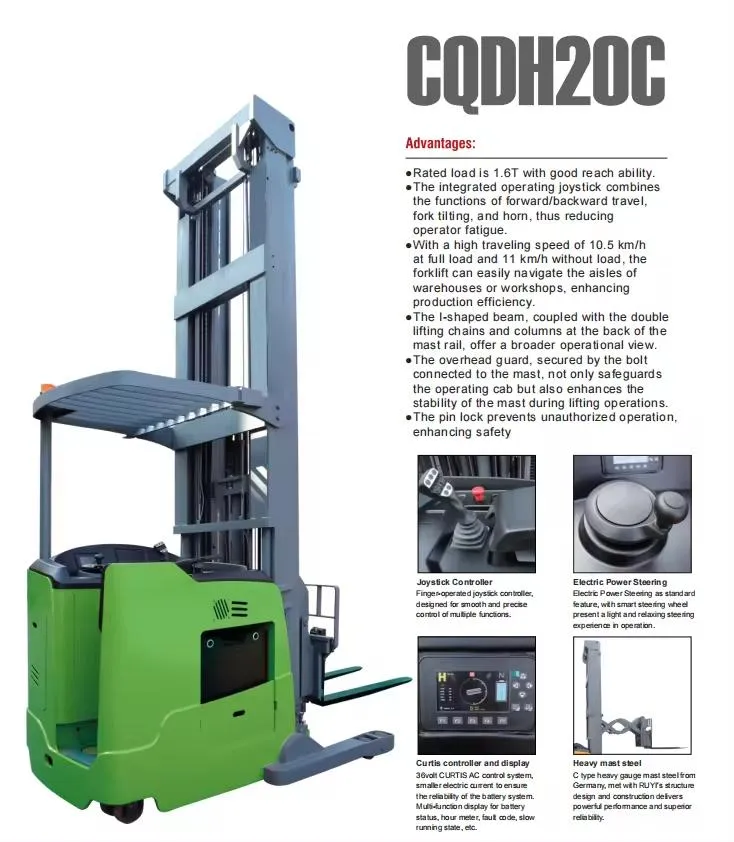

Key Advantages

Rated load is 1.6T with exceptional reach ability for high-density warehousing.

Integrated operating joystick combines travel, tilting, and horn functions to reduce operator fatigue.

High traveling speed of 10.5-11 km/h enhances production efficiency in large workshops.

I-shaped beam and double lifting chains provide a broader operational view and safer handling.

Robust overhead guard enhances mast stability during high-lift operations.

Pin lock security system prevents unauthorized operation, ensuring workplace safety.

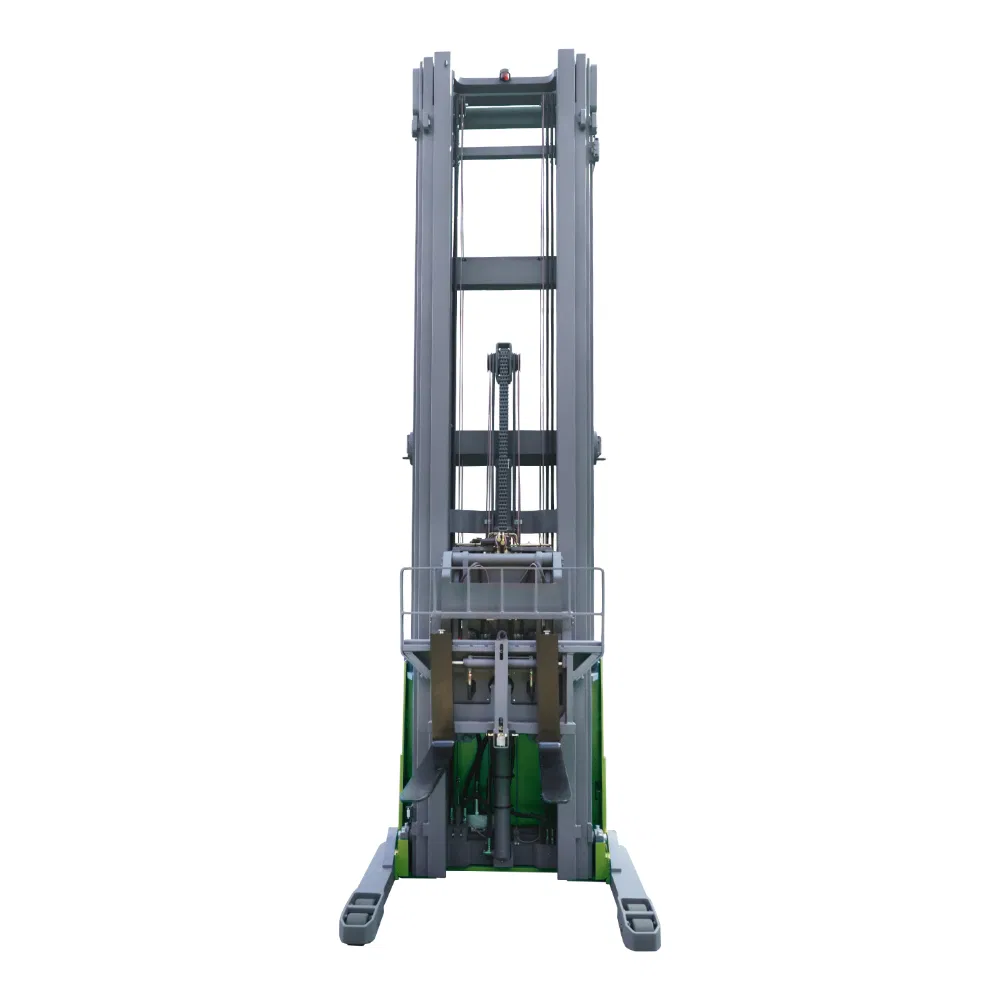

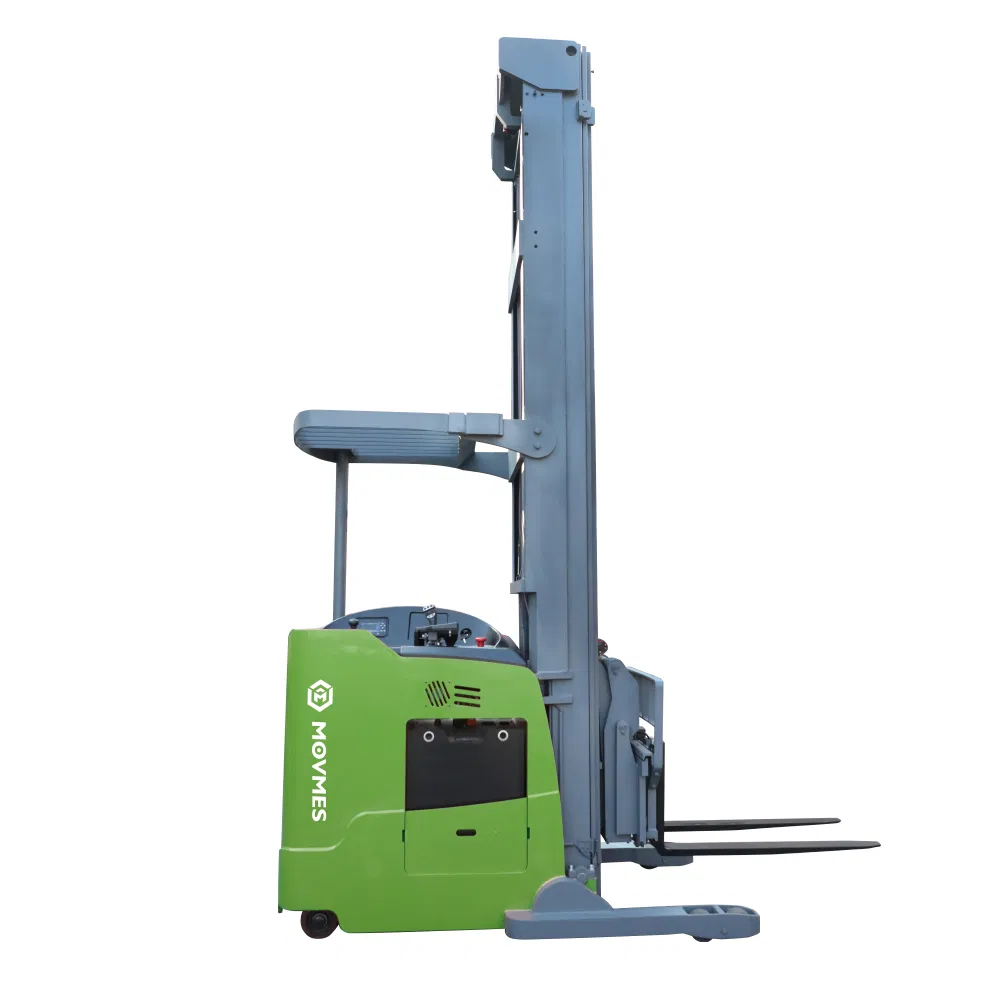

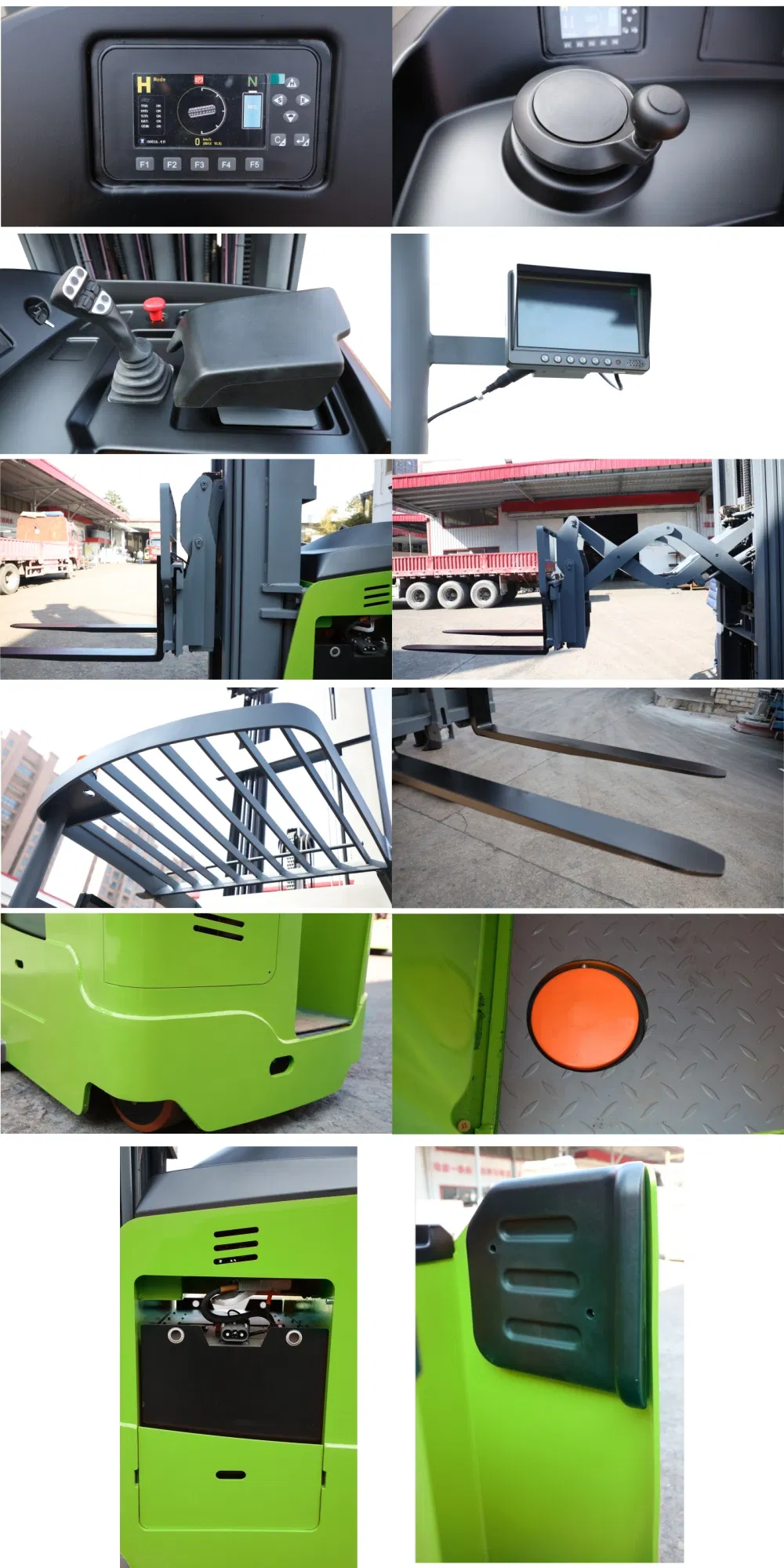

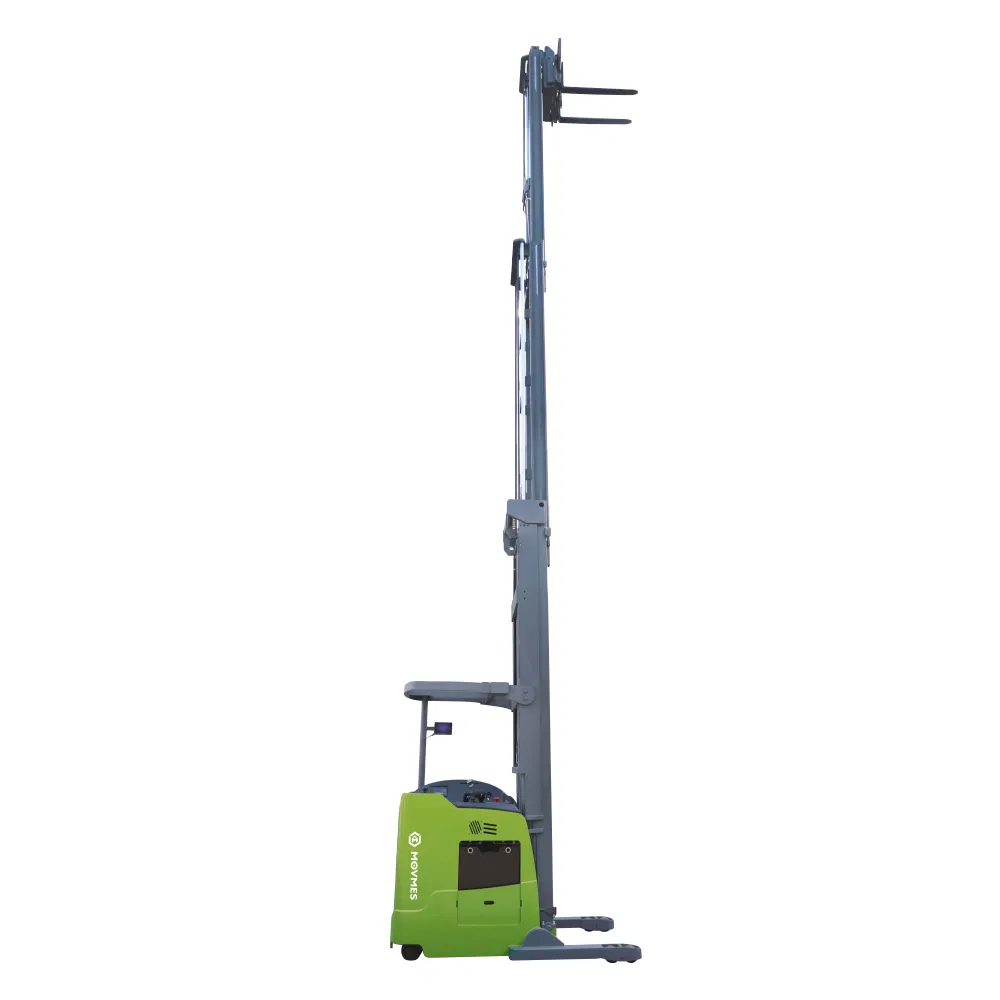

Product Gallery

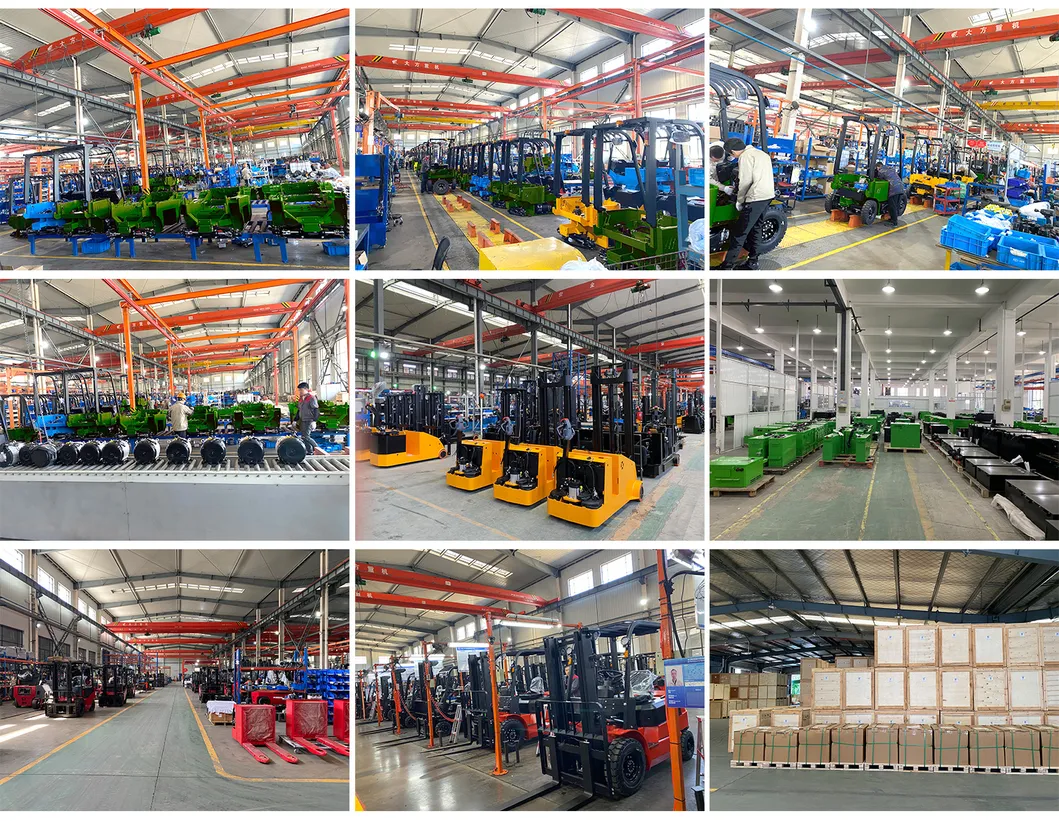

Manufacturing Excellence

36+ YearsIndustry Experience

150,000m²Factory Area

157+Countries Exported

500+Equipment Types

Certified by ISO9001:2008, ISO14001:2004, and OHSAS18001:2007. Our products meet TUV/GS/CE standards (EN3691-5:2014 and EN3691-1:2012).

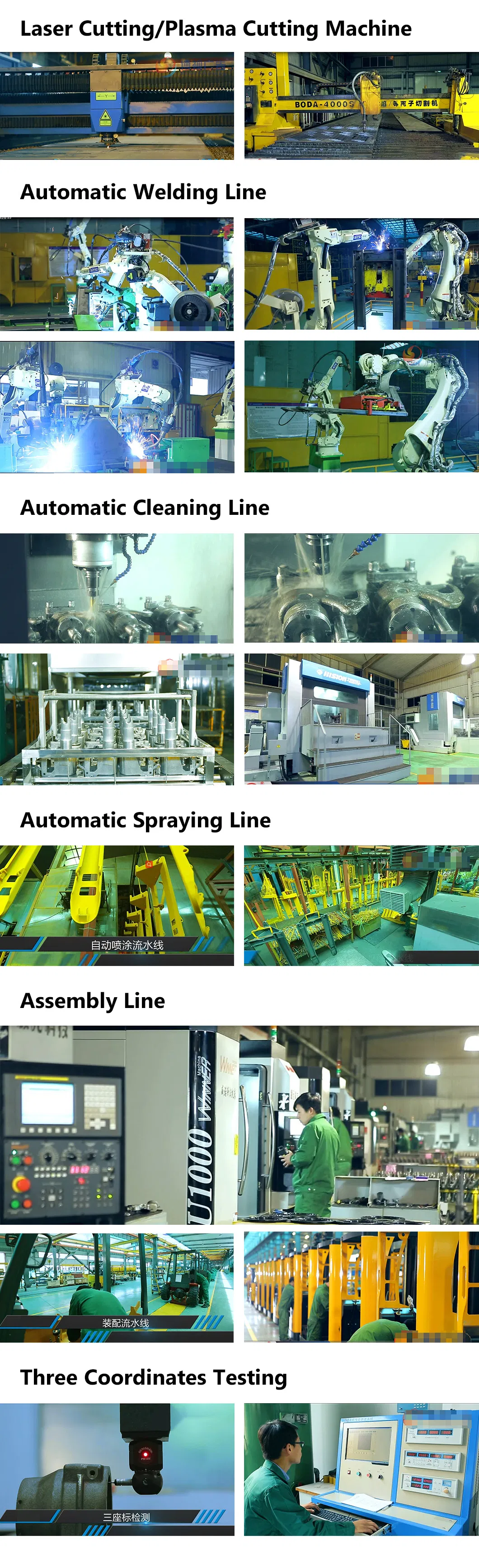

Rigorous Testing System

Every unit undergoes five critical test detections before delivery:

🔴 1. Strengthening test detection
🔴 2. Stability detection
🔴 3. Climbing performance and current detection
🔴 4. Braking performance debugging
🔴 5. Technical parameter verification

Frequently Asked Questions

How long is the continuous working time and charging time?

Continuous working time is approximately 3-6 hours depending on battery volume. A full charge typically takes 3-6 hours.

What are the specifications of the chargers?

We provide 24V/48V chargers. Power plugs are available in USA, UK, Australia, and European standards. Side-way battery roll-out systems are included for convenient replacement.

Do you provide customized OEM or ODM services?

Yes, we have been professionally developing warehouse logistics equipment since 1985 and provide OEM services for many world-renowned material handling brands.

What is the warranty policy for the reach trucks?

We provide a one-year warranty. During this period, we provide free replacement for wearing parts damaged by non-human factors.

What safety features are included in this model?

The truck includes a pin lock system to prevent unauthorized use, a robust overhead guard, and an integrated joystick for precise control, along with electromagnetic service brakes.

Can the mast height be customized for specific warehouse needs?

Yes, we offer multiple mast configurations with lift heights ranging from 4500mm up to 10500mm to suit various racking requirements.
