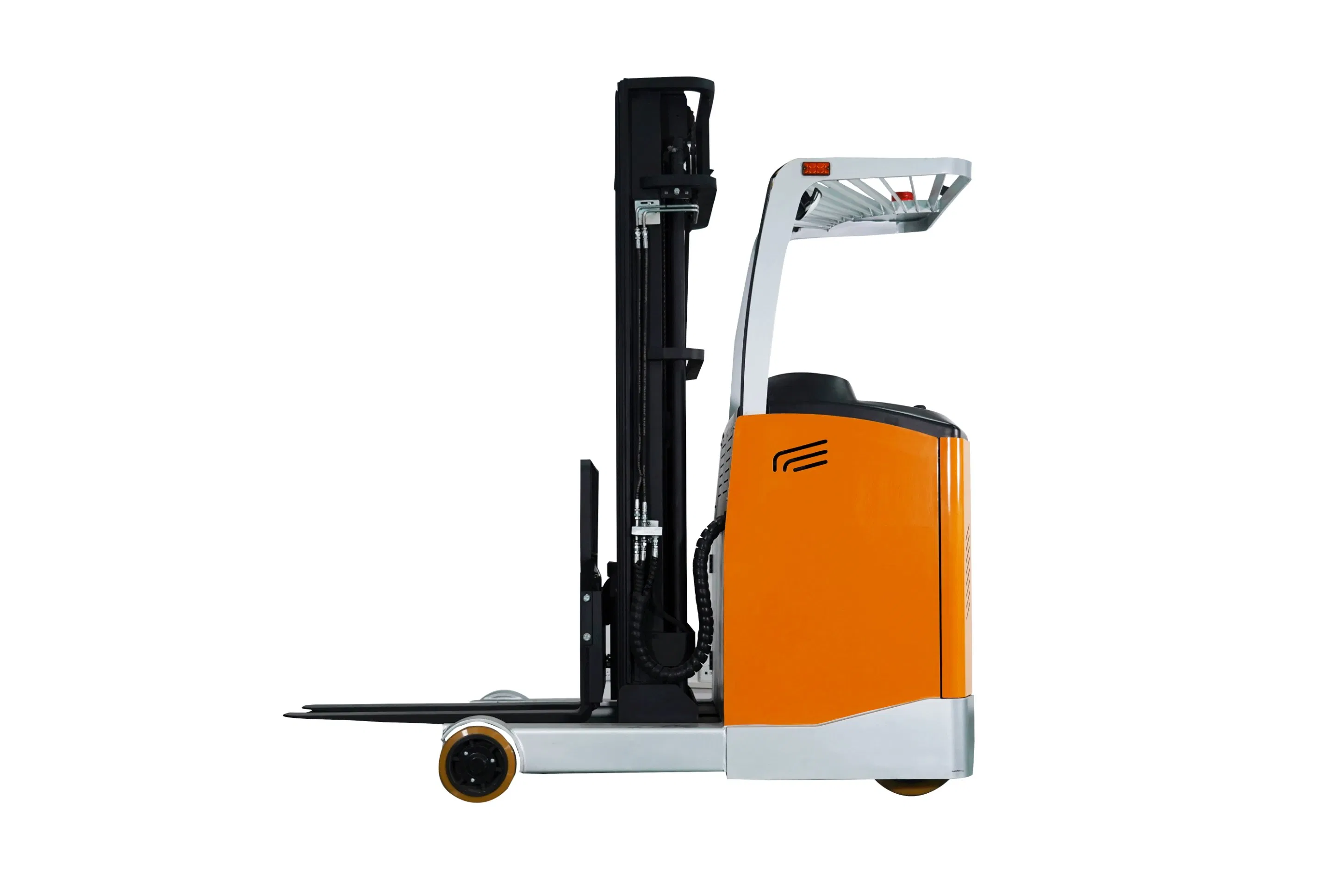

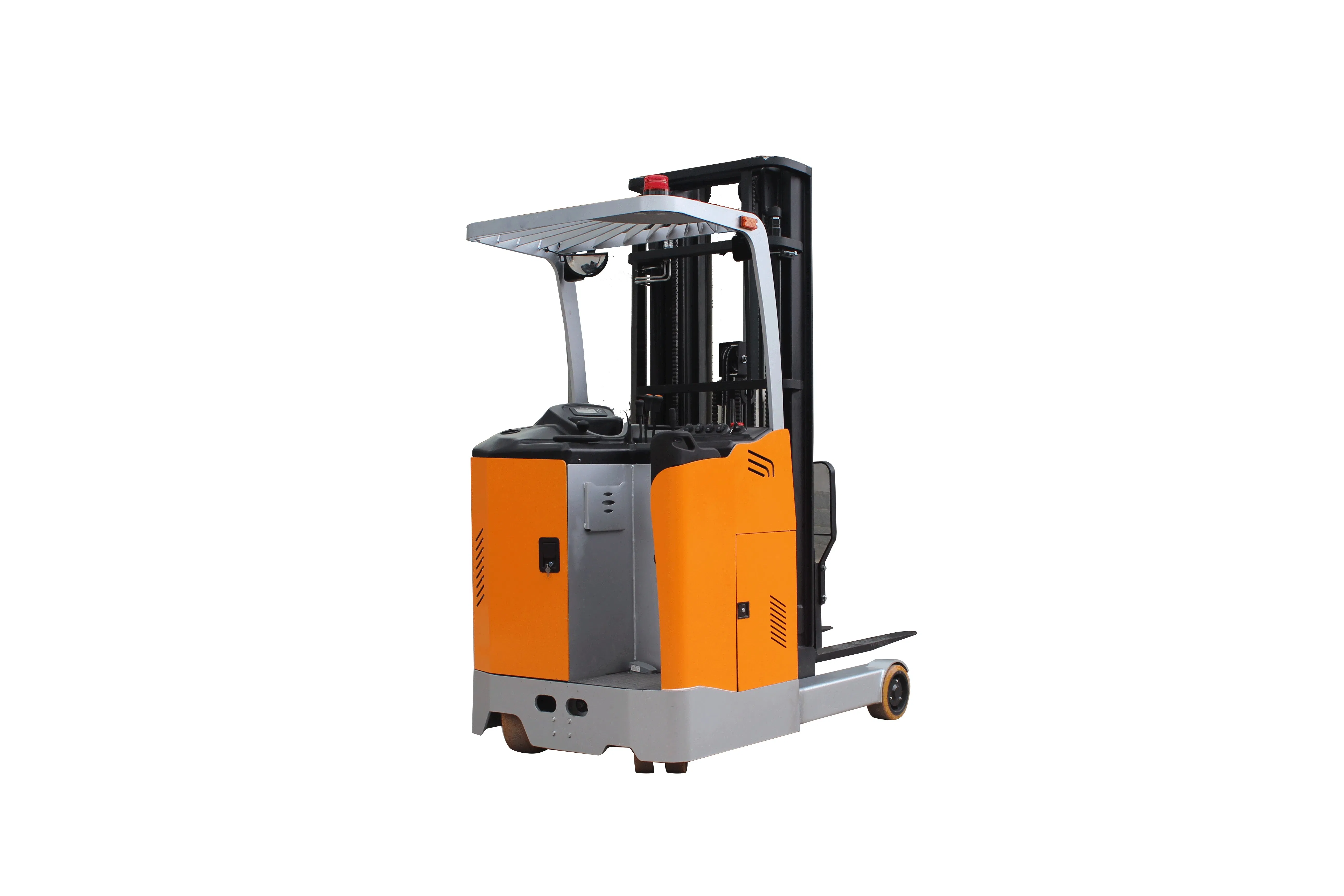

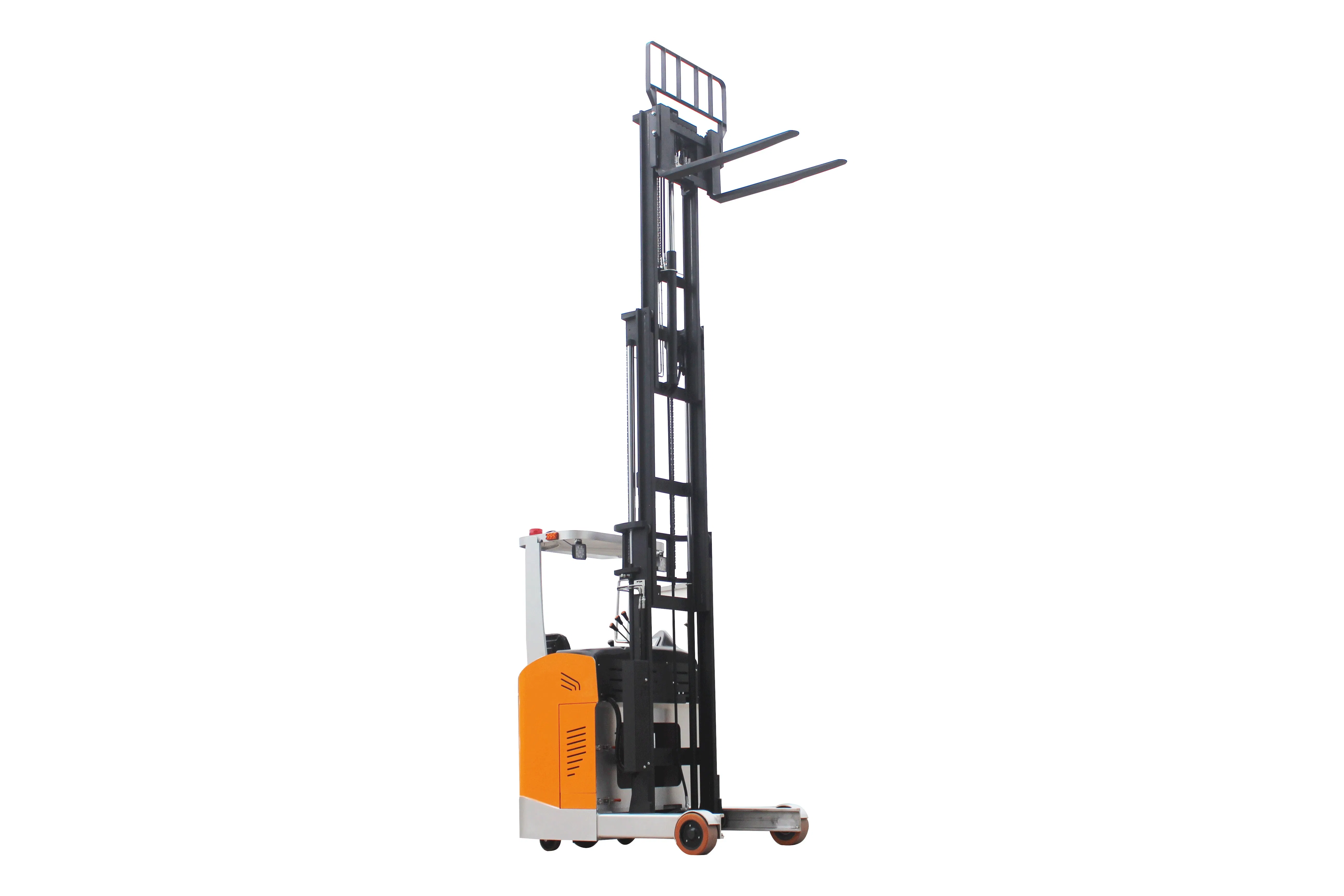

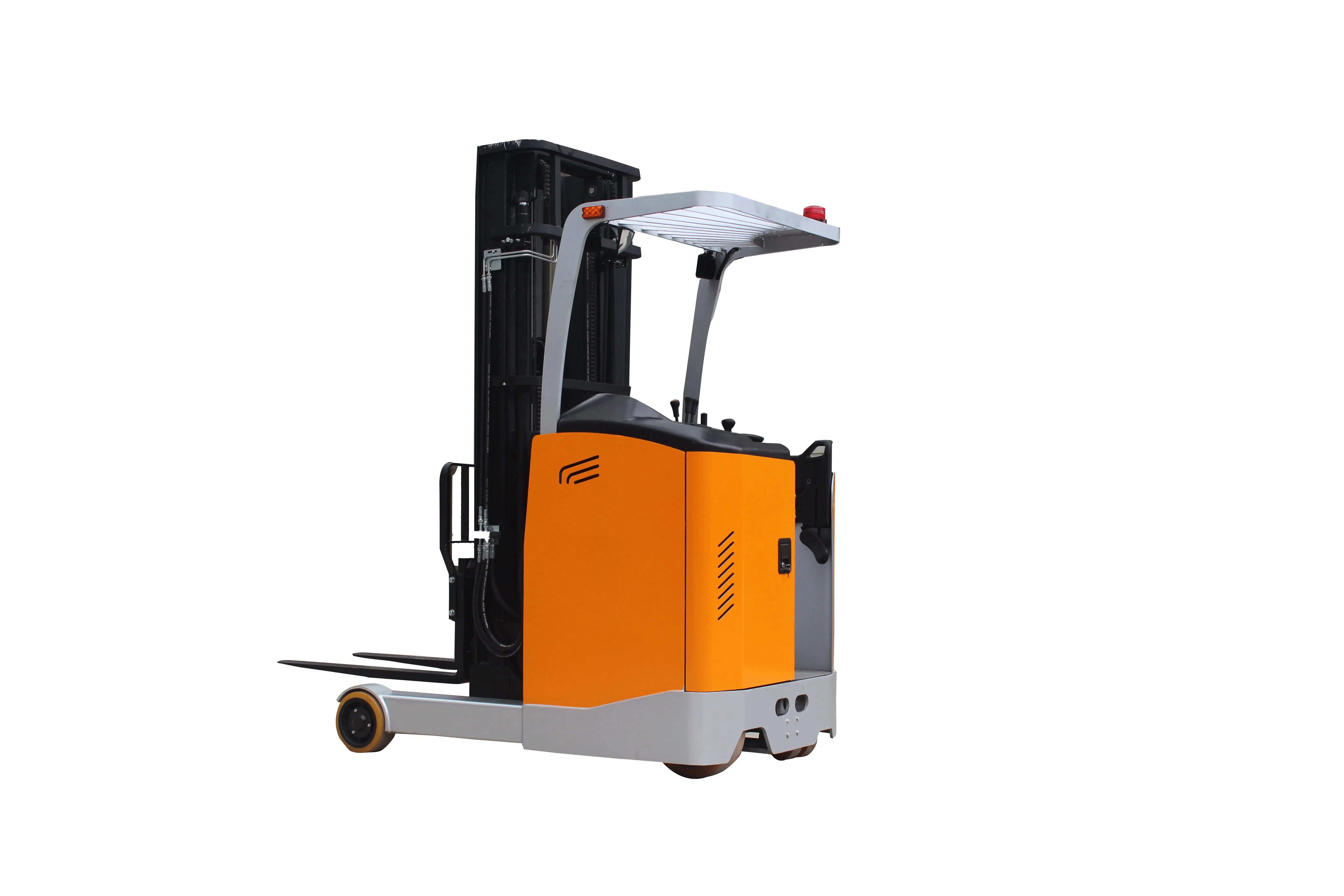

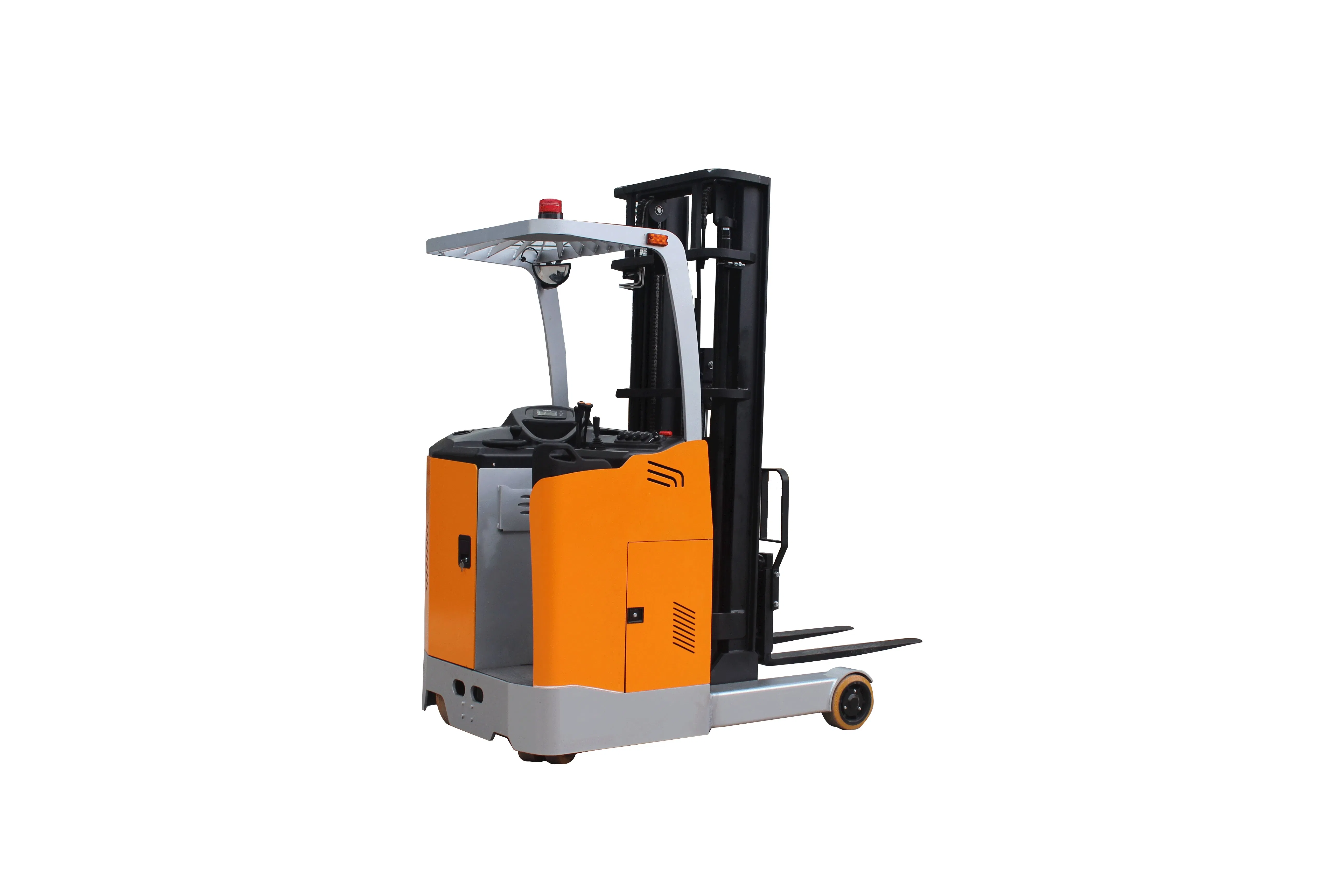

2ton 2000kg Battery Electric Reach Forklift Truck

1 / 5

2ton 2000kg Battery Electric Reach Forklift Truck

Customization:	Available
Type:	Reach Forklift
Power:	AC Motor

Send Inquiry

Product Description

Basic Specifications

Model NO.

CQD

Fuel

Electric

Load center

500mm

Condition

New

Transport Package

Standard Export Package

Specification

1752*1195*2095mm

Origin

China

HS Code

8427109

Production Capacity

5000set/Month

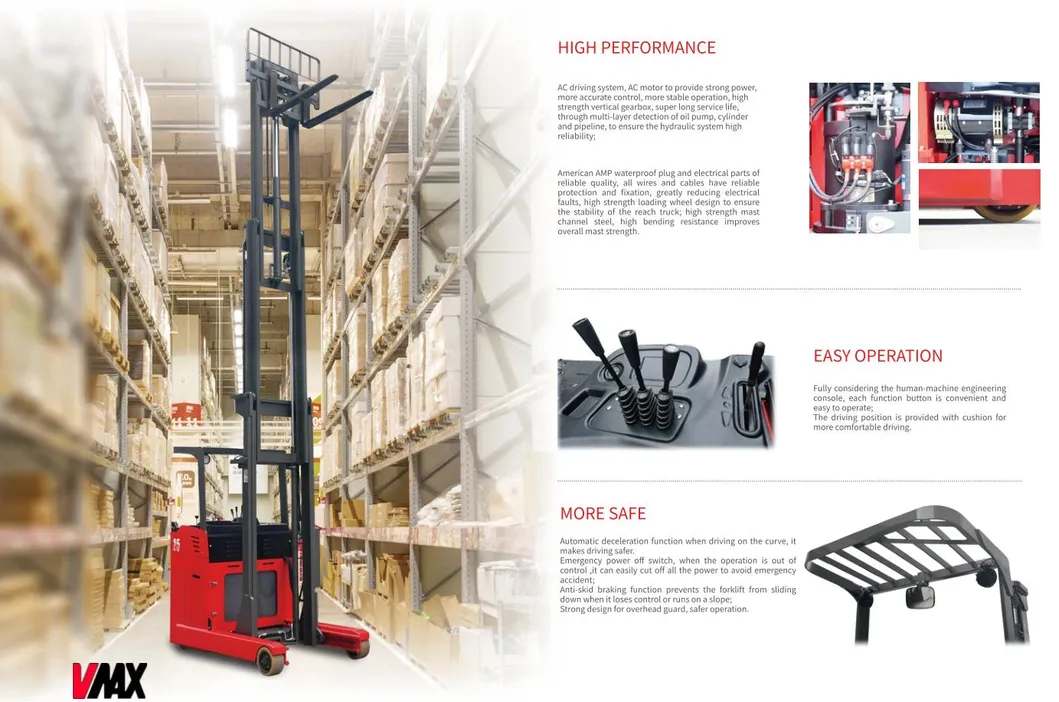

2ton 2000kg Battery Electric Reach Forklift Truck

Main Configuration

Load capacity 1500kg-2500kg
Lift height 3000mm-8000mm
INMOTION controller
48V full AC power
Camera & monitor
Big LED display
Central control instrument
Lead-acid battery 48V400AH (lateral exchange)
Charger 48V50A, 3 Phase
Electric power steering (EPS)
Integrated side shifter
Fork with tilt forward/backwards
German imported H type mast steel
LED front light, warning light, reversing buzzer
Polyurethane wheels

Technical Parameters

Model	Unit	CQD15	CQD20	CQD25
Power Type	-	Battery	Battery	Battery
Operation Type	-	Stand-on	Stand-on	Stand-on
Rated Capacity	kg	1500	2000	2500
Load Center	mm	500	500	500
Lift height	mm	3000	3000	3000
Overall length, fork off/on	mm	1752/2405	1902/2405	2060/2550
Overall width	mm	1195	1195	1270
Forks size	mm	1070/100/35	1070/122/40	1070/122/40
Turning radius	mm	1730	1836	1995
Driving speed (load/unload)	km/h	6/6	6/6	5/6
Lifting speed (load/unload)	mm/s	40/55	40/55	29/33
Steering system	-	EPS	EPS	EPS

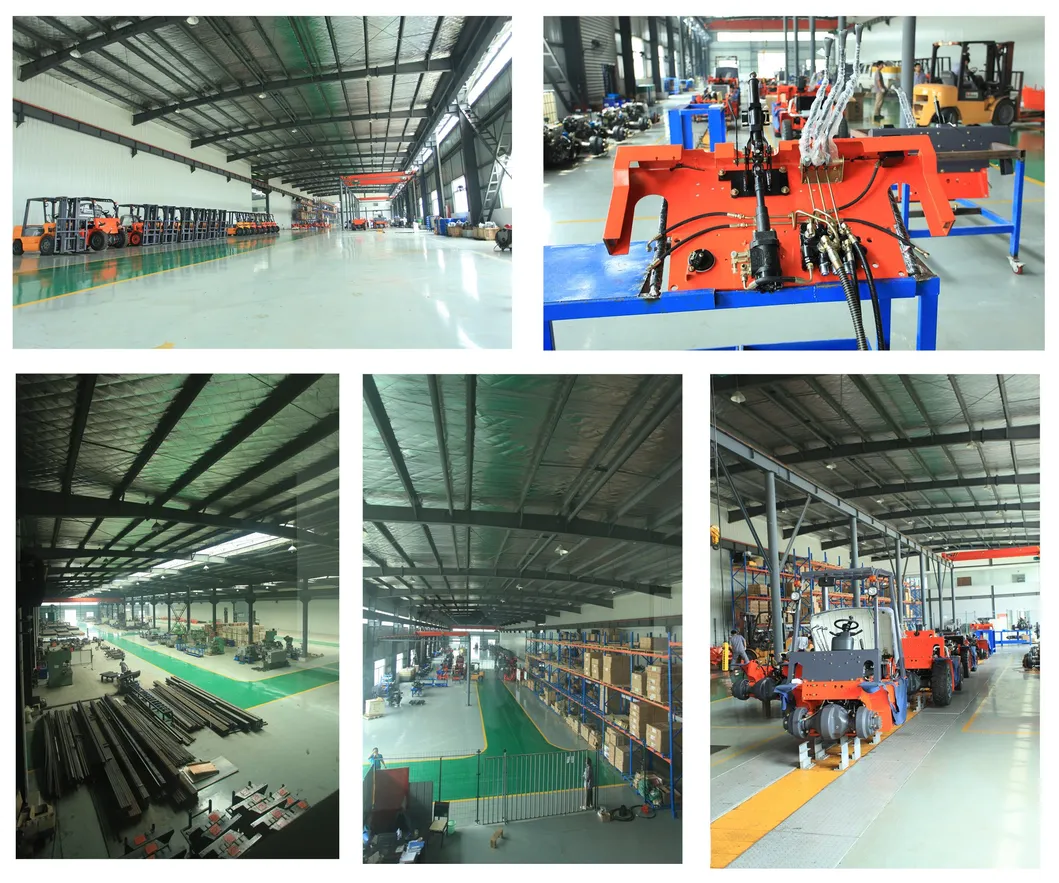

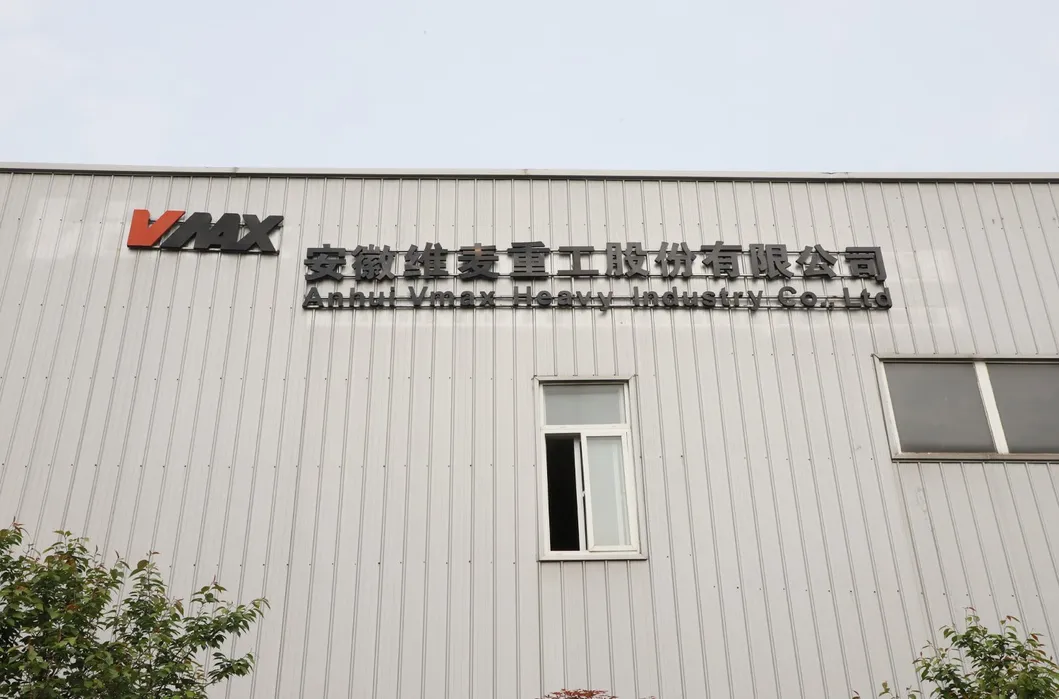

Factory & Certificates

The manufacturer is a specialized material handling equipment provider. The product range covers 1.0-18.0t internal combustion forklifts, 1.0-12.0t electric counterbalance forklifts, pallet trucks, stackers, and off-road forklifts. We focus on new energy strategies, developing various types of lithium and hydrogen fuel cell products to achieve high-quality development goals.

Exhibition & Packaging

Frequently Asked Questions

What quality certifications do your forklifts have?

Our production facilities meet the ISO9001:2008 Quality System standards. All of our products are equipped with CE certificates and SGS reports.

Can you customize the forklifts to specific requirements?

Yes, we try our best to meet special client requirements. All customizations and refits are implemented safely and scientifically. Colors can also be customized.

How long is the product warranty period?

Normally, the warranty is 1 year or 2000 working hours, whichever occurs first.

Do you offer OEM services with our own brand?

Yes, with the proper authorization of your brand, we can provide OEM services for our global clients.

What are the standard payment terms?

Normally, we require 30% T/T in advance as a deposit, with the balance paid before shipment. 100% L/C at sight from reputable banks is also acceptable.

What energy options are available for the reach trucks?

We focus on new energy strategies, including lead-acid batteries, lithium-ion options, and ongoing development in hydrogen fuel cell technologies.
