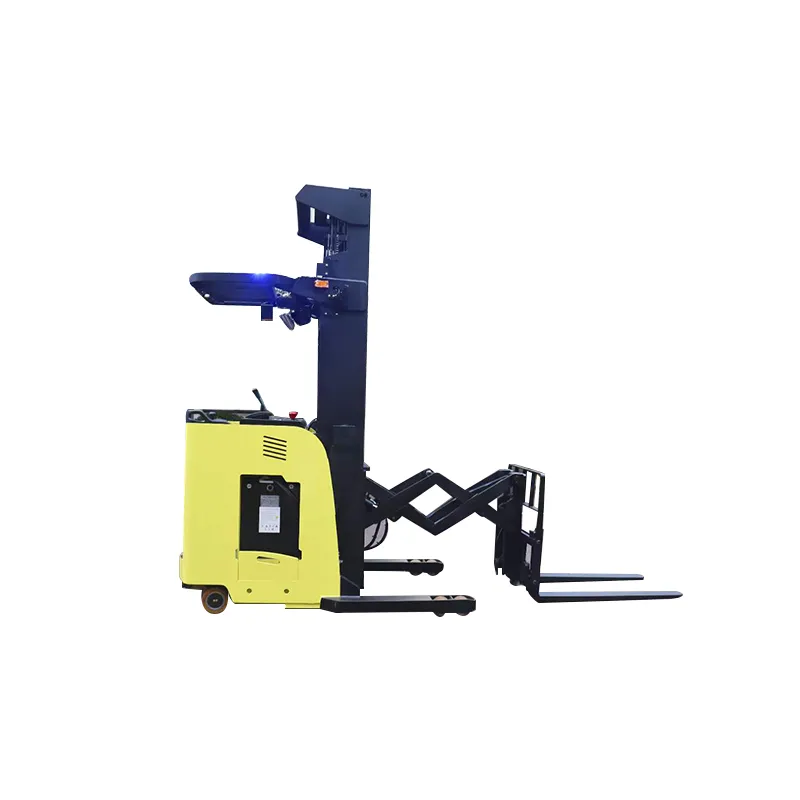

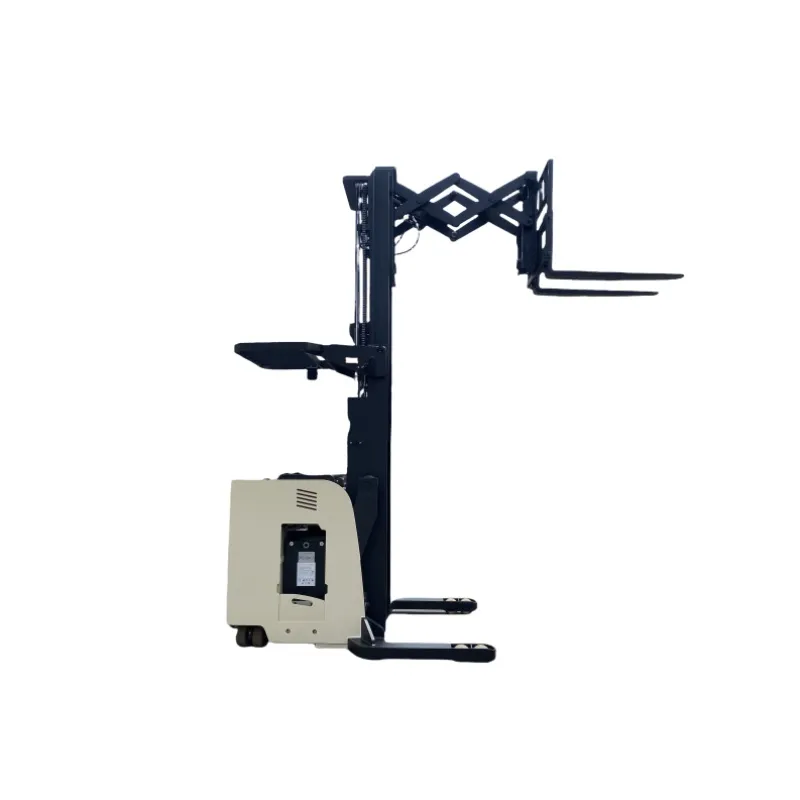

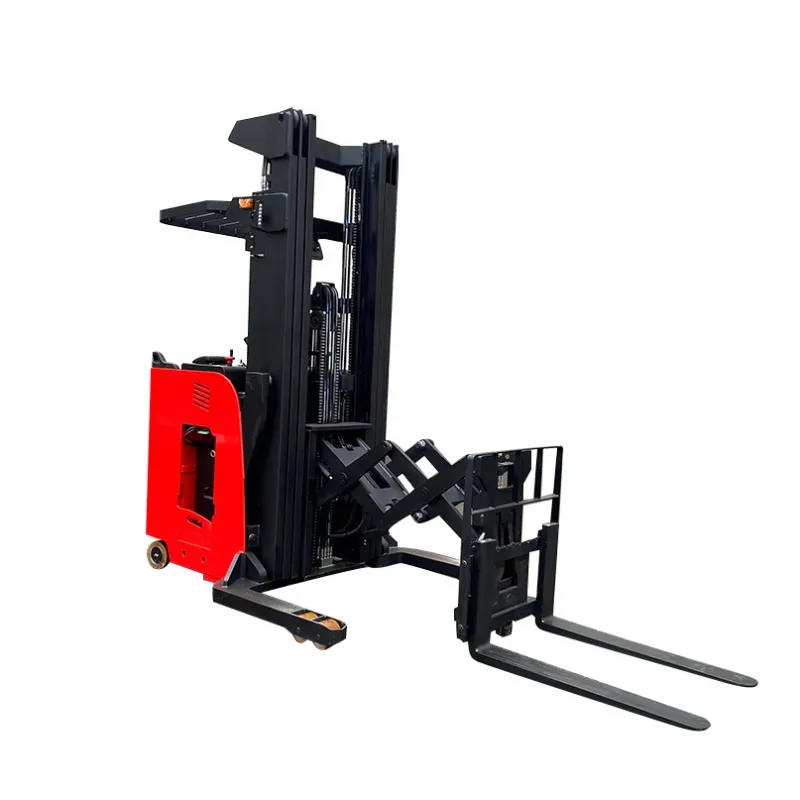

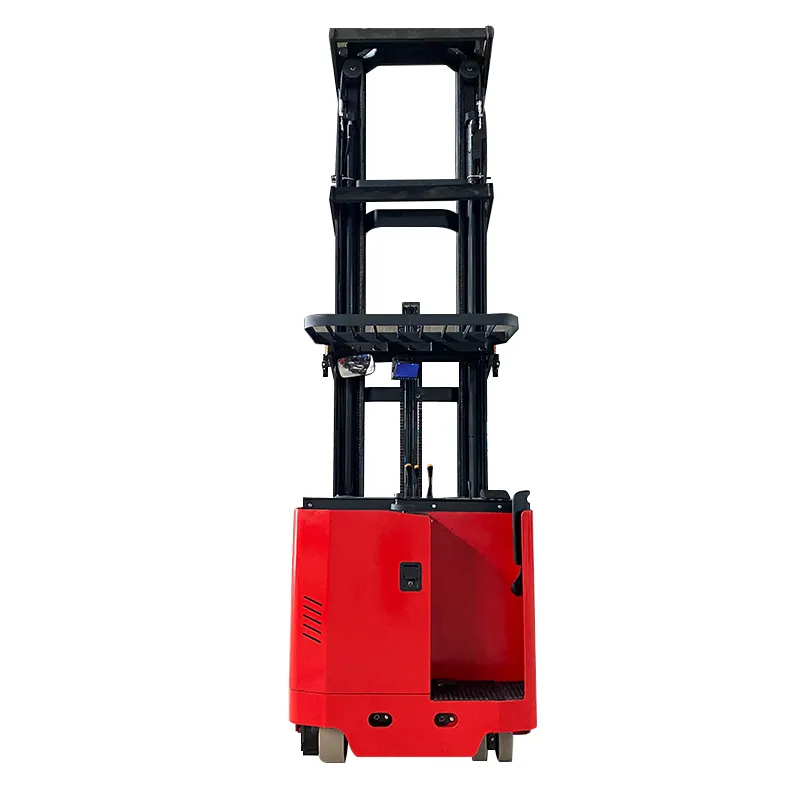

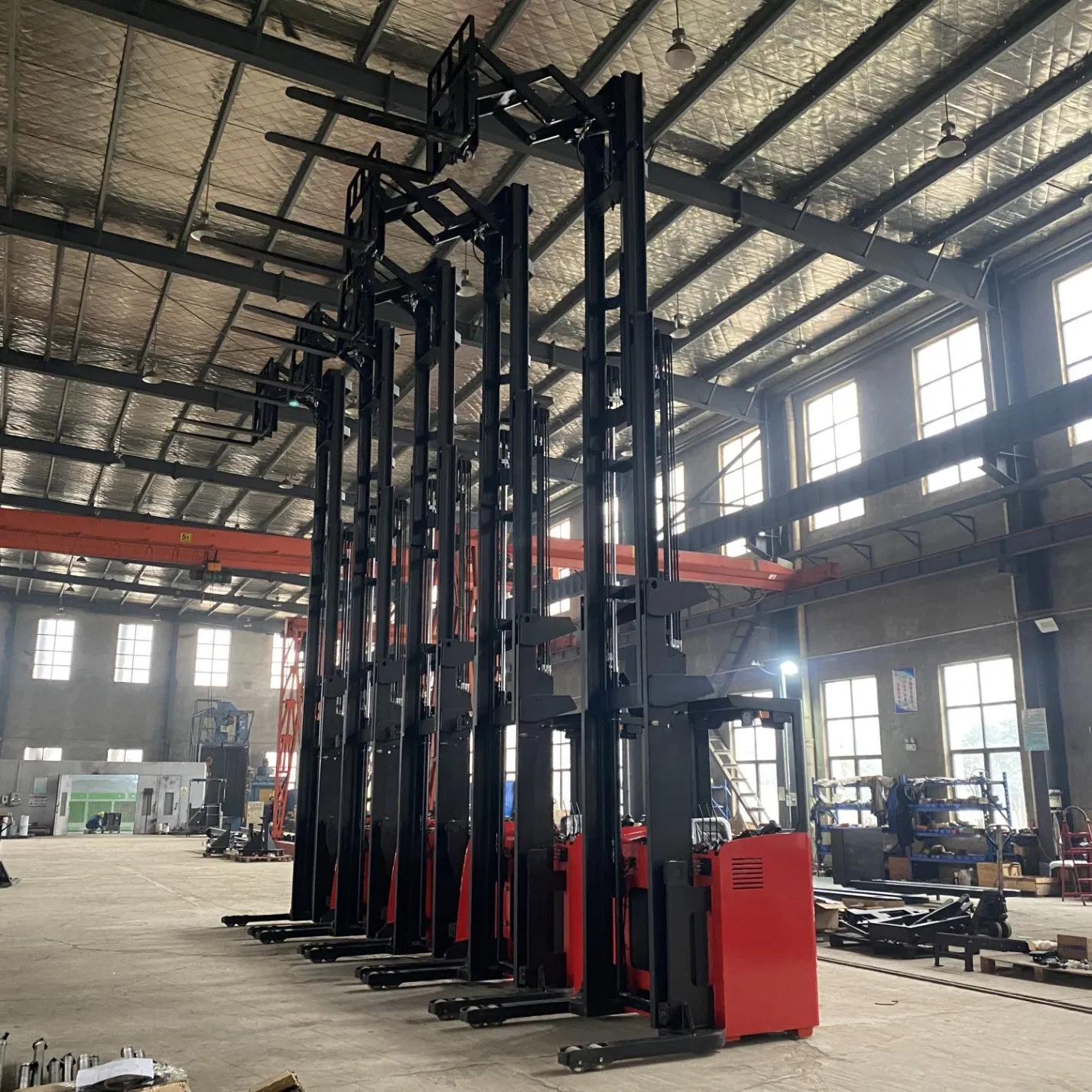

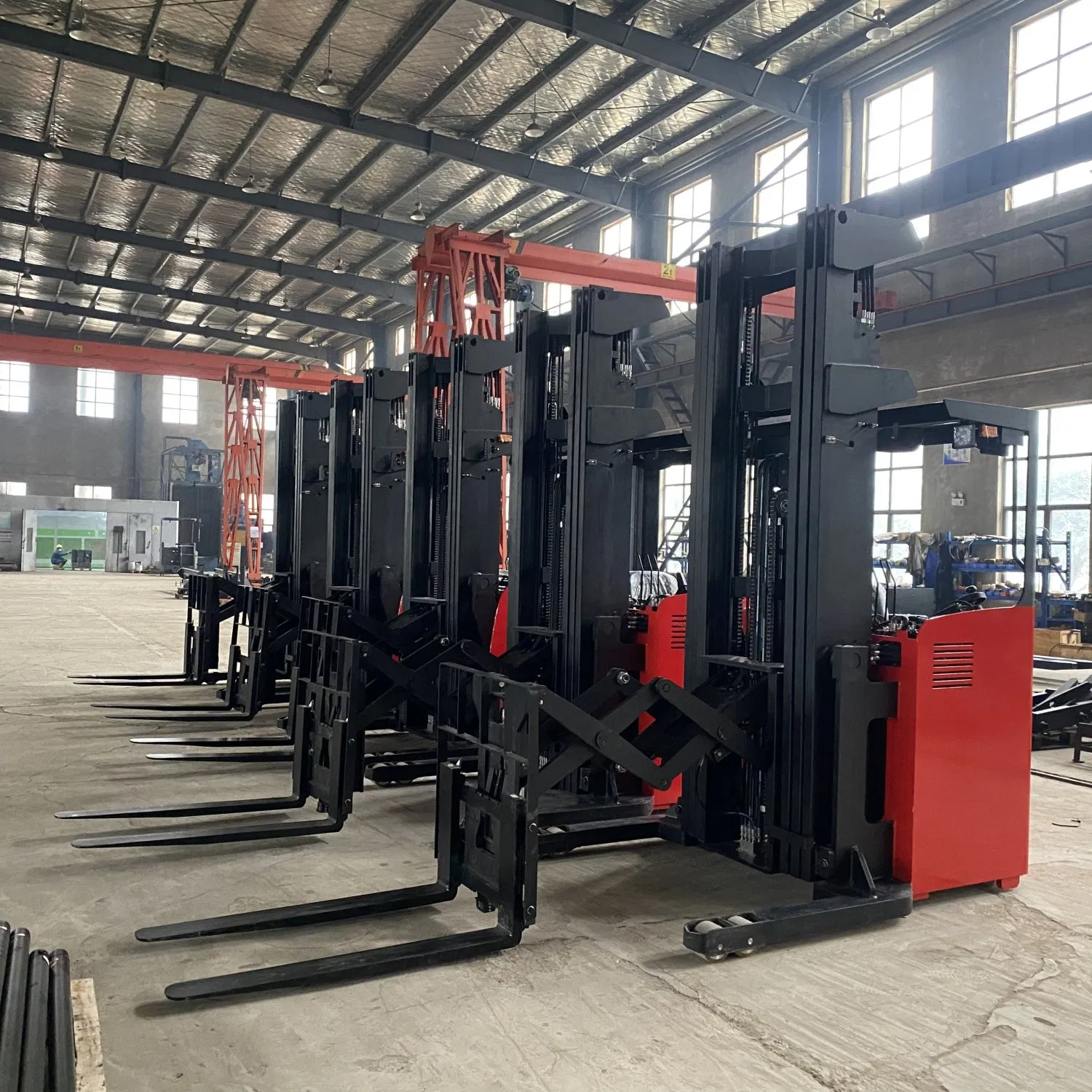

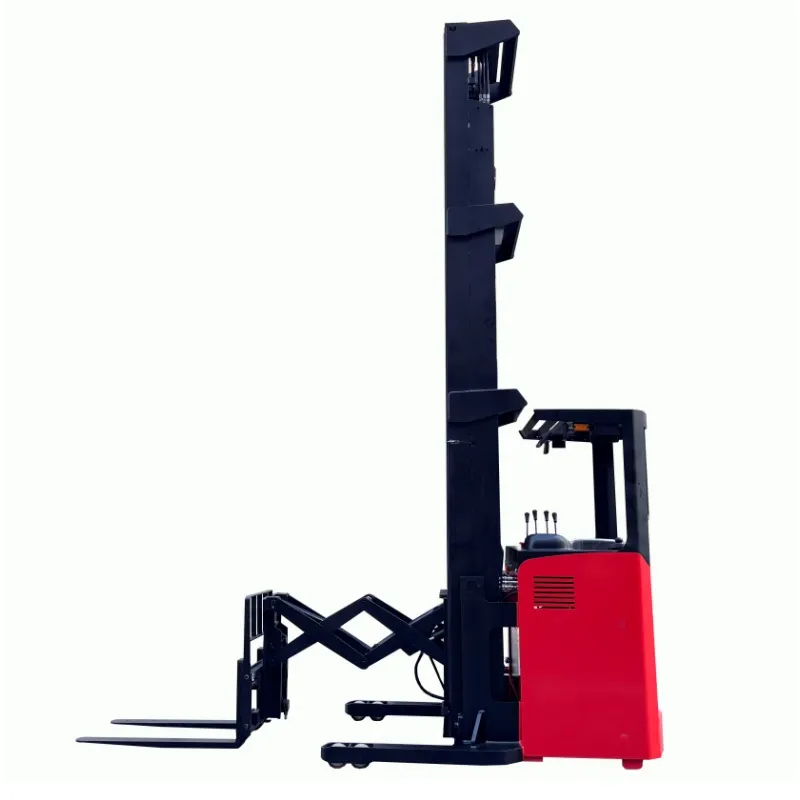

The electric reach double-deep scissor forklift is an innovative material handling solution that combines the features of a reach truck with a scissor fork mechanism. Designed for efficient operations in double-deep racking systems, its dual-deep reach capability allows it to access the second pallet position without moving the truck. This design maximizes warehouse space utilization and improves operational efficiency.
| Models | Unit | CQD16J |
|---|---|---|
| Drive mode | - | Electric |
| Driving Type | - | Seated-on type |
| Rated load | kg | 1600 |
| Center distance of load | mm | 500 |
| Vehicle weight (incl. battery) | kg | 4150 |
| Tire type | - | Polyurethane |
| Lift height | mm | 6000 |
| Vehicle length | mm | 2705 |
| Vehicle width | mm | 1270/1520 |
| Turning radius | mm | 1950 |
| Travel speed (Full/Empty) | km/h | 7.8 / 8 |
| Battery Voltage/Capacity | V/Ah | 48 / 400 |

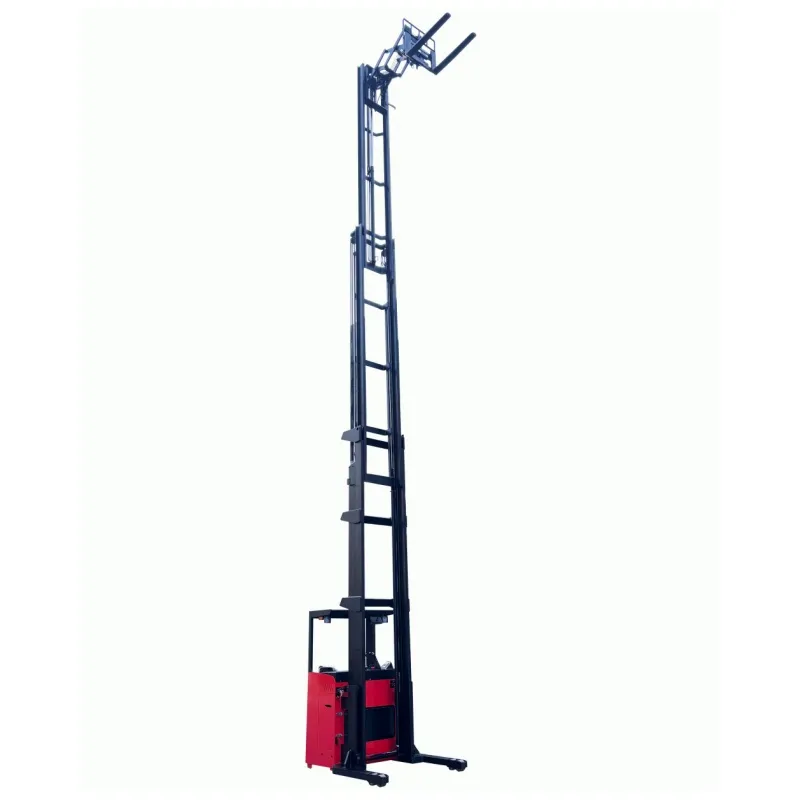

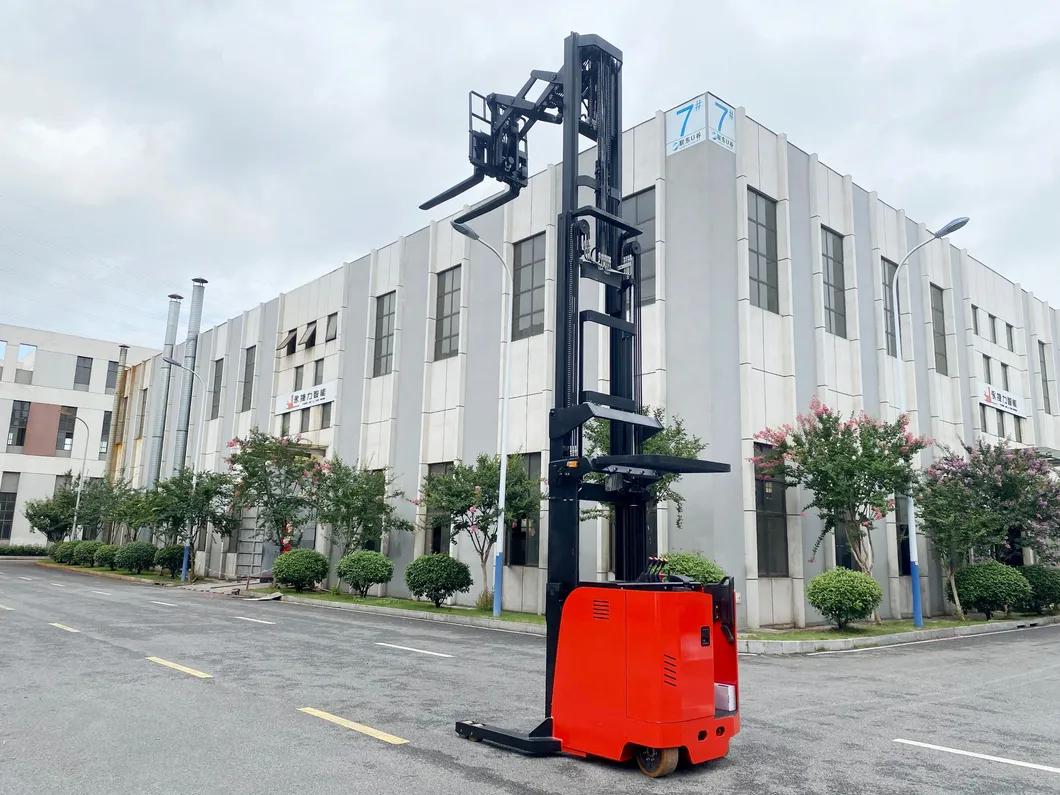

Equipped with high lifting height for multi-level racking. The scissor mechanism ensures fork stability and balanced loads during elevated stacking.
Powered by efficient lithium or lead-acid batteries, offering zero emissions and low noise, ideal for modern green warehousing.
Advanced systems including automatic speed limits, fork position correction, and overload protection for precision handling.
Electric drive technology and compact design allow for excellent performance in complex warehouse environments with strict noise controls.
Our comprehensive product line encompasses nine major series with more than 100 varieties, including fully electric pallet stackers, reach trucks (stand-up and sit-down), tow tractors, and specialized narrow aisle forklifts. We provide material handling solutions ranging from 500KG to 100,000KG.
