Hangcha 1000kg Lift Semi Electric Pallet Stacker Lead-Acid Battery 2m 3m Walkie Pallet Stacker 1.5 Ton 2 Ton New for Industry
CDD15-WH-DD 1500Kg Walk Behind Electric Pallet Stacker With Initial Lift
The stacker truck supports a variety of lifting height configurations from 2000 to 3600mm, with lifting speeds of loaded 90mm/s and unloaded 155mm/s. Its core advantage lies in the innovative dual-lifting system, which enables the legs and forks to move independently or synchronously, perfectly solving the problems of passing slopes and lifting goods in stacking operations.

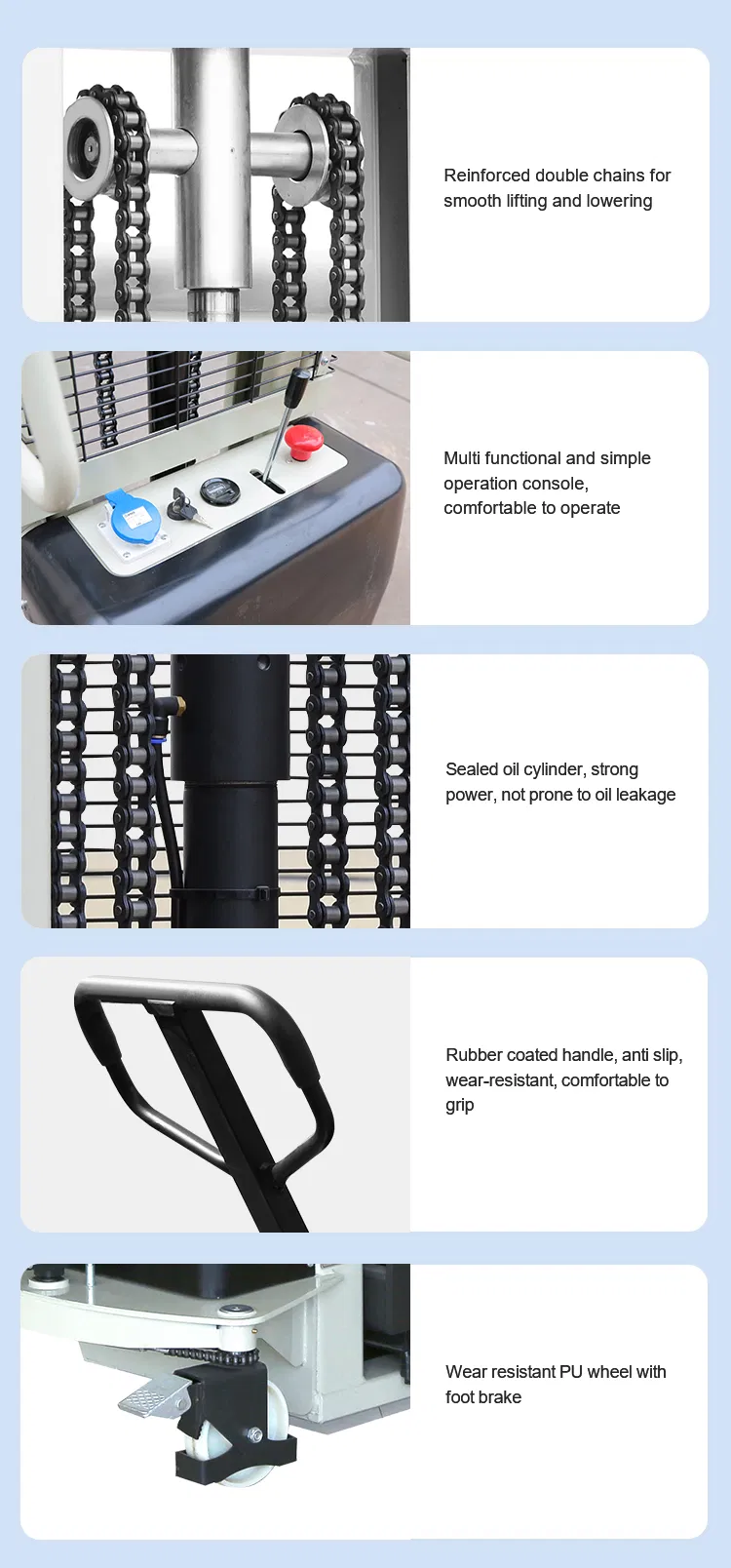

The entire vehicle uses high-quality components such as branded plate chains, sealed cylinders and integrated charging systems, which significantly reduce the failure rate and maintenance requirements. The intelligent control system is equipped with emergency reverse braking and fingerprint lock functions to ensure safe operation. With a driving speed of 4.2km/h and a climbing ability of 4% when fully loaded and 7% when empty, the equipment can easily cope with various working conditions such as warehouses and workshops.
🛠️ Technical Specification
Rated capacity
1500kg
Minimum Mast Height
1600/1850/2000/2350mm
Maximum Mast Height
2585/3085/3500/4085mm
Support Legs Lifting height
200mm
Fork Size
55*170*1150mm
Lead-acid battery
24v85ah
Overall length
1799mm
Overall width
850mm
Lifting speed full/no load
100/110 mm/s
Machine weight (including battery)
640KG
🎬 Operation Video
❓ Frequently Asked Questions
What is the rated capacity of the CDD15-WH-DD stacker?
The rated lifting capacity for this model is 1500kg, making it suitable for most standard industrial pallet operations.
Does this stacker handle slopes well?
Yes, it features a unique dual-lifting system where the legs and forks move independently, allowing it to navigate slopes and uneven ground more effectively than standard stackers.
What safety features are included?
The unit is equipped with an intelligent control system, an emergency reverse braking button, and a fingerprint lock to prevent unauthorized use.
What is the battery type and capacity?
It uses a reliable Lead-Acid battery with a specification of 24V/85Ah, designed for industrial durability.
What are the dimensions of the forks?
The standard fork size is 55mm in thickness, 170mm in width, and 1150mm in length.
What is the turning radius for narrow aisle operation?
The minimum turning radius is 1392.5 mm, which provides excellent maneuverability in tight warehouse spaces.
