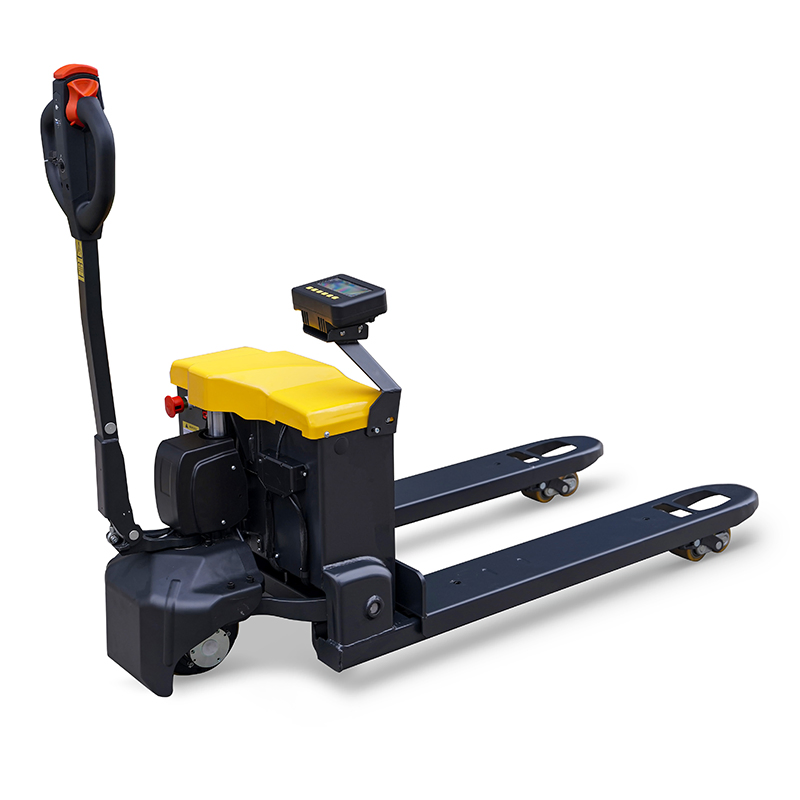

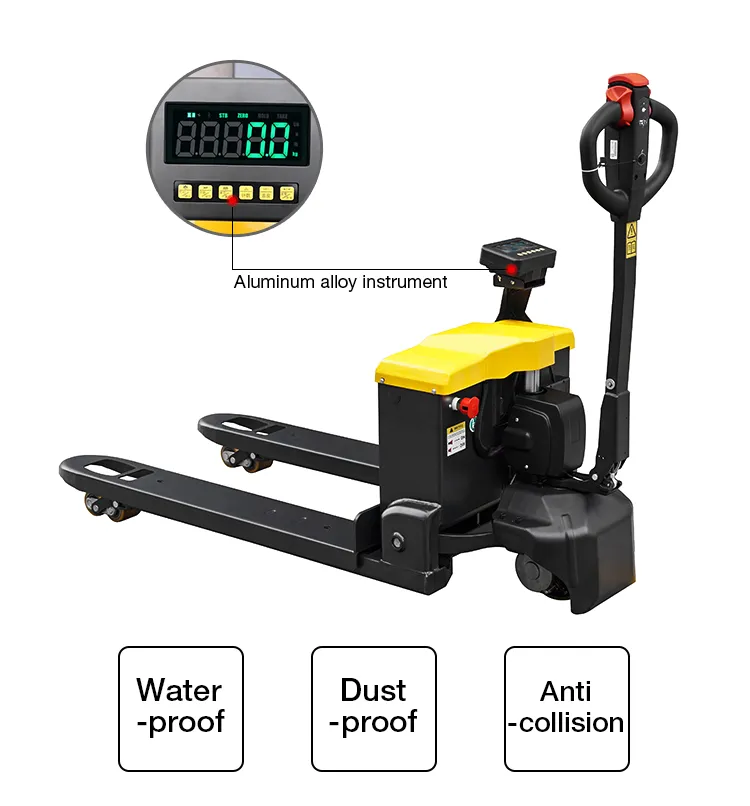

The indicator is made of aluminum alloy, featuring waterproof, dustproof, and impact-resistant performance.

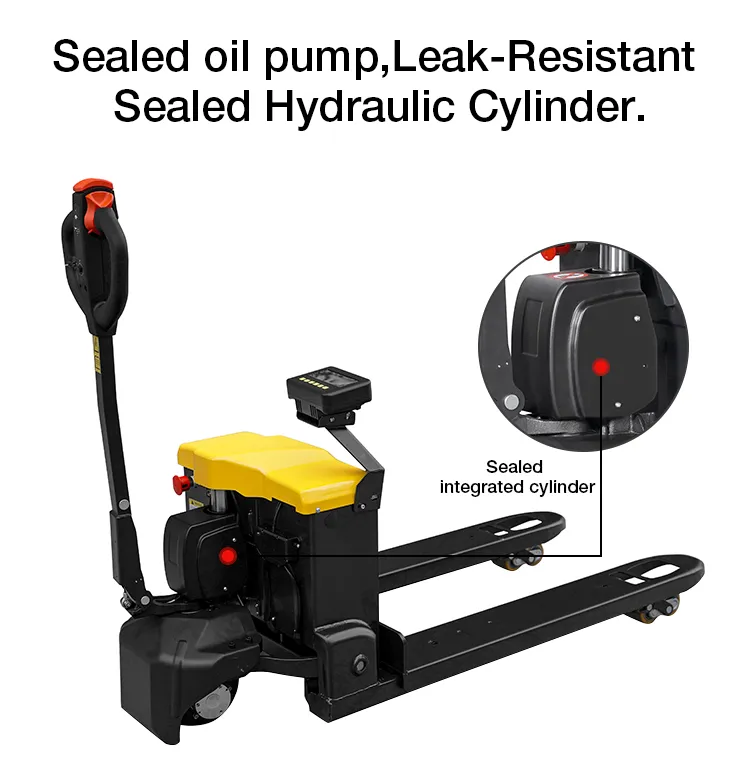

Integrated cast pump with fully sealed oil cylinder, ensuring high load capacity and long-lasting performance.

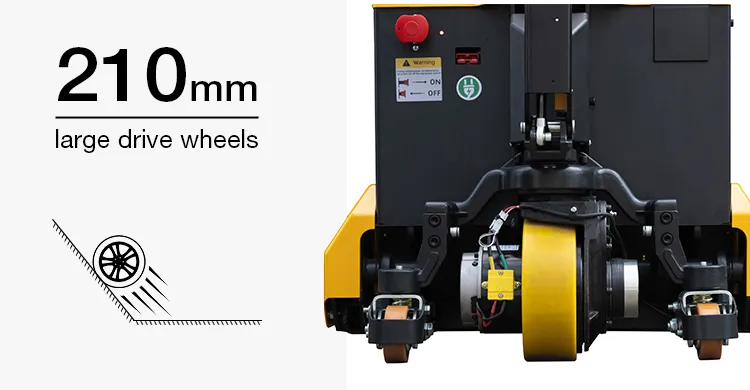

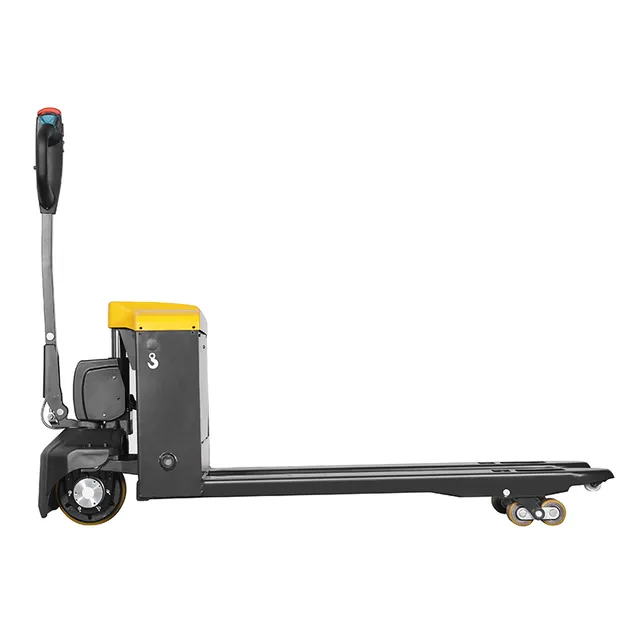

Equipped with 210mm large drive wheels and intelligent support wheels, providing strong climbing power and smooth turning.

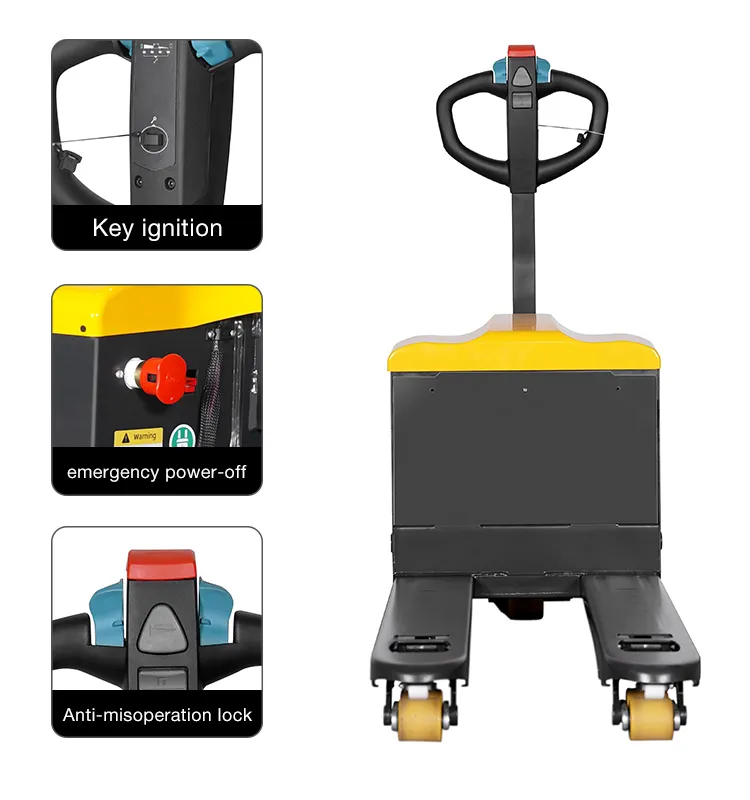

Key ignition, emergency power-off, and anti-misoperation lock ensure every start and stop is safe and reliable.
| Model | CBD-C15 | CBD-C20 | CBD-C25 |
|---|---|---|---|
| Load Capacity (kg) | 1500 | 2000 | 2500 |
| Fork Length (mm) | 1150 / 1220 | 1150 / 1220 | 1150 / 1220 |

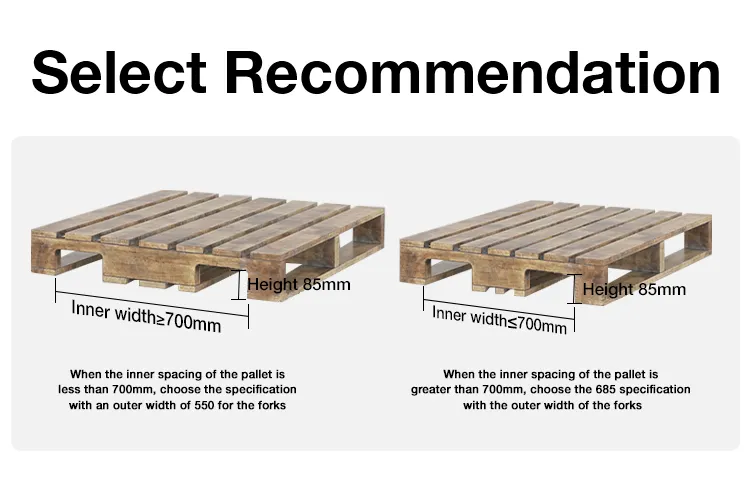

| Outside Fork Width (mm) | 570 / 685 / 700 | 570 / 685 / 700 | 570 / 685 / 700 |
| Lifting Height (mm) | 195 | 195 | 195 |
| Drive Motor Power | 0.75kW | 0.75kW | 1.0kW |
| Battery Type | Lead-acid / Lithium | Lead-acid / Lithium | Lead-acid / Lithium |
| Working Time (h) | 5–8 | 6–10 | 8–12 |
| Weight (kg) | 260 | 280 | 310 |
