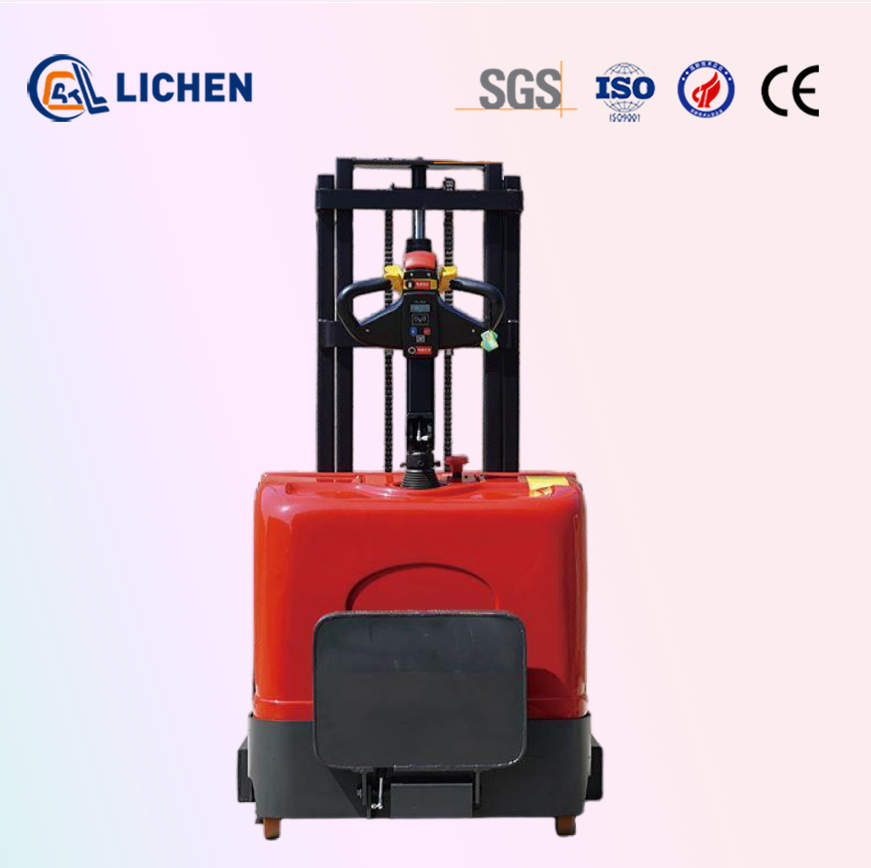

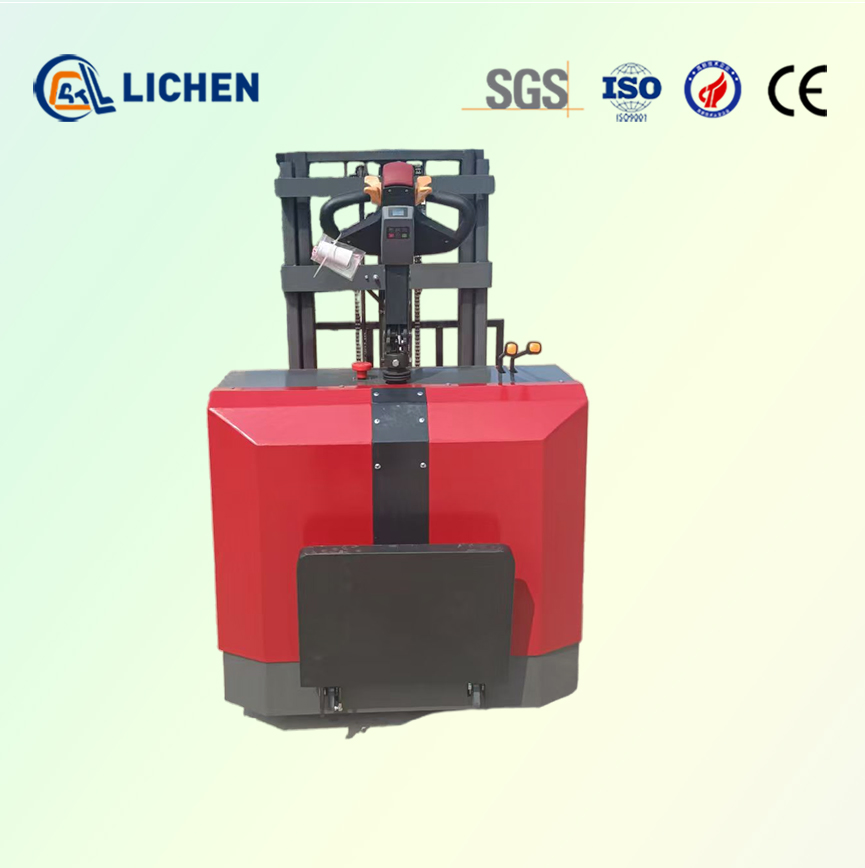

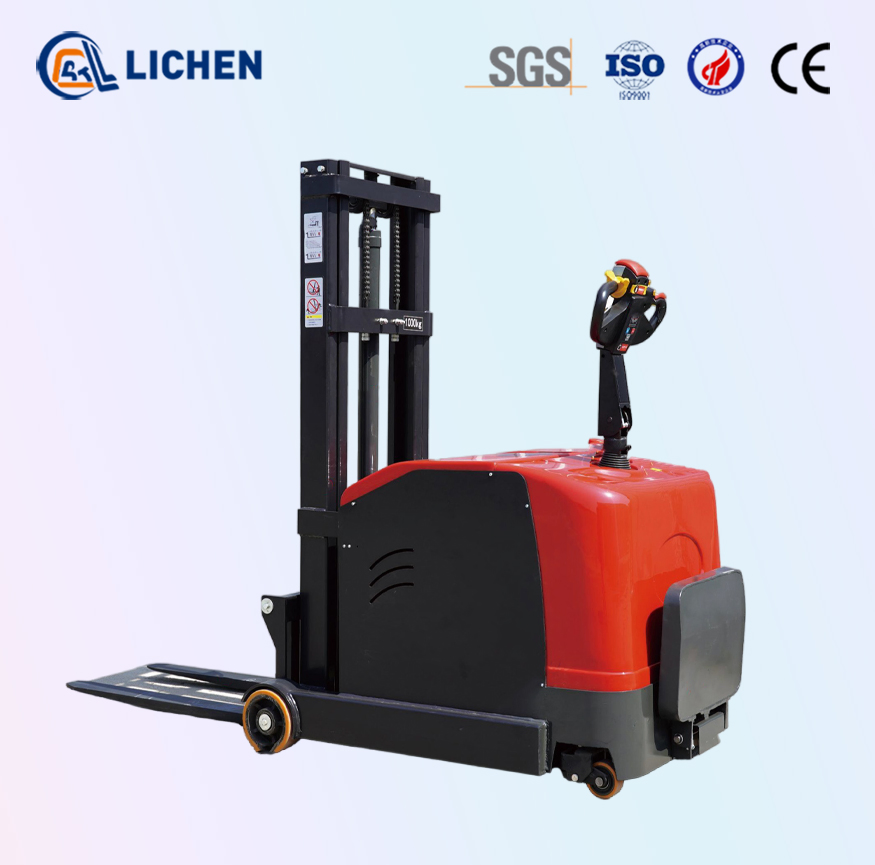

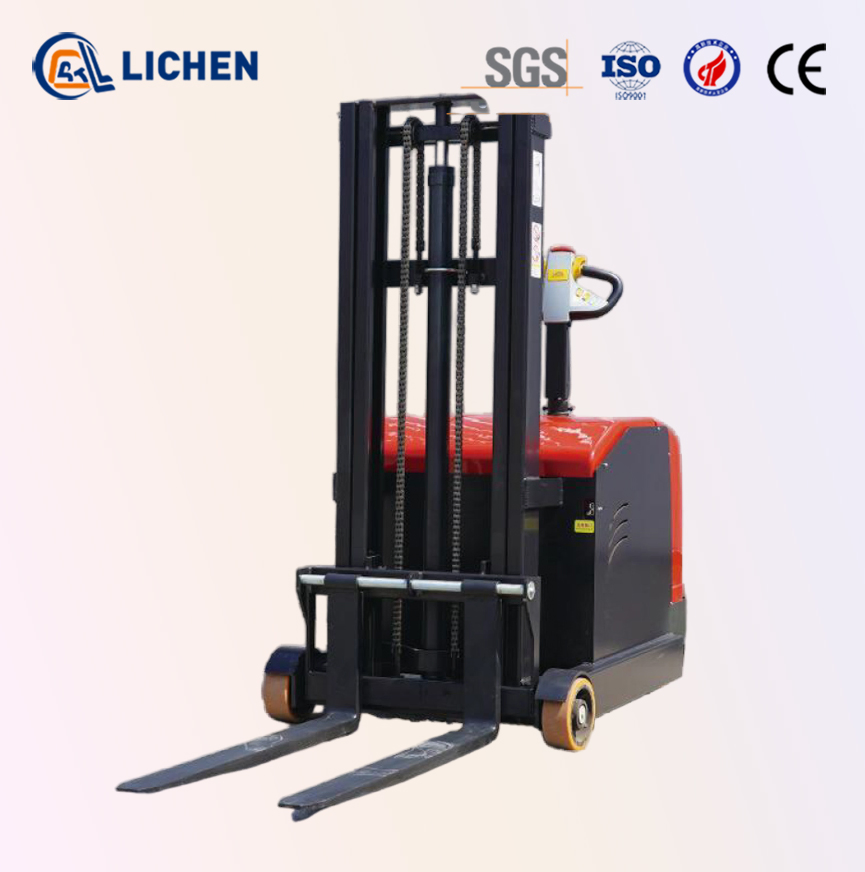

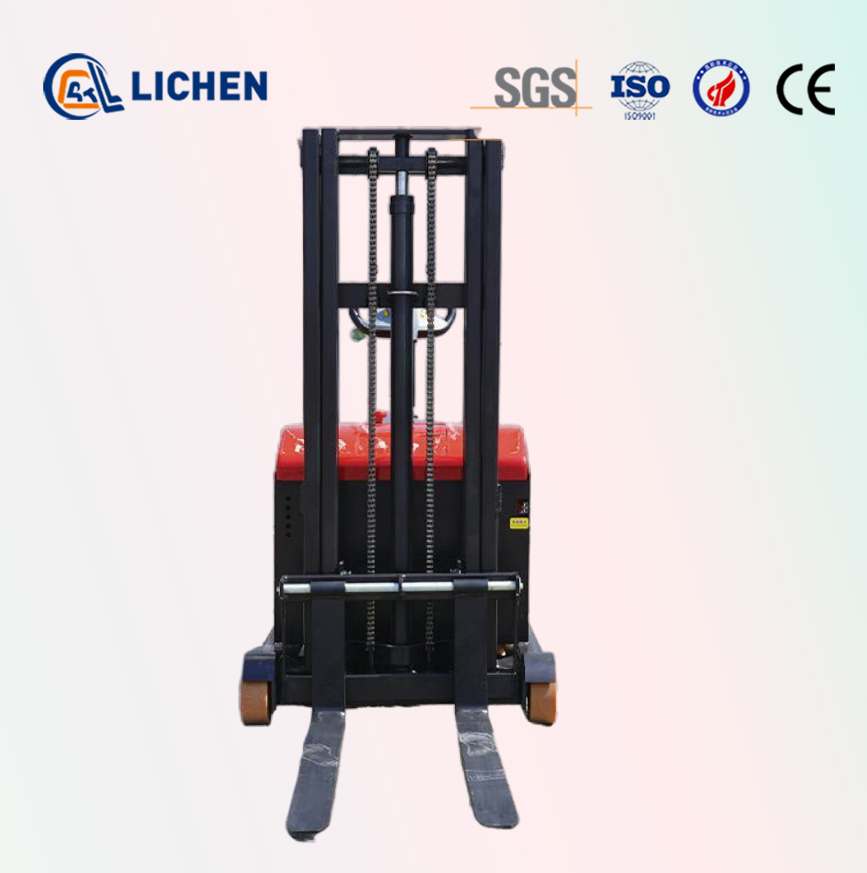

Counterbalanced Stand-up Electric Stacker 1ton 1.5ton 3m Pedestrian Electric Pallet Stacker with CE Authentication

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Product Information
Model NO.
CPD1/2T
Type
Stacker
Power
AC Motor
Load Capacity
1T - 5T
Fuel
Electric
Lift height
3000~5000mm
Drive Type
Pure Electric Drive
Battery
48V/200ah
Operation Mode
Stand-up Operation
Certification
CE, ISO9001
🏗️ Product Description

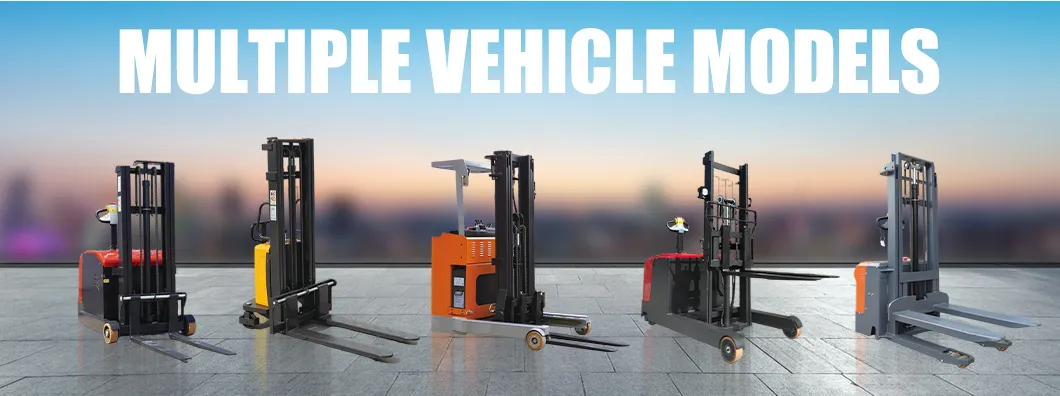

Electric Stacker Overview

1/2T Counterweight stand-on stacker truck: Electric drive, stable load capacity, enhances warehouse efficiency.

This Counterweight stand-on electric pallet stacker is specifically engineered for small-to-medium tonnage warehouse stacking applications. Combining efficiency, stability, and convenience, it serves as a core piece of equipment for boosting warehouse operational efficiency. Equipped with a powerful electric drive system, it delivers smooth power output while being energy-efficient and environmentally friendly.

With a rated load capacity of 1000kg-2000kg, its counterweight design enhances operational stability, maintaining balance during both empty and heavy-load transitions for safer, more reliable stacking and transport. The stand-up operator design follows ergonomic principles, featuring a clearly laid-out control panel that allows one-button control of lifting, steering, and travel. It adeptly navigates complex warehouse environments like narrow aisles and dense storage bays, boasting a small turning radius and outstanding maneuverability.

Key Application Technology Characteristics:

  • Equipped with turtle speed switch and upright walking function.
  • Adjustable balance wheel for smooth walking without shaking.
  • Excellent shock absorber effect; balance wheel assembly is detachable.
  • Capable of working efficiently on a 5% slope with a rated load.
📊 Technical Specifications
Vehicle dimensions 2460*980*1580mm (Customizable) Fork Width 490mm/690mm
Rated load capacity 1000/2000kg Wheel type Polyurethane
Lifting height 3000mm (Customizable) Full-load speed 3.5km/h
Front wheel size ∅200*80mm No-load speed 5.3km/h
Self-weight 830kg Braking System Electromagnetic Automatic

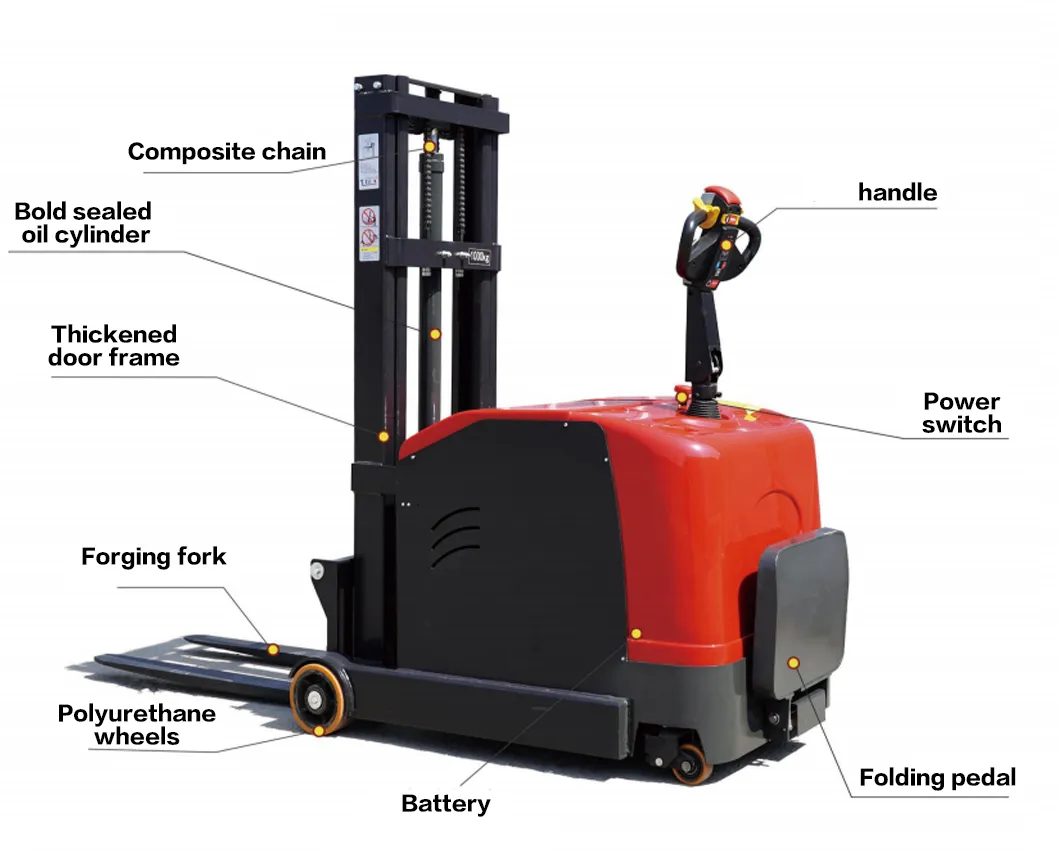

Technical Drawing
📦 Packaging & Delivery
Package Size
260.00cm * 98.00cm * 158.00cm
Gross Weight
1800.000kg
Lead Time
1-1 pcs: 3 days
2-10 pcs: 7 days
11-50 pcs: 15 days
Package Type
Wooden Frame/Carton
Packaging and Shipping
Quality & After-Sales
Certifications

Warranty Service: We provide a 1-year warranty for each vehicle. If any part fails due to quality issues within this period, replacement parts are sent free of charge within 5 working days.

After Sales Service
Frequently Asked Questions (FAQ)
How long is the warranty for this electric stacker?
The equipment comes with a standard warranty of 12 months or 2000 working hours, whichever comes first.
What are the main application scenarios?
It is ideal for e-commerce warehouses, manufacturing workshops, logistics transfer stations, and narrow aisle storage environments.
Can the vehicle dimensions and load capacity be customized?
Yes, we offer customization for rated load capacity (up to 2000kg), lifting height, fork length, and overall vehicle size.
What is the typical lead time for an order?
For standard electric pallet stackers, it usually takes 15-20 days. Small orders (1 unit) can often be processed in as little as 3-7 days.
Does the stacker work on inclined surfaces?
Yes, the stacker is designed to work easily on slopes up to 5% even when carrying a rated load.
What kind of batteries are used?
The standard configuration uses a 48V/200ah lead-acid battery, but lithium battery options are also available.
