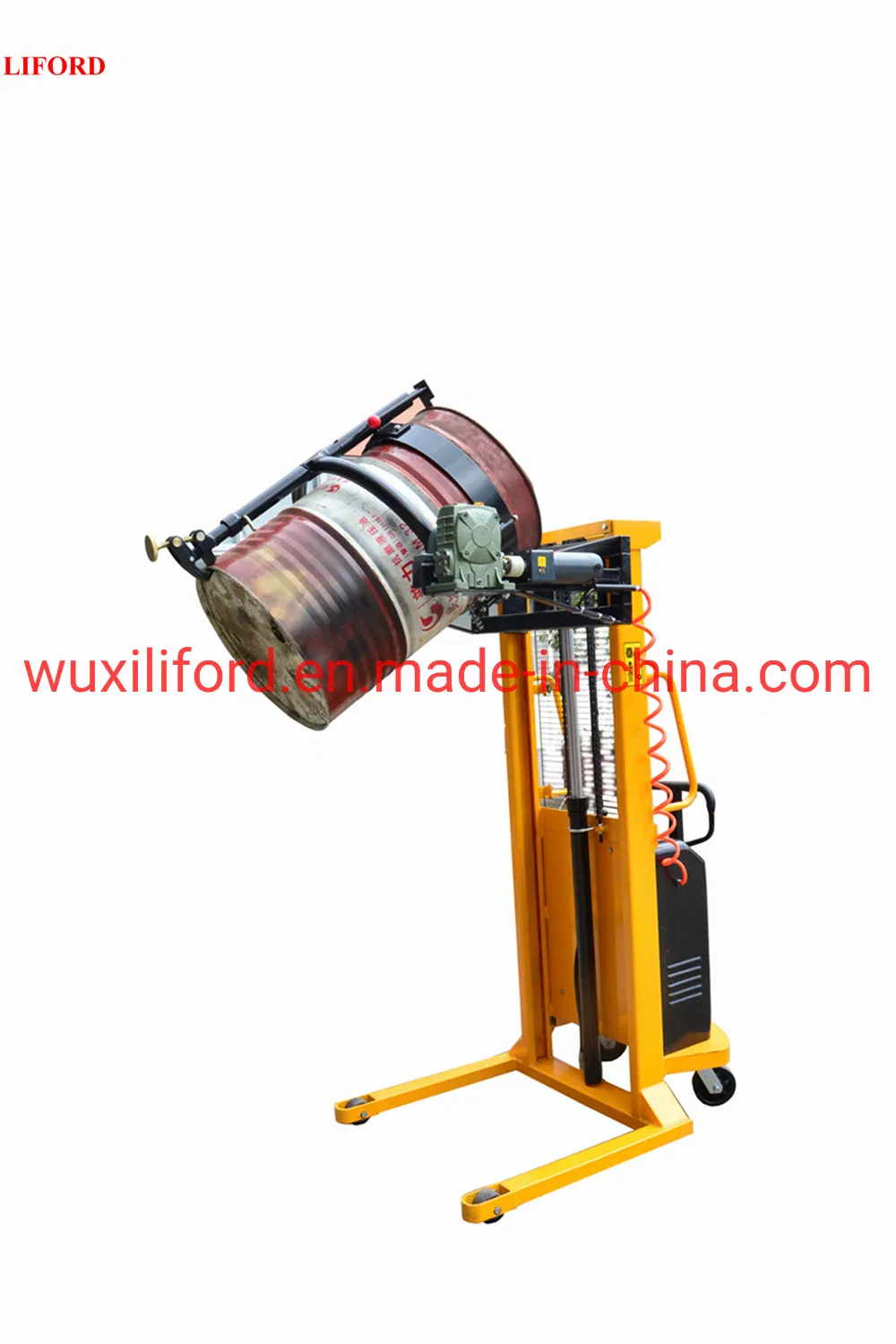

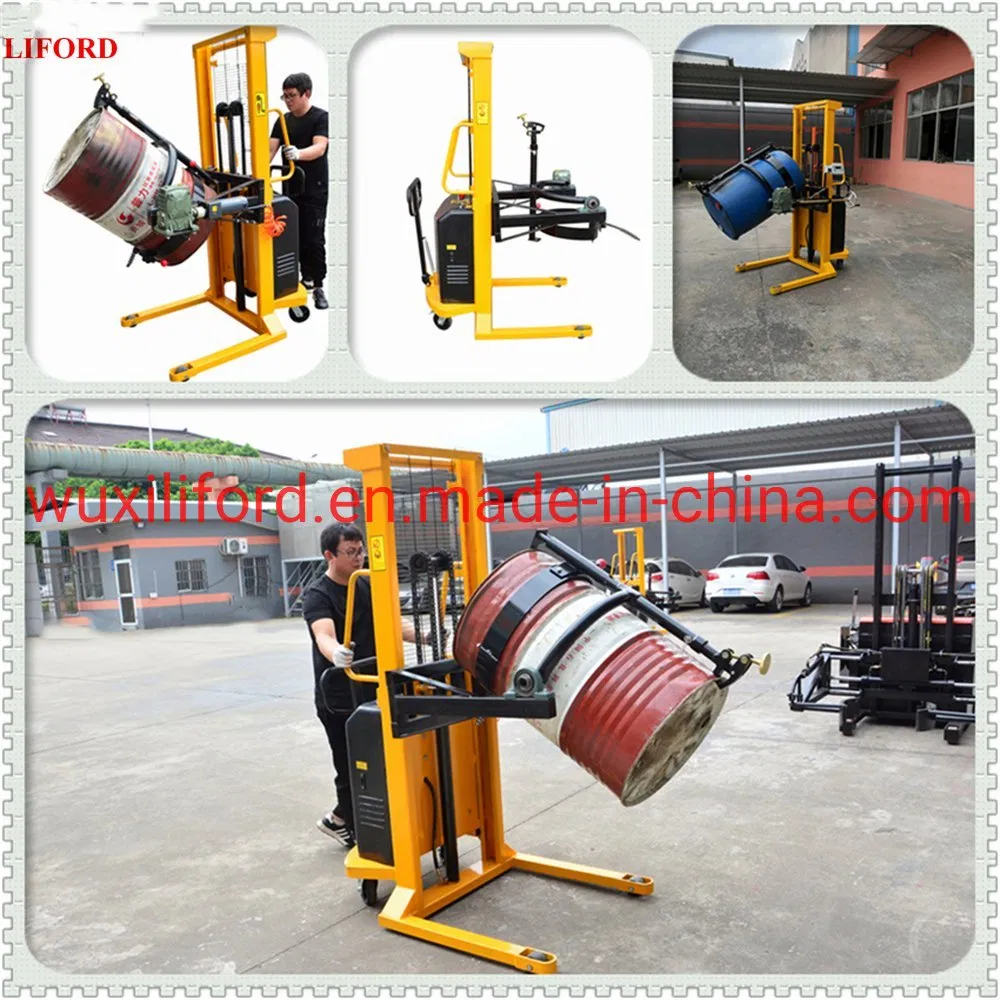

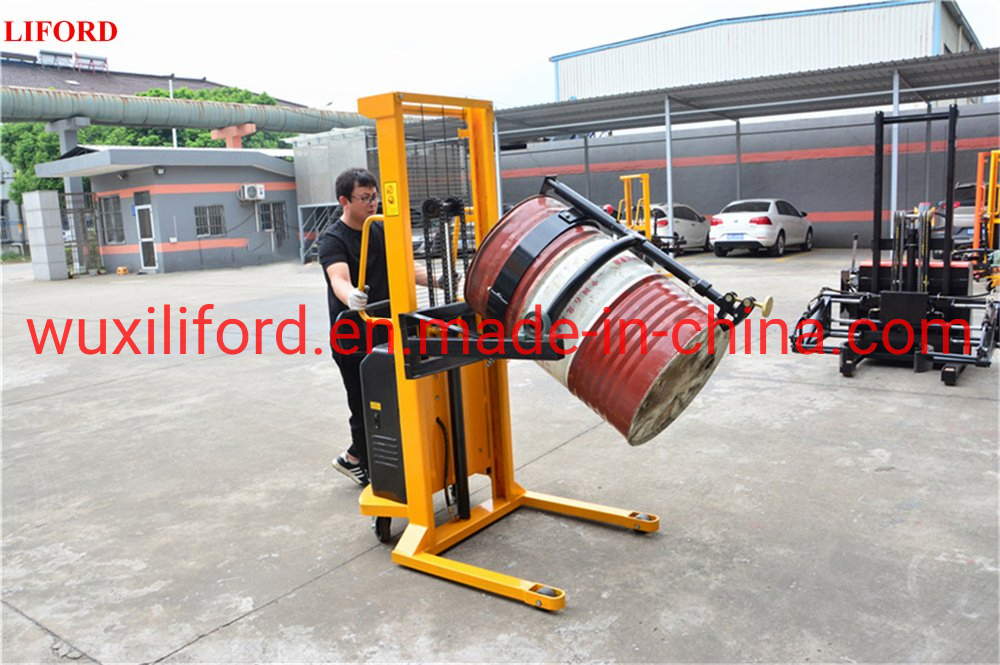

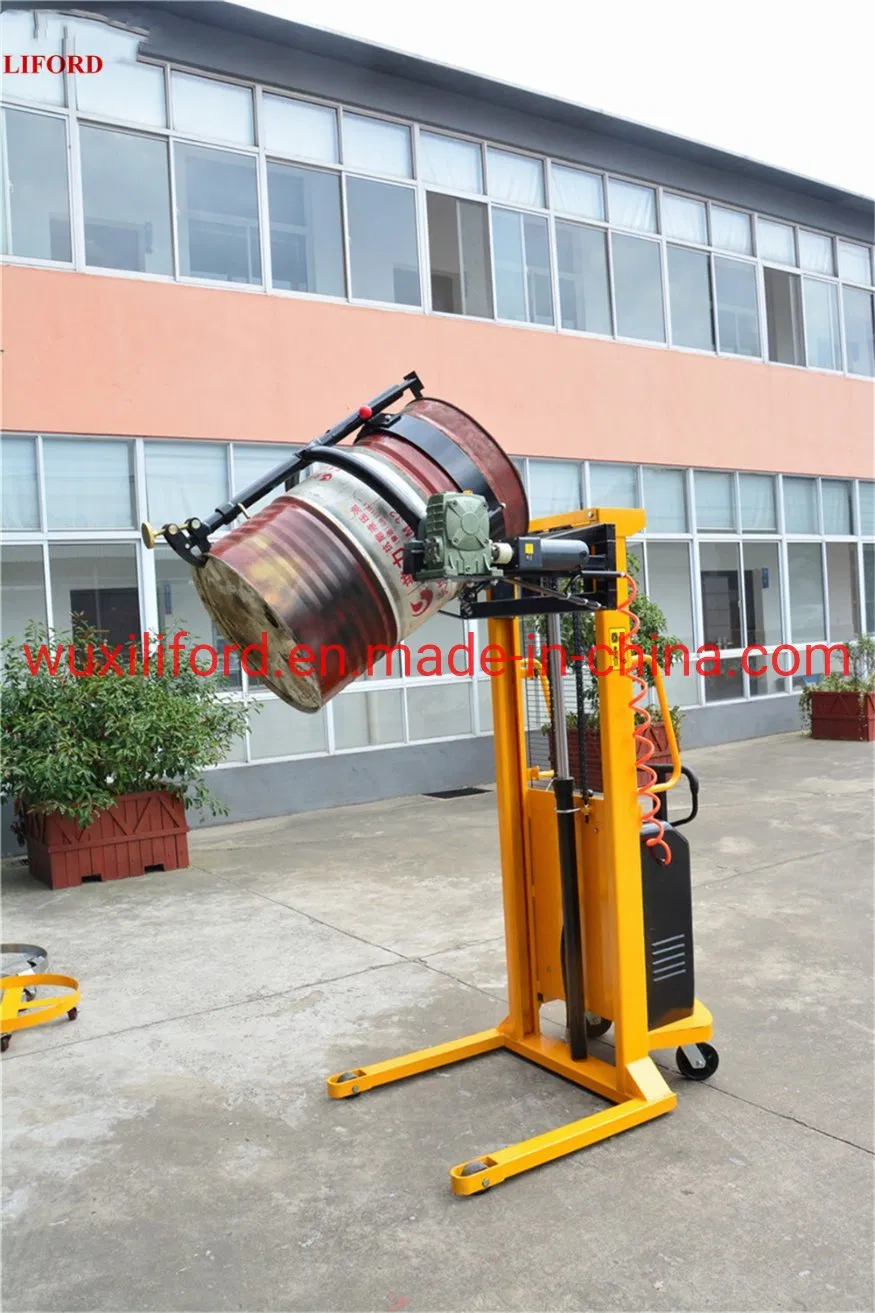

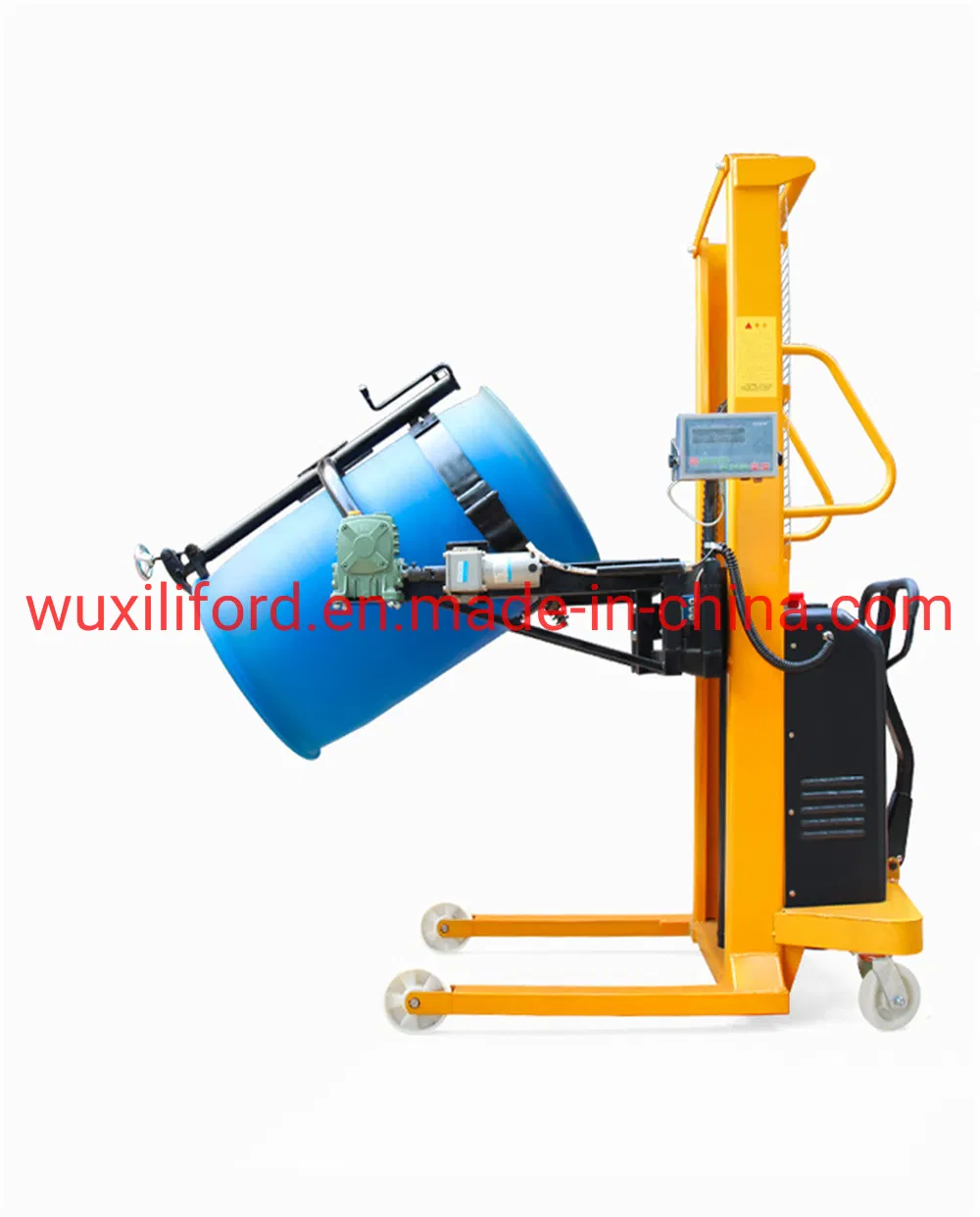

Drum Handlers with Scale Designed to Lift and Weigh a Drum 520kg Capacity
Drum Handlers with Scale Designed to Lift and Weigh a Drum 520kg Capacity
Drum Handlers with Scale Designed to Lift and Weigh a Drum 520kg Capacity
Drum Handlers with Scale Designed to Lift and Weigh a Drum 520kg Capacity
Drum Handlers with Scale Designed to Lift and Weigh a Drum 520kg Capacity
1 / 5
Drum Handlers with Scale Designed to Lift and Weigh a Drum 520kg Capacity
Drum Handlers with Scale Designed to Lift and Weigh a Drum 520kg Capacity
Drum Handlers with Scale Designed to Lift and Weigh a Drum 520kg Capacity
Drum Handlers with Scale Designed to Lift and Weigh a Drum 520kg Capacity
Drum Handlers with Scale Designed to Lift and Weigh a Drum 520kg Capacity

Drum Handlers with Scale Designed to Lift and Weigh a Drum 520kg Capacity

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋
Basic Specifications
Model NO.
YL520-1, YL520
Pump Unit Power
1.6kw/H
Capacity
520kg
Type
Semi-Electric
Lifting Height
1580mm
Lifting Speed
120mm/S
Turning Radius
1620mm
HS Code
84279000
💡
Product Description
Drum Handlers with Scale

Drum handlers with scale designed to lift and weigh a drum 520kg capacity

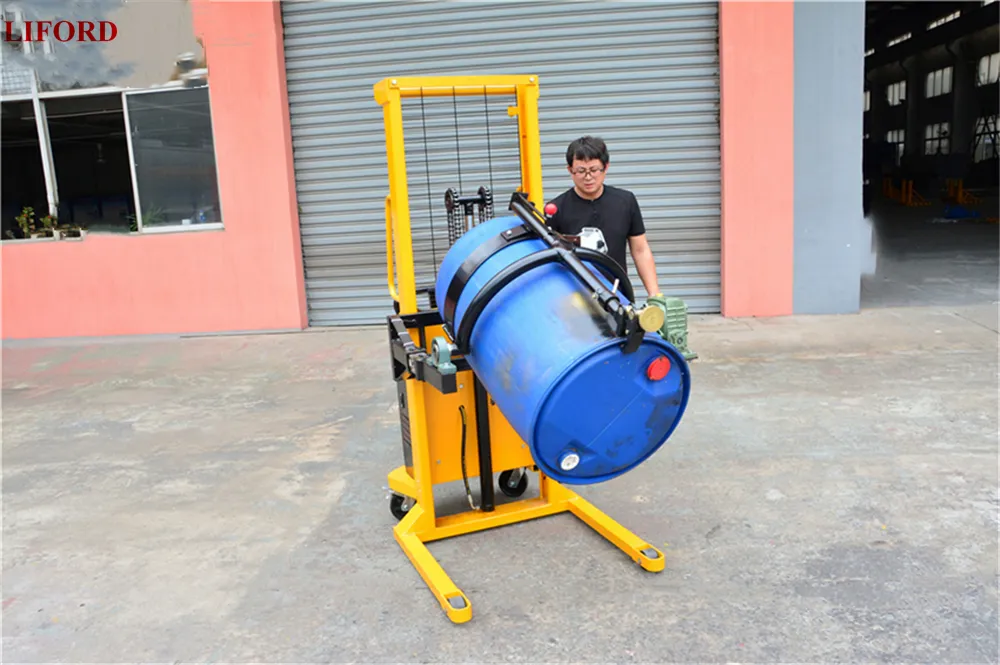

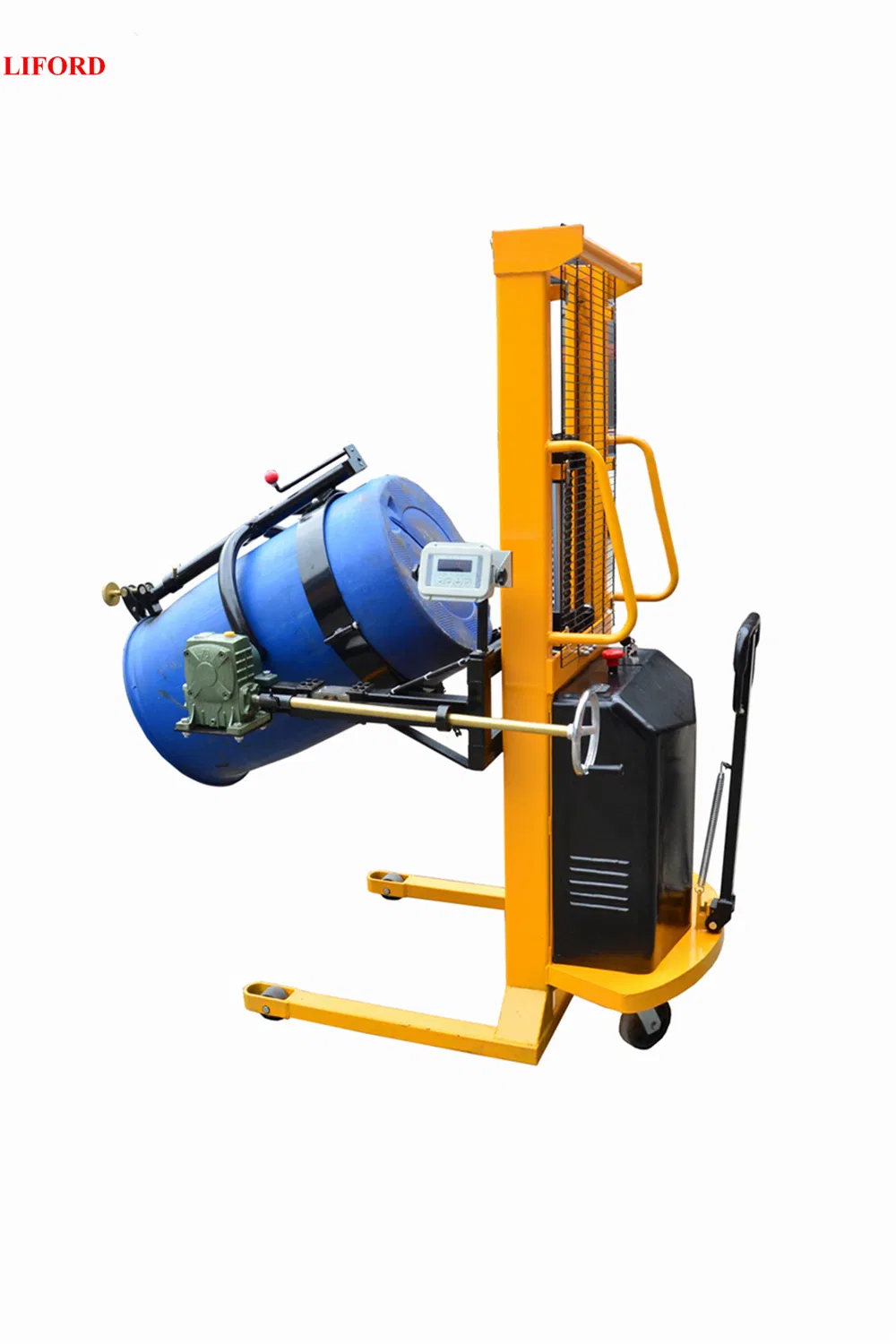

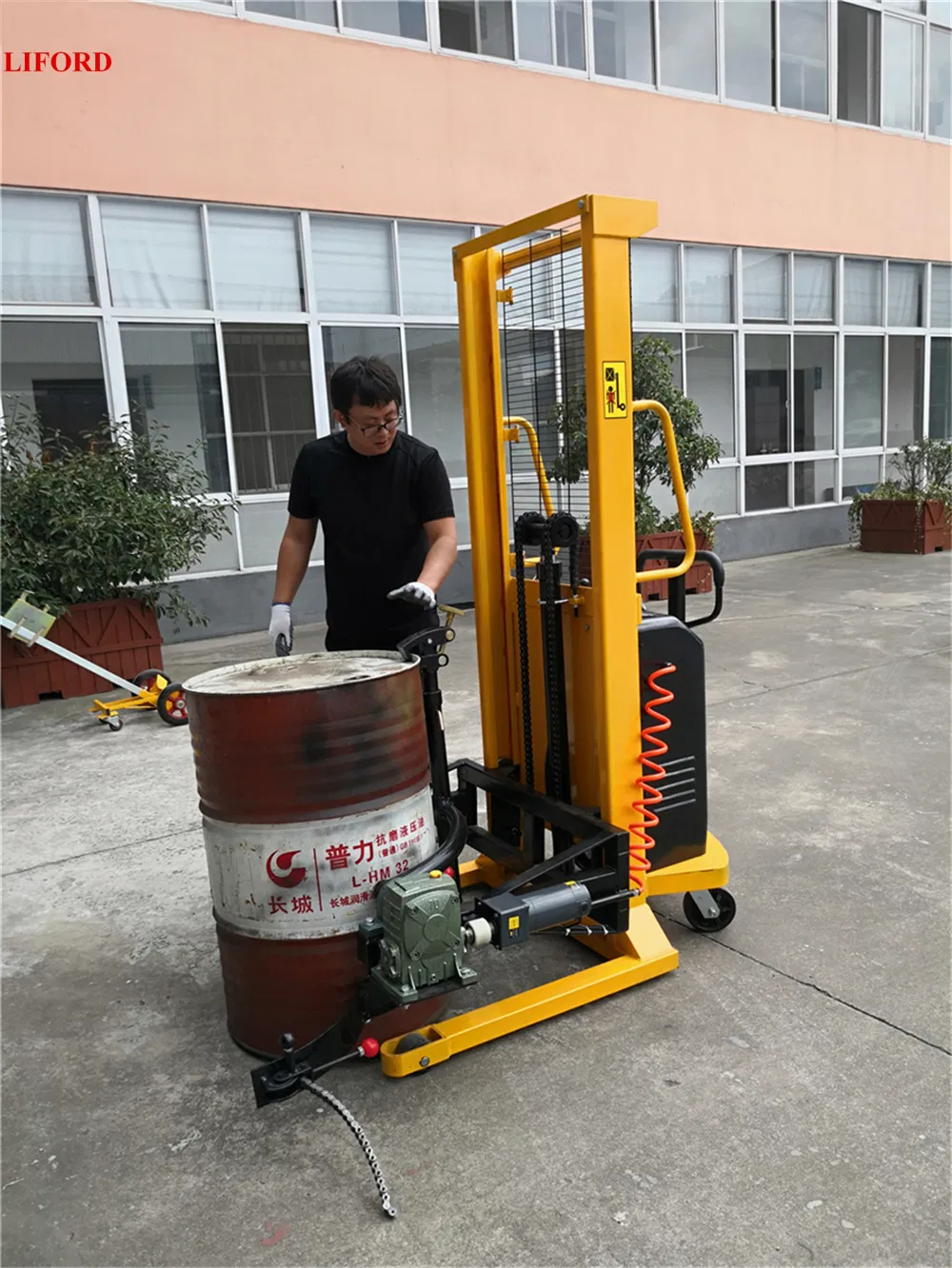

Drum Handler Detail 1 Drum Handler Detail 2 Drum Handler Detail 3

With excellent practicability, the Scale-Equipped Electric Drum Rotator with Battery Power Drum Lift features a 520kg capacity. It can realize Power Lift and Power Drum Tilt for ergonomic drum pouring, designed to lift and weigh a drum while pouring at up to 1850mm high. Vertical-Lift Drum Pourers make it simple to raise and pour heavy steel and plastic drums smoothly. You can control the pouring angle and height while dispensing, and accurately weigh the drum simultaneously.

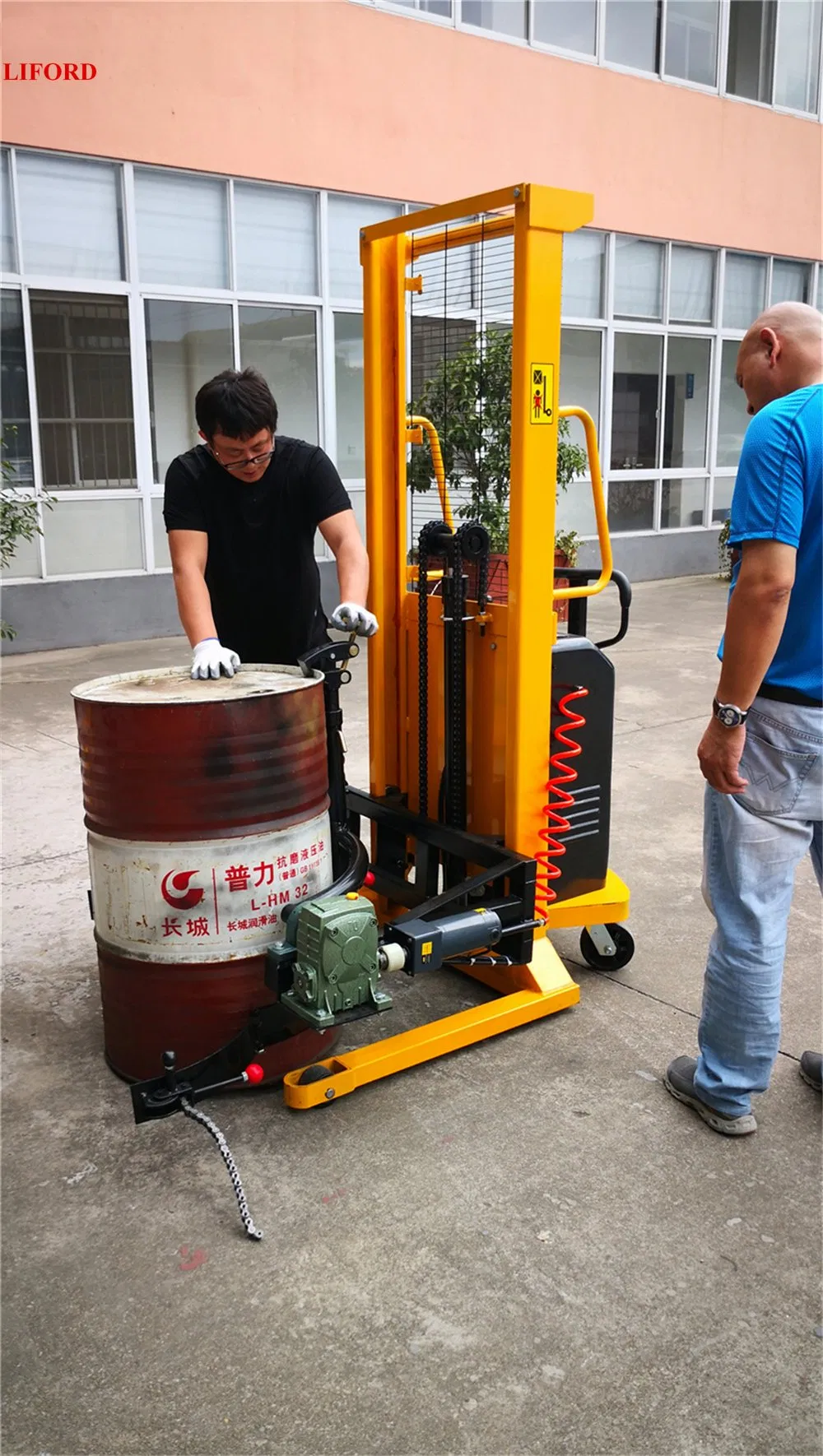

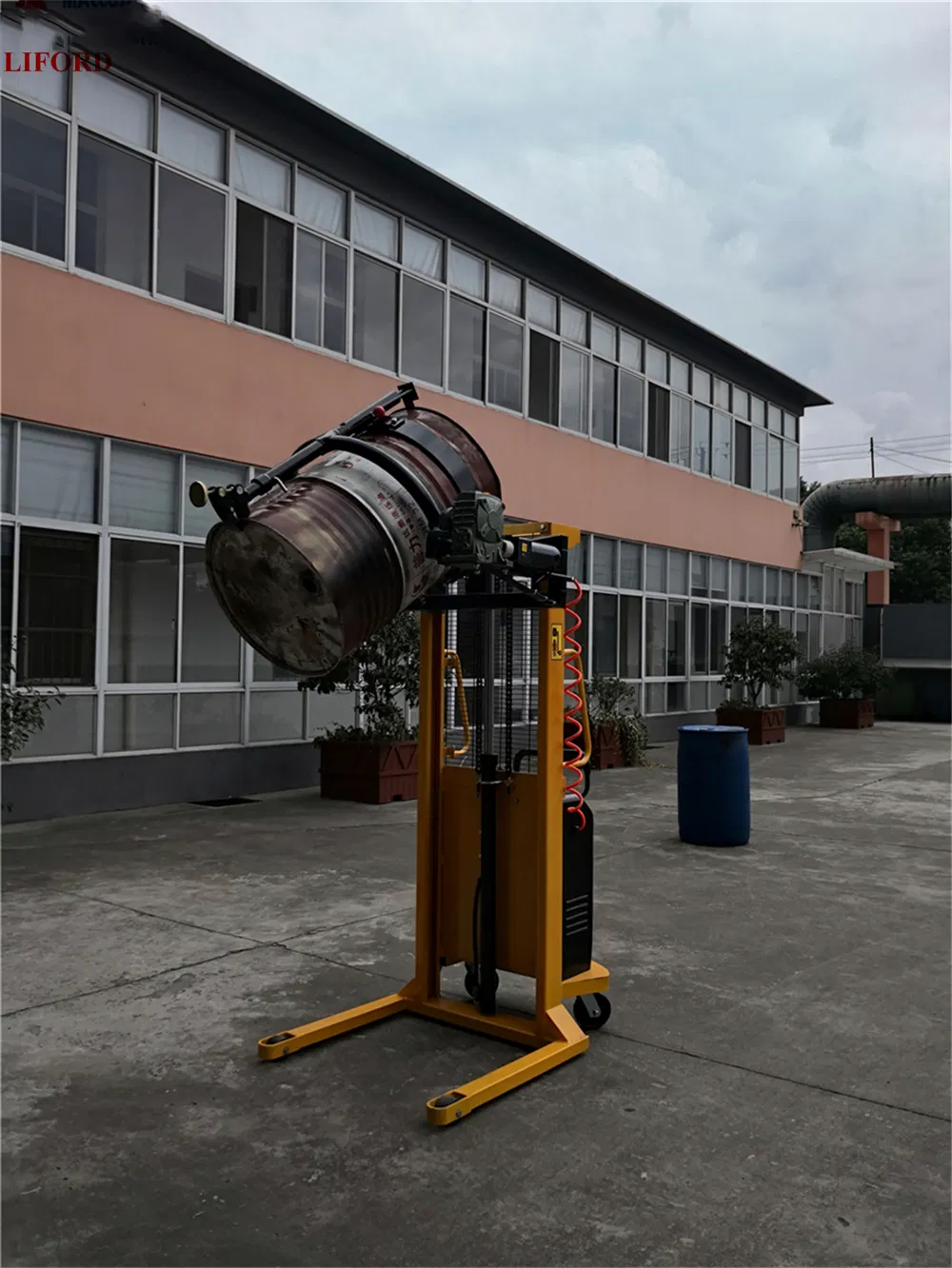

Usage 1 Usage 2
⭐
Key Features
  • Drums can power lift and power rotate 180°
  • Integrated scale to control pouring & measure capabilities (Accuracy: ±3‰)
  • Special rolling technology of C-type frame for enhanced security
  • Combined Eagle-grip and Anchor ear structure
  • Suitable for electric rotation of both steel and plastic drums
  • Max lifting height up to 1580mm with vertical-lift functionality
  • High-quality hydraulic power unit and maintenance-free battery

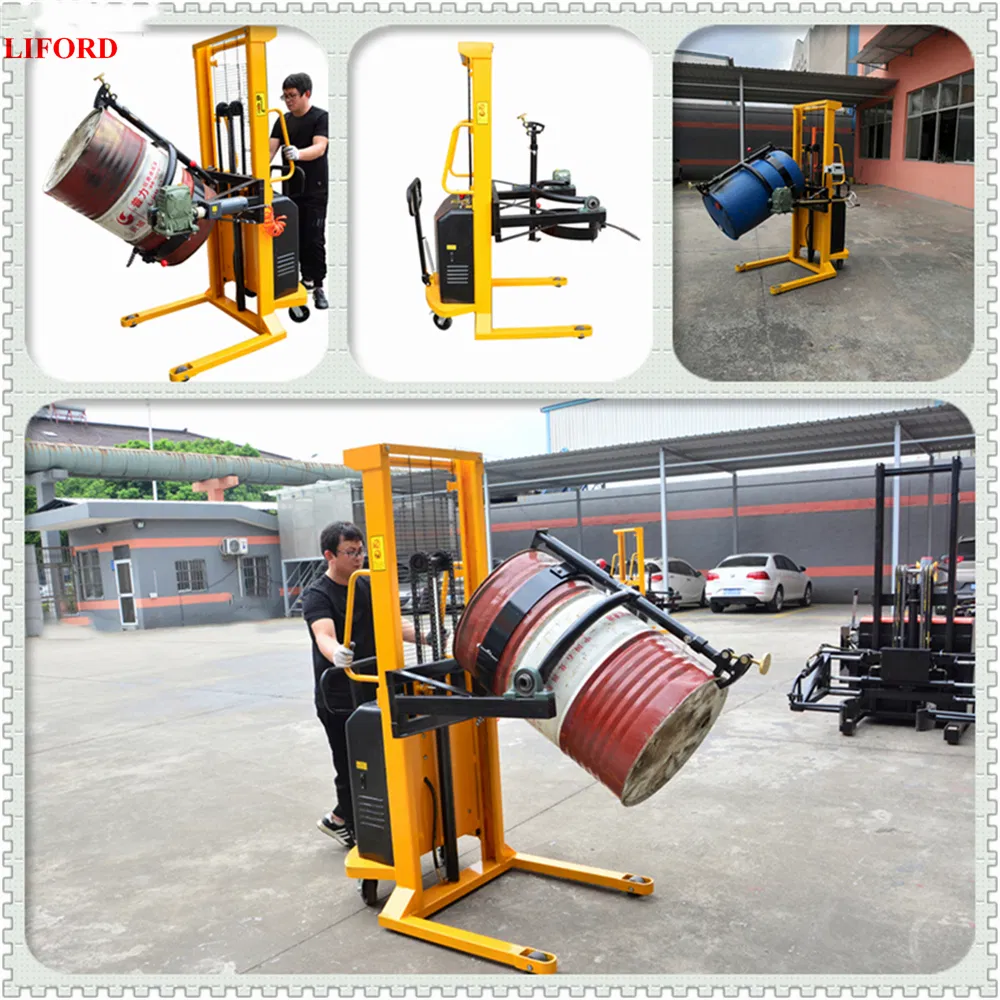

Feature Image
📊
Technical Data
Parameter Unit Model: YL520-1
Load capacitykg520
Net weightkg278
Wheel Dimension (Front/Rear)mmØ80*55 / Ø150*50
Inner/Outer Width of Front Legmm640/800
Outline Dimensionmm1400*1000*2060
Turning Radiusmm1620
Pump Unit PowerKW/h1.6
BatteryAh/V120/12
Lifting Heightmm1500
Lifting Speedmm/s120
Data View 1 Data View 2
🛠️
Industrial Applications

The Scale-equipped Multi-function Electric Drum Dumper allows for weighing while pouring to dispense precise amounts. It is widely used in chemical plants and food plants for transferring, loading & unloading, and compounding materials such as dyes, paints, adhesives, petrol, and edible oils.

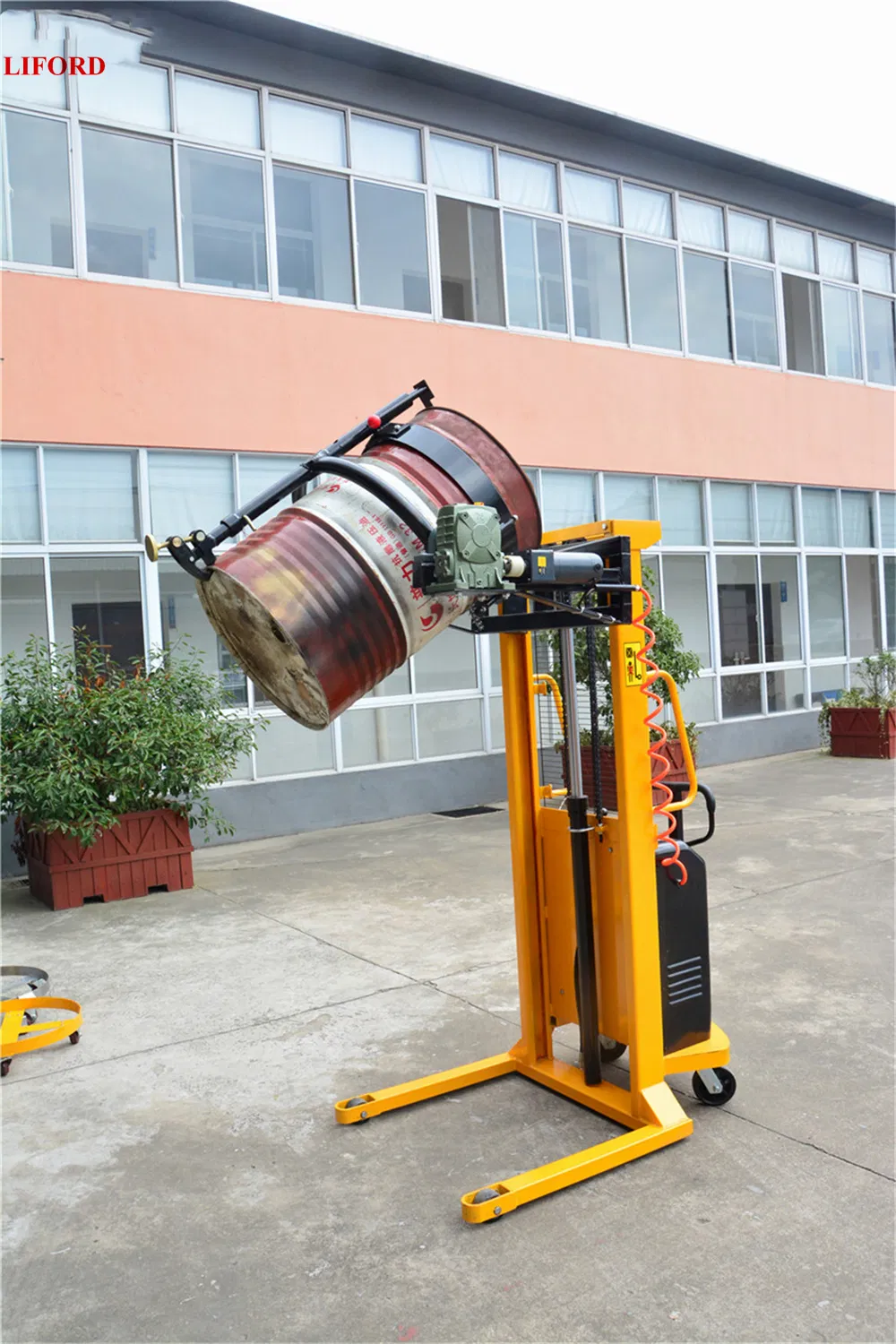

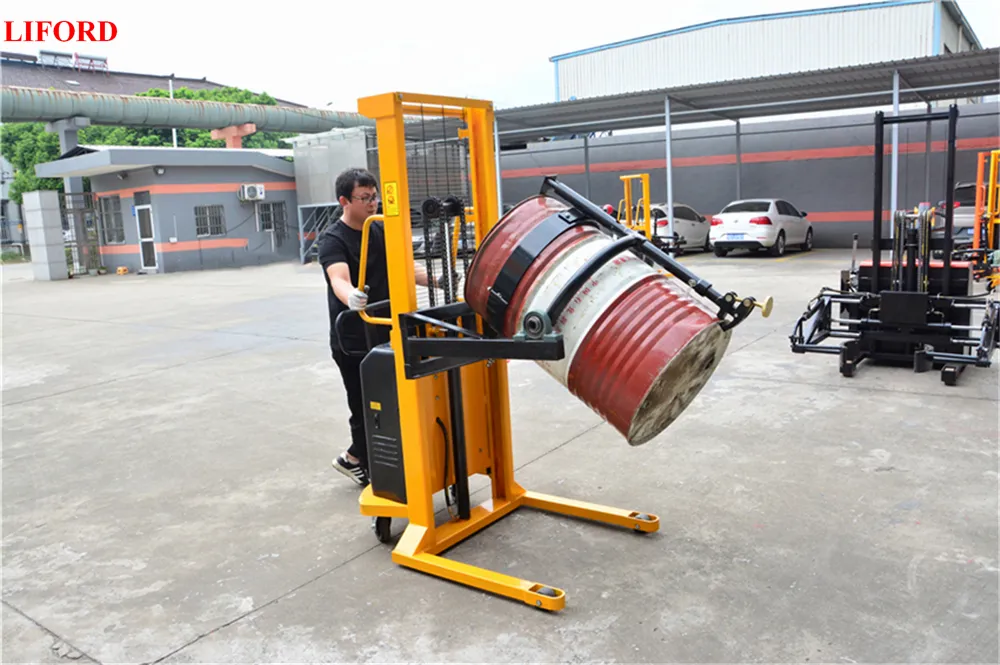

Application 1 Application 2 Application 3
🏆
Why Choose Us?
  • Over 10 years of professional experience in material handling
  • Fast production and on-time delivery
  • OEM/ODM services available for non-standard requirements
  • 100% inspection of all finished products before shipment
  • Strong packaging for sea and air delivery protection
Packaging 1 Packaging 2
❓
Frequently Asked Questions
Q: What is the maximum load capacity of this drum handler? A: The maximum capacity is 520kg, suitable for heavy-duty industrial drums.
Q: Can it handle both plastic and steel drums? A: Yes, it is specifically designed to handle and rotate both steel and plastic drums securely.
Q: How accurate is the integrated weighing scale? A: The scale provides highly accurate measurements with a tolerance of ±3‰.
Q: What is the maximum lifting height? A: The vertical lift reaches a maximum height of 1580mm, with pouring capabilities up to 1850mm.
Q: Does the equipment require manual rotation for pouring? A: No, this is a semi-electric model featuring power lift and 180-degree power rotation for ergonomic operation.
Q: What kind of warranty is provided? A: We provide a one-year warranty period and include essential spare parts in the tool box with the machine.
