Below-Hook Drum Handler to Lift a Drum with Your Crane or Hoist Lm800

📋

Basic Specifications

Model NO.

LM800

Material

Heavy Duty Steel Construction

Surface Treatment

Powder Coating

Lifting Capacity

400kg

Name

Below-Hook Tilting Drum Dispenser

Advantage

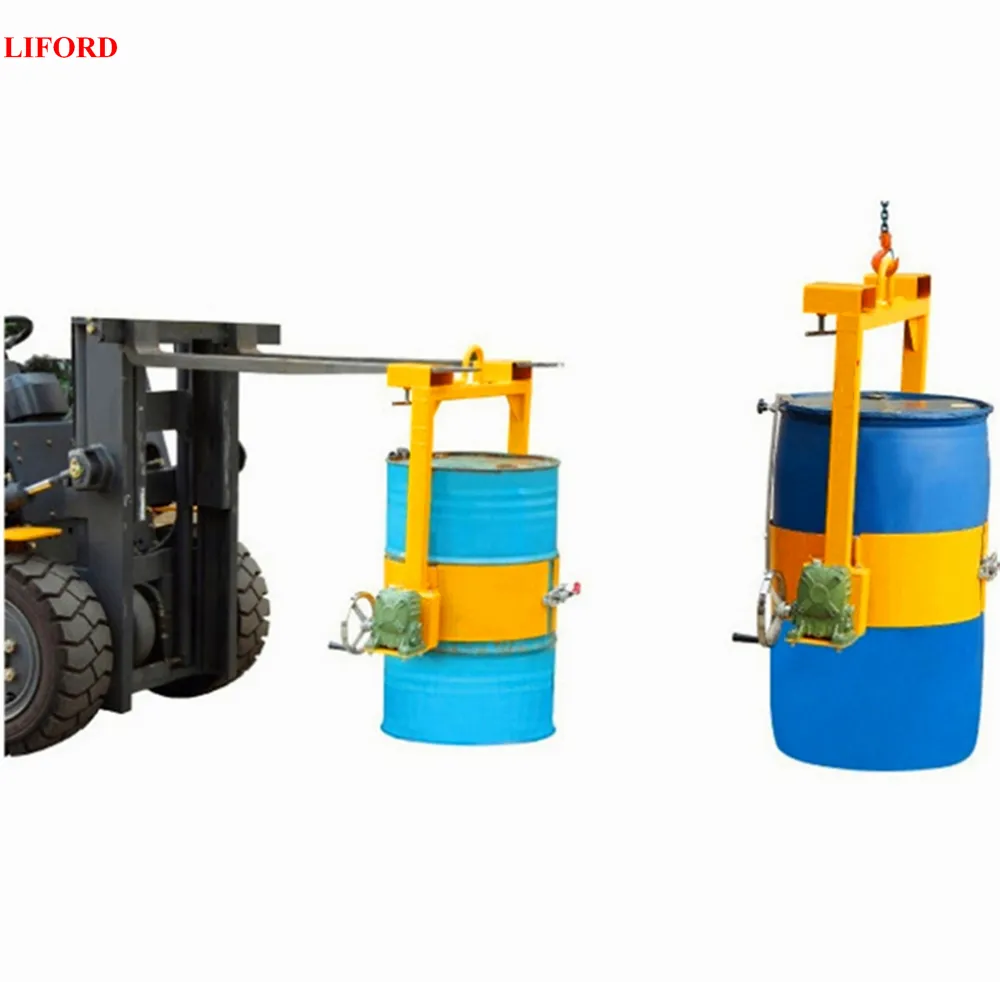

Forklift Mounted and Crane Mounted Type

Feature

Positive Tilt Lock on Drum Saddle

Type

Drum Handling Equipment

Specification

900*600*950mm

Production Capacity

9000PCS/Month

🏗️

Product Description

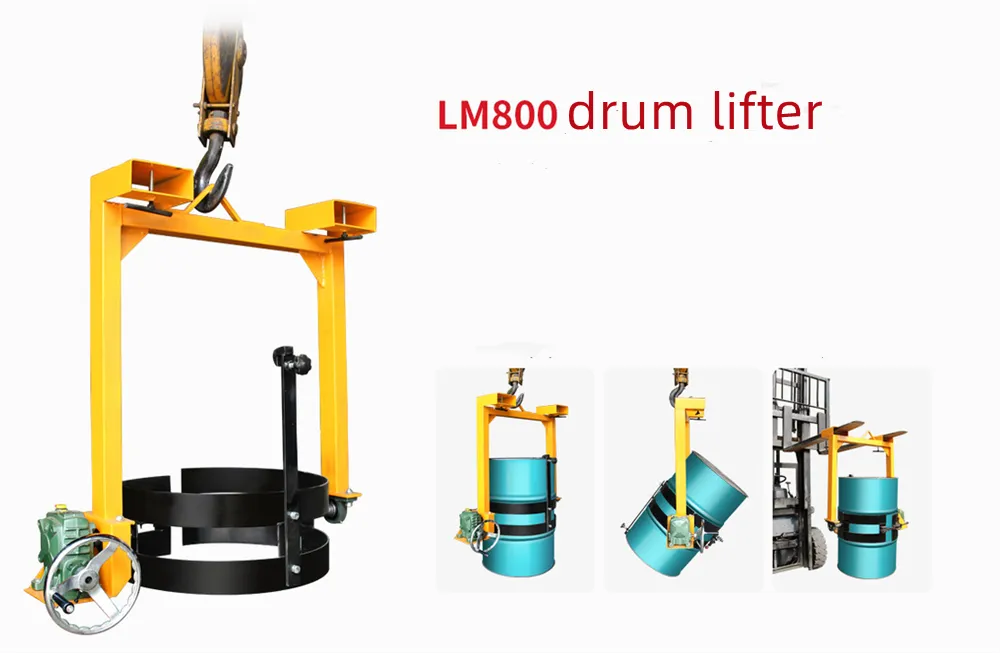

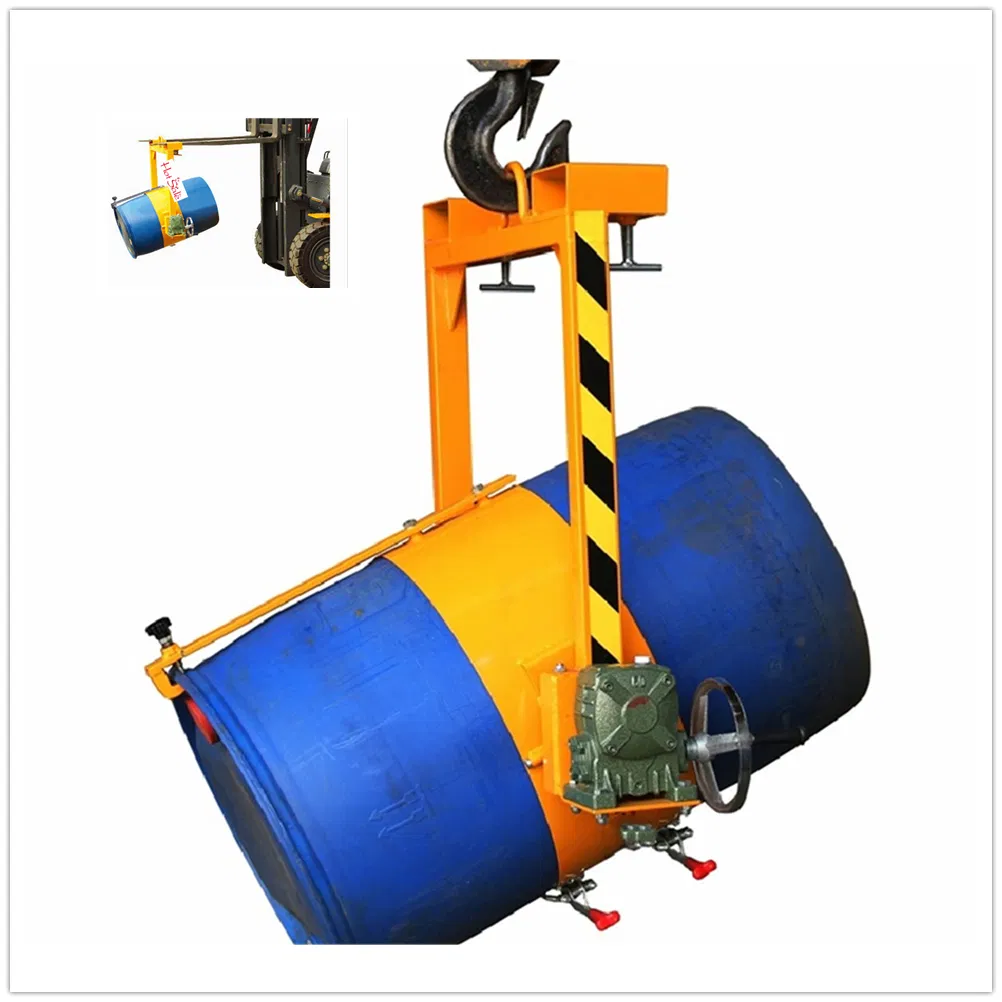

Below-hook drum handler to Lift a Drum with Your Crane or Hoist LM800

Vertical Drum Lifter, Drum Dispenser LM800 can be easily mounted on forklift and crane to lift steel and plastic drums, and dispense contents. This simple structure drum lifter is a type of One-person Operated drum handlers, which can greatly save time, reduce spilling waste, and improve productivity. Simply attach or hang lifter on hook from an overhead hoist or crane, cinch saddle around drum, and raise to desired height and position.

⭐

Key Features

Lift, transport, and pour from open and closed head drum
Suitable for 55 gallon steel or 200 liter double closed plastic drums
Ideal for lower level powering and dumping operations
Positive tilt lock on drum saddle to hold drum upright
Locks also hold drum in horizontal position

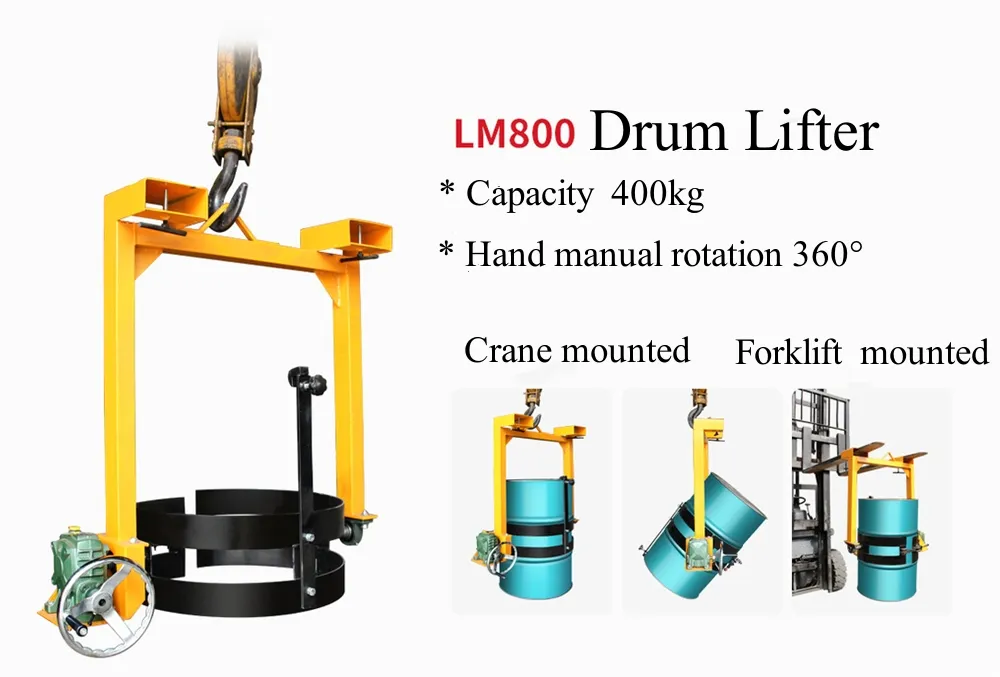

Manual tilt control with 360-degree rotation
One-person Operation saves time and improves productivity
Easily attach to overhead hoist, crane, or forklift

📊

Technical Data

Parameter	Unit	Value (LM800)
Rated load capacity	kg	400
Net Weight	kg	44
Inner diameter of the single supporting leg	mm	150*55
Inside width of supporting legs	mm	420
Outside width of supporting legs	mm	720
Overall size	mm	900600950

🏭

Application

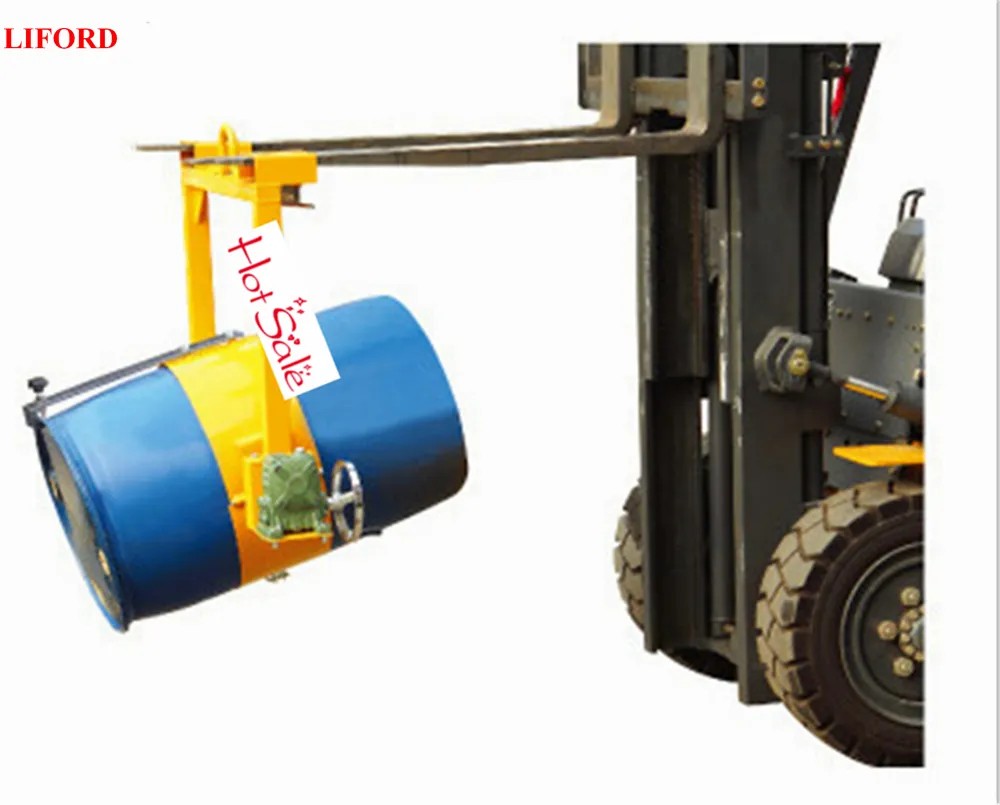

Forklift Mounted and Crane Mounted Type Tilting Drum Dispenser can be easily operated by one person. With the cinch saddle around steel and plastic drums, and by working together with the overhead hoist, you can simply and easily grab and raise the drums to desired height and position. It is widely applicable for handling drums in chemical plants and food plants for transferring, loading & unloading, charging and compounding materials of fluids, such as dyes, paintings, adhesives, petrol and edible oils, etc.
