25kn Drawbar Pull Diesel Engine Powered Airport Baggage Tow Tractor
25kn Drawbar Pull Diesel Engine Powered Airport Baggage Tow Tractor
25kn Drawbar Pull Diesel Engine Powered Airport Baggage Tow Tractor
25kn Drawbar Pull Diesel Engine Powered Airport Baggage Tow Tractor
25kn Drawbar Pull Diesel Engine Powered Airport Baggage Tow Tractor
1 / 5
25kn Drawbar Pull Diesel Engine Powered Airport Baggage Tow Tractor
25kn Drawbar Pull Diesel Engine Powered Airport Baggage Tow Tractor
25kn Drawbar Pull Diesel Engine Powered Airport Baggage Tow Tractor
25kn Drawbar Pull Diesel Engine Powered Airport Baggage Tow Tractor
25kn Drawbar Pull Diesel Engine Powered Airport Baggage Tow Tractor

25kn Drawbar Pull Diesel Engine Powered Airport Baggage Tow Tractor

Customization: Available
Transmission Type: Automatic
Power: Diesel
Send Inquiry

Product Description

i
Basic Specifications
Model NO.
EQC252-BDS
Load Capacity
25kn
Emission Standard
Euro 3
Drive Wheel
Rear Wheel
Seats
2
Horsepower
＜150hp
Engine Capacity
＜4L
Tire Certification
ISO
Condition
New
Engine
(Mitsubishi) S4s
Max. Towed Weight
32000kg
Travel Speed
25/22 Km/H
Max. Gradeability
38%
Turning Radius
3000mm
Service Weight
3900kg
Transmission
(Exedy) Kt
Steering

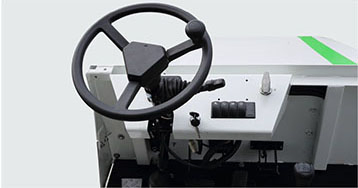

Integral Power Steering
Service Brake
Hydraulic Drum Brake
Specification
3015*1440*1450mm
HS Code
8701909000
★
Product Description

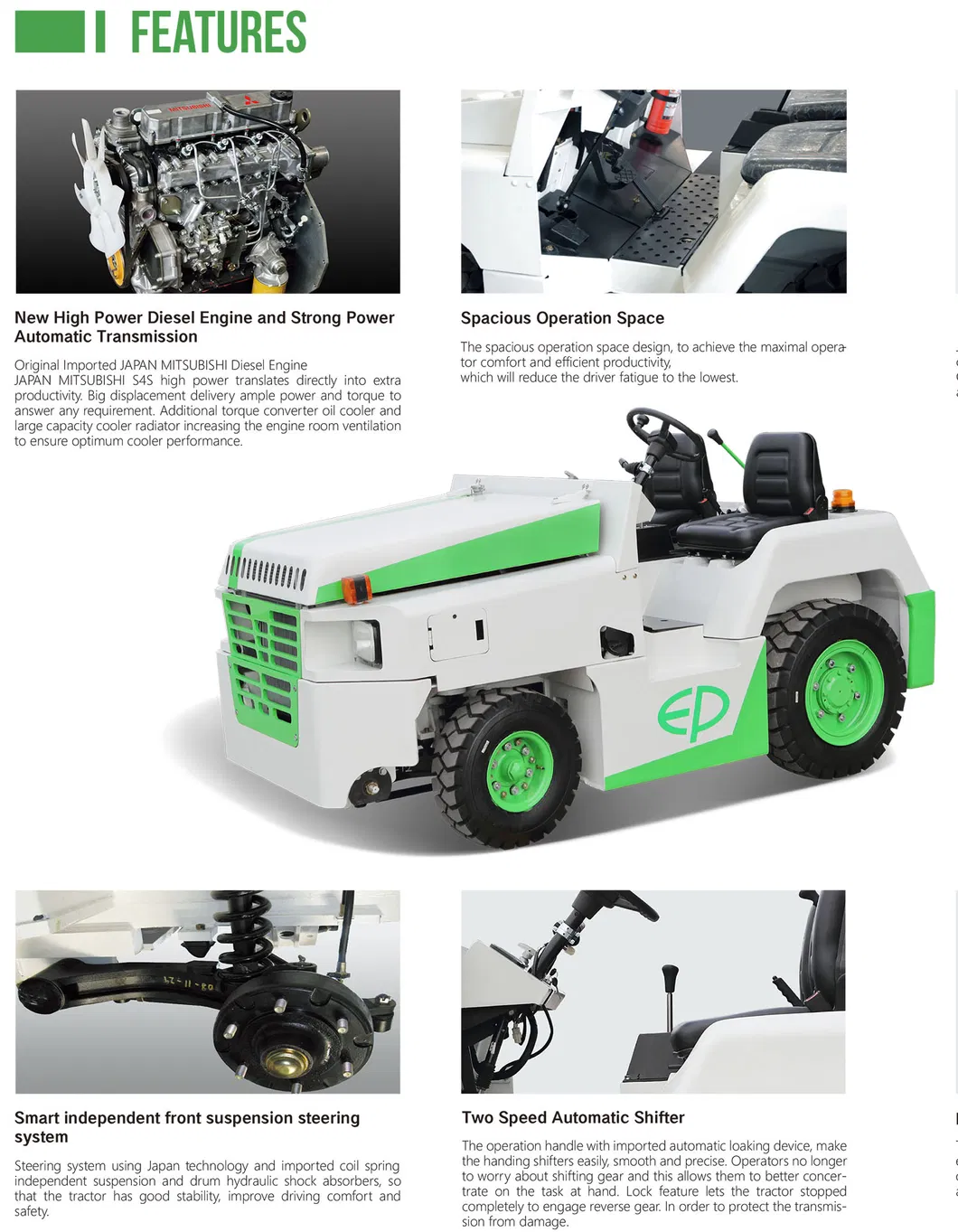

Airport Baggage Tow Tractor View 1

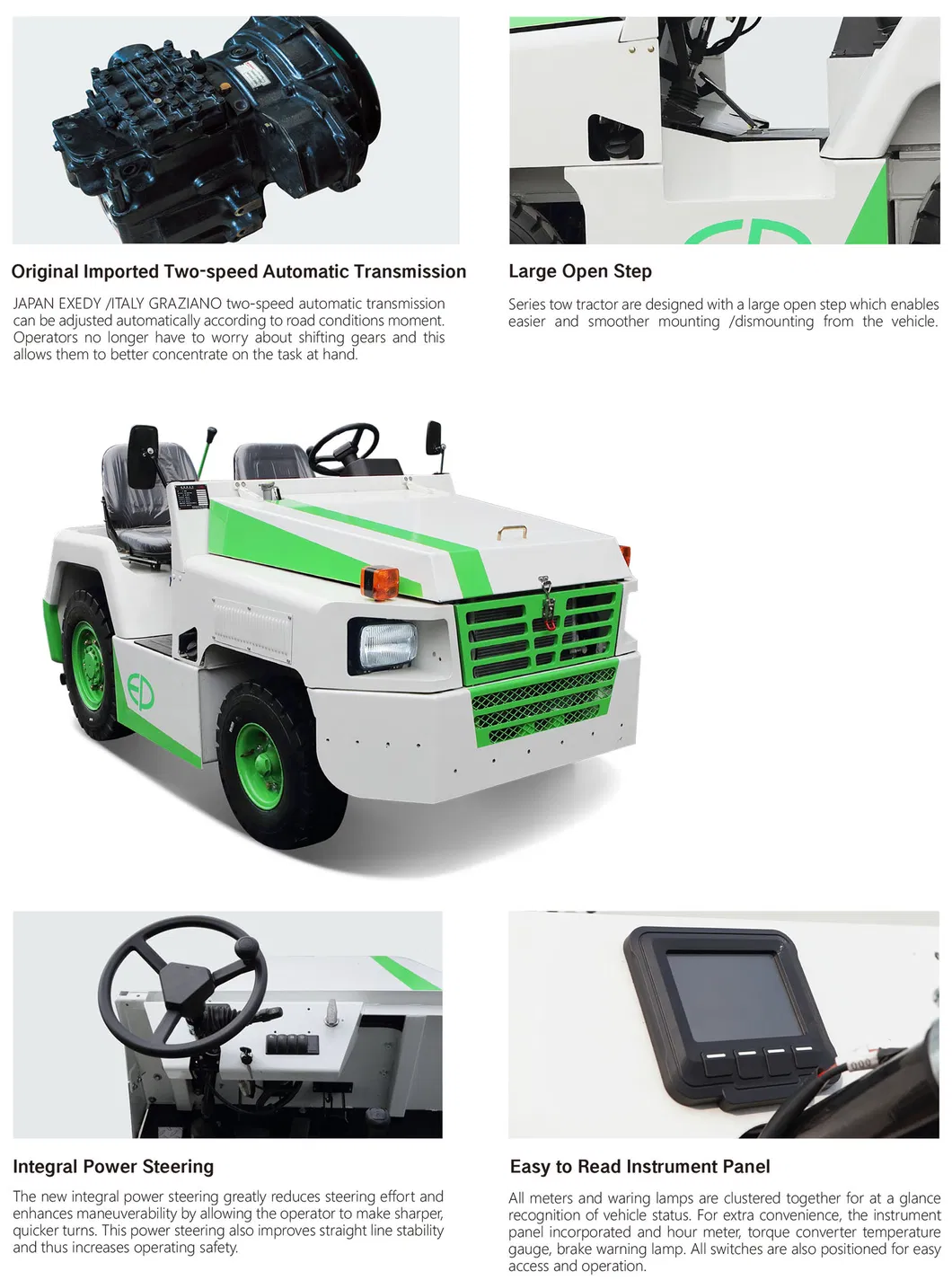

Airport Baggage Tow Tractor View 2
Performance Engine Type Unit EQC202-BDS EQC252-BDS EQC302-BDS EQC352-BDS
Max. Drawbar Pull Diesel KN 20 25 30 35
Max. Towed Weight Dry Concrete kg 25000 32000 38000 44000
Travel Speed (Fwd/Bwd) - km/h 25/22 25/22 25/22 27/13
Max. Gradeability No Load % 38 38 35 35
Overall Length A mm 3015 3015 3015 3180
Overall Width B mm 1440 1440 1440 1440
Wheelbase D mm 1620 1620 1620 1605
Truck Weight No Load kg 3450 3900 4400 5100
Engine Model - - (MITSUBISHI) S4S S4S-DT
Rated Output - kw/rpm 47/2500 55/2500

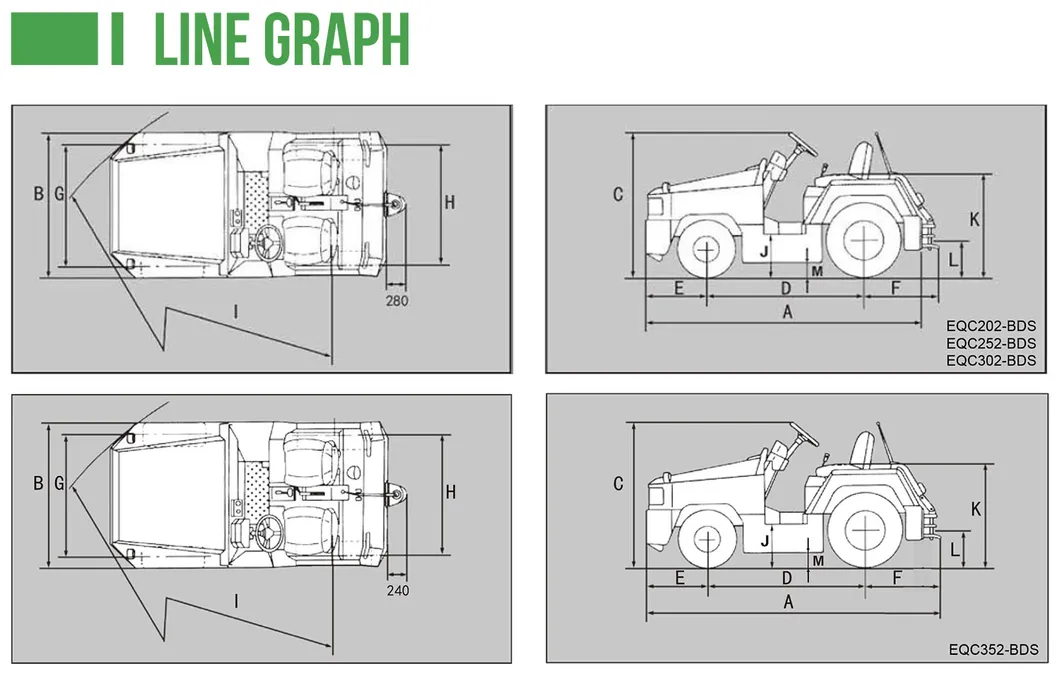

Tractor Detail 1

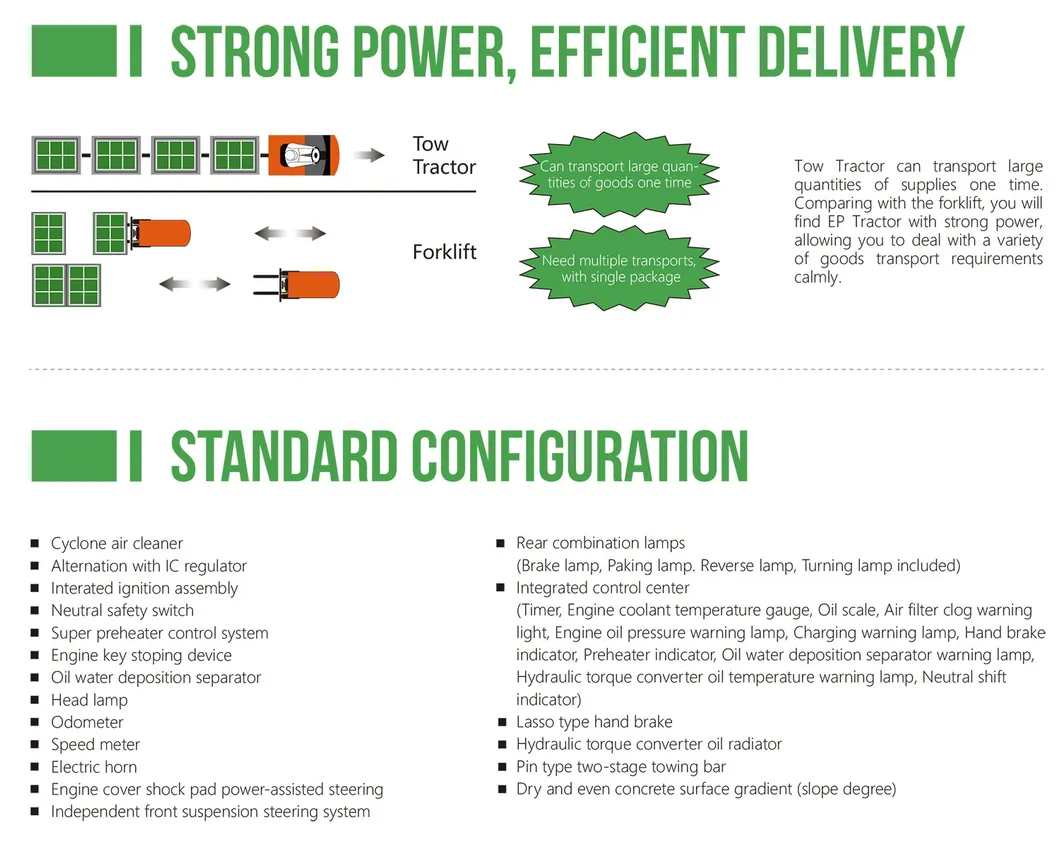

Tractor Detail 2

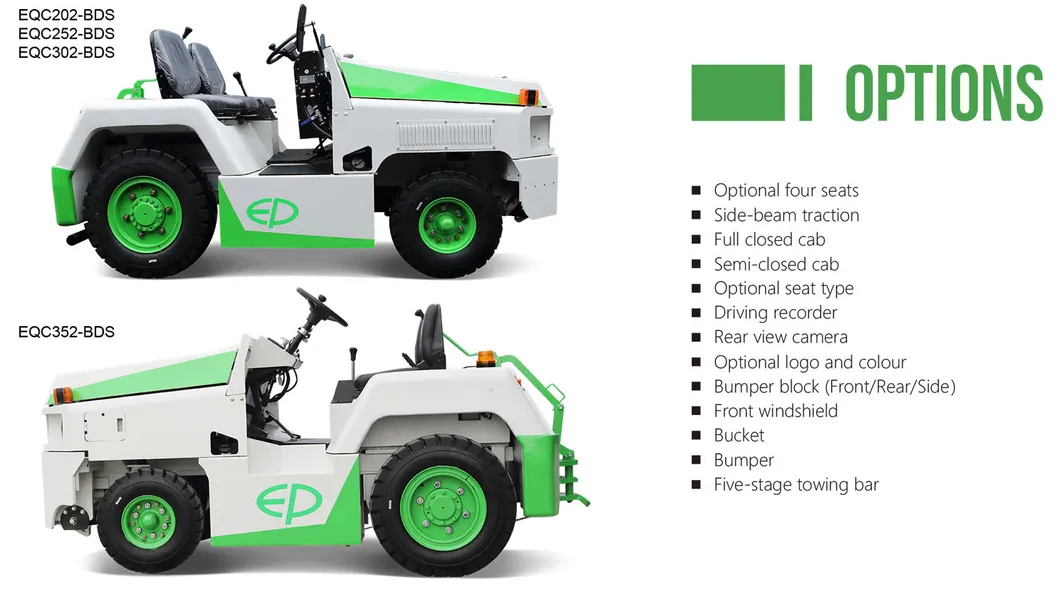

Tractor Detail 3

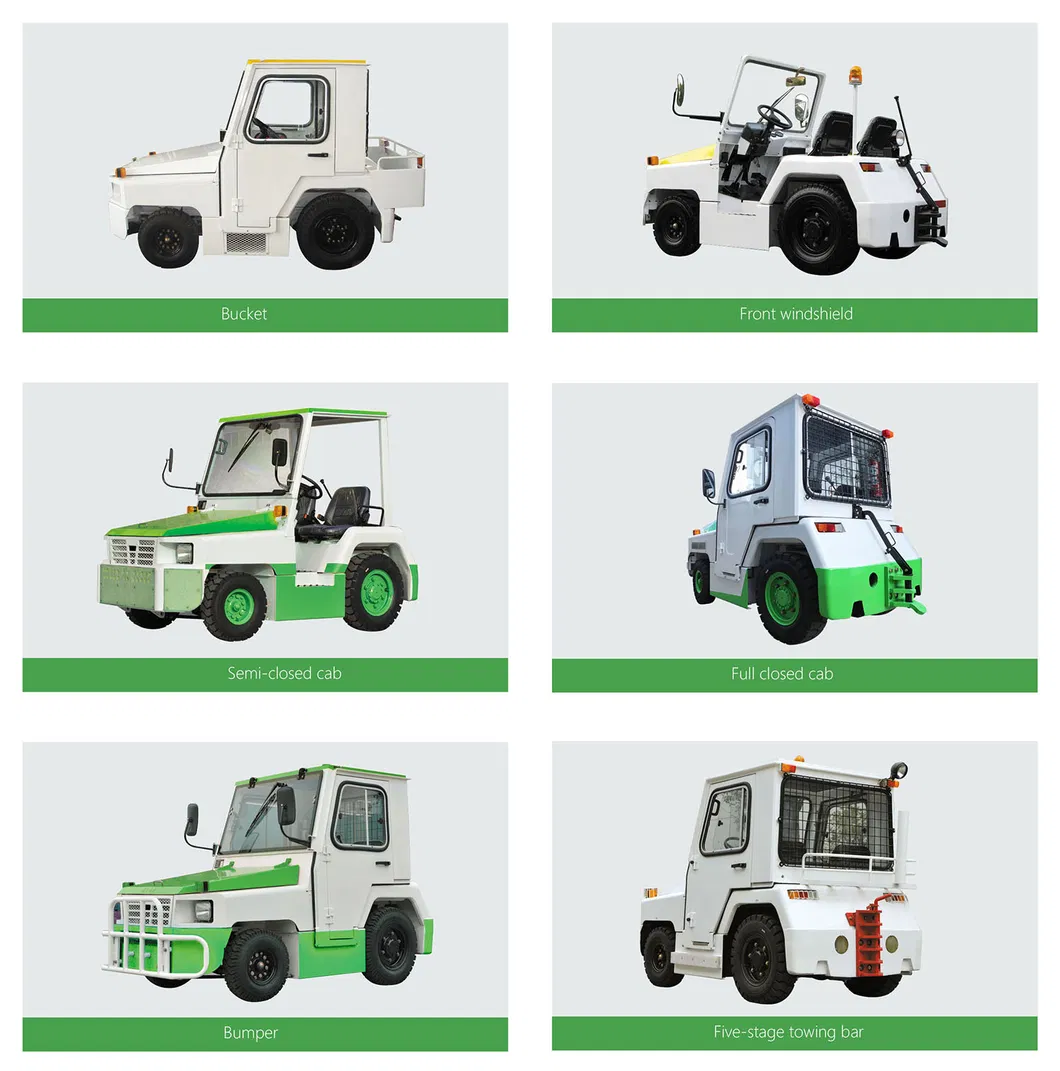

Tractor Layout Diagram
?
Frequently Asked Questions
What is the maximum towing capacity of the EQC252-BDS model?
The EQC252-BDS model features a maximum drawbar pull of 25kn and can tow up to 32,000kg on a dry, even concrete surface.
Which engine is installed in this baggage tow tractor?
This tractor is powered by a high-performance Mitsubishi S4S diesel engine, known for its reliability and efficiency in airport ground support operations.
What are the dimensions and turning radius of the vehicle?
The overall dimensions are 3015mm in length, 1440mm in width, and 1450mm in height. It offers an excellent turning radius of 3000mm for high maneuverability.
What type of braking system does the tractor use?
The vehicle is equipped with a hydraulic drum brake for service braking and an acting-on-driving-wheel brake for parking safety.
Is the transmission automatic or manual?
The tractor utilizes an Exedy KT hydraulic transmission, providing smooth power delivery and ease of operation for the driver.
What is the maximum gradeability of the EQC252-BDS?
Under no-load conditions, the tractor can handle a maximum gradeability of 38%, making it suitable for various airport ramp inclines.
