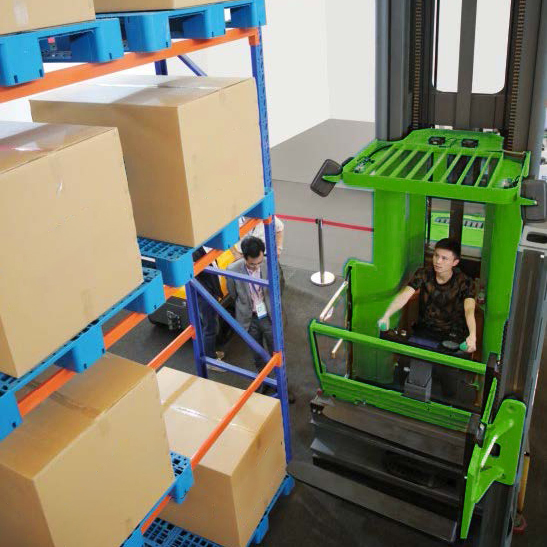

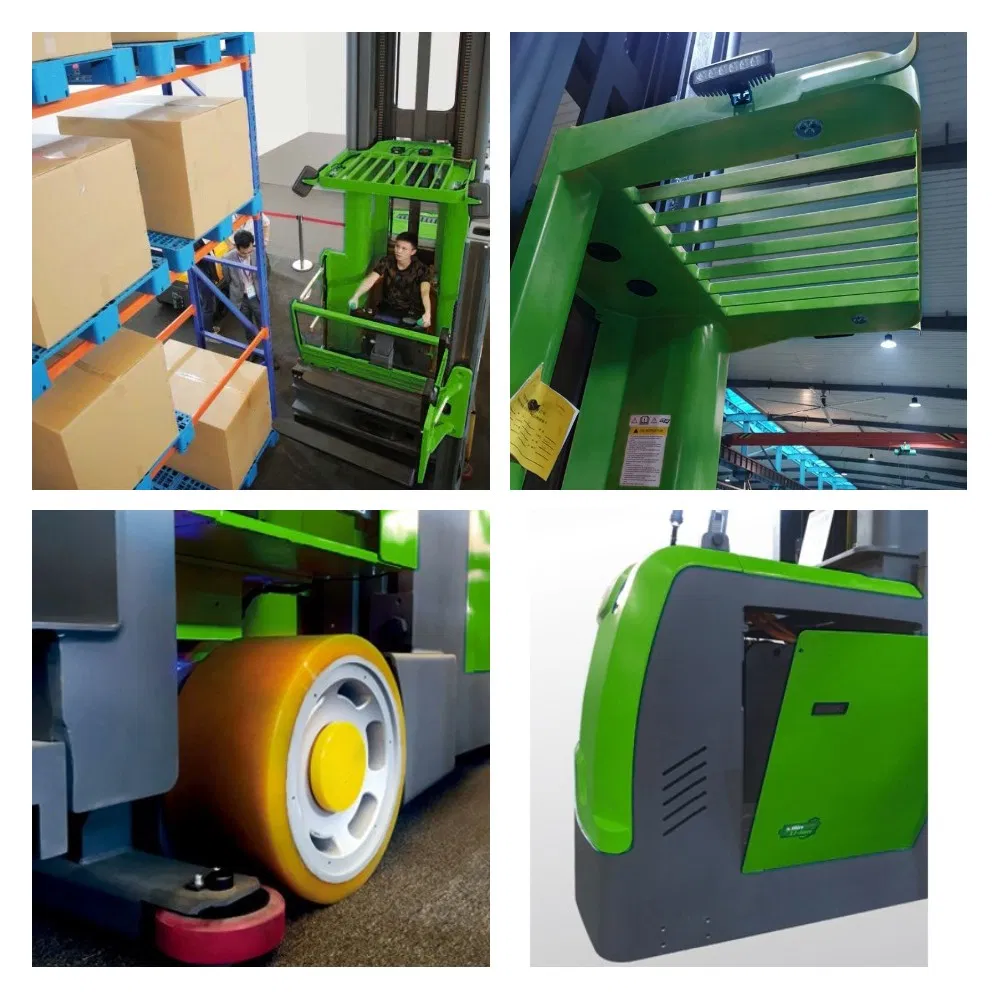

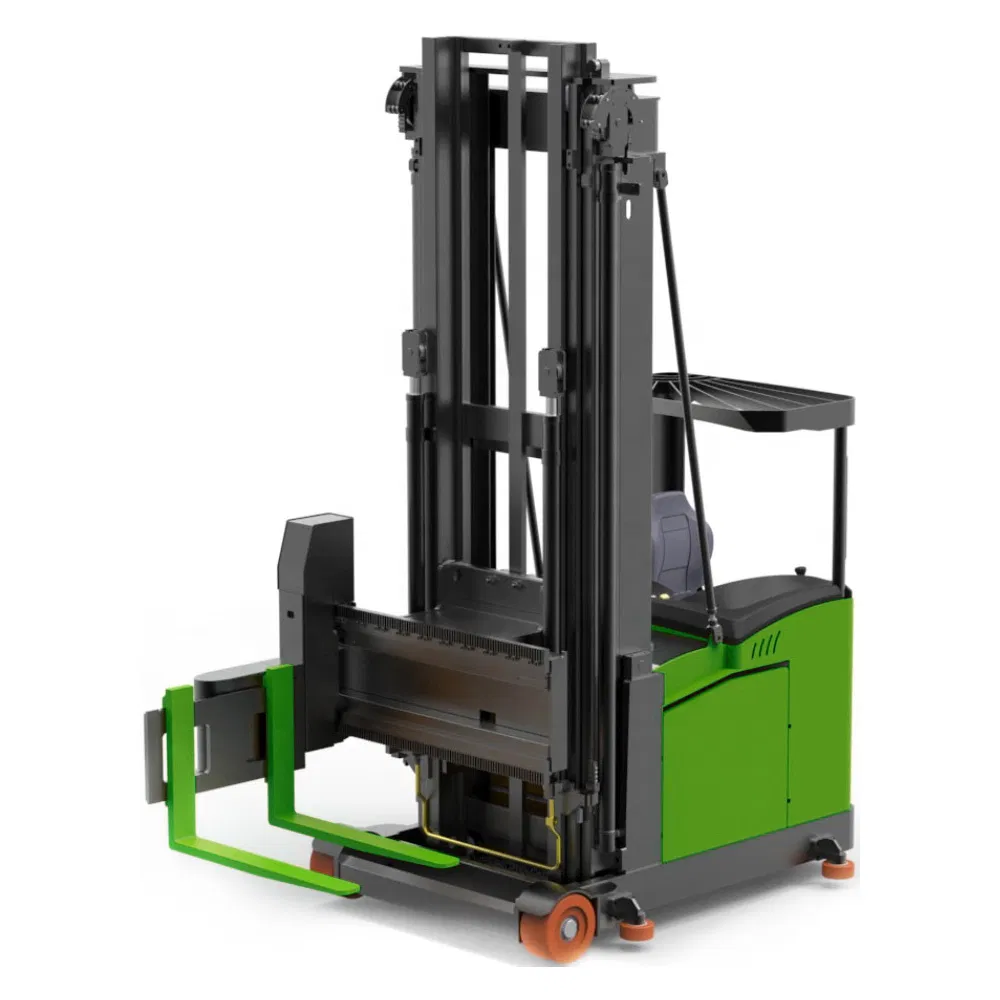

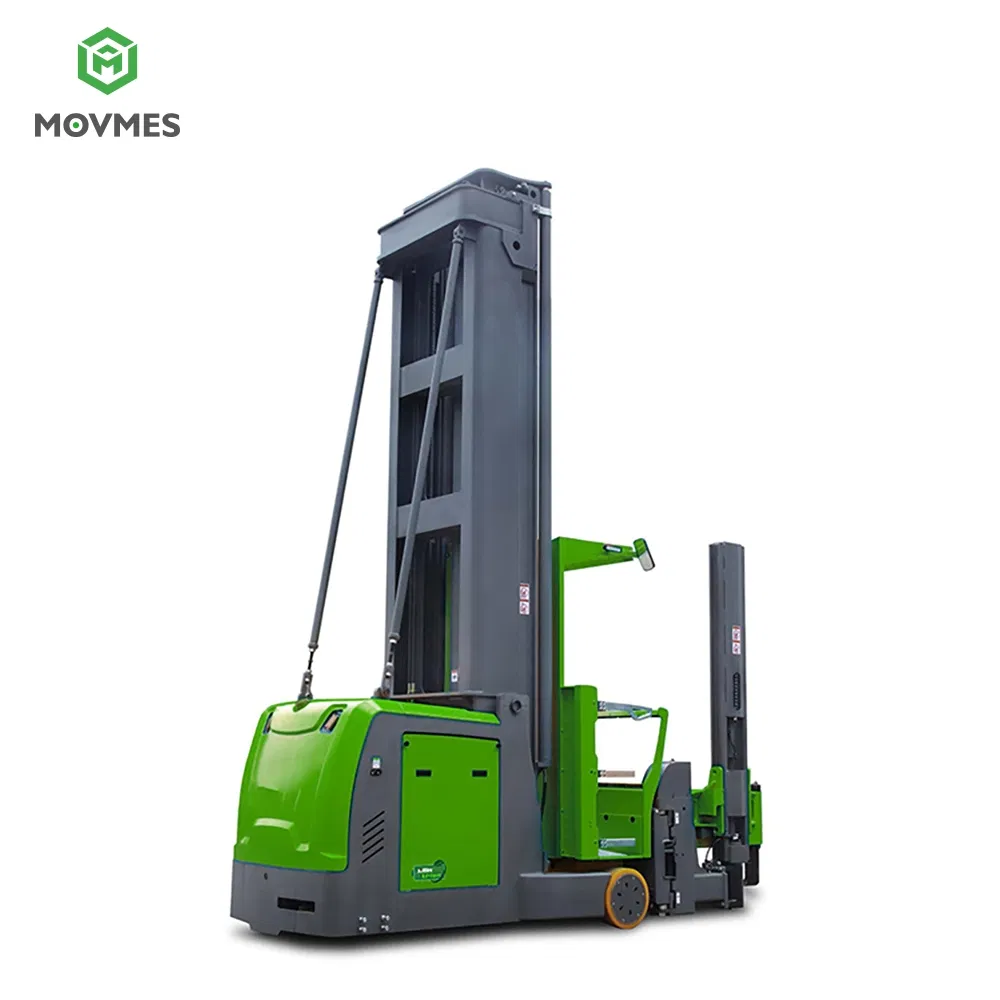

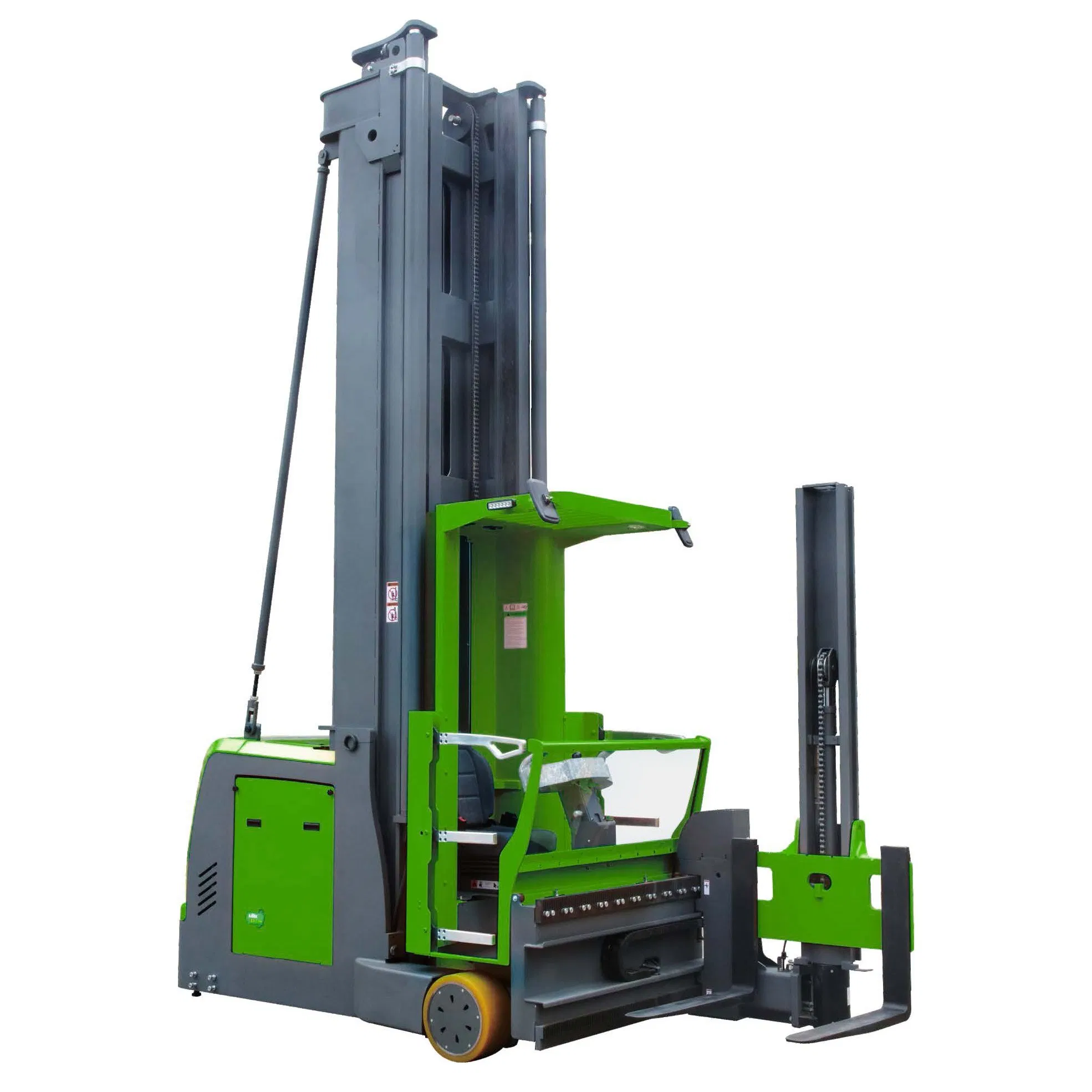

The OPTS15 is a high-performance man-up tri-lateral stacker specifically engineered for ultra-narrow aisle operations, offering a versatile lifting height range of 6m to 15.5m.
Designed with three fulcrums, this equipment maximizes storage density while utilizing an advanced control system for superior performance, intuitive operation, and enhanced warehouse efficiency. It is capable of seamless travel between racks with varying aisle widths, ensuring faster speeds and minimal load capacity loss through its stable mast structure.

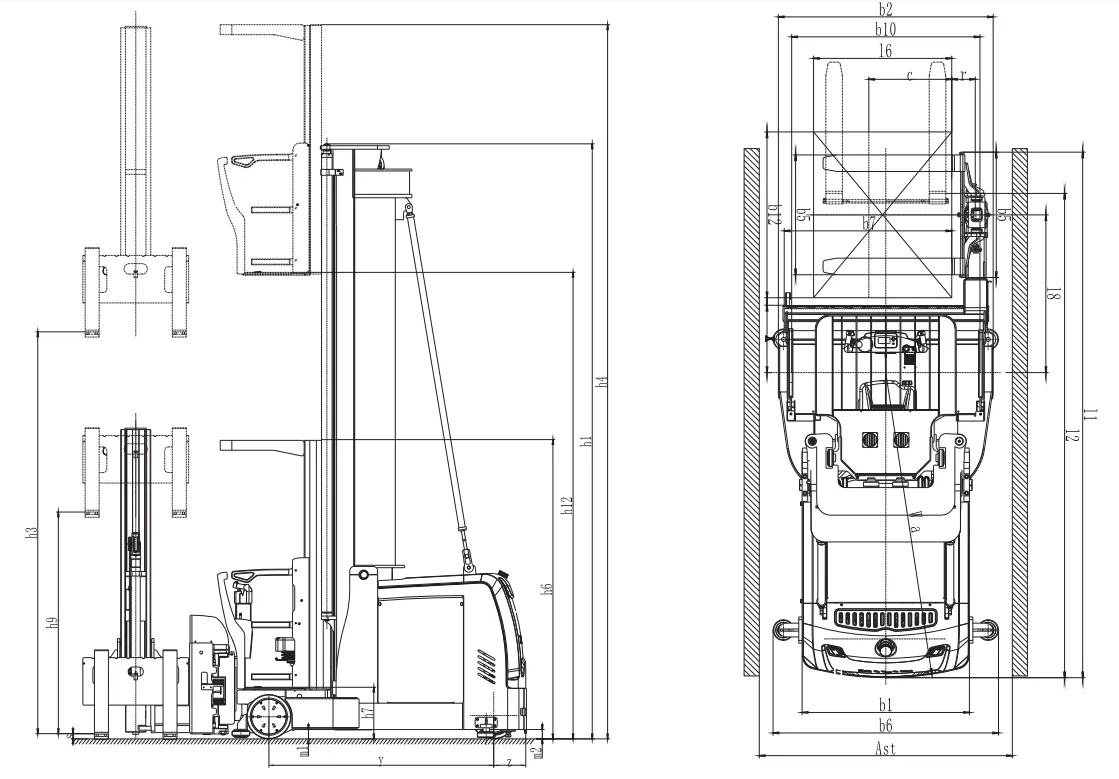

| Description | Unit | OPTS15 (9.2M) | OPTS15 (10M) | OPTS15 (13M) |
|---|---|---|---|---|
| Power Type | - | ELECTRIC | ELECTRIC | ELECTRIC |
| Load Capacity | Q(kg) | 1500 | 1500 | 1500 |
| Load Capacity at Max Height | kg | 950 | 900 | 600 |
| Load Centre Distance | c(mm) | 600 | 600 | 600 |
| Wheelbase | y(mm) | 1928 | 1928 | 2248 |
| Lifting Height | h3(mm) | 7460 | 8260 | 11260 |
| Overall Length | l1(mm) | 3805 | 3805 | 4125 |
| Turning Radius | Wa(mm) | 2220 | 2220 | 2540 |
| Battery Capacity | Ah | 80/560 | 80/560 | 80/560 |
